pET-21d(+)

价格:800元

联系方式:I47-825O-882O

买家导航

pET21d载体基本信息

出品公司: EMD Biosciences(Novagen)
别名: pET21d, pet 21d
质粒类型: 大肠杆菌蛋白表达
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5440bp
5' 测序引物: T7
5' 测序引物序列:   5'-TAATACGACTCACTATAGGG-3'
载体标签: N-T7, C-His
载体抗性: Ampicillin
备注:
Same as pET24a, b, c, d(+) but ampR; a,b,c,d vary by MCS; The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand.
产品目录号:  69743-3
稳定性: 瞬时表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

pET21d载体质粒图谱和多克隆位点信息

pET-21d载体图谱

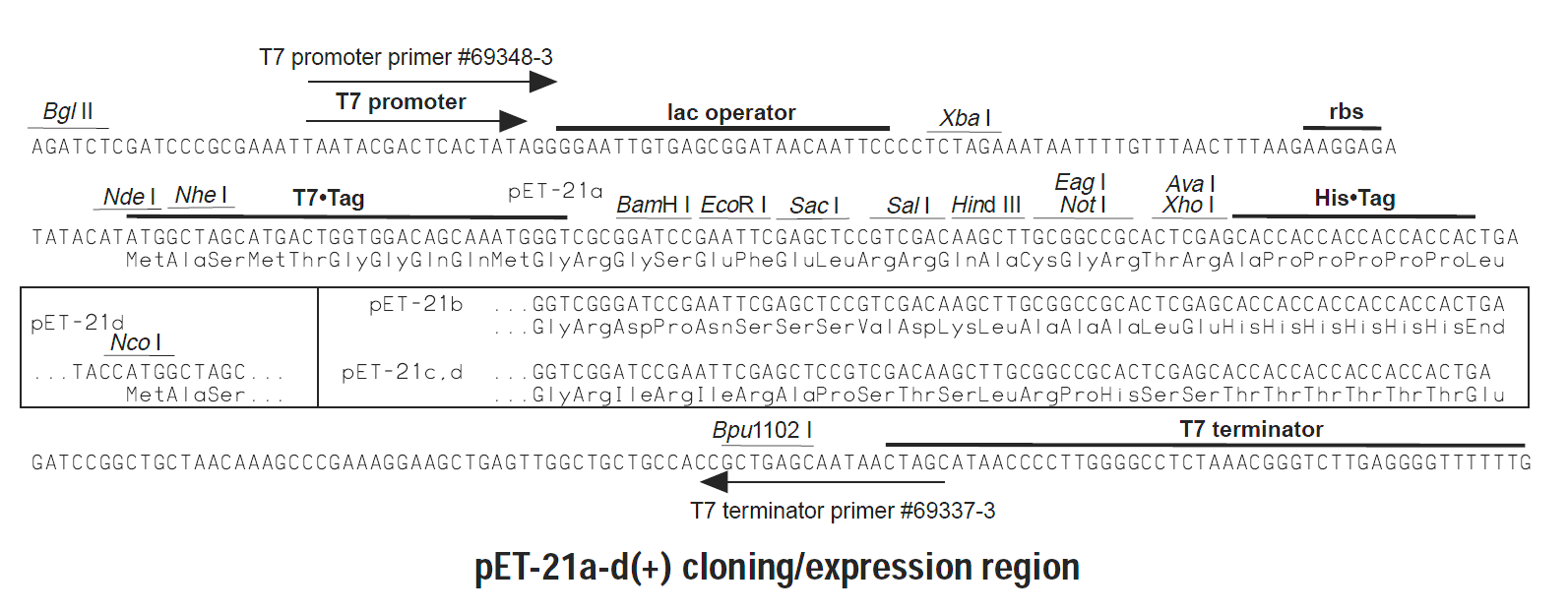

pET-21d多克隆位点

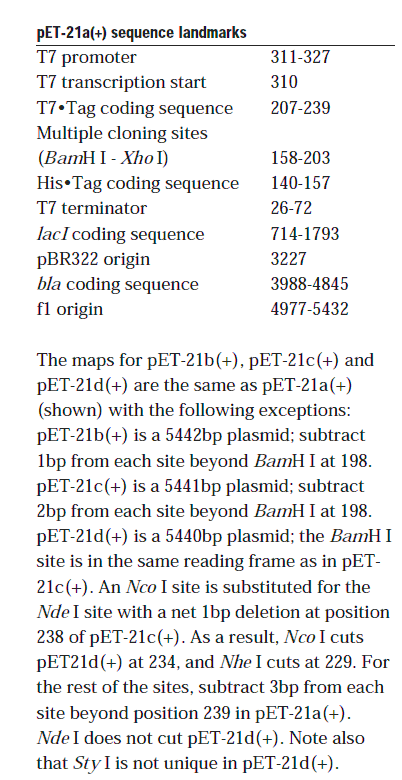

pET-21d载体特征

Feature Name Start End
T7_terminator 129 1
T7_Terminal_primer 69 87
T7_leader 237 205
T7_transl_en_RBS 261 245
lacO 306 279
T7_promoter 324 306
tet (300 - 563) 356 619
pBRrevBam_primer 427 408
lacI 702 1793
tet (576 - 851) 1852 2127
ROP 2602 2793
pGEX_3_primer 2809 2787
pBR322_origin 3827 3208
Ampicillin 4842 3982
AmpR_promoter 4912 4884
ORF Start End
ORF frame 2 461 961
ORF frame 3 834 1793
ORF frame 2 4842 3982
Enzyme Name Cut
XhoI 158
NotI 166
EagI 166
HindIII 173
SalI 179
SacI 190
EcoRI 192
BamHI 198
NheI 229
NcoI 234
XbaI 273
BglII 339
BclI 1075
ApaI 1272
EcoRV 1511
HpaI 1567
PstI 4300

pET21d载体简介

The pET-21a-d(+) vectors carry an N-terminal T7•Tag® sequence plus an optional C-terminal His•Tag® sequence. These vectors differ from pET-24a-d(+) only by their selectable marker (ampicillin vs. kanamycin resistance). Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circular map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand. Therefore, single-stranded sequencing should be performed using the T7 terminator primer.
pET Vectors 选择指南

pET21d载体序列

LOCUS       pET-21 d (+)    5440 bp     DNA  Circular   SYN
DEFINITION  pET-21 d (+)
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank|
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     source          1..5440
                     /organism="pET-21 d (+)"
                     /mol_type="other DNA"
     terminator      complement(1..129)
                     /label="T7_terminator"
     misc_feature    69..87
                     /label="T7_Terminal_primer"
     misc_feature    complement(205..237)
                     /label="T7_leader"
     misc_feature    complement(245..261)
                     /label="T7_transl_en_RBS"
     misc_feature    complement(279..306)
                     /label="lacO"
     promoter        complement(306..324)
                     /label="T7_promoter"
     gene            356..619
                     /label="tet (300 - 563)"
                     /gene="tet (300 - 563)"
     misc_feature    complement(408..427)
                     /label="pBRrevBam_primer"
     CDS             461..961
                     /label="ORF frame 2"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     misc_feature    702..1793
                     /label="lacI"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     CDS             834..1793
                     /label="ORF frame 3"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     gene            1852..2127
                     /label="tet (576 - 851)"
                     /gene="tet (576 - 851)"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     misc_feature    2602..2793
                     /label="ROP"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     misc_feature    complement(2787..2809)
                     /label="pGEX_3_primer"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     rep_origin      complement(3208..3827)
                     /label="pBR322_origin"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     gene            complement(3982..4842)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     CDS             complement(3982..4842)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(4884..4912)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 atccggatat agttcctcct ttcagcaaaa aacccctcaa gacccgttta gaggccccaa
   61 ggggttatgc tagttattgc tcagcggtgg cagcagccaa ctcagcttcc tttcgggctt
  121 tgttagcagc cggatctcag tggtggtggt ggtggtgctc gagtgcggcc gcaagcttgt
  181 cgacggagct cgaattcgga tccgacccat ttgctgtcca ccagtcatgc tagccatggt
  241 atatctcctt cttaaagtta aacaaaatta tttctagagg ggaattgtta tccgctcaca
  301 attcccctat agtgagtcgt attaatttcg cgggatcgag atctcgatcc tctacgccgg
  361 acgcatcgtg gccggcatca ccggcgccac aggtgcggtt gctggcgcct atatcgccga
  421 catcaccgat ggggaagatc gggctcgcca cttcgggctc atgagcgctt gtttcggcgt
  481 gggtatggtg gcaggccccg tggccggggg actgttgggc gccatctcct tgcatgcacc
  541 attccttgcg gcggcggtgc tcaacggcct caacctacta ctgggctgct tcctaatgca
  601 ggagtcgcat aagggagagc gtcgagatcc cggacaccat cgaatggcgc aaaacctttc
  661 gcggtatggc atgatagcgc ccggaagaga gtcaattcag ggtggtgaat gtgaaaccag
  721 taacgttata cgatgtcgca gagtatgccg gtgtctctta tcagaccgtt tcccgcgtgg
  781 tgaaccaggc cagccacgtt tctgcgaaaa cgcgggaaaa agtggaagcg gcgatggcgg
  841 agctgaatta cattcccaac cgcgtggcac aacaactggc gggcaaacag tcgttgctga
  901 ttggcgttgc cacctccagt ctggccctgc acgcgccgtc gcaaattgtc gcggcgatta
  961 aatctcgcgc cgatcaactg ggtgccagcg tggtggtgtc gatggtagaa cgaagcggcg
 1021 tcgaagcctg taaagcggcg gtgcacaatc ttctcgcgca acgcgtcagt gggctgatca
 1081 ttaactatcc gctggatgac caggatgcca ttgctgtgga agctgcctgc actaatgttc
 1141 cggcgttatt tcttgatgtc tctgaccaga cacccatcaa cagtattatt ttctcccatg
 1201 aagacggtac gcgactgggc gtggagcatc tggtcgcatt gggtcaccag caaatcgcgc
 1261 tgttagcggg cccattaagt tctgtctcgg cgcgtctgcg tctggctggc tggcataaat
 1321 atctcactcg caatcaaatt cagccgatag cggaacggga aggcgactgg agtgccatgt
 1381 ccggttttca acaaaccatg caaatgctga atgagggcat cgttcccact gcgatgctgg
 1441 ttgccaacga tcagatggcg ctgggcgcaa tgcgcgccat taccgagtcc gggctgcgcg
 1501 ttggtgcgga tatctcggta gtgggatacg acgataccga agacagctca tgttatatcc
 1561 cgccgttaac caccatcaaa caggattttc gcctgctggg gcaaaccagc gtggaccgct
 1621 tgctgcaact ctctcagggc caggcggtga agggcaatca gctgttgccc gtctcactgg
 1681 tgaaaagaaa aaccaccctg gcgcccaata cgcaaaccgc ctctccccgc gcgttggccg
 1741 attcattaat gcagctggca cgacaggttt cccgactgga aagcgggcag tgagcgcaac
 1801 gcaattaatg taagttagct cactcattag gcaccgggat ctcgaccgat gcccttgaga
 1861 gccttcaacc cagtcagctc cttccggtgg gcgcggggca tgactatcgt cgccgcactt
 1921 atgactgtct tctttatcat gcaactcgta ggacaggtgc cggcagcgct ctgggtcatt
 1981 ttcggcgagg accgctttcg ctggagcgcg acgatgatcg gcctgtcgct tgcggtattc
 2041 ggaatcttgc acgccctcgc tcaagccttc gtcactggtc ccgccaccaa acgtttcggc
 2101 gagaagcagg ccattatcgc cggcatggcg gccccacggg tgcgcatgat cgtgctcctg
 2161 tcgttgagga cccggctagg ctggcggggt tgccttactg gttagcagaa tgaatcaccg
 2221 atacgcgagc gaacgtgaag cgactgctgc tgcaaaacgt ctgcgacctg agcaacaaca
 2281 tgaatggtct tcggtttccg tgtttcgtaa agtctggaaa cgcggaagtc agcgccctgc
 2341 accattatgt tccggatctg catcgcagga tgctgctggc taccctgtgg aacacctaca
 2401 tctgtattaa cgaagcgctg gcattgaccc tgagtgattt ttctctggtc ccgccgcatc
 2461 cataccgcca gttgtttacc ctcacaacgt tccagtaacc gggcatgttc atcatcagta
 2521 acccgtatcg tgagcatcct ctctcgtttc atcggtatca ttacccccat gaacagaaat
 2581 cccccttaca cggaggcatc agtgaccaaa caggaaaaaa ccgcccttaa catggcccgc
 2641 tttatcagaa gccagacatt aacgcttctg gagaaactca acgagctgga cgcggatgaa
 2701 caggcagaca tctgtgaatc gcttcacgac cacgctgatg agctttaccg cagctgcctc
 2761 gcgcgtttcg gtgatgacgg tgaaaacctc tgacacatgc agctcccgga gacggtcaca
 2821 gcttgtctgt aagcggatgc cgggagcaga caagcccgtc agggcgcgtc agcgggtgtt
 2881 ggcgggtgtc ggggcgcagc catgacccag tcacgtagcg atagcggagt gtatactggc
 2941 ttaactatgc ggcatcagag cagattgtac tgagagtgca ccatatatgc ggtgtgaaat
 3001 accgcacaga tgcgtaagga gaaaataccg catcaggcgc tcttccgctt cctcgctcac
 3061 tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt
 3121 aatacggtta tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca
 3181 gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc
 3241 ccctgacgag catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact
 3301 ataaagatac caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct
 3361 gccgcttacc ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag
 3421 ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca
 3481 cgaacccccc gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa
 3541 cccggtaaga cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc
 3601 gaggtatgta ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag
 3661 aaggacagta tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg
 3721 tagctcttga tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca
 3781 gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc
 3841 tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag
 3901 gatcttcacc tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata
 3961 tgagtaaact tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat
 4021 ctgtctattt cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg
 4081 ggagggctta ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc
 4141 tccagattta tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc
 4201 aactttatcc gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc
 4261 gccagttaat agtttgcgca acgttgttgc cattgctgca ggcatcgtgg tgtcacgctc
 4321 gtcgtttggt atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc
 4381 ccccatgttg tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa
 4441 gttggccgca gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat
 4501 gccatccgta agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata
 4561 gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata cgggataata ccgcgccaca
 4621 tagcagaact ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag
 4681 gatcttaccg ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc
 4741 agcatctttt actttcacca gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc
 4801 aaaaaaggga ataagggcga cacggaaatg ttgaatactc atactcttcc tttttcaata
 4861 ttattgaagc atttatcagg gttattgtct catgagcgga tacatatttg aatgtattta
 4921 gaaaaataaa caaatagggg ttccgcgcac atttccccga aaagtgccac ctgaaattgt
 4981 aaacgttaat attttgttaa aattcgcgtt aaatttttgt taaatcagct cattttttaa
 5041 ccaataggcc gaaatcggca aaatccctta taaatcaaaa gaatagaccg agatagggtt
 5101 gagtgttgtt ccagtttgga acaagagtcc actattaaag aacgtggact ccaacgtcaa
 5161 agggcgaaaa accgtctatc agggcgatgg cccactacgt gaaccatcac cctaatcaag
 5221 ttttttgggg tcgaggtgcc gtaaagcact aaatcggaac cctaaaggga gcccccgatt
 5281 tagagcttga cggggaaagc cggcgaacgt ggcgagaaag gaagggaaga aagcgaaagg
 5341 agcgggcgct agggcgctgg caagtgtagc ggtcacgctg cgcgtaacca ccacacccgc
 5401 cgcgcttaat gcgccgctac agggcgcgtc ccattcgcca
//

pET21d载体质粒图谱pdf版和相关资料下载

pET21d载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
