pHBT-GFP-NOS

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: --
载体名称: pHBT-GFP-NOS
质粒类型: 植物细胞绿色荧光表达质粒
高拷贝/低拷贝: --
复制子: PUC
启动子: 35s
载体大小: --
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: 绿色荧光蛋白EGFP
克隆菌株: DH5α 等
宿主细胞(系): --
备注: --
产品目录号: --
稳定性: --
组成型/诱导型: --
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

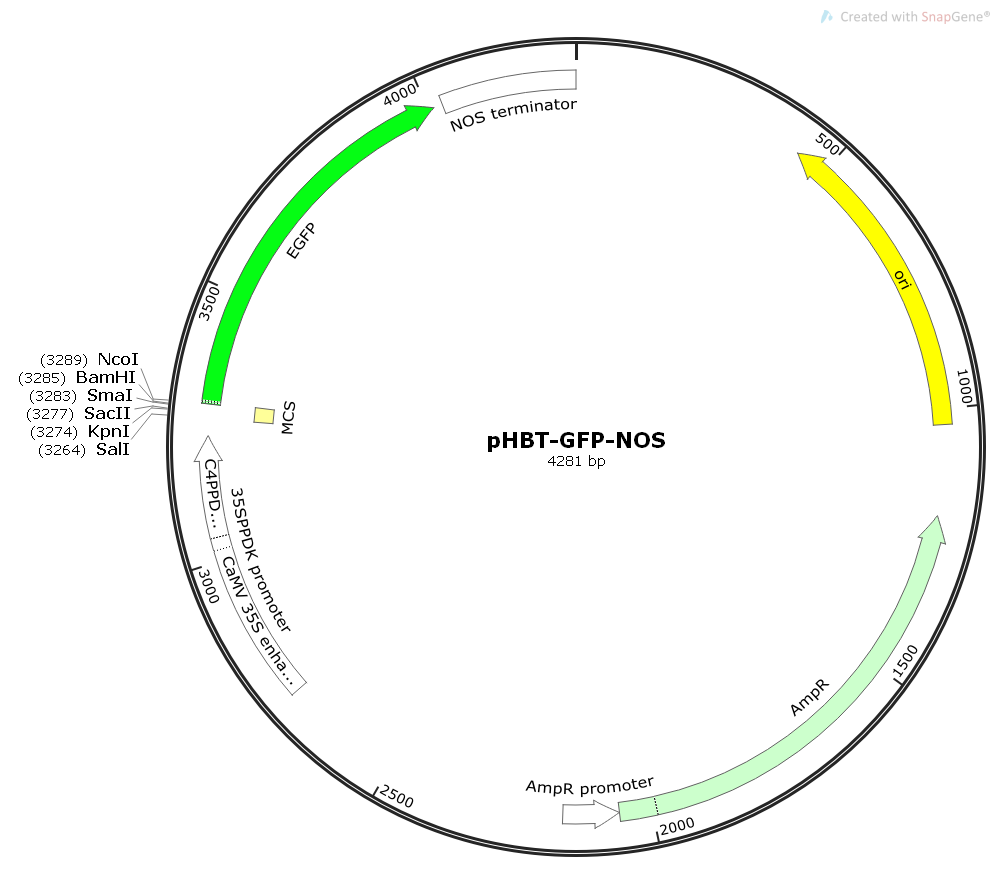

pHBT-GFP-NOS载体图谱

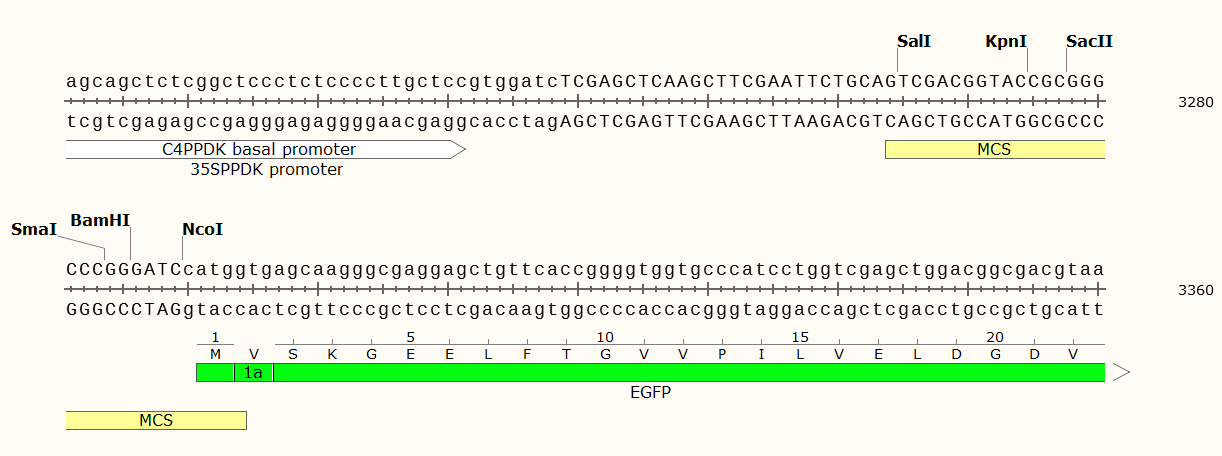

pHBT-GFP-NOS载体图谱1

载体简介

载体序列

LOCUS       pHBT-GFP-NOS                4281 bp ds-DNA     circular SYN 24-MAY-2017
DEFINITION  synthetic circular DNA
FEATURES             Location/Qualifiers
     source          1..4281
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(39..55)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    63..79
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(87..117)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    132..153
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(441..1029)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(1200..2060)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(2061..2165)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     2639..2655
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     promoter        2722..3231
                     /label=35SPPDK promoter
                     /note="hybrid promoter consisting of the cauliflower mosaic
                     virus 35S enhancer fused to the maize C4PPDK basal promoter
                     (Yoo et al., 2007)"
     misc_feature    3238..3290
                     /label=MCS
                     /note="multiple cloning site"
     misc_feature    3264..3294
                     /label=MCS
     CDS             3291..4010
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTFTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITHGMDELYK"
     terminator      4029..4281
                     /label=NOS terminator
                     /note="nopaline synthase terminator and poly(A) signal"
ORIGIN
        1 cgatgataag ctgtcaaaca tgagaattcg taatcatggt catagctgtt tcctgtgtga
       61 aattgttatc cgctcacaat tccacacaac atacgagccg gaagcataaa gtgtaaagcc
      121 tggggtgcct aatgagtgag ctaactcaca ttaattgcgt tgcgctcact gcccgctttc
      181 cagtcgggaa acctgtcgtg ccagctgcat taatgaatcg gccaacgcgc ggggagaggc
      241 ggtttgcgta ttgggcgctc ttccgcttcc tcgctcactg actcgctgcg ctcggtcgtt
      301 cggctgcggc gagcggtatc agctcactca aaggcggtaa tacggttatc cacagaatca
      361 ggggataacg caggaaagaa catgtgagca aaaggccagc aaaaggccag gaaccgtaaa
      421 aaggccgcgt tgctggcgtt tttccatagg ctccgccccc ctgacgagca tcacaaaaat
      481 cgacgctcaa gtcagaggtg gcgaaacccg acaggactat aaagatacca ggcgtttccc
      541 cctggaagct ccctcgtgcg ctctcctgtt ccgaccctgc cgcttaccgg atacctgtcc
      601 gcctttctcc cttcgggaag cgtggcgctt tctcatagct cacgctgtag gtatctcagt
      661 tcggtgtagg tcgttcgctc caagctgggc tgtgtgcacg aaccccccgt tcagcccgac
      721 cgctgcgcct tatccggtaa ctatcgtctt gagtccaacc cggtaagaca cgacttatcg
      781 ccactggcag cagccactgg taacaggatt agcagagcga ggtatgtagg cggtgctaca
      841 gagttcttga agtggtggcc taactacggc tacactagaa ggacagtatt tggtatctgc
      901 gctctgctga agccagttac cttcggaaaa agagttggta gctcttgatc cggcaaacaa
      961 accaccgctg gtagcggtgg tttttttgtt tgcaagcagc agattacgcg cagaaaaaaa
     1021 ggatctcaag aagatccttt gatcttttct acggggtctg acgctcagtg gaacgaaaac
     1081 tcacgttaag ggattttggt catgagatta tcaaaaagga tcttcaccta gatcctttta
     1141 aattaaaaat gaagttttaa atcaatctaa agtatatatg agtaaacttg gtctgacagt
     1201 taccaatgct taatcagtga ggcacctatc tcagcgatct gtctatttcg ttcatccata
     1261 gttgcctgac tccccgtcgt gtagataact acgatacggg agggcttacc atctggcccc
     1321 agtgctgcaa tgataccgcg agacccacgc tcaccggctc cagatttatc agcaataaac
     1381 cagccagccg gaagggccga gcgcagaagt ggtcctgcaa ctttatccgc ctccatccag
     1441 tctattaatt gttgccggga agctagagta agtagttcgc cagttaatag tttgcgcaac
     1501 gttgttgcca ttgctacagg catcgtggtg tcacgctcgt cgtttggtat ggcttcattc
     1561 agctccggtt cccaacgatc aaggcgagtt acatgatccc ccatgttgtg caaaaaagcg
     1621 gttagctcct tcggtcctcc gatcgttgtc agaagtaagt tggccgcagt gttatcactc
     1681 atggttatgg cagcactgca taattctctt actgtcatgc catccgtaag atgcttttct
     1741 gtgactggtg agtactcaac caagtcattc tgagaatagt gtatgcggcg accgagttgc
     1801 tcttgcccgg cgtcaatacg ggataatacc gcgccacata gcagaacttt aaaagtgctc
     1861 atcattggaa aacgttcttc ggggcgaaaa ctctcaagga tcttaccgct gttgagatcc
     1921 agttcgatgt aacccactcg tgcacccaac tgatcttcag catcttttac tttcaccagc
     1981 gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa aaaagggaat aagggcgaca
     2041 cggaaatgtt gaatactcat actcttcctt tttcaatatt attgaagcat ttatcagggt
     2101 tattgtctca tgagcggata catatttgaa tgtatttaga aaaataaaca aataggggtt
     2161 ccgcgcacat ttccccgaaa agtgccacct gacgtctaag aaaccattat tatcatgaca
     2221 ttaacctata aaaataggcg tatcacgagg ccctttcgtc tcgcgcgttt cggtgatgac
     2281 ggtgaaaacc tctgacacat gcagctcccg gagacggtca cagcttgtct gtaagcggat
     2341 gccgggagca gacaagcccg tcagggcgcg tcagcgggtg ttggcgggtg tcggggctgg
     2401 cttaactatg cggcatcaga gcagattgta ctgagagtgc accatatgcg gtgtgaaata
     2461 ccgcacagat gcgtaaggag aaaataccgc atcaggcgcc attcgccatt caggctgcgc
     2521 aactgttggg aagggcgatc ggtgcgggcc tcttcgctat tacgccagct ggcgaaaggg
     2581 ggatgtgctg caaggcgatt aagttgggta acgccagggt tttcccagtc acgacgttgt
     2641 aaaacgacgg ccagtgccaa gctctcgaga agcttactcc aagaatatca aagatacagt
     2701 ctcagaagac caaagggcta ttgagacttt tcaacaaagg gtaatatcgg gaaacctcct
     2761 cggattccat tgcccagcta tctgtcactt catcaaaagg acagtagaaa aggaaggtgg
     2821 cacctacaaa tgccatcatt gcgataaagg aaaggctatc gttcaagatg cctctgccga
     2881 cagtggtccc aaagatggac ccccacccac aaggagcatc gtggaaaaag aagacgttcc
     2941 aaccacgtct tcaaagcaag tggattgatg tgatatctcc actgacgtaa gggatgacgc
     3001 acaatcccac tatccttcgc cccaagcttg ggcccaagct tgggtcgcgc cccacggatg
     3061 gtataagaat aaaggcattc cgcgtgcagg attcacccgt tcgcctctca ccttttcgct
     3121 gtactctctc gccacacaca ccccctctcc agctccgttg gagctccgga cagcagcagg
     3181 cgcggggcgg tcacgtagta agcagctctc ggctccctct ccccttgctc cgtggatctc
     3241 gagctcaagc ttcgaattct gcagtcgacg gtaccgcggg cccgggatcc atggtgagca
     3301 agggcgagga gctgttcacc ggggtggtgc ccatcctggt cgagctggac ggcgacgtaa
     3361 acggccacaa gttcagcgtg tccggcgagg gcgagggcga tgccacctac ggcaagctga
     3421 ccctgaagtt catctgcacc accggcaagc tgcccgtgcc ctggcccacc ctcgtgacca
     3481 ccttcaccta cggcgtgcag tgcttcagcc gctaccccga ccacatgaag cagcacgact
     3541 tcttcaagtc cgccatgccc gaaggctacg tccaggagcg caccatcttc ttcaaggacg
     3601 acggcaacta caagacccgc gccgaggtga agttcgaggg cgacaccctg gtgaaccgca
     3661 tcgagctgaa gggcatcgac ttcaaggagg acggcaacat cctggggcac aagctggagt
     3721 acaactacaa cagccacaac gtctatatca tggccgacaa gcagaagaac ggcatcaagg
     3781 tgaacttcaa gatccgccac aacatcgagg acggcagcgt gcagctcgcc gaccactacc
     3841 agcagaacac ccccatcggc gacggccccg tgctgctgcc cgacaaccac tacctgagca
     3901 cccagtccgc cctgagcaaa gaccccaacg agaagcgcga tcacatggtc ctgctggagt
     3961 tcgtgaccgc cgccgggatc actcacggca tggacgagct gtacaagtaa agcggccgcc
     4021 cggctgcaga tcgttcaaac atttggcaat aaagtttctt aagattgaat cctgttgccg
     4081 gtcttgcgat gattatcata tatatttctg ttgattacgt taagcatgta ataattaaca
     4141 tgtaatgcat gacgttattt atgagatggg tttttatgat tagagtcccg caattataca
     4201 tttaatacgc gatagaaaac aaaatatagc gcgcaaacta ggataaatta tcgcgcgcgg
     4261 tgtcatctat gttactagat c
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
