pET-22b(+)

价格:800元

联系方式:I47-825O-882O

买家导航

pet22b载体基本信息

出品公司: EMD Biosciences(Novagen)
别名: pET22b, pet 22b, pET-22b(+)
质粒类型: 大肠杆菌蛋白表达
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5500bp
5' 测序引物及序列: T7: 5'-TAATACGACTCACTATAGGG-3'
3' 测序引物序列:   T7t: 5'-GCTAGTTATTGCTCAGCGG-3'
载体标签: N-pelB; C-His
载体抗性: 氨苄
备注:
pET22b载体含有PelB信号肽序列, 能够将表达的目的蛋白定位在细胞外周质腔。
产品目录号: 69744-3
稳定性: 瞬时表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

pet22b载体质粒图谱和多克隆位点信息

pET-22b载体图谱



pET-22b多克隆位点

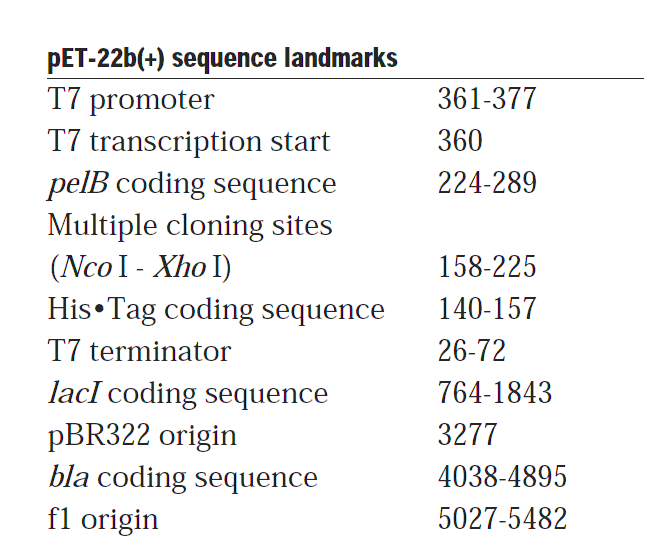

pET-22b载体特征

pet22b载体简介

pET-22b(+)载体(货号:69744-3)携带有一个N端的pelB信号肽序列,能够将表达的目的蛋白定位于外周质腔,同时载体含有C端His标签。载体的单一的多克隆位点见上面的环状质粒图谱。注意:载体序列是以pBR322质粒的编码规矩进行编码的,所以T7蛋白表达区在质粒图谱上面是反向的。
T7 RNA聚合酶启动的克隆和表达区域在质粒图谱中也被标注了出来。质粒的F1复制子是被定向的,所以在T7噬菌体聚合酶的作用下,包含有蛋白编码序列的病毒 粒子能够产生,并启动蛋白表达,同时蛋白表达将被T7终止子序列(Cat. No. 69337-3)的作用下终止蛋白翻译。
pET Vectors 选择指南

pet22b载体序列

LOCUS       pET-22b(+)              5493 bp    DNA     circular     11-SEP-2008
SOURCE
  ORGANISM
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     LSOWNER|
COMMENT     VNTNAME|pET-22b(+)|
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     promoter        complement(361..377)
                     /vntifkey="30"
                     /label=T7\promoter
     misc_signal     complement(224..289)
                     /vntifkey="87"
                     /label=pelB\sequence
     protein_bind    complement(140..157)
                     /vntifkey="31"
                     /label=His\tag
     terminator      complement(26..72)
                     /vntifkey="43"
                     /label=T7\terminator
     CDS             764..1843
                     /vntifkey="4"
                     /label=lac\I
     rep_origin      complement(3277..3277)
                     /vntifkey="33"
                     /label=ColE1\pBR322\origin
     CDS             complement(4038..4895)
                     /vntifkey="4"
                     /label=bla\(Ap)\sequence
     rep_origin      complement(5027..5482)
                     /vntifkey="33"
                     /label=f1\origin
     CDS             complement(334..358)
                     /vntifkey="4"
                     /label=lac\operator
BASE COUNT     1302 a      1456 c      1461 g      1274 t
ORIGIN
        1 atccggatat agttcctcct ttcagcaaaa aacccctcaa gacccgttta gaggccccaa
       61 ggggttatgc tagttattgc tcagcggtgg cagcagccaa ctcagcttcc tttcgggctt
      121 tgttagcagc cggatctcag tggtggtggt ggtggtgctc gagtgcggcc gcaagcttgt
      181 cgacggagct cgaattcgga tccgaattaa ttccgatatc catggccatc gccggctggg
      241 cagcgaggag cagcagacca gcagcagcgg tcggcagcag gtatttcata tgtatatctc
      301 cttcttaaag ttaaacaaaa ttatttctag aggggaattg ttatccgctc acaattcccc
      361 tatagtgagt cgtattaatt tcgcgggatc gagatctcga tcctctacgc cggacgcatc
      421 gtggccggca tcaccggcgc cacaggtgcg gttgctggcg cctatatcgc cgacatcacc
      481 gatggggaag atcgggctcg ccacttcggg ctcatgagcg cttgtttcgg cgtgggtatg
      541 gtggcaggcc ccgtggccgg gggactgttg ggcgccatct ccttgcatgc accattcctt
      601 gcggcggcgg tgctcaacgg cctcaaccta ctactgggct gcttcctaat gcaggagtcg
      661 cataagggag agcgtcgaga tcccggacac catcgaatgg cgcaaaacct ttcgcggtat
      721 ggcatgatag cgcccggaag agagtcaatt cagggtggtg aatgtgaaac cagtaacgtt
      781 atacgatgtc gcagagtatg ccggtgtctc ttatcagacc gtttcccgcg tggtgaacca
      841 ggccagccac gtttctgcga aaacgcggga aaaagtggaa gcggcgatgg cggagctgaa
      901 ttacattccc aaccgcgtgg cacaacaact ggcgggcaaa cagtcgttgc tgattggcgt
      961 tgccacctcc agtctggccc tgcacgcgcc gtcgcaaatt gtcgcggcga ttaaatctcg
     1021 cgccgatcaa ctgggtgcca gcgtggtggt gtcgatggta gaacgaagcg gcgtcgaagc
     1081 ctgtaaagcg gcggtgcaca atcttctcgc gcaacgcgtc agtgggctga tcattaacta
     1141 tccgctggat gaccaggatg ccattgctgt ggaagctgcc tgcactaatg ttccggcgtt
     1201 atttcttgat gtctctgacc agacacccat caacagtatt attttctccc atgaagacgg
     1261 tacgcgactg ggcgtggagc atctggtcgc attgggtcac cagcaaatcg cgctgttagc
     1321 gggcccatta agttctgtct cggcgcgtct gcgtctggct ggctggcata aatatctcac
     1381 tcgcaatcaa attcagccga tagcggaacg ggaaggcgac tggagtgcca tgtccggttt
     1441 tcaacaaacc atgcaaatgc tgaatgaggg catcgttccc actgcgatgc tggttgccaa
     1501 cgatcagatg gcgctgggcg caatgcgcgc cattaccgag tccgggctgc gcgttggtgc
     1561 ggatatctcg gtagtgggat acgacgatac cgaagacagc tcatgttata tcccgccgtt
     1621 aaccaccatc aaacaggatt ttcgcctgct ggggcaaacc agcgtggacc gcttgctgca
     1681 actctctcag ggccaggcgg tgaagggcaa tcagctgttg cccgtctcac tggtgaaaag
     1741 aaaaaccacc ctggcgccca atacgcaaac cgcctctccc cgcgcgttgg ccgattcatt
     1801 aatgcagctg gcacgacagg tttcccgact ggaaagcggg cagtgagcgc aacgcaatta
     1861 atgtaagtta gctcactcat taggcaccgg gatctcgacc gatgcccttg agagccttca
     1921 acccagtcag ctccttccgg tgggcgcggg gcatgactat cgtcgccgca cttatgactg
     1981 tcttctttat catgcaactc gtaggacagg tgccggcagc gctctgggtc attttcggcg
     2041 aggaccgctt tcgctggagc gcgacgatga tcggcctgtc gcttgcggta ttcggaatct
     2101 tgcacgccct cgctcaagcc ttcgtcactg gtcccgccac caaacgtttc ggcgagaagc
     2161 aggccattat cgccggcatg gcggccccac gggtgcgcat gatcgtgctc ctgtcgttga
     2221 ggacccggct aggctggcgg ggttgcctta ctggttagca gaatgaatca ccgatacgcg
     2281 agcgaacgtg aagcgactgc tgctgcaaaa cgtctgcgac ctgagcaaca acatgaatgg
     2341 tcttcggttt ccgtgtttcg taaagtctgg aaacgcggaa gtcagcgccc tgcaccatta
     2401 tgttccggat ctgcatcgca ggatgctgct ggctaccctg tggaacacct acatctgtat
     2461 taacgaagcg ctggcattga ccctgagtga tttttctctg gtcccgccgc atccataccg
     2521 ccagttgttt accctcacaa cgttccagta accgggcatg ttcatcatca gtaacccgta
     2581 tcgtgagcat cctctctcgt ttcatcggta tcattacccc catgaacaga aatccccctt
     2641 acacggaggc atcagtgacc aaacaggaaa aaaccgccct taacatggcc cgctttatca
     2701 gaagccagac attaacgctt ctggagaaac tcaacgagct ggacgcggat gaacaggcag
     2761 acatctgtga atcgcttcac gaccacgctg atgagcttta ccgcagctgc ctcgcgcgtt
     2821 tcggtgatga cggtgaaaac ctctgacaca tgcagctccc ggagacggtc acagcttgtc
     2881 tgtaagcgga tgccgggagc agacaagccc gtcagggcgc gtcagcgggt gttggcgggt
     2941 gtcggggcgc agccatgacc cagtcacgta gcgatagcgg agtgtatact ggcttaacta
     3001 tgcggcatca gagcagattg tactgagagt gcaccatata tgcggtgtga aataccgcac
     3061 agatgcgtaa ggagaaaata ccgcatcagg cgctcttccg cttcctcgct cactgactcg
     3121 ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc actcaaaggc ggtaatacgg
     3181 ttatccacag aatcagggga taacgcagga aagaacatgt gagcaaaagg ccagcaaaag
     3241 gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg cccccctgac
     3301 gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg actataaaga
     3361 taccaggcgt ttccccctgg aagctccctc gtgcgctctc ctgttccgac cctgccgctt
     3421 accggatacc tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca tagctcacgc
     3481 tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc
     3541 cccgttcagc ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc caacccggta
     3601 agacacgact tatcgccact ggcagcagcc actggtaaca ggattagcag agcgaggtat
     3661 gtaggcggtg ctacagagtt cttgaagtgg tggcctaact acggctacac tagaaggaca
     3721 gtatttggta tctgcgctct gctgaagcca gttaccttcg gaaaaagagt tggtagctct
     3781 tgatccggca aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa gcagcagatt
     3841 acgcgcagaa aaaaaggatc tcaagaagat cctttgatct tttctacggg gtctgacgct
     3901 cagtggaacg aaaactcacg ttaagggatt ttggtcatga gattatcaaa aaggatcttc
     3961 acctagatcc ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa
     4021 acttggtctg acagttacca atgcttaatc agtgaggcac ctatctcagc gatctgtcta
     4081 tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga taactacgat acgggagggc
     4141 ttaccatctg gccccagtgc tgcaatgata ccgcgagacc cacgctcacc ggctccagat
     4201 ttatcagcaa taaaccagcc agccggaagg gccgagcgca gaagtggtcc tgcaacttta
     4261 tccgcctcca tccagtctat taattgttgc cgggaagcta gagtaagtag ttcgccagtt
     4321 aatagtttgc gcaacgttgt tgccattgct gcaggcatcg tggtgtcacg ctcgtcgttt
     4381 ggtatggctt cattcagctc cggttcccaa cgatcaaggc gagttacatg atcccccatg
     4441 ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg ttgtcagaag taagttggcc
     4501 gcagtgttat cactcatggt tatggcagca ctgcataatt ctcttactgt catgccatcc
     4561 gtaagatgct tttctgtgac tggtgagtac tcaaccaagt cattctgaga atagtgtatg
     4621 cggcgaccga gttgctcttg cccggcgtca atacgggata ataccgcgcc acatagcaga
     4681 actttaaaag tgctcatcat tggaaaacgt tcttcggggc gaaaactctc aaggatctta
     4741 ccgctgttga gatccagttc gatgtaaccc actcgtgcac ccaactgatc ttcagcatct
     4801 tttactttca ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag
     4861 ggaataaggg cgacacggaa atgttgaata ctcatactct tcctttttca atattattga
     4921 agcatttatc agggttattg tctcatgagc ggatacatat ttgaatgtat ttagaaaaat
     4981 aaacaaatag gggttccgcg cacatttccc cgaaaagtgc cacctgaaat tgtaaacgtt
     5041 aatattttgt taaaattcgc gttaaatttt tgttaaatca gctcattttt taaccaatag
     5101 gccgaaatcg gcaaaatccc ttataaatca aaagaataga ccgagatagg gttgagtgtt
     5161 gttccagttt ggaacaagag tccactatta aagaacgtgg actccaacgt caaagggcga
     5221 aaaaccgtct atcagggcga tggcccacta cgtgaaccat caccctaatc aagttttttg
     5281 gggtcgaggt gccgtaaagc actaaatcgg aaccctaaag ggagcccccg atttagagct
     5341 tgacggggaa agccggcgaa cgtggcgaga aaggaaggga agaaagcgaa aggagcgggc
     5401 gctagggcgc tggcaagtgt agcggtcacg ctgcgcgtaa ccaccacacc cgccgcgctt
     5461 aatgcgccgc tacagggcgc gtcccattcg cca
//

pet22b载体质粒图谱pdf版和相关资料下载

pet22b载体应用举例
