pET-33b(+)

价格:800元

联系方式:I47-825O-882O

买家导航

pET33b载体基本信息

出品公司: EMD Biosciences(Novagen)
别名: pET33b, pET 33b
质粒类型: 大肠杆菌蛋白表达
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5383 bp
5' 测序引物: T7
5' 测序引物序列:   T7: 5'-TAATACGACTCACTATAGGG-3'
载体标签: His (中间和C端), N-Thrombin
载体抗性: Kanamycin
备注:
Production of target proteins suitable for site-specific 32P-labeling; Nterm thrombin cleavage site; Nterm enterokinase cleavage site
产品目录号: 69054-3
稳定性: 瞬时表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

pET33b载体质粒图谱和多克隆位点信息

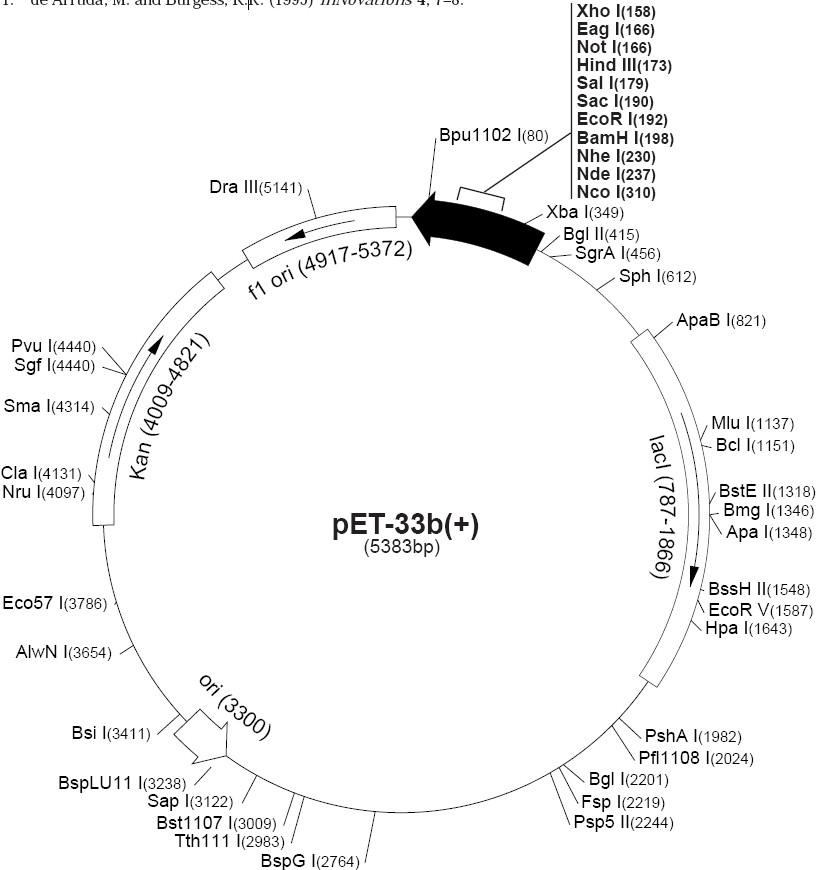

pet33b载体图谱

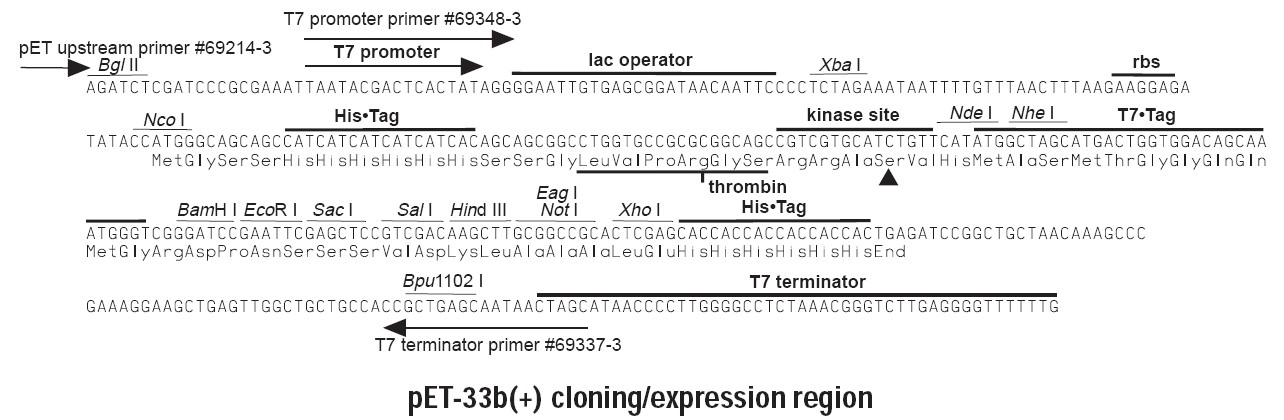

pet33b多克隆位点

Feature Name Start End
T7_terminator 129 1
T7_Terminal_primer 69 87
T7_leader 238 206
Xpress_fwd_primer 239 221
T7_transl_en_RBS 337 321
lacO 382 355
T7_promoter 400 382
tet (300 - 563) 432 695
pBRrevBam_primer 503 484
lacI 778 1869
tet (576 - 851) 1928 2203
ROP 2678 2869
pGEX_3_primer 2885 2863
pBR322_origin 3903 3284
KanR2 4009 4824
ORF Start End
ORF frame 3 537 1037
ORF frame 1 910 1869
ORF frame 1 4009 4824
Enzyme Name Cut
XhoI 158
NotI 166
EagI 166
HindIII 173
SalI 179
SacI 190
EcoRI 192
BamHI 198
NheI 230
NdeI 237
NcoI 310
XbaI 349
BglII 415
BclI 1151
ApaI 1348
EcoRV 1587
HpaI 1643
FspI 2219
NruI 4097
ClaI 4131
XmaI 4312
SmaI 4314

pET33b载体简介

The pET-33b(+) vector (Cat. No. 69054-3) is derived from pET-28b(+) and carries a 15bp sequence encoding the protein kinase A (PKA) site RRASV, located between the thrombin cleavage and Nde I sites (1). Proteins expressed in pET-33b(+) can be easily purified by metal chelation chromatography (via either N- or C-terminal His•Tag® sequences) and efficiently labeled with 32P- or 33P-gATP and the catalytic subunit of cAMP-dependent protein kinase from heart muscle. Labeled proteins can be used as direct probes in protein-protein interaction studies. Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circle map. The cloning/ expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand. Therefore, single-stranded sequencing should be performed using the T7 terminator primer (Cat. No. 69337-3).

pET33b载体序列

LOCUS       pET-33b(+)    5383 bp     DNA  Circular   SYN
DEFINITION  pET-33b(+)
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     source          1..5383
                     /organism="pET-33b(+)"
                     /mol_type="other DNA"
     terminator      complement(1..129)
                     /label="T7_terminator"
     misc_feature    69..87
                     /label="T7_Terminal_primer"
     misc_feature    complement(206..238)
                     /label="T7_leader"
     misc_feature    complement(221..239)
                     /label="Xpress_fwd_primer"
     misc_feature    complement(321..337)
                     /label="T7_transl_en_RBS"
     misc_feature    complement(355..382)
                     /label="lacO"
     promoter        complement(382..400)
                     /label="T7_promoter"
     gene            432..695
                     /label="tet (300 - 563)"
                     /gene="tet (300 - 563)"
     misc_feature    complement(484..503)
                     /label="pBRrevBam_primer"
     CDS             537..1037
                     /label="ORF frame 3"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     misc_feature    778..1869
                     /label="lacI"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     CDS             910..1869
                     /label="ORF frame 1"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     gene            1928..2203
                     /label="tet (576 - 851)"
                     /gene="tet (576 - 851)"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     misc_feature    2678..2869
                     /label="ROP"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     misc_feature    complement(2863..2885)
                     /label="pGEX_3_primer"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     rep_origin      complement(3284..3903)
                     /label="pBR322_origin"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     gene            4009..4824
                     /label="KanR2"
                     /gene="KanR2"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     CDS             4009..4824
                     /label="ORF frame 1"
                     /translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLY
                     GKPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIP
                     GKTAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGL
                     VDASDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVG
                     RVGIADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF*"
ORIGIN
    1 atccggatat agttcctcct ttcagcaaaa aacccctcaa gacccgttta gaggccccaa
   61 ggggttatgc tagttattgc tcagcggtgg cagcagccaa ctcagcttcc tttcgggctt
  121 tgttagcagc cggatctcag tggtggtggt ggtggtgctc gagtgcggcc gcaagcttgt
  181 cgacggagct cgaattcgga tcccgaccca tttgctgtcc accagtcatg ctagccatat
  241 gaacagatgc acgacggctg ccgcgcggca ccaggccgct gctgtgatga tgatgatgat
  301 ggctgctgcc catggtatat ctccttctta aagttaaaca aaattatttc tagaggggaa
  361 ttgttatccg ctcacaattc ccctatagtg agtcgtatta atttcgcggg atcgagatct
  421 cgatcctcta cgccggacgc atcgtggccg gcatcaccgg cgccacaggt gcggttgctg
  481 gcgcctatat cgccgacatc accgatgggg aagatcgggc tcgccacttc gggctcatga
  541 gcgcttgttt cggcgtgggt atggtggcag gccccgtggc cgggggactg ttgggcgcca
  601 tctccttgca tgcaccattc cttgcggcgg cggtgctcaa cggcctcaac ctactactgg
  661 gctgcttcct aatgcaggag tcgcataagg gagagcgtcg agatcccgga caccatcgaa
  721 tggcgcaaaa cctttcgcgg tatggcatga tagcgcccgg aagagagtca attcagggtg
  781 gtgaatgtga aaccagtaac gttatacgat gtcgcagagt atgccggtgt ctcttatcag
  841 accgtttccc gcgtggtgaa ccaggccagc cacgtttctg cgaaaacgcg ggaaaaagtg
  901 gaagcggcga tggcggagct gaattacatt cccaaccgcg tggcacaaca actggcgggc
  961 aaacagtcgt tgctgattgg cgttgccacc tccagtctgg ccctgcacgc gccgtcgcaa
 1021 attgtcgcgg cgattaaatc tcgcgccgat caactgggtg ccagcgtggt ggtgtcgatg
 1081 gtagaacgaa gcggcgtcga agcctgtaaa gcggcggtgc acaatcttct cgcgcaacgc
 1141 gtcagtgggc tgatcattaa ctatccgctg gatgaccagg atgccattgc tgtggaagct
 1201 gcctgcacta atgttccggc gttatttctt gatgtctctg accagacacc catcaacagt
 1261 attattttct cccatgaaga cggtacgcga ctgggcgtgg agcatctggt cgcattgggt
 1321 caccagcaaa tcgcgctgtt agcgggccca ttaagttctg tctcggcgcg tctgcgtctg
 1381 gctggctggc ataaatatct cactcgcaat caaattcagc cgatagcgga acgggaaggc
 1441 gactggagtg ccatgtccgg ttttcaacaa accatgcaaa tgctgaatga gggcatcgtt
 1501 cccactgcga tgctggttgc caacgatcag atggcgctgg gcgcaatgcg cgccattacc
 1561 gagtccgggc tgcgcgttgg tgcggatatc tcggtagtgg gatacgacga taccgaagac
 1621 agctcatgtt atatcccgcc gttaaccacc atcaaacagg attttcgcct gctggggcaa
 1681 accagcgtgg accgcttgct gcaactctct cagggccagg cggtgaaggg caatcagctg
 1741 ttgcccgtct cactggtgaa aagaaaaacc accctggcgc ccaatacgca aaccgcctct
 1801 ccccgcgcgt tggccgattc attaatgcag ctggcacgac aggtttcccg actggaaagc
 1861 gggcagtgag cgcaacgcaa ttaatgtaag ttagctcact cattaggcac cgggatctcg
 1921 accgatgccc ttgagagcct tcaacccagt cagctccttc cggtgggcgc ggggcatgac
 1981 tatcgtcgcc gcacttatga ctgtcttctt tatcatgcaa ctcgtaggac aggtgccggc
 2041 agcgctctgg gtcattttcg gcgaggaccg ctttcgctgg agcgcgacga tgatcggcct
 2101 gtcgcttgcg gtattcggaa tcttgcacgc cctcgctcaa gccttcgtca ctggtcccgc
 2161 caccaaacgt ttcggcgaga agcaggccat tatcgccggc atggcggccc cacgggtgcg
 2221 catgatcgtg ctcctgtcgt tgaggacccg gctaggctgg cggggttgcc ttactggtta
 2281 gcagaatgaa tcaccgatac gcgagcgaac gtgaagcgac tgctgctgca aaacgtctgc
 2341 gacctgagca acaacatgaa tggtcttcgg tttccgtgtt tcgtaaagtc tggaaacgcg
 2401 gaagtcagcg ccctgcacca ttatgttccg gatctgcatc gcaggatgct gctggctacc
 2461 ctgtggaaca cctacatctg tattaacgaa gcgctggcat tgaccctgag tgatttttct
 2521 ctggtcccgc cgcatccata ccgccagttg tttaccctca caacgttcca gtaaccgggc
 2581 atgttcatca tcagtaaccc gtatcgtgag catcctctct cgtttcatcg gtatcattac
 2641 ccccatgaac agaaatcccc cttacacgga ggcatcagtg accaaacagg aaaaaaccgc
 2701 ccttaacatg gcccgcttta tcagaagcca gacattaacg cttctggaga aactcaacga
 2761 gctggacgcg gatgaacagg cagacatctg tgaatcgctt cacgaccacg ctgatgagct
 2821 ttaccgcagc tgcctcgcgc gtttcggtga tgacggtgaa aacctctgac acatgcagct
 2881 cccggagacg gtcacagctt gtctgtaagc ggatgccggg agcagacaag cccgtcaggg
 2941 cgcgtcagcg ggtgttggcg ggtgtcgggg cgcagccatg acccagtcac gtagcgatag
 3001 cggagtgtat actggcttaa ctatgcggca tcagagcaga ttgtactgag agtgcaccat
 3061 atatgcggtg tgaaataccg cacagatgcg taaggagaaa ataccgcatc aggcgctctt
 3121 ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag
 3181 ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca ggaaagaaca
 3241 tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt
 3301 tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt cagaggtggc
 3361 gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc ctcgtgcgct
 3421 ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct tcgggaagcg
 3481 tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca
 3541 agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta tccggtaact
 3601 atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca gccactggta
 3661 acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag tggtggccta
 3721 actacggcta cactagaagg acagtatttg gtatctgcgc tctgctgaag ccagttacct
 3781 tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt agcggtggtt
 3841 tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga
 3901 tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca
 3961 tgaacaataa aactgtctgc ttacataaac agtaatacaa ggggtgttat gagccatatt
 4021 caacgggaaa cgtcttgctc taggccgcga ttaaattcca acatggatgc tgatttatat
 4081 gggtataaat gggctcgcga taatgtcggg caatcaggtg cgacaatcta tcgattgtat
 4141 gggaagcccg atgcgccaga gttgtttctg aaacatggca aaggtagcgt tgccaatgat
 4201 gttacagatg agatggtcag actaaactgg ctgacggaat ttatgcctct tccgaccatc
 4261 aagcatttta tccgtactcc tgatgatgca tggttactca ccactgcgat ccccgggaaa
 4321 acagcattcc aggtattaga agaatatcct gattcaggtg aaaatattgt tgatgcgctg
 4381 gcagtgttcc tgcgccggtt gcattcgatt cctgtttgta attgtccttt taacagcgat
 4441 cgcgtatttc gtctcgctca ggcgcaatca cgaatgaata acggtttggt tgatgcgagt
 4501 gattttgatg acgagcgtaa tggctggcct gttgaacaag tctggaaaga aatgcataaa
 4561 cttttgccat tctcaccgga ttcagtcgtc actcatggtg atttctcact tgataacctt
 4621 atttttgacg aggggaaatt aataggttgt attgatgttg gacgagtcgg aatcgcagac
 4681 cgataccagg atcttgccat cctatggaac tgcctcggtg agttttctcc ttcattacag
 4741 aaacggcttt ttcaaaaata tggtattgat aatcctgata tgaataaatt gcagtttcat
 4801 ttgatgctcg atgagttttt ctaagaatta attcatgagc ggatacatat ttgaatgtat
 4861 ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc cacctgaaat
 4921 tgtaaacgtt aatattttgt taaaattcgc gttaaatttt tgttaaatca gctcattttt
 4981 taaccaatag gccgaaatcg gcaaaatccc ttataaatca aaagaataga ccgagatagg
 5041 gttgagtgtt gttccagttt ggaacaagag tccactatta aagaacgtgg actccaacgt
 5101 caaagggcga aaaaccgtct atcagggcga tggcccacta cgtgaaccat caccctaatc
 5161 aagttttttg gggtcgaggt gccgtaaagc actaaatcgg aaccctaaag ggagcccccg
 5221 atttagagct tgacggggaa agccggcgaa cgtggcgaga aaggaaggga agaaagcgaa
 5281 aggagcgggc gctagggcgc tggcaagtgt agcggtcacg ctgcgcgtaa ccaccacacc
 5341 cgccgcgctt aatgcgccgc tacagggcgc gtcccattcg cca
//

pET33b载体质粒图谱pdf版和相关资料下载

pET33b载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
