pET-21a(+)

价格:800元

联系方式:I47-825O-882O

买家导航

pET21a载体基本信息

出品公司: EMD Biosciences(Novagen)
别名: pET21a, pet 21a
质粒类型: 大肠杆菌蛋白表达
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5443bp
5' 测序引物: T7
5' 测序引物序列:   5'-TAATACGACTCACTATAGGG-3'
载体标签: N-T7, C-His
载体抗性: Ampicillin
备注:
Same as pET24abcd(+) but ampR; a,b,c,d vary by MCS; The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand.
产品目录号: 69740-3
稳定性: 瞬时表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

pET21a载体质粒图谱和多克隆位点信息

pET-21a载体图谱

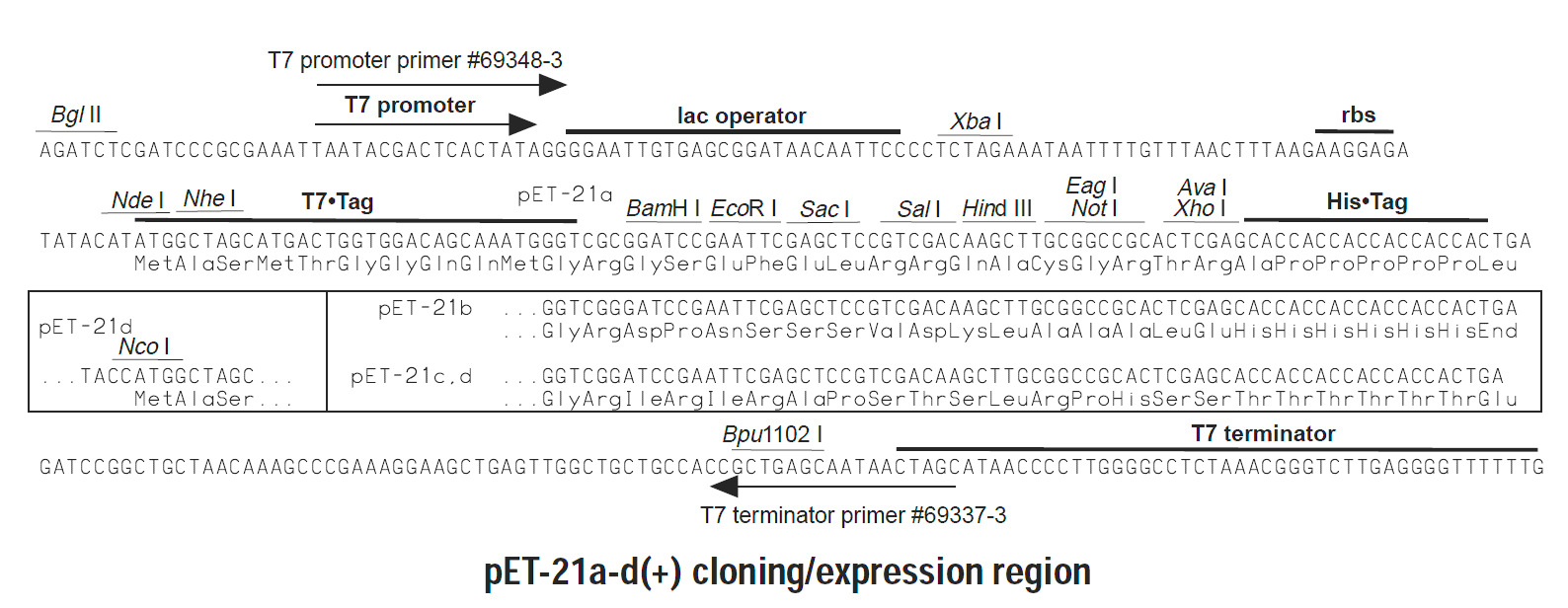

pET-21a多克隆位点

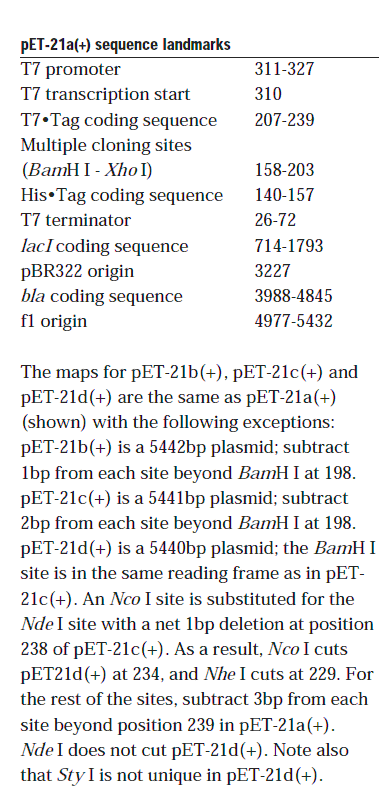

pET-21a载体特征

pET21a载体简介

The pET-21a-d(+) vectors carry an N-terminal T7•Tag® sequence plus an optional C-terminal His•Tag® sequence. These vectors differ from pET-24a-d(+) only by their selectable marker (ampicillin vs. kanamycin resistance). Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circular map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand. Therefore, single-stranded sequencing should be performed using the T7 terminator primer.
pET Vectors 选择指南

pET21a载体序列

LOCUS       pET-21 a (+)    5443 bp     DNA  Circular  SYN
DEFINITION  pET-21 a (+)
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank|
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     source          1..5443
                     /organism="pET-21 a (+)"
                     /mol_type="other DNA"
     terminator      complement(1..129)
                     /label="T7_terminator"
     misc_feature    69..87
                     /label="T7_Terminal_primer"
     misc_feature    complement(207..239)
                     /label="T7_leader"
     misc_feature    complement(222..240)
                     /label="Xpress_fwd_primer"
     misc_feature    complement(248..264)
                     /label="T7_transl_en_RBS"
     misc_feature    complement(282..309)
                     /label="lacO"
     promoter        complement(309..327)
                     /label="T7_promoter"
     gene            359..622
                     /label="tet (300 - 563)"
                     /gene="tet (300 - 563)"
     misc_feature    complement(411..430)
                     /label="pBRrevBam_primer"
     CDS             464..964
                     /label="ORF frame 2"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     misc_feature    705..1796
                     /label="lacI"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     CDS             837..1796
                     /label="ORF frame 3"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     gene            1855..2130
                     /label="tet (576 - 851)"
                     /gene="tet (576 - 851)"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     misc_feature    2605..2796
                     /label="ROP"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     misc_feature    complement(2790..2812)
                     /label="pGEX_3_primer"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     rep_origin      complement(3211..3830)
                     /label="pBR322_origin"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     gene            complement(3985..4845)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     CDS             complement(3985..4845)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(4887..4915)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 atccggatat agttcctcct ttcagcaaaa aacccctcaa gacccgttta gaggccccaa
   61 ggggttatgc tagttattgc tcagcggtgg cagcagccaa ctcagcttcc tttcgggctt
  121 tgttagcagc cggatctcag tggtggtggt ggtggtgctc gagtgcggcc gcaagcttgt
  181 cgacggagct cgaattcgga tccgcgaccc atttgctgtc caccagtcat gctagccata
  241 tgtatatctc cttcttaaag ttaaacaaaa ttatttctag aggggaattg ttatccgctc
  301 acaattcccc tatagtgagt cgtattaatt tcgcgggatc gagatctcga tcctctacgc
  361 cggacgcatc gtggccggca tcaccggcgc cacaggtgcg gttgctggcg cctatatcgc
  421 cgacatcacc gatggggaag atcgggctcg ccacttcggg ctcatgagcg cttgtttcgg
  481 cgtgggtatg gtggcaggcc ccgtggccgg gggactgttg ggcgccatct ccttgcatgc
  541 accattcctt gcggcggcgg tgctcaacgg cctcaaccta ctactgggct gcttcctaat
  601 gcaggagtcg cataagggag agcgtcgaga tcccggacac catcgaatgg cgcaaaacct
  661 ttcgcggtat ggcatgatag cgcccggaag agagtcaatt cagggtggtg aatgtgaaac
  721 cagtaacgtt atacgatgtc gcagagtatg ccggtgtctc ttatcagacc gtttcccgcg
  781 tggtgaacca ggccagccac gtttctgcga aaacgcggga aaaagtggaa gcggcgatgg
  841 cggagctgaa ttacattccc aaccgcgtgg cacaacaact ggcgggcaaa cagtcgttgc
  901 tgattggcgt tgccacctcc agtctggccc tgcacgcgcc gtcgcaaatt gtcgcggcga
  961 ttaaatctcg cgccgatcaa ctgggtgcca gcgtggtggt gtcgatggta gaacgaagcg
 1021 gcgtcgaagc ctgtaaagcg gcggtgcaca atcttctcgc gcaacgcgtc agtgggctga
 1081 tcattaacta tccgctggat gaccaggatg ccattgctgt ggaagctgcc tgcactaatg
 1141 ttccggcgtt atttcttgat gtctctgacc agacacccat caacagtatt attttctccc
 1201 atgaagacgg tacgcgactg ggcgtggagc atctggtcgc attgggtcac cagcaaatcg
 1261 cgctgttagc gggcccatta agttctgtct cggcgcgtct gcgtctggct ggctggcata
 1321 aatatctcac tcgcaatcaa attcagccga tagcggaacg ggaaggcgac tggagtgcca
 1381 tgtccggttt tcaacaaacc atgcaaatgc tgaatgaggg catcgttccc actgcgatgc
 1441 tggttgccaa cgatcagatg gcgctgggcg caatgcgcgc cattaccgag tccgggctgc
 1501 gcgttggtgc ggatatctcg gtagtgggat acgacgatac cgaagacagc tcatgttata
 1561 tcccgccgtt aaccaccatc aaacaggatt ttcgcctgct ggggcaaacc agcgtggacc
 1621 gcttgctgca actctctcag ggccaggcgg tgaagggcaa tcagctgttg cccgtctcac
 1681 tggtgaaaag aaaaaccacc ctggcgccca atacgcaaac cgcctctccc cgcgcgttgg
 1741 ccgattcatt aatgcagctg gcacgacagg tttcccgact ggaaagcggg cagtgagcgc
 1801 aacgcaatta atgtaagtta gctcactcat taggcaccgg gatctcgacc gatgcccttg
 1861 agagccttca acccagtcag ctccttccgg tgggcgcggg gcatgactat cgtcgccgca
 1921 cttatgactg tcttctttat catgcaactc gtaggacagg tgccggcagc gctctgggtc
 1981 attttcggcg aggaccgctt tcgctggagc gcgacgatga tcggcctgtc gcttgcggta
 2041 ttcggaatct tgcacgccct cgctcaagcc ttcgtcactg gtcccgccac caaacgtttc
 2101 ggcgagaagc aggccattat cgccggcatg gcggccccac gggtgcgcat gatcgtgctc
 2161 ctgtcgttga ggacccggct aggctggcgg ggttgcctta ctggttagca gaatgaatca
 2221 ccgatacgcg agcgaacgtg aagcgactgc tgctgcaaaa cgtctgcgac ctgagcaaca
 2281 acatgaatgg tcttcggttt ccgtgtttcg taaagtctgg aaacgcggaa gtcagcgccc
 2341 tgcaccatta tgttccggat ctgcatcgca ggatgctgct ggctaccctg tggaacacct
 2401 acatctgtat taacgaagcg ctggcattga ccctgagtga tttttctctg gtcccgccgc
 2461 atccataccg ccagttgttt accctcacaa cgttccagta accgggcatg ttcatcatca
 2521 gtaacccgta tcgtgagcat cctctctcgt ttcatcggta tcattacccc catgaacaga
 2581 aatccccctt acacggaggc atcagtgacc aaacaggaaa aaaccgccct taacatggcc
 2641 cgctttatca gaagccagac attaacgctt ctggagaaac tcaacgagct ggacgcggat
 2701 gaacaggcag acatctgtga atcgcttcac gaccacgctg atgagcttta ccgcagctgc
 2761 ctcgcgcgtt tcggtgatga cggtgaaaac ctctgacaca tgcagctccc ggagacggtc
 2821 acagcttgtc tgtaagcgga tgccgggagc agacaagccc gtcagggcgc gtcagcgggt
 2881 gttggcgggt gtcggggcgc agccatgacc cagtcacgta gcgatagcgg agtgtatact
 2941 ggcttaacta tgcggcatca gagcagattg tactgagagt gcaccatata tgcggtgtga
 3001 aataccgcac agatgcgtaa ggagaaaata ccgcatcagg cgctcttccg cttcctcgct
 3061 cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc actcaaaggc
 3121 ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt gagcaaaagg
 3181 ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg
 3241 cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg
 3301 actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc ctgttccgac
 3361 cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca
 3421 tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt
 3481 gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc
 3541 caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca ggattagcag
 3601 agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact acggctacac
 3661 tagaaggaca gtatttggta tctgcgctct gctgaagcca gttaccttcg gaaaaagagt
 3721 tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa
 3781 gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct tttctacggg
 3841 gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga gattatcaaa
 3901 aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat
 3961 atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac ctatctcagc
 4021 gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga taactacgat
 4081 acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc cacgctcacc
 4141 ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca gaagtggtcc
 4201 tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta gagtaagtag
 4261 ttcgccagtt aatagtttgc gcaacgttgt tgccattgct gcaggcatcg tggtgtcacg
 4321 ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc gagttacatg
 4381 atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg ttgtcagaag
 4441 taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt ctcttactgt
 4501 catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt cattctgaga
 4561 atagtgtatg cggcgaccga gttgctcttg cccggcgtca atacgggata ataccgcgcc
 4621 acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc gaaaactctc
 4681 aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac ccaactgatc
 4741 ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc
 4801 cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct tcctttttca
 4861 atattattga agcatttatc agggttattg tctcatgagc ggatacatat ttgaatgtat
 4921 ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc cacctgaaat
 4981 tgtaaacgtt aatattttgt taaaattcgc gttaaatttt tgttaaatca gctcattttt
 5041 taaccaatag gccgaaatcg gcaaaatccc ttataaatca aaagaataga ccgagatagg
 5101 gttgagtgtt gttccagttt ggaacaagag tccactatta aagaacgtgg actccaacgt
 5161 caaagggcga aaaaccgtct atcagggcga tggcccacta cgtgaaccat caccctaatc
 5221 aagttttttg gggtcgaggt gccgtaaagc actaaatcgg aaccctaaag ggagcccccg
 5281 atttagagct tgacggggaa agccggcgaa cgtggcgaga aaggaaggga agaaagcgaa
 5341 aggagcgggc gctagggcgc tggcaagtgt agcggtcacg ctgcgcgtaa ccaccacacc
 5401 cgccgcgctt aatgcgccgc tacagggcgc gtcccattcg cca
//

pET21a载体质粒图谱pdf版和相关资料下载

pET21a载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
