pET-11a(+)

价格:800元

联系方式:I47-825O-882O

买家导航

pet11a载体基本信息

出品公司: EMD Biosciences(Novagen)
别名: pET-11a, pet 11a
质粒类型: 大肠杆菌蛋白表达
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5677bp
5' 测序引物及序列: T7: 5'-TAATACGACTCACTATAGGG-3'
3' 测序引物及序列:   T7t: 5'-GCTAGTTATTGCTCAGCGG-3'
载体标签: T7 tag(N-端)
载体抗性: Ampicillin
备注:
Approximate size is 5675 bp. Hosts: E.coli. Related vectors: pBR322;
pET-11a,b,c仅阅读框(读码框)不同,彼此相差1个碱基对;
pET-11d的多克隆位点处不含Nde I 酶切位点。
产品目录号: 69436-3
稳定性: 瞬时表达 Transient
组成型: 诱导型(IPTG)
病毒/非病毒: 非病毒

pet11a载体质粒图谱和多克隆位点信息

pET-11a 载体图谱

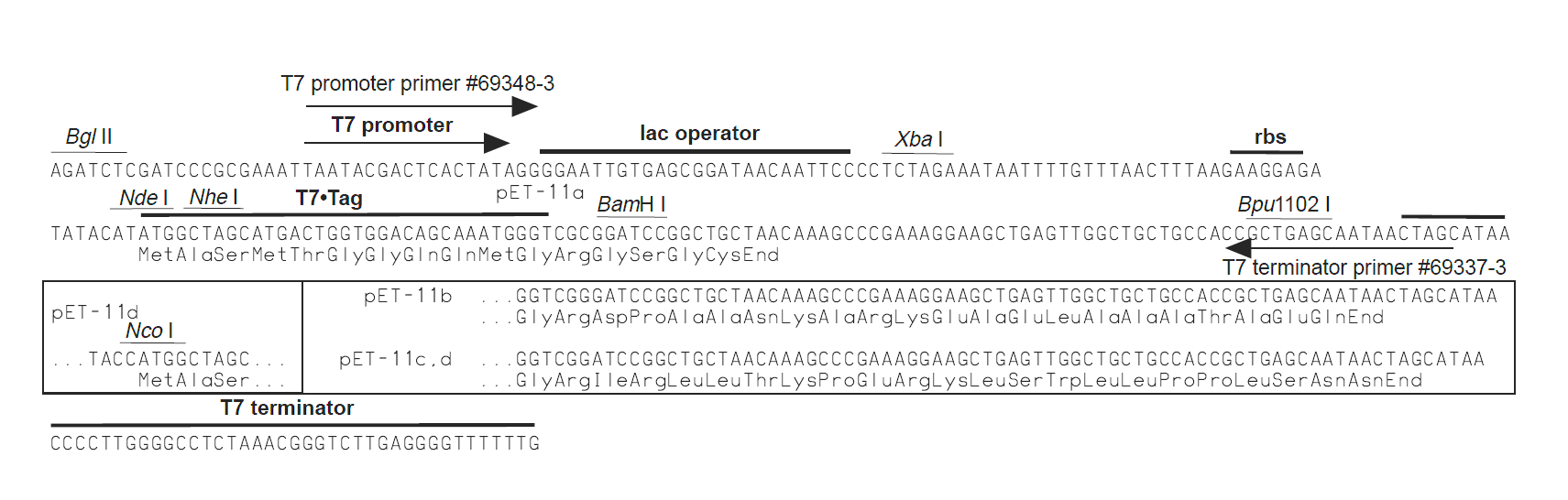

pET-11a 多克隆位点

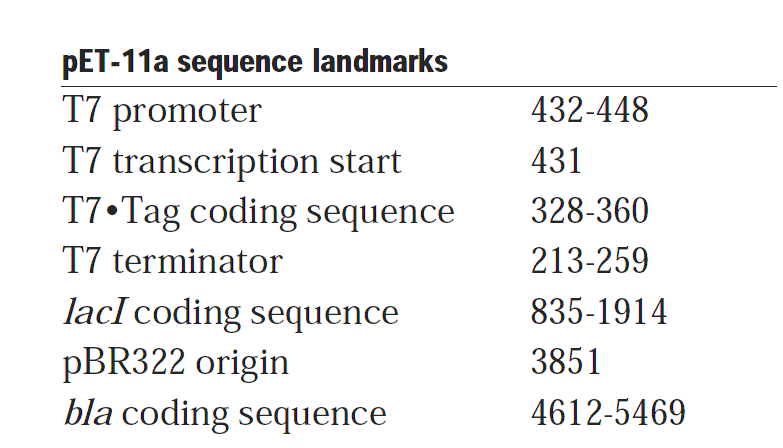

pET-11a 载体特征

pet11a载体简介

pET11a-d系列的载体含有一个N端的T7标签和BamHI限制性内切酶位点。该系列载体是很多pET家族其他载体的来源质粒。pET21a-d系列载体对应于pET11a-d载体,但是包含有额外的其他载体特征。pET11a载体的单一的多克隆位点见上面的环状质粒图谱。注意:载体序列是以pBR322质粒的编码规矩进行编码的,所以T7蛋白表达区在质粒图谱上面是反向的。


T7 RNA聚合酶启动的克隆和表达区域在质粒图谱中也被标注了出来。质粒的F1复制子是被定向的,所以在T7噬菌体聚合酶的作用下,包含有蛋白编码序列的病毒粒子能够产生,并启动蛋白表达,同时蛋白表达将被T7终止子序列(Cat. No. 69337-3)的作用下终止蛋白翻译。
pET Vectors 选择指南

pet11a载体序列

LOCUS       pET-11a(+)    5677 bp     DNA  circular   SYN
DEFINITION  pET-11 a
 ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     source          1..5677
                     /organism="pET-11 a"
                     /mol_type="other DNA"
     promoter        1..19
                     /label="T7_promoter"
     misc_feature    19..46
                     /label="lacO"
     misc_feature    64..80
                     /label="T7_transl_en_RBS"
     misc_feature    88..106
                     /label="Xpress_fwd_primer"
     misc_feature    89..121
                     /label="T7_leader"
     terminator      133..261
                     /label="T7_terminator"
     misc_feature    complement(175..193)
                     /label="T7_Terminal_primer"
     promoter        587..615
                     /label="AmpR_promoter"
     gene            657..1517
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             657..1517
                     /label="ORF frame 3"
     rep_origin      1672..2291
                     /label="pBR322_origin"
     misc_feature    2690..2712
                     /label="pGEX_3_primer"
     misc_feature    complement(2706..2897)
                     /label="ROP"
     gene            complement(3536..4147)
                     /label="tet (611 - 0)"
                     /gene="tet (611 - 0)"
     CDS             complement(3536..4153)
                     /label="ORF frame 1"
     CDS             3731..4426
                     /label="ORF frame 2"
     misc_feature    complement(4209..5300)
                     /label="lacI"
     CDS             complement(4209..5168)
                     /label="ORF frame 3"
     CDS             complement(5041..5541)
                     /label="ORF frame 2"
     misc_feature    5575..5594
                     /label="pBRrevBam_primer"
ORIGIN
    1 TAATACGACT CACTATAGGG GAATTGTGAG CGGATAACAA TTCCCCTCTA GAAATAATTT
   61 TGTTTAACTT TAAGAAGGAG ATATACATAT GGCTAGCATG ACTGGTGGAC AGCAAATGGG
  121 TCGCGGATCC GGCTGCTAAC AAAGCCCGAA AGGAAGCTGA GTTGGCTGCT GCCACCGCTG
  181 AGCAATAACT AGCATAACCC CTTGGGGCCT CTAAACGGGT CTTGAGGGGT TTTTTGCTGA
  241 AAGGAGGAAC TATATCCGGA TATCCCGCAA GAGGCCCGGC AGTACCGGCA TAACCAAGCC
  301 TATGCCTACA GCATCCAGGG TGACGGTGCC GAGGATGACG ATGAGCGCAT TGTTAGATTT
  361 CATACACGGT GCCTGACTGC GTTAGCAATT TAACTGTGAT AAACTACCGC ATTAAAGCTT
  421 ATCGATGATA AGCTGTCAAA CATGAGAATT CTTGAAGACG AAAGGGCCTC GTGATACGCC
  481 TATTTTTATA GGTTAATGTC ATGATAATAA TGGTTTCTTA GACGTCAGGT GGCACTTTTC
  541 GGGGAAATGT GCGCGGAACC CCTATTTGTT TATTTTTCTA AATACATTCA AATATGTATC
  601 CGCTCATGAG ACAATAACCC TGATAAATGC TTCAATAATA TTGAAAAAGG AAGAGTATGA
  661 GTATTCAACA TTTCCGTGTC GCCCTTATTC CCTTTTTTGC GGCATTTTGC CTTCCTGTTT
  721 TTGCTCACCC AGAAACGCTG GTGAAAGTAA AAGATGCTGA AGATCAGTTG GGTGCACGAG
  781 TGGGTTACAT CGAACTGGAT CTCAACAGCG GTAAGATCCT TGAGAGTTTT CGCCCCGAAG
  841 AACGTTTTCC AATGATGAGC ACTTTTAAAG TTCTGCTATG TGGCGCGGTA TTATCCCGTG
  901 TTGACGCCGG GCAAGAGCAA CTCGGTCGCC GCATACACTA TTCTCAGAAT GACTTGGTTG
  961 AGTACTCACC AGTCACAGAA AAGCATCTTA CGGATGGCAT GACAGTAAGA GAATTATGCA
 1021 GTGCTGCCAT AACCATGAGT GATAACACTG CGGCCAACTT ACTTCTGACA ACGATCGGAG
 1081 GACCGAAGGA GCTAACCGCT TTTTTGCACA ACATGGGGGA TCATGTAACT CGCCTTGATC
 1141 GTTGGGAACC GGAGCTGAAT GAAGCCATAC CAAACGACGA GCGTGACACC ACGATGCCTG
 1201 CAGCAATGGC AACAACGTTG CGCAAACTAT TAACTGGCGA ACTACTTACT CTAGCTTCCC
 1261 GGCAACAATT AATAGACTGG ATGGAGGCGG ATAAAGTTGC AGGACCACTT CTGCGCTCGG
 1321 CCCTTCCGGC TGGCTGGTTT ATTGCTGATA AATCTGGAGC CGGTGAGCGT GGGTCTCGCG
 1381 GTATCATTGC AGCACTGGGG CCAGATGGTA AGCCCTCCCG TATCGTAGTT ATCTACACGA
 1441 CGGGGAGTCA GGCAACTATG GATGAACGAA ATAGACAGAT CGCTGAGATA GGTGCCTCAC
 1501 TGATTAAGCA TTGGTAACTG TCAGACCAAG TTTACTCATA TATACTTTAG ATTGATTTAA
 1561 AACTTCATTT TTAATTTAAA AGGATCTAGG TGAAGATCCT TTTTGATAAT CTCATGACCA
 1621 AAATCCCTTA ACGTGAGTTT TCGTTCCACT GAGCGTCAGA CCCCGTAGAA AAGATCAAAG
 1681 GATCTTCTTG AGATCCTTTT TTTCTGCGCG TAATCTGCTG CTTGCAAACA AAAAAACCAC
 1741 CGCTACCAGC GGTGGTTTGT TTGCCGGATC AAGAGCTACC AACTCTTTTT CCGAAGGTAA
 1801 CTGGCTTCAG CAGAGCGCAG ATACCAAATA CTGTCCTTCT AGTGTAGCCG TAGTTAGGCC
 1861 ACCACTTCAA GAACTCTGTA GCACCGCCTA CATACCTCGC TCTGCTAATC CTGTTACCAG
 1921 TGGCTGCTGC CAGTGGCGAT AAGTCGTGTC TTACCGGGTT GGACTCAAGA CGATAGTTAC
 1981 CGGATAAGGC GCAGCGGTCG GGCTGAACGG GGGGTTCGTG CACACAGCCC AGCTTGGAGC
 2041 GAACGACCTA CACCGAACTG AGATACCTAC AGCGTGAGCT ATGAGAAAGC GCCACGCTTC
 2101 CCGAAGGGAG AAAGGCGGAC AGGTATCCGG TAAGCGGCAG GGTCGGAACA GGAGAGCGCA
 2161 CGAGGGAGCT TCCAGGGGGA AACGCCTGGT ATCTTTATAG TCCTGTCGGG TTTCGCCACC
 2221 TCTGACTTGA GCGTCGATTT TTGTGATGCT CGTCAGGGGG GCGGAGCCTA TGGAAAAACG
 2281 CCAGCAACGC GGCCTTTTTA CGGTTCCTGG CCTTTTGCTG GCCTTTTGCT CACATGTTCT
 2341 TTCCTGCGTT ATCCCCTGAT TCTGTGGATA ACCGTATTAC CGCCTTTGAG TGAGCTGATA
 2401 CCGCTCGCCG CAGCCGAACG ACCGAGCGCA GCGAGTCAGT GAGCGAGGAA GCGGAAGAGC
 2461 GCCTGATGCG GTATTTTCTC CTTACGCATC TGTGCGGTAT TTCACACCGC ATATATGGTG
 2521 CACTCTCAGT ACAATCTGCT CTGATGCCGC ATAGTTAAGC CAGTATACAC TCCGCTATCG
 2581 CTACGTGACT GGGTCATGGC TGCGCCCCGA CACCCGCCAA CACCCGCTGA CGCGCCCTGA
 2641 CGGGCTTGTC TGCTCCCGGC ATCCGCTTAC AGACAAGCTG TGACCGTCTC CGGGAGCTGC
 2701 ATGTGTCAGA GGTTTTCACC GTCATCACCG AAACGCGCGA GGCAGCTGCG GTAAAGCTCA
 2761 TCAGCGTGGT CGTGAAGCGA TTCACAGATG TCTGCCTGTT CATCCGCGTC CAGCTCGTTG
 2821 AGTTTCTCCA GAAGCGTTAA TGTCTGGCTT CTGATAAAGC GGGCCATGTT AAGGGCGGTT
 2881 TTTTCCTGTT TGGTCACTGA TGCCTCCGTG TAAGGGGGAT TTCTGTTCAT GGGGGTAATG
 2941 ATACCGATGA AACGAGAGAG GATGCTCACG ATACGGGTTA CTGATGATGA ACATGCCCGG
 3001 TTACTGGAAC GTTGTGAGGG TAAACAACTG GCGGTATGGA TGCGGCGGGA CCAGAGAAAA
 3061 ATCACTCAGG GTCAATGCCA GCGCTTCGTT AATACAGATG TAGGTGTTCC ACAGGGTAGC
 3121 CAGCAGCATC CTGCGATGCA GATCCGGAAC ATAATGGTGC AGGGCGCTGA CTTCCGCGTT
 3181 TCCAGACTTT ACGAAACACG GAAACCGAAG ACCATTCATG TTGTTGCTCA GGTCGCAGAC
 3241 GTTTTGCAGC AGCAGTCGCT TCACGTTCGC TCGCGTATCG GTGATTCATT CTGCTAACCA
 3301 GTAAGGCAAC CCCGCCAGCC TAGCCGGGTC CTCAACGACA GGAGCACGAT CATGCGCACC
 3361 CGTGGCCAGG ACCCAACGCT GCCCGAGATG CGCCGCGTGC GGCTGCTGGA GATGGCGGAC
 3421 GCGATGGATA TGTTCTGCCA AGGGTTGGTT TGCGCATTCA CAGTTCTCCG CAAGAATTGA
 3481 TTGGCTCCAA TTCTTGGAGT GGTGAATCCG TTAGCGAGGT GCCGCCGGCT TCCATTCAGG
 3541 TCGAGGTGGC CCGGCTCCAT GCACCGCGAC GCAACGCGGG GAGGCAGACA AGGTATAGGG
 3601 CGGCGCCTAC AATCCATGCC AACCCGTTCC ATGTGCTCGC CGAGGCGGCA TAAATCGCCG
 3661 TGACGATCAG CGGTCCAGTG ATCGAAGTTA GGCTGGTAAG AGCCGCGAGC GATCCTTGAA
 3721 GCTGTCCCTG ATGGTCGTCA TCTACCTGCC TGGACAGCAT GGCCTGCAAC GCGGGCATCC
 3781 CGATGCCGCC GGAAGCGAGA AGAATCATAA TGGGGAAGGC CATCCAGCCT CGCGTCGCGA
 3841 ACGCCAGCAA GACGTAGCCC AGCGCGTCGG CCGCCATGCC GGCGATAATG GCCTGCTTCT
 3901 CGCCGAAACG TTTGGTGGCG GGACCAGTGA CGAAGGCTTG AGCGAGGGCG TGCAAGATTC
 3961 CGAATACCGC AAGCGACAGG CCGATCATCG TCGCGCTCCA GCGAAAGCGG TCCTCGCCGA
 4021 AAATGACCCA GAGCGCTGCC GGCACCTGTC CTACGAGTTG CATGATAAAG AAGACAGTCA
 4081 TAAGTGCGGC GACGATAGTC ATGCCCCGCG CCCACCGGAA GGAGCTGACT GGGTTGAAGG
 4141 CTCTCAAGGG CATCGGTCGA GATCCCGGTG CCTAATGAGT GAGCTAACTT ACATTAATTG
 4201 CGTTGCGCTC ACTGCCCGCT TTCCAGTCGG GAAACCTGTC GTGCCAGCTG CATTAATGAA
 4261 TCGGCCAACG CGCGGGGAGA GGCGGTTTGC GTATTGGGCG CCAGGGTGGT TTTTCTTTTC
 4321 ACCAGTGAGA CGGGCAACAG CTGATTGCCC TTCACCGCCT GGCCCTGAGA GAGTTGCAGC
 4381 AAGCGGTCCA CGCTGGTTTG CCCCAGCAGG CGAAAATCCT GTTTGATGGT GGTTAACGGC
 4441 GGGATATAAC ATGAGCTGTC TTCGGTATCG TCGTATCCCA CTACCGAGAT ATCCGCACCA
 4501 ACGCGCAGCC CGGACTCGGT AATGGCGCGC ATTGCGCCCA GCGCCATCTG ATCGTTGGCA
 4561 ACCAGCATCG CAGTGGGAAC GATGCCCTCA TTCAGCATTT GCATGGTTTG TTGAAAACCG
 4621 GACATGGCAC TCCAGTCGCC TTCCCGTTCC GCTATCGGCT GAATTTGATT GCGAGTGAGA
 4681 TATTTATGCC AGCCAGCCAG ACGCAGACGC GCCGAGACAG AACTTAATGG GCCCGCTAAC
 4741 AGCGCGATTT GCTGGTGACC CAATGCGACC AGATGCTCCA CGCCCAGTCG CGTACCGTCT
 4801 TCATGGGAGA AAATAATACT GTTGATGGGT GTCTGGTCAG AGACATCAAG AAATAACGCC
 4861 GGAACATTAG TGCAGGCAGC TTCCACAGCA ATGGCATCCT GGTCATCCAG CGGATAGTTA
 4921 ATGATCAGCC CACTGACGCG TTGCGCGAGA AGATTGTGCA CCGCCGCTTT ACAGGCTTCG
 4981 ACGCCGCTTC GTTCTACCAT CGACACCACC ACGCTGGCAC CCAGTTGATC GGCGCGAGAT
 5041 TTAATCGCCG CGACAATTTG CGACGGCGCG TGCAGGGCCA GACTGGAGGT GGCAACGCCA
 5101 ATCAGCAACG ACTGTTTGCC CGCCAGTTGT TGTGCCACGC GGTTGGGAAT GTAATTCAGC
 5161 TCCGCCATCG CCGCTTCCAC TTTTTCCCGC GTTTTCGCAG AAACGTGGCT GGCCTGGTTC
 5221 ACCACGCGGG AAACGGTCTG ATAAGAGACA CCGGCATACT CTGCGACATC GTATAACGTT
 5281 ACTGGTTTCA CATTCACCAC CCTGAATTGA CTCTCTTCCG GGCGCTATCA TGCCATACCG
 5341 CGAAAGGTTT TGCGCCATTC GATGGTGTCC GGGATCTCGA CGCTCTCCCT TATGCGACTC
 5401 CTGCATTAGG AAGCAGCCCA GTAGTAGGTT GAGGCCGTTG AGCACCGCCG CCGCAAGGAA
 5461 TGGTGCATGC AAGGAGATGG CGCCCAACAG TCCCCCGGCC ACGGGGCCTG CCACCATACC
 5521 CACGCCGAAA CAAGCGCTCA TGAGCCCGAA GTGGCGAGCC CGATCTTCCC CATCGGTGAT
 5581 GTCGGCGATA TAGGCGCCAG CAACCGCACC TGTGGCGCCG GTGATGCCGG CCACGATGCG
 5641 TCCGGCGTAG AGGATCGAGA TCTCGATCCC GCGAAAT
//

pet11a载体质粒图谱pdf版和相关资料下载

pet11a载体应用举例
