pQE16载体基本信息

出品公司: Qiagen
别名: pQE16, pQE 16
质粒类型: 大肠杆菌蛋白表达载体
表达水平: 低拷贝
启动子: T5
克隆方法: 多克隆位点,限制性内切酶
载体大小: 3996 bp
5' 测序引物及序列: pQE30-F: AGCGGATAACAATTTCACACAG
3' 测序引物及序列: pQE30-R: TTCTGAGGTCATTACTGGATC
载体标签: N-DHFR, N-His
载体抗性: Ampicillin
备注:
pQE vectors and constructs can be maintained in any E. coli strain that is ampicillin-sensitive and carries the pREP4 repressor plasmid, or harbors the lacIq gene on the F-factor episome.
产品目录号: 32903
稳定性: 瞬时表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

pQE16载体质粒图谱和多克隆位点信息

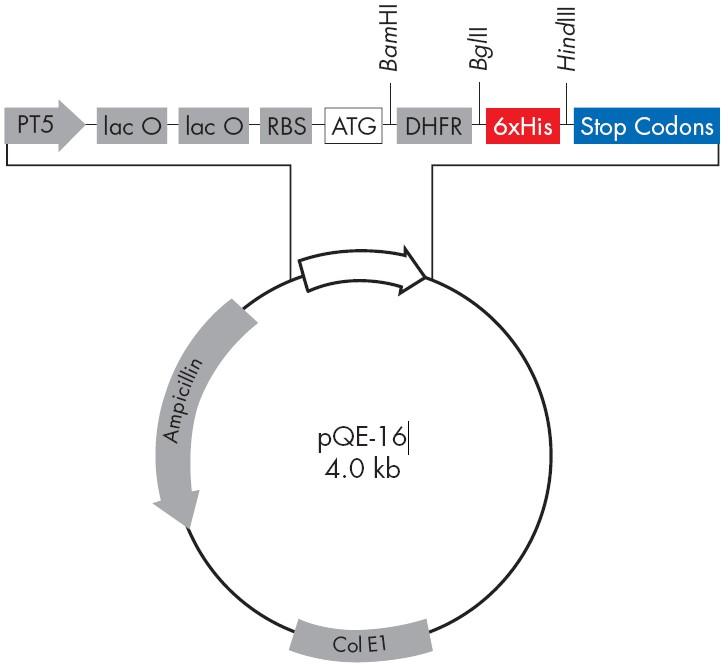

pQE-16载体图谱

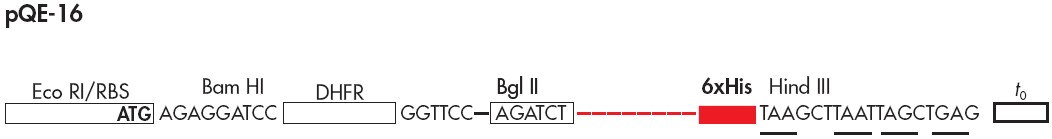

pQE-16多克隆位点

pQE16载体简介

pQE16载体序列

LOCUS       pQE-16    3996 bp     DNA Circular    SYN
DEFINITION  pQE-16
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     source          1..3996
                     /organism="pQE-16"
                     /mol_type="other DNA"
     CDS             115..723
                     /label="ORF frame 1"
     misc_feature    703..720
                     /label="6xHIS"
     gene            881..1540
                     /label="CAT/CamR"
                     /gene="CAT/CamR"
     CDS             881..1540
                     /label="ORF frame 2"
     terminator      1608..1651
                     /label="rrnB_T1_terminator"
     misc_feature    complement(1738..1760)
                     /label="pGEX_3_primer"
     gene            complement(2931..3791)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(2931..3791)
                     /label="ORF frame 2"
     promoter        complement(3833..3861)
                     /label="AmpR_promoter"

ORIGIN
    1 CTCGAGAAAT CATAAAAAAT TTATTTGCTT TGTGAGCGGA TAACAATTAT AATAGATTCA
   61 ATTGTGAGCG GATAACAATT TCACACAGAA TTCATTAAAG AGGAGAAATT AACTATGAGA
  121 GGATCCGGCA TCATGGTTCG ACCATTGAAC TCGATCGTCG CCGTGTCCCA AAATATGGGG
  181 ATTGGCAAGA ACGGAGACCT ACCCTGGCCT CCGCTCAGGA ACGAGTTCAA GTACTTCCAA
  241 AGAATGACCA CAACCTCTTC AGTGGAAGGT AAACAGAATC TGGTGATTAT GGGTAGGAAA
  301 ACCTGGTTCT CCATTCCTGA GAAGAATCGA CCTTTAAAGG ACAGAATTAA TATAGTTCTC
  361 AGTAGAGAAC TCAAAGAACC ACCACGAGGA GCTCATTTTC TTGCCAAAAG TTTGGATGAT
  421 GCCTTAAGAC TTATTGAACA ACCGGAATTG GCAAGTAAAG TAGACATGGT TTGGATAGTC
  481 GGAGGCAGTT CTGTTTACCA GGAAGCCATG AATCAACCAG GCCACCTTAG ACTCTTTGTG
  541 ACAAGGATCA TGCAGGAATT TGAAAGTGAC ACGTTTTTCC CAGAAATTGA TTTGGGGAAA
  601 TATAAACTTC TCCCAGAATA CCCAGGCGTC CTCTCTGAGG TCCAGGAGGA AAAAGGCATC
  661 AAGTATAAGT TTGAAGTCTA CGAGAAGAAA GGTTCCAGAT CTCATCACCA TCACCATCAC
  721 TAAGCTTAAT TAGCTGAGCT TGGACTCCTG TTGATAGATC CAGTAATGAC CTCAGAACTC
  781 CATCTGGATT TGTTCAGAAC GCTCGGTTGC CGCCGGGCGT TTTTTATTGG TGAGAATCCA
  841 AGCTAGCTTG GCGAGATTTT CAGGAGCTAA GGAAGCTAAA ATGGAGAAAA AAATCACTGG
  901 ATATACCACC GTTGATATAT CCCAATGGCA TCGTAAAGAA CATTTTGAGG CATTTCAGTC
  961 AGTTGCTCAA TGTACCTATA ACCAGACCGT TCAGCTGGAT ATTACGGCCT TTTTAAAGAC
 1021 CGTAAAGAAA AATAAGCACA AGTTTTATCC GGCCTTTATT CACATTCTTG CCCGCCTGAT
 1081 GAATGCTCAT CCGGAATTTC GTATGGCAAT GAAAGACGGT GAGCTGGTGA TATGGGATAG
 1141 TGTTCACCCT TGTTACACCG TTTTCCATGA GCAAACTGAA ACGTTTTCAT CGCTCTGGAG
 1201 TGAATACCAC GACGATTTCC GGCAGTTTCT ACACATATAT TCGCAAGATG TGGCGTGTTA
 1261 CGGTGAAAAC CTGGCCTATT TCCCTAAAGG GTTTATTGAG AATATGTTTT TCGTCTCAGC
 1321 CAATCCCTGG GTGAGTTTCA CCAGTTTTGA TTTAAACGTG GCCAATATGG ACAACTTCTT
 1381 CGCCCCCGTT TTCACCATGG GCAAATATTA TACGCAAGGC GACAAGGTGC TGATGCCGCT
 1441 GGCGATTCAG GTTCATCATG CCGTTTGTGA TGGCTTCCAT GTCGGCAGAA TGCTTAATGA
 1501 ATTACAACAG TACTGCGATG AGTGGCAGGG CGGGGCGTAA TTTTTTTAAG GCAGTTATTG
 1561 GTGCCCTTAA ACGCCTGGGG TAATGACTCT CTAGCTTGAG GCATCAAATA AAACGAAAGG
 1621 CTCAGTCGAA AGACTGGGCC TTTCGTTTTA TCTGTTGTTT GTCGGTGAAC GCTCTCCTGA
 1681 GTAGGACAAA TCCGCCCTCT AGAGCTGCCT CGCGCGTTTC GGTGATGACG GTGAAAACCT
 1741 CTGACACATG CAGCTCCCGG AGACGGTCAC AGCTTGTCTG TAAGCGGATG CCGGGAGCAG
 1801 ACAAGCCCGT CAGGGCGCGT CAGCGGGTGT TGGCGGGTGT CGGGGCGCAG CCATGACCCA
 1861 GTCACGTAGC GATAGCGGAG TGTATACTGG CTTAACTATG CGGCATCAGA GCAGATTGTA
 1921 CTGAGAGTGC ACCATATGCG GTGTGAAATA CCGCACAGAT GCGTAAGGAG AAAATACCGC
 1981 ATCAGGCGCT CTTCCGCTTC CTCGCTCACT GACTCGCTGC GCTCGGTCGT TCGGCTGCGG
 2041 CGAGCGGTAT CAGCTCACTC AAAGGCGGTA ATACGGTTAT CCACAGAATC AGGGGATAAC
 2101 GCAGGAAAGA ACATGTGAGC AAAAGGCCAG CAAAAGGCCA GGAACCGTAA AAAGGCCGCG
 2161 TTGCTGGCGT TTTTCCATAG GCTCCGCCCC CCTGACGAGC ATCACAAAAA TCGACGCTCA
 2221 AGTCAGAGGT GGCGAAACCC GACAGGACTA TAAAGATACC AGGCGTTTCC CCCTGGAAGC
 2281 TCCCTCGTGC GCTCTCCTGT TCCGACCCTG CCGCTTACCG GATACCTGTC CGCCTTTCTC
 2341 CCTTCGGGAA GCGTGGCGCT TTCTCATAGC TCACGCTGTA GGTATCTCAG TTCGGTGTAG
 2401 GTCGTTCGCT CCAAGCTGGG CTGTGTGCAC GAACCCCCCG TTCAGCCCGA CCGCTGCGCC
 2461 TTATCCGGTA ACTATCGTCT TGAGTCCAAC CCGGTAAGAC ACGACTTATC GCCACTGGCA
 2521 GCAGCCACTG GTAACAGGAT TAGCAGAGCG AGGTATGTAG GCGGTGCTAC AGAGTTCTTG
 2581 AAGTGGTGGC CTAACTACGG CTACACTAGA AGGACAGTAT TTGGTATCTG CGCTCTGCTG
 2641 AAGCCAGTTA CCTTCGGAAA AAGAGTTGGT AGCTCTTGAT CCGGCAAACA AACCACCGCT
 2701 GGTAGCGGTG GTTTTTTTGT TTGCAAGCAG CAGATTACGC GCAGAAAAAA AGGATCTCAA
 2761 GAAGATCCTT TGATCTTTTC TACGGGGTCT GACGCTCAGT GGAACGAAAA CTCACGTTAA
 2821 GGGATTTTGG TCATGAGATT ATCAAAAAGG ATCTTCACCT AGATCCTTTT AAATTAAAAA
 2881 TGAAGTTTTA AATCAATCTA AAGTATATAT GAGTAAACTT GGTCTGACAG TTACCAATGC
 2941 TTAATCAGTG AGGCACCTAT CTCAGCGATC TGTCTATTTC GTTCATCCAT AGTTGCCTGA
 3001 CTCCCCGTCG TGTAGATAAC TACGATACGG GAGGGCTTAC CATCTGGCCC CAGTGCTGCA
 3061 ATGATACCGC GAGACCCACG CTCACCGGCT CCAGATTTAT CAGCAATAAA CCAGCCAGCC
 3121 GGAAGGGCCG AGCGCAGAAG TGGTCCTGCA ACTTTATCCG CCTCCATCCA GTCTATTAAT
 3181 TGTTGCCGGG AAGCTAGAGT AAGTAGTTCG CCAGTTAATA GTTTGCGCAA CGTTGTTGCC
 3241 ATTGCTACAG GCATCGTGGT GTCACGCTCG TCGTTTGGTA TGGCTTCATT CAGCTCCGGT
 3301 TCCCAACGAT CAAGGCGAGT TACATGATCC CCCATGTTGT GCAAAAAAGC GGTTAGCTCC
 3361 TTCGGTCCTC CGATCGTTGT CAGAAGTAAG TTGGCCGCAG TGTTATCACT CATGGTTATG
 3421 GCAGCACTGC ATAATTCTCT TACTGTCATG CCATCCGTAA GATGCTTTTC TGTGACTGGT
 3481 GAGTACTCAA CCAAGTCATT CTGAGAATAG TGTATGCGGC GACCGAGTTG CTCTTGCCCG
 3541 GCGTCAATAC GGGATAATAC CGCGCCACAT AGCAGAACTT TAAAAGTGCT CATCATTGGA
 3601 AAACGTTCTT CGGGGCGAAA ACTCTCAAGG ATCTTACCGC TGTTGAGATC CAGTTCGATG
 3661 TAACCCACTC GTGCACCCAA CTGATCTTCA GCATCTTTTA CTTTCACCAG CGTTTCTGGG
 3721 TGAGCAAAAA CAGGAAGGCA AAATGCCGCA AAAAAGGGAA TAAGGGCGAC ACGGAAATGT
 3781 TGAATACTCA TACTCTTCCT TTTTCAATAT TATTGAAGCA TTTATCAGGG TTATTGTCTC
 3841 ATGAGCGGAT ACATATTTGA ATGTATTTAG AAAAATAAAC AAATAGGGGT TCCGCGCACA
 3901 TTTCCCCGAA AAGTGCCACC TGACGTCTAA GAAACCATTA TTATCATGAC ATTAACCTAT
 3961 AAAAATAGGC GTATCACGAG GCCCTTTCGT CTTCAC
//

pQE16载体质粒图谱pdf版和相关资料下载

pQE16载体应用举例
