pENTR-L1pLaclacZaL4

价格:2100元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrogen
载体名称: pENTR-L1pLaclacZaL4
质粒类型: Gateway载体;入门载体
高拷贝/低拷贝: 高拷贝
启动子:
克隆方法: 限制性内切酶;多克隆位点
载体大小: 2916 bp
5' 测序引物及序列: pENTR-F: CTACAAACTCTTCCTGTTAGTTAG
3' 测序引物及序列: pENTR-R: ATGGCTCATAACACCCCTTG
载体标签:
载体抗性: Kanamycin.html' target='_blank'>卡那霉素氯霉素
真核筛选标记:
克隆菌株: DH5aTOP10感受态细胞
产品目录号: --
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

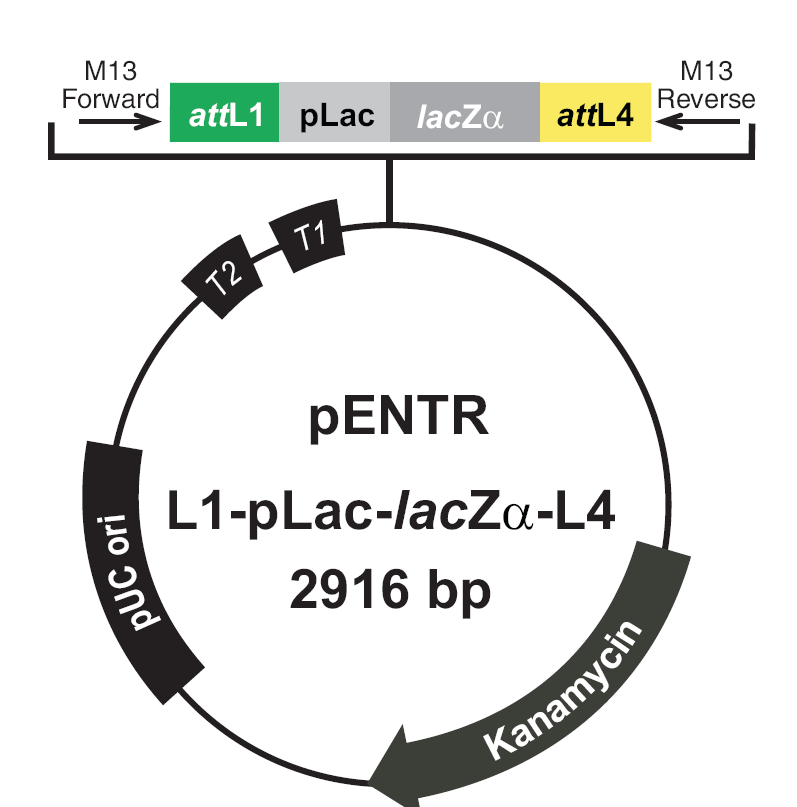

pENTR-L1-pLac-lacZa-L4载体图谱

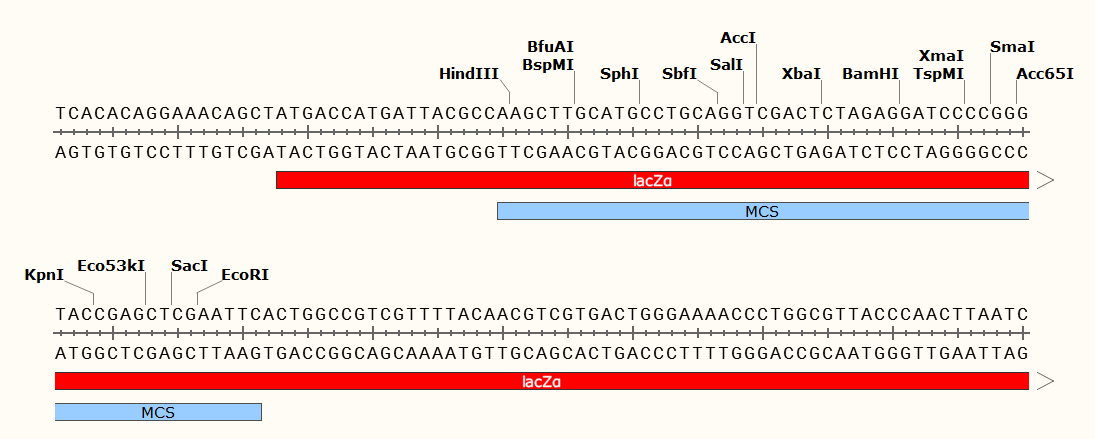

pENTR-L1-pLac-lacZa-L4多克隆位点

载体简介

载体序列

LOCUS       Exported                2916 bp ds-DNA     circular SYN 13-AUG-2016
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pENTR-L1pLaclacZaL4
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 2916)
  AUTHORS   Biofeng Lab.
  TITLE     Direct Submission
  JOURNAL   Exported Saturday, August 13, 2016 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..2916
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     terminator      268..295
                     /note="rrnB T2 terminator"
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     terminator      387..473
                     /gene="Escherichia coli rrnB"
                     /note="rrnB T1 terminator"
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     primer_bind     537..553
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    569..668
                     /gene="mutant version of attL"
                     /bound_moiety="LR Clonase(TM)"
                     /note="attL1"
                     /note="recombination site for the Gateway(R) LR reaction"
     promoter        694..724
                     /note="lac promoter"
                     /note="promoter for the E. coli lac operon"
     protein_bind    732..748
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     756..772
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     gene            768..983
                     /note="lacZ-alpha"
     misc_feature    785..841
                     /note="MCS"
                     /note="pUC18/19 multiple cloning site"
     primer_bind     complement(842..858)
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    complement(1031..1126)
                     /gene="mutant version of attL"
                     /bound_moiety="LR Clonase(TM)"
                     /note="attL4"
                     /note="recombination site for the Gateway(R) LR reaction"
     promoter        complement(1158..1176)
                     /note="T7 promoter"
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(1181..1197)
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     CDS             1310..2119
                     /codon_start=1
                     /gene="aph(3')-Ia"
                     /product="aminoglycoside phosphotransferase"
                     /note="KanR"
                     /note="confers resistance to kanamycin in bacteria or G418
                     (Geneticin(R)) in eukaryotes"
                     /translation="MSHIQRETSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYGKP
                     DAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGKTA
                     FQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDASD
                     FDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGIAD
                     RYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
     rep_origin      2266..2854
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 ctttcctgcg ttatcccctg attctgtgga taaccgtatt accgcctttg agtgagctga
       61 taccgctcgc cgcagccgaa cgaccgagcg cagcgagtca gtgagcgagg aagcggaaga
      121 gcgcccaata cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca
      181 cgacaggttt cccgactgga aagcgggcag tgagcgcaac gcaattaata cgcgtaccgc
      241 tagccaggaa gagtttgtag aaacgcaaaa aggccatccg tcaggatggc cttctgctta
      301 gtttgatgcc tggcagttta tggcgggcgt cctgcccgcc accctccggg ccgttgcttc
      361 acaacgttca aatccgctcc cggcggattt gtcctactca ggagagcgtt caccgacaaa
      421 caacagataa aacgaaaggc ccagtcttcc gactgagcct ttcgttttat ttgatgcctg
      481 gcagttccct actctcgcgt taacgctagc atggatgttt tcccagtcac gacgttgtaa
      541 aacgacggcc agtcttaagc tcgggcccca aataatgatt ttattttgac tgatagtgac
      601 ctgttcgttg caacaaattg atgagcaatg cttttttata atgccaactt tgtacaaaaa
      661 agcaggctag ctcactcatt aggcacccca ggctttacac tttatgcttc cggctcgtat
      721 gttgtgtgga attgtgagcg gataacaatt tcacacagga aacagctatg accatgatta
      781 cgccaagctt gcatgcctgc aggtcgactc tagaggatcc ccgggtaccg agctcgaatt
      841 cactggccgt cgttttacaa cgtcgtgact gggaaaaccc tggcgttacc caacttaatc
      901 gccttgcagc acatccccct ttcgccagct ggcgtaatag cgaagaggcc cgcaccgatc
      961 gcccttccca acagttgcgc agctaacact ataaaaagct gatgcagacg gggctttttt
     1021 atgcaggacc caacttttct atacaaagtt ggcattataa gaaagcattg cttatcaatt
     1081 tgttgcaacg aacaggtcac tatcagtcaa aataaaatca ttatttgcca tccagctgca
     1141 gggcggccgc gatatcccct atagtgagtc gtattacatg gtcatagctg tttcctggca
     1201 gctctggccc gtgtctcaaa atctctgatg ttacattgca caagataaaa atatatcatc
     1261 atgaacaata aaactgtctg cttacataaa cagtaataca aggggtgtta tgagccatat
     1321 tcaacgggaa acgtcgaggc cgcgattaaa ttccaacatg gatgctgatt tatatgggta
     1381 taaatgggct cgcgataatg tcgggcaatc aggtgcgaca atctatcgct tgtatgggaa
     1441 gcccgatgcg ccagagttgt ttctgaaaca tggcaaaggt agcgttgcca atgatgttac
     1501 agatgagatg gtcagactaa actggctgac ggaatttatg cctcttccga ccatcaagca
     1561 ttttatccgt actcctgatg atgcatggtt actcaccact gcgatccccg gaaaaacagc
     1621 attccaggta ttagaagaat atcctgattc aggtgaaaat attgttgatg cgctggcagt
     1681 gttcctgcgc cggttgcatt cgattcctgt ttgtaattgt ccttttaaca gcgatcgcgt
     1741 atttcgtctc gctcaggcgc aatcacgaat gaataacggt ttggttgatg cgagtgattt
     1801 tgatgacgag cgtaatggct ggcctgttga acaagtctgg aaagaaatgc ataaactttt
     1861 gccattctca ccggattcag tcgtcactca tggtgatttc tcacttgata accttatttt
     1921 tgacgagggg aaattaatag gttgtattga tgttggacga gtcggaatcg cagaccgata
     1981 ccaggatctt gccatcctat ggaactgcct cggtgagttt tctccttcat tacagaaacg
     2041 gctttttcaa aaatatggta ttgataatcc tgatatgaat aaattgcagt ttcatttgat
     2101 gctcgatgag tttttctaat cagaattggt taattggttg taacactggc agagcattac
     2161 gctgacttga cgggacggcg caagctcatg accaaaatcc cttaacgtga gttacgcgtc
     2221 gttccactga gcgtcagacc ccgtagaaaa gatcaaagga tcttcttgag atcctttttt
     2281 tctgcgcgta atctgctgct tgcaaacaaa aaaaccaccg ctaccagcgg tggtttgttt
     2341 gccggatcaa gagctaccaa ctctttttcc gaaggtaact ggcttcagca gagcgcagat
     2401 accaaatact gttcttctag tgtagccgta gttaggccac cacttcaaga actctgtagc
     2461 accgcctaca tacctcgctc tgctaatcct gttaccagtg gctgctgcca gtggcgataa
     2521 gtcgtgtctt accgggttgg actcaagacg atagttaccg gataaggcgc agcggtcggg
     2581 ctgaacgggg ggttcgtgca cacagcccag cttggagcga acgacctaca ccgaactgag
     2641 atacctacag cgtgagctat gagaaagcgc cacgcttccc gaagggagaa aggcggacag
     2701 gtatccggta agcggcaggg tcggaacagg agagcgcacg agggagcttc cagggggaaa
     2761 cgcctggtat ctttatagtc ctgtcgggtt tcgccacctc tgacttgagc gtcgattttt
     2821 gtgatgctcg tcaggggggc ggagcctatg gaaaaacgcc agcaacgcgg cctttttacg
     2881 gttcctggcc ttttgctggc cttttgctca catgtt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
