pET-21c(+)

价格:800元

联系方式:I47-825O-882O

买家导航

pET21c载体基本信息

出品公司: EMD Biosciences(Novagen)
别名: pET21c, pet 21c
质粒类型: 大肠杆菌蛋白表达
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5441bp
5' 测序引物: T7
5' 测序引物序列:   5'-TAATACGACTCACTATAGGG-3'
载体标签: N-T7, C-His
载体抗性: Ampicillin
备注:
Same as pET24a, b, c, d(+) but ampR; a,b,c,d vary by MCS; The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand.
产品目录号:  69742-3
稳定性: 瞬时表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

pET21c载体质粒图谱和多克隆位点信息

pET-21c载体图谱

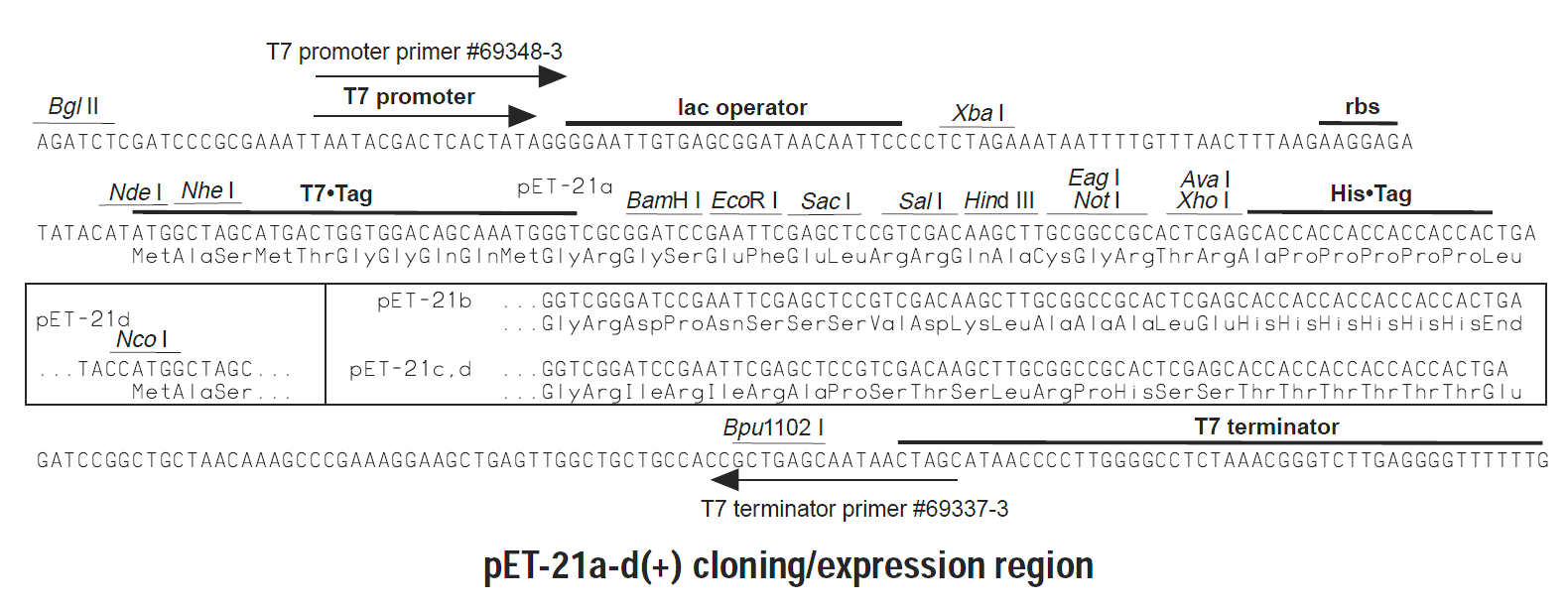

pET-21c多克隆位点

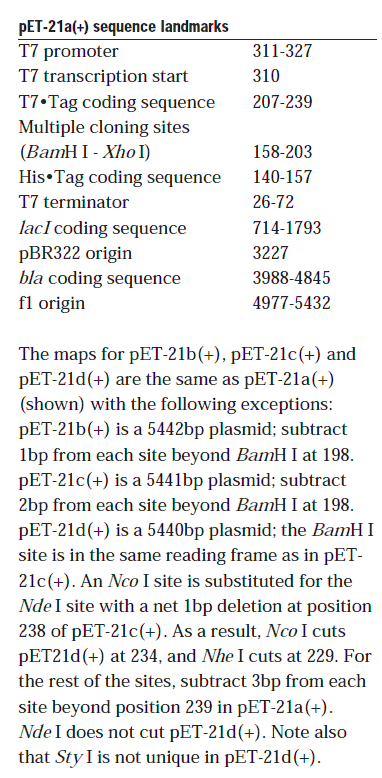

pET-21c载体特征

Feature Name Start End
T7_terminator 129 1
T7_Terminal_primer 69 87
T7_leader 237 205
Xpress_fwd_primer 238 220
T7_transl_en_RBS 262 246
lacO 307 280
T7_promoter 325 307
tet (300 - 563) 357 620
pBRrevBam_primer 428 409
lacI 703 1794
tet (576 - 851) 1853 2128
ROP 2603 2794
pGEX_3_primer 2810 2788
pBR322_origin 3828 3209
Ampicillin 4843 3983
AmpR_promoter 4913 4885
ORF Start End
ORF frame 3 462 962
ORF frame 1 835 1794
ORF frame 2 4843 3983
Enzyme Name Cut
XhoI 158
NotI 166
EagI 166
HindIII 173
SalI 179
SacI 190
EcoRI 192
BamHI 198
NheI 229
NdeI 236
XbaI 274
BglII 340
BclI 1076
ApaI 1273
EcoRV 1512
HpaI 1568
PstI 4301

pET21c载体简介

The pET-21a-d(+) vectors carry an N-terminal T7•Tag® sequence plus an optional C-terminal His•Tag® sequence. These vectors differ from pET-24a-d(+) only by their selectable marker (ampicillin vs. kanamycin resistance). Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circular map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand. Therefore, single-stranded sequencing should be performed using the T7 terminator primer.
pET Vectors 选择指南

pET21c载体序列

LOCUS       pET-21 c (+)    5441 bp     DNA  Circular  SYN
DEFINITION  pET-21 c (+)
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank|
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     source          1..5441
                     /organism="pET-21 c (+)"
                     /mol_type="other DNA"
     terminator      complement(1..129)
                     /label="T7_terminator"
     misc_feature    69..87
                     /label="T7_Terminal_primer"
     misc_feature    complement(205..237)
                     /label="T7_leader"
     misc_feature    complement(220..238)
                     /label="Xpress_fwd_primer"
     misc_feature    complement(246..262)
                     /label="T7_transl_en_RBS"
     misc_feature    complement(280..307)
                     /label="lacO"
     promoter        complement(307..325)
                     /label="T7_promoter"
     gene            357..620
                     /label="tet (300 - 563)"
                     /gene="tet (300 - 563)"
     misc_feature    complement(409..428)
                     /label="pBRrevBam_primer"
     CDS             462..962
                     /label="ORF frame 3"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     misc_feature    703..1794
                     /label="lacI"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     CDS             835..1794
                     /label="ORF frame 1"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     gene            1853..2128
                     /label="tet (576 - 851)"
                     /gene="tet (576 - 851)"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     misc_feature    2603..2794
                     /label="ROP"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     misc_feature    complement(2788..2810)
                     /label="pGEX_3_primer"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     rep_origin      complement(3209..3828)
                     /label="pBR322_origin"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     gene            complement(3983..4843)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     CDS             complement(3983..4843)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(4885..4913)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 atccggatat agttcctcct ttcagcaaaa aacccctcaa gacccgttta gaggccccaa
   61 ggggttatgc tagttattgc tcagcggtgg cagcagccaa ctcagcttcc tttcgggctt
  121 tgttagcagc cggatctcag tggtggtggt ggtggtgctc gagtgcggcc gcaagcttgt
  181 cgacggagct cgaattcgga tccgacccat ttgctgtcca ccagtcatgc tagccatatg
  241 tatatctcct tcttaaagtt aaacaaaatt atttctagag gggaattgtt atccgctcac
  301 aattccccta tagtgagtcg tattaatttc gcgggatcga gatctcgatc ctctacgccg
  361 gacgcatcgt ggccggcatc accggcgcca caggtgcggt tgctggcgcc tatatcgccg
  421 acatcaccga tggggaagat cgggctcgcc acttcgggct catgagcgct tgtttcggcg
  481 tgggtatggt ggcaggcccc gtggccgggg gactgttggg cgccatctcc ttgcatgcac
  541 cattccttgc ggcggcggtg ctcaacggcc tcaacctact actgggctgc ttcctaatgc
  601 aggagtcgca taagggagag cgtcgagatc ccggacacca tcgaatggcg caaaaccttt
  661 cgcggtatgg catgatagcg cccggaagag agtcaattca gggtggtgaa tgtgaaacca
  721 gtaacgttat acgatgtcgc agagtatgcc ggtgtctctt atcagaccgt ttcccgcgtg
  781 gtgaaccagg ccagccacgt ttctgcgaaa acgcgggaaa aagtggaagc ggcgatggcg
  841 gagctgaatt acattcccaa ccgcgtggca caacaactgg cgggcaaaca gtcgttgctg
  901 attggcgttg ccacctccag tctggccctg cacgcgccgt cgcaaattgt cgcggcgatt
  961 aaatctcgcg ccgatcaact gggtgccagc gtggtggtgt cgatggtaga acgaagcggc
 1021 gtcgaagcct gtaaagcggc ggtgcacaat cttctcgcgc aacgcgtcag tgggctgatc
 1081 attaactatc cgctggatga ccaggatgcc attgctgtgg aagctgcctg cactaatgtt
 1141 ccggcgttat ttcttgatgt ctctgaccag acacccatca acagtattat tttctcccat
 1201 gaagacggta cgcgactggg cgtggagcat ctggtcgcat tgggtcacca gcaaatcgcg
 1261 ctgttagcgg gcccattaag ttctgtctcg gcgcgtctgc gtctggctgg ctggcataaa
 1321 tatctcactc gcaatcaaat tcagccgata gcggaacggg aaggcgactg gagtgccatg
 1381 tccggttttc aacaaaccat gcaaatgctg aatgagggca tcgttcccac tgcgatgctg
 1441 gttgccaacg atcagatggc gctgggcgca atgcgcgcca ttaccgagtc cgggctgcgc
 1501 gttggtgcgg atatctcggt agtgggatac gacgataccg aagacagctc atgttatatc
 1561 ccgccgttaa ccaccatcaa acaggatttt cgcctgctgg ggcaaaccag cgtggaccgc
 1621 ttgctgcaac tctctcaggg ccaggcggtg aagggcaatc agctgttgcc cgtctcactg
 1681 gtgaaaagaa aaaccaccct ggcgcccaat acgcaaaccg cctctccccg cgcgttggcc
 1741 gattcattaa tgcagctggc acgacaggtt tcccgactgg aaagcgggca gtgagcgcaa
 1801 cgcaattaat gtaagttagc tcactcatta ggcaccggga tctcgaccga tgcccttgag
 1861 agccttcaac ccagtcagct ccttccggtg ggcgcggggc atgactatcg tcgccgcact
 1921 tatgactgtc ttctttatca tgcaactcgt aggacaggtg ccggcagcgc tctgggtcat
 1981 tttcggcgag gaccgctttc gctggagcgc gacgatgatc ggcctgtcgc ttgcggtatt
 2041 cggaatcttg cacgccctcg ctcaagcctt cgtcactggt cccgccacca aacgtttcgg
 2101 cgagaagcag gccattatcg ccggcatggc ggccccacgg gtgcgcatga tcgtgctcct
 2161 gtcgttgagg acccggctag gctggcgggg ttgccttact ggttagcaga atgaatcacc
 2221 gatacgcgag cgaacgtgaa gcgactgctg ctgcaaaacg tctgcgacct gagcaacaac
 2281 atgaatggtc ttcggtttcc gtgtttcgta aagtctggaa acgcggaagt cagcgccctg
 2341 caccattatg ttccggatct gcatcgcagg atgctgctgg ctaccctgtg gaacacctac
 2401 atctgtatta acgaagcgct ggcattgacc ctgagtgatt tttctctggt cccgccgcat
 2461 ccataccgcc agttgtttac cctcacaacg ttccagtaac cgggcatgtt catcatcagt
 2521 aacccgtatc gtgagcatcc tctctcgttt catcggtatc attaccccca tgaacagaaa
 2581 tcccccttac acggaggcat cagtgaccaa acaggaaaaa accgccctta acatggcccg
 2641 ctttatcaga agccagacat taacgcttct ggagaaactc aacgagctgg acgcggatga
 2701 acaggcagac atctgtgaat cgcttcacga ccacgctgat gagctttacc gcagctgcct
 2761 cgcgcgtttc ggtgatgacg gtgaaaacct ctgacacatg cagctcccgg agacggtcac
 2821 agcttgtctg taagcggatg ccgggagcag acaagcccgt cagggcgcgt cagcgggtgt
 2881 tggcgggtgt cggggcgcag ccatgaccca gtcacgtagc gatagcggag tgtatactgg
 2941 cttaactatg cggcatcaga gcagattgta ctgagagtgc accatatatg cggtgtgaaa
 3001 taccgcacag atgcgtaagg agaaaatacc gcatcaggcg ctcttccgct tcctcgctca
 3061 ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg
 3121 taatacggtt atccacagaa tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc
 3181 agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc
 3241 cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac
 3301 tataaagata ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc
 3361 tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata
 3421 gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc
 3481 acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca
 3541 acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag
 3601 cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta
 3661 gaaggacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg
 3721 gtagctcttg atccggcaaa caaaccaccg ctggtagcgg tggttttttt gtttgcaagc
 3781 agcagattac gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt
 3841 ctgacgctca gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa
 3901 ggatcttcac ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat
 3961 atgagtaaac ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga
 4021 tctgtctatt tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac
 4081 gggagggctt accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg
 4141 ctccagattt atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg
 4201 caactttatc cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt
 4261 cgccagttaa tagtttgcgc aacgttgttg ccattgctgc aggcatcgtg gtgtcacgct
 4321 cgtcgtttgg tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat
 4381 cccccatgtt gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta
 4441 agttggccgc agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca
 4501 tgccatccgt aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat
 4561 agtgtatgcg gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac
 4621 atagcagaac tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa
 4681 ggatcttacc gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt
 4741 cagcatcttt tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg
 4801 caaaaaaggg aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat
 4861 attattgaag catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt
 4921 agaaaaataa acaaataggg gttccgcgca catttccccg aaaagtgcca cctgaaattg
 4981 taaacgttaa tattttgtta aaattcgcgt taaatttttg ttaaatcagc tcatttttta
 5041 accaataggc cgaaatcggc aaaatccctt ataaatcaaa agaatagacc gagatagggt
 5101 tgagtgttgt tccagtttgg aacaagagtc cactattaaa gaacgtggac tccaacgtca
 5161 aagggcgaaa aaccgtctat cagggcgatg gcccactacg tgaaccatca ccctaatcaa
 5221 gttttttggg gtcgaggtgc cgtaaagcac taaatcggaa ccctaaaggg agcccccgat
 5281 ttagagcttg acggggaaag ccggcgaacg tggcgagaaa ggaagggaag aaagcgaaag
 5341 gagcgggcgc tagggcgctg gcaagtgtag cggtcacgct gcgcgtaacc accacacccg
 5401 ccgcgcttaa tgcgccgcta cagggcgcgt cccattcgcc a
//

pET21c载体质粒图谱pdf版和相关资料下载

pET21c载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
