pET-24d(+)

价格:800元

联系方式:I47-825O-882O

买家导航

pET24d载体基本信息

出品公司: EMD Biosciences (Novagen)
别名: pET24d, pet 24d
质粒类型: 大肠杆菌蛋白表达
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5307 bp
5' 测序引物: T7
5' 测序引物序列:   5'-TAATACGACTCACTATAGGG-3'
载体标签: N-T7, C-His
载体抗性: Kanamycin
表达宿主菌: BL21(DE3) BLR(DE3)BL21(DE3)pLysS
备注:

Same as pET21b(+) but kanamycin resistance; a,b,c,d vary by MCS; The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand.

产品目录号: 69752-3
稳定性: 瞬时表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

pET24d载体质粒图谱和多克隆位点信息

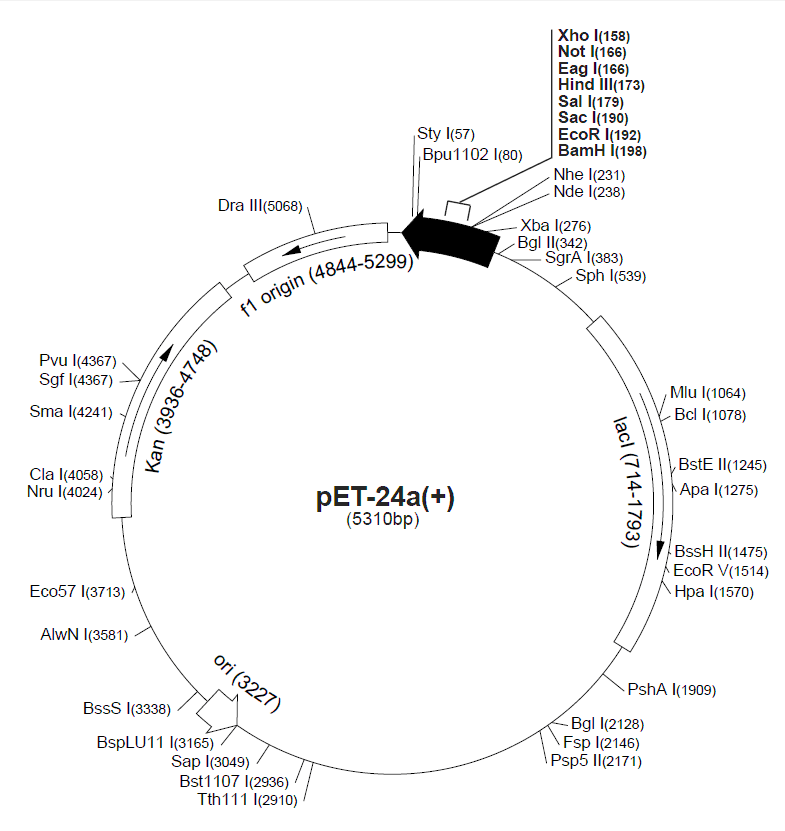

pET-24d载体图谱



pET-24d多克隆位点

pET-24d载体特征

pET24d载体简介

The pET-24a-d(+) vectors carry an N-terminal T7•Tag® sequence plus an optional C-terminal His•Tag® sequence. These vectors differ from pET-21a-d(+) only by their selectable marker (kanamycin vs. ampicillin resistance). Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circular map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand. Therefore, singlestranded sequencing should be performed using the T7 terminator primer.
pET Vectors 选择指南

pET24d载体序列

LOCUS       pET-24 d (+)    5307 bp     DNA Circular   SYN
DEFINITION  pET-24 d (+)
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     source          1..5307
                     /organism="pET-24 d (+)"
                     /mol_type="other DNA"
     terminator      complement(1..129)
                     /label="T7_terminator"
     misc_feature    69..87
                     /label="T7_Terminal_primer"
     misc_feature    complement(205..237)
                     /label="T7_leader"
     misc_feature    complement(245..261)
                     /label="T7_transl_en_RBS"
     misc_feature    complement(279..306)
                     /label="lacO"
     promoter        complement(306..324)
                     /label="T7_promoter"
     gene            356..619
                     /label="tet (300 - 563)"
                     /gene="tet (300 - 563)"
     misc_feature    complement(408..427)
                     /label="pBRrevBam_primer"
     CDS             461..961
                     /label="ORF frame 2"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     misc_feature    702..1793
                     /label="lacI"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     CDS             834..1793
                     /label="ORF frame 3"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     gene            1852..2127
                     /label="tet (576 - 851)"
                     /gene="tet (576 - 851)"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     misc_feature    2602..2793
                     /label="ROP"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     misc_feature    complement(2787..2809)
                     /label="pGEX_3_primer"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     rep_origin      complement(3208..3827)
                     /label="pBR322_origin"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     gene            3933..4748
                     /label="KanR2"
                     /gene="KanR2"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     CDS             3933..4748
                     /label="ORF frame 3"
                     /translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLY
                     GKPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIP
                     GKTAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGL
                     VDASDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVG
                     RVGIADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF*"
ORIGIN
    1 atccggatat agttcctcct ttcagcaaaa aacccctcaa gacccgttta gaggccccaa
   61 ggggttatgc tagttattgc tcagcggtgg cagcagccaa ctcagcttcc tttcgggctt
  121 tgttagcagc cggatctcag tggtggtggt ggtggtgctc gagtgcggcc gcaagcttgt
  181 cgacggagct cgaattcgga tccgacccat ttgctgtcca ccagtcatgc tagccatggt
  241 atatctcctt cttaaagtta aacaaaatta tttctagagg ggaattgtta tccgctcaca
  301 attcccctat agtgagtcgt attaatttcg cgggatcgag atctcgatcc tctacgccgg
  361 acgcatcgtg gccggcatca ccggcgccac aggtgcggtt gctggcgcct atatcgccga
  421 catcaccgat ggggaagatc gggctcgcca cttcgggctc atgagcgctt gtttcggcgt
  481 gggtatggtg gcaggccccg tggccggggg actgttgggc gccatctcct tgcatgcacc
  541 attccttgcg gcggcggtgc tcaacggcct caacctacta ctgggctgct tcctaatgca
  601 ggagtcgcat aagggagagc gtcgagatcc cggacaccat cgaatggcgc aaaacctttc
  661 gcggtatggc atgatagcgc ccggaagaga gtcaattcag ggtggtgaat gtgaaaccag
  721 taacgttata cgatgtcgca gagtatgccg gtgtctctta tcagaccgtt tcccgcgtgg
  781 tgaaccaggc cagccacgtt tctgcgaaaa cgcgggaaaa agtggaagcg gcgatggcgg
  841 agctgaatta cattcccaac cgcgtggcac aacaactggc gggcaaacag tcgttgctga
  901 ttggcgttgc cacctccagt ctggccctgc acgcgccgtc gcaaattgtc gcggcgatta
  961 aatctcgcgc cgatcaactg ggtgccagcg tggtggtgtc gatggtagaa cgaagcggcg
 1021 tcgaagcctg taaagcggcg gtgcacaatc ttctcgcgca acgcgtcagt gggctgatca
 1081 ttaactatcc gctggatgac caggatgcca ttgctgtgga agctgcctgc actaatgttc
 1141 cggcgttatt tcttgatgtc tctgaccaga cacccatcaa cagtattatt ttctcccatg
 1201 aagacggtac gcgactgggc gtggagcatc tggtcgcatt gggtcaccag caaatcgcgc
 1261 tgttagcggg cccattaagt tctgtctcgg cgcgtctgcg tctggctggc tggcataaat
 1321 atctcactcg caatcaaatt cagccgatag cggaacggga aggcgactgg agtgccatgt
 1381 ccggttttca acaaaccatg caaatgctga atgagggcat cgttcccact gcgatgctgg
 1441 ttgccaacga tcagatggcg ctgggcgcaa tgcgcgccat taccgagtcc gggctgcgcg
 1501 ttggtgcgga tatctcggta gtgggatacg acgataccga agacagctca tgttatatcc
 1561 cgccgttaac caccatcaaa caggattttc gcctgctggg gcaaaccagc gtggaccgct
 1621 tgctgcaact ctctcagggc caggcggtga agggcaatca gctgttgccc gtctcactgg
 1681 tgaaaagaaa aaccaccctg gcgcccaata cgcaaaccgc ctctccccgc gcgttggccg
 1741 attcattaat gcagctggca cgacaggttt cccgactgga aagcgggcag tgagcgcaac
 1801 gcaattaatg taagttagct cactcattag gcaccgggat ctcgaccgat gcccttgaga
 1861 gccttcaacc cagtcagctc cttccggtgg gcgcggggca tgactatcgt cgccgcactt
 1921 atgactgtct tctttatcat gcaactcgta ggacaggtgc cggcagcgct ctgggtcatt
 1981 ttcggcgagg accgctttcg ctggagcgcg acgatgatcg gcctgtcgct tgcggtattc
 2041 ggaatcttgc acgccctcgc tcaagccttc gtcactggtc ccgccaccaa acgtttcggc
 2101 gagaagcagg ccattatcgc cggcatggcg gccccacggg tgcgcatgat cgtgctcctg
 2161 tcgttgagga cccggctagg ctggcggggt tgccttactg gttagcagaa tgaatcaccg
 2221 atacgcgagc gaacgtgaag cgactgctgc tgcaaaacgt ctgcgacctg agcaacaaca
 2281 tgaatggtct tcggtttccg tgtttcgtaa agtctggaaa cgcggaagtc agcgccctgc
 2341 accattatgt tccggatctg catcgcagga tgctgctggc taccctgtgg aacacctaca
 2401 tctgtattaa cgaagcgctg gcattgaccc tgagtgattt ttctctggtc ccgccgcatc
 2461 cataccgcca gttgtttacc ctcacaacgt tccagtaacc gggcatgttc atcatcagta
 2521 acccgtatcg tgagcatcct ctctcgtttc atcggtatca ttacccccat gaacagaaat
 2581 cccccttaca cggaggcatc agtgaccaaa caggaaaaaa ccgcccttaa catggcccgc
 2641 tttatcagaa gccagacatt aacgcttctg gagaaactca acgagctgga cgcggatgaa
 2701 caggcagaca tctgtgaatc gcttcacgac cacgctgatg agctttaccg cagctgcctc
 2761 gcgcgtttcg gtgatgacgg tgaaaacctc tgacacatgc agctcccgga gacggtcaca
 2821 gcttgtctgt aagcggatgc cgggagcaga caagcccgtc agggcgcgtc agcgggtgtt
 2881 ggcgggtgtc ggggcgcagc catgacccag tcacgtagcg atagcggagt gtatactggc
 2941 ttaactatgc ggcatcagag cagattgtac tgagagtgca ccatatatgc ggtgtgaaat
 3001 accgcacaga tgcgtaagga gaaaataccg catcaggcgc tcttccgctt cctcgctcac
 3061 tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt
 3121 aatacggtta tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca
 3181 gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc
 3241 ccctgacgag catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact
 3301 ataaagatac caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct
 3361 gccgcttacc ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag
 3421 ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca
 3481 cgaacccccc gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa
 3541 cccggtaaga cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc
 3601 gaggtatgta ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag
 3661 aaggacagta tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg
 3721 tagctcttga tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca
 3781 gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc
 3841 tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgaaca ataaaactgt
 3901 ctgcttacat aaacagtaat acaaggggtg ttatgagcca tattcaacgg gaaacgtctt
 3961 gctctaggcc gcgattaaat tccaacatgg atgctgattt atatgggtat aaatgggctc
 4021 gcgataatgt cgggcaatca ggtgcgacaa tctatcgatt gtatgggaag cccgatgcgc
 4081 cagagttgtt tctgaaacat ggcaaaggta gcgttgccaa tgatgttaca gatgagatgg
 4141 tcagactaaa ctggctgacg gaatttatgc ctcttccgac catcaagcat tttatccgta
 4201 ctcctgatga tgcatggtta ctcaccactg cgatccccgg gaaaacagca ttccaggtat
 4261 tagaagaata tcctgattca ggtgaaaata ttgttgatgc gctggcagtg ttcctgcgcc
 4321 ggttgcattc gattcctgtt tgtaattgtc cttttaacag cgatcgcgta tttcgtctcg
 4381 ctcaggcgca atcacgaatg aataacggtt tggttgatgc gagtgatttt gatgacgagc
 4441 gtaatggctg gcctgttgaa caagtctgga aagaaatgca taaacttttg ccattctcac
 4501 cggattcagt cgtcactcat ggtgatttct cacttgataa ccttattttt gacgagggga
 4561 aattaatagg ttgtattgat gttggacgag tcggaatcgc agaccgatac caggatcttg
 4621 ccatcctatg gaactgcctc ggtgagtttt ctccttcatt acagaaacgg ctttttcaaa
 4681 aatatggtat tgataatcct gatatgaata aattgcagtt tcatttgatg ctcgatgagt
 4741 ttttctaaga attaattcat gagcggatac atatttgaat gtatttagaa aaataaacaa
 4801 ataggggttc cgcgcacatt tccccgaaaa gtgccacctg aaattgtaaa cgttaatatt
 4861 ttgttaaaat tcgcgttaaa tttttgttaa atcagctcat tttttaacca ataggccgaa
 4921 atcggcaaaa tcccttataa atcaaaagaa tagaccgaga tagggttgag tgttgttcca
 4981 gtttggaaca agagtccact attaaagaac gtggactcca acgtcaaagg gcgaaaaacc
 5041 gtctatcagg gcgatggccc actacgtgaa ccatcaccct aatcaagttt tttggggtcg
 5101 aggtgccgta aagcactaaa tcggaaccct aaagggagcc cccgatttag agcttgacgg
 5161 ggaaagccgg cgaacgtggc gagaaaggaa gggaagaaag cgaaaggagc gggcgctagg
 5221 gcgctggcaa gtgtagcggt cacgctgcgc gtaaccacca cacccgccgc gcttaatgcg
 5281 ccgctacagg gcgcgtccca ttcgcca
//

pET24d载体质粒图谱pdf版和相关资料下载

pET24d载体应用举例
