pET-21b(+)

价格:800元

联系方式:I47-825O-882O

买家导航

pet21b载体基本信息

出品公司: EMD Biosciences(Novagen)
别名: pET21b, pet 21b
质粒类型: 大肠杆菌蛋白表达
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5442bp
5' 测序引物: T7
5' 测序引物序列:   5'-TAATACGACTCACTATAGGG-3'
载体标签: N-T7, C-His
载体抗性: Ampicillin
备注:
Same as pET24a, b, c, d(+) but ampR; a,b,c,d vary by MCS; The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand.
产品目录号:  69741-3
稳定性: 瞬时表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

pet21b载体质粒图谱和多克隆位点信息

pET-21b载体图谱



pET-21b多克隆位点

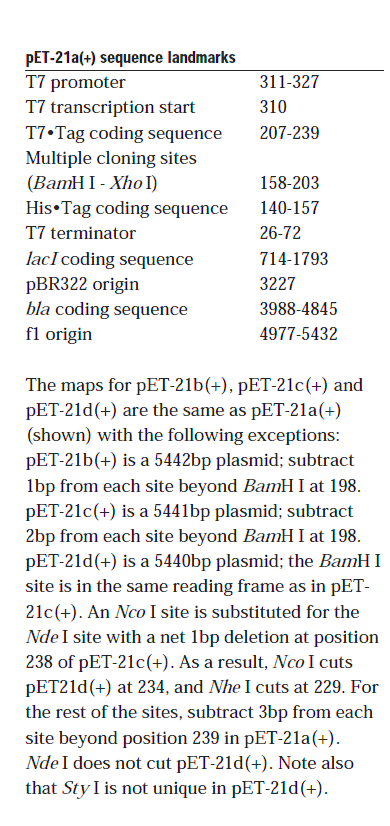

pET-21b载体特征

pet21b载体简介

The pET-21a-d(+) vectors carry an N-terminal T7•Tag® sequence plus an optional C-terminal His•Tag® sequence. These vectors differ from pET-24a-d(+) only by their selectable marker (ampicillin vs. kanamycin resistance). Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circular map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand. Therefore, single-stranded sequencing should be performed using the T7 terminator primer (Cat. No. 69337-3).
pET Vectors 选择指南

pet21b载体序列

LOCUS       pET-21b(+)              5442 bp    DNA     circular     11-SEP-2008
SOURCE
ORGANISM
COMMENT     This file is created by Vector NTI
                          http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTNAME|pET-21b(+)|
COMMENT     VNTAUTHORNAME|Biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     promoter        complement(310..326)
                     /vntifkey="30"
                     /label=T7\promoter
     protein_bind    complement(206..238)
                     /vntifkey="31"
                     /label=T7\tag
     protein_bind    complement(140..157)
                     /vntifkey="31"
                     /label=His\tag
     terminator      complement(26..72)
                     /vntifkey="43"
                     /label=T7\terminator
     CDS             713..1792
                     /vntifkey="4"
                     /label=lac\I
     rep_origin      complement(3226..3226)
                     /vntifkey="33"
                     /label=ColE1\pBR322\origin
     CDS             complement(3987..4844)
                     /vntifkey="4"
                     /label=bla\(Ap)\sequence
     rep_origin      complement(4976..5431)
                     /vntifkey="33"
                     /label=f1\origin
     CDS             complement(283..307)
                     /vntifkey="4"
                     /label=lac\operator
BASE COUNT     1288 a      1446 c      1440 g      1268 t
ORIGIN
        1 atccggatat agttcctcct ttcagcaaaa aacccctcaa gacccgttta gaggccccaa
       61 ggggttatgc tagttattgc tcagcggtgg cagcagccaa ctcagcttcc tttcgggctt
      121 tgttagcagc cggatctcag tggtggtggt ggtggtgctc gagtgcggcc gcaagcttgt
      181 cgacggagct cgaattcgga tcccgaccca tttgctgtcc accagtcatg ctagccatat
      241 gtatatctcc ttcttaaagt taaacaaaat tatttctaga ggggaattgt tatccgctca
      301 caattcccct atagtgagtc gtattaattt cgcgggatcg agatctcgat cctctacgcc
      361 ggacgcatcg tggccggcat caccggcgcc acaggtgcgg ttgctggcgc ctatatcgcc
      421 gacatcaccg atggggaaga tcgggctcgc cacttcgggc tcatgagcgc ttgtttcggc
      481 gtgggtatgg tggcaggccc cgtggccggg ggactgttgg gcgccatctc cttgcatgca
      541 ccattccttg cggcggcggt gctcaacggc ctcaacctac tactgggctg cttcctaatg
      601 caggagtcgc ataagggaga gcgtcgagat cccggacacc atcgaatggc gcaaaacctt
      661 tcgcggtatg gcatgatagc gcccggaaga gagtcaattc agggtggtga atgtgaaacc
      721 agtaacgtta tacgatgtcg cagagtatgc cggtgtctct tatcagaccg tttcccgcgt
      781 ggtgaaccag gccagccacg tttctgcgaa aacgcgggaa aaagtggaag cggcgatggc
      841 ggagctgaat tacattccca accgcgtggc acaacaactg gcgggcaaac agtcgttgct
      901 gattggcgtt gccacctcca gtctggccct gcacgcgccg tcgcaaattg tcgcggcgat
      961 taaatctcgc gccgatcaac tgggtgccag cgtggtggtg tcgatggtag aacgaagcgg
     1021 cgtcgaagcc tgtaaagcgg cggtgcacaa tcttctcgcg caacgcgtca gtgggctgat
     1081 cattaactat ccgctggatg accaggatgc cattgctgtg gaagctgcct gcactaatgt
     1141 tccggcgtta tttcttgatg tctctgacca gacacccatc aacagtatta ttttctccca
     1201 tgaagacggt acgcgactgg gcgtggagca tctggtcgca ttgggtcacc agcaaatcgc
     1261 gctgttagcg ggcccattaa gttctgtctc ggcgcgtctg cgtctggctg gctggcataa
     1321 atatctcact cgcaatcaaa ttcagccgat agcggaacgg gaaggcgact ggagtgccat
     1381 gtccggtttt caacaaacca tgcaaatgct gaatgagggc atcgttccca ctgcgatgct
     1441 ggttgccaac gatcagatgg cgctgggcgc aatgcgcgcc attaccgagt ccgggctgcg
     1501 cgttggtgcg gatatctcgg tagtgggata cgacgatacc gaagacagct catgttatat
     1561 cccgccgtta accaccatca aacaggattt tcgcctgctg gggcaaacca gcgtggaccg
     1621 cttgctgcaa ctctctcagg gccaggcggt gaagggcaat cagctgttgc ccgtctcact
     1681 ggtgaaaaga aaaaccaccc tggcgcccaa tacgcaaacc gcctctcccc gcgcgttggc
     1741 cgattcatta atgcagctgg cacgacaggt ttcccgactg gaaagcgggc agtgagcgca
     1801 acgcaattaa tgtaagttag ctcactcatt aggcaccggg atctcgaccg atgcccttga
     1861 gagccttcaa cccagtcagc tccttccggt gggcgcgggg catgactatc gtcgccgcac
     1921 ttatgactgt cttctttatc atgcaactcg taggacaggt gccggcagcg ctctgggtca
     1981 ttttcggcga ggaccgcttt cgctggagcg cgacgatgat cggcctgtcg cttgcggtat
     2041 tcggaatctt gcacgccctc gctcaagcct tcgtcactgg tcccgccacc aaacgtttcg
     2101 gcgagaagca ggccattatc gccggcatgg cggccccacg ggtgcgcatg atcgtgctcc
     2161 tgtcgttgag gacccggcta ggctggcggg gttgccttac tggttagcag aatgaatcac
     2221 cgatacgcga gcgaacgtga agcgactgct gctgcaaaac gtctgcgacc tgagcaacaa
     2281 catgaatggt cttcggtttc cgtgtttcgt aaagtctgga aacgcggaag tcagcgccct
     2341 gcaccattat gttccggatc tgcatcgcag gatgctgctg gctaccctgt ggaacaccta
     2401 catctgtatt aacgaagcgc tggcattgac cctgagtgat ttttctctgg tcccgccgca
     2461 tccataccgc cagttgttta ccctcacaac gttccagtaa ccgggcatgt tcatcatcag
     2521 taacccgtat cgtgagcatc ctctctcgtt tcatcggtat cattaccccc atgaacagaa
     2581 atccccctta cacggaggca tcagtgacca aacaggaaaa aaccgccctt aacatggccc
     2641 gctttatcag aagccagaca ttaacgcttc tggagaaact caacgagctg gacgcggatg
     2701 aacaggcaga catctgtgaa tcgcttcacg accacgctga tgagctttac cgcagctgcc
     2761 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
     2821 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
     2881 ttggcgggtg tcggggcgca gccatgaccc agtcacgtag cgatagcgga gtgtatactg
     2941 gcttaactat gcggcatcag agcagattgt actgagagtg caccatatat gcggtgtgaa
     3001 ataccgcaca gatgcgtaag gagaaaatac cgcatcaggc gctcttccgc ttcctcgctc
     3061 actgactcgc tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg
     3121 gtaatacggt tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc
     3181 cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc
     3241 ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga
     3301 ctataaagat accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc
     3361 ctgccgctta ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat
     3421 agctcacgct gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg
     3481 cacgaacccc ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc
     3541 aacccggtaa gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga
     3601 gcgaggtatg taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact
     3661 agaaggacag tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt
     3721 ggtagctctt gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag
     3781 cagcagatta cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg
     3841 tctgacgctc agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa
     3901 aggatcttca cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata
     3961 tatgagtaaa cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg
     4021 atctgtctat ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata
     4081 cgggagggct taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg
     4141 gctccagatt tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct
     4201 gcaactttat ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt
     4261 tcgccagtta atagtttgcg caacgttgtt gccattgctg caggcatcgt ggtgtcacgc
     4321 tcgtcgtttg gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga
     4381 tcccccatgt tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt
     4441 aagttggccg cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc
     4501 atgccatccg taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa
     4561 tagtgtatgc ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca
     4621 catagcagaa ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca
     4681 aggatcttac cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct
     4741 tcagcatctt ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc
     4801 gcaaaaaagg gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa
     4861 tattattgaa gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt
     4921 tagaaaaata aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctgaaatt
     4981 gtaaacgtta atattttgtt aaaattcgcg ttaaattttt gttaaatcag ctcatttttt
     5041 aaccaatagg ccgaaatcgg caaaatccct tataaatcaa aagaatagac cgagataggg
     5101 ttgagtgttg ttccagtttg gaacaagagt ccactattaa agaacgtgga ctccaacgtc
     5161 aaagggcgaa aaaccgtcta tcagggcgat ggcccactac gtgaaccatc accctaatca
     5221 agttttttgg ggtcgaggtg ccgtaaagca ctaaatcgga accctaaagg gagcccccga
     5281 tttagagctt gacggggaaa gccggcgaac gtggcgagaa aggaagggaa gaaagcgaaa
     5341 ggagcgggcg ctagggcgct ggcaagtgta gcggtcacgc tgcgcgtaac caccacaccc
     5401 gccgcgctta atgcgccgct acagggcgcg tcccattcgc ca
//

pet21b载体质粒图谱pdf版和相关资料下载

pet21b载体应用举例
