pET-11c(+)

价格:800元

联系方式:I47-825O-882O

买家导航

pet11c载体基本信息

出品公司: EMD Biosciences(Novagen)
别名: pET-11c, pet 11c
质粒类型: 大肠杆菌表达载体
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5672bp
5' 测序引物: T7
5' 测序引物序列:   5'-TAATACGACTCACTATAGGG-3'
载体标签: T7 tag (N-端)
载体抗性: Ampicillin
备注:
Approximate size is 5675 bp. Hosts: E.coli. Related vectors: pBR322.
产品目录号: 69438-3
稳定性: 瞬时表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

pet11c载体质粒图谱和多克隆位点信息

pET-11c 载体图谱

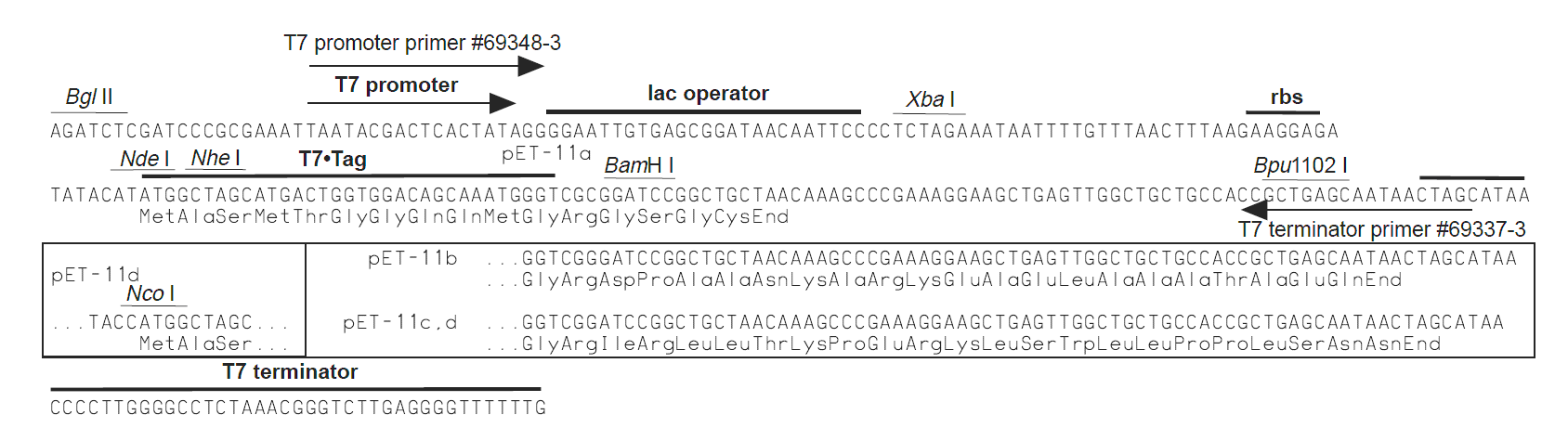

pET-11c 多克隆位点

pET-11c 载体特征

Feature Name Start End
T7_terminator 316 188
T7_Terminal_primer 256 274
T7_leader 358 326
Xpress_fwd_primer 359 341
T7_transl_en_RBS 383 367
lacO 428 401
T7_promoter 446 428
pBRrevBam_primer 549 530
lacI 824 1915
tet (576 - 1190) 1974 2588
ROP 3227 3418
pGEX_3_primer 3434 3412
Ampicillin 5464 4604
AmpR_promoter 5534 5506
ORF Start End
ORF frame 1 583 1083
ORF frame 2 956 1915
ORF frame 1 2393 1698
ORF frame 3 1971 2588
ORF frame 2 5464 4604
Enzyme Name Cut
ClaI 24
HindIII 29
BamHI 319
NheI 350
NdeI 357
XbaI 395
BglII 461
BclI 1197
ApaI 1394
HpaI 1689
EagI 2251
NruI 2286
MscI 2758
PstI 4922
AatII 5599
EcoRI 5670

pet11c载体简介

The pET-11a-d vectors carry an N-terminal T7•Tag® sequence and BamH I cloning site. Thesevectors are the precursors to many pET family vectors; the pET-21a-d(+) series corresponds topET-11a-d but incorporates several additional features. Unique sites are shown on the circle map.Note that the sequence is numbered by the pBR322 convention, so the T7 expression region isreversed on the circular map. The cloning/expression region of the coding strand transcribed byT7 RNA polymerase is shown below. pET Vectors 选择指南

pet11c载体序列

LOCUS       pET11c    5672 bp     DNA  circular   SYN
DEFINITION  pET11c
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     source          1..5672
                     /organism="pET11c"
                     /mol_type="other DNA"
     terminator      complement(188..316)
                     /label="T7_terminator"
     misc_feature    256..274
                     /label="T7_Terminal_primer"
     misc_feature    complement(326..358)
                     /label="T7_leader"
     misc_feature    complement(341..359)
                     /label="Xpress_fwd_primer"
     misc_feature    complement(367..383)
                     /label="T7_transl_en_RBS"
     misc_feature    complement(401..428)
                     /label="lacO"
     promoter        complement(428..446)
                     /label="T7_promoter"
     misc_feature    complement(530..549)
                     /label="pBRrevBam_primer"
     CDS             583..1083
                     /label="ORF frame 1"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     misc_feature    824..1915
                     /label="lacI"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     CDS             956..1915
                     /label="ORF frame 2"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     CDS             complement(1698..2393)
                     /label="ORF frame 1"
                     /translation="MVVIYLPGQHGLQRGHPDAAGSEKNHNGEGHPASRRERQQDVAQ
                     RVGRHAGDNGLLLAETFGGGTSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPER
                     CRHLSYELHDKEDSHKCGDDSHAPRPPEGADWVEGSQGHRSRSRCLMSELTYINCVAL
                     TARFPVGKPVVPAALMNRPTRGERRFAYWAPGWFFFSPVRRATADCPSPPGPERVAAS
                     GPRWFAPAGENPV*"
     CDS             1971..2588
                     /label="ORF frame 3"
                     /translation="MPLRAFNPVSSFRWARGMTIVAALMTVFFIMQLVGQVPAALWVI
                     FGEDRFRWSATMIGLSLAVFGILHALAQAFVTGPATKRFGEKQAIIAGMAADALGYVL
                     LAFATRGWMAFPIMILLASGGIGMPALQAMLSRQVDDDHQGQLQGSLAALTSLTSITG
                     PLIVTAIYAASASTWNGLAWIVGAALYLVCLPALRRGAWSRATST*"
     gene            1974..2588
                     /label="tet (576 - 1190)"
                     /gene="tet (576 - 1190)"
                     /translation="MPLRAFNPVSSFRWARGMTIVAALMTVFFIMQLVGQVPAALWVI
                     FGEDRFRWSATMIGLSLAVFGILHALAQAFVTGPATKRFGEKQAIIAGMAADALGYVL
                     LAFATRGWMAFPIMILLASGGIGMPALQAMLSRQVDDDHQGQLQGSLAALTSLTSITG
                     PLIVTAIYAASASTWNGLAWIVGAALYLVCLPALRRGAWSRATST*"
     misc_feature    3227..3418
                     /label="ROP"
                     /translation="MPLRAFNPVSSFRWARGMTIVAALMTVFFIMQLVGQVPAALWVI
                     FGEDRFRWSATMIGLSLAVFGILHALAQAFVTGPATKRFGEKQAIIAGMAADALGYVL
                     LAFATRGWMAFPIMILLASGGIGMPALQAMLSRQVDDDHQGQLQGSLAALTSLTSITG
                     PLIVTAIYAASASTWNGLAWIVGAALYLVCLPALRRGAWSRATST*"
     misc_feature    complement(3412..3434)
                     /label="pGEX_3_primer"
                     /translation="MPLRAFNPVSSFRWARGMTIVAALMTVFFIMQLVGQVPAALWVI
                     FGEDRFRWSATMIGLSLAVFGILHALAQAFVTGPATKRFGEKQAIIAGMAADALGYVL
                     LAFATRGWMAFPIMILLASGGIGMPALQAMLSRQVDDDHQGQLQGSLAALTSLTSITG
                     PLIVTAIYAASASTWNGLAWIVGAALYLVCLPALRRGAWSRATST*"
     gene            complement(4604..5464)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MPLRAFNPVSSFRWARGMTIVAALMTVFFIMQLVGQVPAALWVI
                     FGEDRFRWSATMIGLSLAVFGILHALAQAFVTGPATKRFGEKQAIIAGMAADALGYVL
                     LAFATRGWMAFPIMILLASGGIGMPALQAMLSRQVDDDHQGQLQGSLAALTSLTSITG
                     PLIVTAIYAASASTWNGLAWIVGAALYLVCLPALRRGAWSRATST*"
     CDS             complement(4604..5464)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(5506..5534)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 TTCTCATGTT TGACAGCTTA TCATCGATAA GCTTTAATGC GGTAGTTTAT CACAGTTAAA
   61 TTGCTAACGC AGTCAGGCAC CGTGTATGAA ATCTAACAAT GCGCTCATCG TCATCCTCGG
  121 CACCGTCACC CTGGATGCTG TAGGCATAGG CTTGGTTATG CCGGTACTGC CGGGCCTCTT
  181 GCGGGATATC CGGATATAGT TCCTCCTTTC AGCAAAAAAC CCCTCAAGAC CCGTTTAGAG
  241 GCCCCAAGGG GTTATGCTAG TTATTGCTCA GCGGTGGCAG CAGCCAACTC AGCTTCCTTT
  301 CGGGCTTTGT TAGCAGCCGG ATCCGACCCA TTTGCTGTCC ACCAGTCATG CTAGCCATAT
  361 GTATATCTCC TTCTTAAAGT TAAACAAAAT TATTTCTAGA GGGGAATTGT TATCCGCTCA
  421 CAATTCCCCT ATAGTGAGTC GTATTAATTT CGCGGGATCG AGATCTCGAT CCTCTACGCC
  481 GGACGCATCG TGGCCGGCAT CACCGGCGCC ACAGGTGCGG TTGCTGGCGC CTATATCGCC
  541 GACATCACCG ATGGGGAAGA TCGGGCTCGC CACTTCGGGC TCATGAGCGC TTGTTTCGGC
  601 GTGGGTATGG TGGCAGGCCC CGTGGCCGGG GGACTGTTGG GCGCCATCTC CTTGCATGCA
  661 CCATTCCTTG CGGCGGCGGT GCTCAACGGC CTCAACCTAC TACTGGGCTG CTTCCTAATG
  721 CAGGAGTCGC ATAAGGGAGA GCGTCGAGAT CCCGGACACC ATCGAATGGC GCAAAACCTT
  781 TCGCGGTATG GCATGATAGC GCCCGGAAGA GAGTCAATTC AGGGTGGTGA ATGTGAAACC
  841 AGTAACGTTA TACGATGTCG CAGAGTATGC CGGTGTCTCT TATCAGACCG TTTCCCGCGT
  901 GGTGAACCAG GCCAGCCACG TTTCTGCGAA AACGCGGGAA AAAGTGGAAG CGGCGATGGC
  961 GGAGCTGAAT TACATTCCCA ACCGCGTGGC ACAACAACTG GCGGGCAAAC AGTCGTTGCT
 1021 GATTGGCGTT GCCACCTCCA GTCTGGCCCT GCACGCGCCG TCGCAAATTG TCGCGGCGAT
 1081 TAAATCTCGC GCCGATCAAC TGGGTGCCAG CGTGGTGGTG TCGATGGTAG AACGAAGCGG
 1141 CGTCGAAGCC TGTAAAGCGG CGGTGCACAA TCTTCTCGCG CAACGCGTCA GTGGGCTGAT
 1201 CATTAACTAT CCGCTGGATG ACCAGGATGC CATTGCTGTG GAAGCTGCCT GCACTAATGT
 1261 TCCGGCGTTA TTTCTTGATG TCTCTGACCA GACACCCATC AACAGTATTA TTTTCTCCCA
 1321 TGAAGACGGT ACGCGACTGG GCGTGGAGCA TCTGGTCGCA TTGGGTCACC AGCAAATCGC
 1381 GCTGTTAGCG GGCCCATTAA GTTCTGTCTC GGCGCGTCTG CGTCTGGCTG GCTGGCATAA
 1441 ATATCTCACT CGCAATCAAA TTCAGCCGAT AGCGGAACGG GAAGGCGACT GGAGTGCCAT
 1501 GTCCGGTTTT CAACAAACCA TGCAAATGCT GAATGAGGGC ATCGTTCCCA CTGCGATGCT
 1561 GGTTGCCAAC GATCAGATGG CGCTGGGCGC AATGCGCGCC ATTACCGAGT CCGGGCTGCG
 1621 CGTTGGTGCG GATATCTCGG TAGTGGGATA CGACGATACC GAAGACAGCT CATGTTATAT
 1681 CCCGCCGTTA ACCACCATCA AACAGGATTT TCGCCTGCTG GGGCAAACCA GCGTGGACCG
 1741 CTTGCTGCAA CTCTCTCAGG GCCAGGCGGT GAAGGGCAAT CAGCTGTTGC CCGTCTCACT
 1801 GGTGAAAAGA AAAACCACCC TGGCGCCCAA TACGCAAACC GCCTCTCCCC GCGCGTTGGC
 1861 CGATTCATTA ATGCAGCTGG CACGACAGGT TTCCCGACTG GAAAGCGGGC AGTGAGCGCA
 1921 ACGCAATTAA TGTAAGTTAG CTCACTCATT AGGCACCGGG ATCTCGACCG ATGCCCTTGA
 1981 GAGCCTTCAA CCCAGTCAGC TCCTTCCGGT GGGCGCGGGG CATGACTATC GTCGCCGCAC
 2041 TTATGACTGT CTTCTTTATC ATGCAACTCG TAGGACAGGT GCCGGCAGCG CTCTGGGTCA
 2101 TTTTCGGCGA GGACCGCTTT CGCTGGAGCG CGACGATGAT CGGCCTGTCG CTTGCGGTAT
 2161 TCGGAATCTT GCACGCCCTC GCTCAAGCCT TCGTCACTGG TCCCGCCACC AAACGTTTCG
 2221 GCGAGAAGCA GGCCATTATC GCCGGCATGG CGGCCGACGC GCTGGGCTAC GTCTTGCTGG
 2281 CGTTCGCGAC GCGAGGCTGG ATGGCCTTCC CCATTATGAT TCTTCTCGCT TCCGGCGGCA
 2341 TCGGGATGCC CGCGTTGCAG GCCATGCTGT CCAGGCAGGT AGATGACGAC CATCAGGGAC
 2401 AGCTTCAAGG ATCGCTCGCG GCTCTTACCA GCCTAACTTC GATCACTGGA CCGCTGATCG
 2461 TCACGGCGAT TTATGCCGCC TCGGCGAGCA CATGGAACGG GTTGGCATGG ATTGTAGGCG
 2521 CCGCCCTATA CCTTGTCTGC CTCCCCGCGT TGCGTCGCGG TGCATGGAGC CGGGCCACCT
 2581 CGACCTGAAT GGAAGCCGGC GGCACCTCGC TAACGGATTC ACCACTCCAA GAATTGGAGC
 2641 CAATCAATTC TTGCGGAGAA CTGTGAATGC GCAAACCAAC CCTTGGCAGA ACATATCCAT
 2701 CGCGTCCGCC ATCTCCAGCA GCCGCACGCG GCGCATCTCG GGCAGCGTTG GGTCCTGGCC
 2761 ACGGGTGCGC ATGATCGTGC TCCTGTCGTT GAGGACCCGG CTAGGCTGGC GGGGTTGCCT
 2821 TACTGGTTAG CAGAATGAAT CACCGATACG CGAGCGAACG TGAAGCGACT GCTGCTGCAA
 2881 AACGTCTGCG ACCTGAGCAA CAACATGAAT GGTCTTCGGT TTCCGTGTTT CGTAAAGTCT
 2941 GGAAACGCGG AAGTCAGCGC CCTGCACCAT TATGTTCCGG ATCTGCATCG CAGGATGCTG
 3001 CTGGCTACCC TGTGGAACAC CTACATCTGT ATTAACGAAG CGCTGGCATT GACCCTGAGT
 3061 GATTTTTCTC TGGTCCCGCC GCATCCATAC CGCCAGTTGT TTACCCTCAC AACGTTCCAG
 3121 TAACCGGGCA TGTTCATCAT CAGTAACCCG TATCGTGAGC ATCCTCTCTC GTTTCATCGG
 3181 TATCATTACC CCCATGAACA GAAATCCCCC TTACACGGAG GCATCAGTGA CCAAACAGGA
 3241 AAAAACCGCC CTTAACATGG CCCGCTTTAT CAGAAGCCAG ACATTAACGC TTCTGGAGAA
 3301 ACTCAACGAG CTGGACGCGG ATGAACAGGC AGACATCTGT GAATCGCTTC ACGACCACGC
 3361 TGATGAGCTT TACCGCAGCT GCCTCGCGCG TTTCGGTGAT GACGGTGAAA ACCTCTGACA
 3421 CATGCAGCTC CCGGAGACGG TCACAGCTTG TCTGTAAGCG GATGCCGGGA GCAGACAAGC
 3481 CCGTCAGGGC GCGTCAGCGG GTGTTGGCGG GTGTCGGGGC GCAGCCATGA CCCAGTCACG
 3541 TAGCGATAGC GGAGTGTATA CTGGCTTAAC TATGCGGCAT CAGAGCAGAT TGTACTGAGA
 3601 GTGCACCATT GCGGTGTGAA ATACCGCACA GATGCGTAAG GAGAAAATAC CGCATCAGGC
 3661 GCTCTTCCGC TTCCTCGCTC ACTGACTCGC TGCGCTCGGT CGTTCGGCTG CGGCGAGCGG
 3721 TATCAGCTCA CTCAAAGGCG GTAATACGGT TATCCACAGA ATCAGGGGAT AACGCAGGAA
 3781 AGAACATGTG AGCAAAAGGC CAGCAAAAGG CCAGGAACCG TAAAAAGGCC GCGTTGCTGG
 3841 CGTTTTTCCA TAGGCTCCGC CCCCCTGACG AGCATCACAA AAATCGACGC TCAAGTCAGA
 3901 GGTGGCGAAA CCCGACAGGA CTATAAAGAT ACCAGGCGTT TCCCCCTGGA AGCTCCCTCG
 3961 TGCGCTCTCC TGTTCCGACC CTGCCGCTTA CCGGATACCT GTCCGCCTTT CTCCCTTCGG
 4021 GAAGCGTGGC GCTTTCTCAT AGCTCACGCT GTAGGTATCT CAGTTCGGTG TAGGTCGTTC
 4081 GCTCCAAGCT GGGCTGTGTG CACGAACCCC CCGTTCAGCC CGACCGCTGC GCCTTATCCG
 4141 GTAACTATCG TCTTGAGTCC AACCCGGTAA GACACGACTT ATCGCCACTG GCAGCAGCCA
 4201 CTGGTAACAG GATTAGCAGA GCGAGGTATG TAGGCGGTGC TACAGAGTTC TTGAAGTGGT
 4261 GGCCTAACTA CGGCTACACT AGAAGGACAG TATTTGGTAT CTGCGCTCTG CTGAAGCCAG
 4321 TTACCTTCGG AAAAAGAGTT GGTAGCTCTT GATCCGGCAA ACAAACCACC GCTGGTAGCG
 4381 GTGGTTTTTT TGTTTGCAAG CAGCAGATTA CGCGCAGAAA AAAAGGATCT CAAGAAGATC
 4441 CTTTGATCTT TTCTACGGGG TCTGACGCTC AGTGGAACGA AAACTCACGT TAAGGGATTT
 4501 TGGTCATGAG ATTATCAAAA AGGATCTTCA CCTAGATCCT TTTAAATTAA AAATGAAGTT
 4561 TTAAATCAAT CTAAAGTATA TATGAGTAAA CTTGGTCTGA CAGTTACCAA TGCTTAATCA
 4621 GTGAGGCACC TATCTCAGCG ATCTGTCTAT TTCGTTCATC CATAGTTGCC TGACTCCCCG
 4681 TCGTGTAGAT AACTACGATA CGGGAGGGCT TACCATCTGG CCCCAGTGCT GCAATGATAC
 4741 CGCGAGACCC ACGCTCACCG GCTCCAGATT TATCAGCAAT AAACCAGCCA GCCGGAAGGG
 4801 CCGAGCGCAG AAGTGGTCCT GCAACTTTAT CCGCCTCCAT CCAGTCTATT AATTGTTGCC
 4861 GGGAAGCTAG AGTAAGTAGT TCGCCAGTTA ATAGTTTGCG CAACGTTGTT GCCATTGCTG
 4921 CAGGCATCGT GGTGTCACGC TCGTCGTTTG GTATGGCTTC ATTCAGCTCC GGTTCCCAAC
 4981 GATCAAGGCG AGTTACATGA TCCCCCATGT TGTGCAAAAA AGCGGTTAGC TCCTTCGGTC
 5041 CTCCGATCGT TGTCAGAAGT AAGTTGGCCG CAGTGTTATC ACTCATGGTT ATGGCAGCAC
 5101 TGCATAATTC TCTTACTGTC ATGCCATCCG TAAGATGCTT TTCTGTGACT GGTGAGTACT
 5161 CAACCAAGTC ATTCTGAGAA TAGTGTATGC GGCGACCGAG TTGCTCTTGC CCGGCGTCAA
 5221 CACGGGATAA TACCGCGCCA CATAGCAGAA CTTTAAAAGT GCTCATCATT GGAAAACGTT
 5281 CTTCGGGGCG AAAACTCTCA AGGATCTTAC CGCTGTTGAG ATCCAGTTCG ATGTAACCCA
 5341 CTCGTGCACC CAACTGATCT TCAGCATCTT TTACTTTCAC CAGCGTTTCT GGGTGAGCAA
 5401 AAACAGGAAG GCAAAATGCC GCAAAAAAGG GAATAAGGGC GACACGGAAA TGTTGAATAC
 5461 TCATACTCTT CCTTTTTCAA TATTATTGAA GCATTTATCA GGGTTATTGT CTCATGAGCG
 5521 GATACATATT TGAATGTATT TAGAAAAATA AACAAATAGG GGTTCCGCGC ACATTTCCCC
 5581 GAAAAGTGCC ACCTGACGTC TAAGAAACCA TTATTATCAT GACATTAACC TATAAAAATA
 5641 GGCGTATCAC GAGGCCCTTT CGTCTTCAAG AA
//

pet11c载体质粒图谱pdf版和相关资料下载

pet11c载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
