pET-11b(+)

价格:800元

联系方式:I47-825O-882O

买家导航

pet11b载体基本信息

出品公司: Novangen
载体名称: pET-11b
质粒类型: 大肠杆菌表达载体
高拷贝/低拷贝: 低拷贝
克隆方法: 多克隆位点;限制性内切酶
启动子: T7/lac
载体大小: 5676 bp
5' 测序引物及序列: T7 Fwd:  5'd[TAATACGACTCACTATAGGG]3'
3' 测序引物及序列: --
载体标签: T7 Tag (N-末端)
载体抗性: 氨苄青霉素(Ampicillin)
克隆菌株: DH5a
表达菌株: BL21系列
备注: pET-11a,b,c之间仅阅读框(读码框)不同,彼此相差1个bp;
pET-11d载体的多克隆位点处不含NdeI切割位点。
产品目录号: 71553-3
稳定性: 稳表达
组成型/诱导型: 诱导型(IPTG)
病毒/非病毒: 非病毒

pet11b载体质粒图谱和多克隆位点信息

pET-11b 载体图谱

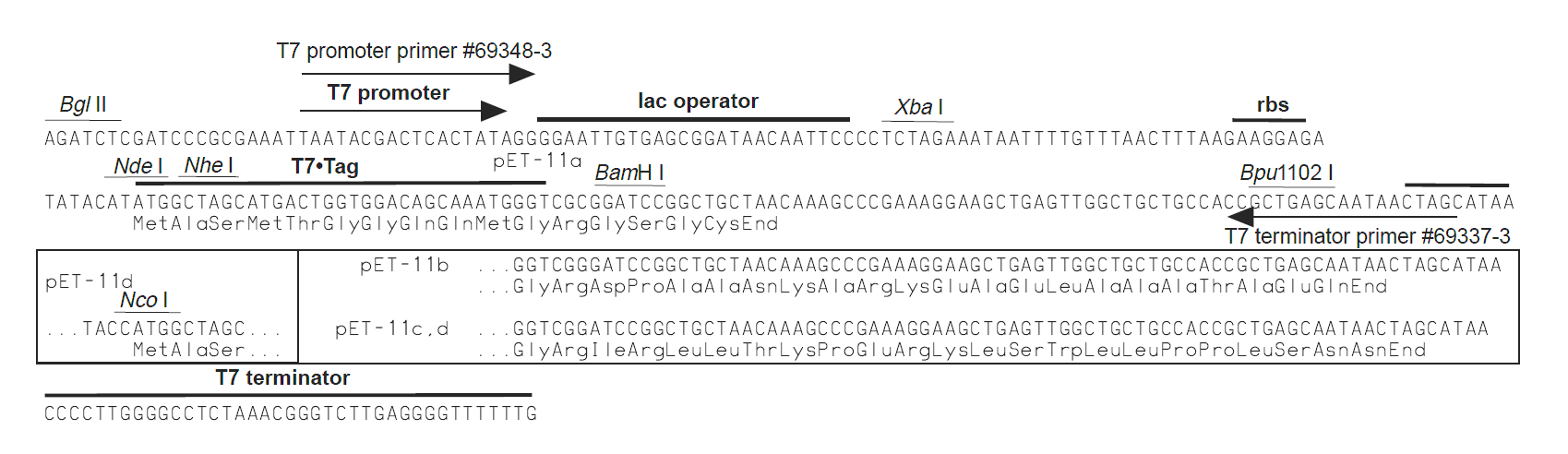

pET-11b 多克隆位点

pET-11b 载体特征

pet11b载体简介

pET-11a-d载体具有N端T7标签和BamH I多克隆克隆位点。这些载体是很多pET家族载体的前身。pET-21a-d(+)系列载体分别对应于pET-11a-d载体,但是包含有几个额外的特征序列。独特的酶切位点在载体图谱中被标注出来。需要注意的是,这些载体序列是依据载体pBR322的方向来进行编号的,所以T7标签表达区域在载体图谱上是反向的。

pET Vectors 选择指南

pet11b载体序列

LOCUS       pET 11b(+)    5676 bp     DNA  circular   SYN
DEFINITION  pET11b
ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     source          1..5676
                     /organism="pET11b"
                     /mol_type="other DNA"
     terminator      complement(188..316)
                     /label="T7_terminator"
     misc_feature    256..274
                     /label="T7_Terminal_primer"
     misc_feature    complement(327..359)
                     /label="T7_leader"
     misc_feature    complement(342..360)
                     /label="Xpress_fwd_primer"
     misc_feature    complement(368..384)
                     /label="T7_transl_en_RBS"
     misc_feature    complement(402..429)
                     /label="lacO"
     promoter        complement(429..447)
                     /label="T7_promoter"
     misc_feature    complement(531..550)
                     /label="pBRrevBam_primer"
     CDS             584..1084
                     /label="ORF frame 2"
     misc_feature    825..1916
                     /label="lacI"
     CDS             957..1916
                     /label="ORF frame 3"
     CDS             complement(1699..2394)
                     /label="ORF frame 1"
     CDS             1972..2589
                     /label="ORF frame 1"
     gene            1975..2589
                     /label="tet (576 - 1190)"
                     /gene="tet (576 - 1190)"
     misc_feature    3228..3419
                     /label="ROP"
     misc_feature    complement(3413..3435)
                     /label="pGEX_3_primer"
     gene            complement(4608..5468)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(4608..5468)
                     /label="ORF frame 2"
     promoter        complement(5510..5538)
                     /label="AmpR_promoter"
ORIGIN
    1 ttctcatgtt tgacagctta tcatcgataa gctttaatgc ggtagtttat cacagttaaa
   61 ttgctaacgc agtcaggcac cgtgtatgaa atctaacaat gcgctcatcg tcatcctcgg
  121 caccgtcacc ctggatgctg taggcatagg cttggttatg ccggtactgc cgggcctctt
  181 gcgggatatc cggatatagt tcctcctttc agcaaaaaac ccctcaagac ccgtttagag
  241 gccccaaggg gttatgctag ttattgctca gcggtggcag cagccaactc agcttccttt
  301 cgggctttgt tagcagccgg atcccgaccc atttgctgtc caccagtcat gctagccata
  361 tgtatatctc cttcttaaag ttaaacaaaa ttatttctag aggggaattg ttatccgctc
  421 acaattcccc tatagtgagt cgtattaatt tcgcgggatc gagatctcga tcctctacgc
  481 cggacgcatc gtggccggca tcaccggcgc cacaggtgcg gttgctggcg cctatatcgc
  541 cgacatcacc gatggggaag atcgggctcg ccacttcggg ctcatgagcg cttgtttcgg
  601 cgtgggtatg gtggcaggcc ccgtggccgg gggactgttg ggcgccatct ccttgcatgc
  661 accattcctt gcggcggcgg tgctcaacgg cctcaaccta ctactgggct gcttcctaat
  721 gcaggagtcg cataagggag agcgtcgaga tcccggacac catcgaatgg cgcaaaacct
  781 ttcgcggtat ggcatgatag cgcccggaag agagtcaatt cagggtggtg aatgtgaaac
  841 cagtaacgtt atacgatgtc gcagagtatg ccggtgtctc ttatcagacc gtttcccgcg
  901 tggtgaacca ggccagccac gtttctgcga aaacgcggga aaaagtggaa gcggcgatgg
  961 cggagctgaa ttacattccc aaccgcgtgg cacaacaact ggcgggcaaa cagtcgttgc
 1021 tgattggcgt tgccacctcc agtctggccc tgcacgcgcc gtcgcaaatt gtcgcggcga
 1081 ttaaatctcg cgccgatcaa ctgggtgcca gcgtggtggt gtcgatggta gaacgaagcg
 1141 gcgtcgaagc ctgtaaagcg gcggtgcaca atcttctcgc gcaacgcgtc agtgggctga
 1201 tcattaacta tccgctggat gaccaggatg ccattgctgt ggaagctgcc tgcactaatg
 1261 ttccggcgtt atttcttgat gtctctgacc agacacccat caacagtatt attttctccc
 1321 atgaagacgg tacgcgactg ggcgtggagc atctggtcgc attgggtcac cagcaaatcg
 1381 cgctgttagc gggcccatta agttctgtct cggcgcgtct gcgtctggct ggctggcata
 1441 aatatctcac tcgcaatcaa attcagccga tagcggaacg ggaaggcgac tggagtgcca
 1501 tgtccggttt tcaacaaacc atgcaaatgc tgaatgaggg catcgttccc actgcgatgc
 1561 tggttgccaa cgatcagatg gcgctgggcg caatgcgcgc cattaccgag tccgggctgc
 1621 gcgttggtgc ggatatctcg gtagtgggat acgacgatac cgaagacagc tcatgttata
 1681 tcccgccgtt aaccaccatc aaacaggatt ttcgcctgct ggggcaaacc agcgtggacc
 1741 gcttgctgca actctctcag ggccaggcgg tgaagggcaa tcagctgttg cccgtctcac
 1801 tggtgaaaag aaaaaccacc ctggcgccca atacgcaaac cgcctctccc cgcgcgttgg
 1861 ccgattcatt aatgcagctg gcacgacagg tttcccgact ggaaagcggg cagtgagcgc
 1921 aacgcaatta atgtaagtta gctcactcat taggcaccgg gatctcgacc gatgcccttg
 1981 agagccttca acccagtcag ctccttccgg tgggcgcggg gcatgactat cgtcgccgca
 2041 cttatgactg tcttctttat catgcaactc gtaggacagg tgccggcagc gctctgggtc
 2101 attttcggcg aggaccgctt tcgctggagc gcgacgatga tcggcctgtc gcttgcggta
 2161 ttcggaatct tgcacgccct cgctcaagcc ttcgtcactg gtcccgccac caaacgtttc
 2221 ggcgagaagc aggccattat cgccggcatg gcggccgacg cgctgggcta cgtcttgctg
 2281 gcgttcgcga cgcgaggctg gatggccttc cccattatga ttcttctcgc ttccggcggc
 2341 atcgggatgc ccgcgttgca ggccatgctg tccaggcagg tagatgacga ccatcaggga
 2401 cagcttcaag gatcgctcgc ggctcttacc agcctaactt cgatcactgg accgctgatc
 2461 gtcacggcga tttatgccgc ctcggcgagc acatggaacg ggttggcatg gattgtaggc
 2521 gccgccctat accttgtctg cctccccgcg ttgcgtcgcg gtgcatggag ccgggccacc
 2581 tcgacctgaa tggaagccgg cggcacctcg ctaacggatt caccactcca agaattggag
 2641 ccaatcaatt cttgcggaga actgtgaatg cgcaaaccaa cccttggcag aacatatcca
 2701 tcgcgtccgc catctccagc agccgcacgc ggcgcatctc gggcagcgtt gggtcctggc
 2761 cacgggtgcg catgatcgtg ctcctgtcgt tgaggacccg gctaggctgg cggggttgcc
 2821 ttactggtta gcagaatgaa tcaccgatac gcgagcgaac gtgaagcgac tgctgctgca
 2881 aaacgtctgc gacctgagca acaacatgaa tggtcttcgg tttccgtgtt tcgtaaagtc
 2941 tggaaacgcg gaagtcagcg ccctgcacca ttatgttccg gatctgcatc gcaggatgct
 3001 gctggctacc ctgtggaaca cctacatctg tattaacgaa gcgctggcat tgaccctgag
 3061 tgatttttct ctggtcccgc cgcatccata ccgccagttg tttaccctca caacgttcca
 3121 gtaaccgggc atgttcatca tcagtaaccc gtatcgtgag catcctctct cgtttcatcg
 3181 gtatcattac ccccatgaac agaaatcccc cttacacgga ggcatcagtg accaaacagg
 3241 aaaaaaccgc ccttaacatg gcccgcttta tcagaagcca gacattaacg cttctggaga
 3301 aactcaacga gctggacgcg gatgaacagg cagacatctg tgaatcgctt cacgaccacg
 3361 ctgatgagct ttaccgcagc tgcctcgcgc gtttcggtga tgacggtgaa aacctctgac
 3421 acatgcagct cccggagacg gtcacagctt gtctgtaagc ggatgccggg agcagacaag
 3481 cccgtcaggg cgcgtcagcg ggtgttggcg ggtgtcgggg cgcagccatg acccagtcac
 3541 gtagcgatag cggagtgtat actggcttaa ctatgcggca tcagagcaga ttgtactgag
 3601 agtgcaccat atatgcggtg tgaaataccg cacagatgcg taaggagaaa ataccgcatc
 3661 aggcgctctt ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga
 3721 gcggtatcag ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca
 3781 ggaaagaaca tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg
 3841 ctggcgtttt tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt
 3901 cagaggtggc gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc
 3961 ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct
 4021 tcgggaagcg tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc
 4081 gttcgctcca agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta
 4141 tccggtaact atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca
 4201 gccactggta acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag
 4261 tggtggccta actacggcta cactagaagg acagtatttg gtatctgcgc tctgctgaag
 4321 ccagttacct tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt
 4381 agcggtggtt tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa
 4441 gatcctttga tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg
 4501 attttggtca tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga
 4561 agttttaaat caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta
 4621 atcagtgagg cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc
 4681 cccgtcgtgt agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg
 4741 ataccgcgag acccacgctc accggctcca gatttatcag caataaacca gccagccgga
 4801 agggccgagc gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt
 4861 tgccgggaag ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt
 4921 gctgcaggca tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc
 4981 caacgatcaa ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc
 5041 ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca
 5101 gcactgcata attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag
 5161 tactcaacca agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg
 5221 tcaacacggg ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa
 5281 cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa
 5341 cccactcgtg cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga
 5401 gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga
 5461 atactcatac tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg
 5521 agcggataca tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt
 5581 ccccgaaaag tgccacctga cgtctaagaa accattatta tcatgacatt aacctataaa
 5641 aataggcgta tcacgaggcc ctttcgtctt caagaa
//

pet11b载体质粒图谱pdf版和相关资料下载

pet11b载体应用举例
