pET-29b(+)

价格:800元

联系方式:I47-825O-882O

买家导航

pET29b载体基本信息

出品公司: EMD Biosciences (Novagen)
别名: pET29b, pet 29b
质粒类型: 大肠杆菌蛋白表达
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5370 bp
5' 测序引物: T7
5' 测序引物序列:   5'-TAATACGACTCACTATAGGG-3'
载体标签: N-S, N-Thrombin, C-His
载体抗性: Kanamycin
表达宿主菌: BL21(DE3) BLR(DE3)BL21(DE3)pLysS
备注: N term thrombin cleavage site; a,b,c vary by MCS;
产品目录号: 69872-3
稳定性: 瞬时表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

pET29b载体质粒图谱和多克隆位点信息

pet29b载体图谱

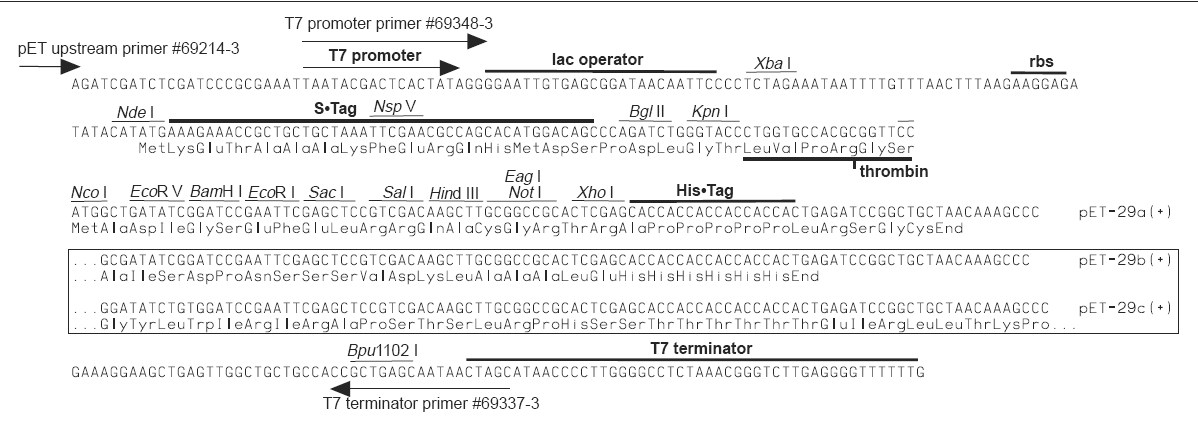

pet29b多克隆位点

Feature Name Start End
T7_terminator 129 1
T7_Terminal_primer 69 87
lacI 217 1856
T7_transl_en_RBS 320 304
lacO 365 338
T7_promoter 383 365
tet (300 - 563) 419 682
pBRrevBam_primer 490 471
tet (576 - 851) 1915 2190
ROP 2665 2856
pGEX_3_primer 2872 2850
pBR322_origin 3890 3271
KanR2 3996 4811
ORF Start End
ORF frame 2 296 1024
ORF frame 3 897 1856
ORF frame 3 3996 4811
Enzyme Name Cut
XhoI 158
NotI 166
EagI 166
HindIII 173
SalI 179
SacI 190
EcoRI 192
BamHI 198
EcoRV 206
NcoI 211
KpnI 237
BglII 240
BstBI 267
NdeI 294
XbaI 332
BclI 1138
ApaI 1335
HpaI 1630
FspI 2206
NruI 4084
SmaI 4301
XmaI 4299

pET29b载体简介

The pET-29a-c(+) vectors carry an N-terminal S•Tag™/thrombin configuration plus an optional C-terminal His•Tag® sequence. Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circular map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand. Therefore, single-stranded sequencing should be performed using the T7 terminator primer (Cat. No.69337-3).

pET29b载体序列

LOCUS       pET-29 b (+)    5370 bp     DNA Circular    SYN
DEFINITION  pET-29 b (+)
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     source          1..5370
                     /organism="pET-29 b (+)"
                     /mol_type="other DNA"
     terminator      complement(1..129)
                     /label="T7_terminator"
     misc_feature    69..87
                     /label="T7_Terminal_primer"
     misc_feature    217..1856
                     /label="lacI"
     CDS             296..1024
                     /label="ORF frame 2"
                     /translation="MYISFLKLNKIISRGELLSAHNSPIVSRINFAGSRSISILYAGR
                     IVAGITGATGAVAGAYIADITDGEDRARHFGLMSACFGVGMVAGPVAGGLLGAISLHA
                     PFLAAAVLNGLNLLLGCFLMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGEC
                     ETSNVIRCRRVCRCLLSDRFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQ
                     TVVADWRCHLQSGPARAVANCRGD*"
     misc_feature    complement(304..320)
                     /label="T7_transl_en_RBS"
                     /translation="MYISFLKLNKIISRGELLSAHNSPIVSRINFAGSRSISILYAGR
                     IVAGITGATGAVAGAYIADITDGEDRARHFGLMSACFGVGMVAGPVAGGLLGAISLHA
                     PFLAAAVLNGLNLLLGCFLMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGEC
                     ETSNVIRCRRVCRCLLSDRFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQ
                     TVVADWRCHLQSGPARAVANCRGD*"
     misc_feature    complement(338..365)
                     /label="lacO"
                     /translation="MYISFLKLNKIISRGELLSAHNSPIVSRINFAGSRSISILYAGR
                     IVAGITGATGAVAGAYIADITDGEDRARHFGLMSACFGVGMVAGPVAGGLLGAISLHA
                     PFLAAAVLNGLNLLLGCFLMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGEC
                     ETSNVIRCRRVCRCLLSDRFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQ
                     TVVADWRCHLQSGPARAVANCRGD*"
     promoter        complement(365..383)
                     /label="T7_promoter"
                     /translation="MYISFLKLNKIISRGELLSAHNSPIVSRINFAGSRSISILYAGR
                     IVAGITGATGAVAGAYIADITDGEDRARHFGLMSACFGVGMVAGPVAGGLLGAISLHA
                     PFLAAAVLNGLNLLLGCFLMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGEC
                     ETSNVIRCRRVCRCLLSDRFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQ
                     TVVADWRCHLQSGPARAVANCRGD*"
     gene            419..682
                     /label="tet (300 - 563)"
                     /gene="tet (300 - 563)"
                     /translation="MYISFLKLNKIISRGELLSAHNSPIVSRINFAGSRSISILYAGR
                     IVAGITGATGAVAGAYIADITDGEDRARHFGLMSACFGVGMVAGPVAGGLLGAISLHA
                     PFLAAAVLNGLNLLLGCFLMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGEC
                     ETSNVIRCRRVCRCLLSDRFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQ
                     TVVADWRCHLQSGPARAVANCRGD*"
     misc_feature    complement(471..490)
                     /label="pBRrevBam_primer"
                     /translation="MYISFLKLNKIISRGELLSAHNSPIVSRINFAGSRSISILYAGR
                     IVAGITGATGAVAGAYIADITDGEDRARHFGLMSACFGVGMVAGPVAGGLLGAISLHA
                     PFLAAAVLNGLNLLLGCFLMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGEC
                     ETSNVIRCRRVCRCLLSDRFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQ
                     TVVADWRCHLQSGPARAVANCRGD*"
     CDS             897..1856
                     /label="ORF frame 3"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     gene            1915..2190
                     /label="tet (576 - 851)"
                     /gene="tet (576 - 851)"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     misc_feature    2665..2856
                     /label="ROP"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     misc_feature    complement(2850..2872)
                     /label="pGEX_3_primer"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     rep_origin      complement(3271..3890)
                     /label="pBR322_origin"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     gene            3996..4811
                     /label="KanR2"
                     /gene="KanR2"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     CDS             3996..4811
                     /label="ORF frame 3"
                     /translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLY
                     GKPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIP
                     GKTAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGL
                     VDASDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVG
                     RVGIADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF*"
ORIGIN
    1 atccggatat agttcctcct ttcagcaaaa aacccctcaa gacccgttta gaggccccaa
   61 ggggttatgc tagttattgc tcagcggtgg cagcagccaa ctcagcttcc tttcgggctt
  121 tgttagcagc cggatctcag tggtggtggt ggtggtgctc gagtgcggcc gcaagcttgt
  181 cgacggagct cgaattcgga tccgatatcg ccatggaacc gcgtggcacc agggtaccca
  241 gatctgggct gtccatgtgc tggcgttcga atttagcagc agcggtttct ttcatatgta
  301 tatctccttc ttaaagttaa acaaaattat ttctagaggg gaattgttat ccgctcacaa
  361 ttcccctata gtgagtcgta ttaatttcgc gggatcgaga tcgatctcga tcctctacgc
  421 cggacgcatc gtggccggca tcaccggcgc cacaggtgcg gttgctggcg cctatatcgc
  481 cgacatcacc gatggggaag atcgggctcg ccacttcggg ctcatgagcg cttgtttcgg
  541 cgtgggtatg gtggcaggcc ccgtggccgg gggactgttg ggcgccatct ccttgcatgc
  601 accattcctt gcggcggcgg tgctcaacgg cctcaaccta ctactgggct gcttcctaat
  661 gcaggagtcg cataagggag agcgtcgaga tcccggacac catcgaatgg cgcaaaacct
  721 ttcgcggtat ggcatgatag cgcccggaag agagtcaatt cagggtggtg aatgtgaaac
  781 cagtaacgtt atacgatgtc gcagagtatg ccggtgtctc ttatcagacc gtttcccgcg
  841 tggtgaacca ggccagccac gtttctgcga aaacgcggga aaaagtggaa gcggcgatgg
  901 cggagctgaa ttacattccc aaccgcgtgg cacaacaact ggcgggcaaa cagtcgttgc
  961 tgattggcgt tgccacctcc agtctggccc tgcacgcgcc gtcgcaaatt gtcgcggcga
 1021 ttaaatctcg cgccgatcaa ctgggtgcca gcgtggtggt gtcgatggta gaacgaagcg
 1081 gcgtcgaagc ctgtaaagcg gcggtgcaca atcttctcgc gcaacgcgtc agtgggctga
 1141 tcattaacta tccgctggat gaccaggatg ccattgctgt ggaagctgcc tgcactaatg
 1201 ttccggcgtt atttcttgat gtctctgacc agacacccat caacagtatt attttctccc
 1261 atgaagacgg tacgcgactg ggcgtggagc atctggtcgc attgggtcac cagcaaatcg
 1321 cgctgttagc gggcccatta agttctgtct cggcgcgtct gcgtctggct ggctggcata
 1381 aatatctcac tcgcaatcaa attcagccga tagcggaacg ggaaggcgac tggagtgcca
 1441 tgtccggttt tcaacaaacc atgcaaatgc tgaatgaggg catcgttccc actgcgatgc
 1501 tggttgccaa cgatcagatg gcgctgggcg caatgcgcgc cattaccgag tccgggctgc
 1561 gcgttggtgc ggacatctcg gtagtgggat acgacgatac cgaagacagc tcatgttata
 1621 tcccgccgtt aaccaccatc aaacaggatt ttcgcctgct ggggcaaacc agcgtggacc
 1681 gcttgctgca actctctcag ggccaggcgg tgaagggcaa tcagctgttg cccgtctcac
 1741 tggtgaaaag aaaaaccacc ctggcgccca atacgcaaac cgcctctccc cgcgcgttgg
 1801 ccgattcatt aatgcagctg gcacgacagg tttcccgact ggaaagcggg cagtgagcgc
 1861 aacgcaatta atgtaagtta gctcactcat taggcaccgg gatctcgacc gatgcccttg
 1921 agagccttca acccagtcag ctccttccgg tgggcgcggg gcatgactat cgtcgccgca
 1981 cttatgactg tcttctttat catgcaactc gtaggacagg tgccggcagc gctctgggtc
 2041 attttcggcg aggaccgctt tcgctggagc gcgacgatga tcggcctgtc gcttgcggta
 2101 ttcggaatct tgcacgccct cgctcaagcc ttcgtcactg gtcccgccac caaacgtttc
 2161 ggcgagaagc aggccattat cgccggcatg gcggccccac gggtgcgcat gatcgtgctc
 2221 ctgtcgttga ggacccggct aggctggcgg ggttgcctta ctggttagca gaatgaatca
 2281 ccgatacgcg agcgaacgtg aagcgactgc tgctgcaaaa cgtctgcgac ctgagcaaca
 2341 acatgaatgg tcttcggttt ccgtgtttcg taaagtctgg aaacgcggaa gtcagcgccc
 2401 tgcaccatta tgttccggat ctgcatcgca ggatgctgct ggctaccctg tggaacacct
 2461 acatctgtat taacgaagcg ctggcattga ccctgagtga tttttctctg gtcccgccgc
 2521 atccataccg ccagttgttt accctcacaa cgttccagta accgggcatg ttcatcatca
 2581 gtaacccgta tcgtgagcat cctctctcgt ttcatcggta tcattacccc catgaacaga
 2641 aatccccctt acacggaggc atcagtgacc aaacaggaaa aaaccgccct taacatggcc
 2701 cgctttatca gaagccagac attaacgctt ctggagaaac tcaacgagct ggacgcggat
 2761 gaacaggcag acatctgtga atcgcttcac gaccacgctg atgagcttta ccgcagctgc
 2821 ctcgcgcgtt tcggtgatga cggtgaaaac ctctgacaca tgcagctccc ggagacggtc
 2881 acagcttgtc tgtaagcgga tgccgggagc agacaagccc gtcagggcgc gtcagcgggt
 2941 gttggcgggt gtcggggcgc agccatgacc cagtcacgta gcgatagcgg agtgtatact
 3001 ggcttaacta tgcggcatca gagcagattg tactgagagt gcaccatata tgcggtgtga
 3061 aataccgcac agatgcgtaa ggagaaaata ccgcatcagg cgctcttccg cttcctcgct
 3121 cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc actcaaaggc
 3181 ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt gagcaaaagg
 3241 ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg
 3301 cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg
 3361 actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc ctgttccgac
 3421 cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca
 3481 tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt
 3541 gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc
 3601 caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca ggattagcag
 3661 agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact acggctacac
 3721 tagaaggaca gtatttggta tctgcgctct gctgaagcca gttaccttcg gaaaaagagt
 3781 tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa
 3841 gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct tttctacggg
 3901 gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga acaataaaac
 3961 tgtctgctta cataaacagt aatacaaggg gtgttatgag ccatattcaa cgggaaacgt
 4021 cttgctctag gccgcgatta aattccaaca tggatgctga tttatatggg tataaatggg
 4081 ctcgcgataa tgtcgggcaa tcaggtgcga caatctatcg attgtatggg aagcccgatg
 4141 cgccagagtt gtttctgaaa catggcaaag gtagcgttgc caatgatgtt acagatgaga
 4201 tggtcagact aaactggctg acggaattta tgcctcttcc gaccatcaag cattttatcc
 4261 gtactcctga tgatgcatgg ttactcacca ctgcgatccc cgggaaaaca gcattccagg
 4321 tattagaaga atatcctgat tcaggtgaaa atattgttga tgcgctggca gtgttcctgc
 4381 gccggttgca ttcgattcct gtttgtaatt gtccttttaa cagcgatcgc gtatttcgtc
 4441 tcgctcaggc gcaatcacga atgaataacg gtttggttga tgcgagtgat tttgatgacg
 4501 agcgtaatgg ctggcctgtt gaacaagtct ggaaagaaat gcataaactt ttgccattct
 4561 caccggattc agtcgtcact catggtgatt tctcacttga taaccttatt tttgacgagg
 4621 ggaaattaat aggttgtatt gatgttggac gagtcggaat cgcagaccga taccaggatc
 4681 ttgccatcct atggaactgc ctcggtgagt tttctccttc attacagaaa cggctttttc
 4741 aaaaatatgg tattgataat cctgatatga ataaattgca gtttcatttg atgctcgatg
 4801 agtttttcta agaattaatt catgagcgga tacatatttg aatgtattta gaaaaataaa
 4861 caaatagggg ttccgcgcac atttccccga aaagtgccac ctgaaattgt aaacgttaat
 4921 attttgttaa aattcgcgtt aaatttttgt taaatcagct cattttttaa ccaataggcc
 4981 gaaatcggca aaatccctta taaatcaaaa gaatagaccg agatagggtt gagtgttgtt
 5041 ccagtttgga acaagagtcc actattaaag aacgtggact ccaacgtcaa agggcgaaaa
 5101 accgtctatc agggcgatgg cccactacgt gaaccatcac cctaatcaag ttttttgggg
 5161 tcgaggtgcc gtaaagcact aaatcggaac cctaaaggga gcccccgatt tagagcttga
 5221 cggggaaagc cggcgaacgt ggcgagaaag gaagggaaga aagcgaaagg agcgggcgct
 5281 agggcgctgg caagtgtagc ggtcacgctg cgcgtaacca ccacacccgc cgcgcttaat
 5341 gcgccgctac agggcgcgtc ccattcgcca
//

pET29b载体质粒图谱pdf版和相关资料下载

pET29b载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
