pET-23b(+)

价格:800元

联系方式:I47-825O-882O

买家导航

pET23b载体基本信息

出品公司: Novangen
载体名称: pET-23b
质粒类型: 大肠杆菌表达载体;蛋白纯化
高拷贝/低拷贝: 低拷贝
克隆方法: 多克隆位点;限制性内切酶
启动子: T7
载体大小: 3665 bp
5' 测序引物及序列: T7 Fwd:  5'd[TAATACGACTCACTATAGGG]3'
3' 测序引物及序列: --
载体标签: His Tag (C-端);T7 Tag(C-端)
载体抗性: 氨苄青霉素(Ampicillin)
克隆菌株: DH5a
表达菌株: BL21系列
备注: pET-23b,b,c仅阅读框(读码框)不同,彼此相差1个bp。
产品目录号: 71553-3
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

pET23b载体质粒图谱和多克隆位点信息

pET-23b 载体图谱

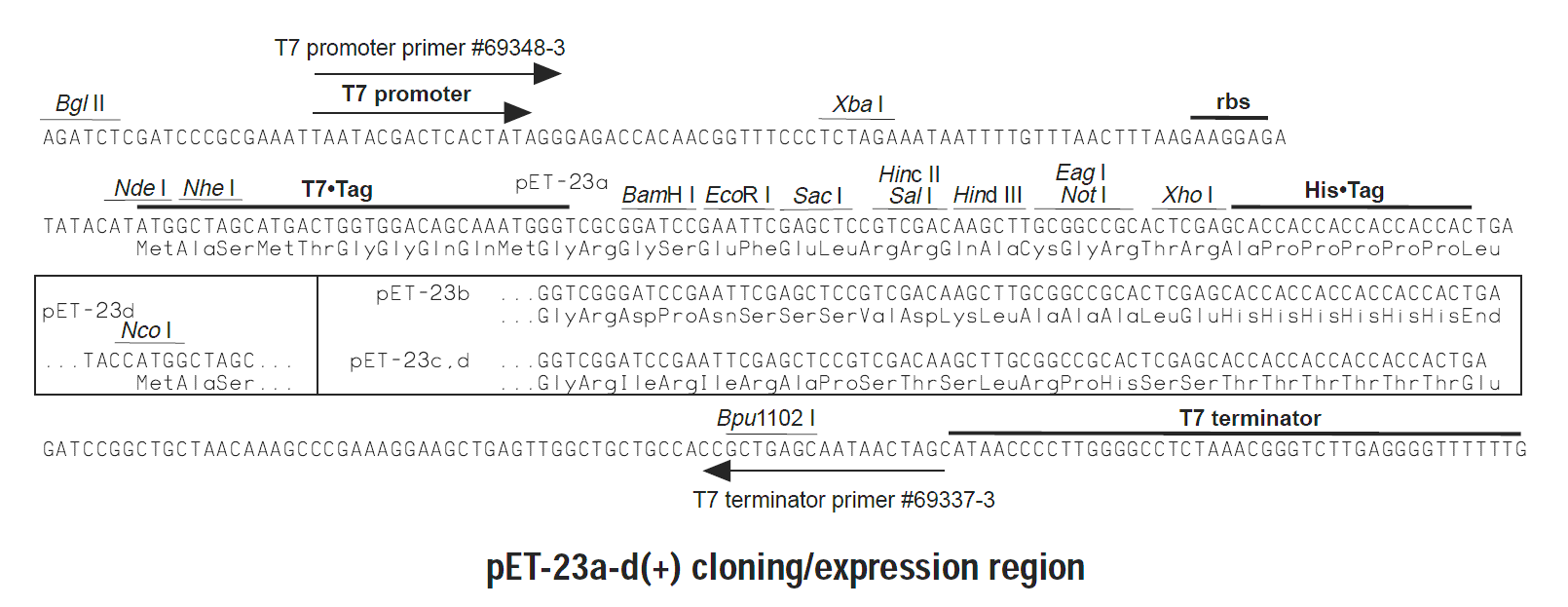

pET-23b 多克隆位点

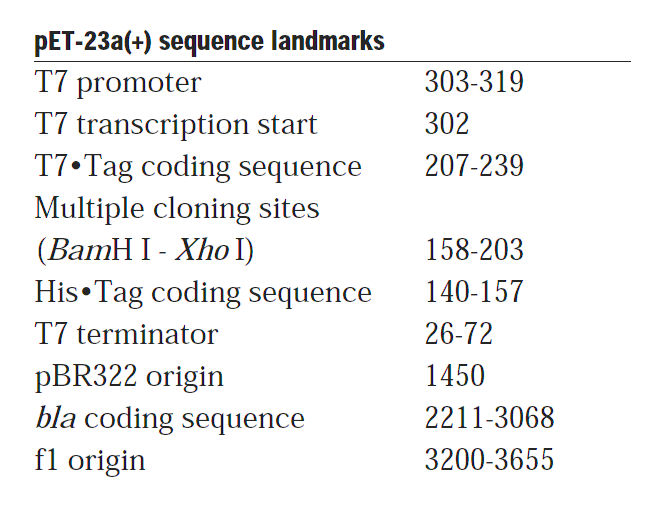

pET-23b 载体特征

The maps for pET-23b(+) are the same as pET-23a(+) with the following exceptions: pET-23b(+) is a 3665bp plasmid; subtract 1bp from each site beyond BamH I at 198.

pET23b载体简介

The pET-23a-d(+) vectors carry an N-terminal T7•Tag® sequence plus an optional C-terminal His•Tag® sequence. These vectors differ from pET-21a-d(+) by the “plain” T7 promoter instead of the T7lac promoter and by the absence of the lacI gene. Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circular map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand. Therefore, single-stranded sequencing should be performed using the T7 terminator primer. pET Vectors 选择指南

pET23b载体序列

LOCUS       pET-23b(+)              3665 bp    DNA     circular     11-SEP-2008
SOURCE
  ORGANISM
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     promoter        complement(302..318)
                     /vntifkey="30"
                     /label=T7\promoter
     protein_bind    complement(206..238)
                     /vntifkey="31"
                     /label=T7\tag
     terminator      complement(26..72)
                     /vntifkey="43"
                     /label=T7\terminator
     protein_bind    complement(140..157)
                     /vntifkey="31"
                     /label=His\tag
     rep_origin      complement(1449..1449)
                     /vntifkey="33"
                     /label=ColE1\pBR322\origin
     CDS             complement(2210..3067)
                     /vntifkey="4"
                     /label=bla\(Ap)\sequence
     CDS             complement(3199..3654)
                     /vntifkey="4"
                     /label=f1\origin
BASE COUNT      919 a       936 c       925 g       885 t
ORIGIN
        1 atccggatat agttcctcct ttcagcaaaa aacccctcaa gacccgttta gaggccccaa
       61 ggggttatgc tagttattgc tcagcggtgg cagcagccaa ctcagcttcc tttcgggctt
      121 tgttagcagc cggatctcag tggtggtggt ggtggtgctc gagtgcggcc gcaagcttgt
      181 cgacggagct cgaattcgga tcccgaccca tttgctgtcc accagtcatg ctagccatat
      241 gtatatctcc ttcttaaagt taaacaaaat tatttctaga gggaaaccgt tgtggtctcc
      301 ctatagtgag tcgtattaat ttcgcgggat cgagatctcg ggcagcgttg ggtcctggcc
      361 acgggtgcgc atgatcgtgc tcctgtcgtt gaggacccgg ctaggctggc ggggttgcct
      421 tactggttag cagaatgaat caccgatacg cgagcgaacg tgaagcgact gctgctgcaa
      481 aacgtctgcg acctgagcaa caacatgaat ggtcttcggt ttccgtgttt cgtaaagtct
      541 ggaaacgcgg aagtcagcgc cctgcaccat tatgttccgg atctgcatcg caggatgctg
      601 ctggctaccc tgtggaacac ctacatctgt attaacgaag cgctggcatt gaccctgagt
      661 gatttttctc tggtcccgcc gcatccatac cgccagttgt ttaccctcac aacgttccag
      721 taaccgggca tgttcatcat cagtaacccg tatcgtgagc atcctctctc gtttcatcgg
      781 tatcattacc cccatgaaca gaaatccccc ttacacggag gcatcagtga ccaaacagga
      841 aaaaaccgcc cttaacatgg cccgctttat cagaagccag acattaacgc ttctggagaa
      901 actcaacgag ctggacgcgg atgaacaggc agacatctgt gaatcgcttc acgaccacgc
      961 tgatgagctt taccgcagct gcctcgcgcg tttcggtgat gacggtgaaa acctctgaca
     1021 catgcagctc ccggagacgg tcacagcttg tctgtaagcg gatgccggga gcagacaagc
     1081 ccgtcagggc gcgtcagcgg gtgttggcgg gtgtcggggc gcagccatga cccagtcacg
     1141 tagcgatagc ggagtgtata ctggcttaac tatgcggcat cagagcagat tgtactgaga
     1201 gtgcaccata tatgcggtgt gaaataccgc acagatgcgt aaggagaaaa taccgcatca
     1261 ggcgctcttc cgcttcctcg ctcactgact cgctgcgctc ggtcgttcgg ctgcggcgag
     1321 cggtatcagc tcactcaaag gcggtaatac ggttatccac agaatcaggg gataacgcag
     1381 gaaagaacat gtgagcaaaa ggccagcaaa aggccaggaa ccgtaaaaag gccgcgttgc
     1441 tggcgttttt ccataggctc cgcccccctg acgagcatca caaaaatcga cgctcaagtc
     1501 agaggtggcg aaacccgaca ggactataaa gataccaggc gtttccccct ggaagctccc
     1561 tcgtgcgctc tcctgttccg accctgccgc ttaccggata cctgtccgcc tttctccctt
     1621 cgggaagcgt ggcgctttct catagctcac gctgtaggta tctcagttcg gtgtaggtcg
     1681 ttcgctccaa gctgggctgt gtgcacgaac cccccgttca gcccgaccgc tgcgccttat
     1741 ccggtaacta tcgtcttgag tccaacccgg taagacacga cttatcgcca ctggcagcag
     1801 ccactggtaa caggattagc agagcgaggt atgtaggcgg tgctacagag ttcttgaagt
     1861 ggtggcctaa ctacggctac actagaagga cagtatttgg tatctgcgct ctgctgaagc
     1921 cagttacctt cggaaaaaga gttggtagct cttgatccgg caaacaaacc accgctggta
     1981 gcggtggttt ttttgtttgc aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag
     2041 atcctttgat cttttctacg gggtctgacg ctcagtggaa cgaaaactca cgttaaggga
     2101 ttttggtcat gagattatca aaaaggatct tcacctagat ccttttaaat taaaaatgaa
     2161 gttttaaatc aatctaaagt atatatgagt aaacttggtc tgacagttac caatgcttaa
     2221 tcagtgaggc acctatctca gcgatctgtc tatttcgttc atccatagtt gcctgactcc
     2281 ccgtcgtgta gataactacg atacgggagg gcttaccatc tggccccagt gctgcaatga
     2341 taccgcgaga cccacgctca ccggctccag atttatcagc aataaaccag ccagccggaa
     2401 gggccgagcg cagaagtggt cctgcaactt tatccgcctc catccagtct attaattgtt
     2461 gccgggaagc tagagtaagt agttcgccag ttaatagttt gcgcaacgtt gttgccattg
     2521 ctgcaggcat cgtggtgtca cgctcgtcgt ttggtatggc ttcattcagc tccggttccc
     2581 aacgatcaag gcgagttaca tgatccccca tgttgtgcaa aaaagcggtt agctccttcg
     2641 gtcctccgat cgttgtcaga agtaagttgg ccgcagtgtt atcactcatg gttatggcag
     2701 cactgcataa ttctcttact gtcatgccat ccgtaagatg cttttctgtg actggtgagt
     2761 actcaaccaa gtcattctga gaatagtgta tgcggcgacc gagttgctct tgcccggcgt
     2821 caatacggga taataccgcg ccacatagca gaactttaaa agtgctcatc attggaaaac
     2881 gttcttcggg gcgaaaactc tcaaggatct taccgctgtt gagatccagt tcgatgtaac
     2941 ccactcgtgc acccaactga tcttcagcat cttttacttt caccagcgtt tctgggtgag
     3001 caaaaacagg aaggcaaaat gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa
     3061 tactcatact cttccttttt caatattatt gaagcattta tcagggttat tgtctcatga
     3121 gcggatacat atttgaatgt atttagaaaa ataaacaaat aggggttccg cgcacatttc
     3181 cccgaaaagt gccacctgaa attgtaaacg ttaatatttt gttaaaattc gcgttaaatt
     3241 tttgttaaat cagctcattt tttaaccaat aggccgaaat cggcaaaatc ccttataaat
     3301 caaaagaata gaccgagata gggttgagtg ttgttccagt ttggaacaag agtccactat
     3361 taaagaacgt ggactccaac gtcaaagggc gaaaaaccgt ctatcagggc gatggcccac
     3421 tacgtgaacc atcaccctaa tcaagttttt tggggtcgag gtgccgtaaa gcactaaatc
     3481 ggaaccctaa agggagcccc cgatttagag cttgacgggg aaagccggcg aacgtggcga
     3541 gaaaggaagg gaagaaagcg aaaggagcgg gcgctagggc gctggcaagt gtagcggtca
     3601 cgctgcgcgt aaccaccaca cccgccgcgc ttaatgcgcc gctacagggc gcgtcccatt
     3661 cgcca
//

pET23b载体质粒图谱pdf版和相关资料下载

pET23b载体应用举例
