pET5b载体基本信息

出品公司: EMD Biosciences(Novagen)
别名: pET5b, pet-5b(+)
质粒类型: 大肠杆菌蛋白表达
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 4133 bp
5' 测序引物: T7:5'-TAATACGACTCACTATAGGG-3'
3' 测序引物: T7t: 5'-GCTAGTTATTGCTCAGCGG-3'
载体标签:
载体抗性: Ampicillin
表达宿主菌: BL21(DE3) Rosetta2(DE3)C43(DE3)
备注:
产品目录号:
稳定性: 瞬时表达
组成型: 组成型
病毒/非病毒: 非病毒

pET5b载体质粒图谱和多克隆位点信息

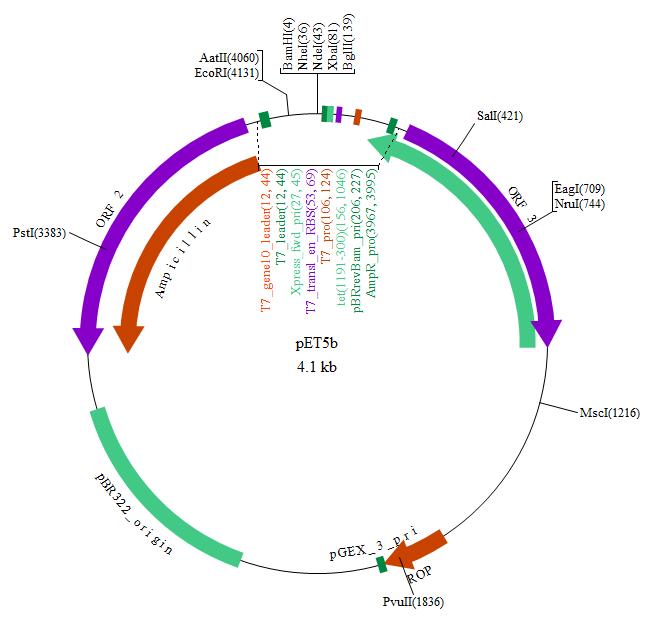

pET5b载体图谱

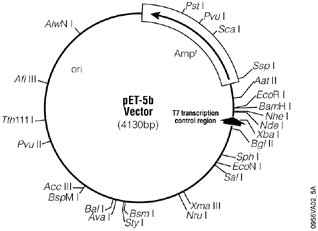

pET5b载体图谱

pET5b载体简介

pET5b载体序列

LOCUS       pET5b	4133 bp 	DNA   circular 	SYN
DEFINITION  pET5b
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..4133
                     /organism="pET5b"
                     /mol_type="other DNA"
     misc_feature    complement(12..44)
                     /label="T7_leader"
     misc_feature    complement(27..45)
                     /label="Xpress_fwd_primer"
     misc_feature    complement(53..69)
                     /label="T7_transl_en_RBS"
     promoter        complement(106..124)
                     /label="T7_promoter"
     gene            156..1046
                     /label="tet (300 - 1190)"
                     /gene="tet (300 - 1190)"
     misc_feature    complement(208..227)
                     /label="pBRrevBam_primer"
     CDS             261..1046
                     /label="ORF frame 3"
     CDS             complement(393..851)
                     /label="ORF frame 1"
     misc_feature    1685..1876
                     /label="ROP"
     misc_feature    complement(1870..1892)
                     /label="pGEX_3_primer"
     gene            complement(3065..3925)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(3065..3925)
                     /label="ORF frame 2"
     promoter        complement(3967..3995)
                     /label="AmpR_promoter"
ORIGIN
    1 TTCGGATCCC GACCCATTTG CTGTCCACCA GTCATGCTAG CCATATGTAT ATCTCCTTCT
   61 TAAAGTTAAA CAAAATTATT TCTAGAGGGA AACCGTTGTG GTCTCCCTAT AGTGAGTCGT
  121 ATTAATTTCG CGGGATCGAG ATCTCGATCC TCTACGCCGG ACGCATCGTG GCCGGCATCA
  181 CCGGCGCCAC AGGTGCGGTT GCTGGCGCCT ATATCGCCGA CATCACCGAT GGGGAAGATC
  241 GGGCTCGCCA CTTCGGGCTC ATGAGCGCTT GTTTCGGCGT GGGTATGGTG GCAGGCCCCG
  301 TGGCCGGGGG ACTGTTGGGC GCCATCTCCT TGCATGCACC ATTCCTTGCG GCGGCGGTGC
  361 TCAACGGCCT CAACCTACTA CTGGGCTGCT TCCTAATGCA GGAGTCGCAT AAGGGAGAGC
  421 GTCGACCGAT GCCCTTGAGA GCCTTCAACC CAGTCAGCTC CTTCCGGTGG GCGCGGGGCA
  481 TGACTATCGT CGCCGCACTT ATGACTGTCT TCTTTATCAT GCAACTCGTA GGACAGGTGC
  541 CGGCAGCGCT CTGGGTCATT TTCGGCGAGG ACCGCTTTCG CTGGAGCGCG ACGATGATCG
  601 GCCTGTCGCT TGCGGTATTC GGAATCTTGC ACGCCCTCGC TCAAGCCTTC GTCACTGGTC
  661 CCGCCACCAA ACGTTTCGGC GAGAAGCAGG CCATTATCGC CGGCATGGCG GCCGACGCGC
  721 TGGGCTACGT CTTGCTGGCG TTCGCGACGC GAGGCTGGAT GGCCTTCCCC ATTATGATTC
  781 TTCTCGCTTC CGGCGGCATC GGGATGCCCG CGTTGCAGGC CATGCTGTCC AGGCAGGTAG
  841 ATGACGACCA TCAGGGACAG CTTCAAGGAT CGCTCGCGGC TCTTACCAGC CTAACTTCGA
  901 TCACTGGACC GCTGATCGTC ACGGCGATTT ATGCCGCCTC GGCGAGCACA TGGAACGGGT
  961 TGGCATGGAT TGTAGGCGCC GCCCTATACC TTGTCTGCCT CCCCGCGTTG CGTCGCGGTG
 1021 CATGGAGCCG GGCCACCTCG ACCTGAATGG AAGCCGGCGG CACCTCGCTA ACGGATTCAC
 1081 CACTCCAAGA ATTGGAGCCA ATCAATTCTT GCGGAGAACT GTGAATGCGC AAACCAACCC
 1141 TTGGCAGAAC ATATCCATCG CGTCCGCCAT CTCCAGCAGC CGCACGCGGC GCATCTCGGG
 1201 CAGCGTTGGG TCCTGGCCAC GGGTGCGCAT GATCGTGCTC CTGTCGTTGA GGACCCGGCT
 1261 AGGCTGGCGG GGTTGCCTTA CTGGTTAGCA GAATGAATCA CCGATACGCG AGCGAACGTG
 1321 AAGCGACTGC TGCTGCAAAA CGTCTGCGAC CTGAGCAACA ACATGAATGG TCTTCGGTTT
 1381 CCGTGTTTCG TAAAGTCTGG AAACGCGGAA GTCAGCGCCC TGCACCATTA TGTTCCGGAT
 1441 CTGCATCGCA GGATGCTGCT GGCTACCCTG TGGAACACCT ACATCTGTAT TAACGAAGCG
 1501 CTGGCATTGA CCCTGAGTGA TTTTTCTCTG GTCCCGCCGC ATCCATACCG CCAGTTGTTT
 1561 ACCCTCACAA CGTTCCAGTA ACCGGGCATG TTCATCATCA GTAACCCGTA TCGTGAGCAT
 1621 CCTCTCTCGT TTCATCGGTA TCATTACCCC CATGAACAGA AATCCCCCTT ACACGGAGGC
 1681 ATCAGTGACC AAACAGGAAA AAACCGCCCT TAACATGGCC CGCTTTATCA GAAGCCAGAC
 1741 ATTAACGCTT CTGGAGAAAC TCAACGAGCT GGACGCGGAT GAACAGGCAG ACATCTGTGA
 1801 ATCGCTTCAC GACCACGCTG ATGAGCTTTA CCGCAGCTGC CTCGCGCGTT TCGGTGATGA
 1861 CGGTGAAAAC CTCTGACACA TGCAGCTCCC GGAGACGGTC ACAGCTTGTC TGTAAGCGGA
 1921 TGCCGGGAGC AGACAAGCCC GTCAGGGCGC GTCAGCGGGT GTTGGCGGGT GTCGGGGCGC
 1981 AGCCATGACC CAGTCACGTA GCGATAGCGG AGTGTATACT GGCTTAACTA TGCGGCATCA
 2041 GAGCAGATTG TACTGAGAGT GCACCATATA TGCGGTGTGA AATACCGCAC AGATGCGTAA
 2101 GGAGAAAATA CCGCATCAGG CGCTCTTCCG CTTCCTCGCT CACTGACTCG CTGCGCTCGG
 2161 TCGTTCGGCT GCGGCGAGCG GTATCAGCTC ACTCAAAGGC GGTAATACGG TTATCCACAG
 2221 AATCAGGGGA TAACGCAGGA AAGAACATGT GAGCAAAAGG CCAGCAAAAG GCCAGGAACC
 2281 GTAAAAAGGC CGCGTTGCTG GCGTTTTTCC ATAGGCTCCG CCCCCCTGAC GAGCATCACA
 2341 AAAATCGACG CTCAAGTCAG AGGTGGCGAA ACCCGACAGG ACTATAAAGA TACCAGGCGT
 2401 TTCCCCCTGG AAGCTCCCTC GTGCGCTCTC CTGTTCCGAC CCTGCCGCTT ACCGGATACC
 2461 TGTCCGCCTT TCTCCCTTCG GGAAGCGTGG CGCTTTCTCA TAGCTCACGC TGTAGGTATC
 2521 TCAGTTCGGT GTAGGTCGTT CGCTCCAAGC TGGGCTGTGT GCACGAACCC CCCGTTCAGC
 2581 CCGACCGCTG CGCCTTATCC GGTAACTATC GTCTTGAGTC CAACCCGGTA AGACACGACT
 2641 TATCGCCACT GGCAGCAGCC ACTGGTAACA GGATTAGCAG AGCGAGGTAT GTAGGCGGTG
 2701 CTACAGAGTT CTTGAAGTGG TGGCCTAACT ACGGCTACAC TAGAAGGACA GTATTTGGTA
 2761 TCTGCGCTCT GCTGAAGCCA GTTACCTTCG GAAAAAGAGT TGGTAGCTCT TGATCCGGCA
 2821 AACAAACCAC CGCTGGTAGC GGTGGTTTTT TTGTTTGCAA GCAGCAGATT ACGCGCAGAA
 2881 AAAAAGGATC TCAAGAAGAT CCTTTGATCT TTTCTACGGG GTCTGACGCT CAGTGGAACG
 2941 AAAACTCACG TTAAGGGATT TTGGTCATGA GATTATCAAA AAGGATCTTC ACCTAGATCC
 3001 TTTTAAATTA AAAATGAAGT TTTAAATCAA TCTAAAGTAT ATATGAGTAA ACTTGGTCTG
 3061 ACAGTTACCA ATGCTTAATC AGTGAGGCAC CTATCTCAGC GATCTGTCTA TTTCGTTCAT
 3121 CCATAGTTGC CTGACTCCCC GTCGTGTAGA TAACTACGAT ACGGGAGGGC TTACCATCTG
 3181 GCCCCAGTGC TGCAATGATA CCGCGAGACC CACGCTCACC GGCTCCAGAT TTATCAGCAA
 3241 TAAACCAGCC AGCCGGAAGG GCCGAGCGCA GAAGTGGTCC TGCAACTTTA TCCGCCTCCA
 3301 TCCAGTCTAT TAATTGTTGC CGGGAAGCTA GAGTAAGTAG TTCGCCAGTT AATAGTTTGC
 3361 GCAACGTTGT TGCCATTGCT GCAGGCATCG TGGTGTCACG CTCGTCGTTT GGTATGGCTT
 3421 CATTCAGCTC CGGTTCCCAA CGATCAAGGC GAGTTACATG ATCCCCCATG TTGTGCAAAA
 3481 AAGCGGTTAG CTCCTTCGGT CCTCCGATCG TTGTCAGAAG TAAGTTGGCC GCAGTGTTAT
 3541 CACTCATGGT TATGGCAGCA CTGCATAATT CTCTTACTGT CATGCCATCC GTAAGATGCT
 3601 TTTCTGTGAC TGGTGAGTAC TCAACCAAGT CATTCTGAGA ATAGTGTATG CGGCGACCGA
 3661 GTTGCTCTTG CCCGGCGTCA ACACGGGATA ATACCGCGCC ACATAGCAGA ACTTTAAAAG
 3721 TGCTCATCAT TGGAAAACGT TCTTCGGGGC GAAAACTCTC AAGGATCTTA CCGCTGTTGA
 3781 GATCCAGTTC GATGTAACCC ACTCGTGCAC CCAACTGATC TTCAGCATCT TTTACTTTCA
 3841 CCAGCGTTTC TGGGTGAGCA AAAACAGGAA GGCAAAATGC CGCAAAAAAG GGAATAAGGG
 3901 CGACACGGAA ATGTTGAATA CTCATACTCT TCCTTTTTCA ATATTATTGA AGCATTTATC
 3961 AGGGTTATTG TCTCATGAGC GGATACATAT TTGAATGTAT TTAGAAAAAT AAACAAATAG
 4021 GGGTTCCGCG CACATTTCCC CGAAAAGTGC CACCTGACGT CTAAGAAACC ATTATTATCA
 4081 TGACATTAAC CTATAAAAAT AGGCGTATCA CGAGGCCCTT TCGTCTTCAA GAA

//

pET5b载体质粒图谱pdf版和相关资料下载

pET5b载体应用举例
