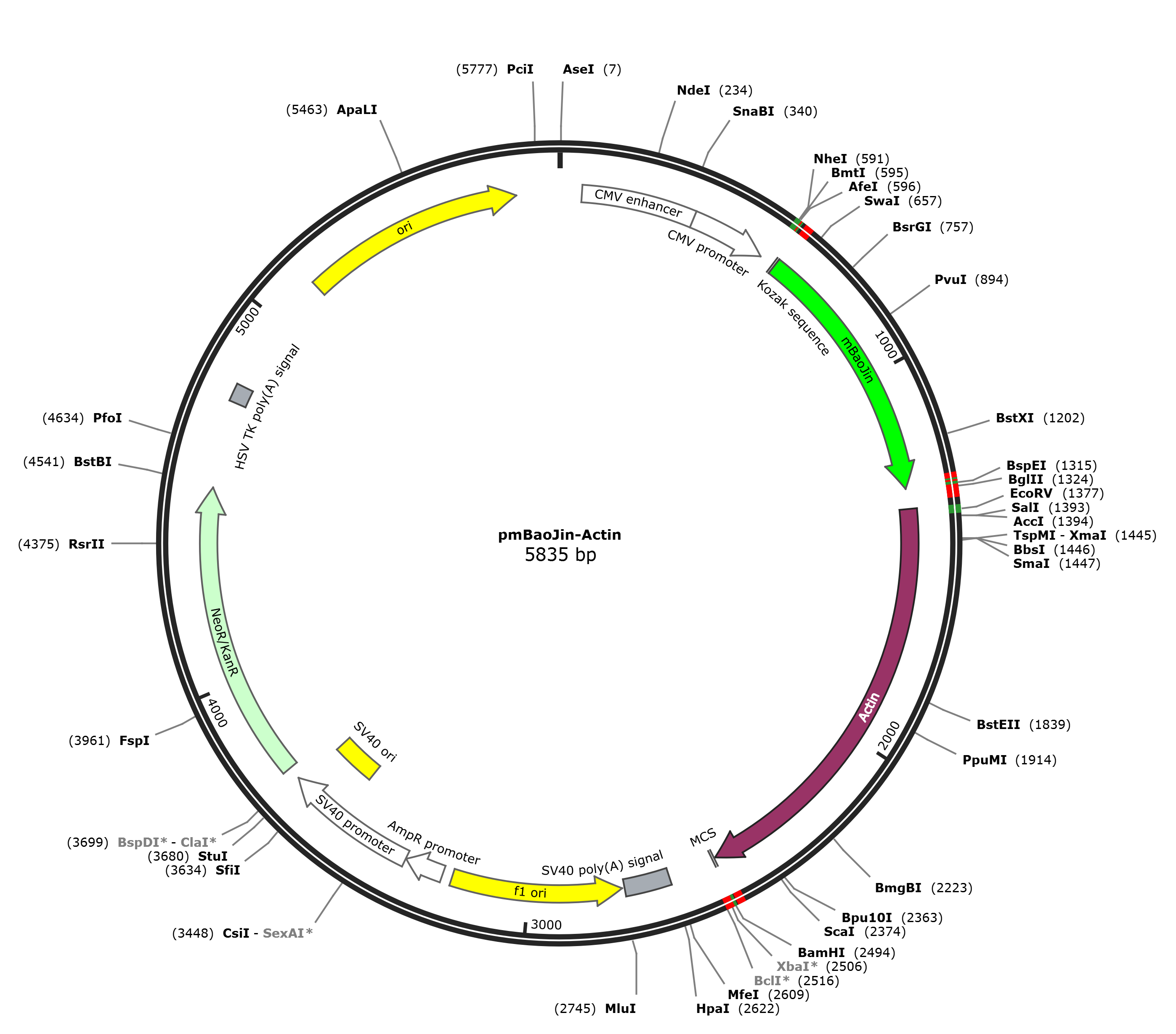

pmBaoJin-Actin

LOCUS      pmBaoJin-Actin               5835 bp DNA     circular SYN 01-NOV-2023
DEFINITION  Vector for fusing photoactivatable mCherry to the N-terminus of a
            partner protein.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5835)
  AUTHORS   Clontech
  TITLE     Direct Submission
  JOURNAL   Exported Jul 6, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5835
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     585..635
                     /label=0712-actin-fmStayGold-F
     regulatory      607..612
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             613..1314
                     /codon_start=1
                     /label=mBaoJin
                     /translation="MVSKGEEENMASTPFKFQLKGTINGKSFTVEGEGEGNSHEGSHKG
                     KYVCTSGKLPMSWAALGTTFGYGMKYYTKYPSGLKNWFREVMPGGFTYDRHIQYKGDGS
                     IHAKHQHFMKNGTYHNIVEFTGQDFKENSPVLTGDMNVSLPNEVPQIPRDDGVECPVTL
                     LYPLLSDKSKYVEAHQYTICKPLHNQPAPDVPYHWIRKQYTQSKDDAEERDHICQSETL
                     EAHLKGMDELYK"
     primer_bind     complement(1293..1351)
                     /label=0712-actin-fmStayGold-R
     primer_bind     1312..1331
                     /label=Primer 1
     primer_bind     1330..1388
                     /label=0712-2-actin-F
     CDS             1369..2490
                     /codon_start=1
                     /label=Actin
                     /translation="DDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVG
                     MGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLL
                     TEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVP
                     IYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDF
                     EQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESCGIHETTFNSI
                     MKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWI
                     GGSILASLSTFQQMWISKQEYDESGPSIVHRKCF"
     primer_bind     complement(1491..1510)
                     /label=Actin-R
     primer_bind     1491..1510
                     /label=Actin-F
     primer_bind     complement(2471..2519)
                     /label=0712-2-actin-R
     misc_feature    2494..2499
                     /label=MCS
                     /note="multiple cloning site of fluorescent protein
                     plasmids"
     polyA_signal    2623..2744
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2714..2733)
                     /label=SV40-R-Universal
     rep_origin      complement(2751..3206)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3233..3337
                     /gene="bla"
                     /label=AmpR promoter
     promoter        3339..3696
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3547..3682
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3731..4525
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    4757..4804
                     /label=HSV TK poly(A) signal
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      5133..5721
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggtcgcca ccatggtctc aaagggagag gaggaaaaca tggctagtac accatttaaa
      661 tttcaactta aaggaaccat caatggcaaa tcgtttaccg ttgaaggcga aggtgaaggg
      721 aactcacatg aaggttctca taaaggaaaa tatgtttgta caagtggaaa actaccgatg
      781 tcatgggcag cacttgggac aacctttggt tatggaatga aatattatac caaatatcct
      841 agtggactga agaactggtt tcgtgaagta atgcccggag gctttaccta cgatcgtcat
      901 attcaatata aaggcgatgg gagtatccat gcaaaacacc aacactttat gaaaaatggg
      961 acttatcaca acattgtaga atttaccggt caggatttta aagaaaatag tccagtctta
     1021 actggagata tgaatgtctc attaccgaat gaagtcccac aaatacccag agatgatgga
     1081 gtagaatgcc cagtgacctt gctttatcct ttattatcgg ataaatcaaa atacgtcgag
     1141 gctcaccaat atacaatctg caagcctctt cataatcaac cagcacctga tgtcccatat
     1201 cactggattc gtaaacaata cacacaaagc aaagatgatg ccgaggaacg cgatcatatc
     1261 tgtcaatcag agactctcga agcacactta aagggcatgg acgagctgta taagtccgga
     1321 ctcagatctg gcagcggtgg aggcagcgca tccggcggaa gcggaagcga tgatgatatc
     1381 gccgcgctcg tcgtcgacaa cggctccggc atgtgcaagg ccggcttcgc gggcgacgat
     1441 gccccccggg ccgtcttccc ctccatcgtg gggcgcccca ggcaccaggg cgtgatggtg
     1501 ggcatgggtc agaaggattc ctatgtgggc gacgaggccc agagcaagag aggcatcctc
     1561 accctgaagt accccatcga gcacggcatc gtcaccaact gggacgacat ggagaaaatc
     1621 tggcaccaca ccttctacaa tgagctgcgt gtggctcccg aggagcaccc cgtgctgctg
     1681 accgaggccc ccctgaaccc caaggccaac cgcgagaaga tgacccagat catgtttgag
     1741 accttcaaca ccccagccat gtacgttgct atccaggctg tgctatccct gtacgcctct
     1801 ggccgtacca ctggcatcgt gatggactcc ggtgacgggg tcacccacac tgtgcccatc
     1861 tacgaggggt atgccctccc ccatgccatc ctgcgtctgg acctggctgg ccgggacctg
     1921 actgactacc tcatgaagat cctcaccgag cgcggctaca gcttcaccac cacggccgag
     1981 cgggaaatcg tgcgtgacat taaggagaag ctgtgctacg tcgccctgga cttcgagcaa
     2041 gagatggcca cggctgcttc cagctcctcc ctggagaaga gctacgagct gcctgacggc
     2101 caggtcatca ccattggcaa tgagcggttc cgctgccctg aggcactctt ccagccttcc
     2161 ttcctgggca tggagtcctg tggcatccac gaaactacct tcaactccat catgaagtgt
     2221 gacgtggaca tccgcaaaga cctgtacgcc aacacagtgc tgtctggcgg caccaccatg
     2281 taccctggca ttgccgacag gatgcagaag gagatcactg ccctggcacc cagcacaatg
     2341 aagatcaaga tcattgctcc tcctgagcgc aagtactccg tgtggatcgg cggctccatc
     2401 ctggcctcgc tgtccacctt ccagcagatg tggatcagca agcaggagta tgacgagtcc
     2461 ggcccctcca tcgtccaccg caaatgcttc tagggatcca ccggatctag ataactgatc
     2521 ataatcagcc ataccacatt tgtagaggtt ttacttgctt taaaaaacct cccacacctc
     2581 cccctgaacc tgaaacataa aatgaatgca attgttgttg ttaacttgtt tattgcagct
     2641 tataatggtt acaaataaag caatagcatc acaaatttca caaataaagc atttttttca
     2701 ctgcattcta gttgtggttt gtccaaactc atcaatgtat cttaacgcgt aaattgtaag
     2761 cgttaatatt ttgttaaaat tcgcgttaaa tttttgttaa atcagctcat tttttaacca
     2821 ataggccgaa atcggcaaaa tcccttataa atcaaaagaa tagaccgaga tagggttgag
     2881 tgttgttcca gtttggaaca agagtccact attaaagaac gtggactcca acgtcaaagg
     2941 gcgaaaaacc gtctatcagg gcgatggccc actacgtgaa ccatcaccct aatcaagttt
     3001 tttggggtcg aggtgccgta aagcactaaa tcggaaccct aaagggagcc cccgatttag
     3061 agcttgacgg ggaaagccgg cgaacgtggc gagaaaggaa gggaagaaag cgaaaggagc
     3121 gggcgctagg gcgctggcaa gtgtagcggt cacgctgcgc gtaaccacca cacccgccgc
     3181 gcttaatgcg ccgctacagg gcgcgtcagg tggcactttt cggggaaatg tgcgcggaac
     3241 ccctatttgt ttatttttct aaatacattc aaatatgtat ccgctcatga gacaataacc
     3301 ctgataaatg cttcaataat attgaaaaag gaagagtcct gaggcggaaa gaaccagctg
     3361 tggaatgtgt gtcagttagg gtgtggaaag tccccaggct ccccagcagg cagaagtatg
     3421 caaagcatgc atctcaatta gtcagcaacc aggtgtggaa agtccccagg ctccccagca
     3481 ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa ccatagtccc gcccctaact
     3541 ccgcccatcc cgcccctaac tccgcccagt tccgcccatt ctccgcccca tggctgacta
     3601 atttttttta tttatgcaga ggccgaggcc gcctcggcct ctgagctatt ccagaagtag
     3661 tgaggaggct tttttggagg cctaggcttt tgcaaagatc gatcaagaga caggatgagg
     3721 atcgtttcgc atgattgaac aagatggatt gcacgcaggt tctccggccg cttgggtgga
     3781 gaggctattc ggctatgact gggcacaaca gacaatcggc tgctctgatg ccgccgtgtt
     3841 ccggctgtca gcgcaggggc gcccggttct ttttgtcaag accgacctgt ccggtgccct
     3901 gaatgaactg caagacgagg cagcgcggct atcgtggctg gccacgacgg gcgttccttg
     3961 cgcagctgtg ctcgacgttg tcactgaagc gggaagggac tggctgctat tgggcgaagt
     4021 gccggggcag gatctcctgt catctcacct tgctcctgcc gagaaagtat ccatcatggc
     4081 tgatgcaatg cggcggctgc atacgcttga tccggctacc tgcccattcg accaccaagc
     4141 gaaacatcgc atcgagcgag cacgtactcg gatggaagcc ggtcttgtcg atcaggatga
     4201 tctggacgaa gagcatcagg ggctcgcgcc agccgaactg ttcgccaggc tcaaggcgag
     4261 catgcccgac ggcgaggatc tcgtcgtgac ccatggcgat gcctgcttgc cgaatatcat
     4321 ggtggaaaat ggccgctttt ctggattcat cgactgtggc cggctgggtg tggcggaccg
     4381 ctatcaggac atagcgttgg ctacccgtga tattgctgaa gagcttggcg gcgaatgggc
     4441 tgaccgcttc ctcgtgcttt acggtatcgc cgctcccgat tcgcagcgca tcgccttcta
     4501 tcgccttctt gacgagttct tctgagcggg actctggggt tcgaaatgac cgaccaagcg
     4561 acgcccaacc tgccatcacg agatttcgat tccaccgccg ccttctatga aaggttgggc
     4621 ttcggaatcg ttttccggga cgccggctgg atgatcctcc agcgcgggga tctcatgctg
     4681 gagttcttcg cccaccctag ggggaggcta actgaaacac ggaaggagac aataccggaa
     4741 ggaacccgcg ctatgacggc aataaaaaga cagaataaaa cgcacggtgt tgggtcgttt
     4801 gttcataaac gcggggttcg gtcccagggc tggcactctg tcgatacccc accgagaccc
     4861 cattggggcc aatacgcccg cgtttcttcc ttttccccac cccacccccc aagttcgggt
     4921 gaaggcccag ggctcgcagc caacgtcggg gcggcaggcc ctgccatagc ctcaggttac
     4981 tcatatatac tttagattga tttaaaactt catttttaat ttaaaaggat ctaggtgaag
     5041 atcctttttg ataatctcat gaccaaaatc ccttaacgtg agttttcgtt ccactgagcg
     5101 tcagaccccg tagaaaagat caaaggatct tcttgagatc ctttttttct gcgcgtaatc
     5161 tgctgcttgc aaacaaaaaa accaccgcta ccagcggtgg tttgtttgcc ggatcaagag
     5221 ctaccaactc tttttccgaa ggtaactggc ttcagcagag cgcagatacc aaatactgtc
     5281 cttctagtgt agccgtagtt aggccaccac ttcaagaact ctgtagcacc gcctacatac
     5341 ctcgctctgc taatcctgtt accagtggct gctgccagtg gcgataagtc gtgtcttacc
     5401 gggttggact caagacgata gttaccggat aaggcgcagc ggtcgggctg aacggggggt
     5461 tcgtgcacac agcccagctt ggagcgaacg acctacaccg aactgagata cctacagcgt
     5521 gagctatgag aaagcgccac gcttcccgaa gggagaaagg cggacaggta tccggtaagc
     5581 ggcagggtcg gaacaggaga gcgcacgagg gagcttccag ggggaaacgc ctggtatctt
     5641 tatagtcctg tcgggtttcg ccacctctga cttgagcgtc gatttttgtg atgctcgtca
     5701 ggggggcgga gcctatggaa aaacgccagc aacgcggcct ttttacggtt cctggccttt
     5761 tgctggcctt ttgctcacat gttctttcct gcgttatccc ctgattctgt ggataaccgt
     5821 attaccgcca tgcat
//
