pFastBac1

价格:850元

联系方式:I47-825O-882O

买家导航

pFastBacI载体基本信息

出品公司: Invitrogen
载体名称: pFastBac1
质粒类型: 昆虫表达载体;杆状病毒表达载体
克隆方法: 限制酶,多克隆位点
启动子: Polyhedrin
载体大小: 4776 bp
5' 测序引物及序列: pFastbac-F: TATTCCGGATTATTCATACC
3' 测序引物及序列: pFastBac-R: ACAAATGTGGTATGGCTGA
载体标签: 无标签
载体抗性: 氨苄青霉素
真核筛选标记: Gentamicin
克隆菌株: TOP10
宿主细胞(系): 果蝇细胞系S2
备注: --
产品目录号: 10359-016
瞬表达/稳表达: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 杆状病毒

pFastBacI载体质粒图谱和多克隆位点信息

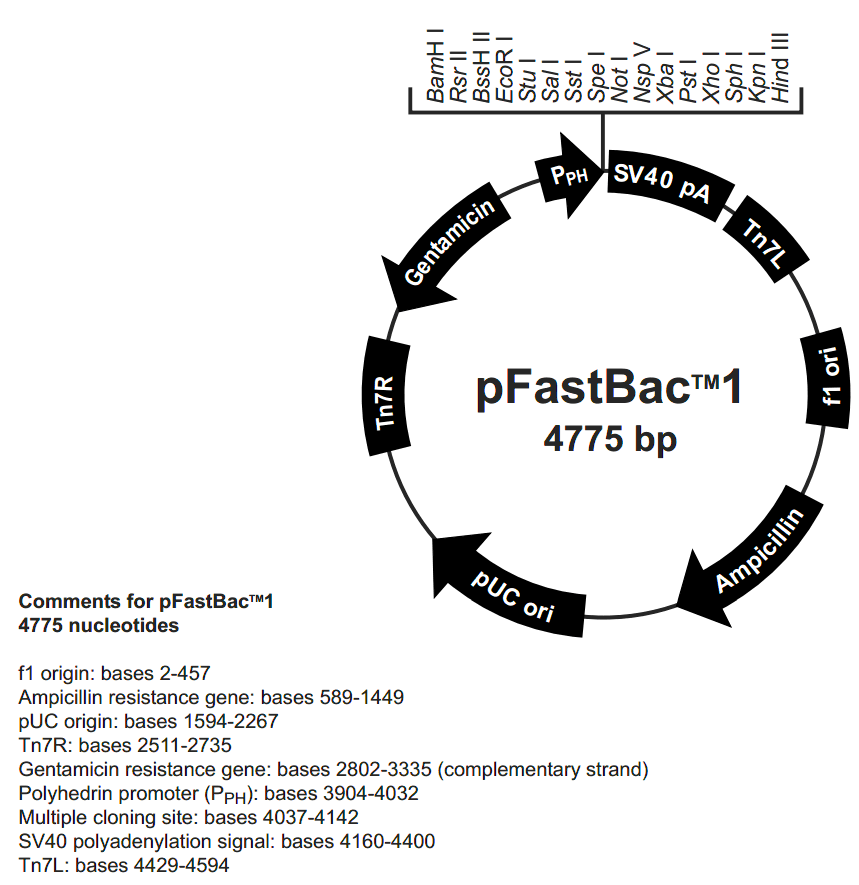

pFastBac1 载体图谱



pFastBac1 多克隆位点

pFastBac1 载体特征

pFastBacI载体简介

pFastBac1载体是非融合性蛋白表达载体,在载体内部不带有其他融合性的蛋白标签。为了保证目的基因的正确表达,插入片段必须保证:

• 插入片段必须包含ATG起始密码子,保证蛋白起始翻译。

• 插入片段必须包含终止密码子,保证蛋白质能够正常翻译终止。

注意:在pFastBacI载体多克隆位点中,对于所有的三种读码框分布,都包含有终止密码子。

pFastBacI载体序列

LOCUS       pFastBac1    4776 bp     DNA  circular  SYN
DEFINITION  pFastBac1
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..4776
                     /organism="pFastBac1"
                     /mol_type="other DNA"
     rep_origin      19..325
                     /label="f1_origin"
     promoter        519..547
                     /label="AmpR_promoter"
     gene            589..1449
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             589..1449
                     /label="ORF frame 1"
     rep_origin      1604..2223
                     /label="pBR322_origin"
     gene            complement(2802..3335)
                     /label="gent"
                     /gene="gent"
     CDS             complement(2802..3335)
                     /label="ORF frame 2"
     CDS             3437..3916
                     /label="ORF frame 2"
     promoter        3906..3994
                     /label="PH_promoter"
     misc_feature    3920..3937
                     /label="polyhedrin_fwd_primer"
     terminator      4269..4400
                     /label="SV40_PA_terminator"
     misc_feature    4357..4376
                     /label="EBV_rev_primer"
ORIGIN
    1 GACGCGCCCT GTAGCGGCGC ATTAAGCGCG GCGGGTGTGG TGGTTACGCG CAGCGTGACC
   61 GCTACACTTG CCAGCGCCCT AGCGCCCGCT CCTTTCGCTT TCTTCCCTTC CTTTCTCGCC
  121 ACGTTCGCCG GCTTTCCCCG TCAAGCTCTA AATCGGGGGC TCCCTTTAGG GTTCCGATTT
  181 AGTGCTTTAC GGCACCTCGA CCCCAAAAAA CTTGATTAGG GTGATGGTTC ACGTAGTGGG
  241 CCATCGCCCT GATAGACGGT TTTTCGCCCT TTGACGTTGG AGTCCACGTT CTTTAATAGT
  301 GGACTCTTGT TCCAAACTGG AACAACACTC AACCCTATCT CGGTCTATTC TTTTGATTTA
  361 TAAGGGATTT TGCCGATTTC GGCCTATTGG TTAAAAAATG AGCTGATTTA ACAAAAATTT
  421 AACGCGAATT TTAACAAAAT ATTAACGTTT ACAATTTCAG GTGGCACTTT TCGGGGAAAT
  481 GTGCGCGGAA CCCCTATTTG TTTATTTTTC TAAATACATT CAAATATGTA TCCGCTCATG
  541 AGACAATAAC CCTGATAAAT GCTTCAATAA TATTGAAAAA GGAAGAGTAT GAGTATTCAA
  601 CATTTCCGTG TCGCCCTTAT TCCCTTTTTT GCGGCATTTT GCCTTCCTGT TTTTGCTCAC
  661 CCAGAAACGC TGGTGAAAGT AAAAGATGCT GAAGATCAGT TGGGTGCACG AGTGGGTTAC
  721 ATCGAACTGG ATCTCAACAG CGGTAAGATC CTTGAGAGTT TTCGCCCCGA AGAACGTTTT
  781 CCAATGATGA GCACTTTTAA AGTTCTGCTA TGTGGCGCGG TATTATCCCG TATTGACGCC
  841 GGGCAAGAGC AACTCGGTCG CCGCATACAC TATTCTCAGA ATGACTTGGT TGAGTACTCA
  901 CCAGTCACAG AAAAGCATCT TACGGATGGC ATGACAGTAA GAGAATTATG CAGTGCTGCC
  961 ATAACCATGA GTGATAACAC TGCGGCCAAC TTACTTCTGA CAACGATCGG AGGACCGAAG
 1021 GAGCTAACCG CTTTTTTGCA CAACATGGGG GATCATGTAA CTCGCCTTGA TCGTTGGGAA
 1081 CCGGAGCTGA ATGAAGCCAT ACCAAACGAC GAGCGTGACA CCACGATGCC TGTAGCAATG
 1141 GCAACAACGT TGCGCAAACT ATTAACTGGC GAACTACTTA CTCTAGCTTC CCGGCAACAA
 1201 TTAATAGACT GGATGGAGGC GGATAAAGTT GCAGGACCAC TTCTGCGCTC GGCCCTTCCG
 1261 GCTGGCTGGT TTATTGCTGA TAAATCTGGA GCCGGTGAGC GTGGGTCTCG CGGTATCATT
 1321 GCAGCACTGG GGCCAGATGG TAAGCCCTCC CGTATCGTAG TTATCTACAC GACGGGGAGT
 1381 CAGGCAACTA TGGATGAACG AAATAGACAG ATCGCTGAGA TAGGTGCCTC ACTGATTAAG
 1441 CATTGGTAAC TGTCAGACCA AGTTTACTCA TATATACTTT AGATTGATTT AAAACTTCAT
 1501 TTTTAATTTA AAAGGATCTA GGTGAAGATC CTTTTTGATA ATCTCATGAC CAAAATCCCT
 1561 TAACGTGAGT TTTCGTTCCA CTGAGCGTCA GACCCCGTAG AAAAGATCAA AGGATCTTCT
 1621 TGAGATCCTT TTTTTCTGCG CGTAATCTGC TGCTTGCAAA CAAAAAAACC ACCGCTACCA
 1681 GCGGTGGTTT GTTTGCCGGA TCAAGAGCTA CCAACTCTTT TTCCGAAGGT AACTGGCTTC
 1741 AGCAGAGCGC AGATACCAAA TACTGTCCTT CTAGTGTAGC CGTAGTTAGG CCACCACTTC
 1801 AAGAACTCTG TAGCACCGCC TACATACCTC GCTCTGCTAA TCCTGTTACC AGTGGCTGCT
 1861 GCCAGTGGCG ATAAGTCGTG TCTTACCGGG TTGGACTCAA GACGATAGTT ACCGGATAAG
 1921 GCGCAGCGGT CGGGCTGAAC GGGGGGTTCG TGCACACAGC CCAGCTTGGA GCGAACGACC
 1981 TACACCGAAC TGAGATACCT ACAGCGTGAG CATTGAGAAA GCGCCACGCT TCCCGAAGGG
 2041 AGAAAGGCGG ACAGGTATCC GGTAAGCGGC AGGGTCGGAA CAGGAGAGCG CACGAGGGAG
 2101 CTTCCAGGGG GAAACGCCTG GTATCTTTAT AGTCCTGTCG GGTTTCGCCA CCTCTGACTT
 2161 GAGCGTCGAT TTTTGTGATG CTCGTCAGGG GGGCGGAGCC TATGGAAAAA CGCCAGCAAC
 2221 GCGGCCTTTT TACGGTTCCT GGCCTTTTGC TGGCCTTTTG CTCACATGTT CTTTCCTGCG
 2281 TTATCCCCTG ATTCTGTGGA TAACCGTATT ACCGCCTTTG AGTGAGCTGA TACCGCTCGC
 2341 CGCAGCCGAA CGACCGAGCG CAGCGAGTCA GTGAGCGAGG AAGCGGAAGA GCGCCTGATG
 2401 CGGTATTTTC TCCTTACGCA TCTGTGCGGT ATTTCACACC GCAGACCAGC CGCGTAACCT
 2461 GGCAAAATCG GTTACGGTTG AGTAATAAAT GGATGCCCTG CGTAAGCGGG TGTGGGCGGA
 2521 CAATAAAGTC TTAAACTGAA CAAAATAGAT CTAAACTATG ACAATAAAGT CTTAAACTAG
 2581 ACAGAATAGT TGTAAACTGA AATCAGTCCA GTTATGCTGT GAAAAAGCAT ACTGGACTTT
 2641 TGTTATGGCT AAAGCAAACT CTTCATTTTC TGAAGTGCAA ATTGCCCGTC GTATTAAAGA
 2701 GGGGCGTGGC CAAGGGCATG GTAAAGACTA TATTCGCGGC GTTGTGACAA TTTACCGAAC
 2761 AACTCCGCGG CCGGGAAGCC GATCTCGGCT TGAACGAATT GTTAGGTGGC GGTACTTGGG
 2821 TCGATATCAA AGTGCATCAC TTCTTCCCGT ATGCCCAACT TTGTATAGAG AGCCACTGCG
 2881 GGATCGTCAC CGTAATCTGC TTGCACGTAG ATCACATAAG CACCAAGCGC GTTGGCCTCA
 2941 TGCTTGAGGA GATTGATGAG CGCGGTGGCA ATGCCCTGCC TCCGGTGCTC GCCGGAGACT
 3001 GCGAGATCAT AGATATAGAT CTCACTACGC GGCTGCTCAA ACCTGGGCAG AACGTAAGCC
 3061 GCGAGAGCGC CAACAACCGC TTCTTGGTCG AAGGCAGCAA GCGCGATGAA TGTCTTACTA
 3121 CGGAGCAAGT TCCCGAGGTA ATCGGAGTCC GGCTGATGTT GGGAGTAGGT GGCTACGTCT
 3181 CCGAACTCAC GACCGAAAAG ATCAAGAGCA GCCCGCATGG ATTTGACTTG GTCAGGGCCG
 3241 AGCCTACATG TGCGAATGAT GCCCATACTT GAGCCACCTA ACTTTGTTTT AGGGCGACTG
 3301 CCCTGCTGCG TAACATCGTT GCTGCTGCGT AACATCGTTG CTGCTCCATA ACATCAAACA
 3361 TCGACCCACG GCGTAACGCG CTTGCTGCTT GGATGCCCGA GGCATAGACT GTACAAAAAA
 3421 ACAGTCATAA CAAGCCATGA AAACCGCCAC TGCGCCGTTA CCACCGCTGC GTTCGGTCAA
 3481 GGTTCTGGAC CAGTTGCGTG AGCGCATACG CTACTTGCAT TACAGTTTAC GAACCGAACA
 3541 GGCTTATGTC AACTGGGTTC GTGCCTTCAT CCGTTTCCAC GGTGTGCGTC ACCCGGCAAC
 3601 CTTGGGCAGC AGCGAAGTCG AGGCATTTCT GTCCTGGCTG GCGAACGAGC GCAAGGTTTC
 3661 GGTCTCCACG CATCGTCAGG CATTGGCGGC CTTGCTGTTC TTCTACGGCA AGGTGCTGTG
 3721 CACGGATCTG CCCTGGCTTC AGGAGATCGG AAGACCTCGG CCGTCGCGGC GCTTGCCGGT
 3781 GGTGCTGACC CCGGATGAAG TGGTTCGCAT CCTCGGTTTT CTGGAAGGCG AGCATCGTTT
 3841 GTTCGCCCAG GACTCTAGCT ATAGTTCTAG TGGTTGGCTA CGTATACTCC GGAATATTAA
 3901 TAGATCATGG AGATAATTAA AATGATAACC ATCTCGCAAA TAAATAAGTA TTTTACTGTT
 3961 TTCGTAACAG TTTTGTAATA AAAAAACCTA TAAATATTCC GGATTATTCA TACCGTCCCA
 4021 CCATCGGGCG CGGATCCCGG TCCGAAGCGC GCGGAATTCA AAGGCCTACG TCGACGAGCT
 4081 CACTAGTCGC GGCCGCTTTC GAATCTAGAG CCTGCAGTCT CGAGGCATGC GGTACCAAGC
 4141 TTGTCGAGAA GTACTAGAGG ATCATAATCA GCCATACCAC ATTTGTAGAG GTTTTACTTG
 4201 CTTTAAAAAA CCTCCCACAC CTCCCCCTGA ACCTGAAACA TAAAATGAAT GCAATTGTTG
 4261 TTGTTAACTT GTTTATTGCA GCTTATAATG GTTACAAATA AAGCAATAGC ATCACAAATT
 4321 TCACAAATAA AGCATTTTTT TCACTGCATT CTAGTTGTGG TTTGTCCAAA CTCATCAATG
 4381 TATCTTATCA TGTCTGGATC TGATCACTGC TTGAGCCTAG GAGATCCGAA CCAGATAAGT
 4441 GAAATCTAGT TCCAAACTAT TTTGTCATTT TTAATTTTCG TATTAGCTTA CGACGCTACA
 4501 CCCAGTTCCC ATCTATTTTG TCACTCTTCC CTAAATAATC CTTAAAAACT CCATTTCCAC
 4561 CCCTCCCAGT TCCCAACTAT TTTGTCCGCC CACAGCGGGG CATTTTTCTT CCTGTTATGT
 4621 TTTTAATCAA ACATCCTGCC AACTCCATGT GACAAACCGT CATCTTCGGC TACTTTTTCT
 4681 CTGTCACAGA ATGAAAATTT TTCTGTCATC TCTTCGTTAT TAATGTTTGT AATTGACTGA
 4741 ATATCAACGC TTATTTGCAG CCTGAATGGC GAATGG
//

pFastBacI载体质粒图谱pdf版和相关资料下载

pFastBacI载体应用举例
