pAcGFP1-Golgi

价格:2300元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pAcGFP1-Golgi
质粒类型: 哺乳动物细胞表达载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV IE
载体大小: 4.9 kb
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: AcGFP1 (N-端)
载体抗性: Kanamycin.html' target='_blank'>卡那霉素
筛选标记: 新霉素(Neomycin)
克隆菌株: DH5α, HB101
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)
备注: 哺乳动物载体pAcGFP1-Golgi组成型表达AcGFP蛋白;含有高尔基体定位信号,是亚细胞定位载体。
产品目录号: 632464
稳定性: 稳表达 或 瞬表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

pAcGFP1-Golgi载体图谱

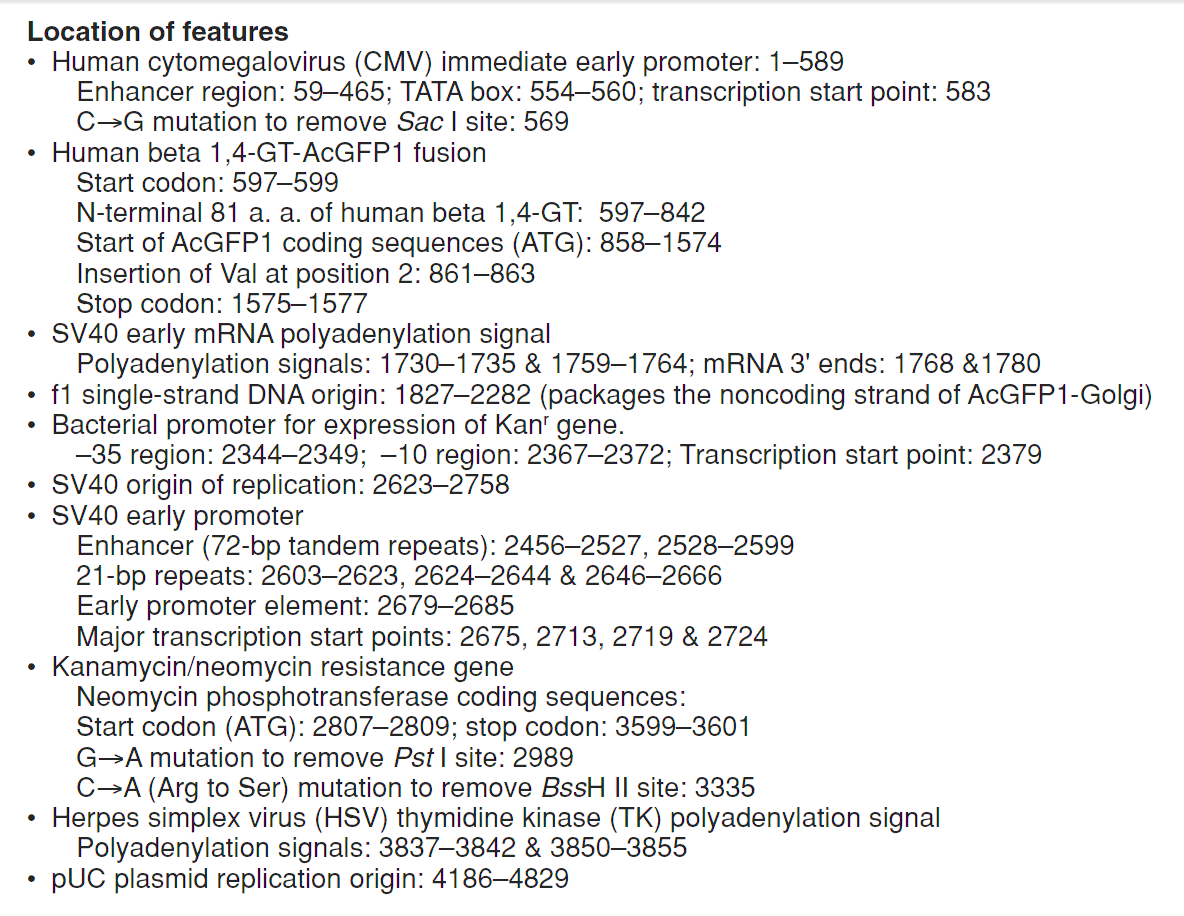

pAcGFP1-Golgi 载体特征

载体简介


pAcGFP1-Golgi Vector encodes a fusion protein consisting of the N-terminal 81 amino acids of the human beta 1,4-galactosyltransferase (GT; 1) directly upstream of the green fluorescent protein (GFP) from Aequorea coerulescens (AcGFP1). The human beta 1,4-galactosyltransferase sequence contains a membrane-anchoring signal peptide that targets the protein to the transmedial region of the Golgi aparatus (2–4). AcGFP1 (excitation maximum = 475 nm; emission maximum = 505 nm) contains silent mutations that create an open reading frame comprised almost entirely of optimized human codons. These changes increase the translational efficiency of the AcGFP1 mRNA and, consequently, the expression of AcGFP1 in mammalian and plant cells. SV40 polyadenylation signals downstream of the protein coding region direct proper processing of the 3' end of the mRNA. The vector contains an SV40 origin for replication and a neomycin resistance (Neor) gene for selection (using G418) in eukaryotic cells (5). A bacterial promoter (P) upstream of Neor expresses kanamycin resistance in E. coli. The vector backbone also provides a pUC origin of replication for propagation in E. coli and an f1 origin for single-stranded DNA production.


pAcGFP1-Golgi Vector is designed for fluorescent labeling of the Golgi apparatus. pAcGFP1-Golgi can be introduced into mammalian cells using any standard transfection method. If required, stable transformants can be selected using G418 (5). pAcGFP1-Golgi is not intended as a cloning vector; however, the backbone does contain unique restriction sites upstream and downstream of the AcGFP1-Golgi sequence which permit its excision.

Propagation in E. coli
 Suitable host strains: Fusion-Blue competent cells (Cat. No. 636700), DH5α, HB101, and other general purpose strains. Single-stranded DNA production requires a host such as JM109 or XL1-Blue that contains an
F plasmid.
 Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) in E. coli hosts.
 E. coli replication origin: pUC
 Copy number: ≈500
 Plasmid incompatibility group: pMB1/ColE1

载体序列

LOCUS       pAcGFP1-Golgi   4911 bp    DNA   circular             9-DEC-2009
COMMENT     Created by Clontech Laboratories Inc. http://www.clontech.com
COMMENT     Cat. No. 632464
FEATURES             Location/Qualifiers
     promoter        1..589
                     /label=CMV\IE\Promoter
     CDS             597..842
                     /label=Human-GT\precursor
     CDS             858..1568
                     /label=AcGFP1
     misc_feature    2801..3595
                     /label=Kan(R)/Neo(R)
     misc_feature    1724..1758
                     /label=SV40\early\polyA\signals
     misc_feature    1821..2276
                     /label=f1\origin
     misc_feature    2338..2366
                     /label=Bacterial\Promoter\for\Kan(R)
     misc_feature    2617..2752
                     /label=SV40\origin
     misc_feature    2450..2679
                     /label=SV40\early\Promoter/Enhancer
     misc_feature    3831..3849
                     /label=HSV\TK\polyA\signals
     misc_feature    4180..4823
                     /label=pUC\origin
BASE COUNT     1157 a      1341 c      1305 g      1108 t
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcatga
      601 ggcttcggga gccgctcctg agcggcagcg ccgcgatgcc aggcgcgtcc ctacagcggg
      661 cctgccgcct gctcgtggcc gtctgcgctc tgcaccttgg cgtcaccctc gtttactacc
      721 tggctggccg cgacctgagc cgcctgcccc aactggtcgg agtctccaca ccgctgcagg
      781 gcggctcgaa cagtgccgcc gccatcgggc agtcctccgg ggagctccgg accggagggg
      841 ccaaggatcc accggtcatg gtgagcaagg gcgccgagct gttcaccggc atcgtgccca
      901 tcctgatcga gctgaatggc gatgtgaatg gccacaagtt cagcgtgagc ggcgagggcg
      961 agggcgatgc cacctacggc aagctgaccc tgaagttcat ctgcaccacc ggcaagctgc
     1021 ctgtgccctg gcccaccctg gtgaccaccc tgagctacgg cgtgcagtgc ttctcacgct
     1081 accccgatca catgaagcag cacgacttct tcaagagcgc catgcctgag ggctacatcc
     1141 aggagcgcac catcttcttc gaggatgacg gcaactacaa gtcgcgcgcc gaggtgaagt
     1201 tcgagggcga taccctggtg aatcgcatcg agctgaccgg caccgatttc aaggaggatg
     1261 gcaacatcct gggcaataag atggagtaca actacaacgc ccacaatgtg tacatcatga
     1321 ccgacaaggc caagaatggc atcaaggtga acttcaagat ccgccacaac atcgaggatg
     1381 gcagcgtgca gctggccgac cactaccagc agaatacccc catcggcgat ggccctgtgc
     1441 tgctgcccga taaccactac ctgtccaccc agagcgccct gtccaaggac cccaacgaga
     1501 agcgcgatca catgatctac ttcggcttcg tgaccgccgc cgccatcacc cacggcatgg
     1561 atgagctgta caagtgagcg gccgcgactc tagatcataa tcagccatac cacatttgta
     1621 gaggttttac ttgctttaaa aaacctccca cacctccccc tgaacctgaa acataaaatg
     1681 aatgcaattg ttgttgttaa cttgtttatt gcagcttata atggttacaa ataaagcaat
     1741 agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg tggtttgtcc
     1801 aaactcatca atgtatctta aggcgtaaat tgtaagcgtt aatattttgt taaaattcgc
     1861 gttaaatttt tgttaaatca gctcattttt taaccaatag gccgaaatcg gcaaaatccc
     1921 ttataaatca aaagaataga ccgagatagg gttgagtgtt gttccagttt ggaacaagag
     1981 tccactatta aagaacgtgg actccaacgt caaagggcga aaaaccgtct atcagggcga
     2041 tggcccacta cgtgaaccat caccctaatc aagttttttg gggtcgaggt gccgtaaagc
     2101 actaaatcgg aaccctaaag ggagcccccg atttagagct tgacggggaa agccggcgaa
     2161 cgtggcgaga aaggaaggga agaaagcgaa aggagcgggc gctagggcgc tggcaagtgt
     2221 agcggtcacg ctgcgcgtaa ccaccacacc cgccgcgctt aatgcgccgc tacagggcgc
     2281 gtcaggtggc acttttcggg gaaatgtgcg cggaacccct atttgtttat ttttctaaat
     2341 acattcaaat atgtatccgc tcatgagaca ataaccctga taaatgcttc aataatattg
     2401 aaaaaggaag agtcctgagg cggaaagaac cagctgtgga atgtgtgtca gttagggtgt
     2461 ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct caattagtca
     2521 gcaaccaggt gtggaaagtc cccaggctcc ccagcaggca gaagtatgca aagcatgcat
     2581 ctcaattagt cagcaaccat agtcccgccc ctaactccgc ccatcccgcc cctaactccg
     2641 cccagttccg cccattctcc gccccatggc tgactaattt tttttattta tgcagaggcc
     2701 gaggccgcct cggcctctga gctattccag aagtagtgag gaggcttttt tggaggccta
     2761 ggcttttgca aagatcgatc aagagacagg atgaggatcg tttcgcatga ttgaacaaga
     2821 tggattgcac gcaggttctc cggccgcttg ggtggagagg ctattcggct atgactgggc
     2881 acaacagaca atcggctgct ctgatgccgc cgtgttccgg ctgtcagcgc aggggcgccc
     2941 ggttcttttt gtcaagaccg acctgtccgg tgccctgaat gaactgcaag acgaggcagc
     3001 gcggctatcg tggctggcca cgacgggcgt tccttgcgca gctgtgctcg acgttgtcac
     3061 tgaagcggga agggactggc tgctattggg cgaagtgccg gggcaggatc tcctgtcatc
     3121 tcaccttgct cctgccgaga aagtatccat catggctgat gcaatgcggc ggctgcatac
     3181 gcttgatccg gctacctgcc cattcgacca ccaagcgaaa catcgcatcg agcgagcacg
     3241 tactcggatg gaagccggtc ttgtcgatca ggatgatctg gacgaagagc atcaggggct
     3301 cgcgccagcc gaactgttcg ccaggctcaa ggcgagcatg cccgacggcg aggatctcgt
     3361 cgtgacccat ggcgatgcct gcttgccgaa tatcatggtg gaaaatggcc gcttttctgg
     3421 attcatcgac tgtggccggc tgggtgtggc ggaccgctat caggacatag cgttggctac
     3481 ccgtgatatt gctgaagagc ttggcggcga atgggctgac cgcttcctcg tgctttacgg
     3541 tatcgccgct cccgattcgc agcgcatcgc cttctatcgc cttcttgacg agttcttctg
     3601 agcgggactc tggggttcga aatgaccgac caagcgacgc ccaacctgcc atcacgagat
     3661 ttcgattcca ccgccgcctt ctatgaaagg ttgggcttcg gaatcgtttt ccgggacgcc
     3721 ggctggatga tcctccagcg cggggatctc atgctggagt tcttcgccca ccctaggggg
     3781 aggctaactg aaacacggaa ggagacaata ccggaaggaa cccgcgctat gacggcaata
     3841 aaaagacaga ataaaacgca cggtgttggg tcgtttgttc ataaacgcgg ggttcggtcc
     3901 cagggctggc actctgtcga taccccaccg agaccccatt ggggccaata cgcccgcgtt
     3961 tcttcctttt ccccacccca ccccccaagt tcgggtgaag gcccagggct cgcagccaac
     4021 gtcggggcgg caggccctgc catagcctca ggttactcat atatacttta gattgattta
     4081 aaacttcatt tttaatttaa aaggatctag gtgaagatcc tttttgataa tctcatgacc
     4141 aaaatccctt aacgtgagtt ttcgttccac tgagcgtcag accccgtaga aaagatcaaa
     4201 ggatcttctt gagatccttt ttttctgcgc gtaatctgct gcttgcaaac aaaaaaacca
     4261 ccgctaccag cggtggtttg tttgccggat caagagctac caactctttt tccgaaggta
     4321 actggcttca gcagagcgca gataccaaat actgttcttc tagtgtagcc gtagttaggc
     4381 caccacttca agaactctgt agcaccgcct acatacctcg ctctgctaat cctgttacca
     4441 gtggctgctg ccagtggcga taagtcgtgt cttaccgggt tggactcaag acgatagtta
     4501 ccggataagg cgcagcggtc gggctgaacg gggggttcgt gcacacagcc cagcttggag
     4561 cgaacgacct acaccgaact gagataccta cagcgtgagc tatgagaaag cgccacgctt
     4621 cccgaaggga gaaaggcgga caggtatccg gtaagcggca gggtcggaac aggagagcgc
     4681 acgagggagc ttccaggggg aaacgcctgg tatctttata gtcctgtcgg gtttcgccac
     4741 ctctgacttg agcgtcgatt tttgtgatgc tcgtcagggg ggcggagcct atggaaaaac
     4801 gccagcaacg cggccttttt acggttcctg gccttttgct ggccttttgc tcacatgttc
     4861 tttcctgcgt tatcccctga ttctgtggat aaccgtatta ccgccatgca t
//
