pET-His

价格:850元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Novagen
载体名称: pET-His
质粒类型: 大肠杆菌表达载体
高拷贝/低拷贝: --
启动子: --
克隆方法: 多克隆位点,限制性内切酶
载体大小: 4636bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: Ampicillin
筛选标记: --
备注: --
产品目录号: --
稳定性: --
组成型: --
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

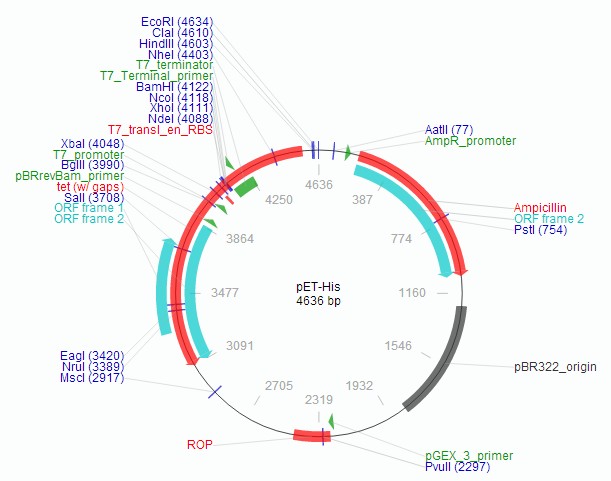

pET-His载体图谱



载体简介

载体序列

LOCUS       pET-His	4636 bp 	DNA	SYN
DEFINITION  pET-His
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4636
                     /organism="pET-His"
                     /mol_type="other DNA"
     promoter        139..167
                     /label="AmpR_promoter"
     gene            209..1069
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             209..1069
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      1224..1843
                     /label="pBR322_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    2242..2264
                     /label="pGEX_3_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    complement(2258..2449)
                     /label="ROP"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     gene            complement(3088..4551)
                     /label="tet (w/ gaps)"
                     /gene="tet (w/ gaps)"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     CDS             complement(3088..3873)
                     /label="ORF frame 2"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRPMPLRAFNPVSSFRWARGMTIVAALMTVFFIMQLVGQVPAALWVIFG
                     EDRFRWSATMIGLSLAVFGILHALAQAFVTGPATKRFGEKQAIIAGMAADALGYVLLA
                     FATRGWMAFPIMILLASGGIGMPALQAMLSRQVDDDHQGQLQGSLAALTSLTSITGPL
                     IVTAIYAASASTWNGLAWIVGAALYLVCLPALRRGAWSRATST*"
     CDS             3283..3741
                     /label="ORF frame 1"
                     /translation="MVVIYLPGQHGLQRGHPDAAGSEKNHNGEGHPASRRERQQDVAQ
                     RVGRHAGDNGLLLAETFGGGTSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPER
                     CRHLSYELHDKEDSHKCGDDSHAPRPPEGADWVEGSQGHRSTLSLMRLLH*"
     misc_feature    3907..3926
                     /label="pBRrevBam_primer"
                     /translation="MVVIYLPGQHGLQRGHPDAAGSEKNHNGEGHPASRRERQQDVAQ
                     RVGRHAGDNGLLLAETFGGGTSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPER
                     CRHLSYELHDKEDSHKCGDDSHAPRPPEGADWVEGSQGHRSTLSLMRLLH*"
     promoter        4010..4028
                     /label="T7_promoter"
                     /translation="MVVIYLPGQHGLQRGHPDAAGSEKNHNGEGHPASRRERQQDVAQ
                     RVGRHAGDNGLLLAETFGGGTSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPER
                     CRHLSYELHDKEDSHKCGDDSHAPRPPEGADWVEGSQGHRSTLSLMRLLH*"
     misc_feature    4065..4081
                     /label="T7_transl_en_RBS"
                     /translation="MVVIYLPGQHGLQRGHPDAAGSEKNHNGEGHPASRRERQQDVAQ
                     RVGRHAGDNGLLLAETFGGGTSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPER
                     CRHLSYELHDKEDSHKCGDDSHAPRPPEGADWVEGSQGHRSTLSLMRLLH*"
     terminator      4130..4258
                     /label="T7_terminator"
                     /translation="MVVIYLPGQHGLQRGHPDAAGSEKNHNGEGHPASRRERQQDVAQ
                     RVGRHAGDNGLLLAETFGGGTSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPER
                     CRHLSYELHDKEDSHKCGDDSHAPRPPEGADWVEGSQGHRSTLSLMRLLH*"
     misc_feature    complement(4172..4190)
                     /label="T7_Terminal_primer"
                     /translation="MVVIYLPGQHGLQRGHPDAAGSEKNHNGEGHPASRRERQQDVAQ
                     RVGRHAGDNGLLLAETFGGGTSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPER
                     CRHLSYELHDKEDSHKCGDDSHAPRPPEGADWVEGSQGHRSTLSLMRLLH*"
ORIGIN
    1 ttcttgaaga cgaaagggcc tcgtgatacg cctattttta taggttaatg tcatgataat
   61 aatggtttct tagacgtcag gtggcacttt tcggggaaat gtgcgcggaa cccctatttg
  121 tttatttttc taaatacatt caaatatgta tccgctcatg agacaataac cctgataaat
  181 gcttcaataa tattgaaaaa ggaagagtat gagtattcaa catttccgtg tcgcccttat
  241 tccctttttt gcggcatttt gccttcctgt ttttgctcac ccagaaacgc tggtgaaagt
  301 aaaagatgct gaagatcagt tgggtgcacg agtgggttac atcgaactgg atctcaacag
  361 cggtaagatc cttgagagtt ttcgccccga agaacgtttt ccaatgatga gcacttttaa
  421 agttctgcta tgtggcgcgg tattatcccg tgttgacgcc gggcaagagc aactcggtcg
  481 ccgcatacac tattctcaga atgacttggt tgagtactca ccagtcacag aaaagcatct
  541 tacggatggc atgacagtaa gagaattatg cagtgctgcc ataaccatga gtgataacac
  601 tgcggccaac ttacttctga caacgatcgg aggaccgaag gagctaaccg cttttttgca
  661 caacatgggg gatcatgtaa ctcgccttga tcgttgggaa ccggagctga atgaagccat
  721 accaaacgac gagcgtgaca ccacgatgcc tgcagcaatg gcaacaacgt tgcgcaaact
  781 attaactggc gaactactta ctctagcttc ccggcaacaa ttaatagact ggatggaggc
  841 ggataaagtt gcaggaccac ttctgcgctc ggcccttccg gctggctggt ttattgctga
  901 taaatctgga gccggtgagc gtgggtctcg cggtatcatt gcagcactgg ggccagatgg
  961 taagccctcc cgtatcgtag ttatctacac gacggggagt caggcaacta tggatgaacg
 1021 aaatagacag atcgctgaga taggtgcctc actgattaag cattggtaac tgtcagacca
 1081 agtttactca tatatacttt agattgattt aaaacttcat ttttaattta aaaggatcta
 1141 ggtgaagatc ctttttgata atctcatgac caaaatccct taacgtgagt tttcgttcca
 1201 ctgagcgtca gaccccgtag aaaagatcaa aggatcttct tgagatcctt tttttctgcg
 1261 cgtaatctgc tgcttgcaaa caaaaaaacc accgctacca gcggtggttt gtttgccgga
 1321 tcaagagcta ccaactcttt ttccgaaggt aactggcttc agcagagcgc agataccaaa
 1381 tactgtcctt ctagtgtagc cgtagttagg ccaccacttc aagaactctg tagcaccgcc
 1441 tacatacctc gctctgctaa tcctgttacc agtggctgct gccagtggcg ataagtcgtg
 1501 tcttaccggg ttggactcaa gacgatagtt accggataag gcgcagcggt cgggctgaac
 1561 ggggggttcg tgcacacagc ccagcttgga gcgaacgacc tacaccgaac tgagatacct
 1621 acagcgtgag ctatgagaaa gcgccacgct tcccgaaggg agaaaggcgg acaggtatcc
 1681 ggtaagcggc agggtcggaa caggagagcg cacgagggag cttccagggg gaaacgcctg
 1741 gtatctttat agtcctgtcg ggtttcgcca cctctgactt gagcgtcgat ttttgtgatg
 1801 ctcgtcaggg gggcggagcc tatggaaaaa cgccagcaac gcggcctttt tacggttcct
 1861 ggccttttgc tggccttttg ctcacatgtt ctttcctgcg ttatcccctg attctgtgga
 1921 taaccgtatt accgcctttg agtgagctga taccgctcgc cgcagccgaa cgaccgagcg
 1981 cagcgagtca gtgagcgagg aagcggaaga gcgcctgatg cggtattttc tccttacgca
 2041 tctgtgcggt atttcacacc gcatatatgg tgcactctca gtacaatctg ctctgatgcc
 2101 gcatagttaa gccagtatac actccgctat cgctacgtga ctgggtcatg gctgcgcccc
 2161 gacacccgcc aacacccgct gacgcgccct gacgggcttg tctgctcccg gcatccgctt
 2221 acagacaagc tgtgaccgtc tccgggagct gcatgtgtca gaggttttca ccgtcatcac
 2281 cgaaacgcgc gaggcagctg cggtaaagct catcagcgtg gtcgtgaagc gattcacaga
 2341 tgtctgcctg ttcatccgcg tccagctcgt tgagtttctc cagaagcgtt aatgtctggc
 2401 ttctgataaa gcgggccatg ttaagggcgg ttttttcctg tttggtcact gatgcctccg
 2461 tgtaaggggg atttctgttc atgggggtaa tgataccgat gaaacgagag aggatgctca
 2521 cgatacgggt tactgatgat gaacatgccc ggttactgga acgttgtgag ggtaaacaac
 2581 tggcggtatg gatgcggcgg gaccagagaa aaatcactca gggtcaatgc cagcgcttcg
 2641 ttaatacaga tgtaggtgtt ccacagggta gccagcagca tcctgcgatg cagatccgga
 2701 acataatggt gcagggcgct gacttccgcg tttccagact ttacgaaaca cggaaaccga
 2761 agaccattca tgttgttgct caggtcgcag acgttttgca gcagcagtcg cttcacgttc
 2821 gctcgcgtat cggtgattca ttctgctaac cagtaaggca accccgccag cctagccggg
 2881 tcctcaacga caggagcacg atcatgcgca cccgtggcca ggacccaacg ctgcccgaga
 2941 tgcgccgcgt gcggctgctg gagatggcgg acgcgatgga tatgttctgc caagggttgg
 3001 tttgcgcatt cacagttctc cgcaagaatt gattggctcc aattcttgga gtggtgaatc
 3061 cgttagcgag gtgccgccgg cttccattca ggtcgaggtg gcccggctcc atgcaccgcg
 3121 acgcaacgcg gggaggcaga caaggtatag ggcggcgcct acaatccatg ccaacccgtt
 3181 ccatgtgctc gccgaggcgg cataaatcgc cgtgacgatc agcggtccag tgatcgaagt
 3241 taggctggta agagccgcga gcgatccttg aagctgtccc tgatggtcgt catctacctg
 3301 cctggacagc atggcctgca acgcgggcat cccgatgccg ccggaagcga gaagaatcat
 3361 aatggggaag gccatccagc ctcgcgtcgc gaacgccagc aagacgtagc ccagcgcgtc
 3421 ggccgccatg ccggcgataa tggcctgctt ctcgccgaaa cgtttggtgg cgggaccagt
 3481 gacgaaggct tgagcgaggg cgtgcaagat tccgaatacc gcaagcgaca ggccgatcat
 3541 cgtcgcgctc cagcgaaagc ggtcctcgcc gaaaatgacc cagagcgctg ccggcacctg
 3601 tcctacgagt tgcatgataa agaagacagt cataagtgcg gcgacgatag tcatgccccg
 3661 cgcccaccgg aaggagctga ctgggttgaa ggctctcaag ggcatcggtc gacgctctcc
 3721 cttatgcgac tcctgcatta ggaagcagcc cagtagtagg ttgaggccgt tgagcaccgc
 3781 cgccgcaagg aatggtgcat gcaaggagat ggcgcccaac agtcccccgg ccacggggcc
 3841 tgccaccata cccacgccga aacaagcgct catgagcccg aagtggcgag cccgatcttc
 3901 cccatcggtg atgtcggcga tataggcgcc agcaaccgca cctgtggcgc cggtgatgcc
 3961 ggccacgatg cgtccggcgt agaggatcga gatctcgatc ccgcgaaatt aatacgactc
 4021 actataggga gaccacaacg gtttccctct agaaataatt ttgtttaact ttaagaagga
 4081 gatatacata tgcatcacca tcaccatcac ctcgagacca tggatccggc tgctaacaaa
 4141 gcccgaaagg aagctgagtt ggctgctgcc accgctgagc aataactagc ataacccctt
 4201 ggggcctcta aacgggtctt gaggggtttt ttgctgaaag gaggaactat atccggatat
 4261 ccacaggacg ggtgtggtcg ccatgatcgc gtagtcgata gtggctccaa gtagcgaagc
 4321 gagcaggact gggcggcggc caaagcggtc ggacagtgct ccgagaacgg gtgcgcatag
 4381 aaattgcatc aacgcatata gcgctagcag cacgccatag tgactggcga tgctgtcgga
 4441 atggacgata tcccgcaaga ggcccggcag taccggcata accaagccta tgcctacagc
 4501 atccagggtg acggtgccga ggatgacgat gagcgcattg ttagatttca tacacggtgc
 4561 ctgactgcgt tagcaattta actgtgataa actaccgcat taaagcttat cgatgataag
 4621 ctgtcaaaca tgagaa
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
