pSL175

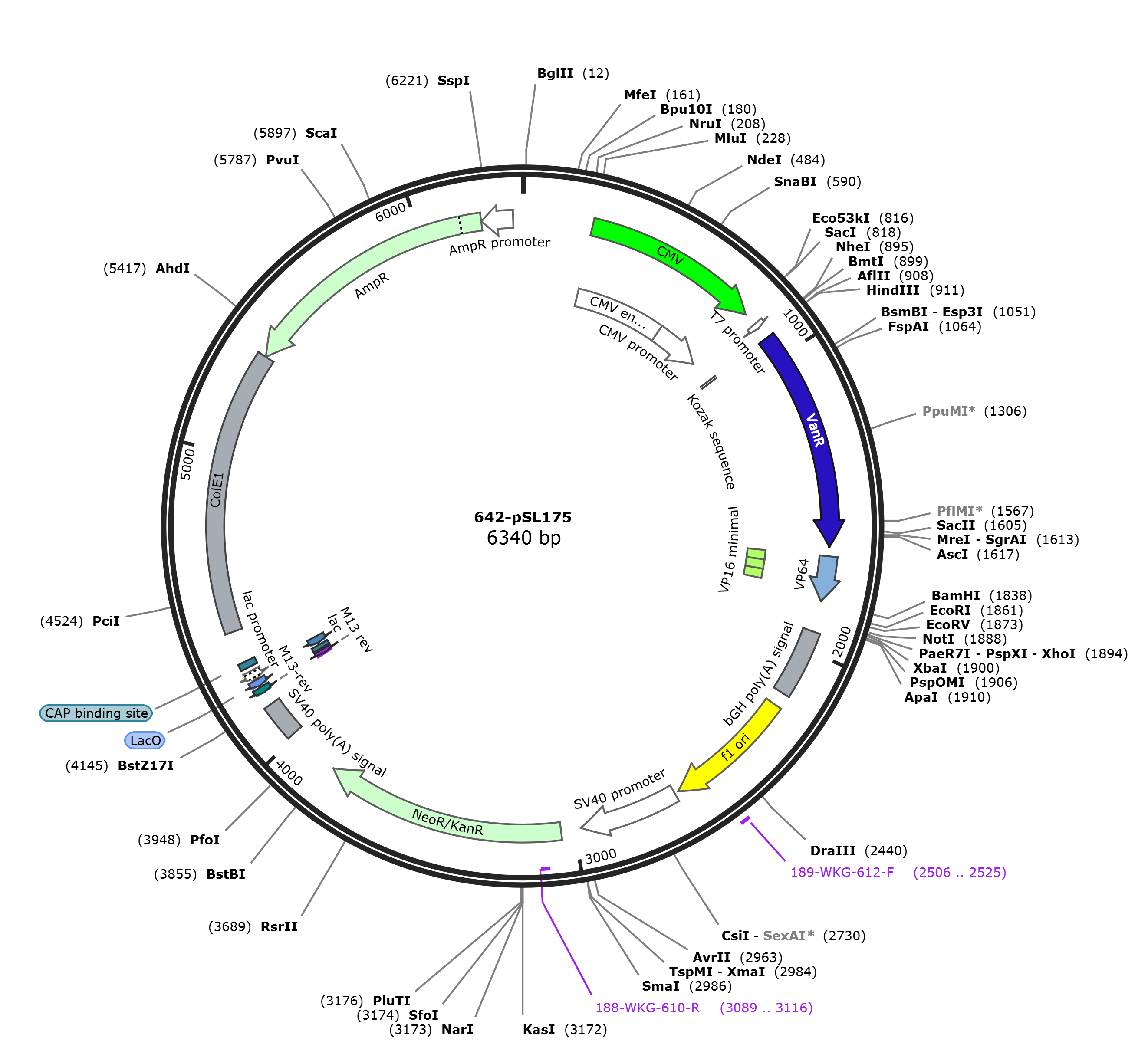

LOCUS       pSL175           6340 bp DNA     circular SYN 14-JAN-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6340)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 20, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6340
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    232..819
                     /label=CMV
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     regulatory      917..926
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             923..1654
                     /codon_start=1
                     /label=VanR
                     /translation="MDMPRIKPGQRVMMALRKMIASGEIKSGERIAEIPTAAALGVSRM
                     PVRTALRSLEQEGLVVRLGARGYAARGVSSDQIRDAIEVRGVLEGFAARRLAERGMTAE
                     THARFVALIAEGEALFAAGRLNGEDLDRYAAYNQAFHDTLASAAGNGAVESALARNGFE
                     PFAAAGALALDLMDLPAEYEHLLAAHRQHQAVLDAVSCGDAEGAERIMRDHALAAIRNT
                     KVFEAAASAGAPLGAAWSIRAD"
     CDS             1685..1834
                     /label=VP64
     misc_feature    1685..1723
                     /label=VP16 minimal

     misc_feature    1724..1762
                     /label=VP16 minimal

     misc_feature    1763..1801
                     /label=VP16 minimal

     polyA_signal    1937..2161
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2207..2635
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     2506..2525
                     /label=189-WKG-612-F
     promoter        2649..2978
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     CDS             3045..3839
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3089..3116)
                     /label=188-WKG-610-R
     polyA_signal    4013..4134
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4179..4199)
                     /label=M13-rev
     primer_bind     complement(4183..4199)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(4205..4227)
                     /label=LacO
     protein_bind    4207..4223
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4231..4261)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(4232..4261)
                     /label=lac
     protein_bind    4276..4297
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     misc_feature    4403..5343
                     /label=ColE1
                     /note="ColE1"
     CDS             complement(5344..6204)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6205..6309)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttgcca ccatggacat gccgcgcata aagccgggcc agcgcgtgat
      961 gatggctctt cgcaagatga tcgcctcggg cgagatcaag agcggcgagc gtatcgccga
     1021 aatcccgaca gcggcggcgc tgggcgtctc gcgcatgccc gtgcgcacgg ccttgcggag
     1081 tctggagcag gaagggctcg tggtgcggct gggcgcgcgg ggttatgccg cccgaggcgt
     1141 gtccagcgac cagatccgcg acgccatcga ggtgcgaggg gtgctggagg gctttgcggc
     1201 ccggcgtctg gccgagcgcg gaatgacggc ggagacccac gcgcggttcg tcgccttgat
     1261 cgccgagggc gaagcgctgt tcgcggctgg gcggcttaac ggcgaggacc tggatcgcta
     1321 cgccgcgtac aatcaggcct tccatgacac gctggccagc gctgcgggca acggcgctgt
     1381 cgagagcgcc ctggcgcgca atggtttcga gccgttcgcg gcggccggtg cgctggccct
     1441 ggatctgatg gacttgccgg ccgagtacga acaccttctg gccgcccatc gccagcatca
     1501 ggcggtgctg gacgcggtct cgtgcggcga cgccgagggg gccgagcgga tcatgcgcga
     1561 ccatgccctg gccgccattc gtaacaccaa ggtcttcgag gccgcggcga gcgccggcgc
     1621 gccgctgggc gcggcgtgga gcattcgcgc cgacgccagc ggaagtggcg gaggaggcga
     1681 cgtcgacgca ttggacgatt ttgatctgga tatgctggga agtgacgccc tcgatgattt
     1741 tgaccttgac atgcttggtt cggatgccct tgatgacttt gacctcgaca tgctcggcag
     1801 tgacgccctt gatgatttcg acctggacat gctgtgagga tccactagtc cagtgtggtg
     1861 gaattctgca gatatccagc acagtggcgg ccgctcgagt ctagagggcc cgtttaaacc
     1921 cgctgatcag cctcgactgt gccttctagt tgccagccat ctgttgtttg cccctccccc
     1981 gtgccttcct tgaccctgga aggtgccact cccactgtcc tttcctaata aaatgaggaa
     2041 attgcatcgc attgtctgag taggtgtcat tctattctgg ggggtggggt ggggcaggac
     2101 agcaaggggg aggattggga agacaatagc aggcatgctg gggatgcggt gggctctatg
     2161 gcttctgagg cggaaagaac cagctggggc tctagggggt atccccacgc gccctgtagc
     2221 ggcgcattaa gcgcggcggg tgtggtggtt acgcgcagcg tgaccgctac acttgccagc
     2281 gccctagcgc ccgctccttt cgctttcttc ccttcctttc tcgccacgtt cgccggcttt
     2341 ccccgtcaag ctctaaatcg ggggctccct ttagggttcc gatttagtgc tttacggcac
     2401 ctcgacccca aaaaacttga ttagggtgat ggttcacgta gtgggccatc gccctgatag
     2461 acggtttttc gccctttgac gttggagtcc acgttcttta atagtggact cttgttccaa
     2521 actggaacaa cactcaaccc tatctcggtc tattcttttg atttataagg gattttgccg
     2581 atttcggcct attggttaaa aaatgagctg atttaacaaa aatttaacgc gaattaattc
     2641 tgtggaatgt gtgtcagtta gggtgtggaa agtccccagg ctccccagca ggcagaagta
     2701 tgcaaagcat gcatctcaat tagtcagcaa ccaggtgtgg aaagtcccca ggctccccag
     2761 caggcagaag tatgcaaagc atgcatctca attagtcagc aaccatagtc ccgcccctaa
     2821 ctccgcccat cccgccccta actccgccca gttccgccca ttctccgccc catggctgac
     2881 taattttttt tatttatgca gaggccgagg ccgcctctgc ctctgagcta ttccagaagt
     2941 agtgaggagg cttttttgga ggcctaggct tttgcaaaaa gctcccggga gcttgtatat
     3001 ccattttcgg atctgatcaa gagacaggat gaggatcgtt tcgcatgatt gaacaagatg
     3061 gattgcacgc aggttctccg gccgcttggg tggagaggct attcggctat gactgggcac
     3121 aacagacaat cggctgctct gatgccgccg tgttccggct gtcagcgcag gggcgcccgg
     3181 ttctttttgt caagaccgac ctgtccggtg ccctgaatga actgcaggac gaggcagcgc
     3241 ggctatcgtg gctggccacg acgggcgttc cttgcgcagc tgtgctcgac gttgtcactg
     3301 aagcgggaag ggactggctg ctattgggcg aagtgccggg gcaggatctc ctgtcatctc
     3361 accttgctcc tgccgagaaa gtatccatca tggctgatgc aatgcggcgg ctgcatacgc
     3421 ttgatccggc tacctgccca ttcgaccacc aagcgaaaca tcgcatcgag cgagcacgta
     3481 ctcggatgga agccggtctt gtcgatcagg atgatctgga cgaagagcat caggggctcg
     3541 cgccagccga actgttcgcc aggctcaagg cgcgcatgcc cgacggcgag gatctcgtcg
     3601 tgacccatgg cgatgcctgc ttgccgaata tcatggtgga aaatggccgc ttttctggat
     3661 tcatcgactg tggccggctg ggtgtggcgg accgctatca ggacatagcg ttggctaccc
     3721 gtgatattgc tgaagagctt ggcggcgaat gggctgaccg cttcctcgtg ctttacggta
     3781 tcgccgctcc cgattcgcag cgcatcgcct tctatcgcct tcttgacgag ttcttctgag
     3841 cgggactctg gggttcgaaa tgaccgacca agcgacgccc aacctgccat cacgagattt
     3901 cgattccacc gccgccttct atgaaaggtt gggcttcgga atcgttttcc gggacgccgg
     3961 ctggatgatc ctccagcgcg gggatctcat gctggagttc ttcgcccacc ccaacttgtt
     4021 tattgcagct tataatggtt acaaataaag caatagcatc acaaatttca caaataaagc
     4081 atttttttca ctgcattcta gttgtggttt gtccaaactc atcaatgtat cttatcatgt
     4141 ctgtataccg tcgacctcta gctagagctt ggcgtaatca tggtcatagc tgtttcctgt
     4201 gtgaaattgt tatccgctca caattccaca caacatacga gccggaagca taaagtgtaa
     4261 agcctggggt gcctaatgag tgagctaact cacattaatt gcgttgcgct cactgcccgc
     4321 tttccagtcg ggaaacctgt cgtgccagct gcattaatga atcggccaac gcgcggggag
     4381 aggcggtttg cgtattgggc gctcttccgc ttcctcgctc actgactcgc tgcgctcggt
     4441 cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt tatccacaga
     4501 atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg
     4561 taaaaaggcc gcgttgctgg cgtttttcca taggctccgc ccccctgacg agcatcacaa
     4621 aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat accaggcgtt
     4681 tccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta ccggatacct
     4741 gtccgccttt ctcccttcgg gaagcgtggc gctttctcat agctcacgct gtaggtatct
     4801 cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc ccgttcagcc
     4861 cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa gacacgactt
     4921 atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg taggcggtgc
     4981 tacagagttc ttgaagtggt ggcctaacta cggctacact agaagaacag tatttggtat
     5041 ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa
     5101 acaaaccacc gctggtagcg gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa
     5161 aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc agtggaacga
     5221 aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca cctagatcct
     5281 tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa cttggtctga
     5341 cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat ttcgttcatc
     5401 catagttgcc tgactccccg tcgtgtagat aactacgata cgggagggct taccatctgg
     5461 ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt tatcagcaat
     5521 aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat ccgcctccat
     5581 ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta atagtttgcg
     5641 caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc
     5701 attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa
     5761 agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg cagtgttatc
     5821 actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg taagatgctt
     5881 ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc ggcgaccgag
     5941 ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa ctttaaaagt
     6001 gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac cgctgttgag
     6061 atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt ttactttcac
     6121 cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc
     6181 gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa gcatttatca
     6241 gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata aacaaatagg
     6301 ggttccgcgc acatttcccc gaaaagtgcc acctgacgtc
//
