pLVX-TRE3G-Hom1

价格:3500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-TRE3G-Hom1
质粒类型: 慢病毒载体;四环素调控载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: TRE3GV
载体大小: 8157 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: DmrB
载体抗性: 氨苄青霉素
筛选标记: 嘌呤霉素(Puromycin)
克隆菌株: Stbl3
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)
备注: 慢病毒载体pLVX-TRE3G-Hom1是四环素调控系统的应答载体,需要配合使用对应的调控载体pLVX-Tet3G;
组成型表达DmrB融合蛋白;
有两个MCS区可用。
产品目录号: 635087
稳定性: 稳表达
组成型/诱导型: 诱导型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

pLVX-TRE3G-Hom1载体图谱



pLVX-TRE3G-Hom1 多克隆位点

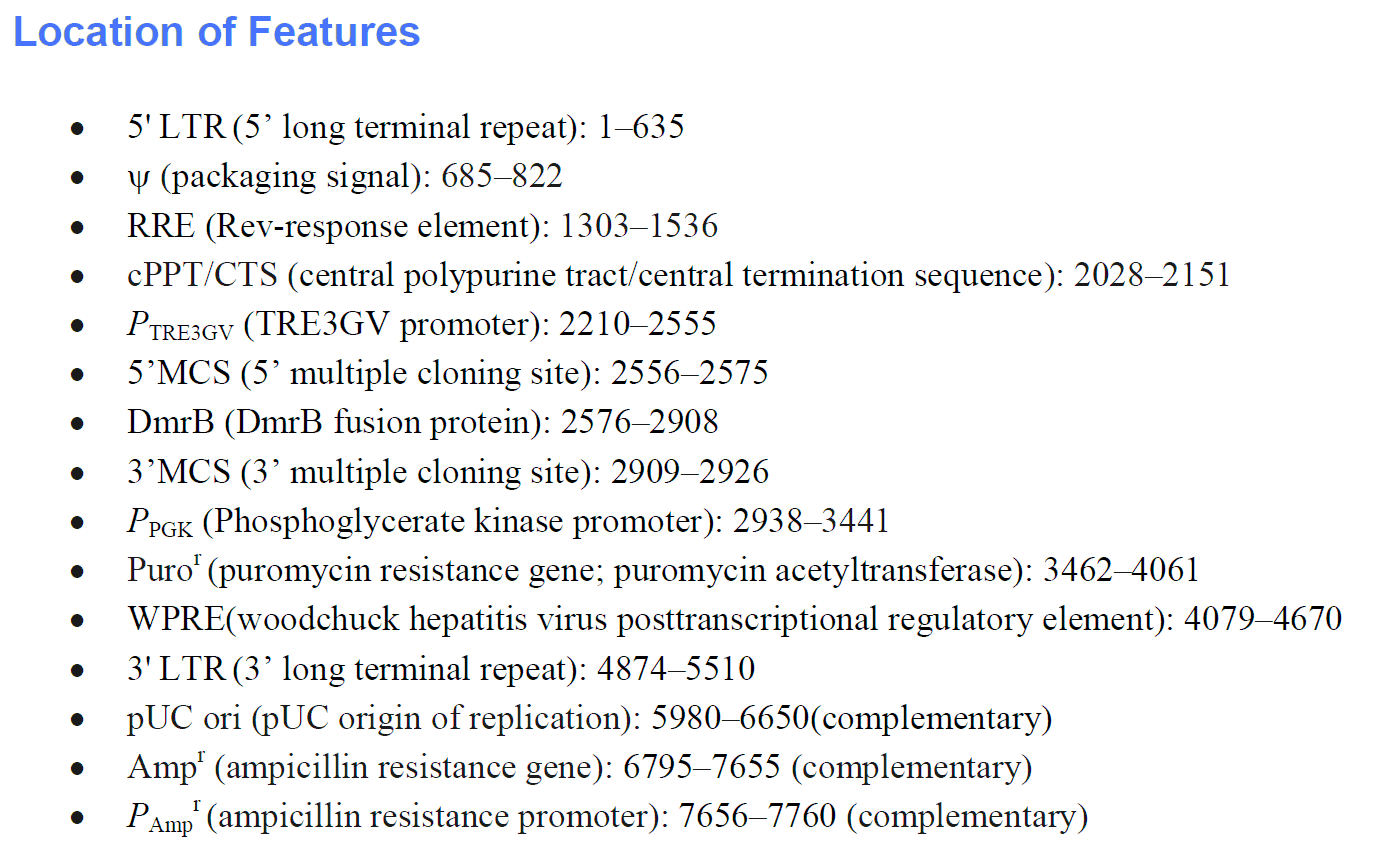

pLVX-TRE3G-Hom1 载体特征
pLVX-TRE3G-Hom1

载体简介

载体序列

LOCUS       pLVX-TRE3G-Hom1           8157 bp ds-DNA    circular SYN 07-SEP-2012
COMMENT     Created by Clontech Laboratories Inc. http://www.clontech.com
COMMENT     635087, 635086


FEATURES             Location/Qualifiers

     misc_feature    1..635
                     /label="5' LTR"
     misc_feature    685..822
                     /label="Packaging signal"
     misc_feature    1303..1536
                     /label="RRE"
     misc_feature    2028..2151
                     /label="cPPT/CTS"
     misc_feature    2210..2555
                     /label="pTRE3GV"
     misc_feature    2556..2575
                     /label="5' MCS"
     CDS             2576..2908
                     /label="DmrB"
     misc_feature    2909..2926
                     /label="3' MCS"
     misc_feature    2938..3441
                     /label="pPGK"
     misc_feature    3462..4061
                     /label="Puro(R)"
     misc_feature    4079..4670
                     /label="WPRE"
     misc_feature    4874..5510
                     /note="3' LTR"
     misc_feature    complement(5980..6650)
                     /label="pUC ori"
     misc_feature    complement(6795..7655)
                     /label="Amp(R)"
     misc_feature    complement(7656..7760)
                     /label="pAmp(R)"
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga actacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgatgaggcc ctttcgtctt cactcgagtt tactccctat
     2221 cagtgataga gaacgtatga agagtttact ccctatcagt gatagagaac gtatgcagac
     2281 tttactccct atcagtgata gagaacgtat aaggagttta ctccctatca gtgatagaga
     2341 acgtatgacc agtttactcc ctatcagtga tagagaacgt atctacagtt tactccctat
     2401 cagtgataga gaacgtatat ccagtttact ccctatcagt gatagagaac gtatgtcgag
     2461 gtaggcgtgt acggtgggcg cctataaaag cagagctcgt ttagtgaacc gtcagatcgc
     2521 ctggagcaat tccacaacac ttttgtctta tacttggatc cgggcccgcg gccgcatggc
     2581 ttctagagga gtgcaggtgg agactatctc cccaggagac gggcgcacct tccccaagcg
     2641 cggccagacc tgcgtggtgc actacaccgg gatgcttgaa gatggaaaga aagttgattc
     2701 ctcccgggac agaaacaagc cctttaagtt tatgctaggc aagcaggagg tgatccgagg
     2761 ctgggaagaa ggggttgccc agatgagtgt gggtcagaga gccaaactga ctatatctcc
     2821 agattatgcc tatggtgcca ctgggcaccc aggcatcatc ccaccacatg ccactctcgt
     2881 cttcgatgtg gagcttctaa aactggaaac gcgtcatatg gaattctgac tgactgatac
     2941 cgggtagggg aggcgctttt cccaaggcag tctggagcat gcgctttagc agccccgctg
     3001 ggcacttggc gctacacaag tggcctctgg cctcgcacac attccacatc caccggtagg
     3061 cgccaaccgg ctccgttctt tggtggcccc ttcgcgccac cttctactcc tcccctagtc
     3121 aggaagttcc cccccgcccc gcagctcgcg tcgtgcagga cgtgacaaat ggaagtagca
     3181 cgtctcacta gtctcgtgca gatggacagc accgctgagc aatggaagcg ggtaggcctt
     3241 tggggcagcg gccaatagca gctttgctcc ttcgctttct gggctcagag gctgggaagg
     3301 ggtgggtccg ggggcgggct caggggcggg ctcaggggcg gggcgggcgc ccgaaggtcc
     3361 tccggaggcc cggcattctg cacgcttcaa aagcgcacgt ctgccgcgct gttctcctct
     3421 tcctcatctc cgggcctttc gacctgcagc ccaagcttac catgaccgag tacaagccca
     3481 cggtgcgcct cgccacccgc gacgacgtcc ccagggccgt acgcaccctc gccgccgcgt
     3541 tcgccgacta ccccgccacg cgccacaccg tcgatccgga ccgccacatc gagcgggtca
     3601 ccgagctgca agaactcttc ctcacgcgcg tcgggctcga catcggcaag gtgtgggtcg
     3661 cggacgacgg cgccgcggtg gcggtctgga ccacgccgga gagcgtcgaa gcgggggcgg
     3721 tgttcgccga gatcggcccg cgcatggccg agttgagcgg ttcccggctg gccgcgcagc
     3781 aacagatgga aggcctcctg gcgccgcacc ggcccaagga gcccgcgtgg ttcctggcca
     3841 ccgtcggcgt ctcgcccgac caccagggca agggtctggg cagcgccgtc gtgctccccg
     3901 gagtggaggc ggccgagcgc gccggggtgc ccgccttcct ggagacctcc gcgccccgca
     3961 acctcccctt ctacgagcgg ctcggcttca ccgtcaccgc cgacgtcgag gtgcccgaag
     4021 gaccgcgcac ctggtgcatg acccgcaagc ccggtgcctg acggggcgcg tctggaacaa
     4081 tcaacctctg gattacaaaa tttgtgaaag attgactggt attcttaact atgttgctcc
     4141 ttttacgcta tgtggatacg ctgctttaat gcctttgtat catgctattg cttcccgtat
     4201 ggctttcatt ttctcctcct tgtataaatc ctggttgctg tctctttatg aggagttgtg
     4261 gcccgttgtc aggcaacgtg gcgtggtgtg cactgtgttt gctgacgcaa cccccactgg
     4321 ttggggcatt gccaccacct gtcagctcct ttccgggact ttcgctttcc ccctccctat
     4381 tgccacggcg gaactcatcg ccgcctgcct tgcccgctgc tggacagggg ctcggctgtt
     4441 gggcactgac aattccgtgg tgttgtcggg gaagctgacg tcctttccat ggctgctcgc
     4501 ctgtgttgcc acctggattc tgcgcgggac gtccttctgc tacgtccctt cggccctcaa
     4561 tccagcggac cttccttccc gcggcctgct gccggctctg cggcctcttc cgcgtcttcg
     4621 ccttcgccct cagacgagtc ggatctccct ttgggccgcc tccccgcctg gaattaattc
     4681 tgcagtcgag acctagaaaa acatggagca atcacaagta gcaatacagc agctaccaat
     4741 gctgattgtg cctggctaga agcacaagag gaggaggagg tgggtttttc cagtcacacc
     4801 tcaggtacct ttaagaccaa tgacttacaa ggcagctgta gatcttagcc actttttaaa
     4861 agaaaagagg ggactggaag ggctaattca ctcccaacga agacaagata tccttgatct
     4921 gtggatctac cacacacaag gctacttccc tgattagcag aactacacac cagggccagg
     4981 ggtcagatat ccactgacct ttggatggtg ctacaagcta gtaccagttg agccagataa
     5041 ggtagaagag gccaataaag gagagaacac cagcttgtta caccctgtga gcctgcatgg
     5101 gatggatgac ccggagagag aagtgttaga gtggaggttt gacagccgcc tagcatttca
     5161 tcacgtggcc cgagagctgc atccggagta cttcaagaac tgctgatatc gagcttgcta
     5221 caagggactt tccgctgggg actttccagg gaggcgtggc ctgggcggga ctggggagtg
     5281 gcgagccctc agatcctgca tataagcagc tgctttttgc ctgtactggg tctctctggt
     5341 tagaccagat ctgagcctgg gagctctctg gctaactagg gaacccactg cttaagcctc
     5401 aataaagctt gccttgagtg cttcaagtag tgtgtgcccg tctgttgtgt gactctggta
     5461 actagagatc cctcagaccc ttttagtcag tgtggaaaat ctctagcagt agtagttcat
     5521 gtcatcttat tattcagtat ttataacttg caaagaaatg aatatcagag agtgagaggc
     5581 cttgacattg ctagcgtttt accgtcgacc tctagctaga gcttggcgta atcatggtca
     5641 tagctgtttc ctgtgtgaaa ttgttatccg ctcacaattc cacacaacat acgagccgga
     5701 agcataaagt gtaaagcctg gggtgcctaa tgagtgagct aactcacatt aattgcgttg
     5761 cgctcactgc ccgctttcca gtcgggaaac ctgtcgtgcc agctgcatta atgaatcggc
     5821 caacgcgcgg ggagaggcgg tttgcgtatt gggcgctctt ccgcttcctc gctcactgac
     5881 tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag ctcactcaaa ggcggtaata
     5941 cggttatcca cagaatcagg ggataacgca ggaaagaaca tgtgagcaaa aggccagcaa
     6001 aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt tccataggct ccgcccccct
     6061 gacgagcatc acaaaaatcg acgctcaagt cagaggtggc gaaacccgac aggactataa
     6121 agataccagg cgtttccccc tggaagctcc ctcgtgcgct ctcctgttcc gaccctgccg
     6181 cttaccggat acctgtccgc ctttctccct tcgggaagcg tggcgctttc tcatagctca
     6241 cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca agctgggctg tgtgcacgaa
     6301 ccccccgttc agcccgaccg ctgcgcctta tccggtaact atcgtcttga gtccaacccg
     6361 gtaagacacg acttatcgcc actggcagca gccactggta acaggattag cagagcgagg
     6421 tatgtaggcg gtgctacaga gttcttgaag tggtggccta actacggcta cactagaaga
     6481 acagtatttg gtatctgcgc tctgctgaag ccagttacct tcggaaaaag agttggtagc
     6541 tcttgatccg gcaaacaaac caccgctggt agcggttttt ttgtttgcaa gcagcagatt
     6601 acgcgcagaa aaaaaggatc tcaagaagat cctttgatct tttctacggg gtctgacgct
     6661 cagtggaacg aaaactcacg ttaagggatt ttggtcatga gattatcaaa aaggatcttc
     6721 acctagatcc ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa
     6781 acttggtctg acagttacca atgcttaatc agtgaggcac ctatctcagc gatctgtcta
     6841 tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga taactacgat acgggagggc
     6901 ttaccatctg gccccagtgc tgcaatgata ccgcgagacc cacgctcacc ggctccagat
     6961 ttatcagcaa taaaccagcc agccggaagg gccgagcgca gaagtggtcc tgcaacttta
     7021 tccgcctcca tccagtctat taattgttgc cgggaagcta gagtaagtag ttcgccagtt
     7081 aatagtttgc gcaacgttgt tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt
     7141 ggtatggctt cattcagctc cggttcccaa cgatcaaggc gagttacatg atcccccatg
     7201 ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg ttgtcagaag taagttggcc
     7261 gcagtgttat cactcatggt tatggcagca ctgcataatt ctcttactgt catgccatcc
     7321 gtaagatgct tttctgtgac tggtgagtac tcaaccaagt cattctgaga atagtgtatg
     7381 cggcgaccga gttgctcttg cccggcgtca atacgggata ataccgcgcc acatagcaga
     7441 actttaaaag tgctcatcat tggaaaacgt tcttcggggc gaaaactctc aaggatctta
     7501 ccgctgttga gatccagttc gatgtaaccc actcgtgcac ccaactgatc ttcagcatct
     7561 tttactttca ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag
     7621 ggaataaggg cgacacggaa atgttgaata ctcatactct tcctttttca atattattga
     7681 agcatttatc agggttattg tctcatgagc ggatacatat ttgaatgtat ttagaaaaat
     7741 aaacaaatag gggttccgcg cacatttccc cgaaaagtgc cacctgacgt cgacggatcg
     7801 ggagatcaac ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa
     7861 tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa
     7921 tgtatcttat catgtctgga tcaactggat aactcaagct aaccaaaatc atcccaaact
     7981 tcccacccca taccctatta ccactgccaa ttacctagtg gtttcattta ctctaaacct
     8041 gtgattcctc tgaattattt tcattttaaa gaaattgtat ttgttaaata tgtactacaa
     8101 acttagtagt ttttaaagaa attgtatttg ttaaatatgt actacaaact tagtagt
//


载体质粒图谱pdf版和相关资料下载

载体应用举例
