pLVX-Het-1

价格:3500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-Het-1
质粒类型: 慢病毒载体;双顺反子载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV
载体大小: 8437 bp
5' 测序引物及序列: CMV Forward: CGCAAATGGGCGGTAGGCGTG
3' 测序引物及序列: --
载体标签: DmrC (C、N-端均可)
载体抗性: 氨苄青霉素
筛选标记: 嘌呤霉素(Puromycin)
克隆菌株: Stbl3
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)
备注: 慢病毒载体pLVX-Het-1组成型表达DmrC融合蛋白;
外源基因与嘌呤霉素抗性基因以双顺反子的形式表达。
产品目录号: 635074
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

pLVX-Het-1载体图谱

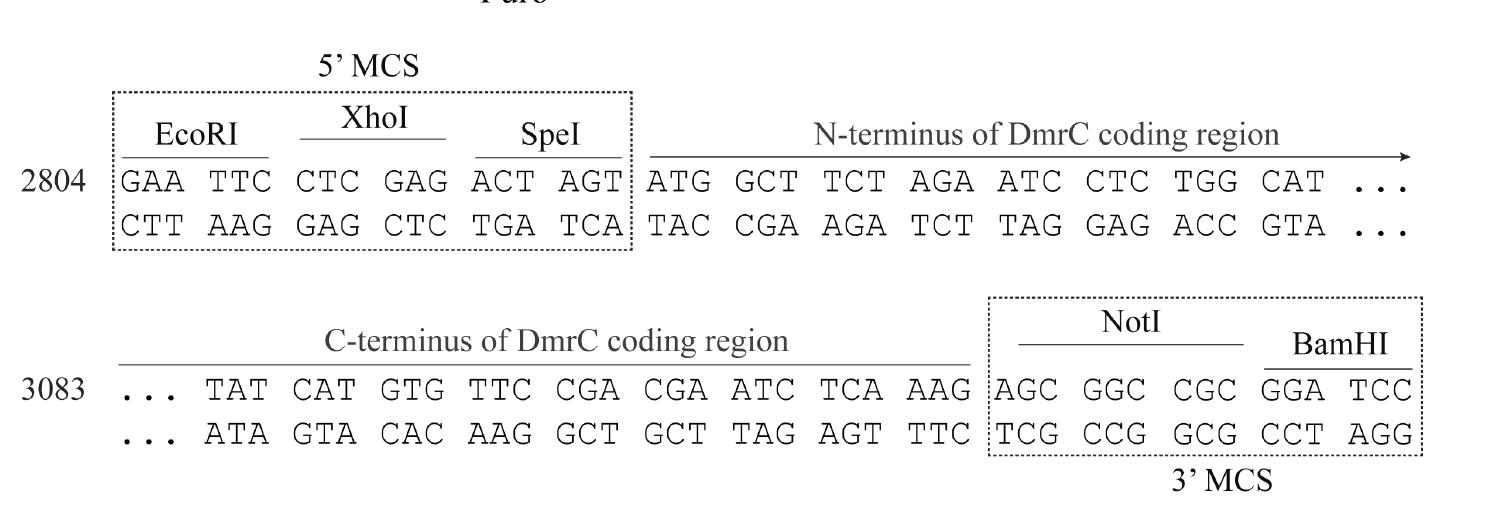

pLVX-Het-1 多克隆位点

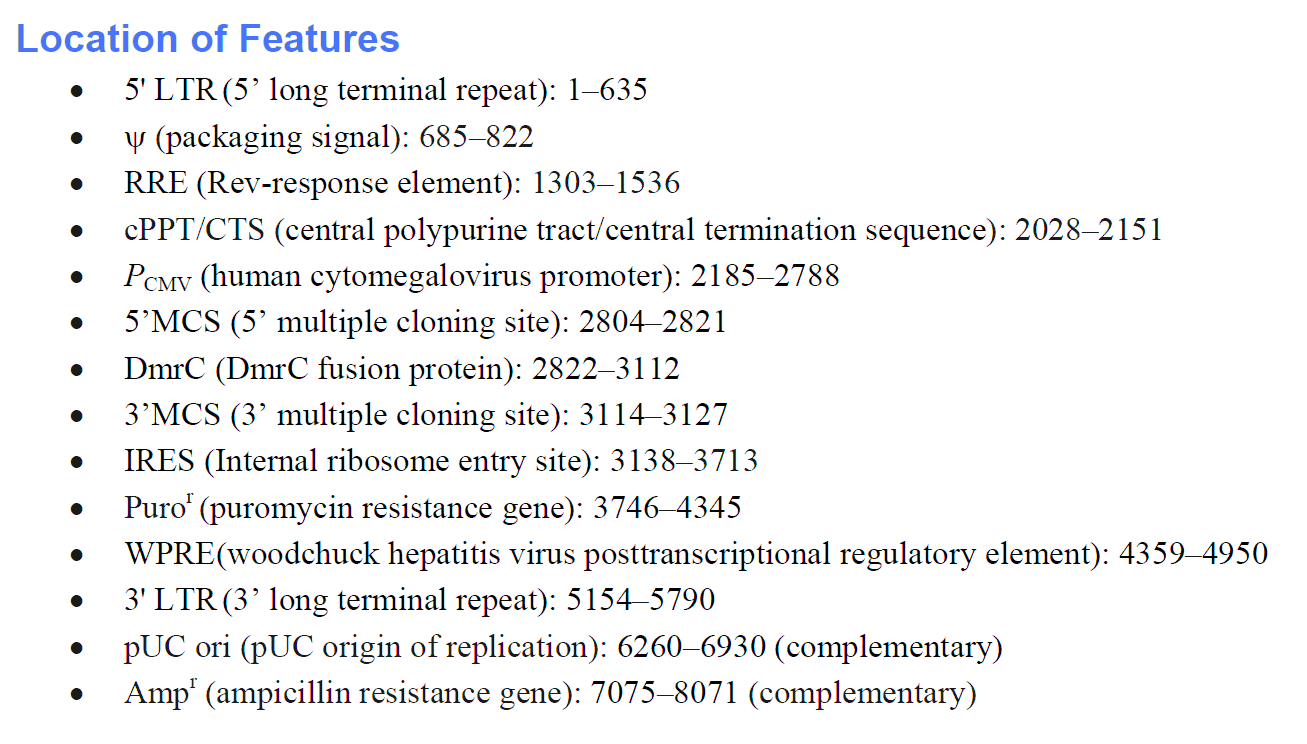

pLVX-Het-1 载体特征

载体简介

载体序列

LOCUS       pLVX-Het1    8437 bp    DNA   circular             8-NOV-2011
COMMENT     Created by Clontech Laboratories Inc. http://www.clontech.com
COMMENT     Cat. No.635074, 635075
FEATURES             Location/Qualifiers
     LTR             1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=packaging\signal
     misc_feature    2028..2151
                     /label=CTS/cppt\(DNA\flap)
     promoter        2185..2788
                     /label=pCMV
     misc_feature    4359..4950
                     /label=WPRE
     rep_origin      complement(6260..6930)
                     /label=pUC\origin
     CDS             complement(7075..8071)
                     /label=Amp(R)
     misc_binding    1303..1536
                     /label=RRE
     LTR             5154..5790
                     /label=3'\LTR
     misc_feature    3138..3713
                     /label=IRES
     CDS             3746..4345
                     /label=Puro(R)
     misc_feature    2822..3121
                     /label=DmrC
BASE COUNT     2162 a      2086 c      2179 g      2010 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga actacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgataagctt gggagttccg cgttacataa cttacggtaa
     2221 atggcccgcc tggctgaccg cccaacgacc cccgcccatt gacgtcaata atgacgtatg
     2281 ttcccatagt aacgccaata gggactttcc attgacgtca atgggtggag tatttacggt
     2341 aaactgccca cttggcagta catcaagtgt atcatatgcc aagtacgccc cctattgacg
     2401 tcaatgacgg taaatggccc gcctggcatt atgcccagta catgacctta cgggactttc
     2461 ctacttggca gtacatctac gtattagtca tcgctattac catggtgatg cggttttggc
     2521 agtacaccaa tgggcgtgga tagcggtttg actcacgggg atttccaagt ctccacccca
     2581 ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg ggactttcca aaatgtcgta
     2641 acaactccgc cccattgacg caaatgggcg gtaggcgtgt acggtgggag gtctatataa
     2701 gcagagctcg tttagtgaac cgtcagatcg cctggagacg ccatccacgc tgttttgacc
     2761 tccatagaag acaccgactc tagctagagg atctatttcc ggtgaattcc tcgagactag
     2821 tatggcttct agaatcctct ggcatgagat gtggcatgaa ggcctggaag aggcatctcg
     2881 tttgtacttt ggggaaagga acgtgaaagg catgtttgag gtgctggagc ccttgcatgc
     2941 tatgatggaa cggggccccc agactctgaa ggaaacatcc tttaatcagg cctatggtcg
     3001 agatttaatg gaggcccaag agtggtgcag gaagtacatg aaatcaggga atgtcaagga
     3061 cctcctccaa gcctgggacc tctattatca tgtgttccga cgaatctcaa agagcggccg
     3121 cggatcctac gtatgaccgc ccctctccct cccccccccc taacgttact ggccgaagcc
     3181 gcttggaata aggccggtgt gcgtttgtct atatgttatt ttccaccata ttgccgtctt
     3241 ttggcaatgt gagggcccgg aaacctggcc ctgtcttctt gacgagcatt cctaggggtc
     3301 tttcccctct cgccaaagga atgcaaggtc tgttgaatgt cgtgaaggaa gcagttcctc
     3361 tggaagcttc ttgaagacaa acaacgtctg tagcgaccct ttgcaggcag cggaaccccc
     3421 cacctggcga caggtgcctc tgcggccaaa agccacgtgt ataagataca cctgcaaagg
     3481 cggcacaacc ccagtgccac gttgtgagtt ggatagttgt ggaaagagtc aaatggctct
     3541 cctcaagcgt attcaacaag gggctgaagg atgcccagaa ggtaccccat tgtatgggat
     3601 ctgatctggg gcctcggtgc acatgcttta catgtgttta gtcgaggtta aaaaaacgtc
     3661 taggcccccc gaaccacggg gacgtggttt tcctttgaaa aacacgatga taagcttgcc
     3721 acaacccaca aggagacgac cttccatgac cgagtacaag cccacggtgc gcctcgccac
     3781 ccgcgacgac gtcccccggg ccgtacgcac cctcgccgcc gcgttcgccg actaccccgc
     3841 cacgcgccac accgtcgacc cggaccgcca catcgagcgg gtcaccgagc tgcaagaact
     3901 cttcctcacg cgcgtcgggc tcgacatcgg caaggtgtgg gtcgcggacg acggcgccgc
     3961 ggtggcggtc tggaccacgc cggagagcgt cgaagcgggg gcggtgttcg ccgagatcgg
     4021 cccgcgcatg gccgagttga gcggttcccg gctggccgcg cagcaacaga tggaaggcct
     4081 cctggcgccg caccggccca aggagcccgc gtggttcctg gccaccgtcg gcgtctcgcc
     4141 cgaccaccag ggcaagggtc tgggcagcgc cgtcgtgctc cccggagtgg aggcggccga
     4201 gcgcgccggg gtgcccgcct tcctggagac ctccgcgccc cgcaacctcc ccttctacga
     4261 gcggctcggc ttcaccgtca ccgccgacgt cgaggtgccc gaaggaccgc gcacctggtg
     4321 catgacccgc aagcccggtg cctagacgcg tctggaacaa tcaacctctg gattacaaaa
     4381 tttgtgaaag attgactggt attcttaact atgttgctcc ttttacgcta tgtggatacg
     4441 ctgctttaat gcctttgtat catgctattg cttcccgtat ggctttcatt ttctcctcct
     4501 tgtataaatc ctggttgctg tctctttatg aggagttgtg gcccgttgtc aggcaacgtg
     4561 gcgtggtgtg cactgtgttt gctgacgcaa cccccactgg ttggggcatt gccaccacct
     4621 gtcagctcct ttccgggact ttcgctttcc ccctccctat tgccacggcg gaactcatcg
     4681 ccgcctgcct tgcccgctgc tggacagggg ctcggctgtt gggcactgac aattccgtgg
     4741 tgttgtcggg gaagctgacg tcctttccat ggctgctcgc ctgtgttgcc acctggattc
     4801 tgcgcgggac gtccttctgc tacgtccctt cggccctcaa tccagcggac cttccttccc
     4861 gcggcctgct gccggctctg cggcctcttc cgcgtcttcg ccttcgccct cagacgagtc
     4921 ggatctccct ttgggccgcc tccccgcctg gaattaattc tgcagtcgag acctagaaaa
     4981 acatggagca atcacaagta gcaatacagc agctaccaat gctgattgtg cctggctaga
     5041 agcacaagag gaggaggagg tgggtttttc cagtcacacc tcaggtacct ttaagaccaa
     5101 tgacttacaa ggcagctgta gatcttagcc actttttaaa agaaaagagg ggactggaag
     5161 ggctaattca ctcccaacga agacaagata tccttgatct gtggatctac cacacacaag
     5221 gctacttccc tgattagcag aactacacac cagggccagg ggtcagatat ccactgacct
     5281 ttggatggtg ctacaagcta gtaccagttg agccagataa ggtagaagag gccaataaag
     5341 gagagaacac cagcttgtta caccctgtga gcctgcatgg gatggatgac ccggagagag
     5401 aagtgttaga gtggaggttt gacagccgcc tagcatttca tcacgtggcc cgagagctgc
     5461 atccggagta cttcaagaac tgctgatatc gagcttgcta caagggactt tccgctgggg
     5521 actttccagg gaggcgtggc ctgggcggga ctggggagtg gcgagccctc agatcctgca
     5581 tataagcagc tgctttttgc ctgtactggg tctctctggt tagaccagat ctgagcctgg
     5641 gagctctctg gctaactagg gaacccactg cttaagcctc aataaagctt gccttgagtg
     5701 cttcaagtag tgtgtgcccg tctgttgtgt gactctggta actagagatc cctcagaccc
     5761 ttttagtcag tgtggaaaat ctctagcagt agtagttcat gtcatcttat tattcagtat
     5821 ttataacttg caaagaaatg aatatcagag agtgagaggc cttgacattg ctagcgtttt
     5881 accgtcgacc tctagctaga gcttggcgta atcatggtca tagctgtttc ctgtgtgaaa
     5941 ttgttatccg ctcacaattc cacacaacat acgagccgga agcataaagt gtaaagcctg
     6001 gggtgcctaa tgagtgagct aactcacatt aattgcgttg cgctcactgc ccgctttcca
     6061 gtcgggaaac ctgtcgtgcc agctgcatta atgaatcggc caacgcgcgg ggagaggcgg
     6121 tttgcgtatt gggcgctctt ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg
     6181 gctgcggcga gcggtatcag ctcactcaaa ggcggtaata cggttatcca cagaatcagg
     6241 ggataacgca ggaaagaaca tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa
     6301 ggccgcgttg ctggcgtttt tccataggct ccgcccccct gacgagcatc acaaaaatcg
     6361 acgctcaagt cagaggtggc gaaacccgac aggactataa agataccagg cgtttccccc
     6421 tggaagctcc ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat acctgtccgc
     6481 ctttctccct tcgggaagcg tggcgctttc tcatagctca cgctgtaggt atctcagttc
     6541 ggtgtaggtc gttcgctcca agctgggctg tgtgcacgaa ccccccgttc agcccgaccg
     6601 ctgcgcctta tccggtaact atcgtcttga gtccaacccg gtaagacacg acttatcgcc
     6661 actggcagca gccactggta acaggattag cagagcgagg tatgtaggcg gtgctacaga
     6721 gttcttgaag tggtggccta actacggcta cactagaaga acagtatttg gtatctgcgc
     6781 tctgctgaag ccagttacct tcggaaaaag agttggtagc tcttgatccg gcaaacaaac
     6841 caccgctggt agcggttttt ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc
     6901 tcaagaagat cctttgatct tttctacggg gtctgacgct cagtggaacg aaaactcacg
     6961 ttaagggatt ttggtcatga gattatcaaa aaggatcttc acctagatcc ttttaaatta
     7021 aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa acttggtctg acagttacca
     7081 atgcttaatc agtgaggcac ctatctcagc gatctgtcta tttcgttcat ccatagttgc
     7141 ctgactcccc gtcgtgtaga taactacgat acgggagggc ttaccatctg gccccagtgc
     7201 tgcaatgata ccgcgagacc cacgctcacc ggctccagat ttatcagcaa taaaccagcc
     7261 agccggaagg gccgagcgca gaagtggtcc tgcaacttta tccgcctcca tccagtctat
     7321 taattgttgc cgggaagcta gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt
     7381 tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc
     7441 cggttcccaa cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa aagcggttag
     7501 ctccttcggt cctccgatcg ttgtcagaag taagttggcc gcagtgttat cactcatggt
     7561 tatggcagca ctgcataatt ctcttactgt catgccatcc gtaagatgct tttctgtgac
     7621 tggtgagtac tcaaccaagt cattctgaga atagtgtatg cggcgaccga gttgctcttg
     7681 cccggcgtca atacgggata ataccgcgcc acatagcaga actttaaaag tgctcatcat
     7741 tggaaaacgt tcttcggggc gaaaactctc aaggatctta ccgctgttga gatccagttc
     7801 gatgtaaccc actcgtgcac ccaactgatc ttcagcatct tttactttca ccagcgtttc
     7861 tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa
     7921 atgttgaata ctcatactct tcctttttca atattattga agcatttatc agggttattg
     7981 tctcatgagc ggatacatat ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg
     8041 cacatttccc cgaaaagtgc cacctgacgt cgacggatcg ggagatcaac ttgtttattg
     8101 cagcttataa tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt
     8161 tttcactgca ttctagttgt ggtttgtcca aactcatcaa tgtatcttat catgtctgga
     8221 tcaactggat aactcaagct aaccaaaatc atcccaaact tcccacccca taccctatta
     8281 ccactgccaa ttacctagtg gtttcattta ctctaaacct gtgattcctc tgaattattt
     8341 tcattttaaa gaaattgtat ttgttaaata tgtactacaa acttagtagt ttttaaagaa
     8401 attgtatttg ttaaatatgt actacaaact tagtagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
