pmRaspberry

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pmRaspberry
质粒类型: 荧光蛋白基因质粒
高拷贝/低拷贝: 高拷贝
克隆方法: --
启动子: --
载体大小: 3314 bp
5' 测序引物及序列: --
3' 测序引物及序列: M13 rev
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: --
克隆菌株: --
宿主细胞(系): --
备注: --
产品目录号: --

载体质粒图谱和多克隆位点信息

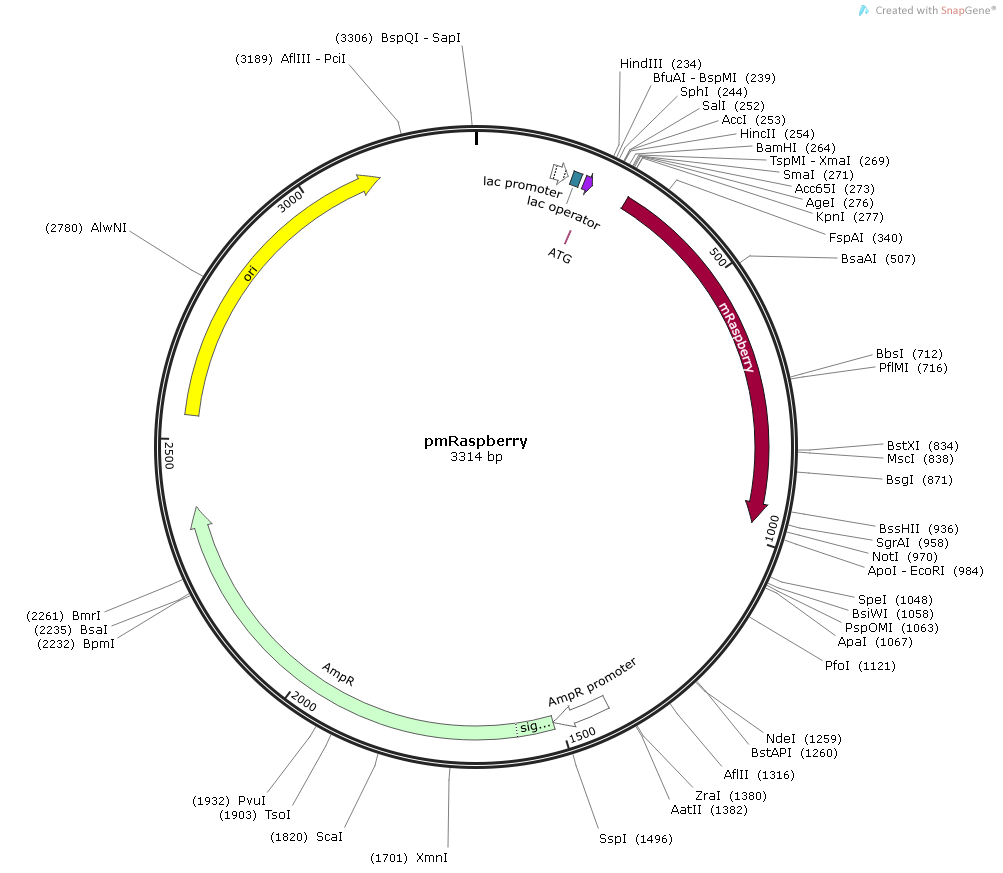

pmRaspberry载体图谱

载体简介

载体序列

LOCUS       pmRaspberry               3314 bp ds-DNA    circular SYN 04-1-2013
DEFINITION  Vector for expressing mRaspberry in bacteria.
ACCESSION   .
VERSION     .
KEYWORDS    pmRaspberry
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3314)
  AUTHORS   Clontech
  TITLE     Direct Submission
  JOURNAL   Exported 2017/2/28 from SnapGene 2.3.2
            http://www.snapgene.com
COMMENT     Translation from the lacZ start codon produces a fusion protein in
            E. coli.
FEATURES             Location/Qualifiers
     source          1..3314
                     /organism="synthetic DNA construct"
                     /lab_host="Escherichia coli"
                     /mol_type="other DNA"
     promoter        143..173
                     /note="lac promoter"
                     /note="promoter for the E. coli lac operon"
     protein_bind    181..197
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     205..221
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     CDS             217..219
                     /codon_start=1
                     /product="lacZ start codon"
                     /note="ATG"
                     /translation="M"
     CDS             289..969
                     /codon_start=1
                     /product="far-red monomeric derivative of DsRed fluorescent
                     protein"
                     /note="mRaspberry"
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTA
                     KLKVTKGGPLPFAWDILSPQCMYGSKGYVKHPADIPDYLKLSFPEGFKWERVMNFEDGG
                     VVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALKGEMK
                     MRLKLKDGGHYDAEVKTTYMAKKPVQLPGAYKTDIKLDITSHNEDYTIVEQYERAEGRH
                     STGA"
     promoter        1409..1513
                     /gene="bla"
                     /note="AmpR promoter"
     CDS             1514..2374
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      2545..3133
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 agcgcccaat acgcaaaccg cctctccccg cgcgttggcc gattcattaa tgcagctggc
       61 acgacaggtt tcccgactgg aaagcgggca gtgagcgcaa cgcaattaat gtgagttagc
      121 tcactcatta ggcaccccag gctttacact ttatgcttcc ggctcgtatg ttgtgtggaa
      181 ttgtgagcgg ataacaattt cacacaggaa acagctatga ccatgattac gccaagcttg
      241 catgcctgca ggtcgactct agaggatccc cgggtaccgg tcgccaccat ggtgagcaag
      301 ggcgaggagg tcatcaagga gttcatgcgc ttcaaggtgc gcatggaggg ctccgtgaac
      361 ggccacgagt tcgagatcga gggcgagggc gagggccgcc cctacgaggg cacccagacc
      421 gccaagctga aggtgaccaa gggtggcccc ctgcccttcg cctgggacat cctgtcccct
      481 cagtgcatgt acggctccaa gggctacgtg aagcaccccg ccgacatccc cgactacttg
      541 aagctgtcct tccccgaggg cttcaagtgg gagcgcgtga tgaacttcga ggacggcggc
      601 gtggtgaccg tgacccagga ctcctccctg caggacggcg agttcatcta caaggtgaag
      661 ctgcgcggca ccaacttccc ctccgacggc cccgtaatgc agaagaagac catgggctgg
      721 gaggcctcct ccgagcggat gtaccccgag gacggcgccc tgaagggcga gatgaagatg
      781 aggctgaagc tgaaggacgg cggccactac gacgccgagg tcaagaccac ctacatggcc
      841 aagaagcccg tgcagctgcc cggcgcctac aagaccgaca tcaagctgga catcacctcc
      901 cacaacgagg actacaccat cgtggaacag tacgagcgcg ccgagggccg ccactccacc
      961 ggcgcctagc ggccgcgact ctagaattcc aactgagcgc cggtcgctac cattaccaac
     1021 ttgtctggtg tcaaaaataa taggcctact agtcggccgt acgggccctt tcgtctcgcg
     1081 cgtttcggtg atgacggtga aaacctctga cacatgcagc tcccggagac ggtcacagct
     1141 tgtctgtaag cggatgccgg gagcagacaa gcccgtcagg gcgcgtcagc gggtgttggc
     1201 gggtgtcggg gctggcttaa ctatgcggca tcagagcaga ttgtactgag agtgcaccat
     1261 atgcggtgtg aaataccgca cagatgcgta aggagaaaat accgcatcag gcggccttaa
     1321 gggcctcgtg atacgcctat ttttataggt taatgtcatg ataataatgg tttcttagac
     1381 gtcaggtggc acttttcggg gaaatgtgcg cggaacccct atttgtttat ttttctaaat
     1441 acattcaaat atgtatccgc tcatgagaca ataaccctga taaatgcttc aataatattg
     1501 aaaaaggaag agtatgagta ttcaacattt ccgtgtcgcc cttattccct tttttgcggc
     1561 attttgcctt cctgtttttg ctcacccaga aacgctggtg aaagtaaaag atgctgaaga
     1621 tcagttgggt gcacgagtgg gttacatcga actggatctc aacagcggta agatccttga
     1681 gagttttcgc cccgaagaac gttttccaat gatgagcact tttaaagttc tgctatgtgg
     1741 cgcggtatta tcccgtattg acgccgggca agagcaactc ggtcgccgca tacactattc
     1801 tcagaatgac ttggttgagt actcaccagt cacagaaaag catcttacgg atggcatgac
     1861 agtaagagaa ttatgcagtg ctgccataac catgagtgat aacactgcgg ccaacttact
     1921 tctgacaacg atcggaggac cgaaggagct aaccgctttt ttgcacaaca tgggggatca
     1981 tgtaactcgc cttgatcgtt gggaaccgga gctgaatgaa gccataccaa acgacgagcg
     2041 tgacaccacg atgcctgtag caatggcaac aacgttgcgc aaactattaa ctggcgaact
     2101 acttactcta gcttcccggc aacaattaat agactggatg gaggcggata aagttgcagg
     2161 accacttctg cgctcggccc ttccggctgg ctggtttatt gctgataaat ctggagccgg
     2221 tgagcgtggg tctcgcggta tcattgcagc actggggcca gatggtaagc cctcccgtat
     2281 cgtagttatc tacacgacgg ggagtcaggc aactatggat gaacgaaata gacagatcgc
     2341 tgagataggt gcctcactga ttaagcattg gtaactgtca gaccaagttt actcatatat
     2401 actttagatt gatttaaaac ttcattttta atttaaaagg atctaggtga agatcctttt
     2461 tgataatctc atgaccaaaa tcccttaacg tgagttttcg ttccactgag cgtcagaccc
     2521 cgtagaaaag atcaaaggat cttcttgaga tccttttttt ctgcgcgtaa tctgctgctt
     2581 gcaaacaaaa aaaccaccgc taccagcggt ggtttgtttg ccggatcaag agctaccaac
     2641 tctttttccg aaggtaactg gcttcagcag agcgcagata ccaaatactg ttcttctagt
     2701 gtagccgtag ttaggccacc acttcaagaa ctctgtagca ccgcctacat acctcgctct
     2761 gctaatcctg ttaccagtgg ctgctgccag tggcgataag tcgtgtctta ccgggttgga
     2821 ctcaagacga tagttaccgg ataaggcgca gcggtcgggc tgaacggggg gttcgtgcac
     2881 acagcccagc ttggagcgaa cgacctacac cgaactgaga tacctacagc gtgagctatg
     2941 agaaagcgcc acgcttcccg aagggagaaa ggcggacagg tatccggtaa gcggcagggt
     3001 cggaacagga gagcgcacga gggagcttcc agggggaaac gcctggtatc tttatagtcc
     3061 tgtcgggttt cgccacctct gacttgagcg tcgatttttg tgatgctcgt caggggggcg
     3121 gagcctatgg aaaaacgcca gcaacgcggc ctttttacgg ttcctggcct tttgctggcc
     3181 ttttgctcac atgttctttc ctgcgttatc ccctgattct gtggataacc gtattaccgc
     3241 ctttgagtga gctgataccg ctcgccgcag ccgaacgacc gagcgcagcg agtcagtgag
     3301 cgaggaagcg gaag
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
