载体基本信息

出品公司: Clontech
载体名称: pQCXIH
质粒类型: 哺乳动物细胞双顺反子逆病毒基因表达载体
高拷贝/低拷贝: 低拷贝
启动子: CMV
克隆方法: 多克隆位点,限制性内切酶
载体大小: 7780bp
5' 测序引物及序列: pQC-F: ACGCCATCCACGCTGTTTTGACCT
3' 测序引物及序列: pQC-R: AAGCGGCTTCGGCCAGTAACGTTA
载体标签: --
载体抗性: 氨苄
筛选标记: 潮霉素(Hygromycin)
备注: 自失活双顺反子逆病毒表达载体,含有IRES-Hygromycin元件,能够同时表达目的蛋白和潮霉素抗性筛选标记,可以用来构建稳表达细胞系。
产品目录号: 631516
稳定性: 稳表达
组成型: 组成型
病毒/非病毒: 逆病毒

载体质粒图谱和多克隆位点信息

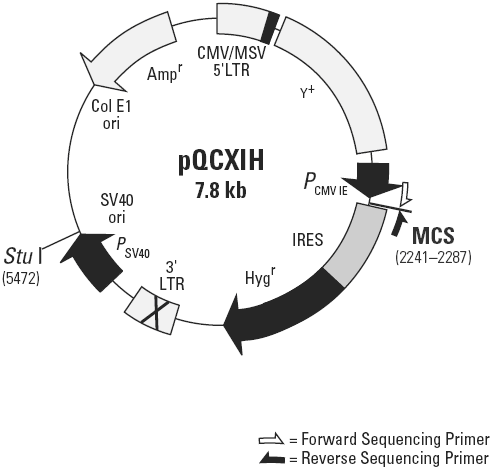

pQCXIH载体图谱



pQCXIH多克隆位点

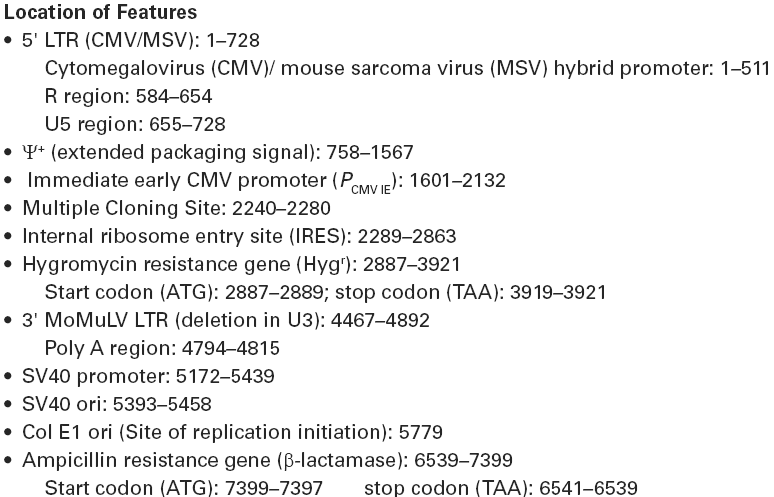

RNAi-Ready pSIREN-RetroQ载体特征

载体简介

载体序列

LOCUS       pQCXIH   7780 bp    DNA   circular            13-NOV-2009
COMMENT     Created by Clontech Laboratories
COMMENT     Cat. No. 631516
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     LTR             1..728
                     /label=5'\LTR\(CMV/MSV)
     misc_signal     758..1567
                     /label=Extended\packaging\signal
     LTR             4486..4911
                     /label=3'\MMLV\LTR\(del)
     rep_origin      5798..5798
                     /label=pUC\origin
     misc_marker     complement(6558..7418)
                     /label=Amp(R)
     rep_origin      5412..5477
                     /label=SV40\origin
     misc_marker     2905..3939
                     /label=Hyg(R)
     promoter        1601..2132
                     /label=CMV\IE\Promoter
     misc_structure  2292..2881
                     /label=IRES
     promoter        5191..5458
                     /label=SV40\Promoter
BASE COUNT     1802 a      2104 c      2010 g      1864 t
ORIGIN
        1 tccgcgttac ataacttacg gtaaatggcc cgcctggctg accgcccaac gacccccgcc
       61 cattgacgtc aataatgacg tatgttccca tagtaacgcc aatagggact ttccattgac
      121 gtcaatgggt ggagtattta cggtaaactg cccacttggc agtacatcaa gtgtatcata
      181 tgccaagtac gccccctatt gacgtcaatg acggtaaatg gcccgcctgg cattatgccc
      241 agtacatgac cttatgggac tttcctactt ggcagtacat ctacgtatta gtcatcgcta
      301 ttaccatggt gatgcggttt tggcagtaca tcaatgggcg tggatagcgg tttgactcac
      361 ggggatttcc aagtctccac cccattgacg tcaatgggag tttgttttgg caccaaaatc
      421 aacgggactt tccaaaatgt cgtaacaact ccgccccatt gacgcaaatg ggcggtaggc
      481 gtgtacggtg ggaggtctat ataagcagag ctcaataaaa gagcccacaa cccctcactc
      541 ggcgcgccag tcttccgata gactgcgtcg cccgggtacc cgtattccca ataaagcctc
      601 ttgctgtttg catccgaatc gtggtctcgc tgttccttgg gagggtctcc tctgagtgat
      661 tgactaccca cgacgggggt ctttcatttg ggggctcgtc cgggatttgg agacccctgc
      721 ccagggacca ccgacccacc accgggaggt aagctggcca gcaacttatc tgtgtctgtc
      781 cgattgtcta gtgtctatgt ttgatgttat gcgcctgcgt ctgtactagt tagctaacta
      841 gctctgtatc tggcggaccc gtggtggaac tgacgagttc tgaacacccg gccgcaaccc
      901 tgggagacgt cccagggact ttgggggccg tttttgtggc ccgacctgag gaagggagtc
      961 gatgtggaat ccgaccccgt caggatatgt ggttctggta ggagacgaga acctaaaaca
     1021 gttcccgcct ccgtctgaat ttttgctttc ggtttggaac cgaagccgcg cgtcttgtct
     1081 gctgcagcgc tgcagcatcg ttctgtgttg tctctgtctg actgtgtttc tgtatttgtc
     1141 tgaaaattag ggccagactg ttaccactcc cttaagtttg accttaggtc actggaaaga
     1201 tgtcgagcgg atcgctcaca accagtcggt agatgtcaag aagagacgtt gggttacctt
     1261 ctgctctgca gaatggccaa cctttaacgt cggatggccg cgagacggca cctttaaccg
     1321 agacctcatc acccaggtta agatcaaggt cttttcacct ggcccgcatg gacacccaga
     1381 ccaggtcccc tacatcgtga cctgggaagc cttggctttt gacccccctc cctgggtcaa
     1441 gccctttgta caccctaagc ctccgcctcc tcttcctcca tccgccccgt ctctccccct
     1501 tgaacctcct cgttcgaccc cgcctcgatc ctccctttat ccagccctca ctccttctct
     1561 aggcgccgga attgaagatc tgggggatcg atcctctaga gtccgttaca taacttacgg
     1621 taaatggccc gcctggctga ccgcccaacg acccccgccc attgacgtca ataatgacgt
     1681 atgttcccat agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac
     1741 ggtaaactgc ccacttggca gtacatcaag tgtatcatat gccaagtacg ccccctattg
     1801 acgtcaatga cggtaaatgg cccgcctggc attatgccca gtacatgacc ttatgggact
     1861 ttcctacttg gcagtacatc tacgtattag tcatcgctat taccatggtg atgcggtttt
     1921 ggcagtacat caatgggcgt ggatagcggt ttgactcacg gggatttcca agtctccacc
     1981 ccattgacgt caatgggagt ttgttttggc accaaaatca acgggacttt ccaaaatgtc
     2041 gtaacaactc cgccccattg acgcaaatgg gcggtaggcg tgtacggtgg gaggtctata
     2101 taagcagagc tcgtttagtg aaccgtcaga tcgcctggag acgccatcca cgctgttttg
     2161 acctccatag aagacaccgg gaccgatcca gcctccgcgg ccgggaacgg tgcattggaa
     2221 cggacctgca ggaattgatc cgcggccgca ccggtaggcc tcgtacgctt aattaacgga
     2281 tccggaattc cgcccccccc cccccccccc ctctccctcc ccccccccta acgttactgg
     2341 ccgaagccgc ttggaataag gccggtgtgc gtttgtctat atgttatttt ccaccatatt
     2401 gccgtctttt ggcaatgtga gggcccggaa acctggccct gtcttcttga cgagcattcc
     2461 taggggtctt tcccctctcg ccaaaggaat gcaaggtctg ttgaatgtcg tgaaggaagc
     2521 agttcctctg gaagcttctt gaagacaaac aacgtctgta gcgacccttt gcaggcagcg
     2581 gaacccccca cctggcgaca ggtgcctctg cggccaaaag ccacgtgtat aagatacacc
     2641 tgcaaaggcg gcacaacccc agtgccacgt tgtgagttgg atagttgtgg aaagagtcaa
     2701 atggctctcc tcaagcgtat tcaacaaggg gctgaaggat gcccagaagg taccccattg
     2761 tatgggatct gatctggggc ctcggtgcac atgctttaca tgtgtttagt cgaggttaaa
     2821 aaaacgtcta ggccccccga accacgggga cgtggttttc ctttgaaaaa cacgatgata
     2881 agcttgccac aacccgtacc aaagatggat agatccggaa agcctgaact caccgcgacg
     2941 tctgtcgaga agtttctgat cgaaaagttc gacagcgtct ccgacctgat gcagctctcg
     3001 gagggcgaag aatctcgtgc tttcagcttc gatgtaggag ggcgtggata tgtcctgcgg
     3061 gtaaatagct gcgccgatgg tttctacaaa gatcgttatg tttatcggca ctttgcatcg
     3121 gccgcgctcc cgattccgga agtgcttgac attggggaat tcagcgagag cctgacctat
     3181 tgcatctccc gccgtgcaca gggtgtcacg ttgcaagacc tgcctgaaac cgaactgccc
     3241 gctgttctgc agccggtcgc ggaggccatg gatgcgatcg ctgcggccga tcttagccag
     3301 acgagcgggt tcggcccatt cggaccgcaa ggaatcggtc aatacactac atggcgtgat
     3361 ttcatatgcg cgattgctga tccccatgtg tatcactggc aaactgtgat ggacgacacc
     3421 gtcagtgcgt ccgtcgcgca ggctctcgat gagctgatgc tttgggccga ggactgcccc
     3481 gaagtccggc acctcgtgca cgcggatttc ggctccaaca atgtcctgac ggacaatggc
     3541 cgcataacag cggtcattga ctggagcgag gcgatgttcg gggattccca atacgaggtc
     3601 gccaacatct tcttctggag gccgtggttg gcttgtatgg agcagcagac gcgctacttc
     3661 gagcggaggc atccggagct tgcaggatcg ccgcggctcc gggcgtatat gctccgcatt
     3721 ggtcttgacc aactctatca gagcttggtt gacggcaatt tcgatgatgc agcttgggcg
     3781 cagggtcgat gcgacgcaat cgtccgatcc ggagccggga ctgtcgggcg tacacaaatc
     3841 gcccgcagaa gcgcggccgt ctggaccgat ggctgtgtag aagtactcgc cgatagtgga
     3901 aaccgacgcc ccagcactcg tccgagggca aaggaataga gtagatgccg accgaacaag
     3961 agctgatttc gagaacgcct cagccagcaa ctcgcgcgag cctagcaagg caaatgcgag
     4021 agaacggcct tacgcttggt ggcacagttc tcgtccacag ttcgctaagc tcgctcggct
     4081 gggtcgcggg agggccggtc gcagtgattc aggcccttct ggattgtgtt ggtccccagg
     4141 gcacgattgt catgcccacg cactcgggtg atctgactga tcccgcagat tggagatcgc
     4201 cgcccgtgcc tgccgattgg gtgcagatct ctatcgaggg ctgcagcgct gcagaggccg
     4261 agtgcagaac tgctccaaag ggacctcaag gctttccgag ggacactagg ctgactccat
     4321 cgagccagtg tagagataag cttatcgatt agtccaattt gttaaagaca ggatatcagt
     4381 ggtccaggct ctagttttga ctcaacaata tcaccagctg aagcctatag agtacgagcc
     4441 atagataaaa taaaagattt tatttagtct ccagaaaaag gggggaatga aagaccccac
     4501 ctgtaggttt ggcaagctag cttaagtaac gccattttgc aaggcatgga aaaatacata
     4561 actgagaata gagaagttca gatcaaggtc aggaacagat ggaacagggt cgaccctaga
     4621 gaaccatcag atgtttccag ggtgccccaa ggacctgaaa tgaccctgtg ccttatttga
     4681 actaaccaat cagttcgctt ctcgcttctg ttcgcgcgct tctgctcccc gagctcaata
     4741 aaagagccca caacccctca ctcggggcgc cagtcctccg attgactgag tcgcccgggt
     4801 acccgtgtat ccaataaacc ctcttgcagt tgcatccgac ttgtggtctc gctgttcctt
     4861 gggagggtct cctctgagtg attgactacc cgtcagcggg ggtctttcat ttgggggctc
     4921 gtccgggatc gggagacccc tgcccaggga ccaccgaccc accaccggga ggtaagctgg
     4981 ctgcctcgcg cgtttcggtg atgacggtga aaacctctga cacatgcagc tcccggagac
     5041 ggtcacagct tgtctgtaag cggatgccgg gagcagacaa gcccgtcagg gcgcgtcagc
     5101 gggtgttggc gggtgtcggg gcgcagccat gacccagtca cgtagcgata gcggagtgta
     5161 gatccggctg tggaatgtgt gtcagttagg gtgtggaaag tccccaggct ccccagcagg
     5221 cagaagtatg caaagcatgc atctcaatta gtcagcaacc aggtgtggaa agtccccagg
     5281 ctccccagca ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa ccatagtccc
     5341 gcccctaact ccgcccatcc cgcccctaac tccgcccagt tccgcccatt ctccgcccca
     5401 tggctgacta atttttttta tttatgcaga ggccgaggcc gcctcggcct ctgagctatt
     5461 ccagaagtag tgaggaggct tttttggagg cctaggcttt tgcaaaaagc ttactggctt
     5521 aactatgcgg catcagagca gattgtactg agagtgcacc atatgcggtg tgaaataccg
     5581 cacagatgcg taaggagaaa ataccgcatc aggcgctctt ccgcttcctc gctcactgac
     5641 tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag ctcactcaaa ggcggtaata
     5701 cggttatcca cagaatcagg ggataacgca ggaaagaaca tgtgagcaaa aggccagcaa
     5761 aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt tccataggct ccgcccccct
     5821 gacgagcatc acaaaaatcg acgctcaagt cagaggtggc gaaacccgac aggactataa
     5881 agataccagg cgtttccccc tggaagctcc ctcgtgcgct ctcctgttcc gaccctgccg
     5941 cttaccggat acctgtccgc ctttctccct tcgggaagcg tggcgctttc tcatagctca
     6001 cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca agctgggctg tgtgcacgaa
     6061 ccccccgttc agcccgaccg ctgcgcctta tccggtaact atcgtcttga gtccaacccg
     6121 gtaagacacg acttatcgcc actggcagca gccactggta acaggattag cagagcgagg
     6181 tatgtaggcg gtgctacaga gttcttgaag tggtggccta actacggcta cactagaagg
     6241 acagtatttg gtatctgcgc tctgctgaag ccagttacct tcggaaaaag agttggtagc
     6301 tcttgatccg gcaaacaaac caccgctggt agcggtggtt tttttgtttg caagcagcag
     6361 attacgcgca gaaaaaaagg atctcaagaa gatcctttga tcttttctac ggggtctgac
     6421 gctcagtgga acgaaaactc acgttaaggg attttggtca tgagattatc aaaaaggatc
     6481 ttcacctaga tccttttaaa ttaaaaatga agttttaaat caatctaaag tatatatgag
     6541 taaacttggt ctgacagtta ccaatgctta atcagtgagg cacctatctc agcgatctgt
     6601 ctatttcgtt catccatagt tgcctgactc cccgtcgtgt agataactac gatacgggag
     6661 ggcttaccat ctggccccag tgctgcaatg ataccgcgag acccacgctc accggctcca
     6721 gatttatcag caataaacca gccagccgga agggccgagc gcagaagtgg tcctgcaact
     6781 ttatccgcct ccatccagtc tattaattgt tgccgggaag ctagagtaag tagttcgcca
     6841 gttaatagtt tgcgcaacgt tgttgccatt gctgcaggca tcgtggtgtc acgctcgtcg
     6901 tttggtatgg cttcattcag ctccggttcc caacgatcaa ggcgagttac atgatccccc
     6961 atgttgtgca aaaaagcggt tagctccttc ggtcctccga tcgttgtcag aagtaagttg
     7021 gccgcagtgt tatcactcat ggttatggca gcactgcata attctcttac tgtcatgcca
     7081 tccgtaagat gcttttctgt gactggtgag tactcaacca agtcattctg agaatagtgt
     7141 atgcggcgac cgagttgctc ttgcccggcg tcaacacggg ataataccgc gccacatagc
     7201 agaactttaa aagtgctcat cattggaaaa cgttcttcgg ggcgaaaact ctcaaggatc
     7261 ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg cacccaactg atcttcagca
     7321 tcttttactt tcaccagcgt ttctgggtga gcaaaaacag gaaggcaaaa tgccgcaaaa
     7381 aagggaataa gggcgacacg gaaatgttga atactcatac tcttcctttt tcaatattat
     7441 tgaagcattt atcagggtta ttgtctcatg agcggataca tatttgaatg tatttagaaa
     7501 aataaacaaa taggggttcc gcgcacattt ccccgaaaag tgccacctga cgtctaagaa
     7561 accattatta tcatgacatt aacctataaa aataggcgta tcacgaggcc ctttcgtctt
     7621 caagaattag cttggccatt gcatacgttg tatccatatc ataatatgta catttatatt
     7681 ggctcatgtc caacattacc gccatgttga cattgattat tgactagtta ttaatagtaa
     7741 tcaattacgg ggtcattagt tcatagccca tatatggagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
