pEYFP-Mito载体质粒基本信息

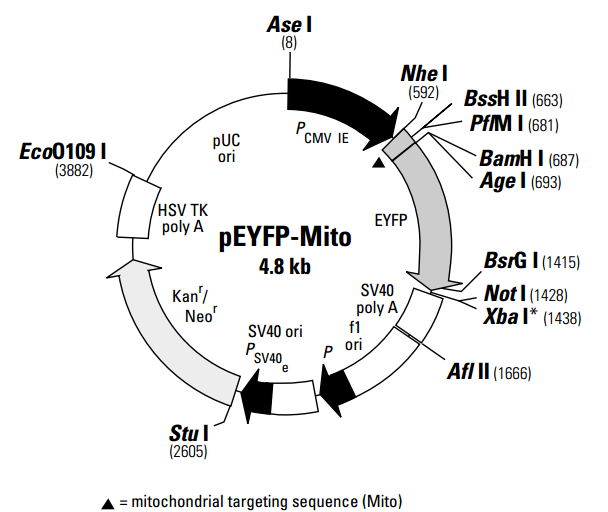

pEYFP-Mito质粒图谱载体图谱和pEYFP-Mito载体序列质粒序列多克隆位点信息
pEYFP-Mito质粒载体简介
pEYFP-Mito质粒序列载体序列
LOCUS pEYFP-Mito 4759 bp DNA circular SYN 11-JUL-2023
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS .
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 4759)
AUTHORS Biofeng
TITLE Direct Submission
JOURNAL Exported Jul 11, 2023 from SnapGene 6.0.2
https://www.biofeng.com
FEATURES Location/Qualifiers
source 1..4759
/mol_type="other DNA"
/organism="synthetic DNA construct"
enhancer 61..364
/label=CMV enhancer
/note="human cytomegalovirus immediate early enhancer"
promoter 365..568
/label=CMV promoter
/note="human cytomegalovirus (CMV) immediate early
promoter"
CDS 597..671
/codon_start=1
/product="mitochondrial presequence of human cytochrome c
oxidase subunit VIII (Rizutto et al., 1989)"
/label=COX8 presequence
/translation="MSVLTPLLLRGLTGSARRLPVPRAK"
regulatory 699..708
/label=Kozak sequence
/note="vertebrate consensus sequence for strong initiation
of translation (Kozak, 1987)"
/regulatory_class="other"
CDS 705..1424
/codon_start=1
/product="enhanced YFP"
/label=EYFP
/note="mammalian codon-optimized"
/translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
KFICTTGKLPVPWPTLVTTFGYGLQCFARYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSYQSALSKDPNEKRDHMVLL
EFVTAAGITLGMDELYK"
polyA_signal 1547..1668
/label=SV40 poly(A) signal
/note="SV40 polyadenylation signal"
rep_origin complement(1675..2130)
/direction=LEFT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
promoter 2157..2261
/gene="bla"
/label=AmpR promoter
promoter 2263..2620
/label=SV40 promoter
/note="SV40 enhancer and early promoter"
rep_origin 2471..2606
/label=SV40 ori
/note="SV40 origin of replication"
CDS 2655..3449
/codon_start=1
/gene="aph(3')-II (or nptII)"
/product="aminoglycoside phosphotransferase from Tn5"
/label=NeoR/KanR
/note="confers resistance to neomycin, kanamycin, and G418
(Geneticin(R))"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
polyA_signal 3681..3728
/label=HSV TK poly(A) signal
/note="herpes simplex virus thymidine kinase
polyadenylation signal (Cole and Stacy, 1985)"
rep_origin 4057..4645
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
ORIGIN
1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcatgt
601 ccgtcctgac gccgctgctg ctgcggggct tgacaggctc ggcccggcgg ctcccagtgc
661 cgcgcgccaa gatccattcg ttgggggatc caccggtcgc caccatggtg agcaagggcg
721 aggagctgtt caccggggtg gtgcccatcc tggtcgagct ggacggcgac gtaaacggcc
781 acaagttcag cgtgtccggc gagggcgagg gcgatgccac ctacggcaag ctgaccctga
841 agttcatctg caccaccggc aagctgcccg tgccctggcc caccctcgtg accaccttcg
901 gctacggcct gcagtgcttc gcccgctacc ccgaccacat gaagcagcac gacttcttca
961 agtccgccat gcccgaaggc tacgtccagg agcgcaccat cttcttcaag gacgacggca
1021 actacaagac ccgcgccgag gtgaagttcg agggcgacac cctggtgaac cgcatcgagc
1081 tgaagggcat cgacttcaag gaggacggca acatcctggg gcacaagctg gagtacaact
1141 acaacagcca caacgtctat atcatggccg acaagcagaa gaacggcatc aaggtgaact
1201 tcaagatccg ccacaacatc gaggacggca gcgtgcagct cgccgaccac taccagcaga
1261 acacccccat cggcgacggc cccgtgctgc tgcccgacaa ccactacctg agctaccagt
1321 ccgccctgag caaagacccc aacgagaagc gcgatcacat ggtcctgctg gagttcgtga
1381 ccgccgccgg gatcactctc ggcatggacg agctgtacaa gtaaagcggc cgcgactcta
1441 gatcataatc agccatacca catttgtaga ggttttactt gctttaaaaa acctcccaca
1501 cctccccctg aacctgaaac ataaaatgaa tgcaattgtt gttgttaact tgtttattgc
1561 agcttataat ggttacaaat aaagcaatag catcacaaat ttcacaaata aagcattttt
1621 ttcactgcat tctagttgtg gtttgtccaa actcatcaat gtatcttaag gcgtaaattg
1681 taagcgttaa tattttgtta aaattcgcgt taaatttttg ttaaatcagc tcatttttta
1741 accaataggc cgaaatcggc aaaatccctt ataaatcaaa agaatagacc gagatagggt
1801 tgagtgttgt tccagtttgg aacaagagtc cactattaaa gaacgtggac tccaacgtca
1861 aagggcgaaa aaccgtctat cagggcgatg gcccactacg tgaaccatca ccctaatcaa
1921 gttttttggg gtcgaggtgc cgtaaagcac taaatcggaa ccctaaaggg agcccccgat
1981 ttagagcttg acggggaaag ccggcgaacg tggcgagaaa ggaagggaag aaagcgaaag
2041 gagcgggcgc tagggcgctg gcaagtgtag cggtcacgct gcgcgtaacc accacacccg
2101 ccgcgcttaa tgcgccgcta cagggcgcgt caggtggcac ttttcgggga aatgtgcgcg
2161 gaacccctat ttgtttattt ttctaaatac attcaaatat gtatccgctc atgagacaat
2221 aaccctgata aatgcttcaa taatattgaa aaaggaagag tcctgaggcg gaaagaacca
2281 gctgtggaat gtgtgtcagt tagggtgtgg aaagtcccca ggctccccag caggcagaag
2341 tatgcaaagc atgcatctca attagtcagc aaccaggtgt ggaaagtccc caggctcccc
2401 agcaggcaga agtatgcaaa gcatgcatct caattagtca gcaaccatag tcccgcccct
2461 aactccgccc atcccgcccc taactccgcc cagttccgcc cattctccgc cccatggctg
2521 actaattttt tttatttatg cagaggccga ggccgcctcg gcctctgagc tattccagaa
2581 gtagtgagga ggcttttttg gaggcctagg cttttgcaaa gatcgatcaa gagacaggat
2641 gaggatcgtt tcgcatgatt gaacaagatg gattgcacgc aggttctccg gccgcttggg
2701 tggagaggct attcggctat gactgggcac aacagacaat cggctgctct gatgccgccg
2761 tgttccggct gtcagcgcag gggcgcccgg ttctttttgt caagaccgac ctgtccggtg
2821 ccctgaatga actgcaagac gaggcagcgc ggctatcgtg gctggccacg acgggcgttc
2881 cttgcgcagc tgtgctcgac gttgtcactg aagcgggaag ggactggctg ctattgggcg
2941 aagtgccggg gcaggatctc ctgtcatctc accttgctcc tgccgagaaa gtatccatca
3001 tggctgatgc aatgcggcgg ctgcatacgc ttgatccggc tacctgccca ttcgaccacc
3061 aagcgaaaca tcgcatcgag cgagcacgta ctcggatgga agccggtctt gtcgatcagg
3121 atgatctgga cgaagagcat caggggctcg cgccagccga actgttcgcc aggctcaagg
3181 cgagcatgcc cgacggcgag gatctcgtcg tgacccatgg cgatgcctgc ttgccgaata
3241 tcatggtgga aaatggccgc ttttctggat tcatcgactg tggccggctg ggtgtggcgg
3301 accgctatca ggacatagcg ttggctaccc gtgatattgc tgaagagctt ggcggcgaat
3361 gggctgaccg cttcctcgtg ctttacggta tcgccgctcc cgattcgcag cgcatcgcct
3421 tctatcgcct tcttgacgag ttcttctgag cgggactctg gggttcgaaa tgaccgacca
3481 agcgacgccc aacctgccat cacgagattt cgattccacc gccgccttct atgaaaggtt
3541 gggcttcgga atcgttttcc gggacgccgg ctggatgatc ctccagcgcg gggatctcat
3601 gctggagttc ttcgcccacc ctagggggag gctaactgaa acacggaagg agacaatacc
3661 ggaaggaacc cgcgctatga cggcaataaa aagacagaat aaaacgcacg gtgttgggtc
3721 gtttgttcat aaacgcgggg ttcggtccca gggctggcac tctgtcgata ccccaccgag
3781 accccattgg ggccaatacg cccgcgtttc ttccttttcc ccaccccacc ccccaagttc
3841 gggtgaaggc ccagggctcg cagccaacgt cggggcggca ggccctgcca tagcctcagg
3901 ttactcatat atactttaga ttgatttaaa acttcatttt taatttaaaa ggatctaggt
3961 gaagatcctt tttgataatc tcatgaccaa aatcccttaa cgtgagtttt cgttccactg
4021 agcgtcagac cccgtagaaa agatcaaagg atcttcttga gatccttttt ttctgcgcgt
4081 aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg gtggtttgtt tgccggatca
4141 agagctacca actctttttc cgaaggtaac tggcttcagc agagcgcaga taccaaatac
4201 tgtccttcta gtgtagccgt agttaggcca ccacttcaag aactctgtag caccgcctac
4261 atacctcgct ctgctaatcc tgttaccagt ggctgctgcc agtggcgata agtcgtgtct
4321 taccgggttg gactcaagac gatagttacc ggataaggcg cagcggtcgg gctgaacggg
4381 gggttcgtgc acacagccca gcttggagcg aacgacctac accgaactga gatacctaca
4441 gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga aaggcggaca ggtatccggt
4501 aagcggcagg gtcggaacag gagagcgcac gagggagctt ccagggggaa acgcctggta
4561 tctttatagt cctgtcgggt ttcgccacct ctgacttgag cgtcgatttt tgtgatgctc
4621 gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg gcctttttac ggttcctggc
4681 cttttgctgg ccttttgctc acatgttctt tcctgcgtta tcccctgatt ctgtggataa
4741 ccgtattacc gccatgcat
//
