pTagBFPN载体基本信息

出品公司: --
载体名称: pTagBFP-N
质粒类型: 哺乳细胞,荧光蛋白报告载体
终止子: SV40 poly(A) signal
复制子: pUC
启动子: CMV
载体大小: 4715 bp
5' 测序引物及序列: CMV-F:CGCAAATGGGCGGTAGGCGTG
3' 测序引物及序列: Sv40-polyA-R:GAAATTTGTGATGCTATTGC
载体标签: --
载体抗性: 卡那霉素
筛选标记: G418
克隆菌株: DH5α 等
宿主细胞(系): 哺乳细胞
备注: --
产品目录号: --
稳定性: --
组成型/诱导型: --
病毒/非病毒: --

pTagBFPN载体质粒图谱和多克隆位点信息

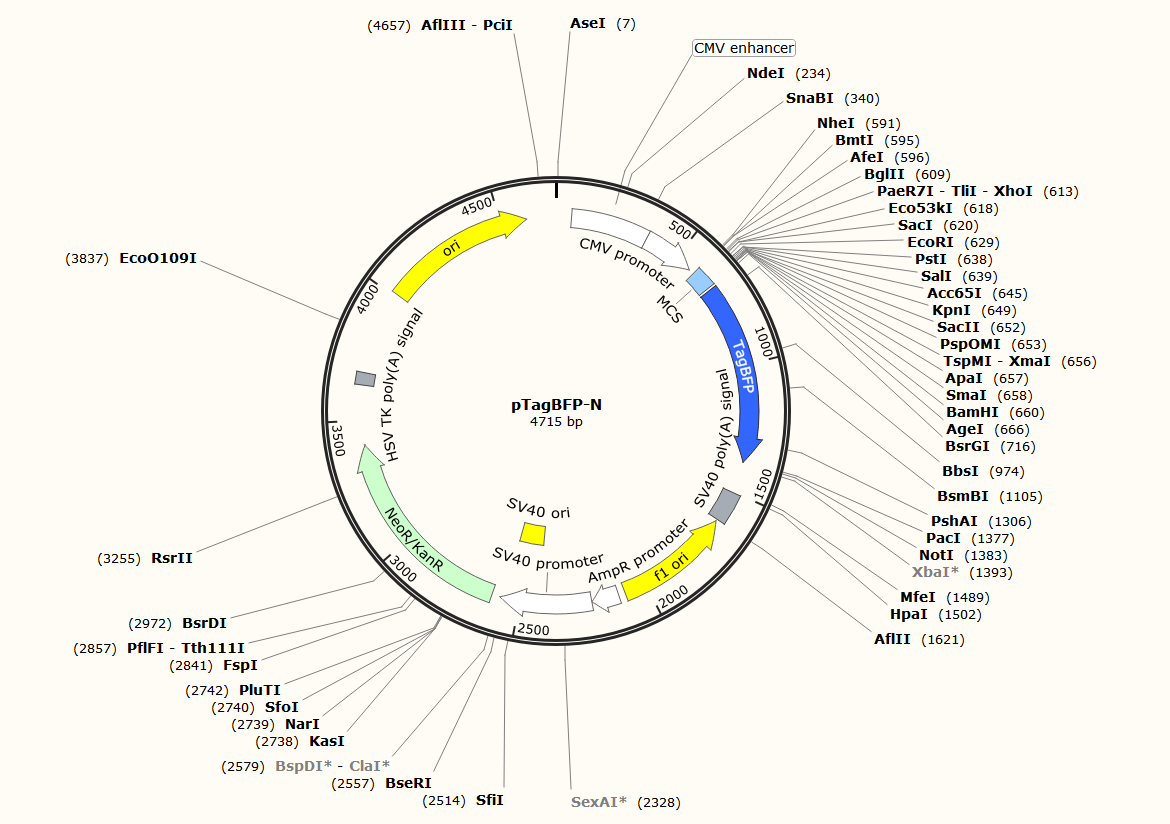

pTagBFP-N载体图谱

pTagBFPN载体简介

pTagBFPN载体序列

LOCUS       pTagBFP-N                4715 bp ds-DNA     circular SYN 04-JAN-2013
DEFINITION  Vector for fusing TagBFP to the C-terminus of a partner protein.
ACCESSION   .
VERSION     .
KEYWORDS    pTagBFP-N
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4715)
  AUTHORS   Evrogen
  TITLE     Direct Submission
  JOURNAL   Exported Thursday, February 27, 2020 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4715
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     enhancer        61..364
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     misc_feature    591..671
                     /note="MCS"
                     /note="multiple cloning site of fluorescent protein
                     plasmids"
     CDS             679..1380
                     /codon_start=1
                     /product="monomeric blue fluorescent protein"
                     /note="TagBFP"
                     /note="mammalian codon-optimized"
                     /translation="MSELIKENMHMKLYMEGTVDNHHFKCTSEGEGKPYEGTQTMRIKV
                     VEGGPLPFAFDILATSFLYGSKTFINHTQGIPDFFKQSFPEGFTWERVTTYEDGGVLTA
                     TQDTSLQDGCLIYNVKIRGVNFTSNGPVMQKKTLGWEAFTETLYPADGGLEGRNDMALK
                     LVGGSHLIANIKTTYRSKKPAKNLKMPGVYYVDYRLERIKEANNETYVEQHEVAVARYC
                     DLPSKLGHKLN"
     polyA_signal    1503..1624
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1631..2086)
                     /direction=LEFT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2113..2217
                     /gene="bla"
                     /note="AmpR promoter"
     promoter        2219..2576
                     /note="SV40 promoter"
                     /note="SV40 enhancer and early promoter"
     rep_origin      2427..2562
                     /note="SV40 ori"
                     /note="SV40 origin of replication"
     CDS             2611..3405
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="NeoR/KanR"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    3637..3684
                     /note="HSV TK poly(A) signal"
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      4013..4601
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctcgagct caagcttcga attctgcagt cgacggtacc gcgggcccgg
      661 gatccaccgg tcgccaccat gagcgagctg attaaggaga acatgcacat gaagctgtac
      721 atggagggca ccgtggacaa ccatcacttc aagtgcacat ccgagggcga aggcaagccc
      781 tacgagggca cccagaccat gagaatcaag gtggtcgagg gcggccctct ccccttcgcc
      841 ttcgacatcc tggctactag cttcctctac ggcagcaaga ccttcatcaa ccacacccag
      901 ggcatccccg acttcttcaa gcagtccttc cctgagggct tcacatggga gagagtcacc
      961 acatacgaag acgggggcgt gctgaccgct acccaggaca ccagcctcca ggacggctgc
     1021 ctcatctaca acgtcaagat cagaggggtg aacttcacat ccaacggccc tgtgatgcag
     1081 aagaaaacac tcggctggga ggccttcacc gagacgctgt accccgctga cggcggcctg
     1141 gaaggcagaa acgacatggc cctgaagctc gtgggcggga gccatctgat cgcaaacatc
     1201 aagaccacat atagatccaa gaaacccgct aagaacctca agatgcctgg cgtctactat
     1261 gtggactaca gactggaaag aatcaaggag gccaacaacg agacctacgt cgagcagcac
     1321 gaggtggcag tggccagata ctgcgacctc cctagcaaac tggggcacaa gcttaattaa
     1381 agcggccgcg actctagatc ataatcagcc ataccacatt tgtagaggtt ttacttgctt
     1441 taaaaaacct cccacacctc cccctgaacc tgaaacataa aatgaatgca attgttgttg
     1501 ttaacttgtt tattgcagct tataatggtt acaaataaag caatagcatc acaaatttca
     1561 caaataaagc atttttttca ctgcattcta gttgtggttt gtccaaactc atcaatgtat
     1621 cttaaggcgt aaattgtaag cgttaatatt ttgttaaaat tcgcgttaaa tttttgttaa
     1681 atcagctcat tttttaacca ataggccgaa atcggcaaaa tcccttataa atcaaaagaa
     1741 tagaccgaga tagggttgag tgttgttcca gtttggaaca agagtccact attaaagaac
     1801 gtggactcca acgtcaaagg gcgaaaaacc gtctatcagg gcgatggccc actacgtgaa
     1861 ccatcaccct aatcaagttt tttggggtcg aggtgccgta aagcactaaa tcggaaccct
     1921 aaagggagcc cccgatttag agcttgacgg ggaaagccgg cgaacgtggc gagaaaggaa
     1981 gggaagaaag cgaaaggagc gggcgctagg gcgctggcaa gtgtagcggt cacgctgcgc
     2041 gtaaccacca cacccgccgc gcttaatgcg ccgctacagg gcgcgtcagg tggcactttt
     2101 cggggaaatg tgcgcggaac ccctatttgt ttatttttct aaatacattc aaatatgtat
     2161 ccgctcatga gacaataacc ctgataaatg cttcaataat attgaaaaag gaagagtcct
     2221 gaggcggaaa gaaccagctg tggaatgtgt gtcagttagg gtgtggaaag tccccaggct
     2281 ccccagcagg cagaagtatg caaagcatgc atctcaatta gtcagcaacc aggtgtggaa
     2341 agtccccagg ctccccagca ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa
     2401 ccatagtccc gcccctaact ccgcccatcc cgcccctaac tccgcccagt tccgcccatt
     2461 ctccgcccca tggctgacta atttttttta tttatgcaga ggccgaggcc gcctcggcct
     2521 ctgagctatt ccagaagtag tgaggaggct tttttggagg cctaggcttt tgcaaagatc
     2581 gatcaagaga caggatgagg atcgtttcgc atgattgaac aagatggatt gcacgcaggt
     2641 tctccggccg cttgggtgga gaggctattc ggctatgact gggcacaaca gacaatcggc
     2701 tgctctgatg ccgccgtgtt ccggctgtca gcgcaggggc gcccggttct ttttgtcaag
     2761 accgacctgt ccggtgccct gaatgaactg caagacgagg cagcgcggct atcgtggctg
     2821 gccacgacgg gcgttccttg cgcagctgtg ctcgacgttg tcactgaagc gggaagggac
     2881 tggctgctat tgggcgaagt gccggggcag gatctcctgt catctcacct tgctcctgcc
     2941 gagaaagtat ccatcatggc tgatgcaatg cggcggctgc atacgcttga tccggctacc
     3001 tgcccattcg accaccaagc gaaacatcgc atcgagcgag cacgtactcg gatggaagcc
     3061 ggtcttgtcg atcaggatga tctggacgaa gagcatcagg ggctcgcgcc agccgaactg
     3121 ttcgccaggc tcaaggcgag catgcccgac ggcgaggatc tcgtcgtgac ccatggcgat
     3181 gcctgcttgc cgaatatcat ggtggaaaat ggccgctttt ctggattcat cgactgtggc
     3241 cggctgggtg tggcggaccg ctatcaggac atagcgttgg ctacccgtga tattgctgaa
     3301 gagcttggcg gcgaatgggc tgaccgcttc ctcgtgcttt acggtatcgc cgctcccgat
     3361 tcgcagcgca tcgccttcta tcgccttctt gacgagttct tctgagcggg actctggggt
     3421 tcgaaatgac cgaccaagcg acgcccaacc tgccatcacg agatttcgat tccaccgccg
     3481 ccttctatga aaggttgggc ttcggaatcg ttttccggga cgccggctgg atgatcctcc
     3541 agcgcgggga tctcatgctg gagttcttcg cccaccctag ggggaggcta actgaaacac
     3601 ggaaggagac aataccggaa ggaacccgcg ctatgacggc aataaaaaga cagaataaaa
     3661 cgcacggtgt tgggtcgttt gttcataaac gcggggttcg gtcccagggc tggcactctg
     3721 tcgatacccc accgagaccc cattggggcc aatacgcccg cgtttcttcc ttttccccac
     3781 cccacccccc aagttcgggt gaaggcccag ggctcgcagc caacgtcggg gcggcaggcc
     3841 ctgccatagc ctcaggttac tcatatatac tttagattga tttaaaactt catttttaat
     3901 ttaaaaggat ctaggtgaag atcctttttg ataatctcat gaccaaaatc ccttaacgtg
     3961 agttttcgtt ccactgagcg tcagaccccg tagaaaagat caaaggatct tcttgagatc
     4021 ctttttttct gcgcgtaatc tgctgcttgc aaacaaaaaa accaccgcta ccagcggtgg
     4081 tttgtttgcc ggatcaagag ctaccaactc tttttccgaa ggtaactggc ttcagcagag
     4141 cgcagatacc aaatactgtc cttctagtgt agccgtagtt aggccaccac ttcaagaact
     4201 ctgtagcacc gcctacatac ctcgctctgc taatcctgtt accagtggct gctgccagtg
     4261 gcgataagtc gtgtcttacc gggttggact caagacgata gttaccggat aaggcgcagc
     4321 ggtcgggctg aacggggggt tcgtgcacac agcccagctt ggagcgaacg acctacaccg
     4381 aactgagata cctacagcgt gagctatgag aaagcgccac gcttcccgaa gggagaaagg
     4441 cggacaggta tccggtaagc ggcagggtcg gaacaggaga gcgcacgagg gagcttccag
     4501 ggggaaacgc ctggtatctt tatagtcctg tcgggtttcg ccacctctga cttgagcgtc
     4561 gatttttgtg atgctcgtca ggggggcgga gcctatggaa aaacgccagc aacgcggcct
     4621 ttttacggtt cctggccttt tgctggcctt ttgctcacat gttctttcct gcgttatccc
     4681 ctgattctgt ggataaccgt attaccgcca tgcat
//

pTagBFPN载体质粒图谱pdf版和相关资料下载

pTagBFPN载体应用举例
