pLVX-CherryPicker Control

价格:3500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-CherryPicker Control
质粒类型: 慢病毒载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV
载体大小: 8998 bp
5' 测序引物及序列: CMV Forward: CGCAAATGGGCGGTAGGCGTG
3' 测序引物及序列: --
载体标签: CherryPicker (C-端)
载体抗性: 氨苄青霉素
筛选标记: 嘌呤霉素(Puromycin)
克隆菌株: Stbl3
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)
备注: 慢病毒载体pLVX-CherryPicker Control是pLVX-CherryPicker1和pLVX-CherryPicker2的阳性对照载体。
产品目录号: 632580
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

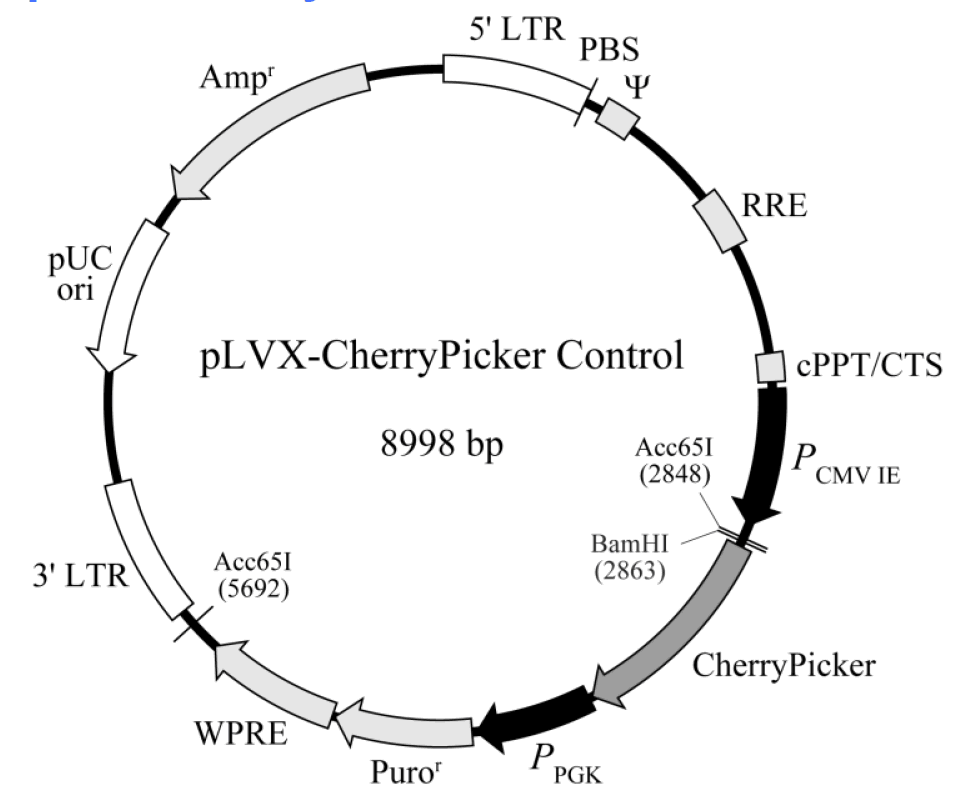

pLVX-CherryPicker Control载体图谱

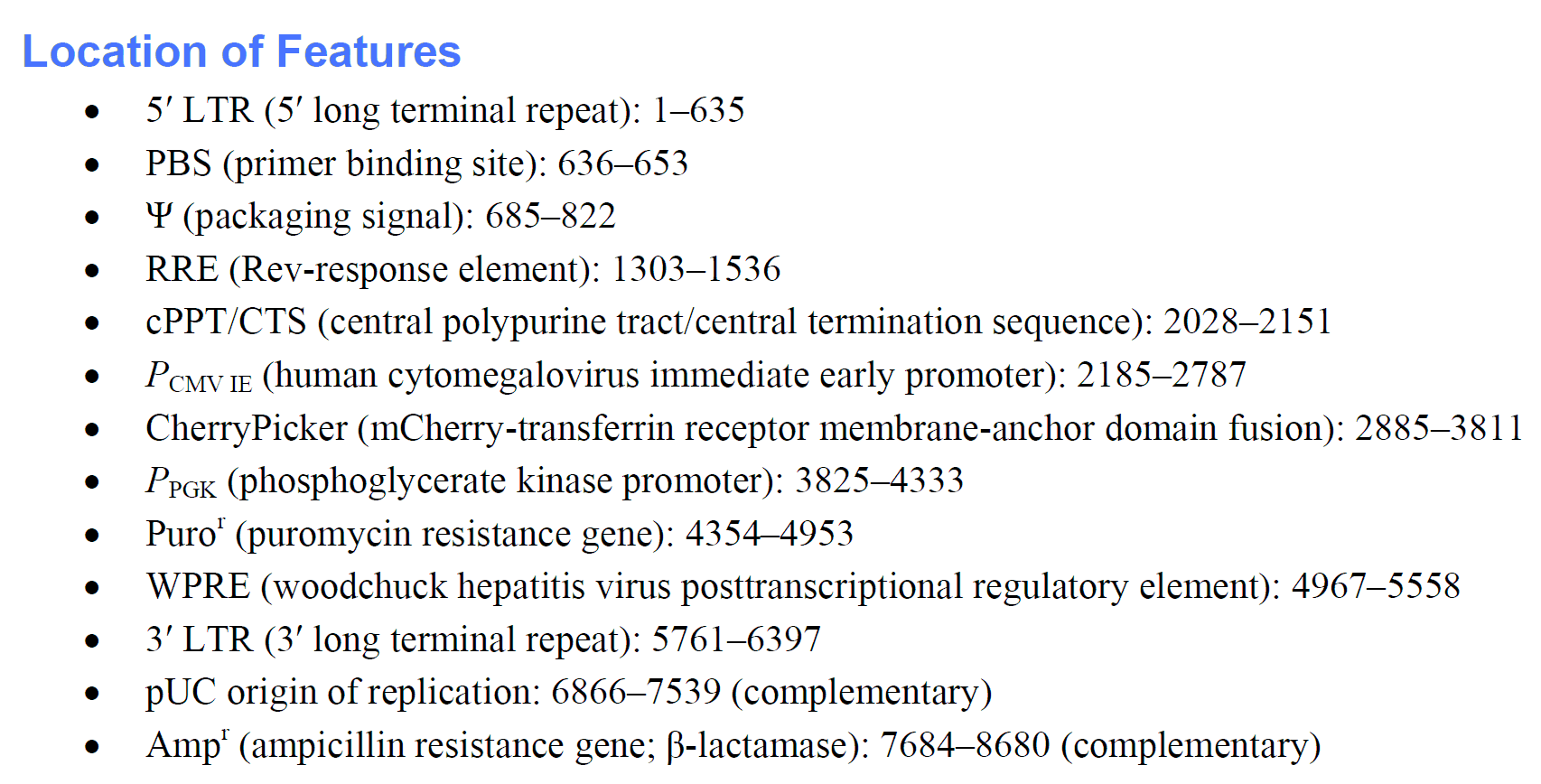

pLVX-CherryPicker Control 载体特征

载体简介

载体序列

LOCUS       pLVX-CherryPicker_Control   8999 bp    DNA   circular            11-APR-2011
COMMENT     Created by Clontech Laboratories Inc. http://www.clontech.com
COMMENT     Cat. No. 632580,632574,632581,632575
FEATURES             Location/Qualifiers
     LTR             1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=Packaging\signal
     misc_feature    2028..2151
                     /label=cPPT/CTS\(DNA\flap)
     promoter        2185..2787
                     /label=CMV\IE\Promoter
     misc_feature    4967..5558
                     /label=WPRE
     rep_origin      complement(6867..7540)
                     /label=pUC\origin
     CDS             complement(7685..8681)
                     /label=Amp(R)
     misc_binding    1303..1536
                     /label=RRE
     misc_binding    636..653
                     /label=PBS
     LTR             5761..6397
                     /label=3'\LTR
     misc_feature    3825..4333
                     /label=PGK\Promoter
     misc_feature    4354..4953
                     /label=Puro(R)
     CDS             2885..3811
                     /label=CherryPicker
     misc_feature    3812..3814
                     /label=Stop\codon
BASE COUNT     2264 a      2310 c      2406 g      2019 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgataagctt gggagttccg cgttacataa cttacggtaa
     2221 atggcccgcc tggctgaccg cccaacgacc cccgcccatt gacgtcaata atgacgtatg
     2281 ttcccatagt aacgccaata gggactttcc attgacgtca atgggtggag tatttacggt
     2341 aaactgccca cttggcagta catcaagtgt atcatatgcc aagtacgccc cctattgacg
     2401 tcaatgacgg taaatggccc gcctggcatt atgcccagta catgacctta tgggactttc
     2461 ctacttggca gtacatctac gtattagtca tcgctattac catggtgatg cggttttggc
     2521 agtacatcaa tgggcgtgga tagcggtttg actcacgggg atttccaagt ctccacccca
     2581 ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg ggactttcca aaatgtcgta
     2641 acaactccgc cccattgacg caaatgggcg gtaggcgtgt acggtgggag gtctatataa
     2701 gcagagctcg tttagtgaac cgtcagatcg cctggagacg ccatccacgc tgttttgacc
     2761 tccatagaag acaccgactc tactagagga tcgctagcgc taccggactc agatctcgag
     2821 ctcaagcttc gaattctgca gtcgacggta ccgcgggccc gggatccgcg gccgcgttta
     2881 aacgatgatg gtggacggcg acaacagcca cgtggagatg aagctggccg tggacgagga
     2941 agagaacgcc gacaacaaca ccaaggccaa cgtgaccaag cccaagcggt gcagcggcag
     3001 catctgctac ggcacaatcg ccgtgatcgt gttcttcctg atcggcttca tgatcggcta
     3061 cctgggctac tgcaagtcta gcgacggccc tggcgagaca ggcatggtgt ccaagggcga
     3121 agaggacaac atggccatca tcaaagaatt catgcggttc aaggtgcaca tggaaggcag
     3181 cgtgaacggc cacgagttcg agatcgaggg cgagggcgaa ggcagacctt acgagggcac
     3241 ccagaccgcc aagctgaaag tgaccaaggg cggacccctg ccctttgcct gggacatcct
     3301 gagcccccag ttcatgtacg gcagcaaggc ctacgtgaag caccccgccg acatccccga
     3361 ctacctgaag ctgagcttcc ccgagggctt caagtgggag agagtgatga acttcgagga
     3421 cggcggcgtg gtcaccgtga cccaggacag cagcctgcag gacggcgagt tcatctacaa
     3481 agtgaagctg cggggcacca acttccctag cgacggcccc gtgatgcaga aaaagaccat
     3541 gggctgggag gccagcagcg agagaatgta ccccgaggat ggcgccctga agggcgagat
     3601 caagcagcgg ctgaagctga aggatggcgg ccactacgac gccgaagtga aaaccaccta
     3661 caaggccaag aaacccgtgc agctgcctgg cgcctacaac gtgaacatca agctggacat
     3721 caccagccac aacgaggact acaccatcgt ggagcagtac gagagagccg agggcagaca
     3781 cagcaccggc ggcatggacg agctgtacaa atgacaatct agataattct accgggtagg
     3841 ggaggcgctt ttcccaaggc agtctggagc atgcgcttta gcagccccgc tgggcacttg
     3901 gcgctacaca agtggcctct ggcctcgcac acattccaca tccaccggta ggcgccaacc
     3961 ggctccgttc tttggtggcc ccttcgcgcc accttctact cctcccctag tcaggaagtt
     4021 cccccccgcc ccgcagctcg cgtcgtgcag gacgtgacaa atggaagtag cacgtctcac
     4081 tagtctcgtg cagatggaca gcaccgctga gcaatggaag cgggtaggcc tttggggcag
     4141 cggccaatag cagctttgct ccttcgcttt ctgggctcag aggctgggaa ggggtgggtc
     4201 cgggggcggg ctcaggggcg ggctcagggg cggggcgggc gcccgaaggt cctccggagg
     4261 cccggcattc tgcacgcttc aaaagcgcac gtctgccgcg ctgttctcct cttcctcatc
     4321 tccgggcctt tcgacctgca gcccaagctt accatgaccg agtacaagcc cacggtgcgc
     4381 ctcgccaccc gcgacgacgt ccccagggcc gtacgcaccc tcgccgccgc gttcgccgac
     4441 taccccgcca cgcgccacac cgtcgatccg gaccgccaca tcgagcgggt caccgagctg
     4501 caagaactct tcctcacgcg cgtcgggctc gacatcggca aggtgtgggt cgcggacgac
     4561 ggcgccgcgg tggcggtctg gaccacgccg gagagcgtcg aagcgggggc ggtgttcgcc
     4621 gagatcggcc cgcgcatggc cgagttgagc ggttcccggc tggccgcgca gcaacagatg
     4681 gaaggcctcc tggcgccgca ccggcccaag gagcccgcgt ggttcctggc caccgtcggc
     4741 gtctcgcccg accaccaggg caagggtctg ggcagcgccg tcgtgctccc cggagtggag
     4801 gcggccgagc gcgccggggt gcccgccttc ctggagacct ccgcgccccg caacctcccc
     4861 ttctacgagc ggctcggctt caccgtcacc gccgacgtcg aggtgcccga aggaccgcgc
     4921 acctggtgca tgacccgcaa gcccggtgcc tgaccgcgtc tggaacaatc aacctctgga
     4981 ttacaaaatt tgtgaaagat tgactggtat tcttaactat gttgctcctt ttacgctatg
     5041 tggatacgct gctttaatgc ctttgtatca tgctattgct tcccgtatgg ctttcatttt
     5101 ctcctccttg tataaatcct ggttgctgtc tctttatgag gagttgtggc ccgttgtcag
     5161 gcaacgtggc gtggtgtgca ctgtgtttgc tgacgcaacc cccactggtt ggggcattgc
     5221 caccacctgt cagctccttt ccgggacttt cgctttcccc ctccctattg ccacggcgga
     5281 actcatcgcc gcctgccttg cccgctgctg gacaggggct cggctgttgg gcactgacaa
     5341 ttccgtggtg ttgtcgggga agctgacgtc ctttccatgg ctgctcgcct gtgttgccac
     5401 ctggattctg cgcgggacgt ccttctgcta cgtcccttcg gccctcaatc cagcggacct
     5461 tccttcccgc ggcctgctgc cggctctgcg gcctcttccg cgtcttcgcc ttcgccctca
     5521 gacgagtcgg atctcccttt gggccgcctc cccgcctgga attaattctg cagtcgagac
     5581 ctagaaaaac atggagcaat cacaagtagc aatacagcag ctaccaatgc tgattgtgcc
     5641 tggctagaag cacaagagga ggaggaggtg ggttttccag tcacacctca ggtaccttta
     5701 agaccaatga cttacaaggc agctgtagat cttagccact ttttaaaaga aaagagggga
     5761 ctggaagggc taattcactc ccaacgaaga caagatatcc ttgatctgtg gatctaccac
     5821 acacaaggct acttccctga ttagcagaac tacacaccag ggccaggggt cagatatcca
     5881 ctgacctttg gatggtgcta caagctagta ccagttgagc cagataaggt agaagaggcc
     5941 aataaaggag agaacaccag cttgttacac cctgtgagcc tgcatgggat ggatgacccg
     6001 gagagagaag tgttagagtg gaggtttgac agccgcctag catttcatca cgtggcccga
     6061 gagctgcatc cggagtactt caagaactgc tgatatcgag cttgctacaa gggactttcc
     6121 gctggggact ttccagggag gcgtggcctg ggcgggactg gggagtggcg agccctcaga
     6181 tcctgcatat aagcagctgc tttttgcctg tactgggtct ctctggttag accagatctg
     6241 agcctgggag ctctctggct aactagggaa cccactgctt aagcctcaat aaagcttgcc
     6301 ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac tctggtaact agagatccct
     6361 cagacccttt tagtcagtgt ggaaaatctc tagcagtagt agttcatgtc atcttattat
     6421 tcagtattta taacttgcaa agaaatgaat atcagagagt gagaggcctt gacattgcta
     6481 gcgttttacc gtcgacctct agctagagct tggcgtaatc atggtcatag ctgtttcctg
     6541 tgtgaaattg ttatccgctc acaattccac acaacatacg agccggaagc ataaagtgta
     6601 aagcctgggg tgcctaatga gtgagctaac tcacattaat tgcgttgcgc tcactgcccg
     6661 ctttccagtc gggaaacctg tcgtgccagc tgcattaatg aatcggccaa cgcgcgggga
     6721 gaggcggttt gcgtattggg cgctcttccg cttcctcgct cactgactcg ctgcgctcgg
     6781 tcgttcggct gcggcgagcg gtatcagctc actcaaaggc ggtaatacgg ttatccacag
     6841 aatcagggga taacgcagga aagaacatgt gagcaaaagg ccagcaaaag gccaggaacc
     6901 gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg cccccctgac gagcatcaca
     6961 aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg actataaaga taccaggcgt
     7021 ttccccctgg aagctccctc gtgcgctctc ctgttccgac cctgccgctt accggatacc
     7081 tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc
     7141 tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc
     7201 ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc caacccggta agacacgact
     7261 tatcgccact ggcagcagcc actggtaaca ggattagcag agcgaggtat gtaggcggtg
     7321 ctacagagtt cttgaagtgg tggcctaact acggctacac tagaagaaca gtatttggta
     7381 tctgcgctct gctgaagcca gttaccttcg gaaaaagagt tggtagctct tgatccggca
     7441 aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa gcagcagatt acgcgcagaa
     7501 aaaaaggatc tcaagaagat cctttgatct tttctacggg gtctgacgct cagtggaacg
     7561 aaaactcacg ttaagggatt ttggtcatga gattatcaaa aaggatcttc acctagatcc
     7621 ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa acttggtctg
     7681 acagttacca atgcttaatc agtgaggcac ctatctcagc gatctgtcta tttcgttcat
     7741 ccatagttgc ctgactcccc gtcgtgtaga taactacgat acgggagggc ttaccatctg
     7801 gccccagtgc tgcaatgata ccgcgagacc cacgctcacc ggctccagat ttatcagcaa
     7861 taaaccagcc agccggaagg gccgagcgca gaagtggtcc tgcaacttta tccgcctcca
     7921 tccagtctat taattgttgc cgggaagcta gagtaagtag ttcgccagtt aatagtttgc
     7981 gcaacgttgt tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt
     8041 cattcagctc cggttcccaa cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa
     8101 aagcggttag ctccttcggt cctccgatcg ttgtcagaag taagttggcc gcagtgttat
     8161 cactcatggt tatggcagca ctgcataatt ctcttactgt catgccatcc gtaagatgct
     8221 tttctgtgac tggtgagtac tcaaccaagt cattctgaga atagtgtatg cggcgaccga
     8281 gttgctcttg cccggcgtca atacgggata ataccgcgcc acatagcaga actttaaaag
     8341 tgctcatcat tggaaaacgt tcttcggggc gaaaactctc aaggatctta ccgctgttga
     8401 gatccagttc gatgtaaccc actcgtgcac ccaactgatc ttcagcatct tttactttca
     8461 ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg
     8521 cgacacggaa atgttgaata ctcatactct tcctttttca atattattga agcatttatc
     8581 agggttattg tctcatgagc ggatacatat ttgaatgtat ttagaaaaat aaacaaatag
     8641 gggttccgcg cacatttccc cgaaaagtgc cacctgacgt cgacggatcg ggagatcaac
     8701 ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa tttcacaaat
     8761 aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa tgtatcttat
     8821 catgtctgga tcaactggat aactcaagct aaccaaaatc atcccaaact tcccacccca
     8881 taccctatta ccactgccaa ttacctgtgg tttcatttac tctaaacctg tgattcctct
     8941 gaattatttt cattttaaag aaattgtatt tgttaaatat gtactacaaa cttagtagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
