pLVX-CherryPicker2

价格:3500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-CherryPicker2
质粒类型: 慢病毒载体;双顺反子载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV
载体大小: 8394 bp
5' 测序引物及序列: CMV Forward: CGCAAATGGGCGGTAGGCGTG
3' 测序引物及序列: --
载体标签: CherryPicker(C-端)
载体抗性: 氨苄青霉素
筛选标记:
克隆菌株: Stbl3
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)
备注: 慢病毒载体pLVX-CherryPicker2是双顺反子载体,目的基因与CherryPicker2报告基因以双顺反子的形式表达;
CherryPicker是mCherry与转铁蛋白受体膜锚定结构域融合蛋白。
产品目录号: 632581
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

pLVX-CherryPicker2载体图谱

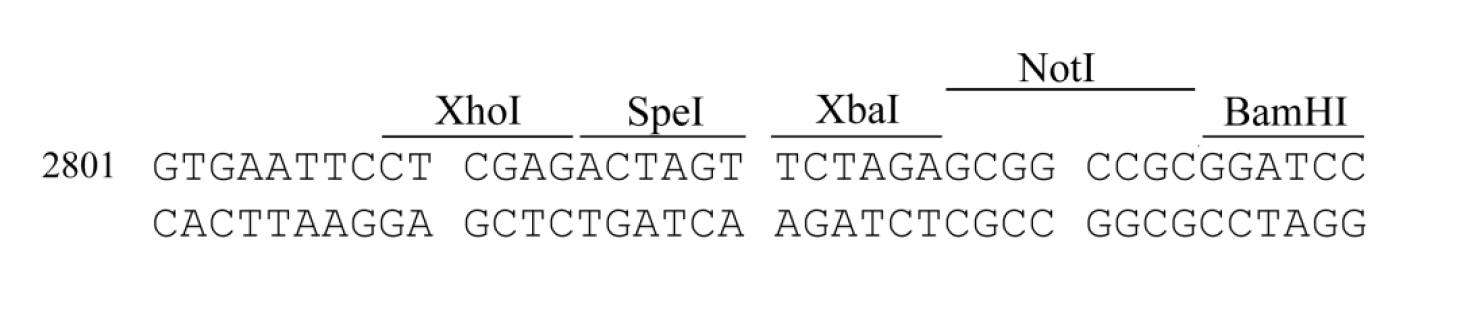

pLVX-CherryPicker2 多克隆位点

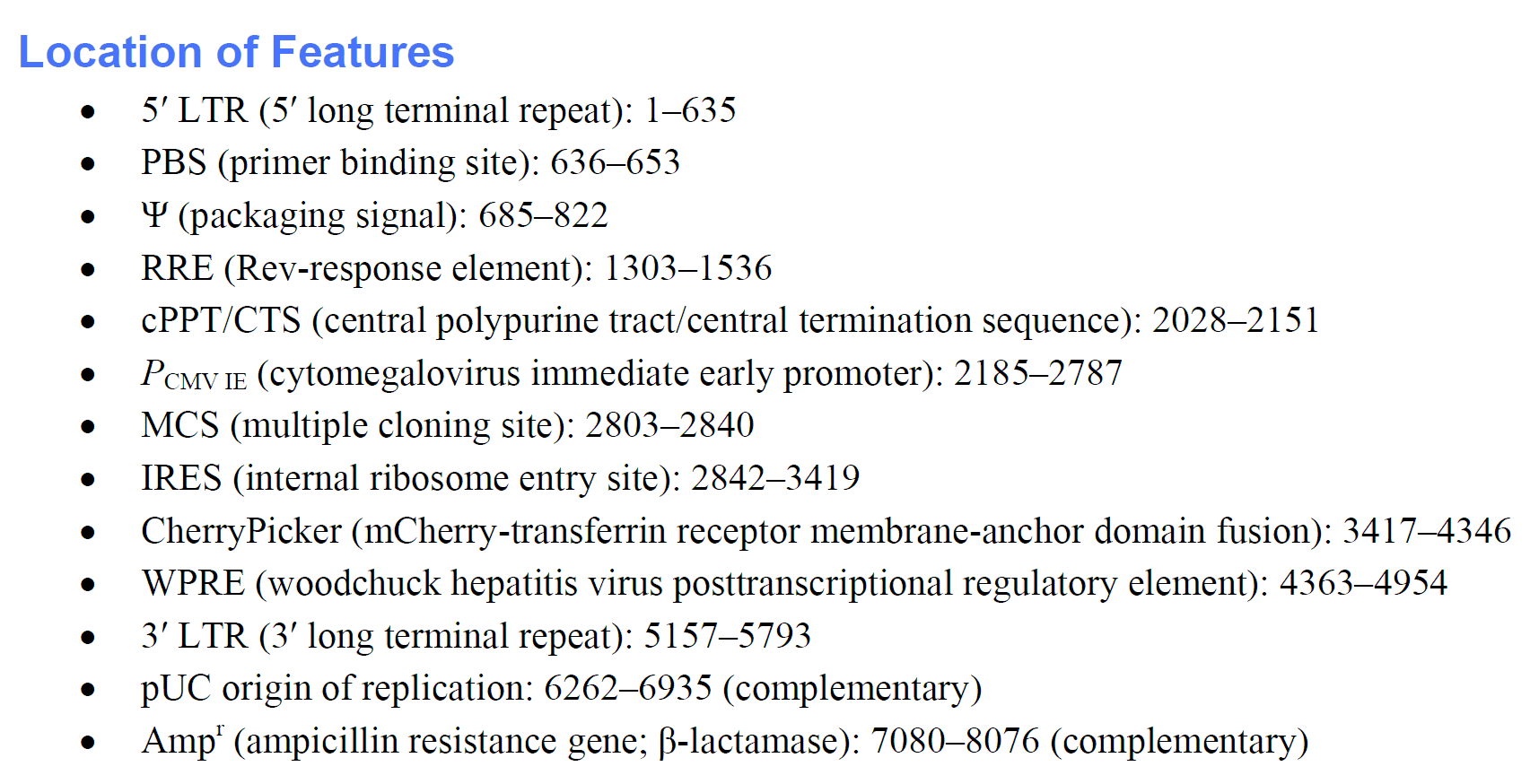

pLVX-CherryPicker2 载体特征

载体简介

载体序列

LOCUS       pLVX-CherryPicker2   8394 bp    DNA   circular            11-APR-2011
COMMENT     Created by Clontech Laboratories Inc. http://www.clontech.com
COMMENT     Cat. No. 632581,632575
FEATURES             Location/Qualifiers
     misc_feature    2842..3419
                     /label=IRES
     LTR             1..635
                     /label=5'\LTR
     misc_binding    636..653
                     /label=PBS
     misc_feature    685..822
                     /label=Packaging\signal
     misc_binding    1303..1536
                     /label=RRE
     misc_feature    2028..2151
                     /label=cPPT/CTS\(DNA\flap)
     promoter        2185..2787
                     /label=CMV\IE\Promoter
     misc_feature    2803..2840
                     /label=MCS
     misc_feature    4363..4954
                     /label=WPRE
     LTR             5157..5793
                     /label=3'\LTR
     rep_origin      complement(6262..6935)
                     /label=pUC\origin
     CDS             complement(7080..8076)
                     /label=Amp(R)
     CDS             3417..4346
                     /label=CherryPicker
     misc_feature    4347..4349
                     /label=Stop\codon
BASE COUNT     2217 a      2036 c      2173 g      1968 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgataagctt gggagttccg cgttacataa cttacggtaa
     2221 atggcccgcc tggctgaccg cccaacgacc cccgcccatt gacgtcaata atgacgtatg
     2281 ttcccatagt aacgccaata gggactttcc attgacgtca atgggtggag tatttacggt
     2341 aaactgccca cttggcagta catcaagtgt atcatatgcc aagtacgccc cctattgacg
     2401 tcaatgacgg taaatggccc gcctggcatt atgcccagta catgacctta tgggactttc
     2461 ctacttggca gtacatctac gtattagtca tcgctattac catggtgatg cggttttggc
     2521 agtacatcaa tgggcgtgga tagcggtttg actcacgggg atttccaagt ctccacccca
     2581 ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg ggactttcca aaatgtcgta
     2641 acaactccgc cccattgacg caaatgggcg gtaggcgtgt acggtgggag gtctatataa
     2701 gcagagctcg tttagtgaac cgtcagatcg cctggagacg ccatccacgc tgttttgacc
     2761 tccatagaag acaccgactc tactagagga tctatttccg gtgaattcct cgagactagt
     2821 tctagagcgg ccgcggatcc cgcccctctc cctccccccc ccctaacgtt actggccgaa
     2881 gccgcttgga ataaggccgg tgtgcgtttg tctatatgtt attttccacc atattgccgt
     2941 cttttggcaa tgtgagggcc cggaaacctg gccctgtctt cttgacgagc attcctaggg
     3001 gtctttcccc tctcgccaaa ggaatgcaag gtctgttgaa tgtcgtgaag gaagcagttc
     3061 ctctggaagc ttcttgaaga caaacaacgt ctgtagcgac cctttgcagg cagcggaacc
     3121 ccccacctgg cgacaggtgc ctctgcggcc aaaagccacg tgtataagat acacctgcaa
     3181 aggcggcaca accccagtgc cacgttgtga gttggatagt tgtggaaaga gtcaaatggc
     3241 tcacctcaag cgtattcaac aaggggctga aggatgccca gaaggtaccc cattgtatgg
     3301 gatctgatct ggggcctcgg tgcacatgct ttacatgtgt ttagtcgagg ttaaaaaacg
     3361 tctaggcccc ccgaaccacg gggacgtggt tttcctttga aaaacacgat gataatatgg
     3421 gaatggtgga cggcgacaac agccacgtgg agatgaagct ggccgtggac gaggaagaga
     3481 acgccgacaa caacaccaag gccaacgtga ccaagcccaa gcggtgcagc ggcagcatct
     3541 gctacggcac aatcgccgtg atcgtgttct tcctgatcgg cttcatgatc ggctacctgg
     3601 gctactgcaa gtctagcgac ggccctggcg agacaggcat ggtgtccaag ggcgaagagg
     3661 acaacatggc catcatcaaa gaattcatgc ggttcaaggt gcacatggaa ggcagcgtga
     3721 acggccacga gttcgagatc gagggcgagg gcgaaggcag accttacgag ggcacccaga
     3781 ccgccaagct gaaagtgacc aagggcggac ccctgccctt tgcctgggac atcctgagcc
     3841 cccagttcat gtacggcagc aaggcctacg tgaagcaccc cgccgacatc cccgactacc
     3901 tgaagctgag cttccccgag ggcttcaagt gggagagagt gatgaacttc gaggacggcg
     3961 gcgtggtcac cgtgacccag gacagcagcc tgcaggacgg cgagttcatc tacaaagtga
     4021 agctgcgggg caccaacttc cctagcgacg gccccgtgat gcagaaaaag accatgggct
     4081 gggaggccag cagcgagaga atgtaccccg aggatggcgc cctgaagggc gagatcaagc
     4141 agcggctgaa gctgaaggat ggcggccact acgacgccga agtgaaaacc acctacaagg
     4201 ccaagaaacc cgtgcagctg cctggcgcct acaacgtgaa catcaagctg gacatcacca
     4261 gccacaacga ggactacacc atcgtggagc agtacgagag agccgagggc agacacagca
     4321 ccggcggcat ggacgagctg tacaaatgaa cgcgtctgga acaatcaacc tctggattac
     4381 aaaatttgtg aaagattgac tggtattctt aactatgttg ctccttttac gctatgtgga
     4441 tacgctgctt taatgccttt gtatcatgct attgcttccc gtatggcttt cattttctcc
     4501 tccttgtata aatcctggtt gctgtctctt tatgaggagt tgtggcccgt tgtcaggcaa
     4561 cgtggcgtgg tgtgcactgt gtttgctgac gcaaccccca ctggttgggg cattgccacc
     4621 acctgtcagc tcctttccgg gactttcgct ttccccctcc ctattgccac ggcggaactc
     4681 atcgccgcct gccttgcccg ctgctggaca ggggctcggc tgttgggcac tgacaattcc
     4741 gtggtgttgt cggggaagct gacgtccttt ccatggctgc tcgcctgtgt tgccacctgg
     4801 attctgcgcg ggacgtcctt ctgctacgtc ccttcggccc tcaatccagc ggaccttcct
     4861 tcccgcggcc tgctgccggc tctgcggcct cttccgcgtc ttcgccttcg ccctcagacg
     4921 agtcggatct ccctttgggc cgcctccccg cctggaatta attctgcagt cgagacctag
     4981 aaaaacatgg agcaatcaca agtagcaata cagcagctac caatgctgat tgtgcctggc
     5041 tagaagcaca agaggaggag gaggtgggtt ttccagtcac acctcaggta cctttaagac
     5101 caatgactta caaggcagct gtagatctta gccacttttt aaaagaaaag aggggactgg
     5161 aagggctaat tcactcccaa cgaagacaag atatccttga tctgtggatc taccacacac
     5221 aaggctactt ccctgattag cagaactaca caccagggcc aggggtcaga tatccactga
     5281 cctttggatg gtgctacaag ctagtaccag ttgagccaga taaggtagaa gaggccaata
     5341 aaggagagaa caccagcttg ttacaccctg tgagcctgca tgggatggat gacccggaga
     5401 gagaagtgtt agagtggagg tttgacagcc gcctagcatt tcatcacgtg gcccgagagc
     5461 tgcatccgga gtacttcaag aactgctgat atcgagcttg ctacaaggga ctttccgctg
     5521 gggactttcc agggaggcgt ggcctgggcg ggactgggga gtggcgagcc ctcagatcct
     5581 gcatataagc agctgctttt tgcctgtact gggtctctct ggttagacca gatctgagcc
     5641 tgggagctct ctggctaact agggaaccca ctgcttaagc ctcaataaag cttgccttga
     5701 gtgcttcaag tagtgtgtgc ccgtctgttg tgtgactctg gtaactagag atccctcaga
     5761 cccttttagt cagtgtggaa aatctctagc agtagtagtt catgtcatct tattattcag
     5821 tatttataac ttgcaaagaa atgaatatca gagagtgaga ggccttgaca ttgctagcgt
     5881 ttaccgtcga cctctagcta gagcttggcg taatcatggt catagctgtt tcctgtgtga
     5941 aattgttatc cgctcacaat tccacacaac atacgagccg gaagcataaa gtgtaaagcc
     6001 tggggtgcct aatgagtgag ctaactcaca ttaattgcgt tgcgctcact gcccgctttc
     6061 cagtcgggaa acctgtcgtg ccagctgcat taatgaatcg gccaacgcgc ggggagaggc
     6121 ggtttgcgta ttgggcgctc ttccgcttcc tcgctcactg actcgctgcg ctcggtcgtt
     6181 cggctgcggc gagcggtatc agctcactca aaggcggtaa tacggttatc cacagaatca
     6241 ggggataacg caggaaagaa catgtgagca aaaggccagc aaaaggccag gaaccgtaaa
     6301 aaggccgcgt tgctggcgtt tttccatagg ctccgccccc ctgacgagca tcacaaaaat
     6361 cgacgctcaa gtcagaggtg gcgaaacccg acaggactat aaagatacca ggcgtttccc
     6421 cctggaagct ccctcgtgcg ctctcctgtt ccgaccctgc cgcttaccgg atacctgtcc
     6481 gcctttctcc cttcgggaag cgtggcgctt tctcatagct cacgctgtag gtatctcagt
     6541 tcggtgtagg tcgttcgctc caagctgggc tgtgtgcacg aaccccccgt tcagcccgac
     6601 cgctgcgcct tatccggtaa ctatcgtctt gagtccaacc cggtaagaca cgacttatcg
     6661 ccactggcag cagccactgg taacaggatt agcagagcga ggtatgtagg cggtgctaca
     6721 gagttcttga agtggtggcc taactacggc tacactagaa gaacagtatt tggtatctgc
     6781 gctctgctga agccagttac cttcggaaaa agagttggta gctcttgatc cggcaaacaa
     6841 accaccgctg gtagcggtgg tttttttgtt tgcaagcagc agattacgcg cagaaaaaaa
     6901 ggatctcaag aagatccttt gatcttttct acggggtctg acgctcagtg gaacgaaaac
     6961 tcacgttaag ggattttggt catgagatta tcaaaaagga tcttcaccta gatcctttta
     7021 aattaaaaat gaagttttaa atcaatctaa agtatatatg agtaaacttg gtctgacagt
     7081 taccaatgct taatcagtga ggcacctatc tcagcgatct gtctatttcg ttcatccata
     7141 gttgcctgac tccccgtcgt gtagataact acgatacggg agggcttacc atctggcccc
     7201 agtgctgcaa tgataccgcg agacccacgc tcaccggctc cagatttatc agcaataaac
     7261 cagccagccg gaagggccga gcgcagaagt ggtcctgcaa ctttatccgc ctccatccag
     7321 tctattaatt gttgccggga agctagagta agtagttcgc cagttaatag tttgcgcaac
     7381 gttgttgcca ttgctacagg catcgtggtg tcacgctcgt cgtttggtat ggcttcattc
     7441 agctccggtt cccaacgatc aaggcgagtt acatgatccc ccatgttgtg caaaaaagcg
     7501 gttagctcct tcggtcctcc gatcgttgtc agaagtaagt tggccgcagt gttatcactc
     7561 atggttatgg cagcactgca taattctctt actgtcatgc catccgtaag atgcttttct
     7621 gtgactggtg agtactcaac caagtcattc tgagaatagt gtatgcggcg accgagttgc
     7681 tcttgcccgg cgtcaatacg ggataatacc gcgccacata gcagaacttt aaaagtgctc
     7741 atcattggaa aacgttcttc ggggcgaaaa ctctcaagga tcttaccgct gttgagatcc
     7801 agttcgatgt aacccactcg tgcacccaac tgatcttcag catcttttac tttcaccagc
     7861 gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa aaaagggaat aagggcgaca
     7921 cggaaatgtt gaatactcat actcttcctt tttcaatatt attgaagcat ttatcagggt
     7981 tattgtctca tgagcggata catatttgaa tgtatttaga aaaataaaca aataggggtt
     8041 ccgcgcacat ttccccgaaa agtgccacct gacgtcgacg gatcgggaga tcaacttgtt
     8101 tattgcagct tataatggtt acaaataaag caatagcatc acaaatttca caaataaagc
     8161 atttttttca ctgcattcta gttgtggttt gtccaaactc atcaatgtat cttatcatgt
     8221 ctggatcaac tggataactc aagctaacca aaatcatccc aaacttccca ccccataccc
     8281 tattaccact gccaattacc tgtggtttca tttactctaa acctgtgatt cctctgaatt
     8341 attttcattt taaagaaatt gtatttgtta aatatgtact acaaacttag tagt
//


载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
