pTYB12

价格:900元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: NEB
载体名称: pTYB12
质粒类型: 大肠杆菌表达载体
高拷贝/低拷贝: --
启动子: T7
克隆方法: 多克隆位点,限制性内切酶
载体大小: 7415 bp
5' 测序引物及序列: T7: TAATACGACTCACTATAGGG
3' 测序引物及序列: --
载体标签: --
载体抗性: Ampicillin
筛选标记: --
备注: --
产品目录号: N6902S
稳定性: --
组成型: --
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

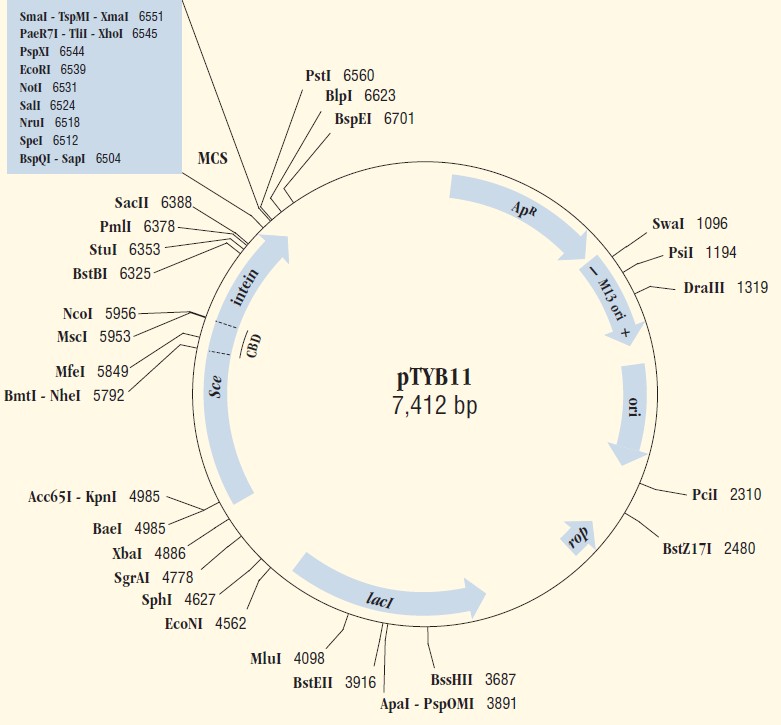

pTYB12载体图谱

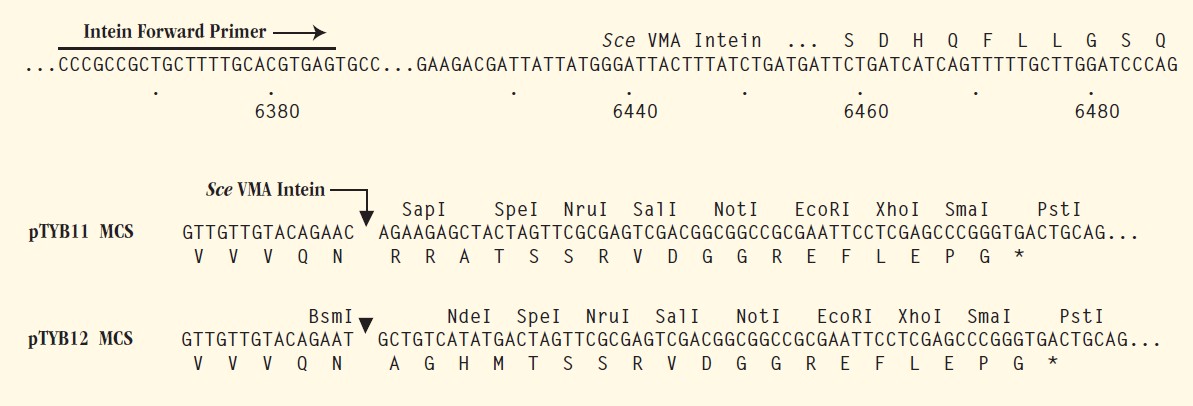

pTYB12多克隆位点

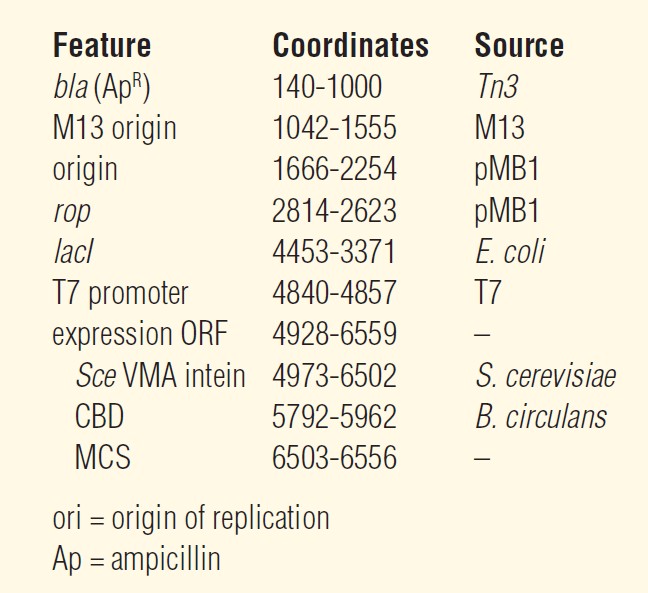

pTYB12载体特征

载体简介

pTYB11 is an E. coli plasmid cloning vector designed for recombinant protein expression and purification using the IMPACT? Kit (NEB #E6901) (1). It contains the pMB1 origin of replication from pBR322 and is maintained at a similar copy number to pBR322; in addition, pTYB11 also contains an M13 origin of replication.
The multiple cloning site (MCS) is positioned to allow translational fusion of the Sce VMA intein tag to the N-terminus of the cloned target protein (1). The chitin binding domain (CBD) from B. circulans, embedded in the intein, facilitates purification of the intein-target protein precursor.
Transcription of the gene fusion is controlled by the inducible T7 promoter, requiring E. coli strains containing integrated copies of the T7 RNA polymerase gene [e.g., C2566, C2833 or BL21(DE3)] for expression. Basal expression from the T7 promoter is minimized by the binding of the Lac repressor, encoded by the lacI gene, to the lac operator immediately downstream of the T7 promoter (2). Translation of the fusion utilizes the translation initiation signal (Shine Dalgarno sequence) from the strongly expressed T7 gene 10 protein (φ10).
pTYB12 is identical to pTYB11 except for the MCS regions
Enzymes with unique restriction sites are shown in bold type. Location of sites of all NEB restriction enzymes can be found on the NEB web site (choose Technical Reference > DNA Sequences and Maps). Restriction site coordinates refer to the position of the 5′-most base on the top strand in each recognition sequence.
Open reading frame (ORF) coordinates are in the form "translational start – translational stop”; numbers refer to positions on the top (clockwise) strand, regardless of the direction of transcription and include the start and stop codons. Component genes or regions of fusion ORFs are indented below the ORF itself.
pMB1 origin of replication coordinates include the region from the -35 promoter sequence of the RNAII transcript to the RNA/DNA switch point. For the M13 origin, the arrow shows the direction of synthesis of the (+) strand, which gets packaged into phage particles. bla (ApR) gene coordinates include the signal sequence.

载体序列

LOCUS       pTYB12	7415 bp 	DNA	SYN
DEFINITION  pTYB12
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..7415
                     /organism="pTYB12"
                     /mol_type="other DNA"
     terminator      1..28
                     /label="rrnB_T2_terminator"
     promoter        70..98
                     /label="AmpR_promoter"
     gene            140..1000
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             140..1000
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      complement(1232..1538)
                     /label="f1_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      1650..2269
                     /label="pBR322_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    2607..2629
                     /label="pGEX_3_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    complement(2623..2814)
                     /label="ROP"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     CDS             2953..3588
                     /label="ORF frame 1"
                     /translation="MDAAGPEKNHSGSMPAERQQDVAQRVGRHAGDNGLLLAETFGGG
                     TSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPERCRHLSYELHDKEDSHKCGDD
                     SHAPRPPEGADWVEGSQGHRSRSRCLMSELTYINCVALTARFPVGKPVVPAALMNRPT
                     RGERRFAYWAPGWFFFSPVRRATADCPSPPGPERVAASGPRWFAPAGENPV*"
     gene            complement(3010..3309)
                     /label="tet (611 - 312)"
                     /gene="tet (611 - 312)"
                     /translation="MDAAGPEKNHSGSMPAERQQDVAQRVGRHAGDNGLLLAETFGGG
                     TSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPERCRHLSYELHDKEDSHKCGDD
                     SHAPRPPEGADWVEGSQGHRSRSRCLMSELTYINCVALTARFPVGKPVVPAALMNRPT
                     RGERRFAYWAPGWFFFSPVRRATADCPSPPGPERVAASGPRWFAPAGENPV*"
     misc_feature    complement(3371..4462)
                     /label="lacI"
                     /translation="MDAAGPEKNHSGSMPAERQQDVAQRVGRHAGDNGLLLAETFGGG
                     TSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPERCRHLSYELHDKEDSHKCGDD
                     SHAPRPPEGADWVEGSQGHRSRSRCLMSELTYINCVALTARFPVGKPVVPAALMNRPT
                     RGERRFAYWAPGWFFFSPVRRATADCPSPPGPERVAASGPRWFAPAGENPV*"
     CDS             complement(3371..4330)
                     /label="ORF frame 2"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     CDS             complement(4203..4703)
                     /label="ORF frame 1"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     gene            complement(4554..4805)
                     /label="tet (887 - 636)"
                     /gene="tet (887 - 636)"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     misc_feature    4737..4756
                     /label="pBRrevBam_primer"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     promoter        4840..4858
                     /label="T7_promoter"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     misc_feature    4858..4885
                     /label="lacO"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     misc_feature    4903..4919
                     /label="T7_transl_en_RBS"
                     /translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
                     LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
                     RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
                     ANCRGD*"
     CDS             4928..6562
                     /label="ORF frame 2"
                     /translation="MKIEEGKLVIGSLEGCFAKGTNVLMADGSIECIENIEVGNKVMG
                     KDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTPR
                     SVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVES
                     YRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTIE
                     GPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQVA
                     KTVNLYSKVVRGASTNPGVSAWQVNTAYTAGQLVTYNGKTYKCLQPHTSLAGWEPSNV
                     PALWQLQGGHGGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETFLAG
                     LIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTKHKI
                     SYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGITLS
                     DDSDHQFLLGSQVVVQNAGHMTSSRVDGGREFLEPG*"
     terminator      6582..6710
                     /label="T7_terminator"
                     /translation="MKIEEGKLVIGSLEGCFAKGTNVLMADGSIECIENIEVGNKVMG
                     KDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTPR
                     SVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVES
                     YRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTIE
                     GPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQVA
                     KTVNLYSKVVRGASTNPGVSAWQVNTAYTAGQLVTYNGKTYKCLQPHTSLAGWEPSNV
                     PALWQLQGGHGGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETFLAG
                     LIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTKHKI
                     SYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGITLS
                     DDSDHQFLLGSQVVVQNAGHMTSSRVDGGREFLEPG*"
     misc_feature    complement(6624..6642)
                     /label="T7_Terminal_primer"
                     /translation="MKIEEGKLVIGSLEGCFAKGTNVLMADGSIECIENIEVGNKVMG
                     KDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTPR
                     SVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVES
                     YRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTIE
                     GPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQVA
                     KTVNLYSKVVRGASTNPGVSAWQVNTAYTAGQLVTYNGKTYKCLQPHTSLAGWEPSNV
                     PALWQLQGGHGGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETFLAG
                     LIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTKHKI
                     SYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGITLS
                     DDSDHQFLLGSQVVVQNAGHMTSSRVDGGREFLEPG*"
     promoter        complement(6873..6889)
                     /label="M13_forward20_primer"
                     /translation="MKIEEGKLVIGSLEGCFAKGTNVLMADGSIECIENIEVGNKVMG
                     KDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTPR
                     SVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVES
                     YRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTIE
                     GPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQVA
                     KTVNLYSKVVRGASTNPGVSAWQVNTAYTAGQLVTYNGKTYKCLQPHTSLAGWEPSNV
                     PALWQLQGGHGGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETFLAG
                     LIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTKHKI
                     SYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGITLS
                     DDSDHQFLLGSQVVVQNAGHMTSSRVDGGREFLEPG*"
     misc_feature    6882..7025
                     /label="lacZ_a"
                     /translation="MKIEEGKLVIGSLEGCFAKGTNVLMADGSIECIENIEVGNKVMG
                     KDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTPR
                     SVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVES
                     YRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTIE
                     GPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQVA
                     KTVNLYSKVVRGASTNPGVSAWQVNTAYTAGQLVTYNGKTYKCLQPHTSLAGWEPSNV
                     PALWQLQGGHGGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETFLAG
                     LIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTKHKI
                     SYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGITLS
                     DDSDHQFLLGSQVVVQNAGHMTSSRVDGGREFLEPG*"
     misc_feature    complement(6882..6904)
                     /label="M13_pUC_fwd_primer"
                     /translation="MKIEEGKLVIGSLEGCFAKGTNVLMADGSIECIENIEVGNKVMG
                     KDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTPR
                     SVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVES
                     YRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTIE
                     GPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQVA
                     KTVNLYSKVVRGASTNPGVSAWQVNTAYTAGQLVTYNGKTYKCLQPHTSLAGWEPSNV
                     PALWQLQGGHGGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETFLAG
                     LIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTKHKI
                     SYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGITLS
                     DDSDHQFLLGSQVVVQNAGHMTSSRVDGGREFLEPG*"
     misc_feature    complement(7068..7085)
                     /label="pTrcHis_rev_primer"
                     /translation="MKIEEGKLVIGSLEGCFAKGTNVLMADGSIECIENIEVGNKVMG
                     KDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTPR
                     SVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVES
                     YRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTIE
                     GPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQVA
                     KTVNLYSKVVRGASTNPGVSAWQVNTAYTAGQLVTYNGKTYKCLQPHTSLAGWEPSNV
                     PALWQLQGGHGGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETFLAG
                     LIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTKHKI
                     SYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGITLS
                     DDSDHQFLLGSQVVVQNAGHMTSSRVDGGREFLEPG*"
     misc_feature    complement(7068..7085)
                     /label="pBAD_rev_primer"
                     /translation="MKIEEGKLVIGSLEGCFAKGTNVLMADGSIECIENIEVGNKVMG
                     KDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTPR
                     SVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVES
                     YRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTIE
                     GPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQVA
                     KTVNLYSKVVRGASTNPGVSAWQVNTAYTAGQLVTYNGKTYKCLQPHTSLAGWEPSNV
                     PALWQLQGGHGGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETFLAG
                     LIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTKHKI
                     SYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGITLS
                     DDSDHQFLLGSQVVVQNAGHMTSSRVDGGREFLEPG*"
     terminator      7118..7275
                     /label="rrnB_terminator"
                     /translation="MKIEEGKLVIGSLEGCFAKGTNVLMADGSIECIENIEVGNKVMG
                     KDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTPR
                     SVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVES
                     YRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTIE
                     GPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQVA
                     KTVNLYSKVVRGASTNPGVSAWQVNTAYTAGQLVTYNGKTYKCLQPHTSLAGWEPSNV
                     PALWQLQGGHGGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETFLAG
                     LIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTKHKI
                     SYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGITLS
                     DDSDHQFLLGSQVVVQNAGHMTSSRVDGGREFLEPG*"
     terminator      7241..7284
                     /label="rrnB_T1_terminator"
                     /translation="MKIEEGKLVIGSLEGCFAKGTNVLMADGSIECIENIEVGNKVMG
                     KDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTPR
                     SVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVES
                     YRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTIE
                     GPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQVA
                     KTVNLYSKVVRGASTNPGVSAWQVNTAYTAGQLVTYNGKTYKCLQPHTSLAGWEPSNV
                     PALWQLQGGHGGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETFLAG
                     LIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTKHKI
                     SYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGITLS
                     DDSDHQFLLGSQVVVQNAGHMTSSRVDGGREFLEPG*"
ORIGIN
    1 AGAAGGCCAT CCTGACGGAT GGCCTTTTTG CGTTTCTACA AACTCTTTTT GTTTATTTTT
   61 CTAAATACAT TCAAATATGT ATCCGCTCAT GAGACAATAA CCCTGATAAA TGCTTCAATA
  121 ATATTGAAAA AGGAAGAGTA TGAGTATTCA ACATTTCCGT GTCGCCCTTA TTCCCTTTTT
  181 TGCGGCATTT TGCCTTCCTG TTTTTGCTCA CCCAGAAACG CTGGTGAAAG TAAAAGATGC
  241 TGAAGATCAG TTGGGTGCAC GAGTGGGTTA CATCGAACTG GATCTCAACA GCGGTAAGAT
  301 CCTTGAGAGT TTTCGCCCCG AAGAACGTTC TCCAATGATG AGCACTTTTA AAGTTCTGCT
  361 ATGTGGCGCG GTATTATCCC GTGTTGACGC CGGGCAAGAG CAACTCGGTC GCCGCATACA
  421 CTATTCTCAG AATGACTTGG TTGAGTACTC ACCAGTCACA GAAAAGCATC TTACGGATGG
  481 CATGACAGTA AGAGAATTAT GCAGTGCTGC CATAACCATG AGTGATAACA CTGCGGCCAA
  541 CTTACTTCTG ACAACGATCG GAGGACCGAA GGAGCTAACC GCTTTTTTGC ACAACATGGG
  601 GGATCATGTA ACTCGCCTTG ATCGTTGGGA ACCGGAGCTG AATGAAGCCA TACCAAACGA
  661 CGAGCGTGAC ACCACGATGC CTGTAGCAAT GGCAACAACG TTGCGCAAAC TATTAACTGG
  721 CGAACTACTT ACTCTAGCTT CCCGGCAACA ATTAATAGAC TGGATGGAGG CGGATAAAGT
  781 TGCAGGACCA CTTCTGCGCT CGGCCCTTCC GGCTGGCTGG TTTATTGCTG ATAAATCTGG
  841 AGCCGGTGAG CGTGGGTCTC GCGGTATCAT TGCAGCACTG GGGCCAGATG GTAAGCCCTC
  901 CCGTATCGTA GTTATCTACA CGACGGGGAG TCAGGCAACT ATGGATGAAC GAAATAGACA
  961 GATCGCTGAG ATAGGTGCCT CACTGATTAA GCATTGGTAA CTGTCAGACC AAGTTTACTC
 1021 ATATATACTT TAGATTGATT TACCCCGGTT GATAATCAGA AAAGCCCCAA AAACAGGAAG
 1081 ATTGTATAAG CAAATATTTA AATTGTAAAC GTTAATATTT TGTTAAAATT CGCGTTAAAT
 1141 TTTTGTTAAA TCAGCTCATT TTTTAACCAA TAGGCCGAAA TCGGCAAAAT CCCTTATAAA
 1201 TCAAAAGAAT AGCCCGAGAT AGGGTTGAGT GTTGTTCCAG TTTGGAACAA GAGTCCACTA
 1261 TTAAAGAACG TGGACTCCAA CGTCAAAGGG CGAAAAACCG TCTATCAGGG CGATGGCCCA
 1321 CTACGTGAAC CATCACCCAA ATCAAGTTTT TTGGGGTCGA GGTGCCGTAA AGCACTAAAT
 1381 CGGAACCCTA AAGGGAGCCC CCGATTTAGA GCTTGACGGG GAAAGCCGGC GAACGTGGCG
 1441 AGAAAGGAAG GGAAGAAAGC GAAAGGAGCG GGCGCTAGGG CGCTGGCAAG TGTAGCGGTC
 1501 ACGCTGCGCG TAACCACCAC ACCCGCCGCG CTTAATGCGC CGCTACAGGG CGCGTAAAAG
 1561 GATCTAGGTG AAGATCCTTT TTGATAATCT CATGACCAAA ATCCCTTAAC GTGAGTTTTC
 1621 GTTCCACTGA GCGTCAGACC CCGTAGAAAA GATCAAAGGA TCTTCTTGAG ATCCTTTTTT
 1681 TCTGCGCGTA ATCTGCTGCT TGCAAACAAA AAAACCACCG CTACCAGCGG TGGTTTGTTT
 1741 GCCGGATCAA GAGCTACCAA CTCTTTTTCC GAAGGTAACT GGCTTCAGCA GAGCGCAGAT
 1801 ACCAAATACT GTCCTTCTAG TGTAGCCGTA GTTAGGCCAC CACTTCAAGA ACTCTGTAGC
 1861 ACCGCCTACA TACCTCGCTC TGCTAATCCT GTTACCAGTG GCTGCTGCCA GTGGCGATAA
 1921 GTCGTGTCTT ACCGGGTTGG ACTCAAGACG ATAGTTACCG GATAAGGCGC AGCGGTCGGG
 1981 CTGAACGGGG GGTTCGTGCA CACAGCCCAG CTTGGAGCGA ACGACCTACA CCGAACTGAG
 2041 ATACCTACAG CGTGAGCTAT GAGAAAGCGC CACGCTTCCC GAAGGGAGAA AGGCGGACAG
 2101 GTATCCGGTA AGCGGCAGGG TCGGAACAGG AGAGCGCACG AGGGAGCTTC CAGGGGGAAA
 2161 CGCCTGGTAT CTTTATAGTC CTGTCGGGTT TCGCCACCTC TGACTTGAGC GTCGATTTTT
 2221 GTGATGCTCG TCAGGGGGGC GGAGCCTATG GAAAAACGCC AGCAACGCGG CCTTTTTACG
 2281 GTTCCTGGCC TTTTGCTGGC CTTTTGCTCA CATGTTCTTT CCTGCGTTAT CCCCTGATTC
 2341 TGTGGATAAC CGTATTACCG CCTTTGAGTG AGCTGATACC GCTCGCCGCA GCCGAACGAC
 2401 CGAGCGCAGC GAGTCAGTGA GCGAGGAAGC TATGGTGCAC TCTCAGTACA ATCTGCTCTG
 2461 ATGCCGCATA GTTAAGCCAG TATACACTCC GCTATCGCTA CGTGACTGGG TCATGGCTGC
 2521 GCCCCGACAC CCGCCAACAC CCGCTGACGC GCCCTGACGG GCTTGTCTGC TCCCGGCATC
 2581 CGCTTACAGA CAAGCTGTGA CCGTCTCCGG GAGCTGCATG TGTCAGAGGT TTTCACCGTC
 2641 ATCACCGAAA CGCGCGAGGC AGCTGCGGTA AAGCTCATCA GCGTGGTCGT GCAGCGATTC
 2701 ACAGATGTCT GCCTGTTCAT CCGCGTCCAG CTCGTTGAGT TTCTCCAGAA GCGTTAATGT
 2761 CTGGCTTCTG ATAAAGCGGG CCATGTTAAG GGCGGTTTTT TCCTGTTTGG TCACTGATGC
 2821 CTCCGTGTAA GGGGGATTTC TGTTCATGGG GGTAATGATA CCGATGAAAC GAGAGAGGAT
 2881 GCTCACGATA CGGGTTACTG ATGATGAACA TGCCCGGTTA CTGGAACGTT GTGAGGGTAA
 2941 ACAACTGGCG GTATGGATGC GGCGGGACCA GAGAAAAATC ACTCAGGGTC AATGCCAGCC
 3001 GAACGCCAGC AAGACGTAGC CCAGCGCGTC GGCCGCCATG CCGGCGATAA TGGCCTGCTT
 3061 CTCGCCGAAA CGTTTGGTGG CGGGACCAGT GACGAAGGCT TGAGCGAGGG CGTGCAAGAT
 3121 TCCGAATACC GCAAGCGACA GGCCGATCAT CGTCGCGCTC CAGCGAAAGC GGTCCTCGCC
 3181 GAAAATGACC CAGAGCGCTG CCGGCACCTG TCCTACGAGT TGCATGATAA AGAAGACAGT
 3241 CATAAGTGCG GCGACGATAG TCATGCCCCG CGCCCACCGG AAGGAGCTGA CTGGGTTGAA
 3301 GGCTCTCAAG GGCATCGGTC GAGATCCCGG TGCCTAATGA GTGAGCTAAC TTACATTAAT
 3361 TGCGTTGCGC TCACTGCCCG CTTTCCAGTC GGGAAACCTG TCGTGCCAGC TGCATTAATG
 3421 AATCGGCCAA CGCGCGGGGA GAGGCGGTTT GCGTATTGGG CGCCAGGGTG GTTTTTCTTT
 3481 TCACCAGTGA GACGGGCAAC AGCTGATTGC CCTTCACCGC CTGGCCCTGA GAGAGTTGCA
 3541 GCAAGCGGTC CACGCTGGTT TGCCCCAGCA GGCGAAAATC CTGTTTGATG GTGGTTAACG
 3601 GCGGGATATA ACATGAGCTG TCTTCGGTAT CGTCGTATCC CACTACCGAG ATATCCGCAC
 3661 CAACGCGCAG CCCGGACTCG GTAATGGCGC GCATTGCGCC CAGCGCCATC TGATCGTTGG
 3721 CAACCAGCAT CGCAGTGGGA ACGATGCCCT CATTCAGCAT TTGCATGGTT TGTTGAAAAC
 3781 CGGACATGGC ACTCCAGTCG CCTTCCCGTT CCGCTATCGG CTGAATTTGA TTGCGAGTGA
 3841 GATATTTATG CCAGCCAGCC AGACGCAGAC GCGCCGAGAC AGAACTTAAT GGGCCCGCTA
 3901 ACAGCGCGAT TTGCTGGTGA CCCAATGCGA CCAGATGCTC CACGCCCAGT CGCGTACCGT
 3961 CTTCATGGGA GAAAATAATA CTGTTGATGG GTGTCTGGTC AGAGACATCA AGAAATAACG
 4021 CCGGAACATT AGTGCAGGCA GCTTCCACAG CAATGGCATC CTGGTCATCC AGCGGATAGT
 4081 TAATGATCAG CCCACTGACG CGTTGCGCGA GAAGATTGTG CACCGCCGCT TTACAGGCTT
 4141 CGACGCCGCT TCGTTCTACC ATCGACACCA CCACGCTGGC ACCCAGTTGA TCGGCGCGAG
 4201 ATTTAATCGC CGCGACAATT TGCGACGGCG CGTGCAGGGC CAGACTGGAG GTGGCAACGC
 4261 CAATCAGCAA CGACTGTTTG CCCGCCAGTT GTTGTGCCAC GCGGTTGGGA ATGTAATTCA
 4321 GCTCCGCCAT CGCCGCTTCC ACTTTTTCCC GCGTTTTCGC AGAAACGTGG CTGGCCTGGT
 4381 TCACCACGCG GGAAACGGTC TGATAAGAGA CACCGGCATA CTCTGCGACA TCGTATAACG
 4441 TTACTGGTTT CACATTCACC ACCCTGAATT GACTCTCTTC CGGGCGCTAT CATGCCATAC
 4501 CGCGAAAGGT TTTGCGCCAT TCGATGGTGT CCGGGATCTC GACGCTCTCC CTTATGCGAC
 4561 TCCTGCATTA GGAAGCAGCC CAGTAGTAGG TTGAGGCCGT TGAGCACCGC CGCCGCAAGG
 4621 AATGGTGCAT GCAAGGAGAT GGCGCCCAAC AGTCCCCCGG CCACGGGGCC TGCCACCATA
 4681 CCCACGCCGA AACAAGCGCT CATGAGCCCG AAGTGGCGAG CCCGATCTTC CCCATCGGTG
 4741 ATGTCGGCGA TATAGGCGCC AGCAACCGCA CCTGTGGCGC CGGTGATGCC GGCCACGATG
 4801 CGTCCGGCGT AGAGGATCGA GATCTCGATC CCGCGAAATT AATACGACTC ACTATAGGGG
 4861 AATTGTGAGC GGATAACAAT TCCCCTCTAG AAATAATTTT GTTTAACTTT AAGAAGGAGA
 4921 TATACTTATG AAAATCGAAG AAGGTAAACT GGTAATCGGT TCCCTGGAGG GTTGCTTTGC
 4981 CAAGGGTACC AATGTTTTAA TGGCGGATGG GTCTATTGAA TGTATTGAAA ACATTGAGGT
 5041 TGGTAATAAG GTCATGGGTA AAGATGGCAG ACCTCGTGAG GTAATTAAAT TGCCCAGAGG
 5101 AAGAGAAACT ATGTACAGCG TCGTGCAGAA AAGTCAGCAC AGAGCCCACA AAAGTGACTC
 5161 AAGTCGTGAA GTGCCAGAAT TACTCAAGTT TACGTGTAAT GCGACCCATG AGTTGGTTGT
 5221 TAGAACACCT CGTAGTGTCC GCCGTTTGTC TCGTACCATT AAGGGTGTCG AATATTTTGA
 5281 AGTTATTACT TTTGAGATGG GCCAAAAGAA AGCCCCCGAC GGTAGAATTG TTGAGCTTGT
 5341 CAAGGAAGTT TCAAAGAGCT ACCCAATATC TGAGGGGCCT GAGAGAGCCA ACGAATTAGT
 5401 AGAATCCTAT AGAAAGGCTT CAAATAAAGC TTATTTTGAG TGGACTATTG AGGCCAGAGA
 5461 TCTTTCTCTG TTGGGTTCCC ATGTTCGTAA AGCTACCTAC CAGACTTACG CTCCAATTCT
 5521 TTATGAGAAT GACCACTTTT TCGACTACAT GCAAAAAAGT AAGTTTCATC TCACCATTGA
 5581 AGGTCCAAAA GTACTTGCTT ATTTACTTGG TTTATGGATT GGTGATGGAT TGTCTGACAG
 5641 GGCAACTTTT TCGGTTGATT CCAGAGATAC TTCTTTGATG GAACGTGTTA CTGAATATGC
 5701 TGAAAAGTTG AATTTGTGCG CCGAGTATAA GGACAGAAAA GAACCACAAG TTGCCAAAAC
 5761 TGTTAATTTG TACTCTAAAG TTGTCAGAGG TGCTAGCACA AATCCTGGTG TATCCGCTTG
 5821 GCAGGTCAAC ACAGCTTATA CTGCGGGACA ATTGGTCACA TATAACGGCA AGACGTATAA
 5881 ATGTTTGCAG CCCCACACCT CCTTGGCAGG ATGGGAACCA TCCAACGTTC CTGCCTTGTG
 5941 GCAGCTTCAA GGTGGCCATG GTGGTATTCG CAATAATCTT AATACTGAGA ATCCATTATG
 6001 GGACGCTATT GTTGGCTTAG GATTCTTGAA GGACGGTGTC AAAAATATTC CTTCTTTCTT
 6061 GTCTACGGAC AATATCGGTA CTCGTGAAAC ATTTCTTGCT GGTCTAATTG ATTCTGATGG
 6121 CTATGTTACT GATGAGCATG GTATTAAAGC AACAATAAAG ACAATTCATA CTTCTGTCAG
 6181 AGATGGTTTG GTTTCCCTTG CTCGTTCTTT AGGCTTAGTA GTCTCGGTTA ACGCAGAACC
 6241 TGCTAAGGTT GACATGAATG TCACCAAACA TAAAATTAGT TATGCTATTT ATATGTCTGG
 6301 TGGAGATGTT TTGCTTAACG TTCTTTCGAA GTGTGCCGGC TCTAAAAAAT TCAGGCCTGC
 6361 TCCCGCCGCT GCTTTTGCAC GTGAGTGCCG CGGATTTTAT TTCGAGTTAC AAGAATTGAA
 6421 GGAAGACGAT TATTATGGGA TTACTTTATC TGATGATTCT GATCATCAGT TTTTGCTTGG
 6481 ATCCCAGGTT GTTGTACAGA ATGCTGGTCA TATGACTAGT TCGCGAGTCG ACGGCGGCCG
 6541 CGAATTCCTC GAGCCCGGGT GACTGCAGGA AGGGGATCCG GCTGCTAACA AAGCCCGAAA
 6601 GGAAGCTGAG TTGGCTGCTG CCACCGCTGA GCAATAACTA GCATAACCCC TTGGGGCCTC
 6661 TAAACGGGTC TTGAGGGGTT TTTTGCTGAA AGGAGGAACT ATATCCGGAT ATCCCGCAAG
 6721 AGGCCCGGCA GTACCGGCAT AACCAAGCCT ATGCCTACAG CATCCAGGGT GACGGTGCCG
 6781 AGGATGACGA TGAGCGCATT GTTAGATTTC ATACACGGTG CCTGACTGCG TTAGCAATTT
 6841 AACTGTGATA AACTACCGCA TTAAAGCTTG GCACTGGCCG TCGTTTTACA ACGTCGTGAC
 6901 TGGGAAAACC CTGGCGTTAC CCAACTTAAT CGCCTTGCAG CACATCCCCC TTTCGCCAGC
 6961 TGGCGTAATA GCGAAGAGGC CCGCACCGAT CGCCCTTCCC AACAGTTGCG CAGCCTGAAT
 7021 GGCGAATGGC AGCTTGGCTG TTTTGGCGGA TGAGATAAGA TTTTCAGCCT GATACAGATT
 7081 AAATCAGAAC GCAGAAGCGG TCTGATAAAA CAGAATTTGC CTGGCGGCAG TAGCGCGGTG
 7141 GTCCCACCTG ACCCCATGCC GAACTCAGAA GTGAAACGCC GTAGCGCCGA TGGTAGTGTG
 7201 GGGTCTCCCC ATGCGAGAGT AGGGAACTGC CAGGCATCAA ATAAAACGAA AGGCTCAGTC
 7261 GAAAGACTGG GCCTTTCGTT TTATCTGTTG TTTGTCGGTG AACGCTCTCC TGAGTAGGAC
 7321 AAATCCGCCG GGAGCGGATT TGAACGTTGC GAAGCAACGG CCCGGAGGGT GGCGGGCAGG
 7381 ACGCCCGCCA TAAACTGCCA GGCATCAAAT TAAGC
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
