pIRES

价格:800元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pIRES
质粒类型: 哺乳动物细胞表达载体;双顺反子载体;双表达载体
启动子: CMV
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 6092 bp
5' 测序引物:   CMV-F: 5'-CGCAAATGGGCGGTAGGCGTG-3'
3' 测序引物: pIRES-R:5'-GCCCTAGATGCATGCTCG-3'
载体标签:
载体抗性: 氨苄青霉素(Ampicillin)
筛选标记: 新霉素(Neomycin)
备注:
pIRES载体含有IRES元件,可以同时表达两个基因。
产品目录号: 631605
稳定性: 稳表达 或 瞬表达
组成型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

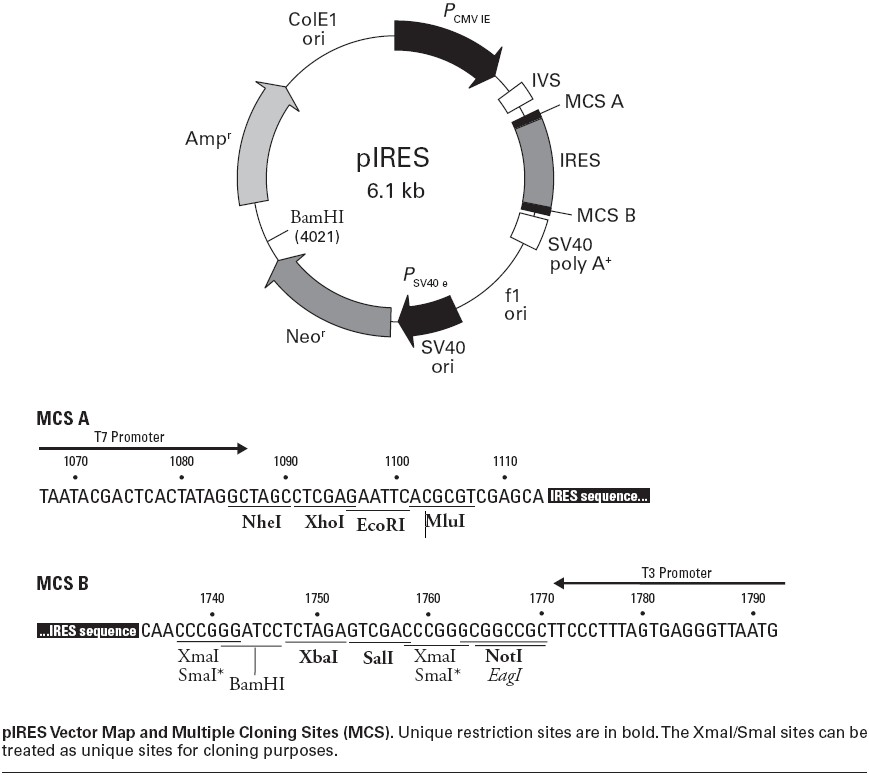

pIRES载体图谱和多克隆位点

载体简介

pIRES is a mammalian expression vector that allows high level expression of two genes of interest from the same bicistronic mRNA transcript. The vector contains the encephalomyocarditis virus (ECMV) internal ribosome entry site (IRES) flanked by two multiple cloning sites (MCS A and B), an arrangement that allows cap-independent translation of the gene cloned into MCS B (1–3). pIRES utilizes a partially disabled IRES sequence (1) that reduces the rate at which the gene cloned into MCS B is translated relative to that of MCS A.

Expression of the bicistronic transcript is driven by the constitutively active cytomegalovirus immediate early promoter (PCMV IE), located upstream of MCS A. An intervening sequence (IVS) known to enhance the stability of mRNA (4) is located between PCMV IE and MCS A, and is efficiently spliced out following transcription. SV40 polyadenylation signals downstream of MCS B direct proper processing of the 3' end of the mRNA. Bacteriophage T7 and T3 promoters are located upstream of MCS A and downstream of MCS B, respectively. pIRES includes a neomycin resistance gene (Neor) to aid in the selection of transfected cells. Neor is expressed from the SV40 enhancer/promoter, and a synthetic polyadenyla¬tion signal directs proper processing of the 3' end of the Neor mRNA. The SV40 origin al¬lows for replication in mammalian cells expressing the SV40 T antigen. The vector also contains an ampicillin resistance gene (Ampr), and a ColE1 origin of replication for se¬lection and propagation in E. coli, and an f1 origin for single-stranded DNA production.


载体序列

LOCUS       pIRES                   6107 bp    DNA     circular SYN 30-DEC-2014
DEFINITION  pIRES.
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     http://www.biofeng.com/
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..6107
                     /organism="pIRES"
                     /mol_type="other DNA"
                     /vntifkey="98"
     promoter        163..723
                     /vntifkey="30"
                     /label=CMV_immearly_promoter
     misc_feature    218..505
                     /vntifkey="21"
                     /label=CAG_enhancer
     promoter        669..750
                     /vntifkey="30"
                     /label=CMV_promoter
     misc_feature    680..700
                     /vntifkey="21"
                     /label=CMV_fwd_primer
     misc_feature    724..743
                     /vntifkey="21"
                     /label=pCEP_fwd_primer
     misc_feature    726..750
                     /vntifkey="21"
                     /label=LNCX_primer
     misc_feature    890..1022
                     /vntifkey="21"
                     /label=chim_int
     promoter        1067..1085
                     /vntifkey="30"
                     /label=T7_promoter
     misc_feature    1136..1714
                     /vntifkey="21"
                     /label=IRES
     terminator      complement(1806..1925)
                     /vntifkey="43"
                     /label=SV40_PA_terminator
     misc_feature    complement(1820..1839)
                     /vntifkey="21"
                     /label=EBV_rev_primer
     rep_origin      2133..2439
                     /vntifkey="33"
                     /label=f1_origin
     misc_feature    complement(2713..2733)
                     /vntifkey="21"
                     /label=pBABE_3_primer
     misc_feature    complement(2719..2934)
                     /vntifkey="21"
                     /label=SV40_enhancer
     promoter        2731..2999
                     /vntifkey="30"
                     /label=SV40_promoter
     rep_origin      2898..2975
                     /vntifkey="33"
                     /label=SV40_origin
     misc_feature    2960..2979
                     /vntifkey="21"
                     /label=SV40pro_F_primer
     CDS             3098..3892
                     /vntifkey="4"
                     /label=ORF\frame\2
     gene            3101..3889
                     /gene="NeoR/KanR"
                     /vntifkey="60"
     CDS             complement(3407..3943)
                     /vntifkey="4"
                     /label=ORF\frame\2
     terminator      3956..4004
                     /vntifkey="43"
                     /label=synth_PA_terminator
     misc_feature    4164..4186
                     /vntifkey="21"
                     /label=pGEX_3_primer
     promoter        4345..4373
                     /vntifkey="30"
                     /label=AmpR_promoter
     gene            4415..5275
                     /gene="Ampicillin"
                     /vntifkey="60"
     CDS             4415..5275
                     /vntifkey="4"
                     /label=ORF\frame\2
     rep_origin      5430..6049
                     /vntifkey="33"
                     /label=pBR322_origin
BASE COUNT     1465 a      1547 c      1532 g      1563 t
ORIGIN
        1 tcaatattgg ccattagcca tattattcat tggttatata gcataaatca atattggcta
       61 ttggccattg catacgttgt atctatatca taatatgtac atttatattg gctcatgtcc
      121 aatatgaccg ccatgttggc attgattatt gactagttat taatagtaat caattacggg
      181 gtcattagtt catagcccat atatggagtt ccgcgttaca taacttacgg taaatggccc
      241 gcctggctga ccgcccaacg acccccgccc attgacgtca ataatgacgt atgttcccat
      301 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      361 ccacttggca gtacatcaag tgtatcatat gccaagtccg ccccctattg acgtcaatga
      421 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttacgggact ttcctacttg
      481 gcagtacatc tacgtattag tcatcgctat taccatggtg atgcggtttt ggcagtacac
      541 caatgggcgt ggatagcggt ttgactcacg gggatttcca agtctccacc ccattgacgt
      601 caatgggagt ttgttttggc accaaaatca acgggacttt ccaaaatgtc gtaacaactg
      661 cgatcgcccg ccccgttgac gcaaatgggc ggtaggcgtg tacggtggga ggtctatata
      721 agcagagctc gtttagtgaa ccgtcagatc actagaagct ttattgcggt agtttatcac
      781 agttaaattg ctaacgcagt cagtgcttct gacacaacag tctcgaactt aagctgcagt
      841 gactctctta aggtagcctt gcagaagttg gtcgtgaggc actgggcagg taagtatcaa
      901 ggttacaaga caggtttaag gagaccaata gaaactgggc ttgtcgagac agagaagact
      961 cttgcgtttc tgataggcac ctattggtct tactgacatc cactttgcct ttctctccac
     1021 aggtgtccac tcccagttca attacagctc ttaaggctag agtacttaat acgactcact
     1081 ataggctagc ctcgagaatt cacgcgtcga gcatgcatct agggcggcca attccgcccc
     1141 tctccccccc ccccctctcc ctcccccccc cctaacgtta ctggccgaag ccgcttggaa
     1201 taaggccggt gtgcgtttgt ctatatgtga ttttccacca tattgccgtc ttttggcaat
     1261 gtgagggccc ggaaacctgg ccctgtcttc ttgacgagca ttcctagggg tctttcccct
     1321 ctcgccaaag gaatgcaagg tctgttgaat gtcgtgaagg aagcagttcc tctggaagct
     1381 tcttgaagac aaacaacgtc tgtagcgacc ctttgcaggc agcggaaccc cccacctggc
     1441 gacaggtgcc tctgcggcca aaagccacgt gtataagata cacctgcaaa ggcggcacaa
     1501 ccccagtgcc acgttgtgag ttggatagtt gtggaaagag tcaaatggct ctcctcaagc
     1561 gtattcaaca aggggctgaa ggatgcccag aaggtacccc attgtatggg atctgatctg
     1621 gggcctcggt gcacatgctt tacatgtgtt tagtcgaggt taaaaaaacg tctaggcccc
     1681 ccgaaccacg gggacgtggt tttcctttga aaaacacgat gataagcttg ccacaacccg
     1741 ggatcctcta gagtcgaccc gggcggccgc ttccctttag tgagggttaa tgcttcgagc
     1801 agacatgata agatacattg atgagtttgg acaaaccaca actagaatgc agtgaaaaaa
     1861 atgctttatt tgtgaaattt gtgatgctat tgctttattt gtaaccatta taagctgcaa
     1921 taaacaagtt aacaacaaca attgcattca ttttatgttt caggttcagg gggagatgtg
     1981 ggaggttttt taaagcaagt aaaacctcta caaatgtggt aaaatccgat aaggatcgat
     2041 ccgggctggc gtaatagcga agaggcccgc accgatcgcc cttcccaaca gttgcgcagc
     2101 ctgaatggcg aatggacgcg ccctgtagcg gcgcattaag cgcggcgggt gtggtggtta
     2161 cgcgcagcgt gaccgctaca cttgccagcg ccctagcgcc cgctcctttc gctttcttcc
     2221 cttcctttct cgccacgttc gccggctttc cccgtcaagc tctaaatcgg gggctccctt
     2281 tagggttccg atttagagct ttacggcacc tcgaccgcaa aaaacttgat ttgggtgatg
     2341 gttcacgtag tgggccatcg ccctgataga cggtttttcg ccctttgacg ttggagtcca
     2401 cgttctttaa tagtggactc ttgttccaaa ctggaacaac actcaaccct atctcggtct
     2461 attcttttga tttataaggg attttgccga tttcggccta ttggttaaaa aatgagctga
     2521 tttaacaaat atttaacgcg aattttaaca aaatattaac gtttacaatt tcgcctgatg
     2581 cggtattttc tccttacgca tctgtgcggt atttcacacc gcatacgcgg atctgcgcag
     2641 caccatggcc tgaaataacc tctgaaagag gaacttggtt aggtaccttc tgaggcggaa
     2701 agaaccagct gtggaatgtg tgtcagttag ggtgtggaaa gtccccaggc tccccagcag
     2761 gcagaagtat gcaaagcatg catctcaatt agtcagcaac caggtgtgga aagtccccag
     2821 gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca accatagtcc
     2881 cgcccctaac tccgcccatc ccgcccctaa ctccgcccag ttccgcccat tctccgcccc
     2941 atggctgact aatttttttt atttatgcag aggccgaggc cgcctcggcc tctgagctat
     3001 tccagaagta gtgaggaggc ttttttggag gcctaggctt ttgcaaaaag cttgattctt
     3061 ctgacacaac agtctcgaac ttaaggctag agccaccatg attgaacaag atggattgca
     3121 cgcaggttct ccggccgctt gggtggagag gctattcggc tatgactggg cacaacagac
     3181 aatcggctgc tctgatgccg ccgtgttccg gctgtcagcg caggggcgcc cggttctttt
     3241 tgtcaagacc gacctgtccg gtgccctgaa tgaactgcag gacgaggcag cgcggctatc
     3301 gtggctggcc acgacgggcg ttccttgcgc agctgtgctc gacgttgtca ctgaagcggg
     3361 aagggactgg ctgctattgg gcgaagtgcc ggggcaggat ctcctgtcat ctcaccttgc
     3421 tcctgccgag aaagtatcca tcatggctga tgcaatgcgg cggctgcata cgcttgatcc
     3481 ggctacctgc ccattcgacc accaagcgaa acatcgcatc gagcgagcac gtactcggat
     3541 ggaagccggt cttgtcgatc aggatgatct ggacgaagag catcaggggc tcgcgccagc
     3601 cgaactgttc gccaggctca aggcgcgcat gcccgacggc gaggatctcg tcgtgaccca
     3661 tggcgatgcc tgcttgccga atatcatggt ggaaaatggc cgcttttctg gattcatcga
     3721 ctgtggccgg ctgggtgtgg cggaccgcta tcaggacata gcgttggcta cccgtgatat
     3781 tgctgaagag cttggcggcg aatgggctga ccgcttcctc gtgctttacg gtatcgccgc
     3841 tcccgattcg cagcgcatcg ccttctatcg ccttcttgac gagttcttct gagcgggact
     3901 ctggggttcg aaatgaccga ccaagcgacg cccaacctgc catcacgatg gccgcaataa
     3961 aatatcttta ttttcattac atctgtgtgt tggttttttg tgtgaatcga tagcgataag
     4021 gatccgcgta tggtgcactc tcagtacaat ctgctctgat gccgcatagt taagccagcc
     4081 ccgacacccg ccaacacccg ctgacgcgcc ctgacgggct tgtctgctcc cggcatccgc
     4141 ttacagacaa gctgtgaccg tctccgggag ctgcatgtgt cagaggtttt caccgtcatc
     4201 accgaaacgc gcgagacgaa agggcctcgt gatacgccta tttttatagg ttaatgtcat
     4261 gataataatg gtttcttaga cgtcaggtgg cacttttcgg ggaaatgtgc gcggaacccc
     4321 tatttgttta tttttctaaa tacattcaaa tatgtatccg ctcatgagac aataaccctg
     4381 ataaatgctt caataatatt gaaaaaggaa gagtatgagt attcaacatt tccgtgtcgc
     4441 ccttattccc ttttttgcgg cattttgcct tcctgttttt gctcacccag aaacgctggt
     4501 gaaagtaaaa gatgctgaag atcagttggg tgcacgagtg ggttacatcg aactggatct
     4561 caacagcggt aagatccttg agagttttcg ccccgaagaa cgttttccaa tgatgagcac
     4621 ttttaaagtt ctgctatgtg gcgcggtatt atcccgtatt gacgccgggc aagagcaact
     4681 cggtcgccgc atacactatt ctcagaatga cttggttgag tactcaccag tcacagaaaa
     4741 gcatcttacg gatggcatga cagtaagaga attatgcagt gctgccataa ccatgagtga
     4801 taacactgcg gccaacttac ttctgacaac gatcggagga ccgaaggagc taaccgcttt
     4861 tttgcacaac atgggggatc atgtaactcg ccttgatcgt tgggaaccgg agctgaatga
     4921 agccatacca aacgacgagc gtgacaccac gatgcctgta gcaatggcaa caacgttgcg
     4981 caaactatta actggcgaac tacttactct agcttcccgg caacaattaa tagactggat
     5041 ggaggcggat aaagttgcag gaccacttct gcgctcggcc cttccggctg gctggtttat
     5101 tgctgataaa tctggagccg gtgagcgtgg gtctcgcggt atcattgcag cactggggcc
     5161 agatggtaag ccctcccgta tcgtagttat ctacacgacg gggagtcagg caactatgga
     5221 tgaacgaaat agacagatcg ctgagatagg tgcctcactg attaagcatt ggtaactgtc
     5281 agaccaagtt tactcatata tactttagat tgatttaaaa cttcattttt aatttaaaag
     5341 gatctaggtg aagatccttt ttgataatct catgaccaaa atcccttaac gtgagttttc
     5401 gttccactga gcgtcagacc ccgtagaaaa gatcaaagga tcttcttgag atcctttttt
     5461 tctgcgcgta atctgctgct tgcaaacaaa aaaaccaccg ctaccagcgg tggtttgttt
     5521 gccggatcaa gagctaccaa ctctttttcc gaaggtaact ggcttcagca gagcgcagat
     5581 accaaatact gtccttctag tgtagccgta gttaggccac cacttcaaga actctgtagc
     5641 accgcctaca tacctcgctc tgctaatcct gttaccagtg gctgctgcca gtggcgataa
     5701 gtcgtgtctt accgggttgg actcaagacg atagttaccg gataaggcgc agcggtcggg
     5761 ctgaacgggg ggttcgtgca cacagcccag cttggagcga acgacctaca ccgaactgag
     5821 atacctacag cgtgagctat gagaaagcgc cacgcttccc gaagggagaa aggcggacag
     5881 gtatccggta agcggcaggg tcggaacagg agagcgcacg agggagcttc cagggggaaa
     5941 cgcctggtat ctttatagtc ctgtcgggtt tcgccacctc tgacttgagc gtcgattttt
     6001 gtgatgctcg tcaggggggc ggagcctatg gaaaaacgcc agcaacgcgg cctttttacg
     6061 gttcctggcc ttttgctggc cttttgctca catggctcga cagatct
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
