pIRES-EGFP

价格:800元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pIRES-EGFP, pIRES EGFP
质粒类型: 哺乳动物细胞表达载体;双顺反子载体;荧光报告载体
启动子: CMV
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5162 bp
5' 测序引物:   CMV-F: 5'-CGCAAATGGGCGGTAGGCGTG-3'
3' 测序引物: EGFP-N: 5'-CGTCGCCGTCCAGCTCGACCAG-3'
载体标签: EGFP
载体抗性: 氨苄青霉素
筛选标记: --
备注:
通过一个转录mRNA,能够同时表达EGFP蛋白和一个目的基因。
产品目录号: 6064-1
稳定性: 稳表达 或 瞬表达
组成型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

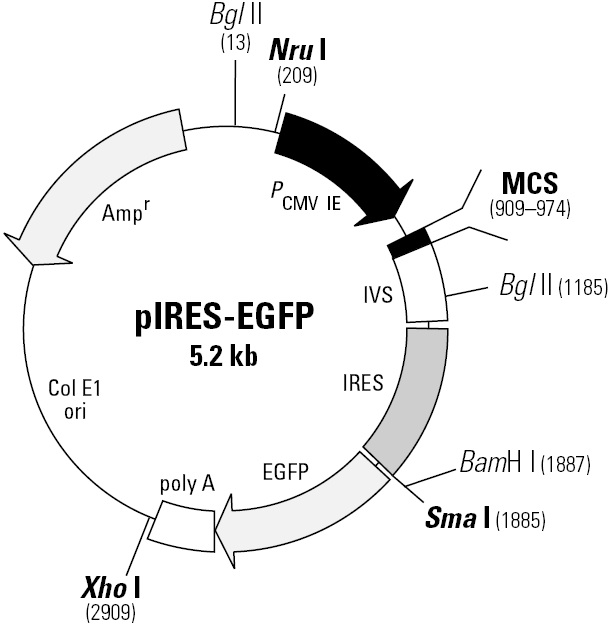

pIRES-EGFP载体图谱

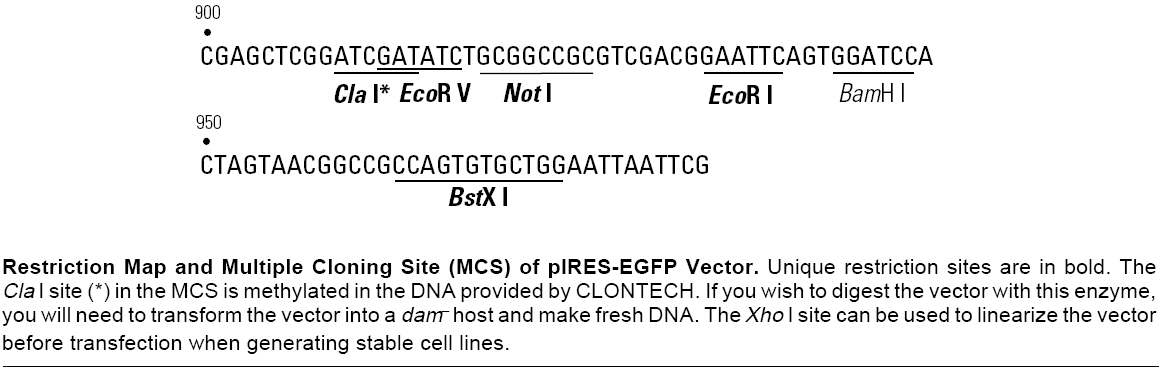

pIRES-EGFP多克隆位点

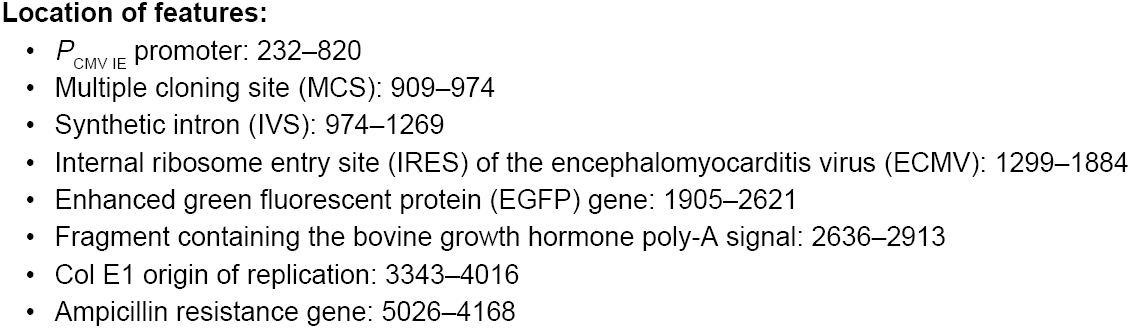

pIRES-EGFP载体特征

载体简介

载体序列

LOCUS       pIRES-EGFP              5162 bp    DNA     circular     16-FEB-2014
SOURCE
  ORGANISM
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     promoter        232..820
                     /vntifkey="29"
                     /label=CMV\Promoter
     misc_feature    909..974
                     /vntifkey="21"
                     /label=MCS
     intron          974..1269
                     /vntifkey="15"
                     /label=Synthetic\Intron\(IVS)
     RBS             1299..1884
                     /vntifkey="32"
                     /label=IRES
     CDS             1905..2621
                     /vntifkey="4"
                     /label=EGFP
     polyA_signal    2636..2913
                     /vntifkey="25"
                     /label=poly\A
     rep_origin      3343..4016
                     /vntifkey="33"
                     /label=Col\E1\Origin
     CDS             complement(4168..5026)
                     /vntifkey="4"
                     /label=Ampcillin
BASE COUNT     1237 a      1371 c      1325 g      1229 t
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtcgactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggac tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gcttggtacc
      901 gagctcggat cgatatctgc ggccgcgtcg acggaattca gtggatccac tagtaacggc
      961 cgccagtgtg ctggaattaa ttcgctgtct gcgagggcca gctgttgggg tgagtactcc
     1021 ctctcaaaag cgggcatgac ttctgcgcta agattgtcag tttccaaaaa cgaggaggat
     1081 ttgatattca cctggcccgc ggtgatgcct ttgagggtgg ccgcgtccat ctggtcagaa
     1141 aagacaatct ttttgttgtc aagcttgagg tgtggcaggc ttgagatctg gccatacact
     1201 tgagtgacaa tgacatccac tttgcctttc tctccacagg tgtccactcc caggtccaac
     1261 tgcaggtcga gcatgcatct agggcggcca attccgcccc tctccctccc ccccccctaa
     1321 cgttactggc cgaagccgct tggaataagg ccggtgtgcg tttgtctata tgtgattttc
     1381 caccatattg ccgtcttttg gcaatgtgag ggcccggaaa cctggccctg tcttcttgac
     1441 gagcattcct aggggtcttt cccctctcgc caaaggaatg caaggtctgt tgaatgtcgt
     1501 gaaggaagca gttcctctgg aagcttcttg aagacaaaca acgtctgtag cgaccctttg
     1561 caggcagcgg aaccccccac ctggcgacag gtgcctctgc ggccaaaagc cacgtgtata
     1621 agatacacct gcaaaggcgg cacaacccca gtgccacgtt gtgagttgga tagttgtgga
     1681 aagagtcaaa tggctctcct caagcgtatt caacaagggg ctgaaggatg cccagaaggt
     1741 accccattgt atgggatctg atctggggcc tcggtgcaca tgctttacat gtgtttagtc
     1801 gaggttaaaa aaacgtctag gccccccgaa ccacggggac gtggttttcc tttgaaaaac
     1861 acgatgataa gcttgccaca acccgggatc caccggtcgc caccatggtg agcaagggcg
     1921 aggagctgtt caccggggtg gtgcccatcc tggtcgagct ggacggcgac gtaaacggcc
     1981 acaagttcag cgtgtccggc gagggcgagg gcgatgccac ctacggcaag ctgaccctga
     2041 agttcatctg caccaccggc aagctgcccg tgccctggcc caccctcgtg accaccctga
     2101 cctacggcgt gcagtgcttc agccgctacc ccgaccacat gaagcagcac gacttcttca
     2161 agtccgccat gcccgaaggc tacgtccagg agcgcaccat cttcttcaag gacgacggca
     2221 actacaagac ccgcgccgag gtgaagttcg agggcgacac cctggtgaac cgcatcgagc
     2281 tgaagggcat cgacttcaag gaggacggca acatcctggg gcacaagctg gagtacaact
     2341 acaacagcca caacgtctat atcatggccg acaagcagaa gaacggcatc aaggtgaact
     2401 tcaagatccg ccacaacatc gaggacggca gcgtgcagct cgccgaccac taccagcaga
     2461 acacccccat cggcgacggc cccgtgctgc tgcccgacaa ccactacctg agcacccagt
     2521 ccgccctgag caaagacccc aacgagaagc gcgatcacat ggtcctgctg gagttcgtga
     2581 ccgccgccgg gatcactctc ggcatggacg agctgtacaa gtaaagcggc cctagagctc
     2641 gctgatcagc ctcgactgtg cctctagttg ccagccatct gttgtttgcc cctcccccgt
     2701 gccttccttg accctggaag gtgccactcc cactgtcctt tcctaataaa atgaggaaat
     2761 tgcatcgcat tgtctgagta ggtgtcattc tattctgggg ggtggggtgg ggcaggacag
     2821 caagggggag gattgggaag acaatagcag gcatgctggg gatgcggtgg gctctatggc
     2881 ttctgaggcg gaaagaacca gctggggctc gagtgcattc tagttgtggt ttgtccaaac
     2941 tcatcaatgt atcttatcat gtctgtatac cgtcgacctc tagctagagc ttggcgtaat
     3001 catggtcata gctgtttcct gtgtgaaatt gttatccgct cacaattcca cacaacatac
     3061 gagccggaag cataaagtgt aaagcctggg gtgcctaatg agtgagctaa ctcacattaa
     3121 ttgcgttgcg ctcactgccc gctttccagt cgggaaacct gtcgtgccag ctgcattaat
     3181 gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg gcgctcttcc gcttcctcgc
     3241 tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg
     3301 cggtaatacg gttatccaca gaatcagggg ataacgcagg aaagaacatg tgagcaaaag
     3361 gccagcaaaa ggccaggaac cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc
     3421 gcccccctga cgagcatcac aaaaatcgac gctcaagtca gaggtggcga aacccgacag
     3481 gactataaag ataccaggcg tttccccctg gaagctccct cgtgcgctct cctgttccga
     3541 ccctgccgct taccggatac ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc
     3601 aatgctcacg ctgtaggtat ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg
     3661 tgcacgaacc ccccgttcag cccgaccgct gcgccttatc cggtaactat cgtcttgagt
     3721 ccaacccggt aagacacgac ttatcgccac tggcagcagc cactggtaac aggattagca
     3781 gagcgaggta tgtaggcggt gctacagagt tcttgaagtg gtggcctaac tacggctaca
     3841 ctagaaggac agtatttggt atctgcgctc tgctgaagcc agttaccttc ggaaaaagag
     3901 ttggtagctc ttgatccggc aaacaaacca ccgctggtag cggtggtttt tttgtttgca
     3961 agcagcagat tacgcgcaga aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg
     4021 ggtctgacgc tcagtggaac gaaaactcac gttaagggat tttggtcatg agattatcaa
     4081 aaaggatctt cacctagatc cttttaaatt aaaaatgaag ttttaaatca atctaaagta
     4141 tatatgagta aacttggtct gacagttacc aatgcttaat cagtgaggca cctatctcag
     4201 cgatctgtct atttcgttca tccatagttg cctgactccc cgtcgtgtag ataactacga
     4261 tacgggaggg cttaccatct ggccccagtg ctgcaatgat accgcgagac ccacgctcac
     4321 cggctccaga tttatcagca ataaaccagc cagccggaag ggccgagcgc agaagtggtc
     4381 ctgcaacttt atccgcctcc atccagtcta ttaattgttg ccgggaagct agagtaagta
     4441 gttcgccagt taatagtttg cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac
     4501 gctcgtcgtt tggtatggct tcattcagct ccggttccca acgatcaagg cgagttacat
     4561 gatcccccat gttgtgcaaa aaagcggtta gctccttcgg tcctccgatc gttgtcagaa
     4621 gtaagttggc cgcagtgtta tcactcatgg ttatggcagc actgcataat tctcttactg
     4681 tcatgccatc cgtaagatgc ttttctgtga ctggtgagta ctcaaccaag tcattctgag
     4741 aatagtgtat gcggcgaccg agttgctctt gcccggcgtc aatacgggat aataccgcgc
     4801 cacatagcag aactttaaaa gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct
     4861 caaggatctt accgctgttg agatccagtt cgatgtaacc cactcgtgca cccaactgat
     4921 cttcagcatc ttttactttc accagcgttt ctgggtgagc aaaaacagga aggcaaaatg
     4981 ccgcaaaaaa gggaataagg gcgacacgga aatgttgaat actcatactc ttcctttttc
     5041 aatattattg aagcatttat cagggttatt gtctcatgag cggatacata tttgaatgta
     5101 tttagaaaaa taaacaaata ggggttccgc gcacatttcc ccgaaaagtg ccacctgacg
     5161 tc
//

载体质粒图谱pdf版和相关资料下载
