pIRES2-ZsGreen1

价格:2500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pIRES2-ZsGreen1
质粒类型: 哺乳动物细胞载体;荧光报告载体;双顺反子载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV
载体大小: 5283 bp
5' 测序引物及序列: CMV-F: 5'-CGCAAATGGGCGGTAGGCGTG-3'
3' 测序引物及序列: --
载体标签: 绿色荧光蛋白ZsGreen1(C-端)
载体抗性: 卡那霉素
筛选标记: 新霉素(Neomycin)
克隆菌株: DH5α, HB101
宿主细胞(系): 常规细胞系,293、CV-1、CHO等
备注: pIRES2-ZsGreen1载体含有IRES元件,目的基因与报告基因ZsGreen1共转录为一个mRNA,但分别翻译;
ZsGreen1是亮度最高的绿色荧光蛋白,适合流式细胞仪筛选。
产品目录号: 3241
稳定性: 瞬表达 或 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

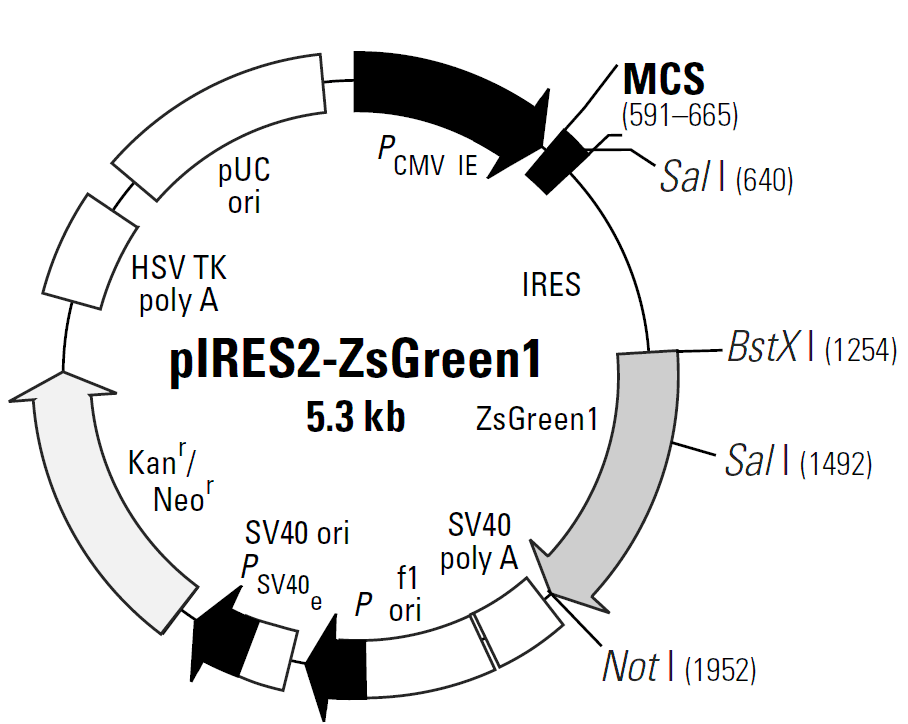

pIRES2-ZsGreen1载体图谱

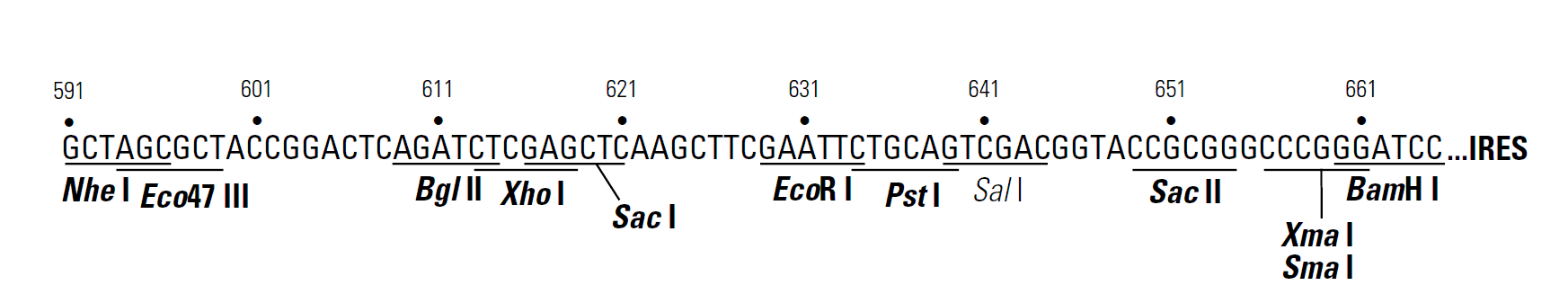

pIRES2-ZsGreen1 多克隆位点

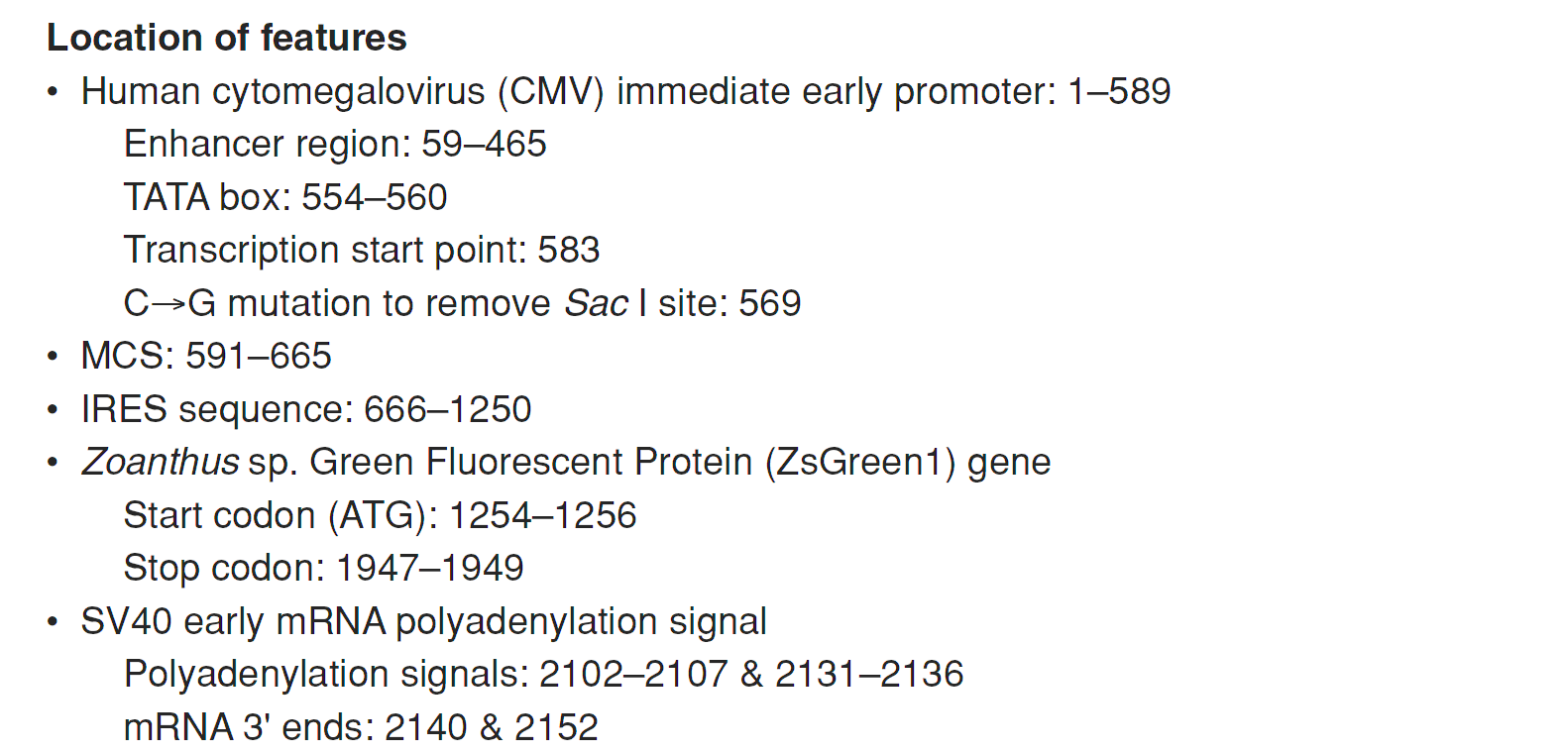

pIRES2-ZsGreen1 载体特征1

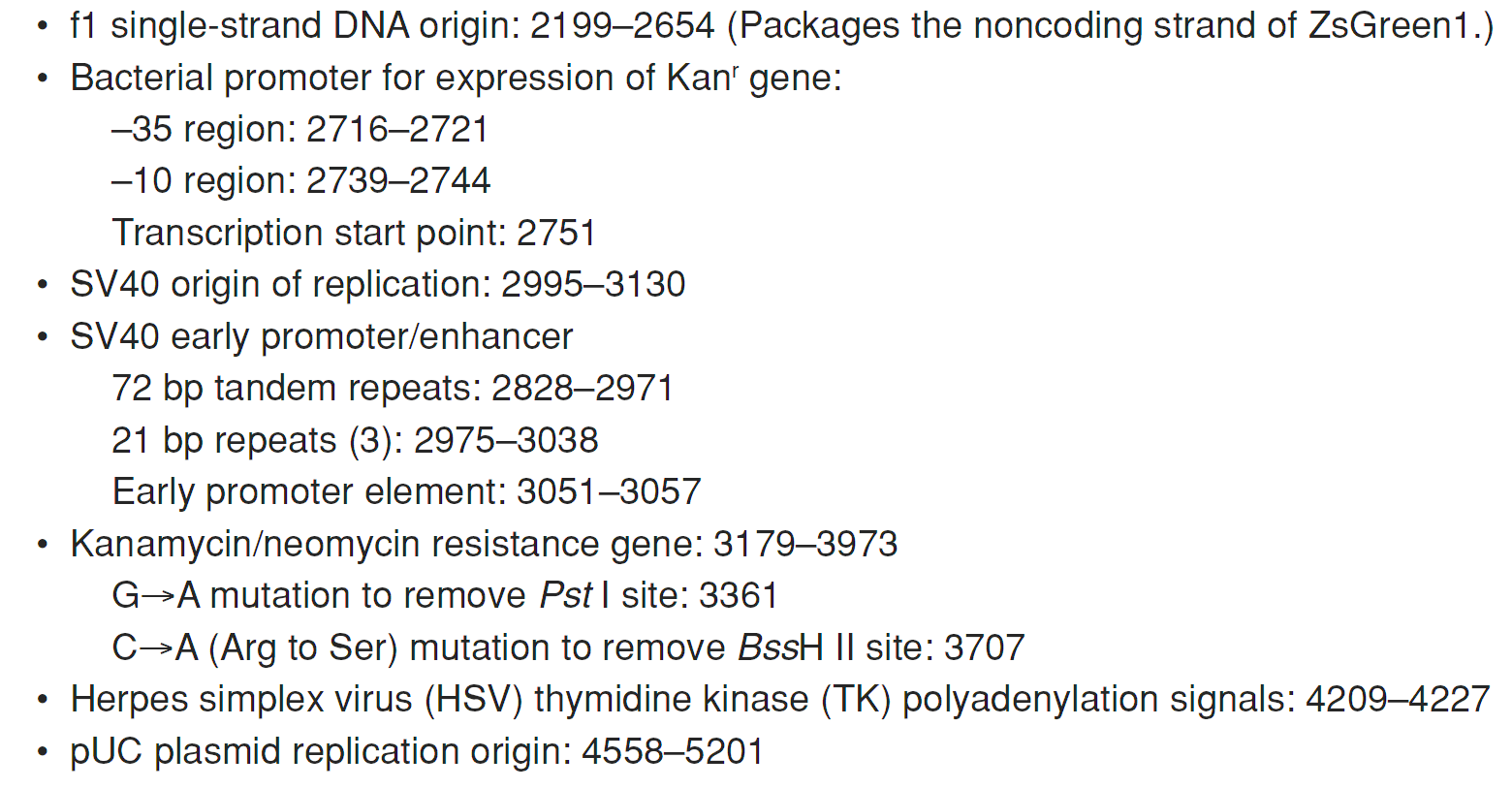

pIRES2-ZsGreen1 载体特征2

载体简介

pIRES2-ZsGreen1载体描述
pIRES2-ZsGreen1 contains the internal ribosome entry site (IRES; 1, 2) of the encephalomyocarditis virus (ECMV) between an MCS and the Zoanthus sp. green fluorescent protein (ZsGreen; 3, 4)coding region. This design permits both the gene of interest (cloned into the MCS) and the ZsGreen1 gene to be translated from a single bicistronic mRNA. pIRES2-ZsGreen1 is designed for the efficient selection (by flow cytometry or other methods) of transiently transfected mammalian cells expressing ZsGreen1 and the protein of interest. This vector can be used to obtain stably transfected cell lines without time-consuming drug and clonal selection.
ZsGreen1 is a human codon-optimized (5) ZsGreen variant that encodes the brightest commercially available green fluorescent protein. The MCS in pIRES2-ZsGreen1 is located between the immediate early promoter of cytomegalovirus (PCMV IE) and the IRES sequence. SV40 polyadenylation signals downstream of the ZsGreen1 gene direct proper processing of the 3' end of the bicistronic mRNA. The vector backbone also contains an SV40 origin for replication in mammalian cells expressing the SV40 T antigen. A neomycin-resistance cassette (Neor), consisting of the SV40 early promoter, the neomycin/kanamycin resistance gene of Tn5, and polyadenylation signals from the herpes simplex virus thymidine kinase (HSV TK) gene, allows stably transfected eukaryotic cells to be selected using G418. A bacterial promoter upstream of this cassette expresses kanamycin resistance in E.coli. The pIRES2-ZsGreen1 backbone also provides a pUC origin of replication for propagation in E. coli and an f1 origin for single-stranded DNA production.

pIRES2-ZsGreen1 can be used to quickly identify cells expressing a gene of interest by screening for ZsGreen1 fluorescence. Genes inserted into the MCS should include an initiating ATG codon. Selection of ZsGreen1-positive cells is possible 24–36 hours after transfection by flow cytometry or fluorescence microscopy. pIRES2-ZsGreen1 and its derivatives can be introduced into mammalian cells using any standard transfection method. If required, stable transformants can be selected using G418 (6).

Selection of Stable Transfectants
 Selectable marker: plasmid confers resistance to G418 (500 μg/ml)

Propagation in E. coli
 Suitable host strains: DH5α, HB101, and other general purpose strains. Single-stranded DNA production requires
a host containing an F plasmid such as JM101 or XL1-Blue.
 Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) in E. coli hosts.
 E. coli replication origin: pUC
 Copy number: high

载体序列

LOCUS       pIRES2-ZsGreen1	5283 bp 	DNA	SYN
DEFINITION  pIRES2-ZsGreen1
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5283
                     /organism="pIRES2-ZsGreen1"
                     /mol_type="other DNA"
     promoter        10..562
                     /label="CMV_immearly_promoter"
     misc_feature    65..352
                     /label="CAG_enhancer"
     misc_feature    519..539
                     /label="CMV_fwd_primer"
     promoter        520..589
                     /label="CMV_promoter"
     misc_feature    666..1250
                     /label="IRES"
     CDS             1242..1949
                     /label="ORF frame 3"
                     /translation="MATTMAQSKHGLTKEMTMKYRMEGCVDGHKFVITGEGIGYPFKG
                     KQAINLCVVEGGPLPFAEDILSAAFMYGNRVFTEYPQDIVDYFKNSCPAGYTWDRSFL
                     FEDGAVCICNADITVSVEENCMYHESKFYGVNFPADGPVMKKMTDNWEPSCEKIIPVP
                     KQGILKGDVSMYLLLKDGGRLRCQFDTVYKAKSVPRKMPDWHFIQHKLTREDRSDAKN
                     QKWHLTEHAIASGSALP*"
     gene            1257..1946
                     /label="Zs_Green"
                     /gene="Zs_Green"
                     /translation="MATTMAQSKHGLTKEMTMKYRMEGCVDGHKFVITGEGIGYPFKG
                     KQAINLCVVEGGPLPFAEDILSAAFMYGNRVFTEYPQDIVDYFKNSCPAGYTWDRSFL
                     FEDGAVCICNADITVSVEENCMYHESKFYGVNFPADGPVMKKMTDNWEPSCEKIIPVP
                     KQGILKGDVSMYLLLKDGGRLRCQFDTVYKAKSVPRKMPDWHFIQHKLTREDRSDAKN
                     QKWHLTEHAIASGSALP*"
     misc_feature    2162..2181
                     /label="EBV_rev_primer"
                     /translation="MATTMAQSKHGLTKEMTMKYRMEGCVDGHKFVITGEGIGYPFKG
                     KQAINLCVVEGGPLPFAEDILSAAFMYGNRVFTEYPQDIVDYFKNSCPAGYTWDRSFL
                     FEDGAVCICNADITVSVEENCMYHESKFYGVNFPADGPVMKKMTDNWEPSCEKIIPVP
                     KQGILKGDVSMYLLLKDGGRLRCQFDTVYKAKSVPRKMPDWHFIQHKLTREDRSDAKN
                     QKWHLTEHAIASGSALP*"
     rep_origin      complement(2331..2637)
                     /label="f1_origin"
                     /translation="MATTMAQSKHGLTKEMTMKYRMEGCVDGHKFVITGEGIGYPFKG
                     KQAINLCVVEGGPLPFAEDILSAAFMYGNRVFTEYPQDIVDYFKNSCPAGYTWDRSFL
                     FEDGAVCICNADITVSVEENCMYHESKFYGVNFPADGPVMKKMTDNWEPSCEKIIPVP
                     KQGILKGDVSMYLLLKDGGRLRCQFDTVYKAKSVPRKMPDWHFIQHKLTREDRSDAKN
                     QKWHLTEHAIASGSALP*"
     promoter        2716..2744
                     /label="AmpR_promoter"
                     /translation="MATTMAQSKHGLTKEMTMKYRMEGCVDGHKFVITGEGIGYPFKG
                     KQAINLCVVEGGPLPFAEDILSAAFMYGNRVFTEYPQDIVDYFKNSCPAGYTWDRSFL
                     FEDGAVCICNADITVSVEENCMYHESKFYGVNFPADGPVMKKMTDNWEPSCEKIIPVP
                     KQGILKGDVSMYLLLKDGGRLRCQFDTVYKAKSVPRKMPDWHFIQHKLTREDRSDAKN
                     QKWHLTEHAIASGSALP*"
     misc_feature    complement(2810..2830)
                     /label="pBABE_3_primer"
                     /translation="MATTMAQSKHGLTKEMTMKYRMEGCVDGHKFVITGEGIGYPFKG
                     KQAINLCVVEGGPLPFAEDILSAAFMYGNRVFTEYPQDIVDYFKNSCPAGYTWDRSFL
                     FEDGAVCICNADITVSVEENCMYHESKFYGVNFPADGPVMKKMTDNWEPSCEKIIPVP
                     KQGILKGDVSMYLLLKDGGRLRCQFDTVYKAKSVPRKMPDWHFIQHKLTREDRSDAKN
                     QKWHLTEHAIASGSALP*"
     misc_feature    complement(2816..3031)
                     /label="SV40_enhancer"
                     /translation="MATTMAQSKHGLTKEMTMKYRMEGCVDGHKFVITGEGIGYPFKG
                     KQAINLCVVEGGPLPFAEDILSAAFMYGNRVFTEYPQDIVDYFKNSCPAGYTWDRSFL
                     FEDGAVCICNADITVSVEENCMYHESKFYGVNFPADGPVMKKMTDNWEPSCEKIIPVP
                     KQGILKGDVSMYLLLKDGGRLRCQFDTVYKAKSVPRKMPDWHFIQHKLTREDRSDAKN
                     QKWHLTEHAIASGSALP*"
     promoter        2828..3096
                     /label="SV40_promoter"
                     /translation="MATTMAQSKHGLTKEMTMKYRMEGCVDGHKFVITGEGIGYPFKG
                     KQAINLCVVEGGPLPFAEDILSAAFMYGNRVFTEYPQDIVDYFKNSCPAGYTWDRSFL
                     FEDGAVCICNADITVSVEENCMYHESKFYGVNFPADGPVMKKMTDNWEPSCEKIIPVP
                     KQGILKGDVSMYLLLKDGGRLRCQFDTVYKAKSVPRKMPDWHFIQHKLTREDRSDAKN
                     QKWHLTEHAIASGSALP*"
     rep_origin      2995..3072
                     /label="SV40_origin"
                     /translation="MATTMAQSKHGLTKEMTMKYRMEGCVDGHKFVITGEGIGYPFKG
                     KQAINLCVVEGGPLPFAEDILSAAFMYGNRVFTEYPQDIVDYFKNSCPAGYTWDRSFL
                     FEDGAVCICNADITVSVEENCMYHESKFYGVNFPADGPVMKKMTDNWEPSCEKIIPVP
                     KQGILKGDVSMYLLLKDGGRLRCQFDTVYKAKSVPRKMPDWHFIQHKLTREDRSDAKN
                     QKWHLTEHAIASGSALP*"
     misc_feature    3057..3076
                     /label="SV40pro_F_primer"
                     /translation="MATTMAQSKHGLTKEMTMKYRMEGCVDGHKFVITGEGIGYPFKG
                     KQAINLCVVEGGPLPFAEDILSAAFMYGNRVFTEYPQDIVDYFKNSCPAGYTWDRSFL
                     FEDGAVCICNADITVSVEENCMYHESKFYGVNFPADGPVMKKMTDNWEPSCEKIIPVP
                     KQGILKGDVSMYLLLKDGGRLRCQFDTVYKAKSVPRKMPDWHFIQHKLTREDRSDAKN
                     QKWHLTEHAIASGSALP*"
     CDS             3179..3973
                     /label="ORF frame 2"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            3182..3970
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(3488..4024)
                     /label="ORF frame 3"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     terminator      4148..4417
                     /label="TK_PA_terminator"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     rep_origin      4565..5184
                     /label="pBR322_origin"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
ORIGIN
    1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG
   61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT
  121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA
  181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC
  241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA
  301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC
  361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG
  421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG
  481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT
  541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA
  601 CCGGACTCAG ATCTCGAGCT CAAGCTTCGA ATTCTGCAGT CGACGGTACC GCGGGCCCGG
  661 GATCCGCCCC TCTCCCTCCC CCCCCCCTAA CGTTACTGGC CGAAGCCGCT TGGAATAAGG
  721 CCGGTGTGCG TTTGTCTATA TGTTATTTTC CACCATATTG CCGTCTTTTG GCAATGTGAG
  781 GGCCCGGAAA CCTGGCCCTG TCTTCTTGAC GAGCATTCCT AGGGGTCTTT CCCCTCTCGC
  841 CAAAGGAATG CAAGGTCTGT TGAATGTCGT GAAGGAAGCA GTTCCTCTGG AAGCTTCTTG
  901 AAGACAAACA ACGTCTGTAG CGACCCTTTG CAGGCAGCGG AACCCCCCAC CTGGCGACAG
  961 GTGCCTCTGC GGCCAAAAGC CACGTGTATA AGATACACCT GCAAAGGCGG CACAACCCCA
 1021 GTGCCACGTT GTGAGTTGGA TAGTTGTGGA AAGAGTCAAA TGGCTCTCCT CAAGCGTATT
 1081 CAACAAGGGG CTGAAGGATG CCCAGAAGGT ACCCCATTGT ATGGGATCTG ATCTGGGGCC
 1141 TCGGTACACA TGCTTTACAT GTGTTTAGTC GAGGTTAAAA AAACGTCTAG GCCCCCCGAA
 1201 CCACGGGGAC GTGGTTTTCC TTTGAAAAAC ACGATGATAA TATGGCCACA ACCATGGCCC
 1261 AGTCCAAGCA CGGCCTGACC AAGGAGATGA CCATGAAGTA CCGCATGGAG GGCTGCGTGG
 1321 ACGGCCACAA GTTCGTGATC ACCGGCGAGG GCATCGGCTA CCCCTTCAAG GGCAAGCAGG
 1381 CCATCAACCT GTGCGTGGTG GAGGGCGGCC CCTTGCCCTT CGCCGAGGAC ATCTTGTCCG
 1441 CCGCCTTCAT GTACGGCAAC CGCGTGTTCA CCGAGTACCC CCAGGACATC GTCGACTACT
 1501 TCAAGAACTC CTGCCCCGCC GGCTACACCT GGGACCGCTC CTTCCTGTTC GAGGACGGCG
 1561 CCGTGTGCAT CTGCAACGCC GACATCACCG TGAGCGTGGA GGAGAACTGC ATGTACCACG
 1621 AGTCCAAGTT CTACGGCGTG AACTTCCCCG CCGACGGCCC CGTGATGAAG AAGATGACCG
 1681 ACAACTGGGA GCCCTCCTGC GAGAAGATCA TCCCCGTGCC CAAGCAGGGC ATCTTGAAGG
 1741 GCGACGTGAG CATGTACCTG CTGCTGAAGG ACGGTGGCCG CTTGCGCTGC CAGTTCGACA
 1801 CCGTGTACAA GGCCAAGTCC GTGCCCCGCA AGATGCCCGA CTGGCACTTC ATCCAGCACA
 1861 AGCTGACCCG CGAGGACCGC AGCGACGCCA AGAACCAGAA GTGGCACCTG ACCGAGCACG
 1921 CCATCGCCTC CGGCTCCGCC TTGCCCTGAG CGGCCGCGAC TCTAGATCAT AATCAGCCAT
 1981 ACCACATTTG TAGAGGTTTT ACTTGCTTTA AAAAACCTCC CACACCTCCC CCTGAACCTG
 2041 AAACATAAAA TGAATGCAAT TGTTGTTGTT AACTTGTTTA TTGCAGCTTA TAATGGTTAC
 2101 AAATAAAGCA ATAGCATCAC AAATTTCACA AATAAAGCAT TTTTTTCACT GCATTCTAGT
 2161 TGTGGTTTGT CCAAACTCAT CAATGTATCT TAAGGCGTAA ATTGTAAGCG TTAATATTTT
 2221 GTTAAAATTC GCGTTAAATT TTTGTTAAAT CAGCTCATTT TTTAACCAAT AGGCCGAAAT
 2281 CGGCAAAATC CCTTATAAAT CAAAAGAATA GACCGAGATA GGGTTGAGTG TTGTTCCAGT
 2341 TTGGAACAAG AGTCCACTAT TAAAGAACGT GGACTCCAAC GTCAAAGGGC GAAAAACCGT
 2401 CTATCAGGGC GATGGCCCAC TACGTGAACC ATCACCCTAA TCAAGTTTTT TGGGGTCGAG
 2461 GTGCCGTAAA GCACTAAATC GGAACCCTAA AGGGAGCCCC CGATTTAGAG CTTGACGGGG
 2521 AAAGCCGGCG AACGTGGCGA GAAAGGAAGG GAAGAAAGCG AAAGGAGCGG GCGCTAGGGC
 2581 GCTGGCAAGT GTAGCGGTCA CGCTGCGCGT AACCACCACA CCCGCCGCGC TTAATGCGCC
 2641 GCTACAGGGC GCGTCAGGTG GCACTTTTCG GGGAAATGTG CGCGGAACCC CTATTTGTTT
 2701 ATTTTTCTAA ATACATTCAA ATATGTATCC GCTCATGAGA CAATAACCCT GATAAATGCT
 2761 TCAATAATAT TGAAAAAGGA AGAGTCCTGA GGCGGAAAGA ACCAGCTGTG GAATGTGTGT
 2821 CAGTTAGGGT GTGGAAAGTC CCCAGGCTCC CCAGCAGGCA GAAGTATGCA AAGCATGCAT
 2881 CTCAATTAGT CAGCAACCAG GTGTGGAAAG TCCCCAGGCT CCCCAGCAGG CAGAAGTATG
 2941 CAAAGCATGC ATCTCAATTA GTCAGCAACC ATAGTCCCGC CCCTAACTCC GCCCATCCCG
 3001 CCCCTAACTC CGCCCAGTTC CGCCCATTCT CCGCCCCATG GCTGACTAAT TTTTTTTATT
 3061 TATGCAGAGG CCGAGGCCGC CTCGGCCTCT GAGCTATTCC AGAAGTAGTG AGGAGGCTTT
 3121 TTTGGAGGCC TAGGCTTTTG CAAAGATCGA TCAAGAGACA GGATGAGGAT CGTTTCGCAT
 3181 GATTGAACAA GATGGATTGC ACGCAGGTTC TCCGGCCGCT TGGGTGGAGA GGCTATTCGG
 3241 CTATGACTGG GCACAACAGA CAATCGGCTG CTCTGATGCC GCCGTGTTCC GGCTGTCAGC
 3301 GCAGGGGCGC CCGGTTCTTT TTGTCAAGAC CGACCTGTCC GGTGCCCTGA ATGAACTGCA
 3361 AGACGAGGCA GCGCGGCTAT CGTGGCTGGC CACGACGGGC GTTCCTTGCG CAGCTGTGCT
 3421 CGACGTTGTC ACTGAAGCGG GAAGGGACTG GCTGCTATTG GGCGAAGTGC CGGGGCAGGA
 3481 TCTCCTGTCA TCTCACCTTG CTCCTGCCGA GAAAGTATCC ATCATGGCTG ATGCAATGCG
 3541 GCGGCTGCAT ACGCTTGATC CGGCTACCTG CCCATTCGAC CACCAAGCGA AACATCGCAT
 3601 CGAGCGAGCA CGTACTCGGA TGGAAGCCGG TCTTGTCGAT CAGGATGATC TGGACGAAGA
 3661 GCATCAGGGG CTCGCGCCAG CCGAACTGTT CGCCAGGCTC AAGGCGAGCA TGCCCGACGG
 3721 CGAGGATCTC GTCGTGACCC ATGGCGATGC CTGCTTGCCG AATATCATGG TGGAAAATGG
 3781 CCGCTTTTCT GGATTCATCG ACTGTGGCCG GCTGGGTGTG GCGGACCGCT ATCAGGACAT
 3841 AGCGTTGGCT ACCCGTGATA TTGCTGAAGA GCTTGGCGGC GAATGGGCTG ACCGCTTCCT
 3901 CGTGCTTTAC GGTATCGCCG CTCCCGATTC GCAGCGCATC GCCTTCTATC GCCTTCTTGA
 3961 CGAGTTCTTC TGAGCGGGAC TCTGGGGTTC GAAATGACCG ACCAAGCGAC GCCCAACCTG
 4021 CCATCACGAG ATTTCGATTC CACCGCCGCC TTCTATGAAA GGTTGGGCTT CGGAATCGTT
 4081 TTCCGGGACG CCGGCTGGAT GATCCTCCAG CGCGGGGATC TCATGCTGGA GTTCTTCGCC
 4141 CACCCTAGGG GGAGGCTAAC TGAAACACGG AAGGAGACAA TACCGGAAGG AACCCGCGCT
 4201 ATGACGGCAA TAAAAAGACA GAATAAAACG CACGGTGTTG GGTCGTTTGT TCATAAACGC
 4261 GGGGTTCGGT CCCAGGGCTG GCACTCTGTC GATACCCCAC CGAGACCCCA TTGGGGCCAA
 4321 TACGCCCGCG TTTCTTCCTT TTCCCCACCC CACCCCCCAA GTTCGGGTGA AGGCCCAGGG
 4381 CTCGCAGCCA ACGTCGGGGC GGCAGGCCCT GCCATAGCCT CAGGTTACTC ATATATACTT
 4441 TAGATTGATT TAAAACTTCA TTTTTAATTT AAAAGGATCT AGGTGAAGAT CCTTTTTGAT
 4501 AATCTCATGA CCAAAATCCC TTAACGTGAG TTTTCGTTCC ACTGAGCGTC AGACCCCGTA
 4561 GAAAAGATCA AAGGATCTTC TTGAGATCCT TTTTTTCTGC GCGTAATCTG CTGCTTGCAA
 4621 ACAAAAAAAC CACCGCTACC AGCGGTGGTT TGTTTGCCGG ATCAAGAGCT ACCAACTCTT
 4681 TTTCCGAAGG TAACTGGCTT CAGCAGAGCG CAGATACCAA ATACTGTTCT TCTAGTGTAG
 4741 CCGTAGTTAG GCCACCACTT CAAGAACTCT GTAGCACCGC CTACATACCT CGCTCTGCTA
 4801 ATCCTGTTAC CAGTGGCTGC TGCCAGTGGC GATAAGTCGT GTCTTACCGG GTTGGACTCA
 4861 AGACGATAGT TACCGGATAA GGCGCAGCGG TCGGGCTGAA CGGGGGGTTC GTGCACACAG
 4921 CCCAGCTTGG AGCGAACGAC CTACACCGAA CTGAGATACC TACAGCGTGA GCTATGAGAA
 4981 AGCGCCACGC TTCCCGAAGG GAGAAAGGCG GACAGGTATC CGGTAAGCGG CAGGGTCGGA
 5041 ACAGGAGAGC GCACGAGGGA GCTTCCAGGG GGAAACGCCT GGTATCTTTA TAGTCCTGTC
 5101 GGGTTTCGCC ACCTCTGACT TGAGCGTCGA TTTTTGTGAT GCTCGTCAGG GGGGCGGAGC
 5161 CTATGGAAAA ACGCCAGCAA CGCGGCCTTT TTACGGTTCC TGGCCTTTTG CTGGCCTTTT
 5221 GCTCACATGT TCTTTCCTGC GTTATCCCCT GATTCTGTGG ATAACCGTAT TACCGCCATG
 5281 CAT
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
