pENTR-R4-pLac-Spec-R3

价格:2500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrogen
载体名称: pENTR-R4-pLac-Spec-R3
质粒类型: 多位点Gateway载体;入门载体
高拷贝/低拷贝: 高拷贝
启动子:
克隆方法: 限制性内切酶;多克隆位点
载体大小: 3889 bp
5' 测序引物及序列: pENTR-F: CTACAAACTCTTCCTGTTAGTTAG
3' 测序引物及序列: pENTR-R: ATGGCTCATAACACCCCTTG
载体标签:
载体抗性: Kanamycin.html' target='_blank'>卡那霉素
真核筛选标记:
克隆菌株: DH5aTOP10感受态细胞
产品目录号: --
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

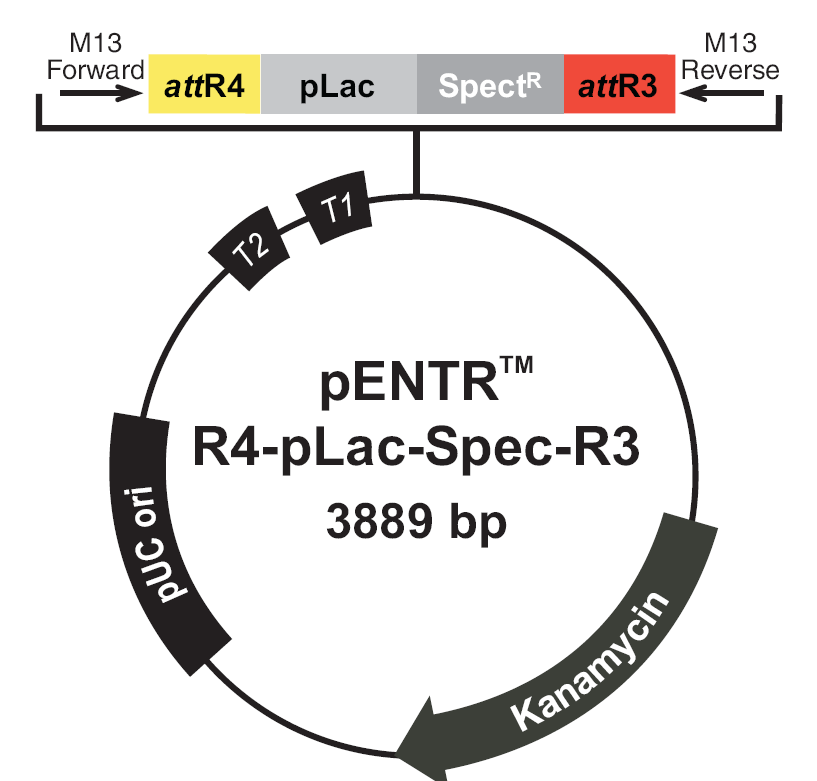

pENTR-R4-pLac-Spec-R3载体图谱

载体简介

载体序列

LOCUS       Exported                3889 bp ds-DNA     circular SYN 13-AUG-2016
DEFINITION  synthetic circular DNA
KEYWORDS    pENTR-R4-pLac-Spec-R3
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3889)
  AUTHORS   Biofeng Lab.
  TITLE     Direct Submission
FEATURES             Location/Qualifiers
     source          1..3889
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     terminator      268..295
                     /note="rrnB T2 terminator"
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     terminator      387..473
                     /gene="Escherichia coli rrnB"
                     /note="rrnB T1 terminator"
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     primer_bind     537..553
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    complement(603..727)
                     /gene="mutant version of attR"
                     /bound_moiety="LR Clonase(TM)"
                     /note="attR4"
                     /note="recombination site for the Gateway(R) LR reaction"
     promoter        755..785
                     /note="lac promoter"
                     /note="promoter for the E. coli lac operon"
     promoter        755..785
                     /note="lac UV5 promoter"
                     /note="E. coli lac promoter with an ""up"" mutation"
     protein_bind    793..809
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     CDS             1051..1842
                     /codon_start=1
                     /gene="aadA"
                     /product="aminoglycoside adenylyltransferase (Murphy,
                     1985)"
                     /note="SmR"
                     /note="confers resistance to spectinomycin and
                     streptomycin"
                     /translation="MREAVIAEVSTQLSEVVGVIERHLEPTLLAVHLYGSAVDGGLKPH
                     SDIDLLVTVTVRLDETTRRALINDLLETSASPGESEILRAVEVTIVVHDDIIPWRYPAK
                     RELQFGEWQRNDILAGIFEPATIDIDLAILLTKAREHSVALVGPAAEELFDPVPEQDLF
                     EALNETLTLWNSPPDWAGDERNVVLTLSRIWYSAVTGKIAPKDVAADWAMERLPAQYQP
                     VILEARQAYLGQEEDRLASRADQLEEFVHYVKGEITKVVGK"
     protein_bind    1952..2075
                     /gene="mutant version of attR"
                     /bound_moiety="LR Clonase(TM)"
                     /note="attR3"
                     /note="recombination site for the Gateway(R) LR reaction"
     promoter        complement(2131..2149)
                     /note="T7 promoter"
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(2154..2170)
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     CDS             2283..3092
                     /codon_start=1
                     /gene="aph(3')-Ia"
                     /product="aminoglycoside phosphotransferase"
                     /note="KanR"
                     /note="confers resistance to kanamycin in bacteria or G418
                     (Geneticin(R)) in eukaryotes"
                     /translation="MSHIQRETSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYGKP
                     DAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGKTA
                     FQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDASD
                     FDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGIAD
                     RYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
     rep_origin      3239..3827
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 ctttcctgcg ttatcccctg attctgtgga taaccgtatt accgcctttg agtgagctga
       61 taccgctcgc cgcagccgaa cgaccgagcg cagcgagtca gtgagcgagg aagcggaaga
      121 gcgcccaata cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca
      181 cgacaggttt cccgactgga aagcgggcag tgagcgcaac gcaattaata cgcgtaccgc
      241 tagccaggaa gagtttgtag aaacgcaaaa aggccatccg tcaggatggc cttctgctta
      301 gtttgatgcc tggcagttta tggcgggcgt cctgcccgcc accctccggg ccgttgcttc
      361 acaacgttca aatccgctcc cggcggattt gtcctactca ggagagcgtt caccgacaaa
      421 caacagataa aacgaaaggc ccagtcttcc gactgagcct ttcgttttat ttgatgcctg
      481 gcagttccct actctcgcgt taacgctagc atggatgttt tcccagtcac gacgttgtaa
      541 aacgacggcc agtcttaagc tcgggcccct acaggtcact aataccatct aagtagttga
      601 ttcatagtga ctggatatgt tgtgttttac agtattatgt agtctgtttt ttatgcaaaa
      661 tctaatttaa tatattgata tttatatcat tttacgtttc tcgttcaact tttctataca
      721 aagttggtta gctcactcat taggcacccc aggctttaca ctttatgctt ccggctcgta
      781 tattgtgtgg aattgtgagc ggataacaat ttcacacagg aaacagctat gcatcgctca
      841 cgcaactggt ccagaacctt gaccgaacgc agcggtggta acggcgcagt ggcggttttc
      901 atggcttgtt atgactgttt ttttggggta cagtctatgc ctcgggcatc caagcagcaa
      961 gcgcgttacg ccgtgggtcg atgtttgatg ttatggagca gcaacgatgt tacgcagcag
     1021 ggcagtcgcc ctaaaacaaa gttaaacatt atgagggaag cggtgatcgc cgaagtatcg
     1081 actcaactat cagaggtagt tggcgtcatc gagcgccatc tcgaaccgac gttgctggcc
     1141 gtacatttgt acggctccgc agtggatggc ggcctgaagc cacacagtga tattgatttg
     1201 ctggttacgg tgaccgtaag gcttgatgaa acaacgcggc gagctttgat caacgacctt
     1261 ttggaaactt cggcttcccc tggagagagc gagattctcc gcgctgtaga agtcaccatt
     1321 gttgtgcacg acgacatcat tccgtggcgt tatccagcta agcgcgaact gcaatttgga
     1381 gaatggcagc gcaatgacat tcttgcaggt atcttcgagc cagccacgat cgacattgat
     1441 ctggctatct tgctgacaaa agcaagggaa catagcgttg ccttggtagg tccagcggcg
     1501 gaggaactct ttgatccggt tcctgaacag gatctatttg aggcgctaaa tgaaacctta
     1561 acgctatgga actcgccgcc cgactgggct ggcgatgagc gaaatgtagt gcttacgttg
     1621 tcccgcattt ggtacagcgc agtaaccggc aaaatcgcgc cgaaggatgt cgctgccgac
     1681 tgggcaatgg agcgcctgcc ggcccagtat cagcccgtca tacttgaagc tagacaggct
     1741 tatcttggac aagaagaaga tcgcttggcc tcgcgcgcag atcagttgga agaatttgtc
     1801 cactacgtga aaggcgagat caccaaggta gtcggcaaat aacactataa gggcgaattc
     1861 tgcagatatc catcacactg gcggccgcca gtgtgatgga tatctgcaga attcgccctt
     1921 catcactgca gacggggctt ttttatgcag gcaactttgt ataataaagt tgaacgagaa
     1981 acgtaaaatg atataaatat caatatatta aattagattt tgcataaaaa acagactaca
     2041 taatactgta aaacacaaca tatccagtca ctatgaatca actacttaga tggtattagt
     2101 gacctgtact gcagggcggc cgcgatatcc cctatagtga gtcgtattac atggtcatag
     2161 ctgtttcctg gcagctctgg cccgtgtctc aaaatctctg atgttacatt gcacaagata
     2221 aaaatatatc atcatgaaca ataaaactgt ctgcttacat aaacagtaat acaaggggtg
     2281 ttatgagcca tattcaacgg gaaacgtcga ggccgcgatt aaattccaac atggatgctg
     2341 atttatatgg gtataaatgg gctcgcgata atgtcgggca atcaggtgcg acaatctatc
     2401 gcttgtatgg gaagcccgat gcgccagagt tgtttctgaa acatggcaaa ggtagcgttg
     2461 ccaatgatgt tacagatgag atggtcagac taaactggct gacggaattt atgcctcttc
     2521 cgaccatcaa gcattttatc cgtactcctg atgatgcatg gttactcacc actgcgatcc
     2581 ccggaaaaac agcattccag gtattagaag aatatcctga ttcaggtgaa aatattgttg
     2641 atgcgctggc agtgttcctg cgccggttgc attcgattcc tgtttgtaat tgtcctttta
     2701 acagcgatcg cgtatttcgt ctcgctcagg cgcaatcacg aatgaataac ggtttggttg
     2761 atgcgagtga ttttgatgac gagcgtaatg gctggcctgt tgaacaagtc tggaaagaaa
     2821 tgcataaact tttgccattc tcaccggatt cagtcgtcac tcatggtgat ttctcacttg
     2881 ataaccttat ttttgacgag gggaaattaa taggttgtat tgatgttgga cgagtcggaa
     2941 tcgcagaccg ataccaggat cttgccatcc tatggaactg cctcggtgag ttttctcctt
     3001 cattacagaa acggcttttt caaaaatatg gtattgataa tcctgatatg aataaattgc
     3061 agtttcattt gatgctcgat gagtttttct aatcagaatt ggttaattgg ttgtaacact
     3121 ggcagagcat tacgctgact tgacgggacg gcgcaagctc atgaccaaaa tcccttaacg
     3181 tgagttacgc gtcgttccac tgagcgtcag accccgtaga aaagatcaaa ggatcttctt
     3241 gagatccttt ttttctgcgc gtaatctgct gcttgcaaac aaaaaaacca ccgctaccag
     3301 cggtggtttg tttgccggat caagagctac caactctttt tccgaaggta actggcttca
     3361 gcagagcgca gataccaaat actgttcttc tagtgtagcc gtagttaggc caccacttca
     3421 agaactctgt agcaccgcct acatacctcg ctctgctaat cctgttacca gtggctgctg
     3481 ccagtggcga taagtcgtgt cttaccgggt tggactcaag acgatagtta ccggataagg
     3541 cgcagcggtc gggctgaacg gggggttcgt gcacacagcc cagcttggag cgaacgacct
     3601 acaccgaact gagataccta cagcgtgagc tatgagaaag cgccacgctt cccgaaggga
     3661 gaaaggcgga caggtatccg gtaagcggca gggtcggaac aggagagcgc acgagggagc
     3721 ttccaggggg aaacgcctgg tatctttata gtcctgtcgg gtttcgccac ctctgacttg
     3781 agcgtcgatt tttgtgatgc tcgtcagggg ggcggagcct atggaaaaac gccagcaacg
     3841 cggccttttt acggttcctg gccttttgct ggccttttgc tcacatgtt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
