载体基本信息

出品公司: Invitrogen
载体名称: pENTR-L5-pLac-Spec-L2
质粒类型: 多位点Gateway载体;入门载体
高拷贝/低拷贝: 高拷贝
启动子:
克隆方法: 限制性内切酶;多克隆位点
载体大小: 3713bp
5' 测序引物及序列: pENTR-F: CTACAAACTCTTCCTGTTAGTTAG
3' 测序引物及序列: pENTR-R: ATGGCTCATAACACCCCTTG
载体标签:
载体抗性: Kanamycin.html' target='_blank'>卡那霉素
真核筛选标记:
克隆菌株: DH5aTOP10感受态细胞
产品目录号: --
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

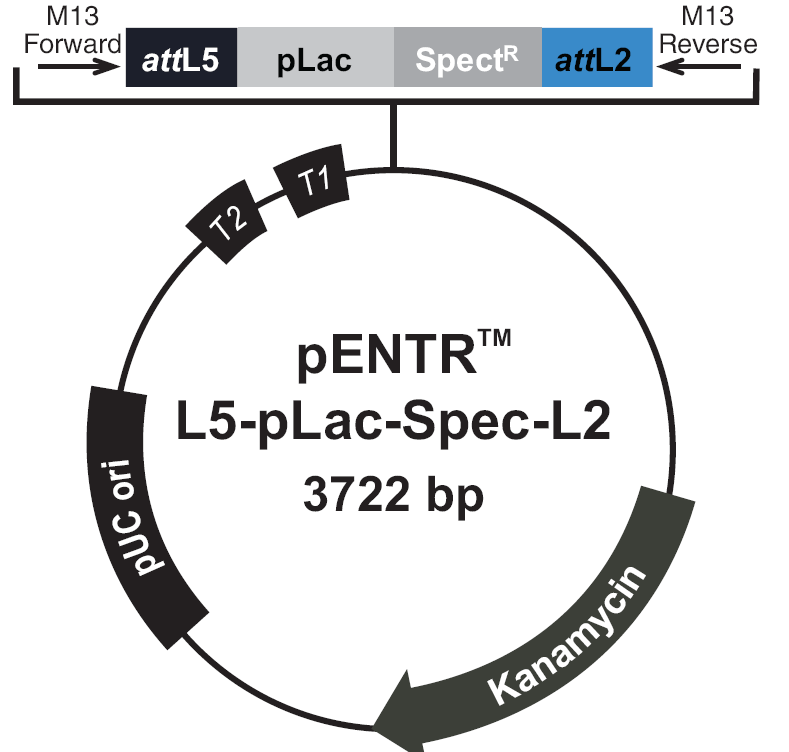

pENTR-L5-pLac-Spec-L2载体图谱



载体简介

载体序列

LOCUS       Exported                3713 bp ds-DNA     circular SYN 13-AUG-2016
DEFINITION  synthetic circular DNA
KEYWORDS    pENTR-L5-pLac-Spec-L2
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3713)
  AUTHORS   Biofeng Lab.
  TITLE     Direct Submission
FEATURES             Location/Qualifiers
     source          1..3713
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     terminator      268..295
                     /note="rrnB T2 terminator"
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     terminator      387..473
                     /gene="Escherichia coli rrnB"
                     /note="rrnB T1 terminator"
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     primer_bind     537..553
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    537..552
                     /gene="mutant version of attL"
                     /bound_moiety="LR Clonase(TM)"
                     /note="attL5"
                     /note="recombination site for the Gateway(R) LR reaction"
     misc_feature    554..568
                     /note="MCS"
     promoter        570..767
                     /note="lac"
     promoter        694..724
                     /note="lac UV5 promoter"
                     /note="E. coli lac promoter with an ""up"" mutation"
     promoter        694..724
                     /note="lac promoter"
                     /note="promoter for the E. coli lac operon"
     protein_bind    732..748
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     CDS             990..1781
                     /codon_start=1
                     /gene="aadA"
                     /product="aminoglycoside adenylyltransferase (Murphy,
                     1985)"
                     /note="SmR"
                     /note="confers resistance to spectinomycin and
                     streptomycin"
                     /translation="MREAVIAEVSTQLSEVVGVIERHLEPTLLAVHLYGSAVDGGLKPH
                     SDIDLLVTVTARLDETTRRALIDDLLETSASPGESEILRAVEVTIVVHDDIIPWRYPAK
                     RELQFGEWQRNDILAGIFEPATIDIDLAILLTKAREHSVALVGPAAEELFDPVPEQDLF
                     EALNETLTLWNSPPDWAGDERNVVLTLSRIWYSAVTGKIAPKDVAADWAMERLPAQYQP
                     VILEARQAYLGQEEDRLASRADQLEEFVHYVKGEITKVVGK"
     protein_bind    complement(1834..1933)
                     /gene="mutant version of attL"
                     /bound_moiety="LR Clonase(TM)"
                     /note="attL2"
                     /note="recombination site for the Gateway(R) LR reaction"
     promoter        complement(1955..1973)
                     /note="T7 promoter"
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(1978..1994)
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     CDS             2107..2916
                     /codon_start=1
                     /gene="aph(3')-Ia"
                     /product="aminoglycoside phosphotransferase"
                     /note="KanR"
                     /note="confers resistance to kanamycin in bacteria or G418
                     (Geneticin(R)) in eukaryotes"
                     /translation="MSHIQRETSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYGKP
                     DAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGKTA
                     FQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDASD
                     FDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGIAD
                     RYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
     rep_origin      3063..3651
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 ctttcctgcg ttatcccctg attctgtgga taaccgtatt accgcctttg agtgagctga
       61 taccgctcgc cgcagccgaa cgaccgagcg cagcgagtca gtgagcgagg aagcggaaga
      121 gcgcccaata cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca
      181 cgacaggttt cccgactgga aagcgggcag tgagcgcaac gcaattaata cgcgtaccgc
      241 tagccaggaa gagtttgtag aaacgcaaaa aggccatccg tcaggatggc cttctgctta
      301 gtttgatgcc tggcagttta tggcgggcgt cctgcccgcc accctccggg ccgttgcttc
      361 acaacgttca aatccgctcc cggcggattt gtcctactca ggagagcgtt caccgacaaa
      421 caacagataa aacgaaaggc ccagtcttcc gactgagcct ttcgttttat ttgatgcctg
      481 gcagttccct actctcgcgt taacgctagc atggatgttt tcccagtcac gacgttgtaa
      541 aacgacggcc agtcttaagc tcgggcccca aataatgatt ttattttgac tgatagtgac
      601 ctgttcgttg caacaaattg atgagcaatg cttttttata atgccaactt tgtatacaaa
      661 agttggttag ctcactcatt aggcacccca ggctttacac tttatgcttc cggctcgtat
      721 attgtgtgga attgtgagcg gataacaatt tcacacagga aacagctatg catcgctcac
      781 gcaactggtc cagaaccttg accgaacgca gcggtggtaa cggcgcagtg gcggttttca
      841 tggcttgtta tgactgtttt tttggggtac agtctatgcc tcgggcatcc aagcagcaag
      901 cgcgttacgc cgtgggtcga tgtttgatgt tatggagcag caacgatgtt acgcagcagg
      961 gcagtcgccc taaaacaaag ttaaacatta tgagggaagc ggtgatcgcc gaagtatcga
     1021 ctcaactatc agaggtagtt ggcgtcatcg agcgccatct cgaaccgacg ttgctggccg
     1081 tacatttgta cggctccgca gtggatggcg gcctgaagcc acacagtgat attgatttgc
     1141 tggttacggt gaccgcaagg cttgatgaaa caacgcggcg agctttgatc gacgaccttt
     1201 tggaaacttc ggcttcccct ggagagagcg agattctccg cgctgtagaa gtcaccattg
     1261 ttgtgcacga cgacatcatt ccgtggcgtt atccagctaa gcgcgaactg caatttggag
     1321 aatggcagcg caatgacatt cttgcaggta tcttcgagcc agccacgatc gacattgatc
     1381 tggctatctt gctgacaaaa gcaagagaac atagcgttgc cttggtaggt ccagcggcgg
     1441 aggaactctt tgatccggtt cctgaacagg atctatttga ggcgctaaat gaaaccttaa
     1501 cgctatggaa ctcgccgccc gactgggctg gcgatgagcg aaatgtagtg cttacgttgt
     1561 cccgcatttg gtacagcgca gtaaccggca aaatcgcgcc gaaggatgtc gctgccgact
     1621 gggcaatgga gcgcctgccg gcccagtatc agcccgtcat acttgaagct agacaggctt
     1681 atcttggaca agaagaagat cgcttggcct cgcgcgcaga tcagttggaa gaatttgtcc
     1741 actacgtgaa aggcgagatc accaaggtag tcggcaaata acactataag ggcggatgat
     1801 gcagacgggg cttttttatg caggacccag ctttcttgta caaagttggc attataagaa
     1861 agcattgctt atcaatttgt tgcaacgaac aggtcactat cagtcaaaat aaaatcatta
     1921 tttgccatcc agctgcaggg cggccgcgat atcccctata gtgagtcgta ttacatggtc
     1981 atagctgttt cctggcagct ctggcccgtg tctcaaaatc tctgatgtta cattgcacaa
     2041 gataaaaata tatcatcatg aacaataaaa ctgtctgctt acataaacag taatacaagg
     2101 ggtgttatga gccatattca acgggaaacg tcgaggccgc gattaaattc caacatggat
     2161 gctgatttat atgggtataa atgggctcgc gataatgtcg ggcaatcagg tgcgacaatc
     2221 tatcgcttgt atgggaagcc cgatgcgcca gagttgtttc tgaaacatgg caaaggtagc
     2281 gttgccaatg atgttacaga tgagatggtc agactaaact ggctgacgga atttatgcct
     2341 cttccgacca tcaagcattt tatccgtact cctgatgatg catggttact caccactgcg
     2401 atccccggaa aaacagcatt ccaggtatta gaagaatatc ctgattcagg tgaaaatatt
     2461 gttgatgcgc tggcagtgtt cctgcgccgg ttgcattcga ttcctgtttg taattgtcct
     2521 tttaacagcg atcgcgtatt tcgtctcgct caggcgcaat cacgaatgaa taacggtttg
     2581 gttgatgcga gtgattttga tgacgagcgt aatggctggc ctgttgaaca agtctggaaa
     2641 gaaatgcata aacttttgcc attctcaccg gattcagtcg tcactcatgg tgatttctca
     2701 cttgataacc ttatttttga cgaggggaaa ttaataggtt gtattgatgt tggacgagtc
     2761 ggaatcgcag accgatacca ggatcttgcc atcctatgga actgcctcgg tgagttttct
     2821 ccttcattac agaaacggct ttttcaaaaa tatggtattg ataatcctga tatgaataaa
     2881 ttgcagtttc atttgatgct cgatgagttt ttctaatcag aattggttaa ttggttgtaa
     2941 cactggcaga gcattacgct gacttgacgg gacggcgcaa gctcatgacc aaaatccctt
     3001 aacgtgagtt acgcgtcgtt ccactgagcg tcagaccccg tagaaaagat caaaggatct
     3061 tcttgagatc ctttttttct gcgcgtaatc tgctgcttgc aaacaaaaaa accaccgcta
     3121 ccagcggtgg tttgtttgcc ggatcaagag ctaccaactc tttttccgaa ggtaactggc
     3181 ttcagcagag cgcagatacc aaatactgtt cttctagtgt agccgtagtt aggccaccac
     3241 ttcaagaact ctgtagcacc gcctacatac ctcgctctgc taatcctgtt accagtggct
     3301 gctgccagtg gcgataagtc gtgtcttacc gggttggact caagacgata gttaccggat
     3361 aaggcgcagc ggtcgggctg aacggggggt tcgtgcacac agcccagctt ggagcgaacg
     3421 acctacaccg aactgagata cctacagcgt gagctatgag aaagcgccac gcttcccgaa
     3481 gggagaaagg cggacaggta tccggtaagc ggcagggtcg gaacaggaga gcgcacgagg
     3541 gagcttccag ggggaaacgc ctggtatctt tatagtcctg tcgggtttcg ccacctctga
     3601 cttgagcgtc gatttttgtg atgctcgtca ggggggcgga gcctatggaa aaacgccagc
     3661 aacgcggcct ttttacggtt cctggccttt tgctggcctt ttgctcacat gtt
//

载体质粒图谱pdf版和相关资料下载
