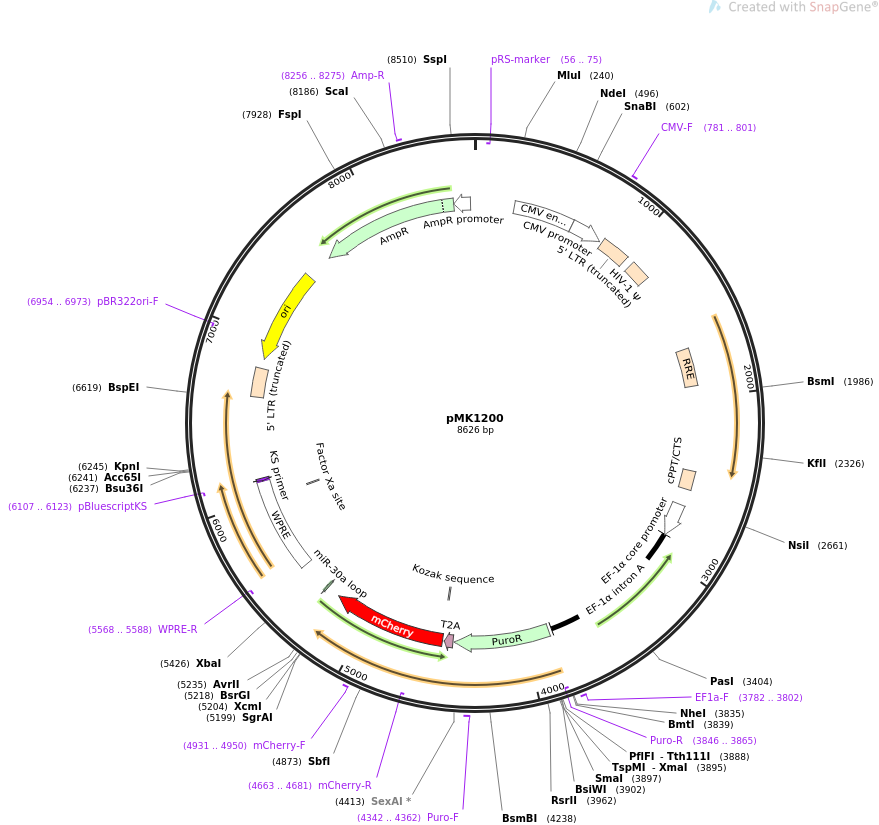

pMK1200

LOCUS       pMK1200                8626 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  Lentiviral expression of shRNAs, compatible with double-shRNA
            expression, EF1alpha promoter, mCherry.
ACCESSION   .
VERSION     .
KEYWORDS    pMK1200
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8626)
  AUTHORS   Kampmann M, Bassik MC, Weissman JS
  TITLE     Integrated platform for genome-wide screening and construction of
            high-density genetic interaction maps in mammalian cells.
  JOURNAL   Proc Natl Acad Sci U S A. 2013 Jun 18;110(25):E2317-26. doi:
            10.1073/pnas.1307002110. Epub 2013 Jun 5.
  PUBMED    23739767
REFERENCE   2  (bases 1 to 8626)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..8626
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(56..75)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        247..626
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        628..826
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     781..801
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     LTR             844..1024
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    1071..1196
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1695..1928
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    2455..2572
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        2675..2886
                     /label=EF-1-alpha core promoter
                     /note="core promoter for human elongation factor
                     EF-1-alpha"
     intron          2887..3825
                     /label=EF-1-alpha intron A
                     /note="intron upstream of the start codon of human
                     EF-1-alpha"
     primer_bind     3782..3802
                     /label=EF1a-F
                     /note="Human elongation factor-1a promoter, forward primer"
     CDS             3846..4442
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(3846..3865)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     4342..4362
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     CDS             4452..4505
                     /codon_start=1
                     /product="2A peptide from Thosea asigna virus capsid
                     protein"
                     /label=T2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="EGRGSLLTCGDVEENPGP"
     regulatory      4512..4521
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             4518..5228
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(4663..4681)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     4931..4950
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     ncRNA           5312..5326
                     /label=miR-30a loop
                     /note="loop from the the 71-nt precursor of the human
                     miR-30a microRNA (Zeng et al., 2002)"
                     /ncRNA_class="miRNA"
     misc_feature    5515..6103
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(5568..5588)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(5986..5997)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     primer_bind     complement(6106..6122)
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(6107..6123)
                     /label=pBluescriptKS
                     /note="For pBluescript vector"
     LTR             6632..6812
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     rep_origin      complement(6874..7462)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(6954..6973)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(7633..8493)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     8256..8275
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(8494..8598)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gcttaagcgg tcgacggatc gggagatctc ccgatcccct atggtgcact ctcagtacaa
       61 tctgctctga tgccgcatag ttaagccagt atctgctccc tgcttgtgtg ttggaggtcg
      121 ctgagtagtg cgcgagcaaa atttaagcta caacaaggca aggcttgacc gacaattgca
      181 tgaagaatct gcttagggtt aggcgttttg cgctgcttcg cgatgtacgg gccagatata
      241 cgcgttgaca ttgattattg actagttatt aatagtaatc aattacgggg tcattagttc
      301 atagcccata tatggagttc cgcgttacat aacttacggt aaatggcccg cctggctgac
      361 cgcccaacga cccccgccca ttgacgtcaa taatgacgta tgttcccata gtaacgccaa
      421 tagggacttt ccattgacgt caatgggtgg agtatttacg gtaaactgcc cacttggcag
      481 tacatcaagt gtatcatatg ccaagtacgc cccctattga cgtcaatgac ggtaaatggc
      541 ccgcctggca ttatgcccag tacatgacct tatgggactt tcctacttgg cagtacatct
      601 acgtattagt catcgctatt accatggtga tgcggttttg gcagtacatc aatgggcgtg
      661 gatagcggtt tgactcacgg ggatttccaa gtctccaccc cattgacgtc aatgggagtt
      721 tgttttggca ccaaaatcaa cgggactttc caaaatgtcg taacaactcc gccccattga
      781 cgcaaatggg cggtaggcgt gtacggtggg aggtctatat aagcagcgcg ttttgcctgt
      841 actgggtctc tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac
      901 ccactgctta agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg
      961 ttgtgtgact ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct
     1021 agcagtggcg cccgaacagg gacttgaaag cgaaagggaa accagaggag ctctctcgac
     1081 gcaggactcg gcttgctgaa gcgcgcacgg caagaggcga ggggcggcga ctggtgagta
     1141 cgccaaaaat tttgactagc ggaggctaga aggagagaga tgggtgcgag agcgtcagta
     1201 ttaagcgggg gagaattaga tcgcgatggg aaaaaattcg gttaaggcca gggggaaaga
     1261 aaaaatataa attaaaacat atagtatggg caagcaggga gctagaacga ttcgcagtta
     1321 atcctggcct gttagaaaca tcagaaggct gtagacaaat actgggacag ctacaaccat
     1381 cccttcagac aggatcagaa gaacttagat cattatataa tacagtagca accctctatt
     1441 gtgtgcatca aaggatagag ataaaagaca ccaaggaagc tttagacaag atagaggaag
     1501 agcaaaacaa aagtaagacc accgcacagc aagcggccgg ccgcgctgat cttcagacct
     1561 ggaggaggag atatgaggga caattggaga agtgaattat ataaatataa agtagtaaaa
     1621 attgaaccat taggagtagc acccaccaag gcaaagagaa gagtggtgca gagagaaaaa
     1681 agagcagtgg gaataggagc tttgttcctt gggttcttgg gagcagcagg aagcactatg
     1741 ggcgcagcgt caatgacgct gacggtacag gccagacaat tattgtctgg tatagtgcag
     1801 cagcagaaca atttgctgag ggctattgag gcgcaacagc atctgttgca actcacagtc
     1861 tggggcatca agcagctcca ggcaagaatc ctggctgtgg aaagatacct aaaggatcaa
     1921 cagctcctgg ggatttgggg ttgctctgga aaactcattt gcaccactgc tgtgccttgg
     1981 aatgctagtt ggagtaataa atctctggaa cagatttgga atcacacgac ctggatggag
     2041 tgggacagag aaattaacaa ttacacaagc ttaatacact ccttaattga agaatcgcaa
     2101 aaccagcaag aaaagaatga acaagaatta ttggaattag ataaatgggc aagtttgtgg
     2161 aattggttta acataacaaa ttggctgtgg tatataaaat tattcataat gatagtagga
     2221 ggcttggtag gtttaagaat agtttttgct gtactttcta tagtgaatag agttaggcag
     2281 ggatattcac cattatcgtt tcagacccac ctcccaaccc cgaggggacc cgacaggccc
     2341 gaaggaatag aagaagaagg tggagagaga gacagagaca gatccattcg attagtgaac
     2401 ggatcggcac tgcgtgcgcc aattctgcag acaaatggca gtattcatcc acaattttaa
     2461 aagaaaaggg gggattgggg ggtacagtgc aggggaaaga atagtagaca taatagcaac
     2521 agacatacaa actaaagaat tacaaaaaca aattacaaaa attcaaaatt ttcgggttta
     2581 ttacagggac agcagagatc cagtttggtt agtaccgggc ccgctctagg gccgcgtgga
     2641 taaccgtatt accgccatgc atgtgcccgt cagtgggcag agcgcacatc gcccacagtc
     2701 cccgagaagt tggggggagg ggtcggcaat tgaaccggtg cctagagaag gtggcgcggg
     2761 gtaaactggg aaagtgatgt cgtgtactgg ctccgccttt ttcccgaggg tgggggagaa
     2821 ccgtatataa gtgcagtagt cgccgtgaac gttctttttc gcaacgggtt tgccgccaga
     2881 acacaggtaa gtgccgtgtg tggttcccgc gggcctggcc tctttacggg ttatggccct
     2941 tgcgtgcctt gaattacttc cacctggctg cagtacgtga ttcttgatcc cgagcttcgg
     3001 gttggaagtg ggtgggagag ttcgaggcct tgcgcttaag gagccccttc gcctcgtgct
     3061 tgagttgagg cctggcctgg gcgctggggc cgccgcgtgc gaatctggtg gcaccttcgc
     3121 gcctgtctcg ctgctttcga taagtctcta gccatttaaa atttttgatg acctgctgcg
     3181 acgctttttt tctggcaaga tagtcttgta aatgcgggcc aagatctgca cactggtatt
     3241 tcggtttttg gggccgcggg cggcgacggg gcccgtgcgt cccagcgcac atgttcggcg
     3301 aggcggggcc tgcgagcgcg gccaccgaga atcggacggg ggtagtctca agctggccgg
     3361 cctgctctgg tgcctggcct cgcgccgccg tgtatcgccc cgccctgggc ggcaaggctg
     3421 gcccggtcgg caccagttgc gtgagcggaa agatggccgc ttcccggccc tgctgcaggg
     3481 agctcaaaat ggaggacgcg gcgctcggga gagcgggcgg gtgagtcacc cacacaaagg
     3541 aaaagggcct ttccgtcctc agccgtcgct tcatgtgact ccacggagta ccgggcgccg
     3601 tccaggcacc tcgattagtt ctcgagcttt tggagtacgt cgtctttagg ttggggggag
     3661 gggttttatg cgatggagtt tccccacact gagtgggtgg agactgaagt taggccagct
     3721 tggcacttga tgtaattctc cttggaattt gccctttttg agtttggatc ttggttcatt
     3781 ctcaagcctc agacagtggt tcaaagtttt tttcttccat ttcaggtgtc gtgagctagc
     3841 ccaccatgac cgagtacaag cccacggtgc gcctcgccac ccgcgacgac gtcccccggg
     3901 ccgtacgcac cctcgccgcc gcgttcgccg actaccccgc cacgcgccac accgtcgacc
     3961 cggaccgcca catcgagcgg gtcaccgagc tgcaagaact cttcctcacg cgcgtcgggc
     4021 tcgacatcgg caaggtgtgg gtcgcggacg acggcgccgc ggtggcggtc tggaccacgc
     4081 cggagagcgt cgaagcgggg gcggtgttcg ccgagatcgg cccgcgcatg gccgagttga
     4141 gcggttcccg gctggccgcg cagcaacaga tggaaggcct cctggcgccg caccggccca
     4201 aggagcccgc gtggttcctg gccaccgtcg gcgtctcgcc cgaccaccag ggcaagggtc
     4261 tgggcagcgc cgtcgtgctc cccggagtgg aggcggccga gcgcgccggg gtgcccgcct
     4321 tcctggagac ctccgcgccc cgcaacctcc ccttctacga gcggctcggc ttcaccgtca
     4381 ccgccgacgt cgaggtgccc gaaggaccgc gcacctggtg catgacccgc aagcccggtg
     4441 ccggatcggg agagggcaga ggaagtctgc taacatgcgg tgacgtcgag gagaatcctg
     4501 gcccaccggt cgccaccatg gtgagcaagg gcgaggagga taacatggcc atcatcaagg
     4561 agttcatgcg cttcaaggtg cacatggagg gctccgtgaa cggccacgag ttcgagatcg
     4621 agggcgaggg cgagggccgc ccctacgagg gcacccagac cgccaagctg aaggtgacca
     4681 agggtggccc cctgcccttc gcctgggaca tcctgtcccc tcagttcatg tacggctcca
     4741 aggcctacgt gaagcacccc gccgacatcc ccgactactt gaagctgtcc ttccccgagg
     4801 gcttcaagtg ggagcgcgtg atgaacttcg aggacggcgg cgtggtgacc gtgacccagg
     4861 actcctccct gcaggacggc gagttcatct acaaggtgaa gctgcgcggc accaacttcc
     4921 cctccgacgg ccccgtaatg cagaagaaga ccatgggctg ggaggcctcc tccgagcgga
     4981 tgtaccccga ggacggcgcc ctgaagggcg agatcaagca gaggctgaag ctgaaggacg
     5041 gcggccacta cgacgctgag gtcaagacca cctacaaggc caagaagccc gtgcagctgc
     5101 ccggcgccta caacgtcaac atcaagttgg acatcacctc ccacaacgag gactacacca
     5161 tcgtggaaca gtacgaacgc gccgagggcc gccactccac cggcggcatg gacgagctgt
     5221 acaagtaaga attgcctagg tattcgcctt gactcgagaa gaaggtatat tgctgttgac
     5281 ccagagcgtt gggcaggtct gaagttcatt agtgaagcca cagatgtaat gaacttcagg
     5341 acctgcccac tgccttgggc ctcgggcttc aaggggtcag tcacactctt tccctacacg
     5401 acgctcttcc gatctatacc acatatctag agttgaaccg actagtaagc caggtcgaga
     5461 catgtttaag ggttccggtt ccactaggta caattcgata tcaagcttat cgataatcaa
     5521 cctctggatt acaaaatttg tgaaagattg actggtattc ttaactatgt tgctcctttt
     5581 acgctatgtg gatacgctgc tttaatgcct ttgtatcatg ctattgcttc ccgtatggct
     5641 ttcattttct cctccttgta taaatcctgg ttgctgtctc tttatgagga gttgtggccc
     5701 gttgtcaggc aacgtggcgt ggtgtgcact gtgtttgctg acgcaacccc cactggttgg
     5761 ggcattgcca ccacctgtca gctcctttcc gggactttcg ctttccccct ccctattgcc
     5821 acggcggaac tcatcgccgc ctgccttgcc cgctgctgga caggggctcg gctgttgggc
     5881 actgacaatt ccgtggtgtt gtcggggaaa tcatcgtcct ttccttggct gctcgcctgt
     5941 gttgccacct ggattctgcg cgggacgtcc ttctgctacg tcccttcggc cctcaatcca
     6001 gcggaccttc cttcccgcgg cctgctgccg gctctgcggc ctcttccgcg tcttcgcctt
     6061 cgccctcaga cgagtcggat ctccctttgg gccgcctccc cgcatcgata ccgtcgacct
     6121 cgatcgagac ctagaaaaac atggagcaat cacaagtagc aatacagcag ctaccaatgc
     6181 tgattgtgcc tggctagaag cacaagagga ggaggaggtg ggttttccag tcacacctca
     6241 ggtaccttta agaccaatga cttacaaggc agctgtagat cttagccact ttttaaaaga
     6301 aaagggggga ctggaagggc taattcactc ccaacgaaga caagatatcc ttgatctgtg
     6361 gatctaccac acacaaggct acttccctga ttggcagaac tacacaccag ggccagggat
     6421 cagatatcca ctgacctttg gatggtgcta caagctagta ccagttgagc aagagaaggt
     6481 agaagaagcc aatgaaggag agaacacccg cttgttacac cctgtgagcc tgcatgggat
     6541 ggatgacccg gagagagaag tattagagtg gaggtttgac agccgcctag catttcatca
     6601 catggcccga gagctgcatc cggactgtac tgggtctctc tggttagacc agatctgagc
     6661 ctgggagctc tctggctaac tagggaaccc actgcttaag cctcaataaa gcttgccttg
     6721 agtgcttcaa gtagtgtgtg cccgtctgtt gtgtgactct ggtaactaga gatccctcag
     6781 acccttttag tcagtgtgga aaatctctag cagcatgtga gcaaaaggcc agcaaaaggc
     6841 caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga
     6901 gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata
     6961 ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac
     7021 cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg
     7081 taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc
     7141 cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag
     7201 acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt
     7261 aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta gaagaacagt
     7321 atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg
     7381 atccggcaaa caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac
     7441 gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca
     7501 gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac
     7561 ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac
     7621 ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt
     7681 tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt
     7741 accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt
     7801 atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc
     7861 cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa
     7921 tagtttgcgc aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg
     7981 tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt
     8041 gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc
     8101 agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt
     8161 aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg
     8221 gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac
     8281 tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc
     8341 gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt
     8401 tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg
     8461 aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat attattgaag
     8521 catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa
     8581 acaaataggg gttccgcgca catttccccg aaaagtgcca cctgac
//
