pAsRed2-C1

价格:2300元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pAsRed2-C1
质粒类型: 哺乳动物细胞表达载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV IE
载体大小: 4710 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: AsRed2 (N-端)
载体抗性: Kanamycin.html' target='_blank'>卡那霉素
筛选标记: 新霉素(Neomycin)
克隆菌株: DH5α, HB101
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)
备注: 哺乳动物载体pAsRed2-C1组成型表达N端AsRed2融合蛋白。
产品目录号: 632450
稳定性: 稳表达 或 瞬表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

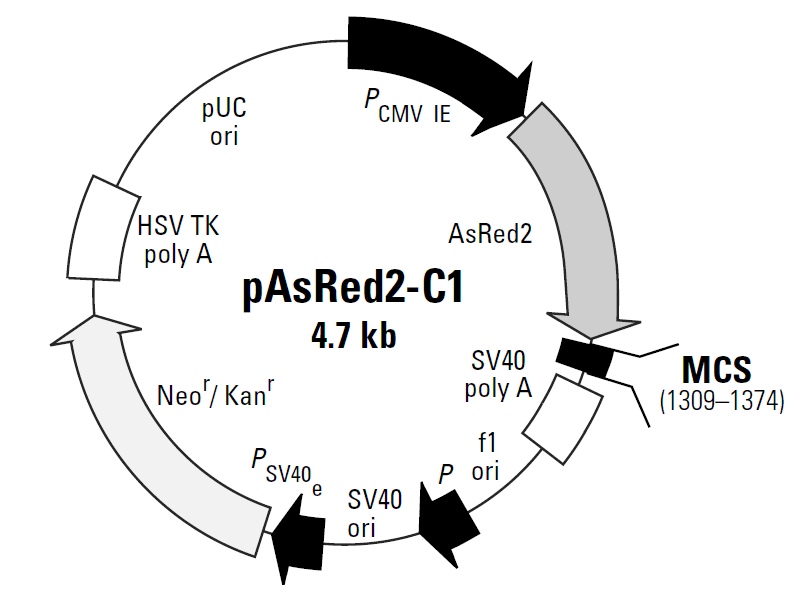

pAsRed2-C1载体图谱

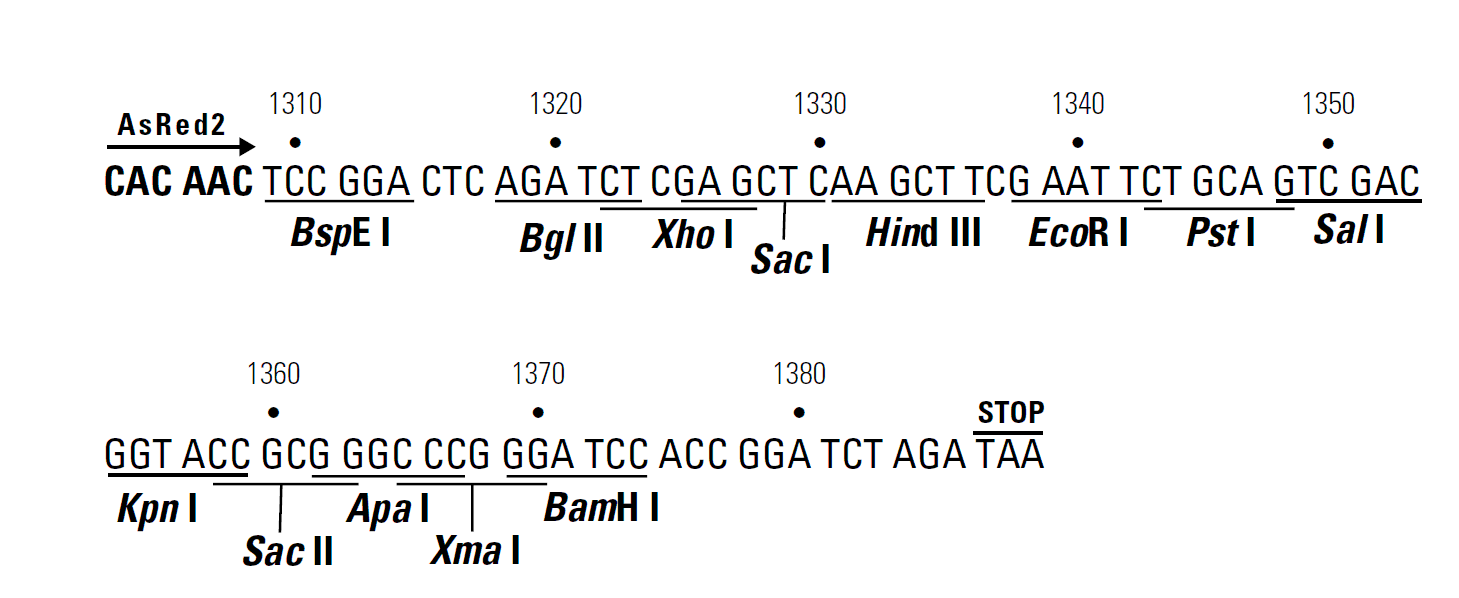

pAsRed2-C1 多克隆位点

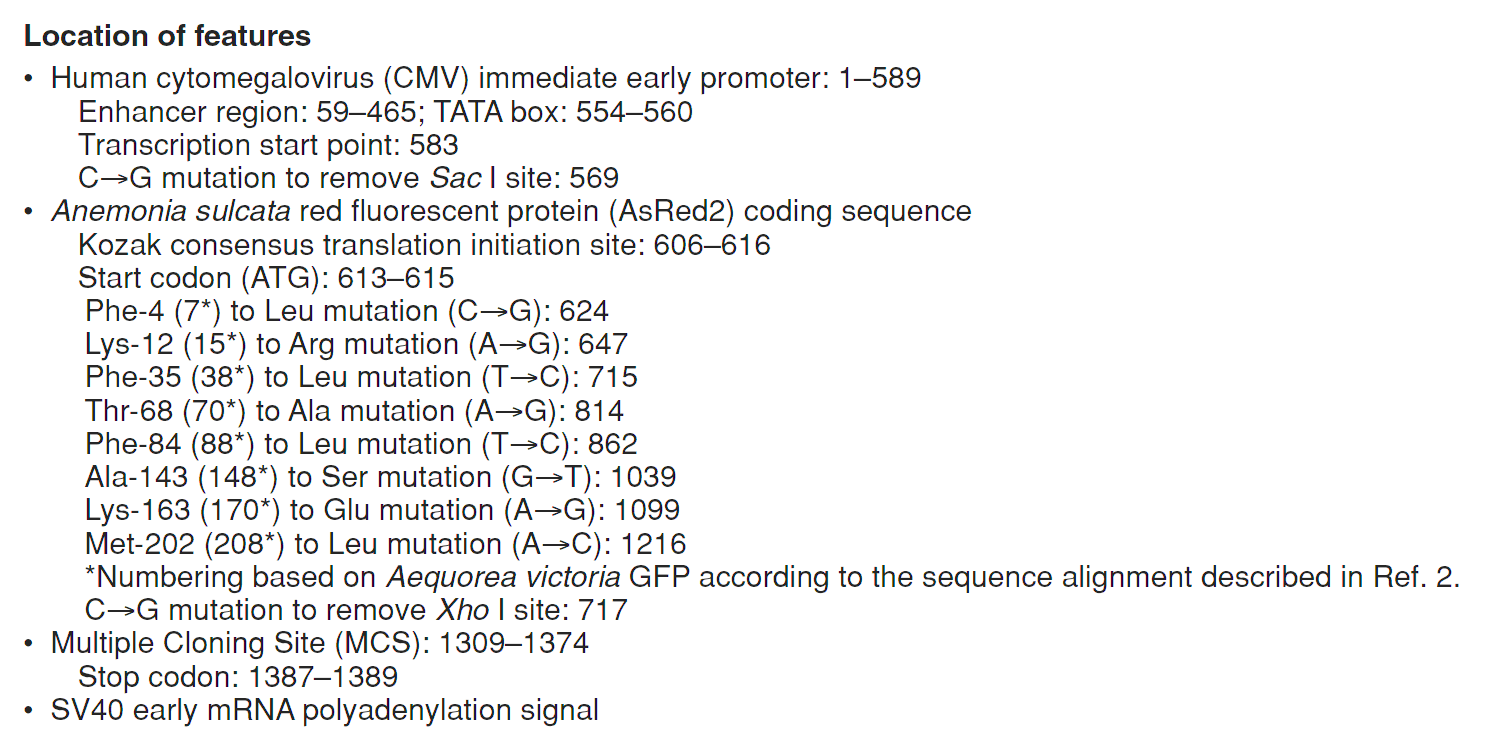

pAsRed2-C1 载体特征1

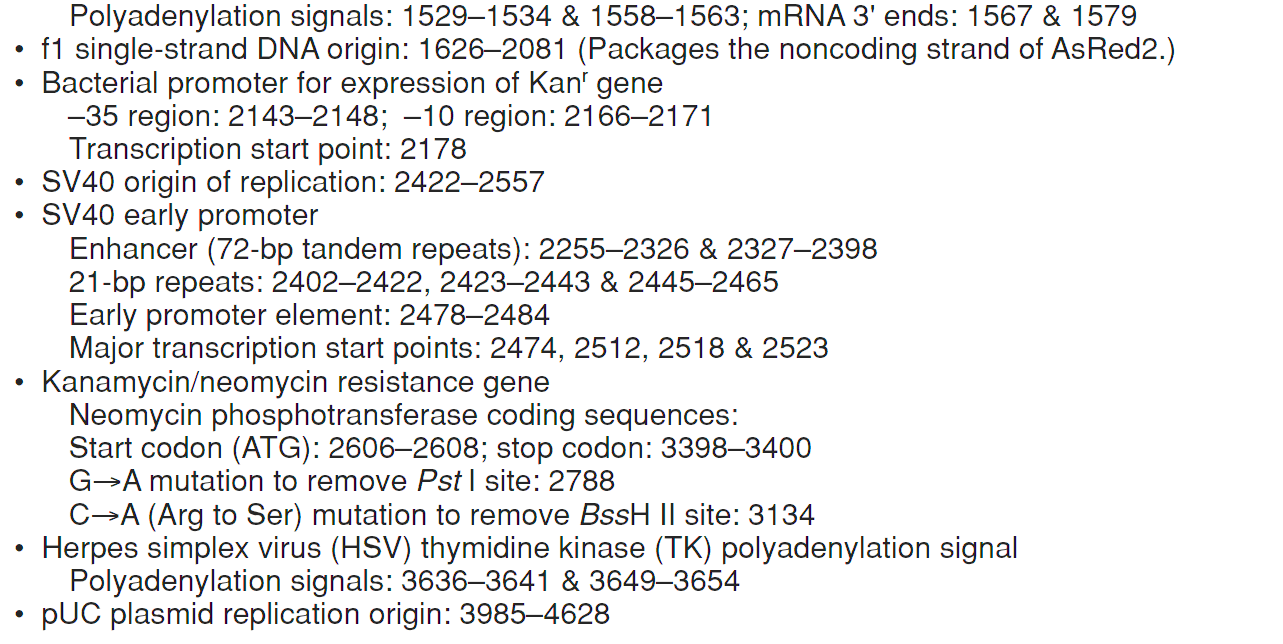

pAsRed2-C1 载体特征2

载体简介

pAsRed2-C1载体描述

pAsRed2-C1 encodes AsRed2, a variant of Anemonia sulcata red fluorescent protein (1, 2). AsRed2 has been engineered for brighter fluorescence (Clontech, unpublished data). The AsRed2 coding sequence also contains a series of silent base-pair changes, which correspond to human codon-usage preferences for optimal expression in mammalian cells (3). Additionally, an upstream sequence—located just 5' to the AsRed2 start codon—has been converted to a Kozak consensus translation initiation site (4) to further increase the translation efficiency in eukaryotic cells. The multiple cloning site (MCS) in pAsRed2-C1 is positioned between the AsRed2 coding sequence and a pair of SV40 polyadenylation signals (SV40 poly A). Thus, genes cloned into the MCS will be expressed as fusions to the C-terminus of AsRed2 if they are in the same reading frame as AsRed2 and there are no intervening stop codons. Expression of AsRed2 is driven by the cytomegalovirus immediate-early promoter (PCMV IE). The SV40 poly A signals downstream of the MCS direct proper processing of the 3' end of AsRed2 mRNA.

The vector backbone contains an SV40 origin (SV40 ori) for replication in mammalian cells that express the SV40 T-antigen, a pUC origin of replication (pUC ori) for propagation in E. coli, and an f1 origin (f1 ori) for single-stranded DNA production. A neomycin resistance cassette—consisting of the SV40 early promoter (PSV40e), the neomycin/kanamycin resistance gene of Tn5 (Neor/Kanr), and polyadenylation signals from the Herpes simplex virus thymidine kinase (HSV TK poly A) gene—allows stably transfected eukaryotic cells to be selected using G418 (5). A bacterial promoter (P) upstream of this cassette drives expression of the Neor/Kanr gene in E. coli hosts, which can be selected with kanamycin.

Fusions to the C terminus of AsRed2 retain the fluorescent properties of the native protein allowing the localization of the fusion protein in vivo (AsRed2 excitation maximum = 576 nm; AsRed2 emission maximum = 592 nm). The target gene should be cloned into pAsRed2-C1 so that it is in frame with the AsRed2 coding sequence, with no intervening, in-frame stop codons. The recombinant pAsRed2-C1 vector can be transfected into mammalian cells using any standard transfection method. If required, stable transformants can be selected using G418 (available from Clontech; Cat. Nos. 631307 & 631308). We recommend selecting mammalian cell cultures in 500–1,300 μg/ml G418, depending on the cell line. Be sure to establish a kill curve for each cell line and each lot of G418 to determine the optimal selection concentration. Unmodified (i.e., non-recombinant) pAsRed2-C1 can also be used simply to express AsRed2 in cells of interest (e.g., as a transfection marker).

Propagation in E. coli
 Suitable host strains: DH5α, HB101, and other general purpose strains. Single-stranded DNA production requires
a host containing an F plasmid such as JM109 or XL1-Blue.
 Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) to E. coli hosts.
 E. coli replication origin: pUC
 Copy number: ~500
 Plasmid incompatibility group: pMB1/Col E1

载体序列

LOCUS       pAsRed2-C1	4710 bp 	DNA	SYN
DEFINITION  pAsRed2-C1
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4710
                     /organism="pAsRed2-C1"
                     /mol_type="other DNA"
     promoter        10..562
                     /label="CMV_immearly_promoter"
     misc_feature    65..352
                     /label="CAG_enhancer"
     misc_feature    519..539
                     /label="CMV_fwd_primer"
     promoter        520..589
                     /label="CMV_promoter"
     CDS             complement(598..1407)
                     /label="ORF frame 1"
                     /translation="MADYDQLSRSGGSRARGTVDCRIRSLSSRSESGVVAQLGGGGVA
                     VAAHGGLVLLVALALLHLLQDLDAVVLEVEAGHLQGGGGLLGAVGGVQVAGQVATAGA
                     LQGHQGLAAQHAVHLVHDLGGGLPAAGLVLHHGAVGGEVVAQDLHLVHQAVAVQGGVL
                     VGGQEAAVLVGGGALPGEALGEGLLEVVGDAGHVLDEGLGAVHAGGGQDVEGEGQGAA
                     LDHLDLHLLGALQGVALALAGALEVVAVHGALDGGPEGHGLLQQRGHGGDR*"
     CDS             613..1389
                     /label="ORF frame 1"
                     /translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
                     VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
                     TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
                     ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
                     GRYCDAAPSKLGHNSGLRSRAQASNSAVDGTAGPGSTGSR*"
     gene            616..1386
                     /label="AsRed2"
                     /gene="AsRed2"
                     /translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
                     VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
                     TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
                     ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
                     GRYCDAAPSKLGHNSGLRSRAQASNSAVDGTAGPGSTGSR*"
     terminator      1391..1619
                     /label="SV40_PA_terminator"
                     /translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
                     VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
                     TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
                     ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
                     GRYCDAAPSKLGHNSGLRSRAQASNSAVDGTAGPGSTGSR*"
     misc_feature    1589..1608
                     /label="EBV_rev_primer"
                     /translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
                     VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
                     TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
                     ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
                     GRYCDAAPSKLGHNSGLRSRAQASNSAVDGTAGPGSTGSR*"
     rep_origin      complement(1758..2064)
                     /label="f1_origin"
                     /translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
                     VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
                     TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
                     ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
                     GRYCDAAPSKLGHNSGLRSRAQASNSAVDGTAGPGSTGSR*"
     promoter        2143..2171
                     /label="AmpR_promoter"
                     /translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
                     VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
                     TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
                     ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
                     GRYCDAAPSKLGHNSGLRSRAQASNSAVDGTAGPGSTGSR*"
     misc_feature    complement(2237..2257)
                     /label="pBABE_3_primer"
                     /translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
                     VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
                     TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
                     ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
                     GRYCDAAPSKLGHNSGLRSRAQASNSAVDGTAGPGSTGSR*"
     misc_feature    complement(2243..2458)
                     /label="SV40_enhancer"
                     /translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
                     VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
                     TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
                     ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
                     GRYCDAAPSKLGHNSGLRSRAQASNSAVDGTAGPGSTGSR*"
     promoter        2255..2523
                     /label="SV40_promoter"
                     /translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
                     VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
                     TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
                     ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
                     GRYCDAAPSKLGHNSGLRSRAQASNSAVDGTAGPGSTGSR*"
     rep_origin      2422..2499
                     /label="SV40_origin"
                     /translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
                     VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
                     TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
                     ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
                     GRYCDAAPSKLGHNSGLRSRAQASNSAVDGTAGPGSTGSR*"
     misc_feature    2484..2503
                     /label="SV40pro_F_primer"
                     /translation="MASLLKKTMPFRTTIEGTVNGHYFKCTGKGEGNPLEGTQEMKIE
                     VIEGGPLPFAFHILSTSCMYGSKAFIKYVSGIPDYFKQSLPEGFTWERTTTYEDGGFL
                     TAHQDTSLDGDCLVYKVKILGNNFPADGPVMQNKAGRWEPSTEIVYEVDGVLRGQSLM
                     ALECPGGRHLTCHLHTTYRSKKPASALKMPGFHFEDHRIEILEEVEKGKCYKQYEAAV
                     GRYCDAAPSKLGHNSGLRSRAQASNSAVDGTAGPGSTGSR*"
     CDS             2606..3400
                     /label="ORF frame 2"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            2609..3397
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(2915..3451)
                     /label="ORF frame 3"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     terminator      3575..3844
                     /label="TK_PA_terminator"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     rep_origin      3992..4611
                     /label="pBR322_origin"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
ORIGIN
    1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG
   61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT
  121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA
  181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC
  241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA
  301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC
  361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG
  421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG
  481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT
  541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA
  601 CCGGTCGCCA CCATGGCCTC TTTGCTGAAG AAGACCATGC CCTTCAGGAC CACCATCGAG
  661 GGCACCGTGA ACGGCCACTA CTTCAAGTGC ACCGGCAAGG GCGAGGGCAA CCCCCTGGAG
  721 GGCACCCAGG AGATGAAGAT CGAGGTGATC GAGGGCGGCC CCCTGCCCTT CGCCTTCCAC
  781 ATCCTGTCCA CCTCCTGCAT GTACGGCTCC AAGGCCTTCA TCAAGTACGT GTCCGGCATC
  841 CCCGACTACT TCAAGCAGTC CCTCCCCGAG GGCTTCACCT GGGAGCGCAC CACCACCTAC
  901 GAGGACGGCG GCTTCCTGAC CGCCCACCAG GACACCTCCC TGGACGGCGA CTGCCTGGTG
  961 TACAAGGTGA AGATCCTGGG CAACAACTTC CCCGCCGACG GCCCCGTGAT GCAGAACAAG
 1021 GCCGGCCGCT GGGAGCCCTC CACCGAGATC GTGTACGAGG TGGACGGCGT GCTGCGCGGC
 1081 CAGTCCCTGA TGGCCCTGGA GTGCCCCGGC GGTCGCCACC TGACCTGCCA CCTGCACACC
 1141 ACCTACCGCT CCAAGAAGCC CGCCTCCGCC CTGAAGATGC CCGGCTTCCA CTTCGAGGAC
 1201 CACCGCATCG AGATCCTGGA GGAGGTGGAG AAGGGCAAGT GCTACAAGCA GTACGAGGCC
 1261 GCCGTGGGCC GCTACTGCGA CGCCGCCCCC TCCAAGCTGG GCCACAACTC CGGACTCAGA
 1321 TCTCGAGCTC AAGCTTCGAA TTCTGCAGTC GACGGTACCG CGGGCCCGGG ATCCACCGGA
 1381 TCTAGATAAC TGATCATAAT CAGCCATACC ACATTTGTAG AGGTTTTACT TGCTTTAAAA
 1441 AACCTCCCAC ACCTCCCCCT GAACCTGAAA CATAAAATGA ATGCAATTGT TGTTGTTAAC
 1501 TTGTTTATTG CAGCTTATAA TGGTTACAAA TAAAGCAATA GCATCACAAA TTTCACAAAT
 1561 AAAGCATTTT TTTCACTGCA TTCTAGTTGT GGTTTGTCCA AACTCATCAA TGTATCTTAA
 1621 CGCGTAAATT GTAAGCGTTA ATATTTTGTT AAAATTCGCG TTAAATTTTT GTTAAATCAG
 1681 CTCATTTTTT AACCAATAGG CCGAAATCGG CAAAATCCCT TATAAATCAA AAGAATAGAC
 1741 CGAGATAGGG TTGAGTGTTG TTCCAGTTTG GAACAAGAGT CCACTATTAA AGAACGTGGA
 1801 CTCCAACGTC AAAGGGCGAA AAACCGTCTA TCAGGGCGAT GGCCCACTAC GTGAACCATC
 1861 ACCCTAATCA AGTTTTTTGG GGTCGAGGTG CCGTAAAGCA CTAAATCGGA ACCCTAAAGG
 1921 GAGCCCCCGA TTTAGAGCTT GACGGGGAAA GCCGGCGAAC GTGGCGAGAA AGGAAGGGAA
 1981 GAAAGCGAAA GGAGCGGGCG CTAGGGCGCT GGCAAGTGTA GCGGTCACGC TGCGCGTAAC
 2041 CACCACACCC GCCGCGCTTA ATGCGCCGCT ACAGGGCGCG TCAGGTGGCA CTTTTCGGGG
 2101 AAATGTGCGC GGAACCCCTA TTTGTTTATT TTTCTAAATA CATTCAAATA TGTATCCGCT
 2161 CATGAGACAA TAACCCTGAT AAATGCTTCA ATAATATTGA AAAAGGAAGA GTCCTGAGGC
 2221 GGAAAGAACC AGCTGTGGAA TGTGTGTCAG TTAGGGTGTG GAAAGTCCCC AGGCTCCCCA
 2281 GCAGGCAGAA GTATGCAAAG CATGCATCTC AATTAGTCAG CAACCAGGTG TGGAAAGTCC
 2341 CCAGGCTCCC CAGCAGGCAG AAGTATGCAA AGCATGCATC TCAATTAGTC AGCAACCATA
 2401 GTCCCGCCCC TAACTCCGCC CATCCCGCCC CTAACTCCGC CCAGTTCCGC CCATTCTCCG
 2461 CCCCATGGCT GACTAATTTT TTTTATTTAT GCAGAGGCCG AGGCCGCCTC GGCCTCTGAG
 2521 CTATTCCAGA AGTAGTGAGG AGGCTTTTTT GGAGGCCTAG GCTTTTGCAA AGATCGATCA
 2581 AGAGACAGGA TGAGGATCGT TTCGCATGAT TGAACAAGAT GGATTGCACG CAGGTTCTCC
 2641 GGCCGCTTGG GTGGAGAGGC TATTCGGCTA TGACTGGGCA CAACAGACAA TCGGCTGCTC
 2701 TGATGCCGCC GTGTTCCGGC TGTCAGCGCA GGGGCGCCCG GTTCTTTTTG TCAAGACCGA
 2761 CCTGTCCGGT GCCCTGAATG AACTGCAAGA CGAGGCAGCG CGGCTATCGT GGCTGGCCAC
 2821 GACGGGCGTT CCTTGCGCAG CTGTGCTCGA CGTTGTCACT GAAGCGGGAA GGGACTGGCT
 2881 GCTATTGGGC GAAGTGCCGG GGCAGGATCT CCTGTCATCT CACCTTGCTC CTGCCGAGAA
 2941 AGTATCCATC ATGGCTGATG CAATGCGGCG GCTGCATACG CTTGATCCGG CTACCTGCCC
 3001 ATTCGACCAC CAAGCGAAAC ATCGCATCGA GCGAGCACGT ACTCGGATGG AAGCCGGTCT
 3061 TGTCGATCAG GATGATCTGG ACGAAGAGCA TCAGGGGCTC GCGCCAGCCG AACTGTTCGC
 3121 CAGGCTCAAG GCGAGCATGC CCGACGGCGA GGATCTCGTC GTGACCCATG GCGATGCCTG
 3181 CTTGCCGAAT ATCATGGTGG AAAATGGCCG CTTTTCTGGA TTCATCGACT GTGGCCGGCT
 3241 GGGTGTGGCG GACCGCTATC AGGACATAGC GTTGGCTACC CGTGATATTG CTGAAGAGCT
 3301 TGGCGGCGAA TGGGCTGACC GCTTCCTCGT GCTTTACGGT ATCGCCGCTC CCGATTCGCA
 3361 GCGCATCGCC TTCTATCGCC TTCTTGACGA GTTCTTCTGA GCGGGACTCT GGGGTTCGAA
 3421 ATGACCGACC AAGCGACGCC CAACCTGCCA TCACGAGATT TCGATTCCAC CGCCGCCTTC
 3481 TATGAAAGGT TGGGCTTCGG AATCGTTTTC CGGGACGCCG GCTGGATGAT CCTCCAGCGC
 3541 GGGGATCTCA TGCTGGAGTT CTTCGCCCAC CCTAGGGGGA GGCTAACTGA AACACGGAAG
 3601 GAGACAATAC CGGAAGGAAC CCGCGCTATG ACGGCAATAA AAAGACAGAA TAAAACGCAC
 3661 GGTGTTGGGT CGTTTGTTCA TAAACGCGGG GTTCGGTCCC AGGGCTGGCA CTCTGTCGAT
 3721 ACCCCACCGA GACCCCATTG GGGCCAATAC GCCCGCGTTT CTTCCTTTTC CCCACCCCAC
 3781 CCCCCAAGTT CGGGTGAAGG CCCAGGGCTC GCAGCCAACG TCGGGGCGGC AGGCCCTGCC
 3841 ATAGCCTCAG GTTACTCATA TATACTTTAG ATTGATTTAA AACTTCATTT TTAATTTAAA
 3901 AGGATCTAGG TGAAGATCCT TTTTGATAAT CTCATGACCA AAATCCCTTA ACGTGAGTTT
 3961 TCGTTCCACT GAGCGTCAGA CCCCGTAGAA AAGATCAAAG GATCTTCTTG AGATCCTTTT
 4021 TTTCTGCGCG TAATCTGCTG CTTGCAAACA AAAAAACCAC CGCTACCAGC GGTGGTTTGT
 4081 TTGCCGGATC AAGAGCTACC AACTCTTTTT CCGAAGGTAA CTGGCTTCAG CAGAGCGCAG
 4141 ATACCAAATA CTGTCCTTCT AGTGTAGCCG TAGTTAGGCC ACCACTTCAA GAACTCTGTA
 4201 GCACCGCCTA CATACCTCGC TCTGCTAATC CTGTTACCAG TGGCTGCTGC CAGTGGCGAT
 4261 AAGTCGTGTC TTACCGGGTT GGACTCAAGA CGATAGTTAC CGGATAAGGC GCAGCGGTCG
 4321 GGCTGAACGG GGGGTTCGTG CACACAGCCC AGCTTGGAGC GAACGACCTA CACCGAACTG
 4381 AGATACCTAC AGCGTGAGCT ATGAGAAAGC GCCACGCTTC CCGAAGGGAG AAAGGCGGAC
 4441 AGGTATCCGG TAAGCGGCAG GGTCGGAACA GGAGAGCGCA CGAGGGAGCT TCCAGGGGGA
 4501 AACGCCTGGT ATCTTTATAG TCCTGTCGGG TTTCGCCACC TCTGACTTGA GCGTCGATTT
 4561 TTGTGATGCT CGTCAGGGGG GCGGAGCCTA TGGAAAAACG CCAGCAACGC GGCCTTTTTA
 4621 CGGTTCCTGG CCTTTTGCTG GCCTTTTGCT CACATGTTCT TTCCTGCGTT ATCCCCTGAT
 4681 TCTGTGGATA ACCGTATTAC CGCCATGCAT
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
