pAC152-dual-dCas9VP64-sgExpression

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pAC152-dual-dCas9VP64-sgExpression
出品公司: 爱迪基因
目录编号: 48238
存储实验室: Rudolf Jaenisch

载体骨架基本信息
载体名称: pX335 (Addgene #42335)
载体抗性: 氨苄霉素
载体类型: 哺乳细胞表达
高拷贝/低拷贝: 未知
生长条件: 37 ℃

插入基因信息
插入基因名称: dCas9
物种来源: 合成
插入大小: 4349 bp
基因突变: D10A;H840A
标签/融合蛋白: HA Tag(N端)       VP64(C端)

文献引用方法
材料和方法部分: pAC152-dual-dCas9VP64-sgExpression was a gift from Rudolf Jaenisch (Addgene plasmid # 48238)
参考文献部分: Multiplexed activation of endogenous genes by CRISPR-on, an RNA-guided transcriptional activator system. Cheng AW, Wang H, Yang H, Shi L, Katz Y, Theunissen TW, Rangarajan S, Shivalila CS, Dadon DB, Jaenisch R. Cell Res. 2013 Aug 27. doi: 10.1038/cr.2013.122. 10.1038/cr.2013.122 PubMed 23979020

载体图谱质粒图谱和多克隆位点信息

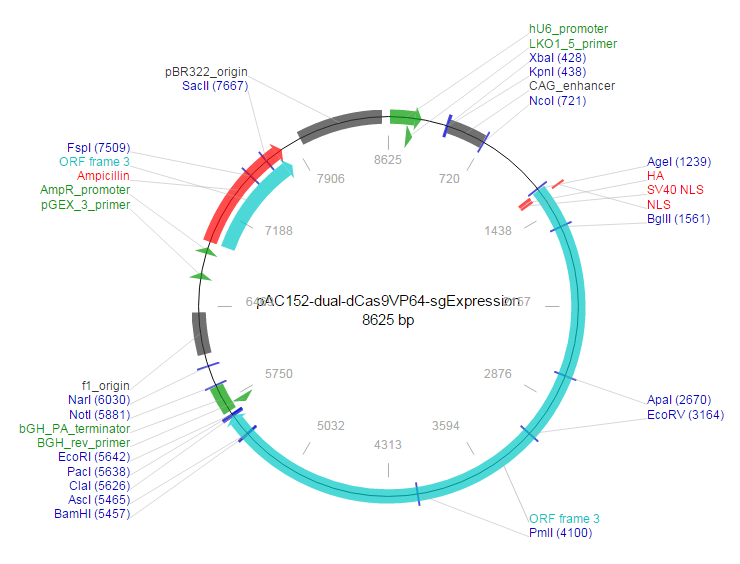

pAC152-dual-dCas9VP64-sgExpression载体图谱

载体简介

载体序列

LOCUS       pAC152-dual-dCas9VP64-sgExpression	8625 bp 	DNA	SYN
DEFINITION  pAC152-dual-dCas9VP64-sgExpression
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..8625
                     /organism="pAC152-dual-dCas9VP64-sgExpression"
                     /mol_type="other DNA"
     promoter        10..242
                     /label="hU6_promoter"
     misc_feature    172..191
                     /label="LKO1_5_primer"
     misc_feature    444..713
                     /label="CAG_enhancer"
     CDS             1251..5633
                     /label="ORF frame 3"
     misc_feature    1254..1280
                     /label="HA"
     misc_feature    1284..1304
                     /label="SV40 NLS"
     misc_feature    1290..1304
                     /label="NLS"
     misc_feature    complement(5666..5683)
                     /label="BGH_rev_primer"
     terminator      5669..5872
                     /label="bGH_PA_terminator"
     rep_origin      6120..6426
                     /label="f1_origin"
     misc_feature    6694..6716
                     /label="pGEX_3_primer"
     promoter        6875..6903
                     /label="AmpR_promoter"
     gene            6945..7805
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             6945..7805
                     /label="ORF frame 3"
     rep_origin      7960..8579
                     /label="pBR322_origin"
ORIGIN
    1 gagggcctat ttcccatgat tccttcatat ttgcatatac gatacaaggc tgttagagag
   61 ataattggaa ttaatttgac tgtaaacaca aagatattag tacaaaatac gtgacgtaga
  121 aagtaataat ttcttgggta gtttgcagtt ttaaaattat gttttaaaat ggactatcat
  181 atgcttaccg taacttgaaa gtatttcgat ttcttggctt tatatatctt GTGGAAAGGA
  241 CGAAACACCg gGTCTTCgaG AAGACctgtt ttagagctaG AAAtagcaag ttaaaataag
  301 gctagtccgt tatcaacttg aaaaagtggc accgagtcgg tgcTTTTTTg ttttagagct
  361 agaaatagca agttaaaata aggctagtcc gtTTTTagcg cgtgcgccaa ttctgcagac
  421 aaatggctct agaggtaccc gttacataac ttacggtaaa tggcccgcct ggctgaccgc
  481 ccaacgaccc ccgcccattg acgtcaatag taacgccaat agggactttc cattgacgtc
  541 aatgggtgga gtatttacgg taaactgccc acttggcagt acatcaagtg tatcatatgc
  601 caagtacgcc ccctattgac gtcaatgacg gtaaatggcc cgcctggcat tGtgcccagt
  661 acatgacctt atgggacttt cctacttggc agtacatcta cgtattagtc atcgctatta
  721 ccatggtcga ggtgagcccc acgttctgct tcactctccc catctccccc ccctccccac
  781 ccccaatttt gtatttattt attttttaat tattttgtgc agcgatgggg gcgggggggg
  841 ggggggggcg cgcgccaggc ggggcggggc ggggcgaggg gcggggcggg gcgaggcgga
  901 gaggtgcggc ggcagccaat cagagcggcg cgctccgaaa gtttcctttt atggcgaggc
  961 ggcggcggcg gcggccctat aaaaagcgaa gcgcgcggcg ggcgggagtc gctgcgacgc
 1021 tgccttcgcc ccgtgccccg ctccgccgcc gcctcgcgcc gcccgccccg gctctgactg
 1081 accgcgttac tcccacaggt gagcgggcgg gacggccctt ctcctccggg ctgtaattag
 1141 ctgagcaaga ggtaagggtt taagggatgg ttggttggtg gggtattaat gtttaattac
 1201 ctggagcacc tgcctgaaat cacttttttt caggttGGAC CGGTgccacc ATGTACCCAT
 1261 ACGATGTTCC AGATTACGCT TCGCCGAAGA AAAAGCGCAA GGTCGAAGCG TCCGACAAGA
 1321 AGTACAGCAT CGGCCTGGCC ATCGGCACCA ACTCTGTGGG CTGGGCCGTG ATCACCGACG
 1381 AGTACAAGGT GCCCAGCAAG AAATTCAAGG TGCTGGGCAA CACCGACCGG CACAGCATCA
 1441 AGAAGAACCT GATCGGAGCC CTGCTGTTCG ACAGCGGCGA AACAGCCGAG GCCACCCGGC
 1501 TGAAGAGAAC CGCCAGAAGA AGATACACCA GACGGAAGAA CCGGATCTGC TATCTGCAAG
 1561 AGATCTTCAG CAACGAGATG GCCAAGGTGG ACGACAGCTT CTTCCACAGA CTGGAAGAGT
 1621 CCTTCCTGGT GGAAGAGGAT AAGAAGCACG AGCGGCACCC CATCTTCGGC AACATCGTGG
 1681 ACGAGGTGGC CTACCACGAG AAGTACCCCA CCATCTACCA CCTGAGAAAG AAACTGGTGG
 1741 ACAGCACCGA CAAGGCCGAC CTGCGGCTGA TCTATCTGGC CCTGGCCCAC ATGATCAAGT
 1801 TCCGGGGCCA CTTCCTGATC GAGGGCGACC TGAACCCCGA CAACAGCGAC GTGGACAAGC
 1861 TGTTCATCCA GCTGGTGCAG ACCTACAACC AGCTGTTCGA GGAAAACCCC ATCAACGCCA
 1921 GCGGCGTGGA CGCCAAGGCC ATCCTGTCTG CCAGACTGAG CAAGAGCAGA CGGCTGGAAA
 1981 ATCTGATCGC CCAGCTGCCC GGCGAGAAGA AGAATGGCCT GTTCGGCAAC CTGATTGCCC
 2041 TGAGCCTGGG CCTGACCCCC AACTTCAAGA GCAACTTCGA CCTGGCCGAG GATGCCAAAC
 2101 TGCAGCTGAG CAAGGACACC TACGACGACG ACCTGGACAA CCTGCTGGCC CAGATCGGCG
 2161 ACCAGTACGC CGACCTGTTT CTGGCCGCCA AGAACCTGTC CGACGCCATC CTGCTGAGCG
 2221 ACATCCTGAG AGTGAACACC GAGATCACCA AGGCCCCCCT GAGCGCCTCT ATGATCAAGA
 2281 GATACGACGA GCACCACCAG GACCTGACCC TGCTGAAAGC TCTCGTGCGG CAGCAGCTGC
 2341 CTGAGAAGTA CAAAGAGATT TTCTTCGACC AGAGCAAGAA CGGCTACGCC GGCTACATTG
 2401 ACGGCGGAGC CAGCCAGGAA GAGTTCTACA AGTTCATCAA GCCCATCCTG GAAAAGATGG
 2461 ACGGCACCGA GGAACTGCTC GTGAAGCTGA ACAGAGAGGA CCTGCTGCGG AAGCAGCGGA
 2521 CCTTCGACAA CGGCAGCATC CCCCACCAGA TCCACCTGGG AGAGCTGCAC GCCATTCTGC
 2581 GGCGGCAGGA AGATTTTTAC CCATTCCTGA AGGACAACCG GGAAAAGATC GAGAAGATCC
 2641 TGACCTTCCG CATCCCCTAC TACGTGGGCC CTCTGGCCAG GGGAAACAGC AGATTCGCCT
 2701 GGATGACCAG AAAGAGCGAG GAAACCATCA CCCCCTGGAA CTTCGAGGAA GTGGTGGACA
 2761 AGGGCGCTTC CGCCCAGAGC TTCATCGAGC GGATGACCAA CTTCGATAAG AACCTGCCCA
 2821 ACGAGAAGGT GCTGCCCAAG CACAGCCTGC TGTACGAGTA CTTCACCGTG TATAACGAGC
 2881 TGACCAAAGT GAAATACGTG ACCGAGGGAA TGAGAAAGCC CGCCTTCCTG AGCGGCGAGC
 2941 AGAAAAAGGC CATCGTGGAC CTGCTGTTCA AGACCAACCG GAAAGTGACC GTGAAGCAGC
 3001 TGAAAGAGGA CTACTTCAAG AAAATCGAGT GCTTCGACTC CGTGGAAATC TCCGGCGTGG
 3061 AAGATCGGTT CAACGCCTCC CTGGGCACAT ACCACGATCT GCTGAAAATT ATCAAGGACA
 3121 AGGACTTCCT GGACAATGAG GAAAACGAGG ACATTCTGGA AGATATCGTG CTGACCCTGA
 3181 CACTGTTTGA GGACAGAGAG ATGATCGAGG AACGGCTGAA AACCTATGCC CACCTGTTCG
 3241 ACGACAAAGT GATGAAGCAG CTGAAGCGGC GGAGATACAC CGGCTGGGGC AGGCTGAGCC
 3301 GGAAGCTGAT CAACGGCATC CGGGACAAGC AGTCCGGCAA GACAATCCTG GATTTCCTGA
 3361 AGTCCGACGG CTTCGCCAAC AGAAACTTCA TGCAGCTGAT CCACGACGAC AGCCTGACCT
 3421 TTAAAGAGGA CATCCAGAAA GCCCAGGTGT CCGGCCAGGG CGATAGCCTG CACGAGCACA
 3481 TTGCCAATCT GGCCGGCAGC CCCGCCATTA AGAAGGGCAT CCTGCAGACA GTGAAGGTGG
 3541 TGGACGAGCT CGTGAAAGTG ATGGGCCGGC ACAAGCCCGA GAACATCGTG ATCGAAATGG
 3601 CCAGAGAGAA CCAGACCACC CAGAAGGGAC AGAAGAACAG CCGCGAGAGA ATGAAGCGGA
 3661 TCGAAGAGGG CATCAAAGAG CTGGGCAGCC AGATCCTGAA AGAACACCCC GTGGAAAACA
 3721 CCCAGCTGCA GAACGAGAAG CTGTACCTGT ACTACCTGCA GAATGGGCGG GATATGTACG
 3781 TGGACCAGGA ACTGGACATC AACCGGCTGT CCGACTACGA TGTGGACGCC ATCGTGCCTC
 3841 AGAGCTTTCT GAAGGACGAC TCCATCGACA ACAAGGTGCT GACCAGAAGC GACAAGAACC
 3901 GGGGCAAGAG CGACAACGTG CCCTCCGAAG AGGTCGTGAA GAAGATGAAG AACTACTGGC
 3961 GGCAGCTGCT GAACGCCAAG CTGATTACCC AGAGAAAGTT CGACAATCTG ACCAAGGCCG
 4021 AGAGAGGCGG CCTGAGCGAA CTGGATAAGG CCGGCTTCAT CAAGAGACAG CTGGTGGAAA
 4081 CCCGGCAGAT CACAAAGCAC GTGGCACAGA TCCTGGACTC CCGGATGAAC ACTAAGTACG
 4141 ACGAGAATGA CAAGCTGATC CGGGAAGTGA AAGTGATCAC CCTGAAGTCC AAGCTGGTGT
 4201 CCGATTTCCG GAAGGATTTC CAGTTTTACA AAGTGCGCGA GATCAACAAC TACCACCACG
 4261 CCCACGACGC CTACCTGAAC GCCGTCGTGG GAACCGCCCT GATCAAAAAG TACCCTAAGC
 4321 TGGAAAGCGA GTTCGTGTAC GGCGACTACA AGGTGTACGA CGTGCGGAAG ATGATCGCCA
 4381 AGAGCGAGCA GGAAATCGGC AAGGCTACCG CCAAGTACTT CTTCTACAGC AACATCATGA
 4441 ACTTTTTCAA GACCGAGATT ACCCTGGCCA ACGGCGAGAT CCGGAAGCGG CCTCTGATCG
 4501 AGACAAACGG CGAAACCGGG GAGATCGTGT GGGATAAGGG CCGGGATTTT GCCACCGTGC
 4561 GGAAAGTGCT GAGCATGCCC CAAGTGAATA TCGTGAAAAA GACCGAGGTG CAGACAGGCG
 4621 GCTTCAGCAA AGAGTCTATC CTGCCCAAGA GGAACAGCGA TAAGCTGATC GCCAGAAAGA
 4681 AGGACTGGGA CCCTAAGAAG TACGGCGGCT TCGACAGCCC CACCGTGGCC TATTCTGTGC
 4741 TGGTGGTGGC CAAAGTGGAA AAGGGCAAGT CCAAGAAACT GAAGAGTGTG AAAGAGCTGC
 4801 TGGGGATCAC CATCATGGAA AGAAGCAGCT TCGAGAAGAA TCCCATCGAC TTTCTGGAAG
 4861 CCAAGGGCTA CAAAGAAGTG AAAAAGGACC TGATCATCAA GCTGCCTAAG TACTCCCTGT
 4921 TCGAGCTGGA AAACGGCCGG AAGAGAATGC TGGCCTCTGC CGGCGAACTG CAGAAGGGAA
 4981 ACGAACTGGC CCTGCCCTCC AAATATGTGA ACTTCCTGTA CCTGGCCAGC CACTATGAGA
 5041 AGCTGAAGGG CTCCCCCGAG GATAATGAGC AGAAACAGCT GTTTGTGGAA CAGCACAAGC
 5101 ACTACCTGGA CGAGATCATC GAGCAGATCA GCGAGTTCTC CAAGAGAGTG ATCCTGGCCG
 5161 ACGCTAATCT GGACAAAGTG CTGTCCGCCT ACAACAAGCA CCGGGATAAG CCCATCAGAG
 5221 AGCAGGCCGA GAATATCATC CACCTGTTTA CCCTGACCAA TCTGGGAGCC CCTGCCGCCT
 5281 TCAAGTACTT TGACACCACC ATCGACCGGA AGAGGTACAC CAGCACCAAA GAGGTGCTGG
 5341 ACGCCACCCT GATCCACCAG AGCATCACCG GCCTGTACGA GACACGGATC GACCTGTCTC
 5401 AGCTGGGAGG CGACAGCCCC AAGAAGAAGA GAAAGGTGGA GGCCAGCggg ccggccGGAT
 5461 CCGGGCGCGC CGACGCGCTG GACGATTTCG ATCTCGACAT GCTGGGTTCT GATGCCCTCG
 5521 ATGACTTTGA CCTGGATATG TTGGGAAGCG ACGCATTGGA TGACTTTGAT CTGGACATGC
 5581 TCGGCTCCGA TGCTCTGGAC GATTTCGATC TCGATATGTT ATATATCGAT tgaTTAATTA
 5641 AGAATTCCTA GAGCTCGCTG ATCAGCCTCG ACTGTGCCTT CTAGTTGCCA GCCATCTGTT
 5701 GTTTGCCCCT CCCCCGTGCC TTCCTTGACC CTGGAAGGTG CCACTCCCAC TGTCCTTTCC
 5761 TAATAAAATG AGGAAATTGC ATCGCATTGT CTGAGTAGGT GTCATTCTAT TCTGGGGGGT
 5821 GGGGTGGGGC AGGACAGCAA GGGGGAGGAT TGGGAAGAgA ATAGCAGGCA TGCTGGGGAg
 5881 cggccgcagg aacccctagt gatggagttg gccactccct ctctgcgcgc tcgctcgctc
 5941 actgaggccg ggcgaccaaa ggtcgcccga cgcccgggct ttgcccgggc ggcctcagtg
 6001 agcgagcgag cgcgcagctg cctgcagggg cgcctgatgc ggtattttct ccttacgcat
 6061 ctgtgcggta tttcacaccg catacgtcaa agcaaccata gtacgcgccc tgtagcggcg
 6121 cattaagcgc ggcgggtgtg gtggttacgc gcagcgtgac cgctacactt gccagcgccc
 6181 tagcgcccgc tcctttcgct ttcttccctt cctttctcgc cacgttcgcc ggctttcccc
 6241 gtcaagctct aaatcggggg ctccctttag ggttccgatt tagtgcttta cggcacctcg
 6301 accccaaaaa acttgatttg ggtgatggtt cacgtagtgg gccatcgccc tgatagacgg
 6361 tttttcgccc tttgacgttg gagtccacgt tctttaatag tggactcttg ttccaaactg
 6421 gaacaacact caaccctatc tcgggctatt cttttgattt ataagggatt ttgccgattt
 6481 cggcctattg gttaaaaaat gagctgattt aacaaaaatt taacgcgaat tttaacaaaa
 6541 tattaacgtt tacaatttta tggtgcactc tcagtacaat ctgctctgat gccgcatagt
 6601 taagccagcc ccgacacccg ccaacacccg ctgacgcgcc ctgacgggct tgtctgctcc
 6661 cggcatccgc ttacagacaa gctgtgaccg tctccgggag ctgcatgtgt cagaggtttt
 6721 caccgtcatc accgaaacgc gcgagacgaa agggcctcgt gatacgccta tttttatagg
 6781 ttaatgtcat gataataatg gtttcttaga cgtcaggtgg cacttttcgg ggaaatgtgc
 6841 gcggaacccc tatttgttta tttttctaaa tacattcaaa tatgtatccg ctcatgagac
 6901 aataaccctg ataaatgctt caataatatt gaaaaaggaa gagtatgagt attcaacatt
 6961 tccgtgtcgc ccttattccc ttttttgcgg cattttgcct tcctgttttt gctcacccag
 7021 aaacgctggt gaaagtaaaa gatgctgaag atcagttggg tgcacgagtg ggttacatcg
 7081 aactggatct caacagcggt aagatccttg agagttttcg ccccgaagaa cgttttccaa
 7141 tgatgagcac ttttaaagtt ctgctatgtg gcgcggtatt atcccgtatt gacgccgggc
 7201 aagagcaact cggtcgccgc atacactatt ctcagaatga cttggttgag tactcaccag
 7261 tcacagaaaa gcatcttacg gatggcatga cagtaagaga attatgcagt gctgccataa
 7321 ccatgagtga taacactgcg gccaacttac ttctgacaac gatcggagga ccgaaggagc
 7381 taaccgcttt tttgcacaac atgggggatc atgtaactcg ccttgatcgt tgggaaccgg
 7441 agctgaatga agccatacca aacgacgagc gtgacaccac gatgcctgta gcaatggcaa
 7501 caacgttgcg caaactatta actggcgaac tacttactct agcttcccgg caacaattaa
 7561 tagactggat ggaggcggat aaagttgcag gaccacttct gcgctcggcc cttccggctg
 7621 gctggtttat tgctgataaa tctggagccg gtgagcgtgg aagccgcggt atcattgcag
 7681 cactggggcc agatggtaag ccctcccgta tcgtagttat ctacacgacg gggagtcagg
 7741 caactatgga tgaacgaaat agacagatcg ctgagatagg tgcctcactg attaagcatt
 7801 ggtaactgtc agaccaagtt tactcatata tactttagat tgatttaaaa cttcattttt
 7861 aatttaaaag gatctaggtg aagatccttt ttgataatct catgaccaaa atcccttaac
 7921 gtgagttttc gttccactga gcgtcagacc ccgtagaaaa gatcaaagga tcttcttgag
 7981 atcctttttt tctgcgcgta atctgctgct tgcaaacaaa aaaaccaccg ctaccagcgg
 8041 tggtttgttt gccggatcaa gagctaccaa ctctttttcc gaaggtaact ggcttcagca
 8101 gagcgcagat accaaatact gtccttctag tgtagccgta gttaggccac cacttcaaga
 8161 actctgtagc accgcctaca tacctcgctc tgctaatcct gttaccagtg gctgctgcca
 8221 gtggcgataa gtcgtgtctt accgggttgg actcaagacg atagttaccg gataaggcgc
 8281 agcggtcggg ctgaacgggg ggttcgtgca cacagcccag cttggagcga acgacctaca
 8341 ccgaactgag atacctacag cgtgagctat gagaaagcgc cacgcttccc gaagggagaa
 8401 aggcggacag gtatccggta agcggcaggg tcggaacagg agagcgcacg agggagcttc
 8461 cagggggaaa cgcctggtat ctttatagtc ctgtcgggtt tcgccacctc tgacttgagc
 8521 gtcgattttt gtgatgctcg tcaggggggc ggagcctatg gaaaaacgcc agcaacgcgg
 8581 cctttttacg gttcctggcc ttttgctggc cttttgctca catgt
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
