pLVX-EF1α-DsRed-Monomer-C1

价格:1350元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-EF1α-DsRed-Monomer-C1, pLVX-EF1a-DsRed-Monomer-C1, pLVX-EF1alpha-DsRed-Monomer-C1
质粒类型: 慢病毒表达载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
启动子: EF1α
克隆方法: 多克隆位点,限制性内切酶
载体大小: 9485 bp
5' 测序引物及序列: EF1a Forward: TCAAGCCTCAGACAGTGGTTC
3' 测序引物及序列: --
载体标签: N-DsRed-Monomer
载体抗性: 氨苄青霉素
筛选标记: 嘌呤霉素(Puromycin)
克隆菌株: Stbl3
宿主细胞(系): 常规细胞系,293、CV-1、CHO等
备注: pLVX-EF1α-DsRed-Monomer-C1载体能够表达N端DsRed Monomer融合蛋白;
DsRed-Monomer是DsRed的单体突变体,与DsRed相比,编码序列经过了人工优化,适用于在哺乳动物细胞中的高水平表达;
EF1α启动子是高表达启动子,对于那些使用CMV启动子表达效果不理想的细胞系具有良好效果。
产品目录号: 631989
稳定性: 稳表达
组成型: 组成型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

pLVX-EF1α-DsRed-Monomer-C1载体图谱

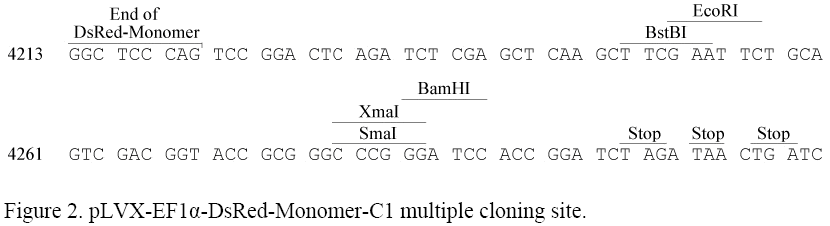

pLVX-EF1α-DsRed-Monomer-C1多克隆位点

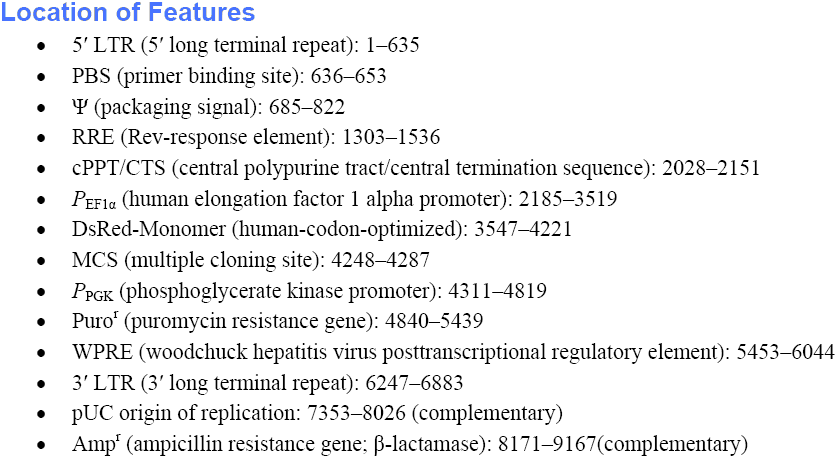

pLVX-EF1α-DsRed-Monomer-C1载体特征

载体简介

载体序列

LOCUS       pLVX-EF1a-DsRed-Monomer-C1   9485 bp    DNA   circular            22-MAR-2010
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     Cat. No. 631989
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     LTR             1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=Packaging\signal
     misc_feature    2028..2151
                     /label=cPPT/CTS\(DNA\flap)
     misc_feature    5453..6044
                     /label=WPRE
     rep_origin      complement(7353..8026)
                     /label=pUC\origin
     CDS             complement(8171..9167)
                     /label=Amp(R)
     misc_binding    1303..1536
                     /label=RRE
     misc_binding    636..653
                     /label=PBS
     LTR             6247..6883
                     /label=LTR
     misc_feature    3547..4221
                     /label=DsRed\Monomer
     misc_feature    4296..4298
                     /label=Stop
     misc_feature    4300..4302
                     /label=Stop
     misc_feature    4304..4306
                     /label=Stop
     misc_feature    4235..4288
                     /label=MCS
     misc_feature    4311..4819
                     /label=PGK\Promoter
     misc_feature    4840..5439
                     /label=Puro(R)
     promoter        2185..3519
                     /label=EF1a\Promoter
BASE COUNT     2246 a      2484 c      2600 g      2155 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgatgagtaa ttcatacaaa aggactcgcc cctgccttgg
     2221 ggaatcccag ggaccgtcgt taaactccca ctaacgtaga acccagagat cgctgcgttc
     2281 ccgccccctc acccgcccgc tctcgtcatc actgaggtgg agaagagcat gcgtgaggct
     2341 ccggtgcccg tcagtgggca gagcgcacat cgcccacagt ccccgagaag ttggggggag
     2401 gggtcggcaa ttgaaccggt gcctagagaa ggtggcgcgg ggtaaactgg gaaagtgatg
     2461 tcgtgtactg gctccgcctt tttcccgagg gtgggggaga accgtatata agtgcagtag
     2521 tcgccgtgaa cgttcttttt cgcaacgggt ttgccgccag aacacaggta agtgccgtgt
     2581 gtggttcccg cgggcctggc ctctttacgg gttatggccc ttgcgtgcct tgaattactt
     2641 ccacgcccct ggctgcagta cgtgattctt gatcccgagc ttcgggttgg aagtgggtgg
     2701 gagagttcga ggccttgcgc ttaaggagcc ccttcgcctc gtgcttgagt tgaggcctgg
     2761 cttgggcgct ggggccgccg cgtgcgaatc tggtggcacc ttcgcgcctg tctcgctgct
     2821 ttcgataagt ctctagccat ttaaaatttt tgatgacctg ctgcgacgct ttttttctgg
     2881 caagatagtc ttgtaaatgc gggccaagat ctgcacactg gtatttcggt ttttggggcc
     2941 gcgggcggcg acggggcccg tgcgtcccag cgcacatgtt cggcgaggcg gggcctgcga
     3001 gcgcggccac cgagaatcgg acgggggtag tctcaagctg gccggcctgc tctggtgcct
     3061 ggcctcgcgc cgccgtgtat cgccccgccc tgggcggcaa ggctggcccg gtcggcacca
     3121 gttgcgtgag cggaaagatg gccgcttccc ggccctgctg cagggagctc aaaatggagg
     3181 acgcggcgct cgggagagcg ggcgggtgag tcacccacac aaaggaaaag ggcctttccg
     3241 tcctcagccg tcgcttcatg tgactccacg gagtaccggg cgccgtccag gcacctcgat
     3301 tagttctcga gcttttggag tacgtcgtct ttaggttggg gggaggggtt ttatgcgatg
     3361 gagtttcccc acactgagtg ggtggagact gaagttaggc cagcttggca cttgatgtaa
     3421 ttctccttgg aatttgccct ttttgagttt ggatcttggt tcattctcaa gcctcagaca
     3481 gtggttcaaa gtttttttct tccatttcag gtgtcgtgag gatcgctagc gctaccggtc
     3541 gccaccatgg acaacaccga ggacgtcatc aaggagttca tgcagttcaa ggtgcgcatg
     3601 gagggctccg tgaacggcca ctacttcgag atcgagggcg agggcgaggg caagccctac
     3661 gagggcaccc agaccgccaa gctgcaggtg accaagggcg gccccctgcc cttcgcctgg
     3721 gacatcctgt ccccccagtt ccagtacggc tccaaggcct acgtgaagca ccccgccgac
     3781 atccccgact acatgaagct gtccttcccc gagggcttca cctgggagcg ctccatgaac
     3841 ttcgaggacg gcggcgtggt ggaggtgcag caggactcct ccctgcagga cggcaccttc
     3901 atctacaagg tgaagttcaa gggcgtgaac ttccccgccg acggccccgt aatgcagaag
     3961 aagactgccg gctgggagcc ctccaccgag aagctgtacc cccaggacgg cgtgctgaag
     4021 ggcgagatct cccacgccct gaagctgaag gacggcggcc actacacctg cgacttcaag
     4081 accgtgtaca aggccaagaa gcccgtgcag ctgcccggca accactacgt ggactccaag
     4141 ctggacatca ccaaccacaa cgaggactac accgtggtgg agcagtacga gcacgccgag
     4201 gcccgccact ccggctccca gtccggactc agatctcgag ctcaagcttc gaattctgca
     4261 gtcgacggta ccgcgggccc gggatccacc ggatctagat aactgatcat aattctaccg
     4321 ggtaggggag gcgcttttcc caaggcagtc tggagcatgc gctttagcag ccccgctggg
     4381 cacttggcgc tacacaagtg gcctctggcc tcgcacacat tccacatcca ccggtaggcg
     4441 ccaaccggct ccgttctttg gtggcccctt cgcgccacct tctactcctc ccctagtcag
     4501 gaagttcccc cccgccccgc agctcgcgtc gtgcaggacg tgacaaatgg aagtagcacg
     4561 tctcactagt ctcgtgcaga tggacagcac cgctgagcaa tggaagcggg taggcctttg
     4621 gggcagcggc caatagcagc tttgctcctt cgctttctgg gctcagaggc tgggaagggg
     4681 tgggtccggg ggcgggctca ggggcgggct caggggcggg gcgggcgccc gaaggtcctc
     4741 cggaggcccg gcattctgca cgcttcaaaa gcgcacgtct gccgcgctgt tctcctcttc
     4801 ctcatctccg ggcctttcga cctgcagccc aagcttacca tgaccgagta caagcccacg
     4861 gtgcgcctcg ccacccgcga cgacgtcccc agggccgtac gcaccctcgc cgccgcgttc
     4921 gccgactacc ccgccacgcg ccacaccgtc gatccggacc gccacatcga gcgggtcacc
     4981 gagctgcaag aactcttcct cacgcgcgtc gggctcgaca tcggcaaggt gtgggtcgcg
     5041 gacgacggcg ccgcggtggc ggtctggacc acgccggaga gcgtcgaagc gggggcggtg
     5101 ttcgccgaga tcggcccgcg catggccgag ttgagcggtt cccggctggc cgcgcagcaa
     5161 cagatggaag gcctcctggc gccgcaccgg cccaaggagc ccgcgtggtt cctggccacc
     5221 gtcggcgtct cgcccgacca ccagggcaag ggtctgggca gcgccgtcgt gctccccgga
     5281 gtggaggcgg ccgagcgcgc cggggtgccc gccttcctgg agacctccgc gccccgcaac
     5341 ctccccttct acgagcggct cggcttcacc gtcaccgccg acgtcgaggt gcccgaagga
     5401 ccgcgcacct ggtgcatgac ccgcaagccc ggtgcctgac cgcgtctgga acaatcaacc
     5461 tctggattac aaaatttgtg aaagattgac tggtattctt aactatgttg ctccttttac
     5521 gctatgtgga tacgctgctt taatgccttt gtatcatgct attgcttccc gtatggcttt
     5581 cattttctcc tccttgtata aatcctggtt gctgtctctt tatgaggagt tgtggcccgt
     5641 tgtcaggcaa cgtggcgtgg tgtgcactgt gtttgctgac gcaaccccca ctggttgggg
     5701 cattgccacc acctgtcagc tcctttccgg gactttcgct ttccccctcc ctattgccac
     5761 ggcggaactc atcgccgcct gccttgcccg ctgctggaca ggggctcggc tgttgggcac
     5821 tgacaattcc gtggtgttgt cggggaagct gacgtccttt ccatggctgc tcgcctgtgt
     5881 tgccacctgg attctgcgcg ggacgtcctt ctgctacgtc ccttcggccc tcaatccagc
     5941 ggaccttcct tcccgcggcc tgctgccggc tctgcggcct cttccgcgtc ttcgccttcg
     6001 ccctcagacg agtcggatct ccctttgggc cgcctccccg cctggaatta attctgcagt
     6061 cgagacctag aaaaacatgg agcaatcaca agtagcaata cagcagctac caatgctgat
     6121 tgtgcctggc tagaagcaca agaggaggag gaggtgggtt ttccagtcac acctcaggta
     6181 cctttaagac caatgactta caaggcagct gtagatctta gccacttttt aaaagaaaag
     6241 aggggactgg aagggctaat tcactcccaa cgaagacaag atatccttga tctgtggatc
     6301 taccacacac aaggctactt ccctgattag cagaactaca caccagggcc aggggtcaga
     6361 tatccactga cctttggatg gtgctacaag ctagtaccag ttgagccaga taaggtagaa
     6421 gaggccaata aaggagagaa caccagcttg ttacaccctg tgagcctgca tgggatggat
     6481 gacccggaga gagaagtgtt agagtggagg tttgacagcc gcctagcatt tcatcacgtg
     6541 gcccgagagc tgcatccgga gtacttcaag aactgctgat atcgagcttg ctacaaggga
     6601 ctttccgctg gggactttcc agggaggcgt ggcctgggcg ggactgggga gtggcgagcc
     6661 ctcagatcct gcatataagc agctgctttt tgcctgtact gggtctctct ggttagacca
     6721 gatctgagcc tgggagctct ctggctaact agggaaccca ctgcttaagc ctcaataaag
     6781 cttgccttga gtgcttcaag tagtgtgtgc ccgtctgttg tgtgactctg gtaactagag
     6841 atccctcaga cccttttagt cagtgtggaa aatctctagc agtagtagtt catgtcatct
     6901 tattattcag tatttataac ttgcaaagaa atgaatatca gagagtgaga ggccttgaca
     6961 ttgctagcgt tttaccgtcg acctctagct agagcttggc gtaatcatgg tcatagctgt
     7021 ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa catacgagcc ggaagcataa
     7081 agtgtaaagc ctggggtgcc taatgagtga gctaactcac attaattgcg ttgcgctcac
     7141 tgcccgcttt ccagtcggga aacctgtcgt gccagctgca ttaatgaatc ggccaacgcg
     7201 cggggagagg cggtttgcgt attgggcgct cttccgcttc ctcgctcact gactcgctgc
     7261 gctcggtcgt tcggctgcgg cgagcggtat cagctcactc aaaggcggta atacggttat
     7321 ccacagaatc aggggataac gcaggaaaga acatgtgagc aaaaggccag caaaaggcca
     7381 ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag gctccgcccc cctgacgagc
     7441 atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc gacaggacta taaagatacc
     7501 aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt tccgaccctg ccgcttaccg
     7561 gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct ttctcatagc tcacgctgta
     7621 ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg ctgtgtgcac gaaccccccg
     7681 ttcagcccga ccgctgcgcc ttatccggta actatcgtct tgagtccaac ccggtaagac
     7741 acgacttatc gccactggca gcagccactg gtaacaggat tagcagagcg aggtatgtag
     7801 gcggtgctac agagttcttg aagtggtggc ctaactacgg ctacactaga agaacagtat
     7861 ttggtatctg cgctctgctg aagccagtta ccttcggaaa aagagttggt agctcttgat
     7921 ccggcaaaca aaccaccgct ggtagcggtg gtttttttgt ttgcaagcag cagattacgc
     7981 gcagaaaaaa aggatctcaa gaagatcctt tgatcttttc tacggggtct gacgctcagt
     8041 ggaacgaaaa ctcacgttaa gggattttgg tcatgagatt atcaaaaagg atcttcacct
     8101 agatcctttt aaattaaaaa tgaagtttta aatcaatcta aagtatatat gagtaaactt
     8161 ggtctgacag ttaccaatgc ttaatcagtg aggcacctat ctcagcgatc tgtctatttc
     8221 gttcatccat agttgcctga ctccccgtcg tgtagataac tacgatacgg gagggcttac
     8281 catctggccc cagtgctgca atgataccgc gagacccacg ctcaccggct ccagatttat
     8341 cagcaataaa ccagccagcc ggaagggccg agcgcagaag tggtcctgca actttatccg
     8401 cctccatcca gtctattaat tgttgccggg aagctagagt aagtagttcg ccagttaata
     8461 gtttgcgcaa cgttgttgcc attgctacag gcatcgtggt gtcacgctcg tcgtttggta
     8521 tggcttcatt cagctccggt tcccaacgat caaggcgagt tacatgatcc cccatgttgt
     8581 gcaaaaaagc ggttagctcc ttcggtcctc cgatcgttgt cagaagtaag ttggccgcag
     8641 tgttatcact catggttatg gcagcactgc ataattctct tactgtcatg ccatccgtaa
     8701 gatgcttttc tgtgactggt gagtactcaa ccaagtcatt ctgagaatag tgtatgcggc
     8761 gaccgagttg ctcttgcccg gcgtcaatac gggataatac cgcgccacat agcagaactt
     8821 taaaagtgct catcattgga aaacgttctt cggggcgaaa actctcaagg atcttaccgc
     8881 tgttgagatc cagttcgatg taacccactc gtgcacccaa ctgatcttca gcatctttta
     8941 ctttcaccag cgtttctggg tgagcaaaaa caggaaggca aaatgccgca aaaaagggaa
     9001 taagggcgac acggaaatgt tgaatactca tactcttcct ttttcaatat tattgaagca
     9061 tttatcaggg ttattgtctc atgagcggat acatatttga atgtatttag aaaaataaac
     9121 aaataggggt tccgcgcaca tttccccgaa aagtgccacc tgacgtcgac ggatcgggag
     9181 atcaacttgt ttattgcagc ttataatggt tacaaataaa gcaatagcat cacaaatttc
     9241 acaaataaag catttttttc actgcattct agttgtggtt tgtccaaact catcaatgta
     9301 tcttatcatg tctggatcaa ctggataact caagctaacc aaaatcatcc caaacttccc
     9361 accccatacc ctattaccac tgccaattac ctgtggtttc atttactcta aacctgtgat
     9421 tcctctgaat tattttcatt ttaaagaaat tgtatttgtt aaatatgtac tacaaactta
     9481 gtagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
