pLVX-EF1α-DsRed-Monomer-N1

价格:1350元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-EF1α-DsRed-Monomer-N1, pLVX-EF1a-DsRed-Monomer-N1, pLVX-EF1alpha-DsRed-Monomer-N1
质粒类型: 慢病毒表达载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
启动子: EF1α
克隆方法: 多克隆位点,限制性内切酶
载体大小: 9483 bp
5' 测序引物及序列: EF1a Forward: TCAAGCCTCAGACAGTGGTTC
3' 测序引物及序列: --
载体标签: C-DsRed-Monomer
载体抗性: 氨苄青霉素
筛选标记: 嘌呤霉素(Puromycin)
克隆菌株: Stbl3
宿主细胞(系): 常规细胞系,293、CV-1、CHO等
备注: pLVX-EF1α-DsRed-Monomer-N1载体表达C端DsRed-Monomer融合蛋白;DsRed-Monomer是DsRed的单体突变体,与DsRed相比,编码序列经过了人工优化,适用于在哺乳动物细胞中的高水平表达;EF1α启动子是高表达启动子,对于那些使用CMV启动子表达效果不理想的细胞系具有良好效果。
产品目录号: 631990
稳定性: 稳表达
组成型: 组成型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

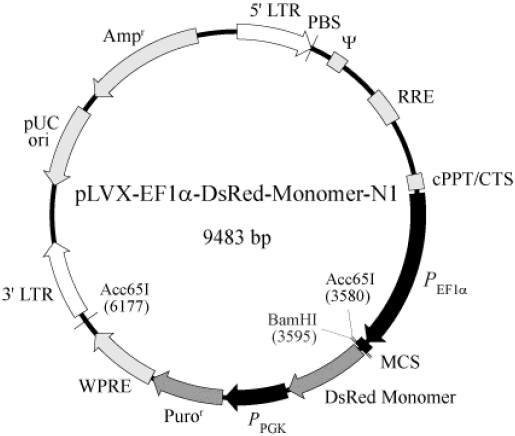

pLVX-EF1α-DsRed-Monomer-N1载体图谱

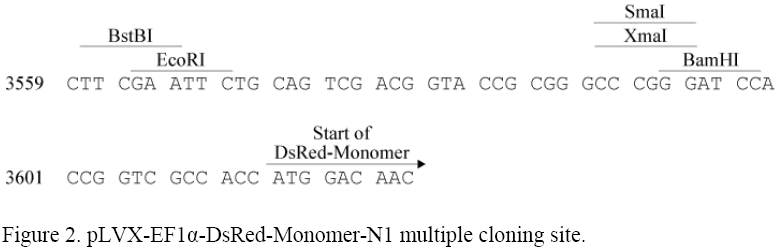

pLVX-EF1α-DsRed-Monomer-N1多克隆位点

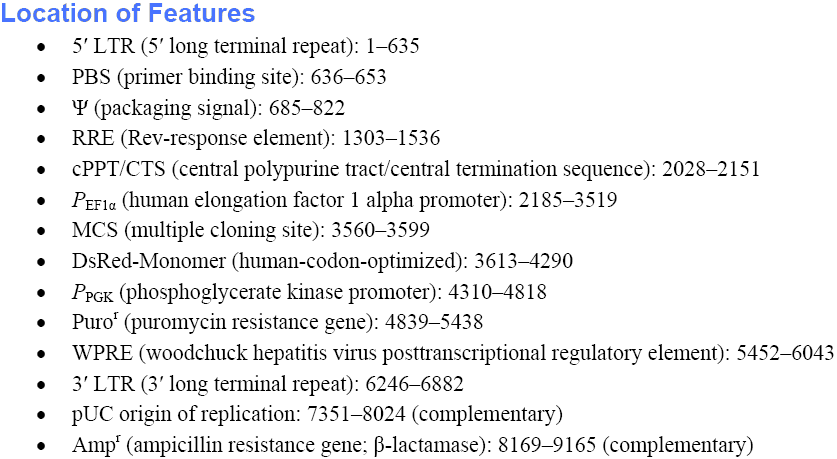

pLVX-EF1α-DsRed-Monomer-N1载体特征

载体简介

载体序列

LOCUS       pLVX-EF1a-DsRed-Monomer-N1   9483 bp    DNA   circular            22-MAR-2010
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     Cat. No. 631990
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     LTR             1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=Packaging\signal
     misc_feature    2028..2151
                     /label=cPPT/CTS(DNA\flap)
     misc_feature    5452..6043
                     /label=WPRE
     rep_origin      complement(7351..8024)
                     /label=pUC\origin
     CDS             complement(8169..9165)
                     /label=Amp(R)
     misc_binding    1303..1536
                     /label=RRE
     misc_binding    636..653
                     /label=PBS
     LTR             6246..6882
                     /label=3'\LTR
     misc_feature    3613..4290
                     /label=DsRed-Monomer
     misc_feature    4310..4818
                     /label=PGK\Promoter
     misc_feature    4839..5438
                     /label=Puro(R)
     promoter        2185..3519
                     /label=EF1a\Promoter
     misc_feature    3560..3599
                     /label=MCS
BASE COUNT     2244 a      2485 c      2603 g      2151 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgatgagtaa ttcatacaaa aggactcgcc cctgccttgg
     2221 ggaatcccag ggaccgtcgt taaactccca ctaacgtaga acccagagat cgctgcgttc
     2281 ccgccccctc acccgcccgc tctcgtcatc actgaggtgg agaagagcat gcgtgaggct
     2341 ccggtgcccg tcagtgggca gagcgcacat cgcccacagt ccccgagaag ttggggggag
     2401 gggtcggcaa ttgaaccggt gcctagagaa ggtggcgcgg ggtaaactgg gaaagtgatg
     2461 tcgtgtactg gctccgcctt tttcccgagg gtgggggaga accgtatata agtgcagtag
     2521 tcgccgtgaa cgttcttttt cgcaacgggt ttgccgccag aacacaggta agtgccgtgt
     2581 gtggttcccg cgggcctggc ctctttacgg gttatggccc ttgcgtgcct tgaattactt
     2641 ccacgcccct ggctgcagta cgtgattctt gatcccgagc ttcgggttgg aagtgggtgg
     2701 gagagttcga ggccttgcgc ttaaggagcc ccttcgcctc gtgcttgagt tgaggcctgg
     2761 cttgggcgct ggggccgccg cgtgcgaatc tggtggcacc ttcgcgcctg tctcgctgct
     2821 ttcgataagt ctctagccat ttaaaatttt tgatgacctg ctgcgacgct ttttttctgg
     2881 caagatagtc ttgtaaatgc gggccaagat ctgcacactg gtatttcggt ttttggggcc
     2941 gcgggcggcg acggggcccg tgcgtcccag cgcacatgtt cggcgaggcg gggcctgcga
     3001 gcgcggccac cgagaatcgg acgggggtag tctcaagctg gccggcctgc tctggtgcct
     3061 ggcctcgcgc cgccgtgtat cgccccgccc tgggcggcaa ggctggcccg gtcggcacca
     3121 gttgcgtgag cggaaagatg gccgcttccc ggccctgctg cagggagctc aaaatggagg
     3181 acgcggcgct cgggagagcg ggcgggtgag tcacccacac aaaggaaaag ggcctttccg
     3241 tcctcagccg tcgcttcatg tgactccacg gagtaccggg cgccgtccag gcacctcgat
     3301 tagttctcga gcttttggag tacgtcgtct ttaggttggg gggaggggtt ttatgcgatg
     3361 gagtttcccc acactgagtg ggtggagact gaagttaggc cagcttggca cttgatgtaa
     3421 ttctccttgg aatttgccct ttttgagttt ggatcttggt tcattctcaa gcctcagaca
     3481 gtggttcaaa gtttttttct tccatttcag gtgtcgtgag gatcgctagc gctaccggac
     3541 tcagatctcg agctcaagct tcgaattctg cagtcgacgg taccgcgggc ccgggatcca
     3601 ccggtcgcca ccatggacaa caccgaggac gtcatcaagg agttcatgca gttcaaggtg
     3661 cgcatggagg gctccgtgaa cggccactac ttcgagatcg agggcgaggg cgagggcaag
     3721 ccctacgagg gcacccagac cgccaagctg caggtgacca agggcggccc cctgcccttc
     3781 gcctgggaca tcctgtcccc ccagttccag tacggctcca aggcctacgt gaagcacccc
     3841 gccgacatcc ccgactacat gaagctgtcc ttccccgagg gcttcacctg ggagcgctcc
     3901 atgaacttcg aggacggcgg cgtggtggag gtgcagcagg actcctccct gcaggacggc
     3961 accttcatct acaaggtgaa gttcaagggc gtgaacttcc ccgccgacgg ccccgtaatg
     4021 cagaagaaga ctgccggctg ggagccctcc accgagaagc tgtaccccca ggacggcgtg
     4081 ctgaagggcg agatctccca cgccctgaag ctgaaggacg gcggccacta cacctgcgac
     4141 ttcaagaccg tgtacaaggc caagaagccc gtgcagctgc ccggcaacca ctacgtggac
     4201 tccaagctgg acatcaccaa ccacaacgag gactacaccg tggtggagca gtacgagcac
     4261 gccgaggccc gccactccgg ctcccagtag agcggccgcg actctagata attctaccgg
     4321 gtaggggagg cgcttttccc aaggcagtct ggagcatgcg ctttagcagc cccgctgggc
     4381 acttggcgct acacaagtgg cctctggcct cgcacacatt ccacatccac cggtaggcgc
     4441 caaccggctc cgttctttgg tggccccttc gcgccacctt ctactcctcc cctagtcagg
     4501 aagttccccc ccgccccgca gctcgcgtcg tgcaggacgt gacaaatgga agtagcacgt
     4561 ctcactagtc tcgtgcagat ggacagcacc gctgagcaat ggaagcgggt aggcctttgg
     4621 ggcagcggcc aatagcagct ttgctccttc gctttctggg ctcagaggct gggaaggggt
     4681 gggtccgggg gcgggctcag gggcgggctc aggggcgggg cgggcgcccg aaggtcctcc
     4741 ggaggcccgg cattctgcac gcttcaaaag cgcacgtctg ccgcgctgtt ctcctcttcc
     4801 tcatctccgg gcctttcgac ctgcagccca agcttaccat gaccgagtac aagcccacgg
     4861 tgcgcctcgc cacccgcgac gacgtcccca gggccgtacg caccctcgcc gccgcgttcg
     4921 ccgactaccc cgccacgcgc cacaccgtcg atccggaccg ccacatcgag cgggtcaccg
     4981 agctgcaaga actcttcctc acgcgcgtcg ggctcgacat cggcaaggtg tgggtcgcgg
     5041 acgacggcgc cgcggtggcg gtctggacca cgccggagag cgtcgaagcg ggggcggtgt
     5101 tcgccgagat cggcccgcgc atggccgagt tgagcggttc ccggctggcc gcgcagcaac
     5161 agatggaagg cctcctggcg ccgcaccggc ccaaggagcc cgcgtggttc ctggccaccg
     5221 tcggcgtctc gcccgaccac cagggcaagg gtctgggcag cgccgtcgtg ctccccggag
     5281 tggaggcggc cgagcgcgcc ggggtgcccg ccttcctgga gacctccgcg ccccgcaacc
     5341 tccccttcta cgagcggctc ggcttcaccg tcaccgccga cgtcgaggtg cccgaaggac
     5401 cgcgcacctg gtgcatgacc cgcaagcccg gtgcctgacc gcgtctggaa caatcaacct
     5461 ctggattaca aaatttgtga aagattgact ggtattctta actatgttgc tccttttacg
     5521 ctatgtggat acgctgcttt aatgcctttg tatcatgcta ttgcttcccg tatggctttc
     5581 attttctcct ccttgtataa atcctggttg ctgtctcttt atgaggagtt gtggcccgtt
     5641 gtcaggcaac gtggcgtggt gtgcactgtg tttgctgacg caacccccac tggttggggc
     5701 attgccacca cctgtcagct cctttccggg actttcgctt tccccctccc tattgccacg
     5761 gcggaactca tcgccgcctg ccttgcccgc tgctggacag gggctcggct gttgggcact
     5821 gacaattccg tggtgttgtc ggggaagctg acgtcctttc catggctgct cgcctgtgtt
     5881 gccacctgga ttctgcgcgg gacgtccttc tgctacgtcc cttcggccct caatccagcg
     5941 gaccttcctt cccgcggcct gctgccggct ctgcggcctc ttccgcgtct tcgccttcgc
     6001 cctcagacga gtcggatctc cctttgggcc gcctccccgc ctggaattaa ttctgcagtc
     6061 gagacctaga aaaacatgga gcaatcacaa gtagcaatac agcagctacc aatgctgatt
     6121 gtgcctggct agaagcacaa gaggaggagg aggtgggttt tccagtcaca cctcaggtac
     6181 ctttaagacc aatgacttac aaggcagctg tagatcttag ccacttttta aaagaaaaga
     6241 ggggactgga agggctaatt cactcccaac gaagacaaga tatccttgat ctgtggatct
     6301 accacacaca aggctacttc cctgattagc agaactacac accagggcca ggggtcagat
     6361 atccactgac ctttggatgg tgctacaagc tagtaccagt tgagccagat aaggtagaag
     6421 aggccaataa aggagagaac accagcttgt tacaccctgt gagcctgcat gggatggatg
     6481 acccggagag agaagtgtta gagtggaggt ttgacagccg cctagcattt catcacgtgg
     6541 cccgagagct gcatccggag tacttcaaga actgctgata tcgagcttgc tacaagggac
     6601 tttccgctgg ggactttcca gggaggcgtg gcctgggcgg gactggggag tggcgagccc
     6661 tcagatcctg catataagca gctgcttttt gcctgtactg ggtctctctg gttagaccag
     6721 atctgagcct gggagctctc tggctaacta gggaacccac tgcttaagcc tcaataaagc
     6781 ttgccttgag tgcttcaagt agtgtgtgcc cgtctgttgt gtgactctgg taactagaga
     6841 tccctcagac ccttttagtc agtgtggaaa atctctagca gtagtagttc atgtcatctt
     6901 attattcagt atttataact tgcaaagaaa tgaatatcag agagtgagag gccttgacat
     6961 tgctagcgtt taccgtcgac ctctagctag agcttggcgt aatcatggtc atagctgttt
     7021 cctgtgtgaa attgttatcc gctcacaatt ccacacaaca tacgagccgg aagcataaag
     7081 tgtaaagcct ggggtgccta atgagtgagc taactcacat taattgcgtt gcgctcactg
     7141 cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg
     7201 gggagaggcg gtttgcgtat tgggcgctct tccgcttcct cgctcactga ctcgctgcgc
     7261 tcggtcgttc ggctgcggcg agcggtatca gctcactcaa aggcggtaat acggttatcc
     7321 acagaatcag gggataacgc aggaaagaac atgtgagcaa aaggccagca aaaggccagg
     7381 aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc tccgcccccc tgacgagcat
     7441 cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga caggactata aagataccag
     7501 gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga
     7561 tacctgtccg cctttctccc ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg
     7621 tatctcagtt cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga accccccgtt
     7681 cagcccgacc gctgcgcctt atccggtaac tatcgtcttg agtccaaccc ggtaagacac
     7741 gacttatcgc cactggcagc agccactggt aacaggatta gcagagcgag gtatgtaggc
     7801 ggtgctacag agttcttgaa gtggtggcct aactacggct acactagaag aacagtattt
     7861 ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa gagttggtag ctcttgatcc
     7921 ggcaaacaaa ccaccgctgg tagcggtggt ttttttgttt gcaagcagca gattacgcgc
     7981 agaaaaaaag gatctcaaga agatcctttg atcttttcta cggggtctga cgctcagtgg
     8041 aacgaaaact cacgttaagg gattttggtc atgagattat caaaaaggat cttcacctag
     8101 atccttttaa attaaaaatg aagttttaaa tcaatctaaa gtatatatga gtaaacttgg
     8161 tctgacagtt accaatgctt aatcagtgag gcacctatct cagcgatctg tctatttcgt
     8221 tcatccatag ttgcctgact ccccgtcgtg tagataacta cgatacggga gggcttacca
     8281 tctggcccca gtgctgcaat gataccgcga gacccacgct caccggctcc agatttatca
     8341 gcaataaacc agccagccgg aagggccgag cgcagaagtg gtcctgcaac tttatccgcc
     8401 tccatccagt ctattaattg ttgccgggaa gctagagtaa gtagttcgcc agttaatagt
     8461 ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt cacgctcgtc gtttggtatg
     8521 gcttcattca gctccggttc ccaacgatca aggcgagtta catgatcccc catgttgtgc
     8581 aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg
     8641 ttatcactca tggttatggc agcactgcat aattctctta ctgtcatgcc atccgtaaga
     8701 tgcttttctg tgactggtga gtactcaacc aagtcattct gagaatagtg tatgcggcga
     8761 ccgagttgct cttgcccggc gtcaatacgg gataataccg cgccacatag cagaacttta
     8821 aaagtgctca tcattggaaa acgttcttcg gggcgaaaac tctcaaggat cttaccgctg
     8881 ttgagatcca gttcgatgta acccactcgt gcacccaact gatcttcagc atcttttact
     8941 ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa atgccgcaaa aaagggaata
     9001 agggcgacac ggaaatgttg aatactcata ctcttccttt ttcaatatta ttgaagcatt
     9061 tatcagggtt attgtctcat gagcggatac atatttgaat gtatttagaa aaataaacaa
     9121 ataggggttc cgcgcacatt tccccgaaaa gtgccacctg acgtcgacgg atcgggagat
     9181 caacttgttt attgcagctt ataatggtta caaataaagc aatagcatca caaatttcac
     9241 aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca tcaatgtatc
     9301 ttatcatgtc tggatcaact ggataactca agctaaccaa aatcatccca aacttcccac
     9361 cccataccct attaccactg ccaattacct gtggtttcat ttactctaaa cctgtgattc
     9421 ctctgaatta ttttcatttt aaagaaattg tatttgttaa atatgtacta caaacttagt
     9481 agt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
