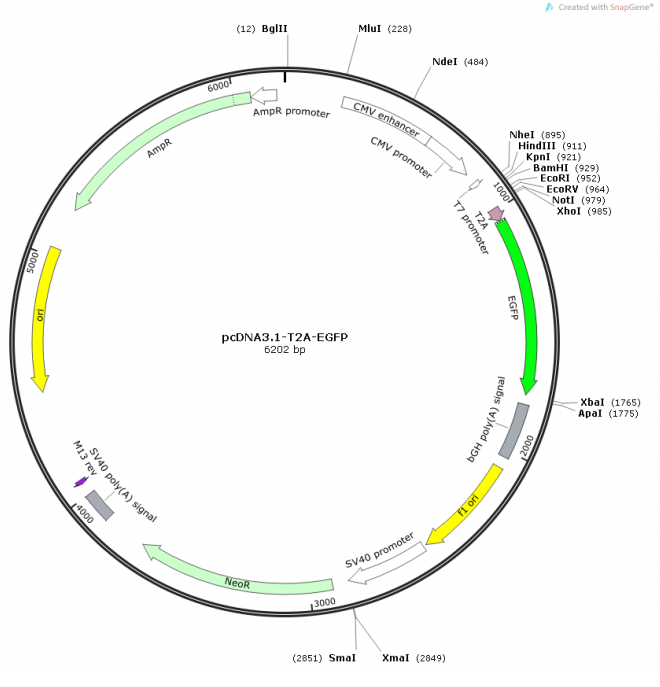

pcDNA3.1-T2A-EGFP

LOCUS       pcDNA3.1-T2A-EGFP                6202 bp DNA     circular SYN 13-JUL-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6202)
  AUTHORS   Biofeng
  TITLE     Direct Submission
  JOURNAL   Exported Jul 13, 2023 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6202
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             991..1044
                     /codon_start=1
                     /product="2A peptide from Thosea asigna virus capsid
                     protein"
                     /label=T2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="EGRGSLLTCGDVEENPGP"
     CDS             1045..1764
                     /codon_start=1
                     /product="the original enhanced GFP (Yang et al., 1996)"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     polyA_signal    1802..2026
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2072..2500
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2514..2843
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2694..2829
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2910..3704
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3878..3999
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4048..4064)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4072..4088
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4096..4126)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4141..4162
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4450..5035)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5206..6066)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6067..6171)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccactagt ccagtgtggt ggaattctgc
      961 agatatccag cacagtggcg gccgctcgag gagggcagag gaagtcttct aacatgcggt
     1021 gacgtggagg agaatcccgg ccctatggtg agcaagggcg aggagctgtt caccggggtg
     1081 gtgcccatcc tggtcgagct ggacggcgac gtaaacggcc acaagttcag cgtgtccggc
     1141 gagggcgagg gcgatgccac ctacggcaag ctgaccctga agttcatctg caccaccggc
     1201 aagctgcccg tgccctggcc caccctcgtg accaccctga cctacggcgt gcagtgcttc
     1261 agccgctacc ccgaccacat gaagcagcac gacttcttca agtccgccat gcccgaaggc
     1321 tacgtccagg agcgcaccat cttcttcaag gacgacggca actacaagac ccgcgccgag
     1381 gtgaagttcg agggcgacac cctggtgaac cgcatcgagc tgaagggcat cgacttcaag
     1441 gaggacggca acatcctggg gcacaagctg gagtacaact acaacagcca caacgtctat
     1501 atcatggccg acaagcagaa gaacggcatc aaggtgaact tcaagatccg ccacaacatc
     1561 gaggacggca gcgtgcagct cgccgaccac taccagcaga acacccccat cggcgacggc
     1621 cccgtgctgc tgcccgacaa ccactacctg agcacccagt ccgccctgag caaagacccc
     1681 aacgagaagc gcgatcacat ggtcctgctg gagttcgtga ccgccgccgg gatcactctc
     1741 ggcatggacg agctgtacaa gtaatctaga gggcccgttt aaacccgctg atcagcctcg
     1801 actgtgcctt ctagttgcca gccatctgtt gtttgcccct cccccgtgcc ttccttgacc
     1861 ctggaaggtg ccactcccac tgtcctttcc taataaaatg aggaaattgc atcgcattgt
     1921 ctgagtaggt gtcattctat tctggggggt ggggtggggc aggacagcaa gggggaggat
     1981 tgggaagaca atagcaggca tgctggggat gcggtgggct ctatggcttc tgaggcggaa
     2041 agaaccagct ggggctctag ggggtatccc cacgcgccct gtagcggcgc attaagcgcg
     2101 gcgggtgtgg tggttacgcg cagcgtgacc gctacacttg ccagcgccct agcgcccgct
     2161 cctttcgctt tcttcccttc ctttctcgcc acgttcgccg gctttccccg tcaagctcta
     2221 aatcgggggc tccctttagg gttccgattt agtgctttac ggcacctcga ccccaaaaaa
     2281 cttgattagg gtgatggttc acgtagtggg ccatcgccct gatagacggt ttttcgccct
     2341 ttgacgttgg agtccacgtt ctttaatagt ggactcttgt tccaaactgg aacaacactc
     2401 aaccctatct cggtctattc ttttgattta taagggattt tgccgatttc ggcctattgg
     2461 ttaaaaaatg agctgattta acaaaaattt aacgcgaatt aattctgtgg aatgtgtgtc
     2521 agttagggtg tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa agcatgcatc
     2581 tcaattagtc agcaaccagg tgtggaaagt ccccaggctc cccagcaggc agaagtatgc
     2641 aaagcatgca tctcaattag tcagcaacca tagtcccgcc cctaactccg cccatcccgc
     2701 ccctaactcc gcccagttcc gcccattctc cgccccatgg ctgactaatt ttttttattt
     2761 atgcagaggc cgaggccgcc tctgcctctg agctattcca gaagtagtga ggaggctttt
     2821 ttggaggcct aggcttttgc aaaaagctcc cgggagcttg tatatccatt ttcggatctg
     2881 atcaagagac aggatgagga tcgtttcgca tgattgaaca agatggattg cacgcaggtt
     2941 ctccggccgc ttgggtggag aggctattcg gctatgactg ggcacaacag acaatcggct
     3001 gctctgatgc cgccgtgttc cggctgtcag cgcaggggcg cccggttctt tttgtcaaga
     3061 ccgacctgtc cggtgccctg aatgaactgc aggacgaggc agcgcggcta tcgtggctgg
     3121 ccacgacggg cgttccttgc gcagctgtgc tcgacgttgt cactgaagcg ggaagggact
     3181 ggctgctatt gggcgaagtg ccggggcagg atctcctgtc atctcacctt gctcctgccg
     3241 agaaagtatc catcatggct gatgcaatgc ggcggctgca tacgcttgat ccggctacct
     3301 gcccattcga ccaccaagcg aaacatcgca tcgagcgagc acgtactcgg atggaagccg
     3361 gtcttgtcga tcaggatgat ctggacgaag agcatcaggg gctcgcgcca gccgaactgt
     3421 tcgccaggct caaggcgcgc atgcccgacg gcgaggatct cgtcgtgacc catggcgatg
     3481 cctgcttgcc gaatatcatg gtggaaaatg gccgcttttc tggattcatc gactgtggcc
     3541 ggctgggtgt ggcggaccgc tatcaggaca tagcgttggc tacccgtgat attgctgaag
     3601 agcttggcgg cgaatgggct gaccgcttcc tcgtgcttta cggtatcgcc gctcccgatt
     3661 cgcagcgcat cgccttctat cgccttcttg acgagttctt ctgagcggga ctctggggtt
     3721 cgaaatgacc gaccaagcga cgcccaacct gccatcacga gatttcgatt ccaccgccgc
     3781 cttctatgaa aggttgggct tcggaatcgt tttccgggac gccggctgga tgatcctcca
     3841 gcgcggggat ctcatgctgg agttcttcgc ccaccccaac ttgtttattg cagcttataa
     3901 tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt tttcactgca
     3961 ttctagttgt ggtttgtcca aactcatcaa tgtatcttat catgtctgta taccgtcgac
     4021 ctctagctag agcttggcgt aatcatggtc atagctgttt cctgtgtgaa attgttatcc
     4081 gctcacaatt ccacacaaca tacgagccgg aagcataaag tgtaaagcct ggggtgccta
     4141 atgagtgagc taactcacat taattgcgtt gcgctcactg cccgctttcc agtcgggaaa
     4201 cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat
     4261 tgggcgctct tccgcttcct cgctcactga ctcgctgcgc tcggtcgttc ggctgcggcg
     4321 agcggtatca gctcactcaa aggcggtaat acggttatcc acagaatcag gggataacgc
     4381 aggaaagaac atgtgagcaa aaggccagca aaaggccagg aaccgtaaaa aggccgcgtt
     4441 gctggcgttt ttccataggc tccgcccccc tgacgagcat cacaaaaatc gacgctcaag
     4501 tcagaggtgg cgaaacccga caggactata aagataccag gcgtttcccc ctggaagctc
     4561 cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga tacctgtccg cctttctccc
     4621 ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg tatctcagtt cggtgtaggt
     4681 cgttcgctcc aagctgggct gtgtgcacga accccccgtt cagcccgacc gctgcgcctt
     4741 atccggtaac tatcgtcttg agtccaaccc ggtaagacac gacttatcgc cactggcagc
     4801 agccactggt aacaggatta gcagagcgag gtatgtaggc ggtgctacag agttcttgaa
     4861 gtggtggcct aactacggct acactagaag aacagtattt ggtatctgcg ctctgctgaa
     4921 gccagttacc ttcggaaaaa gagttggtag ctcttgatcc ggcaaacaaa ccaccgctgg
     4981 tagcggtttt tttgtttgca agcagcagat tacgcgcaga aaaaaaggat ctcaagaaga
     5041 tcctttgatc ttttctacgg ggtctgacgc tcagtggaac gaaaactcac gttaagggat
     5101 tttggtcatg agattatcaa aaaggatctt cacctagatc cttttaaatt aaaaatgaag
     5161 ttttaaatca atctaaagta tatatgagta aacttggtct gacagttacc aatgcttaat
     5221 cagtgaggca cctatctcag cgatctgtct atttcgttca tccatagttg cctgactccc
     5281 cgtcgtgtag ataactacga tacgggaggg cttaccatct ggccccagtg ctgcaatgat
     5341 accgcgagac ccacgctcac cggctccaga tttatcagca ataaaccagc cagccggaag
     5401 ggccgagcgc agaagtggtc ctgcaacttt atccgcctcc atccagtcta ttaattgttg
     5461 ccgggaagct agagtaagta gttcgccagt taatagtttg cgcaacgttg ttgccattgc
     5521 tacaggcatc gtggtgtcac gctcgtcgtt tggtatggct tcattcagct ccggttccca
     5581 acgatcaagg cgagttacat gatcccccat gttgtgcaaa aaagcggtta gctccttcgg
     5641 tcctccgatc gttgtcagaa gtaagttggc cgcagtgtta tcactcatgg ttatggcagc
     5701 actgcataat tctcttactg tcatgccatc cgtaagatgc ttttctgtga ctggtgagta
     5761 ctcaaccaag tcattctgag aatagtgtat gcggcgaccg agttgctctt gcccggcgtc
     5821 aatacgggat aataccgcgc cacatagcag aactttaaaa gtgctcatca ttggaaaacg
     5881 ttcttcgggg cgaaaactct caaggatctt accgctgttg agatccagtt cgatgtaacc
     5941 cactcgtgca cccaactgat cttcagcatc ttttactttc accagcgttt ctgggtgagc
     6001 aaaaacagga aggcaaaatg ccgcaaaaaa gggaataagg gcgacacgga aatgttgaat
     6061 actcatactc ttcctttttc aatattattg aagcatttat cagggttatt gtctcatgag
     6121 cggatacata tttgaatgta tttagaaaaa taaacaaata ggggttccgc gcacatttcc
     6181 ccgaaaagtg ccacctgacg tc
//
