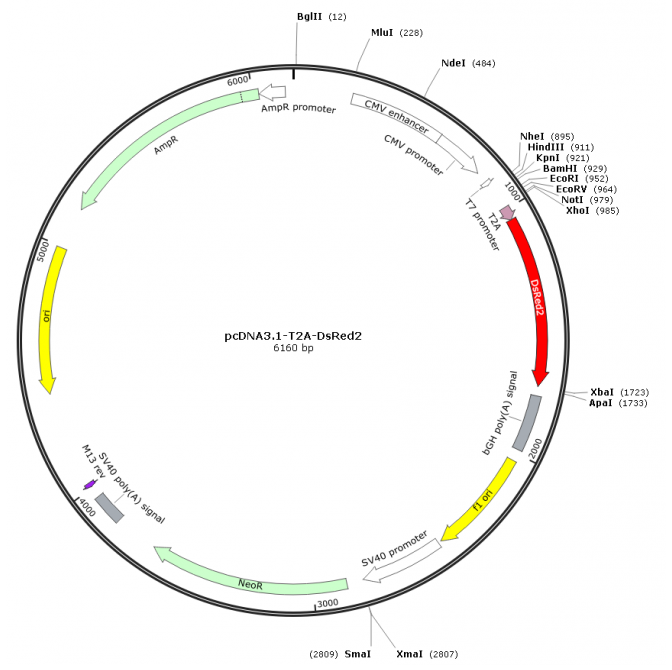

pcDNA3.1-T2A-DsRed2

LOCUS       pcDNA3.1-T2A-DsRed2                6160 bp DNA     circular SYN 13-JUL-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6160)
  AUTHORS   Biofeng
  TITLE     Direct Submission
  JOURNAL   Exported Jul 13, 2023 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6160
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             991..1044
                     /codon_start=1
                     /product="2A peptide from Thosea asigna virus capsid
                     protein"
                     /label=T2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="EGRGSLLTCGDVEENPGP"
     CDS             1045..1722
                     /codon_start=1
                     /product="improved tetrameric variant of DsRed fluorescent
                     protein"
                     /label=DsRed2
                     /note="mammalian codon-optimized"
                     /translation="MASSENVITEFMRFKVRMEGTVNGHEFEIEGEGEGRPYEGHNTVK
                     LKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDGGV
                     ATVTQDSSLQDGCFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGETHK
                     ALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDAKLDITSHNEDYTIVEQYERTEGRHH
                     LFL"
     polyA_signal    1760..1984
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2030..2458
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2472..2801
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2652..2787
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2868..3662
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3836..3957
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4006..4022)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4030..4046
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4054..4084)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4099..4120
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4408..4993)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5164..6024)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6025..6129)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccactagt ccagtgtggt ggaattctgc
      961 agatatccag cacagtggcg gccgctcgag gagggcagag gaagtcttct aacatgcggt
     1021 gacgtggagg agaatcccgg ccctatggcc tcctccgaga acgtcatcac cgagttcatg
     1081 cgcttcaagg tgcgcatgga gggcaccgtg aacggccacg agttcgagat cgagggcgag
     1141 ggcgagggcc gcccctacga gggccacaac accgtgaagc tgaaggtgac caagggcggc
     1201 cccctgccct tcgcctggga catcctgtcc ccccagttcc agtacggctc caaggtgtac
     1261 gtgaagcacc ccgccgacat ccccgactac aagaagctgt ccttccccga gggcttcaag
     1321 tgggagcgcg tgatgaactt cgaggacggc ggcgtggcga ccgtgaccca ggactcctcc
     1381 ctgcaggacg gctgcttcat ctacaaggtg aagttcatcg gcgtgaactt cccctccgac
     1441 ggccccgtga tgcagaagaa gaccatgggc tgggaggcct ccaccgagcg cctgtacccc
     1501 cgcgacggcg tgctgaaggg cgagacccac aaggccctga agctgaagga cggcggccac
     1561 tacctggtgg agttcaagtc catctacatg gccaagaagc ccgtgcagct gcccggctac
     1621 tactacgtgg acgccaagct ggacatcacc tcccacaacg aggactacac catcgtggag
     1681 cagtacgagc gcaccgaggg ccgccaccac ctgttcctgt agtctagagg gcccgtttaa
     1741 acccgctgat cagcctcgac tgtgccttct agttgccagc catctgttgt ttgcccctcc
     1801 cccgtgcctt ccttgaccct ggaaggtgcc actcccactg tcctttccta ataaaatgag
     1861 gaaattgcat cgcattgtct gagtaggtgt cattctattc tggggggtgg ggtggggcag
     1921 gacagcaagg gggaggattg ggaagacaat agcaggcatg ctggggatgc ggtgggctct
     1981 atggcttctg aggcggaaag aaccagctgg ggctctaggg ggtatcccca cgcgccctgt
     2041 agcggcgcat taagcgcggc gggtgtggtg gttacgcgca gcgtgaccgc tacacttgcc
     2101 agcgccctag cgcccgctcc tttcgctttc ttcccttcct ttctcgccac gttcgccggc
     2161 tttccccgtc aagctctaaa tcgggggctc cctttagggt tccgatttag tgctttacgg
     2221 cacctcgacc ccaaaaaact tgattagggt gatggttcac gtagtgggcc atcgccctga
     2281 tagacggttt ttcgcccttt gacgttggag tccacgttct ttaatagtgg actcttgttc
     2341 caaactggaa caacactcaa ccctatctcg gtctattctt ttgatttata agggattttg
     2401 ccgatttcgg cctattggtt aaaaaatgag ctgatttaac aaaaatttaa cgcgaattaa
     2461 ttctgtggaa tgtgtgtcag ttagggtgtg gaaagtcccc aggctcccca gcaggcagaa
     2521 gtatgcaaag catgcatctc aattagtcag caaccaggtg tggaaagtcc ccaggctccc
     2581 cagcaggcag aagtatgcaa agcatgcatc tcaattagtc agcaaccata gtcccgcccc
     2641 taactccgcc catcccgccc ctaactccgc ccagttccgc ccattctccg ccccatggct
     2701 gactaatttt ttttatttat gcagaggccg aggccgcctc tgcctctgag ctattccaga
     2761 agtagtgagg aggctttttt ggaggcctag gcttttgcaa aaagctcccg ggagcttgta
     2821 tatccatttt cggatctgat caagagacag gatgaggatc gtttcgcatg attgaacaag
     2881 atggattgca cgcaggttct ccggccgctt gggtggagag gctattcggc tatgactggg
     2941 cacaacagac aatcggctgc tctgatgccg ccgtgttccg gctgtcagcg caggggcgcc
     3001 cggttctttt tgtcaagacc gacctgtccg gtgccctgaa tgaactgcag gacgaggcag
     3061 cgcggctatc gtggctggcc acgacgggcg ttccttgcgc agctgtgctc gacgttgtca
     3121 ctgaagcggg aagggactgg ctgctattgg gcgaagtgcc ggggcaggat ctcctgtcat
     3181 ctcaccttgc tcctgccgag aaagtatcca tcatggctga tgcaatgcgg cggctgcata
     3241 cgcttgatcc ggctacctgc ccattcgacc accaagcgaa acatcgcatc gagcgagcac
     3301 gtactcggat ggaagccggt cttgtcgatc aggatgatct ggacgaagag catcaggggc
     3361 tcgcgccagc cgaactgttc gccaggctca aggcgcgcat gcccgacggc gaggatctcg
     3421 tcgtgaccca tggcgatgcc tgcttgccga atatcatggt ggaaaatggc cgcttttctg
     3481 gattcatcga ctgtggccgg ctgggtgtgg cggaccgcta tcaggacata gcgttggcta
     3541 cccgtgatat tgctgaagag cttggcggcg aatgggctga ccgcttcctc gtgctttacg
     3601 gtatcgccgc tcccgattcg cagcgcatcg ccttctatcg ccttcttgac gagttcttct
     3661 gagcgggact ctggggttcg aaatgaccga ccaagcgacg cccaacctgc catcacgaga
     3721 tttcgattcc accgccgcct tctatgaaag gttgggcttc ggaatcgttt tccgggacgc
     3781 cggctggatg atcctccagc gcggggatct catgctggag ttcttcgccc accccaactt
     3841 gtttattgca gcttataatg gttacaaata aagcaatagc atcacaaatt tcacaaataa
     3901 agcatttttt tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg tatcttatca
     3961 tgtctgtata ccgtcgacct ctagctagag cttggcgtaa tcatggtcat agctgtttcc
     4021 tgtgtgaaat tgttatccgc tcacaattcc acacaacata cgagccggaa gcataaagtg
     4081 taaagcctgg ggtgcctaat gagtgagcta actcacatta attgcgttgc gctcactgcc
     4141 cgctttccag tcgggaaacc tgtcgtgcca gctgcattaa tgaatcggcc aacgcgcggg
     4201 gagaggcggt ttgcgtattg ggcgctcttc cgcttcctcg ctcactgact cgctgcgctc
     4261 ggtcgttcgg ctgcggcgag cggtatcagc tcactcaaag gcggtaatac ggttatccac
     4321 agaatcaggg gataacgcag gaaagaacat gtgagcaaaa ggccagcaaa aggccaggaa
     4381 ccgtaaaaag gccgcgttgc tggcgttttt ccataggctc cgcccccctg acgagcatca
     4441 caaaaatcga cgctcaagtc agaggtggcg aaacccgaca ggactataaa gataccaggc
     4501 gtttccccct ggaagctccc tcgtgcgctc tcctgttccg accctgccgc ttaccggata
     4561 cctgtccgcc tttctccctt cgggaagcgt ggcgctttct catagctcac gctgtaggta
     4621 tctcagttcg gtgtaggtcg ttcgctccaa gctgggctgt gtgcacgaac cccccgttca
     4681 gcccgaccgc tgcgccttat ccggtaacta tcgtcttgag tccaacccgg taagacacga
     4741 cttatcgcca ctggcagcag ccactggtaa caggattagc agagcgaggt atgtaggcgg
     4801 tgctacagag ttcttgaagt ggtggcctaa ctacggctac actagaagaa cagtatttgg
     4861 tatctgcgct ctgctgaagc cagttacctt cggaaaaaga gttggtagct cttgatccgg
     4921 caaacaaacc accgctggta gcggtttttt tgtttgcaag cagcagatta cgcgcagaaa
     4981 aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc agtggaacga
     5041 aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca cctagatcct
     5101 tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa cttggtctga
     5161 cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat ttcgttcatc
     5221 catagttgcc tgactccccg tcgtgtagat aactacgata cgggagggct taccatctgg
     5281 ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt tatcagcaat
     5341 aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat ccgcctccat
     5401 ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta atagtttgcg
     5461 caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc
     5521 attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa
     5581 agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg cagtgttatc
     5641 actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg taagatgctt
     5701 ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc ggcgaccgag
     5761 ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa ctttaaaagt
     5821 gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac cgctgttgag
     5881 atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt ttactttcac
     5941 cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc
     6001 gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa gcatttatca
     6061 gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata aacaaatagg
     6121 ggttccgcgc acatttcccc gaaaagtgcc acctgacgtc
//
