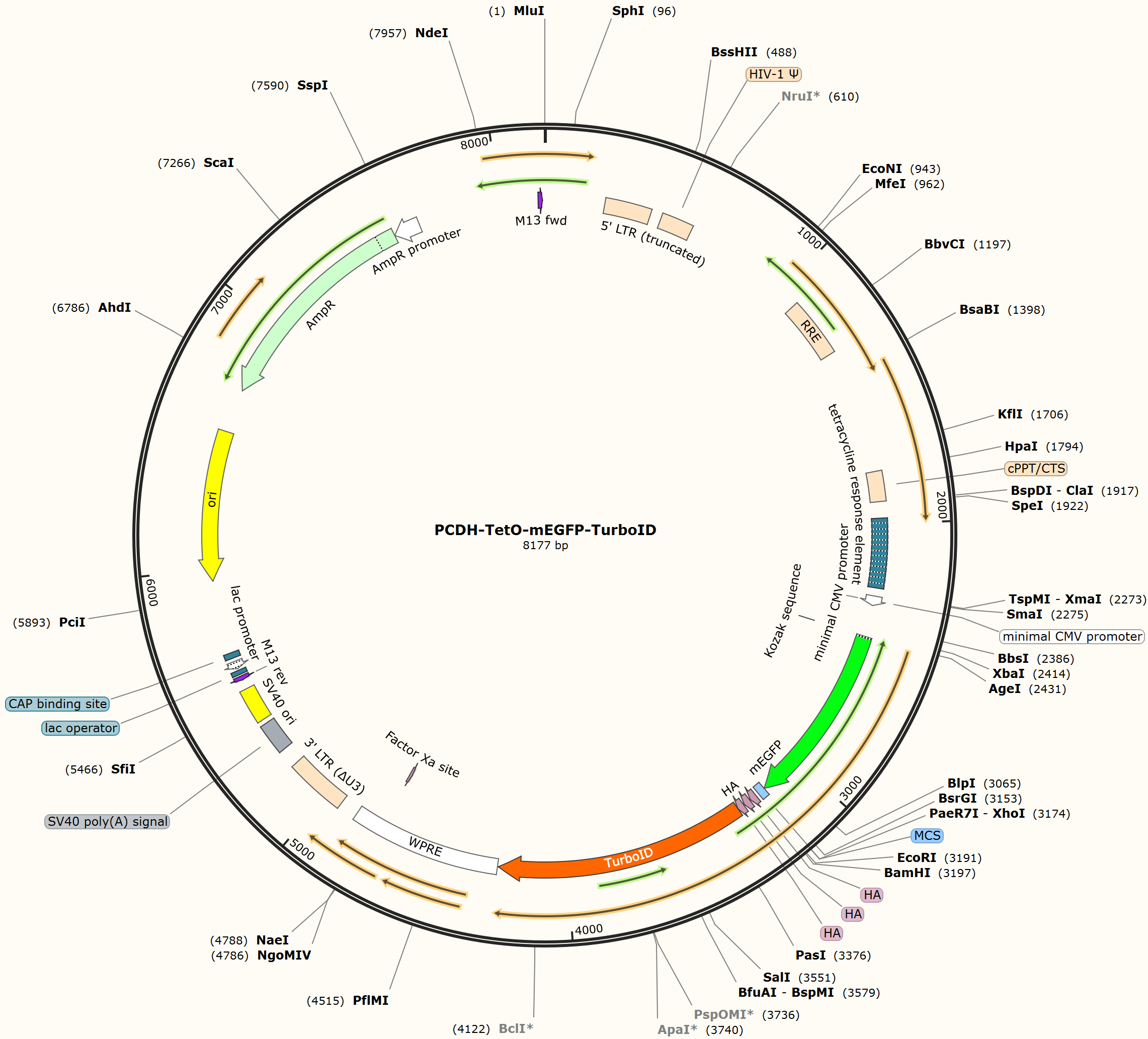

PCDH-TetO-mEGFP-TurboID

LOCUS       PCDH-TetO-mEGFP-TurboID               8177 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8177)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 12, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8177
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     protein_bind    1980..2250
                     /label=tetracycline response element
                     /bound_moiety="tetracycline repressor TetR"
                     /note="contains seven copies of the tetracycline operator
                     tetO"
     promoter        2283..2320
                     /label=minimal CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2444..3160
                     /codon_start=1
                     /product="enhanced GFP with monomerizing A206K mutation
                     (Zacharias et al., 2002)"
                     /label=mEGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     regulatory      2444..2447
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     misc_feature    3161..3190
                     /label=MCS
                     /note="multiple cloning site"
     CDS             3203..3229
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             3233..3259
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             3263..3289
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             3290..4270
                     /codon_start=1
                     /label=TurboID
                     /translation="ASKDNTVPLKLIALLANGEFHSGEQLGETLGMSRAAINKHIQTLR
                     DWGVDVFTVPGKGYSLPEPIPLLNAKQILGQLDGGSVAVLPVVDSTNQYLLDRIGELKS
                     GDACIAEYQQAGRGSRGRKWFSPFGANLYLSMFWRLKRGPAAIGLGPVIGIVMAEALRK
                     LGADKVRVKWPNDLYLQDRKLAGILVELAGITGDAAQIVIGAGINVAMRRVEESVVNQG
                     WITLQEAGINLDRNTLAATLIRELRAALELFEQEGLAPYLPRWEKLDNFINRPVKLIIG
                     DKEIFGISRGIDKQGALLLEQDGVIKPWMGGEISLRSAEKEFSRAD"
     misc_feature    4274..4861
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4745..4756)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4934..5167
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5239..5360
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5379..5514
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5552..5568)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5576..5592
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5600..5630)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5645..5666
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5954..6542)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6713..7573)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7574..7678)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     8152..8168
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagtcgg gtttattaca gggacagcag agatccagtt tggttatcga gtttaccact
     1981 ccctatcagt gatagagaaa agtgaaagtc gagtttacca ctccctatca gtgatagaga
     2041 aaagtgaaag tcgagtttac cactccctat cagtgataga gaaaagtgaa agtcgagttt
     2101 accactccct atcagtgata gagaaaagtg aaagtcgagt ttaccactcc ctatcagtga
     2161 tagagaaaag tgaaagtcga gtttaccact ccctatcagt gatagagaaa agtgaaagtc
     2221 gagtttacca ctccctatca gtgatagaga aaagtgaaag tcgagctcgg tacccgggtc
     2281 gagtaggcgt gtacggtggg aggcctatat aagcagagct cgtttagtga accgtcagat
     2341 cgcctggaga cgccatccac gctgttttga cctccataga agacaccggg accgatccag
     2401 cctccgcggc ccctctagac cgctagcgct accggtcgcc accatggtga gcaagggcga
     2461 ggagctgttc accggggtgg tgcccatcct ggtcgagctg gacggcgacg taaacggcca
     2521 caagttcagc gtgtccggcg agggcgaggg cgatgccacc tacggcaagc tgaccctgaa
     2581 gttcatctgc accaccggca agctgcccgt gccctggccc accctcgtga ccaccctgac
     2641 ctacggcgtg cagtgcttca gccgctaccc cgaccacatg aagcagcacg acttcttcaa
     2701 gtccgccatg cccgaaggct acgtccagga gcgcaccatc ttcttcaagg acgacggcaa
     2761 ctacaagacc cgcgccgagg tgaagttcga gggcgacacc ctggtgaacc gcatcgagct
     2821 gaagggcatc gacttcaagg aggacggcaa catcctgggg cacaagctgg agtacaacta
     2881 caacagccac aacgtctata tcatggccga caagcagaag aacggcatca aggtgaactt
     2941 caagatccgc cacaacatcg aggacggcag cgtgcagctc gccgaccact accagcagaa
     3001 cacccccatc ggcgacggcc ccgtgctgct gcccgacaac cactacctga gcacccagtc
     3061 caagctgagc aaagacccca acgagaagcg cgatcacatg gtcctgctgg agttcgtgac
     3121 cgccgccggg atcactctcg gcatggacga gctgtacaag tccggactca gatctcgagc
     3181 tcaagcttcg gaattcggat cctacccgta tgatgttccg gattacgctg gctatcccta
     3241 cgacgtgccc gactatgccg ggtaccccta tgacgtccca gactacgcag ctagcaaaga
     3301 caatactgtg cctctgaagc tgatcgctct cctggctaat ggcgagttcc atagtggcga
     3361 acagctggga gaaaccctgg gcatgtccag ggccgctatc aacaagcaca ttcagactct
     3421 gcgcgactgg ggcgtggacg tgttcaccgt gcccggaaag ggctactctc tgcccgagcc
     3481 tatcccgctg ctgaacgcta aacagattct gggacagctg gacggcggga gcgtggcagt
     3541 cctgcctgtg gtcgactcca ccaatcagta cctgctggat cgaatcggcg agctgaagag
     3601 tggggatgct tgcattgcag aatatcagca ggcagggaga ggaagcagag ggaggaaatg
     3661 gttctctcct tttggagcta acctgtacct gagtatgttt tggcgcctga agcggggacc
     3721 agcagcaatc ggcctgggcc cggtcatcgg aattgtcatg gcagaagcgc tgcgaaagct
     3781 gggagcagac aaggtgcgag tcaaatggcc caatgacctg tatctgcagg atagaaagct
     3841 ggcaggcatc ctggtggagc tggccggaat aacaggcgat gctgcacaga tcgtcattgg
     3901 cgccgggatt aacgtggcta tgaggcgcgt ggaggaaagc gtggtcaatc agggctggat
     3961 cacactgcag gaagcaggga ttaacctgga caggaatact ctggccgcta cgctgatccg
     4021 agagctgcgg gcagccctgg aactgttcga gcaggaaggc ctggctccat atctgccacg
     4081 gtgggagaag ctggataact tcatcaatag acccgtgaag ctgatcattg gggacaaaga
     4141 gattttcggg attagccggg ggattgataa acagggagcc ctgctgctgg aacaggacgg
     4201 agttatcaaa ccctggatgg gcggagaaat cagtctgcgg tctgccgaaa aggagttcag
     4261 cagggccgac tgaaatcaac ctctggatta caaaatttgt gaaagattga ctggtattct
     4321 taactatgtt gctcctttta cgctatgtgg atacgctgct ttaatgcctt tgtatcatgc
     4381 tattgcttcc cgtatggctt tcattttctc ctccttgtat aaatcctggt tgctgtctct
     4441 ttatgaggag ttgtggcccg ttgtcaggca acgtggcgtg gtgtgcactg tgtttgctga
     4501 cgcaaccccc actggttggg gcattgccac cacctgtcag ctcctttccg ggactttcgc
     4561 tttccccctc cctattgcca cggcggaact catcgccgcc tgccttgccc gctgctggac
     4621 aggggctcgg ctgttgggca ctgacaattc cgtggtgttg tcggggaagc tgacgtcctt
     4681 tccatggctg ctcgcctgtg ttgccacctg gattctgcgc gggacgtcct tctgctacgt
     4741 cccttcggcc ctcaatccag cggaccttcc ttcccgcggc ctgctgccgg ctctgcggcc
     4801 tcttccgcgt ctccgccttc gccctcagac gagtcggatc tccctttggc cgcctccccg
     4861 ccggtacctt taagaccaat gacttacaag gcagctgtag atcttagcca ctttttaaaa
     4921 gaaaaggggg gactggaagg gctaattcac tcccaacgaa aataagatct gctttttgct
     4981 tgtactgggt ctctctggtt agaccagatc tgagcctggg agctctctgg ctaactaggg
     5041 aacccactgc ttaagcctca ataaagcttg ccttgagtgc ttcaagtagt gtgtgcccgt
     5101 ctgttgtgtg actctggtaa ctagagatcc ctcagaccct tttagtcagt gtggaaaatc
     5161 tctagcagta gtagttcatg tcatcttatt attcagtatt tataacttgc aaagaaatga
     5221 atatcagaga gtgagaggaa cttgtttatt gcagcttata atggttacaa ataaagcaat
     5281 agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg tggtttgtcc
     5341 aaactcatca atgtatctta tcatgtctgg ctctagctat cccgccccta actccgccca
     5401 gttccgccca ttctccgccc catggctgac taattttttt tatttatgca gaggccgagg
     5461 ccgcctcggc ctctgagcta ttccagaagt agtgaggagg cttttttgga ggcctagact
     5521 tttgcagaga cggcccaaat tcgtaatcat ggtcatagct gtttcctgtg tgaaattgtt
     5581 atccgctcac aattccacac aacatacgag ccggaagcat aaagtgtaaa gcctggggtg
     5641 cctaatgagt gagctaactc acattaattg cgttgcgctc actgcccgct ttccagtcgg
     5701 gaaacctgtc gtgccagctg cattaatgaa tcggccaacg cgcggggaga ggcggtttgc
     5761 gtattgggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc gttcggctgc
     5821 ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa tcaggggata
     5881 acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggccg
     5941 cgttgctggc gtttttccat aggctccgcc cccctgacga gcatcacaaa aatcgacgct
     6001 caagtcagag gtggcgaaac ccgacaggac tataaagata ccaggcgttt ccccctggaa
     6061 gctccctcgt gcgctctcct gttccgaccc tgccgcttac cggatacctg tccgcctttc
     6121 tcccttcggg aagcgtggcg ctttctcata gctcacgctg taggtatctc agttcggtgt
     6181 aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc gaccgctgcg
     6241 ccttatccgg taactatcgt cttgagtcca acccggtaag acacgactta tcgccactgg
     6301 cagcagccac tggtaacagg attagcagag cgaggtatgt aggcggtgct acagagttct
     6361 tgaagtggtg gcctaactac ggctacacta gaaggacagt atttggtatc tgcgctctgc
     6421 tgaagccagt taccttcgga aaaagagttg gtagctcttg atccggcaaa caaaccaccg
     6481 ctggtagcgg tggttttttt gtttgcaagc agcagattac gcgcagaaaa aaaggatctc
     6541 aagaagatcc tttgatcttt tctacggggt ctgacgctca gtggaacgaa aactcacgtt
     6601 aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa
     6661 aatgaagttt taaatcaatc taaagtatat atgagtaaac ttggtctgac agttaccaat
     6721 gcttaatcag tgaggcacct atctcagcga tctgtctatt tcgttcatcc atagttgcct
     6781 gactccccgt cgtgtagata actacgatac gggagggctt accatctggc cccagtgctg
     6841 caatgatacc gcgagaccca cgctcaccgg ctccagattt atcagcaata aaccagccag
     6901 ccggaagggc cgagcgcaga agtggtcctg caactttatc cgcctccatc cagtctatta
     6961 attgttgccg ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc aacgttgttg
     7021 ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca ttcagctccg
     7081 gttcccaacg atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa gcggttagct
     7141 ccttcggtcc tccgatcgtt gtcagaagta agttggccgc agtgttatca ctcatggtta
     7201 tggcagcact gcataattct cttactgtca tgccatccgt aagatgcttt tctgtgactg
     7261 gtgagtactc aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt tgctcttgcc
     7321 cggcgtcaat acgggataat accgcgccac atagcagaac tttaaaagtg ctcatcattg
     7381 gaaaacgttc ttcggggcga aaactctcaa ggatcttacc gctgttgaga tccagttcga
     7441 tgtaacccac tcgtgcaccc aactgatctt cagcatcttt tactttcacc agcgtttctg
     7501 ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg aataagggcg acacggaaat
     7561 gttgaatact catactcttc ctttttcaat attattgaag catttatcag ggttattgtc
     7621 tcatgagcgg atacatattt gaatgtattt agaaaaataa acaaataggg gttccgcgca
     7681 catttccccg aaaagtgcca cctgacgtct aagaaaccat tattatcatg acattaacct
     7741 ataaaaatag gcgtatcacg aggccctttc gtctcgcgcg tttcggtgat gacggtgaaa
     7801 acctctgaca catgcagctc ccggagacgg tcacagcttg tctgtaagcg gatgccggga
     7861 gcagacaagc ccgtcagggc gcgtcagcgg gtgttggcgg gtgtcggggc tggcttaact
     7921 atgcggcatc agagcagatt gtactgagag tgcaccatat gcggtgtgaa ataccgcaca
     7981 gatgcgtaag gagaaaatac cgcatcaggc gccattcgcc attcaggctg cgcaactgtt
     8041 gggaagggcg atcggtgcgg gcctcttcgc tattacgcca gctggcgaaa gggggatgtg
     8101 ctgcaaggcg attaagttgg gtaacgccag ggttttccca gtcacgacgt tgtaaaacga
     8161 cggccagtgc caagctg
//
