pRetroQ-mCherry-N1

价格:3500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pRetroQ-mCherry-N1
质粒类型: 逆病毒载体;荧光报告载体
高拷贝/低拷贝: 低拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV IE
载体大小: 7597 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: mCherry(C-端)
载体抗性: 氨苄青霉素
筛选标记: 嘌呤霉素(Puromycin)
克隆菌株: DH5α
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)、原代细胞
备注: pRetroQ-mCherry-N1载体是自我失活型逆病毒载体,表达C端mCherry融合蛋白;
pRetroQ-mCherry-N1载体能够高效递送目的基因到靶细胞中,尤其适用于原代细胞和其 它难转染的细胞系。
产品目录号: 632568
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 逆转录病毒

载体质粒图谱和多克隆位点信息

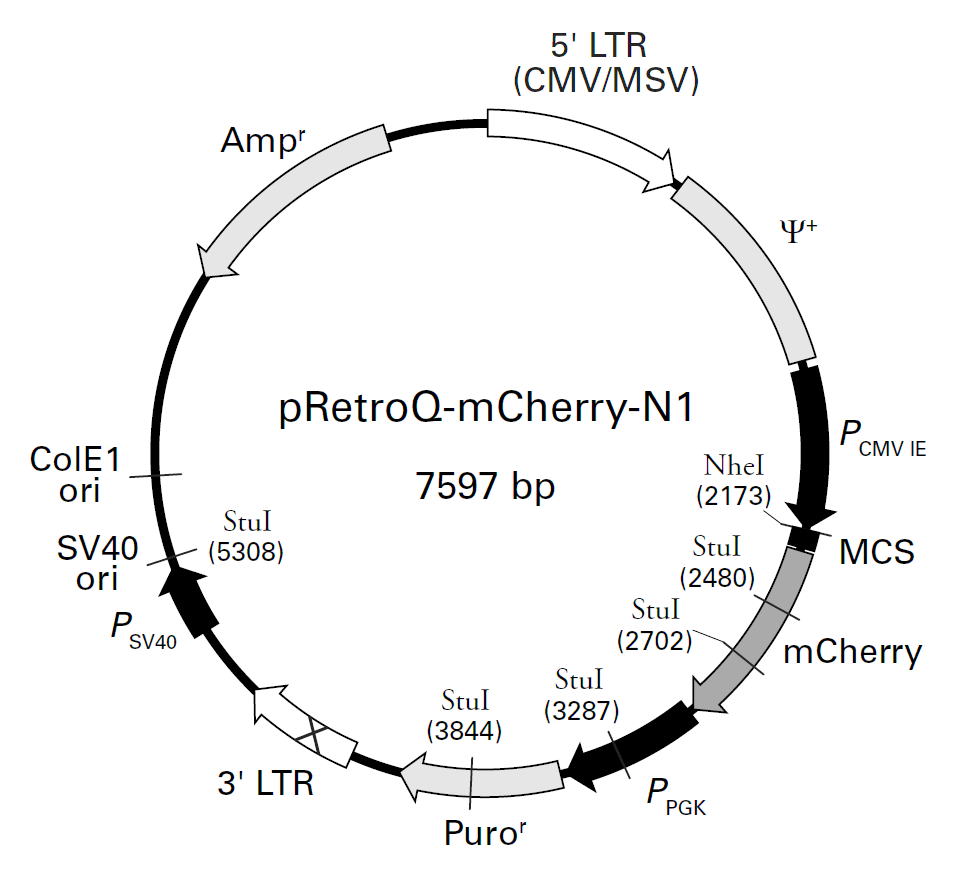

pRetroQ-mCherry-N1载体图谱

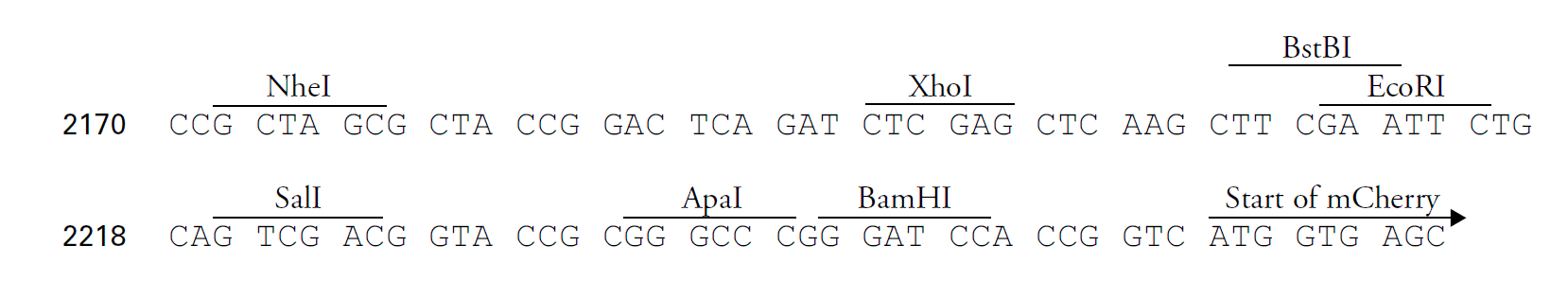

pRetroQ-mCherry-N1 多克隆位点

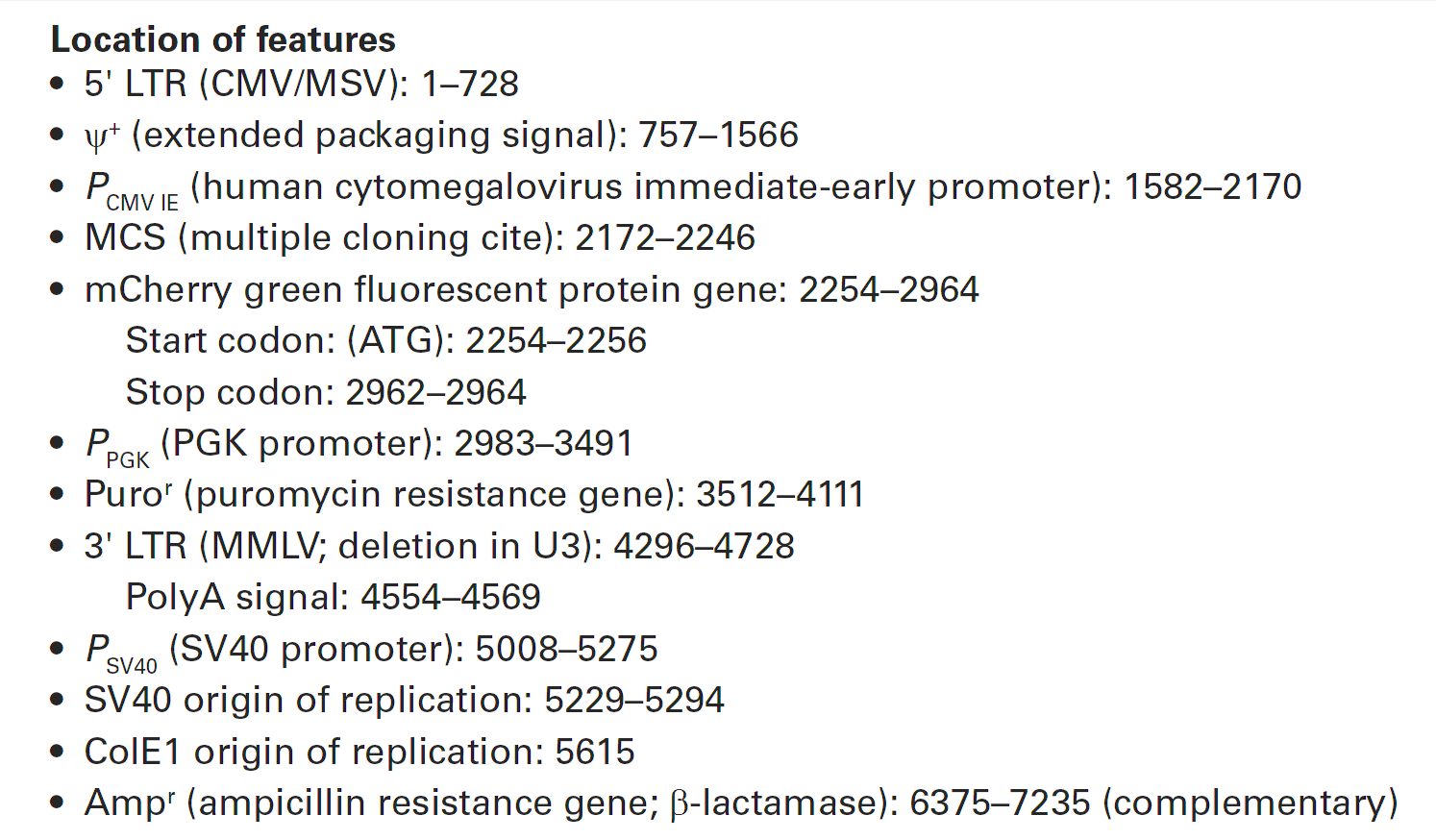

pRetroQ-mCherry-N1 载体特征

载体简介

pRetroQ-mCherry-N1载体描述

pRetroQ-mCherry-N1 is a high-titer, self-inactivating retroviral vector that facilitates efficient delivery and expression of mCherry, or N-terminal mCherry fusions, to target cells. mCherry is a mutant fluorescent protein derived from the tetrameric Discosoma sp. red fluorescent protein, DsRed (1). The excitation and emission maxima of the native mCherry protein are 587 nm and 610 nm, respectively.
The MCS in pRetroQ-mCherry-N1 lies between the human cytomegalovirus immediate-early promoter (PCMV IE) and the mCherry coding sequences. Genes cloned into the MCS are expressed as N-terminal mCherry fusion proteins when they are in the same reading frame as mCherry and there are no intervening stop codons.
The RetroQ retroviral vector backbone incorporates several unique features. This vector contains a puromycin resistance cassette (Puror) driven by the PGK promoter (PPGK) for selection of positively-infected cells (2).The hybrid 5’ long terminal repeat (LTR) consists of the CMV type I enhancer and the murine sarcoma virus (MSV) promoter. This vector demonstrates high levels of transcription in HEK 293-based packaging cell lines due, in part, to the presence of adenoviral E1A (3–6) in these cells. The self-inactivating feature of the vector is provided by a deletion in the 3’ LTR enhancer region (U3). During reverse transcription of the retroviral RNA, the inactivated 3’ LTR is copied and replaces the5’ LTR CMV enhancer sequences. This can reduce the phenomenon known as promoter interference (7) and allow more efficient expression.
Additionally, the viral genomic transcript contains the necessary viral RNA processing elements, including the LTRs, packaging signal (ψ+), and tRNA primer binding site. pRetroQ-mCherry-N1 contains a bacterial origin of replication, an E. coli Ampr gene for propagation and selection in bacteria, and an SV40 origin for replication in mammalian cells expressing the SV40 large T antigen.

pRetroQ-mCherry-N1 is designed to efficiently deliver and express N-terminal mCherry fusions into primary cells or cells that are difficult to transfect. N-terminal mCherry fusion proteins retain the fluorescent properties of the native protein, allowing the in vivo localization of the fusion protein. The gene of interest should be cloned into pRetroQ mCherry-N1 so that it is in frame with the mCherry coding sequence. The inserted gene should include an initiation codon (ATG) and lack in-frame stop codons. The recombinant mCherry vector can be transduced or transfected into mammalian cells. If required, stable transformants can be selected using puromycin. pRetroQ-mCherry-N1 can also be used simply to express mCherry in a cell line of interest (e.g., as an infection marker).
Before pRetroQ-mCherry-N1 can be transduced into mammalian cells, it must be transfected into a packaging cell line (such as the RetroPack PT67 Cell line, AmphoPack-293, EcoPack2-293, Pantropic Expression System, or Retro-X Universal Packaging System. The packaging cell line supplies the viral structural genes (gag, pol, and env) necessary for particle formation and replication that pRetroQ-mCherry-N1 lacks, allowing RNA from the vector to be packaged into non-infectious, replication-incompetent retroviral particles. Once a high-titer supernatant is produced, these retroviral particles can infect target cells and transmit the gene of interest, but they cannot replicate within the target cells due to the absence of viral structural genes. The separate introduction and integration of the structural genes into the packaging cell line minimizes the chances of producing replication-competent virus caused by recombination events during cell proliferation.

Propagation in E. coli
 Suitable host strains: DH5α, Fusion Blue, and other general-purpose strains.
 Selectable marker: plasmid confers resistance to ampicillin (100 μg/ml) in E. coli hosts.
 E. coli replication origin: ColE1
 Copy number: low

Excitation and emission maxima of mCherry
 Excitation maximum = 587 nm
 Emission maximum = 610 nm

载体序列

LOCUS       pRetroQ-mCherry-N1	7597 bp 	DNA	SYN
DEFINITION  pRetroQ-mCherry-N1
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..7597
                     /organism="pRetroQ-mCherry-N1"
                     /mol_type="other DNA"
     promoter        2..506
                     /label="CMV_immearly_promoter"
     misc_feature    6..688
                     /label="5_LTR"
     misc_feature    9..296
                     /label="CAG_enhancer"
     misc_feature    463..483
                     /label="CMV_fwd_primer"
     misc_feature    758..1567
                     /label="psi_plus_pack"
     misc_feature    1154..1561
                     /label="gag"
     misc_feature    1497..1519
                     /label="MSCV_primer"
     misc_feature    1497..1519
                     /label="pLXSN_5_primer"
     misc_feature    1535..1551
                     /label="pBABE_5_primer"
     promoter        1591..2143
                     /label="CMV_immearly_promoter"
     misc_feature    1646..1933
                     /label="CAG_enhancer"
     misc_feature    2100..2120
                     /label="CMV_fwd_primer"
     promoter        2101..2170
                     /label="CMV_promoter"
     CDS             2254..2964
                     /label="ORF frame 1"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     gene            2257..2961
                     /label="mCherry"
                     /gene="mCherry"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     misc_feature    2434..2487
                     /label="Q66M (mCherry)"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     misc_feature    complement(3027..3050)
                     /label="MSCV_rev_primer"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYE
                     GTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVM
                     NFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDG
                     ALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQ
                     YERAEGRHSTGGMDELYK*"
     CDS             3272..4111
                     /label="ORF frame 2"
                     /translation="MEAGRPLGQRPIAALLLRFLGSEAGKGWVRGRAQGRAQGRGGRP
                     KVLRRPGILHASKAHVCRAVLLFLISGPFDLQPKLTMTEYKPTVRLATRDDVPRAVRT
                     LAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPE
                     SVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKG
                     LGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFTVTADVEVPEGPRTWCMTRK
                     PGA*"
     misc_feature    3424..3443
                     /label="mPGK_F_primer"
                     /translation="MEAGRPLGQRPIAALLLRFLGSEAGKGWVRGRAQGRAQGRGGRP
                     KVLRRPGILHASKAHVCRAVLLFLISGPFDLQPKLTMTEYKPTVRLATRDDVPRAVRT
                     LAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPE
                     SVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKG
                     LGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFTVTADVEVPEGPRTWCMTRK
                     PGA*"
     CDS             complement(3437..4162)
                     /label="ORF frame 1"
                     /translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
                     PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
                     RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
                     DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
                     KLGLQVERPGDEEEENSAADVRF*"
     gene            3512..4111
                     /label="puro (variant)"
                     /gene="puro (variant)"
                     /translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
                     PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
                     RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
                     DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
                     KLGLQVERPGDEEEENSAADVRF*"
     misc_feature    complement(4831..4853)
                     /label="pGEX_3_primer"
                     /translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
                     PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
                     RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
                     DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
                     KLGLQVERPGDEEEENSAADVRF*"
     misc_feature    complement(4989..5009)
                     /label="pBABE_3_primer"
                     /translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
                     PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
                     RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
                     DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
                     KLGLQVERPGDEEEENSAADVRF*"
     misc_feature    complement(4995..5210)
                     /label="SV40_enhancer"
                     /translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
                     PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
                     RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
                     DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
                     KLGLQVERPGDEEEENSAADVRF*"
     promoter        5007..5275
                     /label="SV40_promoter"
                     /translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
                     PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
                     RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
                     DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
                     KLGLQVERPGDEEEENSAADVRF*"
     rep_origin      5174..5251
                     /label="SV40_origin"
                     /translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
                     PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
                     RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
                     DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
                     KLGLQVERPGDEEEENSAADVRF*"
     misc_feature    5236..5255
                     /label="SV40pro_F_primer"
                     /translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
                     PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
                     RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
                     DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
                     KLGLQVERPGDEEEENSAADVRF*"
     gene            complement(6375..7235)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MGSCAPFGRALRVVGRASGTGLAGHAPGARSFGHLDVGGDGEAE
                     PLVEGEVAGRGGLQEGGHPGALGRLHSGEHDGAAQTLALVVGRDADGGQEPRGLLGPV
                     RRQEAFHLLLRGQPGTAQLGHARADLGEHRPRFDALRRGPDRHRGAVVRDPHLADVEP
                     DAREEEFLQLGDPLDVAVRIDGVARGGVVGERGGEGAYGPGDVVAGGEAHRGLVLGHG
                     KLGLQVERPGDEEEENSAADVRF*"
     CDS             complement(6375..7235)
                     /label="ORF frame 3"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(7277..7305)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        7527..506
                     /label="CMV_immearly_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    7591..688
                     /label="5_LTR"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 TCCGCGTTAC ATAACTTACG GTAAATGGCC CGCCTGGCTG ACCGCCCAAC GACCCCCGCC
   61 CATTGACGTC AATAATGACG TATGTTCCCA TAGTAACGCC AATAGGGACT TTCCATTGAC
  121 GTCAATGGGT GGAGTATTTA CGGTAAACTG CCCACTTGGC AGTACATCAA GTGTATCATA
  181 TGCCAAGTAC GCCCCCTATT GACGTCAATG ACGGTAAATG GCCCGCCTGG CATTATGCCC
  241 AGTACATGAC CTTATGGGAC TTTCCTACTT GGCAGTACAT CTACGTATTA GTCATCGCTA
  301 TTACCATGGT GATGCGGTTT TGGCAGTACA TCAATGGGCG TGGATAGCGG TTTGACTCAC
  361 GGGGATTTCC AAGTCTCCAC CCCATTGACG TCAATGGGAG TTTGTTTTGG CACCAAAATC
  421 AACGGGACTT TCCAAAATGT CGTAACAACT CCGCCCCATT GACGCAAATG GGCGGTAGGC
  481 GTGTACGGTG GGAGGTCTAT ATAAGCAGAG CTCAATAAAA GAGCCCACAA CCCCTCACTC
  541 GGCGCGCCAG TCTTCCGATA GACTGCGTCG CCCGGGTACC CGTATTCCCA ATAAAGCCTC
  601 TTGCTGTTTG CATCCGAATC GTGGTCTCGC TGTTCCTTGG GAGGGTCTCC TCTGAGTGAT
  661 TGACTACCCA CGACGGGGGT CTTTCATTTG GGGGCTCGTC CGGGATTTGG AGACCCCTGC
  721 CCAGGGACCA CCGACCCACC ACCGGGAGGT AAGCTGGCCA GCAACTTATC TGTGTCTGTC
  781 CGATTGTCTA GTGTCTATGT TTGATGTTAT GCGCCTGCGT CTGTACTAGT TAGCTAACTA
  841 GCTCTGTATC TGGCGGACCC GTGGTGGAAC TGACGAGTTC TGAACACCCG GCCGCAACCC
  901 TGGGAGACGT CCCAGGGACT TTGGGGGCCG TTTTTGTGGC CCGACCTGAG GAAGGGAGTC
  961 GATGTGGAAT CCGACCCCGT CAGGATATGT GGTTCTGGTA GGAGACGAGA ACCTAAAACA
 1021 GTTCCCGCCT CCGTCTGAAT TTTTGCTTTC GGTTTGGAAC CGAAGCCGCG CGTCTTGTCT
 1081 GCTGCAGCGC TGCAGCATCG TTCTGTGTTG TCTCTGTCTG ACTGTGTTTC TGTATTTGTC
 1141 TGAAAATTAG GGCCAGACTG TTACCACTCC CTTAAGTTTG ACCTTAGGTC ACTGGAAAGA
 1201 TGTCGAGCGG ATCGCTCACA ACCAGTCGGT AGATGTCAAG AAGAGACGTT GGGTTACCTT
 1261 CTGCTCTGCA GAATGGCCAA CCTTTAACGT CGGATGGCCG CGAGACGGCA CCTTTAACCG
 1321 AGACCTCATC ACCCAGGTTA AGATCAAGGT CTTTTCACCT GGCCCGCATG GACACCCAGA
 1381 CCAGGTCCCC TACATCGTGA CCTGGGAAGC CTTGGCTTTT GACCCCCCTC CCTGGGTCAA
 1441 GCCCTTTGTA CACCCTAAGC CTCCGCCTCC TCTTCCTCCA TCCGCCCCGT CTCTCCCCCT
 1501 TGAACCTCCT CGTTCGACCC CGCCTCGATC CTCCCTTTAT CCAGCCCTCA CTCCTTCTCT
 1561 AGGCGCCGGA ATTGAAGATC ATAGTTATTA ATAGTAATCA ATTACGGGGT CATTAGTTCA
 1621 TAGCCCATAT ATGGAGTTCC GCGTTACATA ACTTACGGTA AATGGCCCGC CTGGCTGACC
 1681 GCCCAACGAC CCCCGCCCAT TGACGTCAAT AATGACGTAT GTTCCCATAG TAACGCCAAT
 1741 AGGGACTTTC CATTGACGTC AATGGGTGGA GTATTTACGG TAAACTGCCC ACTTGGCAGT
 1801 ACATCAAGTG TATCATATGC CAAGTACGCC CCCTATTGAC GTCAATGACG GTAAATGGCC
 1861 CGCCTGGCAT TATGCCCAGT ACATGACCTT ATGGGACTTT CCTACTTGGC AGTACATCTA
 1921 CGTATTAGTC ATCGCTATTA CCATGGTGAT GCGGTTTTGG CAGTACATCA ATGGGCGTGG
 1981 ATAGCGGTTT GACTCACGGG GATTTCCAAG TCTCCACCCC ATTGACGTCA ATGGGAGTTT
 2041 GTTTTGGCAC CAAAATCAAC GGGACTTTCC AAAATGTCGT AACAACTCCG CCCCATTGAC
 2101 GCAAATGGGC GGTAGGCGTG TACGGTGGGA GGTCTATATA AGCAGAGCTG GTTTAGTGAA
 2161 CCGTCAGATC CGCTAGCGCT ACCGGACTCA GATCTCGAGC TCAAGCTTCG AATTCTGCAG
 2221 TCGACGGTAC CGCGGGCCCG GGATCCACCG GTCATGGTGA GCAAGGGCGA GGAGGATAAC
 2281 ATGGCCATCA TCAAGGAGTT CATGCGCTTC AAGGTGCACA TGGAGGGCTC CGTGAACGGC
 2341 CACGAGTTCG AGATCGAGGG CGAGGGCGAG GGCCGCCCCT ACGAGGGCAC CCAGACCGCC
 2401 AAGCTGAAGG TGACCAAGGG TGGCCCCCTG CCCTTCGCCT GGGACATCCT GTCCCCTCAG
 2461 TTCATGTACG GCTCCAAGGC CTACGTGAAG CACCCCGCCG ACATCCCCGA CTACTTGAAG
 2521 CTGTCCTTCC CCGAGGGCTT CAAGTGGGAG CGCGTGATGA ACTTCGAGGA CGGCGGCGTG
 2581 GTGACCGTGA CCCAGGACTC CTCCCTGCAG GACGGCGAGT TCATCTACAA GGTGAAGCTG
 2641 CGCGGCACCA ACTTCCCCTC CGACGGCCCC GTAATGCAGA AGAAGACCAT GGGCTGGGAG
 2701 GCCTCCTCCG AGCGGATGTA CCCCGAGGAC GGCGCCCTGA AGGGCGAGAT CAAGCAGAGG
 2761 CTGAAGCTGA AGGACGGCGG CCACTACGAC GCTGAGGTCA AGACCACCTA CAAGGCCAAG
 2821 AAGCCCGTGC AGCTGCCCGG CGCCTACAAC GTCAACATCA AGTTGGACAT CACCTCCCAC
 2881 AACGAGGACT ACACCATCGT GGAACAGTAC GAACGCGCCG AGGGCCGCCA CTCCACCGGC
 2941 GGCATGGACG AGCTGTACAA GTGAGCGGCC GCGACTCTAG ATAATTCTAC CGGGTAGGGG
 3001 AGGCGCTTTT CCCAAGGCAG TCTGGAGCAT GCGCTTTAGC AGCCCCGCTG GGCACTTGGC
 3061 GCTACACAAG TGGCCTCTGG CCTCGCACAC ATTCCACATC CACCGGTAGG CGCCAACCGG
 3121 CTCCGTTCTT TGGTGGCCCC TTCGCGCCAC CTTCTACTCC TCCCCTAGTC AGGAAGTTCC
 3181 CCCCCGCCCC GCAGCTCGCG TCGTGCAGGA CGTGACAAAT GGAAGTAGCA CGTCTCACTA
 3241 GTCTCGTGCA GATGGACAGC ACCGCTGAGC AATGGAAGCG GGTAGGCCTT TGGGGCAGCG
 3301 GCCAATAGCA GCTTTGCTCC TTCGCTTTCT GGGCTCAGAG GCTGGGAAGG GGTGGGTCCG
 3361 GGGGCGGGCT CAGGGGCGGG CTCAGGGGCG GGGCGGGCGC CCGAAGGTCC TCCGGAGGCC
 3421 CGGCATTCTG CACGCTTCAA AAGCGCACGT CTGCCGCGCT GTTCTCCTCT TCCTCATCTC
 3481 CGGGCCTTTC GACCTGCAGC CCAAGCTTAC CATGACCGAG TACAAGCCCA CGGTGCGCCT
 3541 CGCCACCCGC GACGACGTCC CCAGGGCCGT ACGCACCCTC GCCGCCGCGT TCGCCGACTA
 3601 CCCCGCCACG CGCCACACCG TCGATCCGGA CCGCCACATC GAGCGGGTCA CCGAGCTGCA
 3661 AGAACTCTTC CTCACGCGCG TCGGGCTCGA CATCGGCAAG GTGTGGGTCG CGGACGACGG
 3721 CGCCGCGGTG GCGGTCTGGA CCACGCCGGA GAGCGTCGAA GCGGGGGCGG TGTTCGCCGA
 3781 GATCGGCCCG CGCATGGCCG AGTTGAGCGG TTCCCGGCTG GCCGCGCAGC AACAGATGGA
 3841 AGGCCTCCTG GCGCCGCACC GGCCCAAGGA GCCCGCGTGG TTCCTGGCCA CCGTCGGCGT
 3901 CTCGCCCGAC CACCAGGGCA AGGGTCTGGG CAGCGCCGTC GTGCTCCCCG GAGTGGAGGC
 3961 GGCCGAGCGC GCCGGGGTGC CCGCCTTCCT GGAGACCTCC GCGCCCCGCA ACCTCCCCTT
 4021 CTACGAGCGG CTCGGCTTCA CCGTCACCGC CGACGTCGAG GTGCCCGAAG GACCGCGCAC
 4081 CTGGTGCATG ACCCGCAAGC CCGGTGCCTG ACGCCCGCCC CACGACCCGC AGCGCCCGAC
 4141 CGAAAGGAGC GCACGACCCC ATGCATCGGC GTCTCGATCG AGATATCAGT GGTCCAGGCT
 4201 CTAGTTTTGA CTCAACAATA TCACCAGCTG AAGCCTATAG AGTACGAGCC ATAGATAAAA
 4261 TAAAAGATTT TATTTAGTCT CCAGAAAAAG GGGGGAATGA AAGACCCCAC CTGTAGGTTT
 4321 GGCAAGCTAC TAGCTTAAGT AACGCCATTT TGCAAGGCAT GGAAAAATAC ATAACTGAGA
 4381 ATAGAGAAGT TCAGATCAAG GTCAGGAACA GATGGAACAG GGTCGATCGA CCCTAGAGAA
 4441 CCATCAGATG TTTCCAGGGT GCCCCAAGGA CCTGAAATGA CCCTGTGCCT TATTTGAACT
 4501 AACCAATCAG TTCGCTTCTC GCTTCTGTTC GCGCGCTTCT GCTCCCCGAG CTCAATAAAA
 4561 GAGCCCACAA CCCCTCACTC GGGGCGCCAG TCCTCCGATT GACTGAGTCG CCCGGGTACC
 4621 CGTGTATCCA ATAAACCCTC TTGCAGTTGC ATCCGACTTG TGGTCTCGCT GTTCCTTGGG
 4681 AGGGTCTCCT CTGAGTGATT GACTACCCGT CAGCGGGGGT CTTTCATTTG GGGGCTCGTC
 4741 CGGGATCGGG AGACCCCTGC CCAGGGACCA CCGACCCACC ACCGGGAGGT AAGCTGGCTG
 4801 CCTCGCGCGT TTCGGTGATG ACGGTGAAAA CCTCTGACAC ATGCAGCTCC CGGAGACGGT
 4861 CACAGCTTGT CTGTAAGCGG ATGCCGGGAG CAGACAAGCC CGTCAGGGCG CGTCAGCGGG
 4921 TGTTGGCGGG TGTCGGGGCG CAGCCATGAC CCAGTCACGT AGCGATAGCG GAGTGTAGAT
 4981 CCGGCTGTGG AATGTGTGTC AGTTAGGGTG TGGAAAGTCC CCAGGCTCCC CAGCAGGCAG
 5041 AAGTATGCAA AGCATGCATC TCAATTAGTC AGCAACCAGG TGTGGAAAGT CCCCAGGCTC
 5101 CCCAGCAGGC AGAAGTATGC AAAGCATGCA TCTCAATTAG TCAGCAACCA TAGTCCCGCC
 5161 CCTAACTCCG CCCATCCCGC CCCTAACTCC GCCCAGTTCC GCCCATTCTC CGCCCCATGG
 5221 CTGACTAATT TTTTTTATTT ATGCAGAGGC CGAGGCCGCC TCGGCCTCTG AGCTATTCCA
 5281 GAAGTAGTGA GGAGGCTTTT TTGGAGGCCT AGGCTTTTGC AAAAAGCTTA CTGGCTTAAC
 5341 TATGCGGCAT CAGAGCAGAT TGTACTGAGA GTGCACCATA TGCGGTGTGA AATACCGCAC
 5401 AGATGCGTAA GGAGAAAATA CCGCATCAGG CGCTCTTCCG CTTCCTCGCT CACTGACTCG
 5461 CTGCGCTCGG TCGTTCGGCT GCGGCGAGCG GTATCAGCTC ACTCAAAGGC GGTAATACGG
 5521 TTATCCACAG AATCAGGGGA TAACGCAGGA AAGAACATGT GAGCAAAAGG CCAGCAAAAG
 5581 GCCAGGAACC GTAAAAAGGC CGCGTTGCTG GCGTTTTTCC ATAGGCTCCG CCCCCCTGAC
 5641 GAGCATCACA AAAATCGACG CTCAAGTCAG AGGTGGCGAA ACCCGACAGG ACTATAAAGA
 5701 TACCAGGCGT TTCCCCCTGG AAGCTCCCTC GTGCGCTCTC CTGTTCCGAC CCTGCCGCTT
 5761 ACCGGATACC TGTCCGCCTT TCTCCCTTCG GGAAGCGTGG CGCTTTCTCA TAGCTCACGC
 5821 TGTAGGTATC TCAGTTCGGT GTAGGTCGTT CGCTCCAAGC TGGGCTGTGT GCACGAACCC
 5881 CCCGTTCAGC CCGACCGCTG CGCCTTATCC GGTAACTATC GTCTTGAGTC CAACCCGGTA
 5941 AGACACGACT TATCGCCACT GGCAGCAGCC ACTGGTAACA GGATTAGCAG AGCGAGGTAT
 6001 GTAGGCGGTG CTACAGAGTT CTTGAAGTGG TGGCCTAACT ACGGCTACAC TAGAAGGACA
 6061 GTATTTGGTA TCTGCGCTCT GCTGAAGCCA GTTACCTTCG GAAAAAGAGT TGGTAGCTCT
 6121 TGATCCGGCA AACAAACCAC CGCTGGTAGC GGTGGTTTTT TTGTTTGCAA GCAGCAGATT
 6181 ACGCGCAGAA AAAAAGGATC TCAAGAAGAT CCTTTGATCT TTTCTACGGG GTCTGACGCT
 6241 CAGTGGAACG AAAACTCACG TTAAGGGATT TTGGTCATGA GATTATCAAA AAGGATCTTC
 6301 ACCTAGATCC TTTTAAATTA AAAATGAAGT TTTAAATCAA TCTAAAGTAT ATATGAGTAA
 6361 ACTTGGTCTG ACAGTTACCA ATGCTTAATC AGTGAGGCAC CTATCTCAGC GATCTGTCTA
 6421 TTTCGTTCAT CCATAGTTGC CTGACTCCCC GTCGTGTAGA TAACTACGAT ACGGGAGGGC
 6481 TTACCATCTG GCCCCAGTGC TGCAATGATA CCGCGAGACC CACGCTCACC GGCTCCAGAT
 6541 TTATCAGCAA TAAACCAGCC AGCCGGAAGG GCCGAGCGCA GAAGTGGTCC TGCAACTTTA
 6601 TCCGCCTCCA TCCAGTCTAT TAATTGTTGC CGGGAAGCTA GAGTAAGTAG TTCGCCAGTT
 6661 AATAGTTTGC GCAACGTTGT TGCCATTGCT GCAGGCATCG TGGTGTCACG CTCGTCGTTT
 6721 GGTATGGCTT CATTCAGCTC CGGTTCCCAA CGATCAAGGC GAGTTACATG ATCCCCCATG
 6781 TTGTGCAAAA AAGCGGTTAG CTCCTTCGGT CCTCCGATCG TTGTCAGAAG TAAGTTGGCC
 6841 GCAGTGTTAT CACTCATGGT TATGGCAGCA CTGCATAATT CTCTTACTGT CATGCCATCC
 6901 GTAAGATGCT TTTCTGTGAC TGGTGAGTAC TCAACCAAGT CATTCTGAGA ATAGTGTATG
 6961 CGGCGACCGA GTTGCTCTTG CCCGGCGTCA ACACGGGATA ATACCGCGCC ACATAGCAGA
 7021 ACTTTAAAAG TGCTCATCAT TGGAAAACGT TCTTCGGGGC GAAAACTCTC AAGGATCTTA
 7081 CCGCTGTTGA GATCCAGTTC GATGTAACCC ACTCGTGCAC CCAACTGATC TTCAGCATCT
 7141 TTTACTTTCA CCAGCGTTTC TGGGTGAGCA AAAACAGGAA GGCAAAATGC CGCAAAAAAG
 7201 GGAATAAGGG CGACACGGAA ATGTTGAATA CTCATACTCT TCCTTTTTCA ATATTATTGA
 7261 AGCATTTATC AGGGTTATTG TCTCATGAGC GGATACATAT TTGAATGTAT TTAGAAAAAT
 7321 AAACAAATAG GGGTTCCGCG CACATTTCCC CGAAAAGTGC CACCTGACGT CTAAGAAACC
 7381 ATTATTATCA TGACATTAAC CTATAAAAAT AGGCGTATCA CGAGGCCCTT TCGTCTTCAA
 7441 GAATTAGCTT GGCCATTGCA TACGTTGTAT CCATATCATA ATATGTACAT TTATATTGGC
 7501 TCATGTCCAA CATTACCGCC ATGTTGACAT TGATTATTGA CTAGTTATTA ATAGTAATCA
 7561 ATTACGGGGT CATTAGTTCA TAGCCCATAT ATGGAGT
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
