PCDH-mCherry-TurboID

LOCUS      PCDH-mCherry-TurboID               8196 bp DNA     circular SYN 10-SEP-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8196)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 12, 2026 from SnapGene 6.0.2
            https://www.biofeng.com

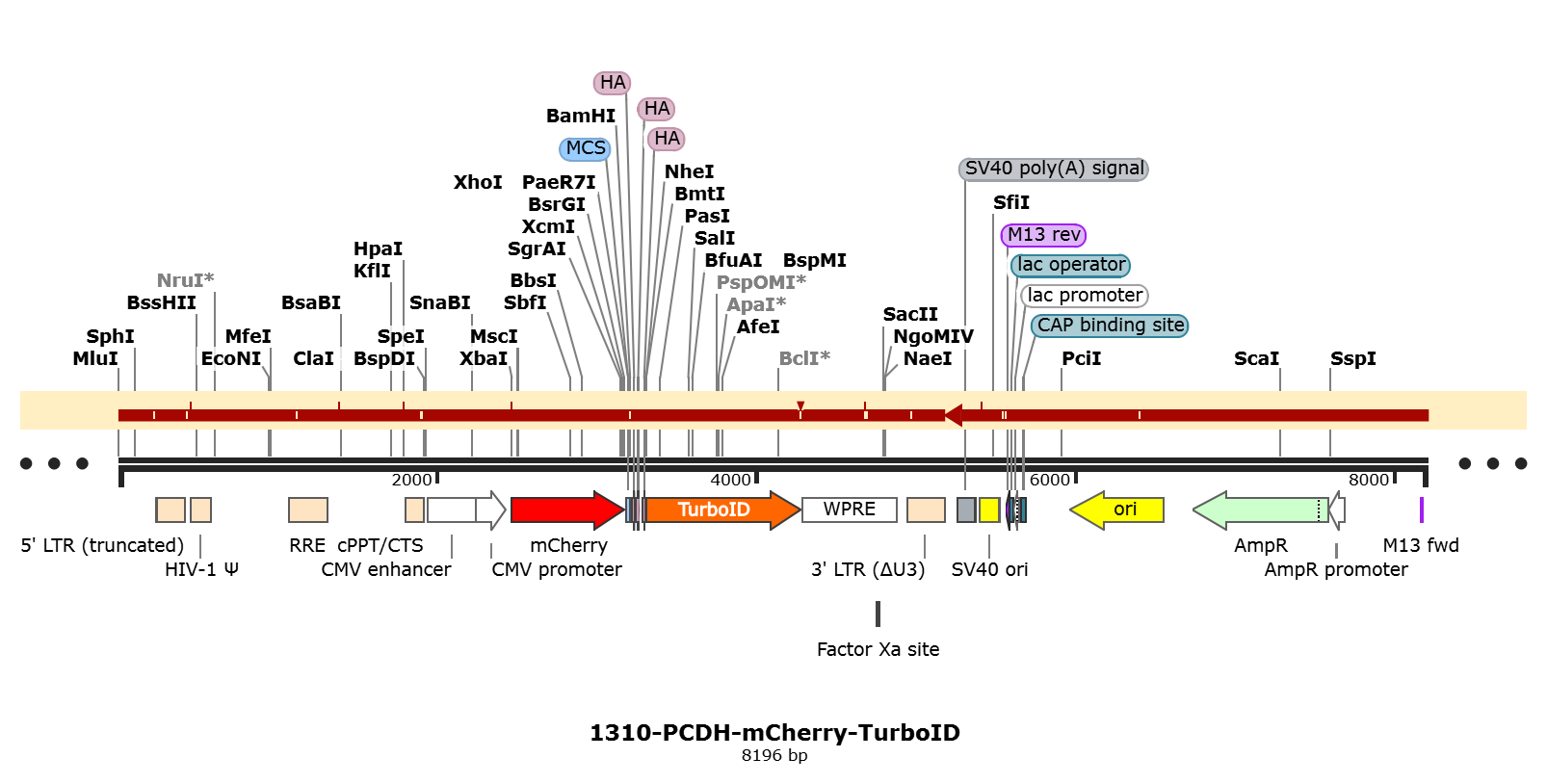

FEATURES             Location/Qualifiers
     source          1..8196
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2471)
                     /label=Primer 2
     CDS             2472..3179
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3001..3022
                     /label=mcherry-F
     misc_feature    3180..3208
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     complement(3190..3215)
                     /label=Primer 2
     CDS             3222..3248
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             3252..3278
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             3282..3308
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             3309..4289
                     /codon_start=1
                     /label=TurboID
                     /translation="ASKDNTVPLKLIALLANGEFHSGEQLGETLGMSRAAINKHIQTLR
                     DWGVDVFTVPGKGYSLPEPIPLLNAKQILGQLDGGSVAVLPVVDSTNQYLLDRIGELKS
                     GDACIAEYQQAGRGSRGRKWFSPFGANLYLSMFWRLKRGPAAIGLGPVIGIVMAEALRK
                     LGADKVRVKWPNDLYLQDRKLAGILVELAGITGDAAQIVIGAGINVAMRRVEESVVNQG
                     WITLQEAGINLDRNTLAATLIRELRAALELFEQEGLAPYLPRWEKLDNFINRPVKLIIG
                     DKEIFGISRGIDKQGALLLEQDGVIKPWMGGEISLRSAEKEFSRAD"
     primer_bind     complement(3870..3886)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     misc_feature    4293..4880
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(4293..4309)
                     /label=Primer 5
     primer_bind     complement(4293..4308)
                     /label=Primer 2
     CDS             complement(4764..4775)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4953..5186
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5258..5379
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5398..5533
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5571..5587)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5595..5611
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5619..5649)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5664..5685
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5973..6561)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6431..6445
                     /label=Primer 3
     CDS             complement(6732..7592)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7593..7697)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     8171..8187
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag aatggtgagc aagggcgagg aggataacat ggccatcatc aaggagttca
     2521 tgcgcttcaa ggtgcacatg gagggctccg tgaacggcca cgagttcgag atcgagggcg
     2581 agggcgaggg ccgcccctac gagggcaccc agaccgccaa gctgaaggtg accaagggtg
     2641 gccccctgcc cttcgcctgg gacatcctgt cccctcagtt catgtacggc tccaaggcct
     2701 acgtgaagca ccccgccgac atccccgact acttgaagct gtccttcccc gagggcttca
     2761 agtgggagcg cgtgatgaac ttcgaggacg gcggcgtggt gaccgtgacc caggactcct
     2821 ccctgcagga cggcgagttc atctacaagg tgaagctgcg cggcaccaac ttcccctccg
     2881 acggccccgt aatgcagaag aagaccatgg gctgggaggc ctcctccgag cggatgtacc
     2941 ccgaggacgg cgccctgaag ggcgagatca agcagaggct gaagctgaag gacggcggcc
     3001 actacgacgc tgaggtcaag accacctaca aggccaagaa gcccgtgcag ctgcccggcg
     3061 cctacaacgt caacatcaag ttggacatca cctcccacaa cgaggactac accatcgtgg
     3121 aacagtacga acgcgccgag ggccgccact ccaccggcgg catggacgag ctgtacaagt
     3181 ccggactcag atctcgagct caagcttcgg aattcggatc ctacccgtat gatgttccgg
     3241 attacgctgg ctatccctac gacgtgcccg actatgccgg gtacccctat gacgtcccag
     3301 actacgcagc tagcaaagac aatactgtgc ctctgaagct gatcgctctc ctggctaatg
     3361 gcgagttcca tagtggcgaa cagctgggag aaaccctggg catgtccagg gccgctatca
     3421 acaagcacat tcagactctg cgcgactggg gcgtggacgt gttcaccgtg cccggaaagg
     3481 gctactctct gcccgagcct atcccgctgc tgaacgctaa acagattctg ggacagctgg
     3541 acggcgggag cgtggcagtc ctgcctgtgg tcgactccac caatcagtac ctgctggatc
     3601 gaatcggcga gctgaagagt ggggatgctt gcattgcaga atatcagcag gcagggagag
     3661 gaagcagagg gaggaaatgg ttctctcctt ttggagctaa cctgtacctg agtatgtttt
     3721 ggcgcctgaa gcggggacca gcagcaatcg gcctgggccc ggtcatcgga attgtcatgg
     3781 cagaagcgct gcgaaagctg ggagcagaca aggtgcgagt caaatggccc aatgacctgt
     3841 atctgcagga tagaaagctg gcaggcatcc tggtggagct ggccggaata acaggcgatg
     3901 ctgcacagat cgtcattggc gccgggatta acgtggctat gaggcgcgtg gaggaaagcg
     3961 tggtcaatca gggctggatc acactgcagg aagcagggat taacctggac aggaatactc
     4021 tggccgctac gctgatccga gagctgcggg cagccctgga actgttcgag caggaaggcc
     4081 tggctccata tctgccacgg tgggagaagc tggataactt catcaataga cccgtgaagc
     4141 tgatcattgg ggacaaagag attttcggga ttagccgggg gattgataaa cagggagccc
     4201 tgctgctgga acaggacgga gttatcaaac cctggatggg cggagaaatc agtctgcggt
     4261 ctgccgaaaa ggaattcagc agggccgact gaaatcaacc tctggattac aaaatttgtg
     4321 aaagattgac tggtattctt aactatgttg ctccttttac gctatgtgga tacgctgctt
     4381 taatgccttt gtatcatgct attgcttccc gtatggcttt cattttctcc tccttgtata
     4441 aatcctggtt gctgtctctt tatgaggagt tgtggcccgt tgtcaggcaa cgtggcgtgg
     4501 tgtgcactgt gtttgctgac gcaaccccca ctggttgggg cattgccacc acctgtcagc
     4561 tcctttccgg gactttcgct ttccccctcc ctattgccac ggcggaactc atcgccgcct
     4621 gccttgcccg ctgctggaca ggggctcggc tgttgggcac tgacaattcc gtggtgttgt
     4681 cggggaagct gacgtccttt ccatggctgc tcgcctgtgt tgccacctgg attctgcgcg
     4741 ggacgtcctt ctgctacgtc ccttcggccc tcaatccagc ggaccttcct tcccgcggcc
     4801 tgctgccggc tctgcggcct cttccgcgtc tccgccttcg ccctcagacg agtcggatct
     4861 ccctttggcc gcctccccgc cggtaccttt aagaccaatg acttacaagg cagctgtaga
     4921 tcttagccac tttttaaaag aaaagggggg actggaaggg ctaattcact cccaacgaaa
     4981 ataagatctg ctttttgctt gtactgggtc tctctggtta gaccagatct gagcctggga
     5041 gctctctggc taactaggga acccactgct taagcctcaa taaagcttgc cttgagtgct
     5101 tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac tagagatccc tcagaccctt
     5161 ttagtcagtg tggaaaatct ctagcagtag tagttcatgt catcttatta ttcagtattt
     5221 ataacttgca aagaaatgaa tatcagagag tgagaggaac ttgtttattg cagcttataa
     5281 tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt tttcactgca
     5341 ttctagttgt ggtttgtcca aactcatcaa tgtatcttat catgtctggc tctagctatc
     5401 ccgcccctaa ctccgcccag ttccgcccat tctccgcccc atggctgact aatttttttt
     5461 atttatgcag aggccgaggc cgcctcggcc tctgagctat tccagaagta gtgaggaggc
     5521 ttttttggag gcctagactt ttgcagagac ggcccaaatt cgtaatcatg gtcatagctg
     5581 tttcctgtgt gaaattgtta tccgctcaca attccacaca acatacgagc cggaagcata
     5641 aagtgtaaag cctggggtgc ctaatgagtg agctaactca cattaattgc gttgcgctca
     5701 ctgcccgctt tccagtcggg aaacctgtcg tgccagctgc attaatgaat cggccaacgc
     5761 gcggggagag gcggtttgcg tattgggcgc tcttccgctt cctcgctcac tgactcgctg
     5821 cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt aatacggtta
     5881 tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc
     5941 aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc ccctgacgag
     6001 catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact ataaagatac
     6061 caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct gccgcttacc
     6121 ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag ctcacgctgt
     6181 aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc
     6241 gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa cccggtaaga
     6301 cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc gaggtatgta
     6361 ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag aaggacagta
     6421 tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg tagctcttga
     6481 tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca gcagattacg
     6541 cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc tgacgctcag
     6601 tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag gatcttcacc
     6661 tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata tgagtaaact
     6721 tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat ctgtctattt
     6781 cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg ggagggctta
     6841 ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc tccagattta
     6901 tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc aactttatcc
     6961 gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc gccagttaat
     7021 agtttgcgca acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt
     7081 atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc ccccatgttg
     7141 tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa gttggccgca
     7201 gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat gccatccgta
     7261 agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata gtgtatgcgg
     7321 cgaccgagtt gctcttgccc ggcgtcaata cgggataata ccgcgccaca tagcagaact
     7381 ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag gatcttaccg
     7441 ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc agcatctttt
     7501 actttcacca gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga
     7561 ataagggcga cacggaaatg ttgaatactc atactcttcc tttttcaata ttattgaagc
     7621 atttatcagg gttattgtct catgagcgga tacatatttg aatgtattta gaaaaataaa
     7681 caaatagggg ttccgcgcac atttccccga aaagtgccac ctgacgtcta agaaaccatt
     7741 attatcatga cattaaccta taaaaatagg cgtatcacga ggccctttcg tctcgcgcgt
     7801 ttcggtgatg acggtgaaaa cctctgacac atgcagctcc cggagacggt cacagcttgt
     7861 ctgtaagcgg atgccgggag cagacaagcc cgtcagggcg cgtcagcggg tgttggcggg
     7921 tgtcggggct ggcttaacta tgcggcatca gagcagattg tactgagagt gcaccatatg
     7981 cggtgtgaaa taccgcacag atgcgtaagg agaaaatacc gcatcaggcg ccattcgcca
     8041 ttcaggctgc gcaactgttg ggaagggcga tcggtgcggg cctcttcgct attacgccag
     8101 ctggcgaaag ggggatgtgc tgcaaggcga ttaagttggg taacgccagg gttttcccag
     8161 tcacgacgtt gtaaaacgac ggccagtgcc aagctg
//
