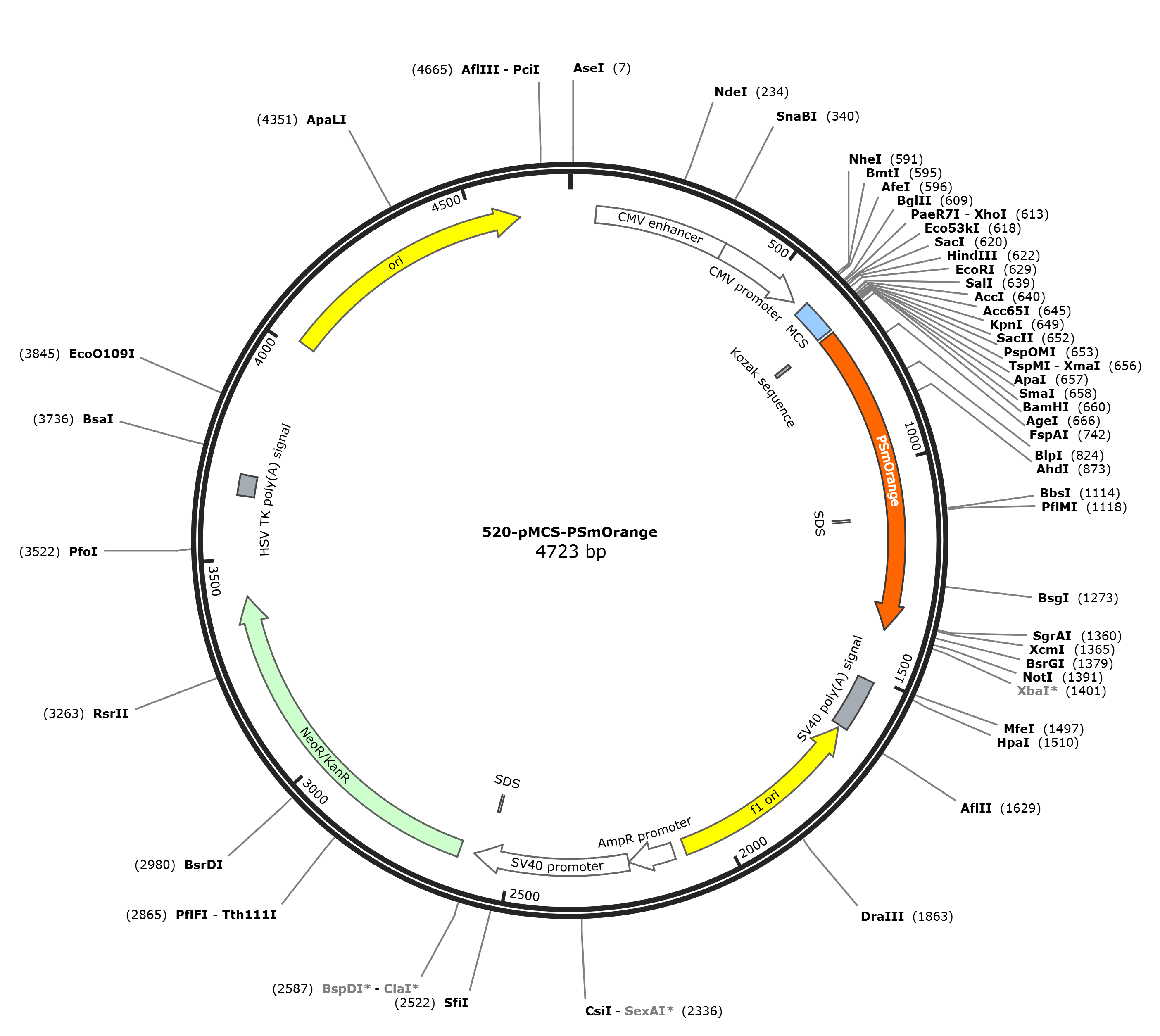

pCMV-MCS-PSmOrange

LOCUS       pCMV-MCS-PSmOrange              4723 bp DNA     circular SYN 23-MAY-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4723)
  AUTHORS   Stavrini Papadaki
  TITLE     Direct Submission
  JOURNAL   Exported Jul 16, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4723
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     misc_feature    591..671
                     /label=MCS
                     /note="multiple cloning site"
     regulatory      673..682
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             679..1389
                     /codon_start=1
                     /product="orange to far-red photoswitchable variant of the
                     monomeric fluorescent protein mOrange (Subach et al.,
                     2011)"
                     /label=PSmOrange
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEENNMAIIKEFMRFKVRMEGTVNGHEFEIEGEGEGRPYEG
                     FQTAKLKVTKGGPLPFAWDILSPLFTYGSKAYVKHPADIPDYFKLSFPEGFKWERVMNY
                     EDGGVVTVTQDSSLQDGEFIYKVKMRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIRMRLKLKDGGHYTSEVKTTYKAKKSVQLPGAYIVGIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     misc_feature    1127..1132
                     /label=SDS
     polyA_signal    1511..1632
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1639..2094)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2121..2225
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2227..2584
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     misc_feature    2551..2556
                     /label=SDS
     CDS             2619..3413
                     /codon_start=1
                     /product="aminoglycoside phosphotransferase"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3645..3692
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4021..4609
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctcgagct caagcttcga attctgcagt cgacggtacc gcgggcccgg
      661 gatccaccgg tcgccaccat ggtgagcaag ggcgaggaga ataatatggc catcatcaag
      721 gagttcatgc gcttcaaggt gcgcatggag ggcaccgtga acggccacga gttcgagatc
      781 gagggcgagg gcgagggccg cccctacgag ggctttcaga ccgctaagct gaaggtgacc
      841 aagggcggcc ccctgccctt cgcctgggac atcctgtccc ctctcttcac ctacggctcc
      901 aaggcctacg tgaagcaccc cgccgacatc cccgactact tcaagctgtc cttccccgag
      961 ggcttcaagt gggagcgcgt gatgaactac gaggacggcg gcgtggtgac cgtgacccag
     1021 gactcctcac tgcaggacgg cgagttcatc tacaaggtga agatgcgcgg caccaacttc
     1081 ccctccgacg gccccgtgat gcagaagaag accatgggct gggaggcctc ctccgagcgg
     1141 atgtaccccg aggacggcgc cctgaagggc gagatcagga tgaggctgaa gctgaaggac
     1201 ggcggccact acacctccga ggtcaagacc acctacaagg ccaagaagtc cgtgcagctg
     1261 cccggcgcct acatcgtcgg catcaagctg gacatcacct cccacaacga ggactacacc
     1321 atcgtggaac agtacgaacg cgccgagggc cgccactcca ccggcggcat ggacgagctg
     1381 tacaagtaag cggccgcgac tctagatcat aatcagccat accacatttg tagaggtttt
     1441 acttgcttta aaaaacctcc cacacctccc cctgaacctg aaacataaaa tgaatgcaat
     1501 tgttgttgtt aacttgttta ttgcagctta taatggttac aaataaagca atagcatcac
     1561 aaatttcaca aataaagcat ttttttcact gcattctagt tgtggtttgt ccaaactcat
     1621 caatgtatct taaggcgtaa attgtaagcg ttaatatttt gttaaaattc gcgttaaatt
     1681 tttgttaaat cagctcattt tttaaccaat aggccgaaat cggcaaaatc ccttataaat
     1741 caaaagaata gaccgagata gggttgagtg ttgttccagt ttggaacaag agtccactat
     1801 taaagaacgt ggactccaac gtcaaagggc gaaaaaccgt ctatcagggc gatggcccac
     1861 tacgtgaacc atcaccctaa tcaagttttt tggggtcgag gtgccgtaaa gcactaaatc
     1921 ggaaccctaa agggagcccc cgatttagag cttgacgggg aaagccggcg aacgtggcga
     1981 gaaaggaagg gaagaaagcg aaaggagcgg gcgctagggc gctggcaagt gtagcggtca
     2041 cgctgcgcgt aaccaccaca cccgccgcgc ttaatgcgcc gctacagggc gcgtcaggtg
     2101 gcacttttcg gggaaatgtg cgcggaaccc ctatttgttt atttttctaa atacattcaa
     2161 atatgtatcc gctcatgaga caataaccct gataaatgct tcaataatat tgaaaaagga
     2221 agagtcctga ggcggaaaga accagctgtg gaatgtgtgt cagttagggt gtggaaagtc
     2281 cccaggctcc ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccag
     2341 gtgtggaaag tccccaggct ccccagcagg cagaagtatg caaagcatgc atctcaatta
     2401 gtcagcaacc atagtcccgc ccctaactcc gcccatcccg cccctaactc cgcccagttc
     2461 cgcccattct ccgccccatg gctgactaat tttttttatt tatgcagagg ccgaggccgc
     2521 ctcggcctct gagctattcc agaagtagtg aggaggcttt tttggaggcc taggcttttg
     2581 caaagatcga tcaagagaca ggatgaggat cgtttcgcat gattgaacaa gatggattgc
     2641 acgcaggttc tccggccgct tgggtggaga ggctattcgg ctatgactgg gcacaacaga
     2701 caatcggctg ctctgatgcc gccgtgttcc ggctgtcagc gcaggggcgc ccggttcttt
     2761 ttgtcaagac cgacctgtcc ggtgccctga atgaactgca agacgaggca gcgcggctat
     2821 cgtggctggc cacgacgggc gttccttgcg cagctgtgct cgacgttgtc actgaagcgg
     2881 gaagggactg gctgctattg ggcgaagtgc cggggcagga tctcctgtca tctcaccttg
     2941 ctcctgccga gaaagtatcc atcatggctg atgcaatgcg gcggctgcat acgcttgatc
     3001 cggctacctg cccattcgac caccaagcga aacatcgcat cgagcgagca cgtactcgga
     3061 tggaagccgg tcttgtcgat caggatgatc tggacgaaga gcatcagggg ctcgcgccag
     3121 ccgaactgtt cgccaggctc aaggcgagca tgcccgacgg cgaggatctc gtcgtgaccc
     3181 atggcgatgc ctgcttgccg aatatcatgg tggaaaatgg ccgcttttct ggattcatcg
     3241 actgtggccg gctgggtgtg gcggaccgct atcaggacat agcgttggct acccgtgata
     3301 ttgctgaaga gcttggcggc gaatgggctg accgcttcct cgtgctttac ggtatcgccg
     3361 ctcccgattc gcagcgcatc gccttctatc gccttcttga cgagttcttc tgagcgggac
     3421 tctggggttc gaaatgaccg accaagcgac gcccaacctg ccatcacgag atttcgattc
     3481 caccgccgcc ttctatgaaa ggttgggctt cggaatcgtt ttccgggacg ccggctggat
     3541 gatcctccag cgcggggatc tcatgctgga gttcttcgcc caccctaggg ggaggctaac
     3601 tgaaacacgg aaggagacaa taccggaagg aacccgcgct atgacggcaa taaaaagaca
     3661 gaataaaacg cacggtgttg ggtcgtttgt tcataaacgc ggggttcggt cccagggctg
     3721 gcactctgtc gataccccac cgagacccca ttggggccaa tacgcccgcg tttcttcctt
     3781 ttccccaccc caccccccaa gttcgggtga aggcccaggg ctcgcagcca acgtcggggc
     3841 ggcaggccct gccatagcct caggttactc atatatactt tagattgatt taaaacttca
     3901 tttttaattt aaaaggatct aggtgaagat cctttttgat aatctcatga ccaaaatccc
     3961 ttaacgtgag ttttcgttcc actgagcgtc agaccccgta gaaaagatca aaggatcttc
     4021 ttgagatcct ttttttctgc gcgtaatctg ctgcttgcaa acaaaaaaac caccgctacc
     4081 agcggtggtt tgtttgccgg atcaagagct accaactctt tttccgaagg taactggctt
     4141 cagcagagcg cagataccaa atactgttct tctagtgtag ccgtagttag gccaccactt
     4201 caagaactct gtagcaccgc ctacatacct cgctctgcta atcctgttac cagtggctgc
     4261 tgccagtggc gataagtcgt gtcttaccgg gttggactca agacgatagt taccggataa
     4321 ggcgcagcgg tcgggctgaa cggggggttc gtgcacacag cccagcttgg agcgaacgac
     4381 ctacaccgaa ctgagatacc tacagcgtga gctatgagaa agcgccacgc ttcccgaagg
     4441 gagaaaggcg gacaggtatc cggtaagcgg cagggtcgga acaggagagc gcacgaggga
     4501 gcttccaggg ggaaacgcct ggtatcttta tagtcctgtc gggtttcgcc acctctgact
     4561 tgagcgtcga tttttgtgat gctcgtcagg ggggcggagc ctatggaaaa acgccagcaa
     4621 cgcggccttt ttacggttcc tggccttttg ctggcctttt gctcacatgt tctttcctgc
     4681 gttatcccct gattctgtgg ataaccgtat taccgccatg cat
//
