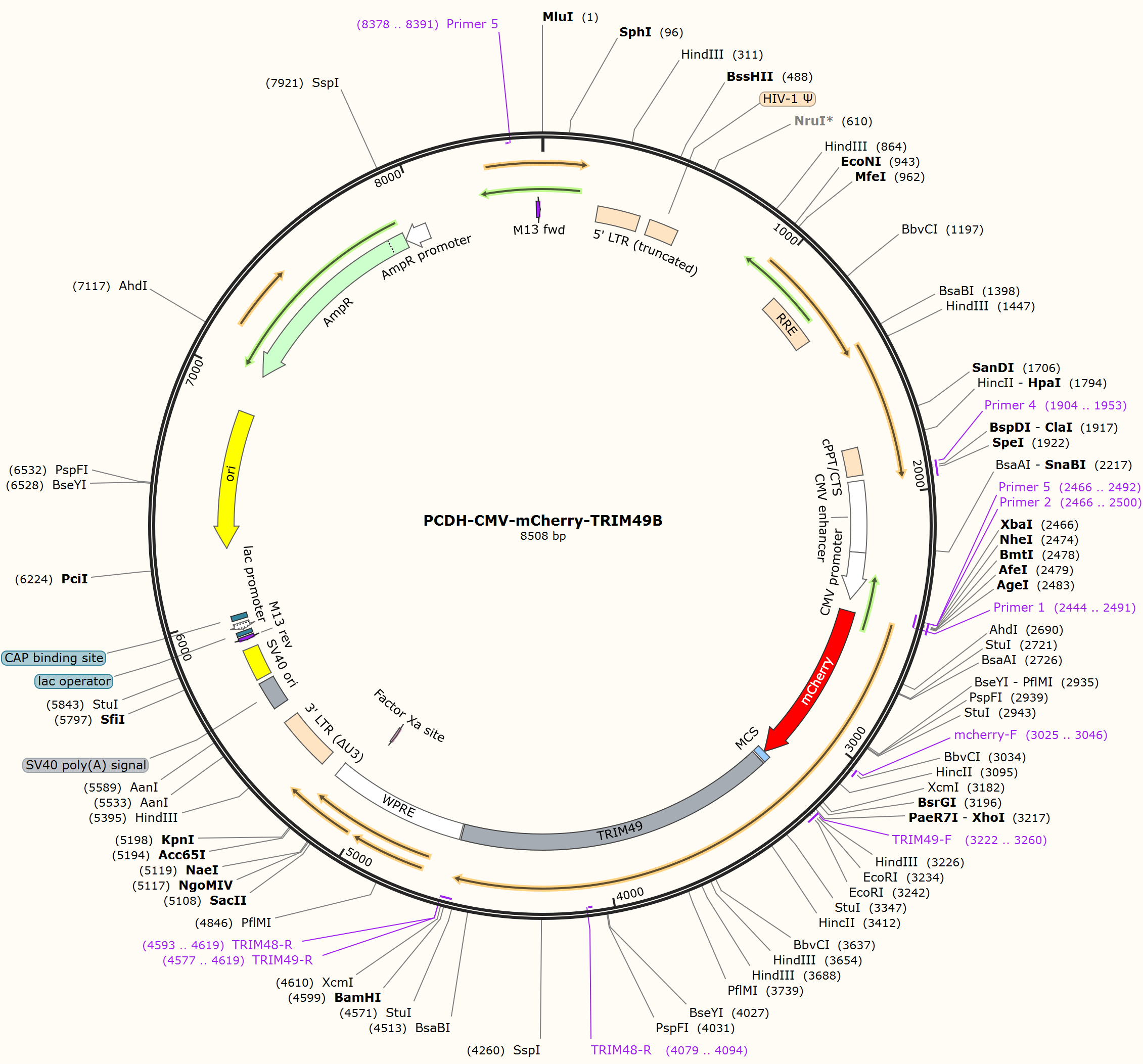

PCDH-CMV-mCherry-TRIM49B

LOCUS       PCDH-CMV-mCherry-TRIM49B               8508 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8508)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 10, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8508
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3222..3260
                     /label=TRIM49-F
     misc_feature    3240..4598
                     /label=TRIM49
     primer_bind     complement(4079..4094)
                     /label=TRIM48-R
     primer_bind     complement(4577..4619)
                     /label=TRIM49-R
     primer_bind     complement(4593..4619)
                     /label=TRIM48-R
     misc_feature    4605..5192
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5076..5087)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5265..5498
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5570..5691
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5710..5845
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5883..5899)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5907..5923
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5931..5961)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5976..5997
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6285..6873)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7044..7904)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7905..8009)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8378..8391)
                     /label=Primer 5
     primer_bind     8483..8499
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgaattctgg aatcttacag gtctttcaga gggaactcat ctgccccatc tgcatgaact
     3301 acttcataga cccggtcacc atagactgtg ggcacagctt ttgcaggcct tgtttctacc
     3361 tcaactggaa agacagccca tttcttgtcc agtgctctga atgcacaaag tcaacagggc
     3421 agataaacct caaaaccaac attcatttca agaagatggc ttctcttgct agaaaagtca
     3481 gtctctggct attcctgagc tctgaggagc aaatgtgtgg cactcacagg gagacaaaga
     3541 agatgttctg tgaagtggac aggagcctgc tctgtttgct gtgctccagc tctcaggagc
     3601 accgggatca cagacactgt cccattgagt cggctgctga ggaacaccag gagaagcttt
     3661 tacagaaaat gcagtctttg tgggaaaaag cttgtgaaaa tcacagaaac ctgaatgtgg
     3721 aaaccaccag aaccagatgc tggaaggatt atgtgaattt aaggctagaa gcaattagag
     3781 ctgagtatca gaagatgcct gcatttcacc atgaagaaga aaaacataat ttggagatgc
     3841 tgaaaaagaa ggggaaagat atttttcatc gacttcattt aagtaaagcc aaaatggctc
     3901 ataggaggga gattttaaga ggaatgtatg aggagctgaa cgaaatgtgc cataaaccag
     3961 atgtggagct acttcaggct tttggagaca tattacacag gagtgagtcc gtgctgctgc
     4021 acatgcccca gcctctgaat ccagagctca gtgcagggcc catcactgga ctgagggaca
     4081 ggctcaacca attccgagtg catattactc tgcatcatga agaagccaac agtgatatct
     4141 ttctatgtga aattttgaga agcatgtgta ttggatgtga ccatcaagat gtaccctatt
     4201 tcactgcaac acctagaagt tttcttgcat ggggtgctca gactttcacc tcgggcaaat
     4261 attactggga ggtccatgta ggggactcct ggaattgggc ttttggtgtc tgtaatatgt
     4321 attggaaaga gaagaatcag aatgagaaga tagatggaga ggatggactc tttcttcttg
     4381 ggtgtgttaa gaatgacatt caacgcagtc tctttaccac ctccccactt ctgctgcaat
     4441 atatcccaag acctaccagc cgagtaggat tattcctgga ttgtgaggct aagactgtga
     4501 gctttgttga tgttaatcaa agctccctaa tatacaccat ccctaattgc tctttctcac
     4561 ctcctctcag gcctatcttt tgctgtattc acttctgagg atccaatcaa cctctggatt
     4621 acaaaatttg tgaaagattg actggtattc ttaactatgt tgctcctttt acgctatgtg
     4681 gatacgctgc tttaatgcct ttgtatcatg ctattgcttc ccgtatggct ttcattttct
     4741 cctccttgta taaatcctgg ttgctgtctc tttatgagga gttgtggccc gttgtcaggc
     4801 aacgtggcgt ggtgtgcact gtgtttgctg acgcaacccc cactggttgg ggcattgcca
     4861 ccacctgtca gctcctttcc gggactttcg ctttccccct ccctattgcc acggcggaac
     4921 tcatcgccgc ctgccttgcc cgctgctgga caggggctcg gctgttgggc actgacaatt
     4981 ccgtggtgtt gtcggggaag ctgacgtcct ttccatggct gctcgcctgt gttgccacct
     5041 ggattctgcg cgggacgtcc ttctgctacg tcccttcggc cctcaatcca gcggaccttc
     5101 cttcccgcgg cctgctgccg gctctgcggc ctcttccgcg tctccgcctt cgccctcaga
     5161 cgagtcggat ctccctttgg ccgcctcccc gccggtacct ttaagaccaa tgacttacaa
     5221 ggcagctgta gatcttagcc actttttaaa agaaaagggg ggactggaag ggctaattca
     5281 ctcccaacga aaataagatc tgctttttgc ttgtactggg tctctctggt tagaccagat
     5341 ctgagcctgg gagctctctg gctaactagg gaacccactg cttaagcctc aataaagctt
     5401 gccttgagtg cttcaagtag tgtgtgcccg tctgttgtgt gactctggta actagagatc
     5461 cctcagaccc ttttagtcag tgtggaaaat ctctagcagt agtagttcat gtcatcttat
     5521 tattcagtat ttataacttg caaagaaatg aatatcagag agtgagagga acttgtttat
     5581 tgcagcttat aatggttaca aataaagcaa tagcatcaca aatttcacaa ataaagcatt
     5641 tttttcactg cattctagtt gtggtttgtc caaactcatc aatgtatctt atcatgtctg
     5701 gctctagcta tcccgcccct aactccgccc agttccgccc attctccgcc ccatggctga
     5761 ctaatttttt ttatttatgc agaggccgag gccgcctcgg cctctgagct attccagaag
     5821 tagtgaggag gcttttttgg aggcctagac ttttgcagag acggcccaaa ttcgtaatca
     5881 tggtcatagc tgtttcctgt gtgaaattgt tatccgctca caattccaca caacatacga
     5941 gccggaagca taaagtgtaa agcctggggt gcctaatgag tgagctaact cacattaatt
     6001 gcgttgcgct cactgcccgc tttccagtcg ggaaacctgt cgtgccagct gcattaatga
     6061 atcggccaac gcgcggggag aggcggtttg cgtattgggc gctcttccgc ttcctcgctc
     6121 actgactcgc tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg
     6181 gtaatacggt tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc
     6241 cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc
     6301 ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga
     6361 ctataaagat accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc
     6421 ctgccgctta ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat
     6481 agctcacgct gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg
     6541 cacgaacccc ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc
     6601 aacccggtaa gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga
     6661 gcgaggtatg taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact
     6721 agaaggacag tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt
     6781 ggtagctctt gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag
     6841 cagcagatta cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg
     6901 tctgacgctc agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa
     6961 aggatcttca cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata
     7021 tatgagtaaa cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg
     7081 atctgtctat ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata
     7141 cgggagggct taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg
     7201 gctccagatt tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct
     7261 gcaactttat ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt
     7321 tcgccagtta atagtttgcg caacgttgtt gccattgcta caggcatcgt ggtgtcacgc
     7381 tcgtcgtttg gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga
     7441 tcccccatgt tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt
     7501 aagttggccg cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc
     7561 atgccatccg taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa
     7621 tagtgtatgc ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca
     7681 catagcagaa ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca
     7741 aggatcttac cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct
     7801 tcagcatctt ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc
     7861 gcaaaaaagg gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa
     7921 tattattgaa gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt
     7981 tagaaaaata aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctgacgtc
     8041 taagaaacca ttattatcat gacattaacc tataaaaata ggcgtatcac gaggcccttt
     8101 cgtctcgcgc gtttcggtga tgacggtgaa aacctctgac acatgcagct cccggagacg
     8161 gtcacagctt gtctgtaagc ggatgccggg agcagacaag cccgtcaggg cgcgtcagcg
     8221 ggtgttggcg ggtgtcgggg ctggcttaac tatgcggcat cagagcagat tgtactgaga
     8281 gtgcaccata tgcggtgtga aataccgcac agatgcgtaa ggagaaaata ccgcatcagg
     8341 cgccattcgc cattcaggct gcgcaactgt tgggaagggc gatcggtgcg ggcctcttcg
     8401 ctattacgcc agctggcgaa agggggatgt gctgcaaggc gattaagttg ggtaacgcca
     8461 gggttttccc agtcacgacg ttgtaaaacg acggccagtg ccaagctg
//
