pRetroX-Tet-On Advanced

价格:3500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pRetroX-Tet-On Advanced
质粒类型: 逆病毒载体;四环素调控载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV IE
载体大小: 8130 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: 新霉素(Neomycin)
克隆菌株: DH5α
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)
备注: 逆病毒载体pRetroX-Tet-On Advanced是四环素调控系统载体,组成型表达rtTA Advanced。
产品目录号: 632104
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 逆转录病毒

载体质粒图谱和多克隆位点信息

pRetroX-Tet-On Advanced载体图谱

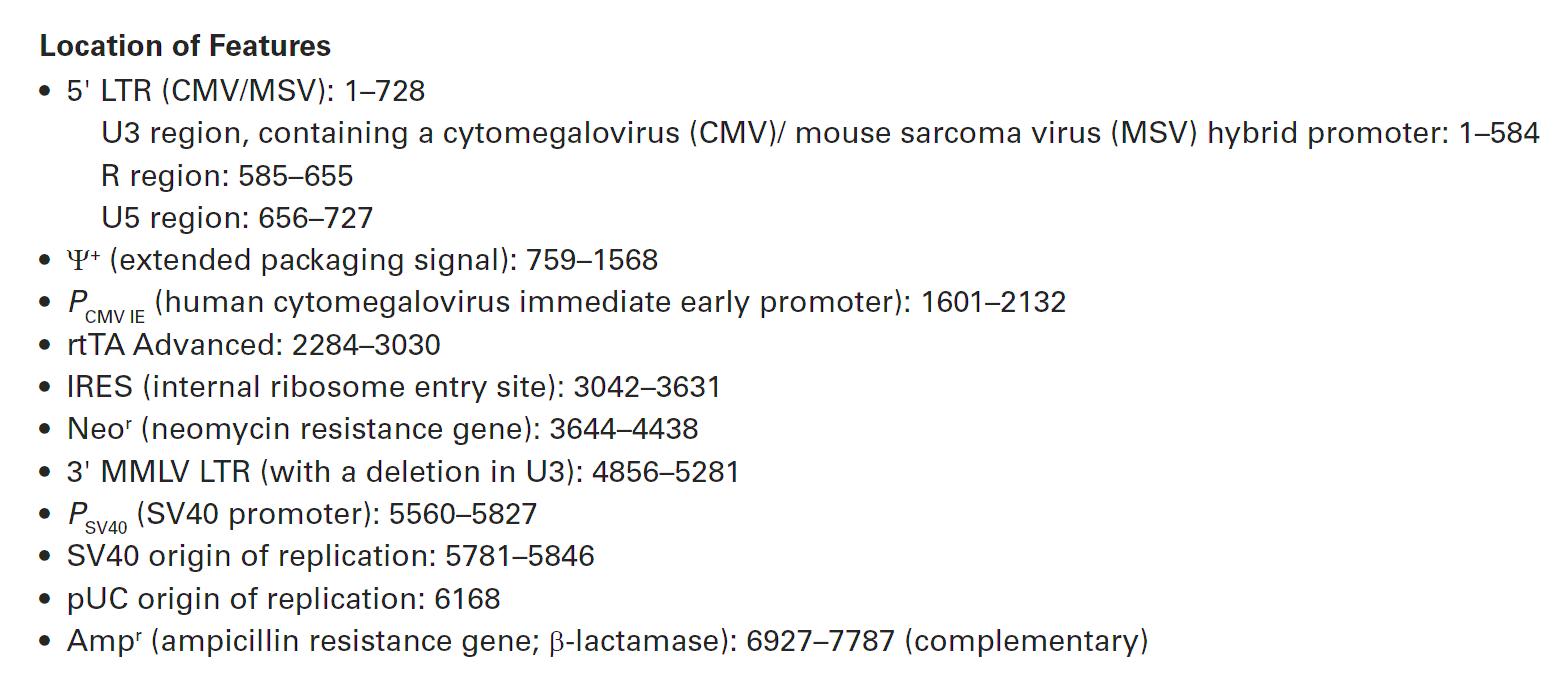

pRetroX-Tet-On Advanced 载体特征

载体简介

pRetroX-Tet-On Advanced载体描述

pRetroX-Tet-On Advanced is a Retro-X Q retroviral vector that expresses rtTA-Advanced, an improved version of the reverse tetracycline(Tet)-controlled transactivator protein rtTA (1–4). rtTA-Advanced is more sensitive to doxycycline (Dox) and yields lower background expression than the original rtTA. The rtTA-Advanced protein is a fusion of the Tet repressor (TetR) DNA-binding domain, and three minimal “F”-type transcriptional activation domains from the herpes simplex virus VP16 protein. The gene encoding rtTA-Advanced is completely synthetic, lacks cryptic splice sites, and utilizes human codon preferences for stable expression in mammalian cells. Expression of rtTA-Advanced is driven by the powerful, constitutively active CMV promoter.
As with all of our Retro-X Q vectors, pRetroX-Tet-On Advanced uses LTR self-inactivation to eliminate promoter interference. In LTR self-inactivation, the mechanism of viral integration is used to introduce a deletion into the 5’ LTR. As a result of this mutation, the 5’ LTR CMV/MSV promoter, which drives high expression of the complete viral genome in packaging cells, is inactive in stably transduced target cells. This allows the expression of rtTA-Advanced (from PCMV IE) to proceed unimpeded (5, 6). The vector also contains a neomycin resistance gene (Neor) that allows G418 selection of stably transduced cells. rtTA-Advanced and the Neor marker are coexpressed from a bicistronic transcript containing an internal ribosome entry site (IRES).This ensures that a high frequency of G418 resistant clones express the Tet-On Advanced transactivator.

pRetroX-Tet-On Advanced contains all of the necessary viral RNA processing elements; these include the 5’ and 3’ LTRs, a packaging signal (Ψ+), and a tRNA primer binding site. The vector also contains an SV40 origin of replication for plasmid propagation in mammalian cells that express SV40 T antigen. In addition, a pUC origin of replication and an E. coli Ampr gene allow for propagation and selection in bacteria.

The pRetroX-Tet-On Advanced vector is used in conjunction with Tet response vectors to create double stable Retro-X Tet-On Advanced cell lines. Such cell lines are essentially Doxycycline (Dox)-controlled gene expression systems in which the Tet response vector expresses a gene of interest under the control of a Tet-responsive element (TRE; e.g. PTight; 7, 8). In the presence of Dox, rtTA-Advanced binds to the TRE and activates expression of the gene of interest. In the absence of Dox, rtTA-Advanced is unable to bind to the TRE, and the system is inactive. Additional information on TRE-containing vectors and protocols describing how to construct a Retro-X Tet-On Advanced cell line can be found in the Retro-X Tet-On Advanced Inducible Gene Expression System User manual (PT3958-1).

Selection of Stable Transfectants
 Selectable marker: plasmid confers resistance to G418.

Propagation in E. coli
 Suitable host strains: DH5α, DH10B and other general purpose strains.
 Selectable marker: plasmid confers resistance to ampicillin (100 μg/ml) in E. coli hosts.
 E. coli replication origin: pUC

载体序列

LOCUS       pRetroX-Tet-On Advanced	8152 bp 	DNA	SYN
DEFINITION  pRetroX-Tet-On Advanced
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..8152
                     /organism="pRetroX-Tet-On Advanced"
                     /mol_type="other DNA"
     promoter        2..506
                     /label="CMV_immearly_promoter"
     misc_feature    6..688
                     /label="5_LTR"
     misc_feature    9..296
                     /label="CAG_enhancer"
     misc_feature    463..483
                     /label="CMV_fwd_primer"
     misc_feature    758..1567
                     /label="psi_plus_pack"
     misc_feature    1154..1561
                     /label="gag"
     misc_feature    1497..1519
                     /label="MSCV_primer"
     misc_feature    1497..1519
                     /label="pLXSN_5_primer"
     misc_feature    1535..1551
                     /label="pBABE_5_primer"
     misc_feature    1608..1895
                     /label="CAG_enhancer"
     promoter        1613..2105
                     /label="CMV_immearly_promoter"
     misc_feature    2062..2082
                     /label="CMV_fwd_primer"
     promoter        2063..2132
                     /label="CMV_promoter"
     promoter        2075..2194
                     /label="CMV2_promoter"
     misc_feature    2106..2125
                     /label="pCEP_fwd_primer"
     misc_feature    2108..2132
                     /label="LNCX_primer"
     CDS             2287..3033
                     /label="ORF frame 1"
                     /translation="MSRLDKSKVINGALELLNGVGIEGLTTRKLAQKLGVEQPTLYWH
                     VKNKRALLDALPIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
                     TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEEQEHQVAKEERET
                     PTTDSMPPLLRQAIELFDRQGAEPAFLFGLELIICGLEKQLKCESGGPADALDDFDLD
                     MLPADALDDFDLDMLPADALDDFDLDMLPG*"
     misc_feature    3071..3622
                     /label="IRES"
                     /translation="MSRLDKSKVINGALELLNGVGIEGLTTRKLAQKLGVEQPTLYWH
                     VKNKRALLDALPIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLG
                     TRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEEQEHQVAKEERET
                     PTTDSMPPLLRQAIELFDRQGAEPAFLFGLELIICGLEKQLKCESGGPADALDDFDLD
                     MLPADALDDFDLDMLPADALDDFDLDMLPG*"
     CDS             3647..4441
                     /label="ORF frame 2"
                     /translation="MAEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            3662..4438
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
                     /translation="MAEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     misc_feature    complement(5386..5408)
                     /label="pGEX_3_primer"
                     /translation="MAEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     misc_feature    complement(5544..5564)
                     /label="pBABE_3_primer"
                     /translation="MAEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     misc_feature    complement(5550..5765)
                     /label="SV40_enhancer"
                     /translation="MAEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     promoter        5562..5830
                     /label="SV40_promoter"
                     /translation="MAEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     rep_origin      5729..5806
                     /label="SV40_origin"
                     /translation="MAEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     misc_feature    5791..5810
                     /label="SV40pro_F_primer"
                     /translation="MAEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            complement(6930..7790)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MAEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(6930..7790)
                     /label="ORF frame 3"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(7832..7860)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        8082..506
                     /label="CMV_immearly_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    8146..688
                     /label="5_LTR"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 TCCGCGTTAC ATAACTTACG GTAAATGGCC CGCCTGGCTG ACCGCCCAAC GACCCCCGCC
   61 CATTGACGTC AATAATGACG TATGTTCCCA TAGTAACGCC AATAGGGACT TTCCATTGAC
  121 GTCAATGGGT GGAGTATTTA CGGTAAACTG CCCACTTGGC AGTACATCAA GTGTATCATA
  181 TGCCAAGTAC GCCCCCTATT GACGTCAATG ACGGTAAATG GCCCGCCTGG CATTATGCCC
  241 AGTACATGAC CTTATGGGAC TTTCCTACTT GGCAGTACAT CTACGTATTA GTCATCGCTA
  301 TTACCATGGT GATGCGGTTT TGGCAGTACA TCAATGGGCG TGGATAGCGG TTTGACTCAC
  361 GGGGATTTCC AAGTCTCCAC CCCATTGACG TCAATGGGAG TTTGTTTTGG CACCAAAATC
  421 AACGGGACTT TCCAAAATGT CGTAACAACT CCGCCCCATT GACGCAAATG GGCGGTAGGC
  481 GTGTACGGTG GGAGGTCTAT ATAAGCAGAG CTCAATAAAA GAGCCCACAA CCCCTCACTC
  541 GGCGCGCCAG TCTTCCGATA GACTGCGTCG CCCGGGTACC CGTATTCCCA ATAAAGCCTC
  601 TTGCTGTTTG CATCCGAATC GTGGTCTCGC TGTTCCTTGG GAGGGTCTCC TCTGAGTGAT
  661 TGACTACCCA CGACGGGGGT CTTTCATTTG GGGGCTCGTC CGGGATTTGG AGACCCCTGC
  721 CCAGGGACCA CCGACCCACC ACCGGGAGGT AAGCTGGCCA GCAACTTATC TGTGTCTGTC
  781 CGATTGTCTA GTGTCTATGT TTGATGTTAT GCGCCTGCGT CTGTACTAGT TAGCTAACTA
  841 GCTCTGTATC TGGCGGACCC GTGGTGGAAC TGACGAGTTC TGAACACCCG GCCGCAACCC
  901 TGGGAGACGT CCCAGGGACT TTGGGGGCCG TTTTTGTGGC CCGACCTGAG GAAGGGAGTC
  961 GATGTGGAAT CCGACCCCGT CAGGATATGT GGTTCTGGTA GGAGACGAGA ACCTAAAACA
 1021 GTTCCCGCCT CCGTCTGAAT TTTTGCTTTC GGTTTGGAAC CGAAGCCGCG CGTCTTGTCT
 1081 GCTGCAGCGC TGCAGCATCG TTCTGTGTTG TCTCTGTCTG ACTGTGTTTC TGTATTTGTC
 1141 TGAAAATTAG GGCCAGACTG TTACCACTCC CTTAAGTTTG ACCTTAGGTC ACTGGAAAGA
 1201 TGTCGAGCGG ATCGCTCACA ACCAGTCGGT AGATGTCAAG AAGAGACGTT GGGTTACCTT
 1261 CTGCTCTGCA GAATGGCCAA CCTTTAACGT CGGATGGCCG CGAGACGGCA CCTTTAACCG
 1321 AGACCTCATC ACCCAGGTTA AGATCAAGGT CTTTTCACCT GGCCCGCATG GACACCCAGA
 1381 CCAGGTCCCC TACATCGTGA CCTGGGAAGC CTTGGCTTTT GACCCCCCTC CCTGGGTCAA
 1441 GCCCTTTGTA CACCCTAAGC CTCCGCCTCC TCTTCCTCCA TCCGCCCCGT CTCTCCCCCT
 1501 TGAACCTCCT CGTTCGACCC CGCCTCGATC CTCCCTTTAT CCAGCCCTCA CTCCTTCTCT
 1561 AGGCGCCGGA ATTGAAGATC TGGGGGATCG ATCCTCTAGA GTCCGTTACA TAACTTACGG
 1621 TAAATGGCCC GCCTGGCTGA CCGCCCAACG ACCCCCGCCC ATTGACGTCA ATAATGACGT
 1681 ATGTTCCCAT AGTAACGCCA ATAGGGACTT TCCATTGACG TCAATGGGTG GAGTATTTAC
 1741 GGTAAACTGC CCACTTGGCA GTACATCAAG TGTATCATAT GCCAAGTACG CCCCCTATTG
 1801 ACGTCAATGA CGGTAAATGG CCCGCCTGGC ATTATGCCCA GTACATGACC TTATGGGACT
 1861 TTCCTACTTG GCAGTACATC TACGTATTAG TCATCGCTAT TACCATGGTG ATGCGGTTTT
 1921 GGCAGTACAT CAATGGGCGT GGATAGCGGT TTGACTCACG GGGATTTCCA AGTCTCCACC
 1981 CCATTGACGT CAATGGGAGT TTGTTTTGGC ACCAAAATCA ACGGGACTTT CCAAAATGTC
 2041 GTAACAACTC CGCCCCATTG ACGCAAATGG GCGGTAGGCG TGTACGGTGG GAGGTCTATA
 2101 TAAGCAGAGC TCGTTTAGTG AACCGTCAGA TCGCCTGGAG ACGCCATCCA CGCTGTTTTG
 2161 ACCTCCATAG AAGACACCGG GACCGATCCA GCCTCCGCGG CCGGGAACGG TGCATTGGAA
 2221 CGGACCTGCA GGAATTGATC CGCGGCCGCA CCGGTAGGCC TCGTACGCTT AATTAACGGA
 2281 TCCACCATGT CTAGACTGGA CAAGAGCAAA GTCATAAACG GCGCTCTGGA ATTACTCAAT
 2341 GGAGTCGGTA TCGAAGGCCT GACGACAAGG AAACTCGCTC AAAAGCTGGG AGTTGAGCAG
 2401 CCTACCCTGT ACTGGCACGT GAAGAACAAG CGGGCCCTGC TCGATGCCCT GCCAATCGAG
 2461 ATGCTGGACA GGCATCATAC CCACTTCTGC CCCCTGGAAG GCGAGTCATG GCAAGACTTT
 2521 CTGCGGAACA ACGCCAAGTC ATTCCGCTGT GCTCTCCTCT CACATCGCGA CGGGGCTAAA
 2581 GTGCATCTCG GCACCCGCCC AACAGAGAAA CAGTACGAAA CCCTGGAAAA TCAGCTCGCG
 2641 TTCCTGTGTC AGCAAGGCTT CTCCCTGGAG AACGCACTGT ACGCTCTGTC CGCCGTGGGC
 2701 CACTTTACAC TGGGCTGCGT ATTGGAGGAA CAGGAGCATC AAGTAGCAAA AGAGGAAAGA
 2761 GAGACACCTA CCACCGATTC TATGCCCCCA CTTCTGAGAC AAGCAATTGA GCTGTTCGAC
 2821 CGGCAGGGAG CCGAACCTGC CTTCCTTTTC GGCCTGGAAC TAATCATATG TGGCCTGGAG
 2881 AAACAGCTAA AGTGCGAAAG CGGCGGGCCG GCCGACGCCC TTGACGATTT TGACTTAGAC
 2941 ATGCTCCCAG CCGATGCCCT TGACGACTTT GACCTTGATA TGCTGCCTGC TGACGCTCTT
 3001 GACGATTTTG ACCTTGACAT GCTCCCCGGG TAACTAGAAT TCCGCCCCCC CCCCCCCCCC
 3061 CCCTCTCCCT CCCCCCCCCC TAACGTTACT GGCCGAAGCC GCTTGGAATA AGGCCGGTGT
 3121 GCGTTTGTCT ATATGTTATT TTCCACCATA TTGCCGTCTT TTGGCAATGT GAGGGCCCGG
 3181 AAACCTGGCC CTGTCTTCTT GACGAGCATT CCTAGGGGTC TTTCCCCTCT CGCCAAAGGA
 3241 ATGCAAGGTC TGTTGAATGT CGTGAAGGAA GCAGTTCCTC TGGAAGCTTC TTGAAGACAA
 3301 ACAACGTCTG TAGCGACCCT TTGCAGGCAG CGGAACCCCC CACCTGGCGA CAGGTGCCTC
 3361 TGCGGCCAAA AGCCACGTGT ATAAGATACA CCTGCAAAGG CGGCACAACC CCAGTGCCAC
 3421 GTTGTGAGTT GGATAGTTGT GGAAAGAGTC AAATGGCTCT CCTCAAGCGT ATTCAACAAG
 3481 GGGCTGAAGG ATGCCCAGAA GGTACCCCAT TGTATGGGAT CTGATCTGGG GCCTCGGTGC
 3541 ACATGCTTTA CATGTGTTTA GTCGAGGTTA AAAAAACGTC TAGGCCCCCC GAACCACGGG
 3601 GACGTGGTTT TCCTTTGAAA AACACGATGA TAAGCTTGCC ACAACCATGG CTGAACAAGA
 3661 TGGATTGCAC GCAGGTTCTC CGGCCGCTTG GGTGGAGAGG CTATTCGGCT ATGACTGGGC
 3721 ACAACAGACA ATCGGCTGCT CTGATGCCGC CGTGTTCCGG CTGTCAGCGC AGGGGCGCCC
 3781 GGTTCTTTTT GTCAAGACCG ACCTGTCCGG TGCCCTGAAT GAACTGCAGG ACGAGGCAGC
 3841 GCGGCTATCG TGGCTGGCCA CGACGGGCGT TCCTTGCGCA GCTGTGCTCG ACGTTGTCAC
 3901 TGAAGCGGGA AGGGACTGGC TGCTATTGGG CGAAGTGCCG GGGCAGGATC TCCTGTCATC
 3961 TCACCTTGCT CCTGCCGAGA AAGTATCCAT CATGGCTGAT GCAATGCGGC GGCTGCATAC
 4021 GCTTGATCCG GCTACCTGCC CATTCGACCA CCAAGCGAAA CATCGCATCG AGCGAGCACG
 4081 TACTCGGATG GAAGCCGGTC TTGTCGATCA GGATGATCTG GACGAAGAGC ATCAGGGGCT
 4141 CGCGCCAGCC GAACTGTTCG CCAGGCTCAA GGCGCGCATG CCCGACGGCG AGGATCTCGT
 4201 CGTGACCCAT GGCGATGCCT GCTTGCCGAA TATCATGGTG GAAAATGGCC GCTTTTCTGG
 4261 ATTCATCGAC TGTGGCCGGC TGGGTGTGGC GGACCGCTAT CAGGACATAG CGTTGGCTAC
 4321 CCGTGATATT GCTGAAGAGC TTGGCGGCGA ATGGGCTGAC CGCTTCCTCG TGCTTTACGG
 4381 TATCGCCGCT CCCGATTCGC AGCGCATCGC CTTCTATCGC CTTCTTGACG AGTTCTTCTG
 4441 AGCGGGATCG GCTAGAGTCG ACCCGGACGG GACGCTCCTG CGCCTGATAC AGAACGAATT
 4501 GCTTGCAGGC ATCTCATGAG TGTGTCTTCC CGTTTTCCGC CTGAGGTCAC TGCGTGGATG
 4561 GAGCGCTGGC GCCTGCTGCG CGACGGCGAG CTGCTCACCA CCCACTCGAG GGCTGCAGCG
 4621 CTGCAGAGGC CGAGTGCAGA ACTGCTCCAA AGGGACCTCA AGGCTTTCCG AGGGACACTA
 4681 GGCTGACTCC ATCGAGCCAG TGTAGAGATA AGCTTATCGA TTAGTCCAAT TTGTTAAAGA
 4741 CAGGATATCA GTGGTCCAGG CTCTAGTTTT GACTCAACAA TATCACCAGC TGAAGCCTAT
 4801 AGAGTACGAG CCATAGATAA AATAAAAGAT TTTATTTAGT CTCCAGAAAA AGGGGGGAAT
 4861 GAAAGACCCC ACCTGTAGGT TTGGCAAGCT AGCTTAAGTA ACGCCATTTT GCAAGGCATG
 4921 GAAAAATACA TAACTGAGAA TAGAGAAGTT CAGATCAAGG TCAGGAACAG ATGGAACAGG
 4981 GTCGACCCTA GAGAACCATC AGATGTTTCC AGGGTGCCCC AAGGACCTGA AATGACCCTG
 5041 TGCCTTATTT GAACTAACCA ATCAGTTCGC TTCTCGCTTC TGTTCGCGCG CTTCTGCTCC
 5101 CCGAGCTCAA TAAAAGAGCC CACAACCCCT CACTCGGGGC GCCAGTCCTC CGATTGACTG
 5161 AGTCGCCCGG GTACCCGTGT ATCCAATAAA CCCTCTTGCA GTTGCATCCG ACTTGTGGTC
 5221 TCGCTGTTCC TTGGGAGGGT CTCCTCTGAG TGATTGACTA CCCGTCAGCG GGGGTCTTTC
 5281 ATTTGGGGGC TCGTCCGGGA TCGGGAGACC CCTGCCCAGG GACCACCGAC CCACCACCGG
 5341 GAGGTAAGCT GGCTGCCTCG CGCGTTTCGG TGATGACGGT GAAAACCTCT GACACATGCA
 5401 GCTCCCGGAG ACGGTCACAG CTTGTCTGTA AGCGGATGCC GGGAGCAGAC AAGCCCGTCA
 5461 GGGCGCGTCA GCGGGTGTTG GCGGGTGTCG GGGCGCAGCC ATGACCCAGT CACGTAGCGA
 5521 TAGCGGAGTG TAGATCCGGC TGTGGAATGT GTGTCAGTTA GGGTGTGGAA AGTCCCCAGG
 5581 CTCCCCAGCA GGCAGAAGTA TGCAAAGCAT GCATCTCAAT TAGTCAGCAA CCAGGTGTGG
 5641 AAAGTCCCCA GGCTCCCCAG CAGGCAGAAG TATGCAAAGC ATGCATCTCA ATTAGTCAGC
 5701 AACCATAGTC CCGCCCCTAA CTCCGCCCAT CCCGCCCCTA ACTCCGCCCA GTTCCGCCCA
 5761 TTCTCCGCCC CATGGCTGAC TAATTTTTTT TATTTATGCA GAGGCCGAGG CCGCCTCGGC
 5821 CTCTGAGCTA TTCCAGAAGT AGTGAGGAGG CTTTTTTGGA GGCCTAGGCT TTTGCAAAAA
 5881 GCTTACTGGC TTAACTATGC GGCATCAGAG CAGATTGTAC TGAGAGTGCA CCATATGCGG
 5941 TGTGAAATAC CGCACAGATG CGTAAGGAGA AAATACCGCA TCAGGCGCTC TTCCGCTTCC
 6001 TCGCTCACTG ACTCGCTGCG CTCGGTCGTT CGGCTGCGGC GAGCGGTATC AGCTCACTCA
 6061 AAGGCGGTAA TACGGTTATC CACAGAATCA GGGGATAACG CAGGAAAGAA CATGTGAGCA
 6121 AAAGGCCAGC AAAAGGCCAG GAACCGTAAA AAGGCCGCGT TGCTGGCGTT TTTCCATAGG
 6181 CTCCGCCCCC CTGACGAGCA TCACAAAAAT CGACGCTCAA GTCAGAGGTG GCGAAACCCG
 6241 ACAGGACTAT AAAGATACCA GGCGTTTCCC CCTGGAAGCT CCCTCGTGCG CTCTCCTGTT
 6301 CCGACCCTGC CGCTTACCGG ATACCTGTCC GCCTTTCTCC CTTCGGGAAG CGTGGCGCTT
 6361 TCTCATAGCT CACGCTGTAG GTATCTCAGT TCGGTGTAGG TCGTTCGCTC CAAGCTGGGC
 6421 TGTGTGCACG AACCCCCCGT TCAGCCCGAC CGCTGCGCCT TATCCGGTAA CTATCGTCTT
 6481 GAGTCCAACC CGGTAAGACA CGACTTATCG CCACTGGCAG CAGCCACTGG TAACAGGATT
 6541 AGCAGAGCGA GGTATGTAGG CGGTGCTACA GAGTTCTTGA AGTGGTGGCC TAACTACGGC
 6601 TACACTAGAA GGACAGTATT TGGTATCTGC GCTCTGCTGA AGCCAGTTAC CTTCGGAAAA
 6661 AGAGTTGGTA GCTCTTGATC CGGCAAACAA ACCACCGCTG GTAGCGGTGG TTTTTTTGTT
 6721 TGCAAGCAGC AGATTACGCG CAGAAAAAAA GGATCTCAAG AAGATCCTTT GATCTTTTCT
 6781 ACGGGGTCTG ACGCTCAGTG GAACGAAAAC TCACGTTAAG GGATTTTGGT CATGAGATTA
 6841 TCAAAAAGGA TCTTCACCTA GATCCTTTTA AATTAAAAAT GAAGTTTTAA ATCAATCTAA
 6901 AGTATATATG AGTAAACTTG GTCTGACAGT TACCAATGCT TAATCAGTGA GGCACCTATC
 6961 TCAGCGATCT GTCTATTTCG TTCATCCATA GTTGCCTGAC TCCCCGTCGT GTAGATAACT
 7021 ACGATACGGG AGGGCTTACC ATCTGGCCCC AGTGCTGCAA TGATACCGCG AGACCCACGC
 7081 TCACCGGCTC CAGATTTATC AGCAATAAAC CAGCCAGCCG GAAGGGCCGA GCGCAGAAGT
 7141 GGTCCTGCAA CTTTATCCGC CTCCATCCAG TCTATTAATT GTTGCCGGGA AGCTAGAGTA
 7201 AGTAGTTCGC CAGTTAATAG TTTGCGCAAC GTTGTTGCCA TTGCTGCAGG CATCGTGGTG
 7261 TCACGCTCGT CGTTTGGTAT GGCTTCATTC AGCTCCGGTT CCCAACGATC AAGGCGAGTT
 7321 ACATGATCCC CCATGTTGTG CAAAAAAGCG GTTAGCTCCT TCGGTCCTCC GATCGTTGTC
 7381 AGAAGTAAGT TGGCCGCAGT GTTATCACTC ATGGTTATGG CAGCACTGCA TAATTCTCTT
 7441 ACTGTCATGC CATCCGTAAG ATGCTTTTCT GTGACTGGTG AGTACTCAAC CAAGTCATTC
 7501 TGAGAATAGT GTATGCGGCG ACCGAGTTGC TCTTGCCCGG CGTCAACACG GGATAATACC
 7561 GCGCCACATA GCAGAACTTT AAAAGTGCTC ATCATTGGAA AACGTTCTTC GGGGCGAAAA
 7621 CTCTCAAGGA TCTTACCGCT GTTGAGATCC AGTTCGATGT AACCCACTCG TGCACCCAAC
 7681 TGATCTTCAG CATCTTTTAC TTTCACCAGC GTTTCTGGGT GAGCAAAAAC AGGAAGGCAA
 7741 AATGCCGCAA AAAAGGGAAT AAGGGCGACA CGGAAATGTT GAATACTCAT ACTCTTCCTT
 7801 TTTCAATATT ATTGAAGCAT TTATCAGGGT TATTGTCTCA TGAGCGGATA CATATTTGAA
 7861 TGTATTTAGA AAAATAAACA AATAGGGGTT CCGCGCACAT TTCCCCGAAA AGTGCCACCT
 7921 GACGTCTAAG AAACCATTAT TATCATGACA TTAACCTATA AAAATAGGCG TATCACGAGG
 7981 CCCTTTCGTC TTCAAGAATT AGCTTGGCCA TTGCATACGT TGTATCCATA TCATAATATG
 8041 TACATTTATA TTGGCTCATG TCCAACATTA CCGCCATGTT GACATTGATT ATTGACTAGT
 8101 TATTAATAGT AATCAATTAC GGGGTCATTA GTTCATAGCC CATATATGGA GT

//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
