pBadMyc-His C载体基本信息

出品公司: Invitrogen
载体名称: pBAD/Myc-His C
质粒类型: 大肠杆菌表达载体;诱导表达载体
高拷贝/低拷贝: 低拷贝
克隆方法: 限制性内切酶;多克隆位点
启动子: araBAD
载体大小: 4093 bp
5' 测序引物及序列: pBAD Forward: 5′-ATGCCATAGCATTTTTATCC-3′
3' 测序引物及序列: pBAD Reverse 5′-GATTTAATCTGTATCAGG-3′
载体标签: 6x His Tag(C-端),c-Myc Epitope(C-端)
载体抗性: 氨苄青霉素(Ampicillin)
克隆菌株: TOP10
表达菌株: 推荐LMG194
备注: pBAD/Myc-His C载体是阿拉伯糖调控载体;
在无葡萄糖的培养基中,阿拉伯糖正向调控目的基因的表达;
通过调节阿拉伯糖的浓度水平来优化目的蛋白的可溶性表达。
产品目录号: V440-01
稳定性: 稳表达
组成型/诱导型: 诱导型(阿拉伯糖)
病毒/非病毒: 非病毒

pBadMyc-His C载体质粒图谱和多克隆位点信息

pBAD-Myc-His 载体图谱

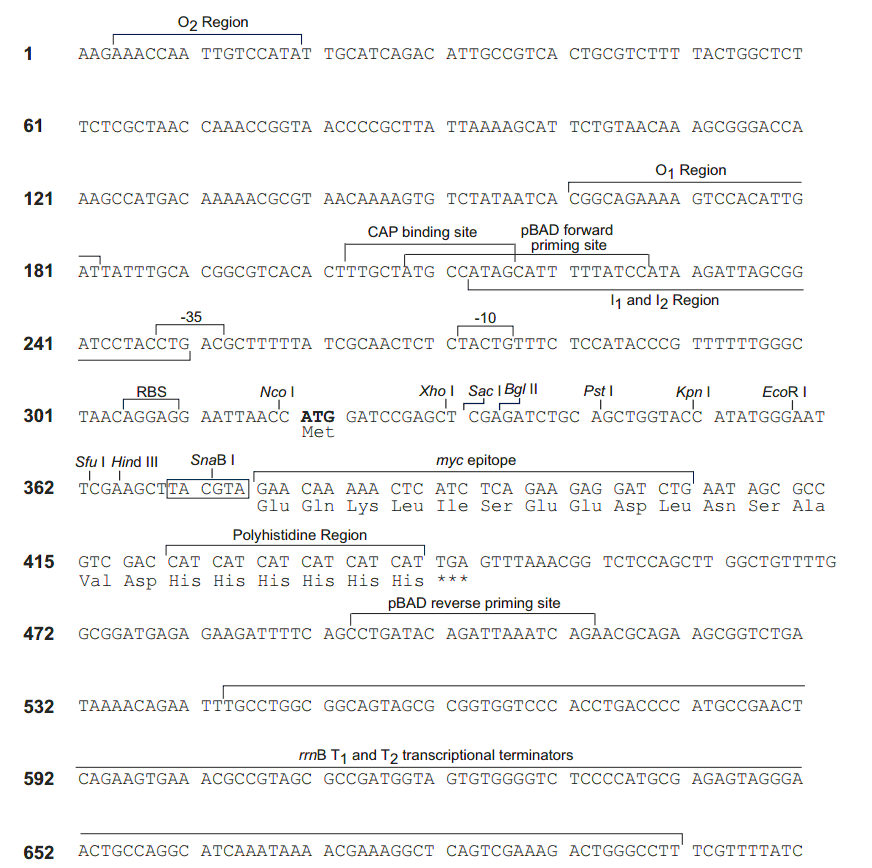

pBAD-Myc-His C 多克隆位点

pBAD-Myc-His 载体特征1
pBAD-Myc-His 载体特征2

pBadMyc-His C载体简介

pBAD/His和PBAD/Myc-His载体质粒是衍生于pBR322载体。载体设计用来在大肠杆菌中进行可调节,剂量依赖性的表达和纯化重组目的蛋白。使用大肠杆菌araBAD启动子(pBAD)增强了大肠杆菌重组蛋白可溶性表达的水平。pBAD/His和pBAD/Myc His载体上的调节蛋白AraC能够调控pBad启动子。


pBAD/Myc-His A,B,C 载体简介

The pBAD/His and pBAD/Myc-His plasmids are pBR322-derived expression vectors designed for regulated, dose-dependent recombinant protein expression and purification in E. coli. Optimum levels of soluble, recombinant protein are possible using the araBAD promoter (PBAD) from E. coli. The regulatory protein, AraC, is provided on the pBAD/His and pBAD/Myc-His vectors allowing regulation of PBAD.

The pBAD/Myc-His Kit provides all of the necessary reagents to express your protein in a tightly regulated fashion. The pBAD/Myc-His vector expresses native proteins or fusion proteins with a C-terminal tag. The vector provides:
 The araBAD promoter for tightly regulated expression
 Translation initiation signals optimized for E. coliexpression
 C-terminal polyhistidine (6xHis) tag for purification with nickel-chelating resin or detection with an Anti-His(C-term) Antibody
 C-terminal c-myc epitope for detection and analysis with an Anti-myc Antibody

Three vectors are provided (A, B, and C). Each has the C-terminal tag in a different reading frame relative to the multiple cloning site to simplify in-frame cloning of your gene.

L-阿拉伯糖调控表达
In the presence of L-arabinose, expression from PBAD is turned on while the absence of L-arabinose produces very low levels of transcription from PBAD (Lee, 1980; Lee et al., 1987). Uninduced levels are repressed even further by growth in the presence of glucose. Glucose reduces the levels of 3′,5′-cyclic AMP, thus lowering expression of the catabolite-repressed PBAD promoter (Miyada et al., 1984). By varying the concentration of L-arabinose, protein expression levels can be optimized to ensure maximum expression of soluble protein. In addition, the tight regulation of PBAD by AraC is useful for expression of potentially toxic or essential genes (Carson et al., 1991; Dalbey and Wickner, 1985; Guzman et al., 1992; Kuhn and Wickner, 1985; Russell et al., 1989; San Millan et al., 1989). For more information on the mechanism of expression and repression of the ara regulon, refer to Schleif, 1992.

pBadMyc-His C载体序列

LOCUS       pBAD/myc-His C	4093 bp 	DNA	circular	SYN
DEFINITION  pBAD/myc-His C
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.

COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..4093
                     /organism="pBAD/myc-His C"
                     /mol_type="other DNA"
     misc_feature    4..19
                     /label="araO2"
     misc_feature    161..172
                     /label="araO1"
     misc_feature    203..216
                     /label="CAP_BS"
     misc_feature    208..227
                     /label="pBAD_fwd_primer"
     misc_feature    213..251
                     /label="AraI1I2"
     promoter        248..276
                     /label="ARA_promoter"
     misc_feature    complement(494..511)
                     /label="pTrcHis_rev_primer"
     misc_feature    complement(494..511)
                     /label="pBAD_rev_primer"
     terminator      544..701
                     /label="rrnB_terminator"
     terminator      667..710
                     /label="rrnB_T1_terminator"
     terminator      842..869
                     /label="rrnB_T2_terminator"
     promoter        910..938
                     /label="AmpR_promoter"
     gene            980..1840
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             980..1840
                     /label="ORF frame 2"

     rep_origin      1995..2614
                     /label="pBR322_origin"

     misc_feature    3011..3033
                     /label="pGEX_3_primer"

     misc_feature    complement(3189..4067)
                     /label="AraC"

     CDS             complement(3189..25)
                     /label="ORF frame 1"

     CDS             complement(3189..4076)
                     /label="ORF frame 3"

ORIGIN
    1 AAGAAACCAA TTGTCCATAT TGCATCAGAC ATTGCCGTCA CTGCGTCTTT TACTGGCTCT
   61 TCTCGCTAAC CAAACCGGTA ACCCCGCTTA TTAAAAGCAT TCTGTAACAA AGCGGGACCA
  121 AAGCCATGAC AAAAACGCGT AACAAAAGTG TCTATAATCA CGGCAGAAAA GTCCACATTG
  181 ATTATTTGCA CGGCGTCACA CTTTGCTATG CCATAGCATT TTTATCCATA AGATTAGCGG
  241 ATCCTACCTG ACGCTTTTTA TCGCAACTCT CTACTGTTTC TCCATACCCG TTTTTTGGGC
  301 TAACAGGAGG AATTAACCAT GGATCCGAGC TCGAGATCTG CAGCTGGTAC CATATGGGAA
  361 TTCGAAGCTT ACGTAGAACA AAAACTCATC TCAGAAGAGG ATCTGAATAG CGCCGTCGAC
  421 CATCATCATC ATCATCATTG AGTTTAAACG GTCTCCAGCT TGGCTGTTTT GGCGGATGAG
  481 AGAAGATTTT CAGCCTGATA CAGATTAAAT CAGAACGCAG AAGCGGTCTG ATAAAACAGA
  541 ATTTGCCTGG CGGCAGTAGC GCGGTGGTCC CACCTGACCC CATGCCGAAC TCAGAAGTGA
  601 AACGCCGTAG CGCCGATGGT AGTGTGGGGT CTCCCCATGC GAGAGTAGGG AACTGCCAGG
  661 CATCAAATAA AACGAAAGGC TCAGTCGAAA GACTGGGCCT TTCGTTTTAT CTGTTGTTTG
  721 TCGGTGAACG CTCTCCTGAG TAGGACAAAT CCGCCGGGAG CGGATTTGAA CGTTGCGAAG
  781 CAACGGCCCG GAGGGTGGCG GGCAGGACGC CCGCCATAAA CTGCCAGGCA TCAAATTAAG
  841 CAGAAGGCCA TCCTGACGGA TGGCCTTTTT GCGTTTCTAC AAACTCTTTT GTTTATTTTT
  901 CTAAATACAT TCAAATATGT ATCCGCTCAT GAGACAATAA CCCTGATAAA TGCTTCAATA
  961 ATATTGAAAA AGGAAGAGTA TGAGTATTCA ACATTTCCGT GTCGCCCTTA TTCCCTTTTT
 1021 TGCGGCATTT TGCCTTCCTG TTTTTGCTCA CCCAGAAACG CTGGTGAAAG TAAAAGATGC
 1081 TGAAGATCAG TTGGGTGCAC GAGTGGGTTA CATCGAACTG GATCTCAACA GCGGTAAGAT
 1141 CCTTGAGAGT TTTCGCCCCG AAGAACGTTT TCCAATGATG AGCACTTTTA AAGTTCTGCT
 1201 ATGTGGCGCG GTATTATCCC GTGTTGACGC CGGGCAAGAG CAACTCGGTC GCCGCATACA
 1261 CTATTCTCAG AATGACTTGG TTGAGTACTC ACCAGTCACA GAAAAGCATC TTACGGATGG
 1321 CATGACAGTA AGAGAATTAT GCAGTGCTGC CATAACCATG AGTGATAACA CTGCGGCCAA
 1381 CTTACTTCTG ACAACGATCG GAGGACCGAA GGAGCTAACC GCTTTTTTGC ACAACATGGG
 1441 GGATCATGTA ACTCGCCTTG ATCGTTGGGA ACCGGAGCTG AATGAAGCCA TACCAAACGA
 1501 CGAGCGTGAC ACCACGATGC CTGTAGCAAT GGCAACAACG TTGCGCAAAC TATTAACTGG
 1561 CGAACTACTT ACTCTAGCTT CCCGGCAACA ATTAATAGAC TGGATGGAGG CGGATAAAGT
 1621 TGCAGGACCA CTTCTGCGCT CGGCCCTTCC GGCTGGCTGG TTTATTGCTG ATAAATCTGG
 1681 AGCCGGTGAG CGTGGGTCTC GCGGTATCAT TGCAGCACTG GGGCCAGATG GTAAGCCCTC
 1741 CCGTATCGTA GTTATCTACA CGACGGGGAG TCAGGCAACT ATGGATGAAC GAAATAGACA
 1801 GATCGCTGAG ATAGGTGCCT CACTGATTAA GCATTGGTAA CTGTCAGACC AAGTTTACTC
 1861 ATATATACTT TAGATTGATT TAAAACTTCA TTTTTAATTT AAAAGGATCT AGGTGAAGAT
 1921 CCTTTTTGAT AATCTCATGA CCAAAATCCC TTAACGTGAG TTTTCGTTCC ACTGAGCGTC
 1981 AGACCCCGTA GAAAAGATCA AAGGATCTTC TTGAGATCCT TTTTTTCTGC GCGTAATCTG
 2041 CTGCTTGCAA ACAAAAAAAC CACCGCTACC AGCGGTGGTT TGTTTGCCGG ATCAAGAGCT
 2101 ACCAACTCTT TTTCCGAAGG TAACTGGCTT CAGCAGAGCG CAGATACCAA ATACTGTCCT
 2161 TCTAGTGTAG CCGTAGTTAG GCCACCACTT CAAGAACTCT GTAGCACCGC CTACATACCT
 2221 CGCTCTGCTA ATCCTGTTAC CAGTGGCTGC TGCCAGTGGC GATAAGTCGT GTCTTACCGG
 2281 GTTGGACTCA AGACGATAGT TACCGGATAA GGCGCAGCGG TCGGGCTGAA CGGGGGGTTC
 2341 GTGCACACAG CCCAGCTTGG AGCGAACGAC CTACACCGAA CTGAGATACC TACAGCGTGA
 2401 GCTATGAGAA AGCGCCACGC TTCCCGAAGG GAGAAAGGCG GACAGGTATC CGGTAAGCGG
 2461 CAGGGTCGGA ACAGGAGAGC GCACGAGGGA GCTTCCAGGG GGAAACGCCT GGTATCTTTA
 2521 TAGTCCTGTC GGGTTTCGCC ACCTCTGACT TGAGCGTCGA TTTTTGTGAT GCTCGTCAGG
 2581 GGGGCGGAGC CTATGGAAAA ACGCCAGCAA CGCGGCCTTT TTACGGTTCC TGGCCTTTTG
 2641 CTGGCCTTTT GCTCACATGT TCTTTCCTGC GTTATCCCCT GATTCTGTGG ATAACCGTAT
 2701 TACCGCCTTT GAGTGAGCTG ATACCGCTCG CCGCAGCCGA ACGACCGAGC GCAGCGAGTC
 2761 AGTGAGCGAG GAAGCGGAAG AGCGCCTGAT GCGGTATTTT CTCCTTACGC ATCTGTGCGG
 2821 TATTTCACAC CGCATATGGT GCACTCTCAG TACAATCTGC TCTGATGCCG CATAGTTAAG
 2881 CCAGTATACA CTCCGCTATC GCTACGTGAC TGGGTCATGG CTGCGCCCCG ACACCCGCCA
 2941 ACACCCGCTG ACGCGCCCTG ACGGGCTTGT CTGCTCCCGG CATCCGCTTA CAGACAAGCT
 3001 GTGACCGTCT CCGGGAGCTG CATGTGTCAG AGGTTTTCAC CGTCATCACC GAAACGCGCG
 3061 AGGCAGCAGA TCAATTCGCG CGCGAAGGCG AAGCGGCATG CATAATGTGC CTGTCAAATG
 3121 GACGAAGCAG GGATTCTGCA AACCCTATGC TACTCCGTCA AGCCGTCAAT TGTCTGATTC
 3181 GTTACCAATT ATGACAACTT GACGGCTACA TCATTCACTT TTTCTTCACA ACCGGCACGG
 3241 AACTCGCTCG GGCTGGCCCC GGTGCATTTT TTAAATACCC GCGAGAAATA GAGTTGATCG
 3301 TCAAAACCAA CATTGCGACC GACGGTGGCG ATAGGCATCC GGGTGGTGCT CAAAAGCAGC
 3361 TTCGCCTGGC TGATACGTTG GTCCTCGCGC CAGCTTAAGA CGCTAATCCC TAACTGCTGG
 3421 CGGAAAAGAT GTGACAGACG CGACGGCGAC AAGCAAACAT GCTGTGCGAC GCTGGCGATA
 3481 TCAAAATTGC TGTCTGCCAG GTGATCGCTG ATGTACTGAC AAGCCTCGCG TACCCGATTA
 3541 TCCATCGGTG GATGGAGCGA CTCGTTAATC GCTTCCATGC GCCGCAGTAA CAATTGCTCA
 3601 AGCAGATTTA TCGCCAGCAG CTCCGAATAG CGCCCTTCCC CTTGCCCGGC GTTAATGATT
 3661 TGCCCAAACA GGTCGCTGAA ATGCGGCTGG TGCGCTTCAT CCGGGCGAAA GAACCCCGTA
 3721 TTGGCAAATA TTGACGGCCA GTTAAGCCAT TCATGCCAGT AGGCGCGCGG ACGAAAGTAA
 3781 ACCCACTGGT GATACCATTC GCGAGCCTCC GGATGACGAC CGTAGTGATG AATCTCTCCT
 3841 GGCGGGAACA GCAAAATATC ACCCGGTCGG CAAACAAATT CTCGTCCCTG ATTTTTCACC
 3901 ACCCCCTGAC CGCGAATGGT GAGATTGAGA ATATAACCTT TCATTCCCAG CGGTCGGTCG
 3961 ATAAAAAAAT CGAGATAACC GTTGGCCTCA ATCGGCGTTA AACCCGCCAC CAGATGGGCA
 4021 TTAAACGAGT ATCCCGGCAG CAGGGGATCA TTTTGCGCTT CAGCCATACT TTTCATACTC
 4081 CCGCCATTCA GAG
//

pBadMyc-His C载体质粒图谱pdf版和相关资料下载

pBadMyc-His C载体应用举例
