pLVX-TRE3G-ZsGreen1

价格:1800元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-TRE3G-ZsGreen1, pLVX TRE3G ZsGreen1
质粒类型: 哺乳动物细胞慢病毒表达载体
高拷贝/低拷贝: 高拷贝
启动子: TRE3GV
克隆方法: 多克隆位点,限制性内切酶
载体大小: 9100 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄
筛选标记: 嘌呤霉素
备注: 包含有Tet-On 3G反式激活蛋白,多西环素(doxycycline)诱导基因表达的慢病毒载体,含有ZsGreen1绿色荧光蛋白标签。
产品目录号: 631350, 631353, 631356
稳定性: /
组成型: 诱导型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

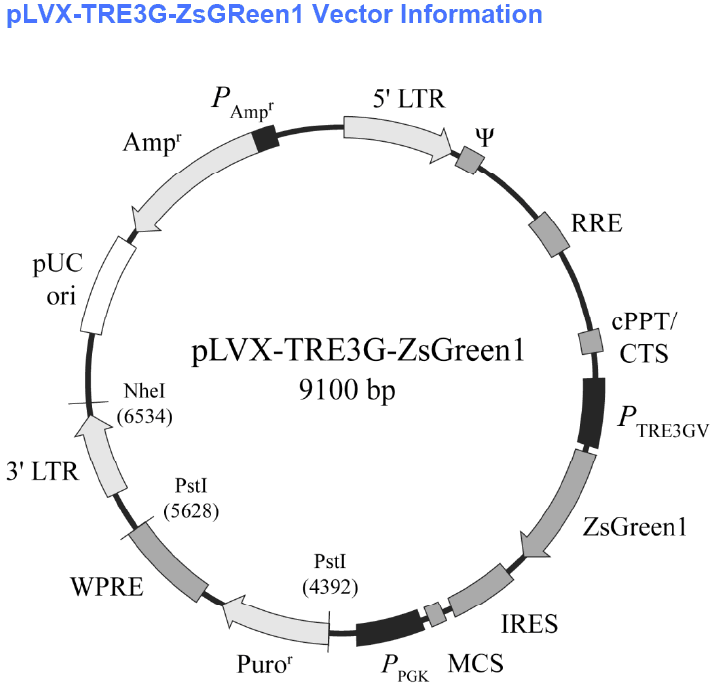

pLVX-TRE3G-ZsGreen1载体图谱

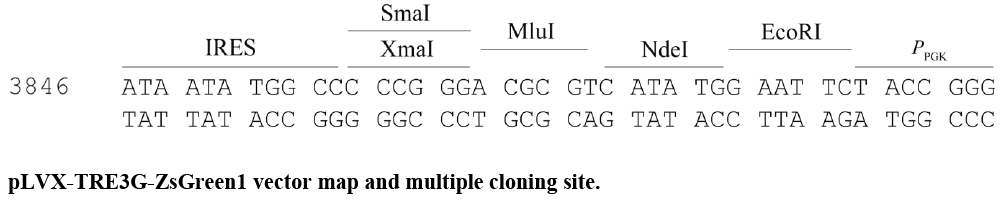

pLVX-TRE3G-ZsGreen1多克隆位点

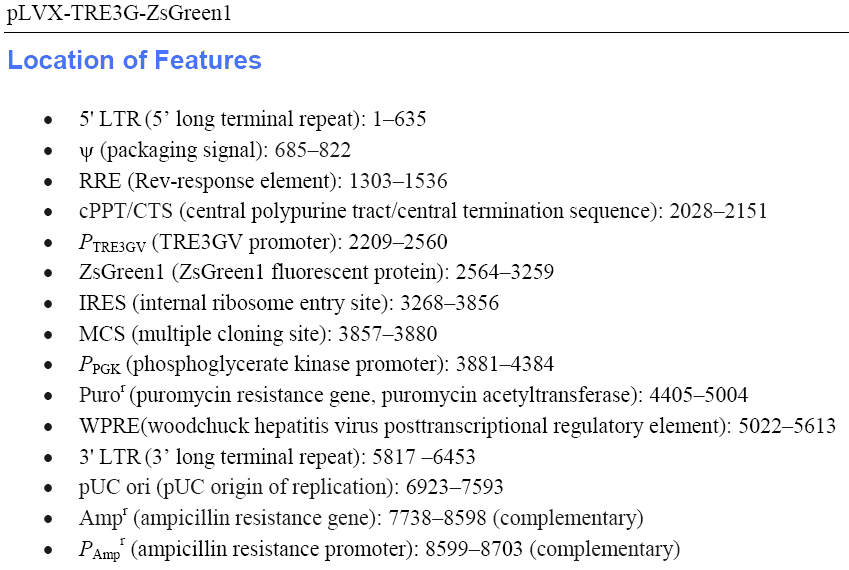

pLVX-TRE3G-ZsGreen1载体特征

载体简介

载体序列

LOCUS       pLVX-TRE3G-ZsGreen1   9100 bp    DNA   circular             9-MAY-2012
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     631361, 631350, 631353, 631356
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     misc_feature    1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=packaging\signal
     misc_feature    1303..1536
                     /label=RRE
     misc_feature    2028..2151
                     /label=cPPT/CTS
     misc_feature    3881..4384
                     /label=Ppgk
     misc_feature    4405..5004
                     /label=Puro(R)
     misc_feature    5022..5613
                     /label=WPRE
     3'clip          5817..6453
                     /label=3'\LTR
     misc_feature    complement(6923..7593)
                     /label=pUC\ori
     misc_feature    3268..3856
                     /label=IRES
     misc_feature    3857..3880
                     /label=MCS
     misc_feature    2209..2560
                     /label=pTRE3GV
     misc_feature    2564..3259
                     /label=ZsGreen1
     misc_feature    complement(8599..8703)
                     /label=pAmp(R)
     misc_feature    complement(7738..8598)
                     /label=Amp(R)
BASE COUNT     2257 a      2347 c      2391 g      2105 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgatgaggcc ctttcgtctt cactcgagtt tactccctat
     2221 cagtgataga gaacgtatga agagtttact ccctatcagt gatagagaac gtatgcagac
     2281 tttactccct atcagtgata gagaacgtat aaggagttta ctccctatca gtgatagaga
     2341 acgtatgacc agtttactcc ctatcagtga tagagaacgt atctacagtt tactccctat
     2401 cagtgataga gaacgtatat ccagtttact ccctatcagt gatagagaac gtatgtcgag
     2461 gtaggcgtgt acggtgggcg cctataaaag cagagctcgt ttagtgaacc gtcagatcgc
     2521 ctggagcaat tccacaacac ttttgtctta tacttggatc accatggctc agtcaaagca
     2581 cggcctgacc aaggagatga ccatgaagta ccgcatggag ggctgcgtgg acggccacaa
     2641 gttcgtgatc accggcgagg gcatcggcta ccccttcaag ggcaagcagg ccatcaacct
     2701 gtgcgtggtg gagggcggcc ccttgccctt cgccgaggac atcttgtccg ccgccttcat
     2761 gtacggcaac cgcgtgttca ccgagtaccc ccaggacatc gtcgactact tcaagaactc
     2821 ctgccccgcc ggctacacct gggaccgctc cttcctgttc gaggacggcg ccgtgtgcat
     2881 ctgcaacgcc gacatcaccg tgagcgtgga ggagaactgc atgtaccacg agtccaagtt
     2941 ctacggcgtg aacttccccg ccgacggccc cgtgatgaag aagatgaccg acaactggga
     3001 gccctcctgc gagaagatca tccccgtgcc caagcagggc atcttgaagg gcgacgtgag
     3061 catgtacctg ctgctgaagg acggtggccg cttgcgctgc cagttcgaca ccgtgtacaa
     3121 ggccaagtcc gtgccccgca agatgcccga ctggcacttc atccagcaca agctgacccg
     3181 cgaggaccgc agcgacgcca agaaccagaa gtggcacctg accgagcacg ccatcgcctc
     3241 cggatctgca ttgccctgag gccgccccgg ccggcccctc tccctccccc cccccctaac
     3301 gttactggcc gaagccgctt ggaataaggc cggtgtgcgt ttgtctatat gttattttcc
     3361 accatattgc cgtcttttgg caatgtgagg gcccggaaac ctggccctgt cttcttgacg
     3421 agcattccta ggggtctttc ccctctcgcc aaaggaatgc aaggtctgtt gaatgtcgtg
     3481 aaggaagcag ttcctctgga agcttcttga agacaaacaa cgtctgtagc gaccctttgc
     3541 aggcagcgga accccccacc tggcgacagg tgcctctgcg gccaaaagcc acgtgtataa
     3601 gatacacctg caaaggcggc acaaccccag tgccacgttg tgagttggat agttgtggaa
     3661 agagtcaaat ggctctcctc aagcgtattc aacaaggggc tgaaggatgc ccagaaggta
     3721 ccccattgta tgggatctga tctggggcct cggtacacat gctttacatg tgtttagtcg
     3781 aggttaaaaa aacgtctagg ccccccgaac cacggggacg tggttttcct ttgaaaaaca
     3841 cgatgataat atggcccccg ggacgcgtca tatggaattc taccgggtag gggaggcgct
     3901 tttcccaagg cagtctggag catgcgcttt agcagccccg ctgggcactt ggcgctacac
     3961 aagtggcctc tggcctcgca cacattccac atccaccggt aggcgccaac cggctccgtt
     4021 ctttggtggc cccttcgcgc caccttctac tcctccccta gtcaggaagt tcccccccgc
     4081 cccgcagctc gcgtcgtgca ggacgtgaca aatggaagta gcacgtctca ctagtctcgt
     4141 gcagatggac agcaccgctg agcaatggaa gcgggtaggc ctttggggca gcggccaata
     4201 gcagctttgc tccttcgctt tctgggctca gaggctggga aggggtgggt ccgggggcgg
     4261 gctcaggggc gggctcaggg gcggggcggg cgcccgaagg tcctccggag gcccggcatt
     4321 ctgcacgctt caaaagcgca cgtctgccgc gctgttctcc tcttcctcat ctccgggcct
     4381 ttcgacctgc agcccaagct taccatgacc gagtacaagc ccacggtgcg cctcgccacc
     4441 cgcgacgacg tccccagggc cgtacgcacc ctcgccgccg cgttcgccga ctaccccgcc
     4501 acgcgccaca ccgtcgatcc ggaccgccac atcgagcggg tcaccgagct gcaagaactc
     4561 ttcctcacgc gcgtcgggct cgacatcggc aaggtgtggg tcgcggacga cggcgccgcg
     4621 gtggcggtct ggaccacgcc ggagagcgtc gaagcggggg cggtgttcgc cgagatcggc
     4681 ccgcgcatgg ccgagttgag cggttcccgg ctggccgcgc agcaacagat ggaaggcctc
     4741 ctggcgccgc accggcccaa ggagcccgcg tggttcctgg ccaccgtcgg cgtctcgccc
     4801 gaccaccagg gcaagggtct gggcagcgcc gtcgtgctcc ccggagtgga ggcggccgag
     4861 cgcgccgggg tgcccgcctt cctggagacc tccgcgcccc gcaacctccc cttctacgag
     4921 cggctcggct tcaccgtcac cgccgacgtc gaggtgcccg aaggaccgcg cacctggtgc
     4981 atgacccgca agcccggtgc ctgacggggc gcgtctggaa caatcaacct ctggattaca
     5041 aaatttgtga aagattgact ggtattctta actatgttgc tccttttacg ctatgtggat
     5101 acgctgcttt aatgcctttg tatcatgcta ttgcttcccg tatggctttc attttctcct
     5161 ccttgtataa atcctggttg ctgtctcttt atgaggagtt gtggcccgtt gtcaggcaac
     5221 gtggcgtggt gtgcactgtg tttgctgacg caacccccac tggttggggc attgccacca
     5281 cctgtcagct cctttccggg actttcgctt tccccctccc tattgccacg gcggaactca
     5341 tcgccgcctg ccttgcccgc tgctggacag gggctcggct gttgggcact gacaattccg
     5401 tggtgttgtc ggggaagctg acgtcctttc catggctgct cgcctgtgtt gccacctgga
     5461 ttctgcgcgg gacgtccttc tgctacgtcc cttcggccct caatccagcg gaccttcctt
     5521 cccgcggcct gctgccggct ctgcggcctc ttccgcgtct tcgccttcgc cctcagacga
     5581 gtcggatctc cctttgggcc gcctccccgc ctggaattaa ttctgcagtc gagacctaga
     5641 aaaacatgga gcaatcacaa gtagcaatac agcagctacc aatgctgatt gtgcctggct
     5701 agaagcacaa gaggaggagg aggtgggttt ttccagtcac acctcaggta cctttaagac
     5761 caatgactta caaggcagct gtagatctta gccacttttt aaaagaaaag aggggactgg
     5821 aagggctaat tcactcccaa cgaagacaag atatccttga tctgtggatc taccacacac
     5881 aaggctactt ccctgattag cagaactaca caccagggcc aggggtcaga tatccactga
     5941 cctttggatg gtgctacaag ctagtaccag ttgagccaga taaggtagaa gaggccaata
     6001 aaggagagaa caccagcttg ttacaccctg tgagcctgca tgggatggat gacccggaga
     6061 gagaagtgtt agagtggagg tttgacagcc gcctagcatt tcatcacgtg gcccgagagc
     6121 tgcatccgga gtacttcaag aactgctgat atcgagcttg ctacaaggga ctttccgctg
     6181 gggactttcc agggaggcgt ggcctgggcg ggactgggga gtggcgagcc ctcagatcct
     6241 gcatataagc agctgctttt tgcctgtact gggtctctct ggttagacca gatctgagcc
     6301 tgggagctct ctggctaact agggaaccca ctgcttaagc ctcaataaag cttgccttga
     6361 gtgcttcaag tagtgtgtgc ccgtctgttg tgtgactctg gtaactagag atccctcaga
     6421 cccttttagt cagtgtggaa aatctctagc agtagtagtt catgtcatct tattattcag
     6481 tatttataac ttgcaaagaa atgaatatca gagagtgaga ggccttgaca ttgctagcgt
     6541 tttaccgtcg acctctagct agagcttggc gtaatcatgg tcatagctgt ttcctgtgtg
     6601 aaattgttat ccgctcacaa ttccacacaa catacgagcc ggaagcataa agtgtaaagc
     6661 ctggggtgcc taatgagtga gctaactcac attaattgcg ttgcgctcac tgcccgcttt
     6721 ccagtcggga aacctgtcgt gccagctgca ttaatgaatc ggccaacgcg cggggagagg
     6781 cggtttgcgt attgggcgct cttccgcttc ctcgctcact gactcgctgc gctcggtcgt
     6841 tcggctgcgg cgagcggtat cagctcactc aaaggcggta atacggttat ccacagaatc
     6901 aggggataac gcaggaaaga acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa
     6961 aaaggccgcg ttgctggcgt ttttccatag gctccgcccc cctgacgagc atcacaaaaa
     7021 tcgacgctca agtcagaggt ggcgaaaccc gacaggacta taaagatacc aggcgtttcc
     7081 ccctggaagc tccctcgtgc gctctcctgt tccgaccctg ccgcttaccg gatacctgtc
     7141 cgcctttctc ccttcgggaa gcgtggcgct ttctcatagc tcacgctgta ggtatctcag
     7201 ttcggtgtag gtcgttcgct ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga
     7261 ccgctgcgcc ttatccggta actatcgtct tgagtccaac ccggtaagac acgacttatc
     7321 gccactggca gcagccactg gtaacaggat tagcagagcg aggtatgtag gcggtgctac
     7381 agagttcttg aagtggtggc ctaactacgg ctacactaga agaacagtat ttggtatctg
     7441 cgctctgctg aagccagtta ccttcggaaa aagagttggt agctcttgat ccggcaaaca
     7501 aaccaccgct ggtagcggtt tttttgtttg caagcagcag attacgcgca gaaaaaaagg
     7561 atctcaagaa gatcctttga tcttttctac ggggtctgac gctcagtgga acgaaaactc
     7621 acgttaaggg attttggtca tgagattatc aaaaaggatc ttcacctaga tccttttaaa
     7681 ttaaaaatga agttttaaat caatctaaag tatatatgag taaacttggt ctgacagtta
     7741 ccaatgctta atcagtgagg cacctatctc agcgatctgt ctatttcgtt catccatagt
     7801 tgcctgactc cccgtcgtgt agataactac gatacgggag ggcttaccat ctggccccag
     7861 tgctgcaatg ataccgcgag acccacgctc accggctcca gatttatcag caataaacca
     7921 gccagccgga agggccgagc gcagaagtgg tcctgcaact ttatccgcct ccatccagtc
     7981 tattaattgt tgccgggaag ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt
     8041 tgttgccatt gctacaggca tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag
     8101 ctccggttcc caacgatcaa ggcgagttac atgatccccc atgttgtgca aaaaagcggt
     8161 tagctccttc ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt tatcactcat
     8221 ggttatggca gcactgcata attctcttac tgtcatgcca tccgtaagat gcttttctgt
     8281 gactggtgag tactcaacca agtcattctg agaatagtgt atgcggcgac cgagttgctc
     8341 ttgcccggcg tcaatacggg ataataccgc gccacatagc agaactttaa aagtgctcat
     8401 cattggaaaa cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag
     8461 ttcgatgtaa cccactcgtg cacccaactg atcttcagca tcttttactt tcaccagcgt
     8521 ttctgggtga gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg
     8581 gaaatgttga atactcatac tcttcctttt tcaatattat tgaagcattt atcagggtta
     8641 ttgtctcatg agcggataca tatttgaatg tatttagaaa aataaacaaa taggggttcc
     8701 gcgcacattt ccccgaaaag tgccacctga cgtcgacgga tcgggagatc aacttgttta
     8761 ttgcagctta taatggttac aaataaagca atagcatcac aaatttcaca aataaagcat
     8821 ttttttcact gcattctagt tgtggtttgt ccaaactcat caatgtatct tatcatgtct
     8881 ggatcaactg gataactcaa gctaaccaaa atcatcccaa acttcccacc ccatacccta
     8941 ttaccactgc caattaccta gtggtttcat ttactctaaa cctgtgattc ctctgaatta
     9001 ttttcatttt aaagaaattg tatttgttaa atatgtacta caaacttagt agtttttaaa
     9061 gaaattgtat ttgttaaata tgtactacaa acttagtagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
